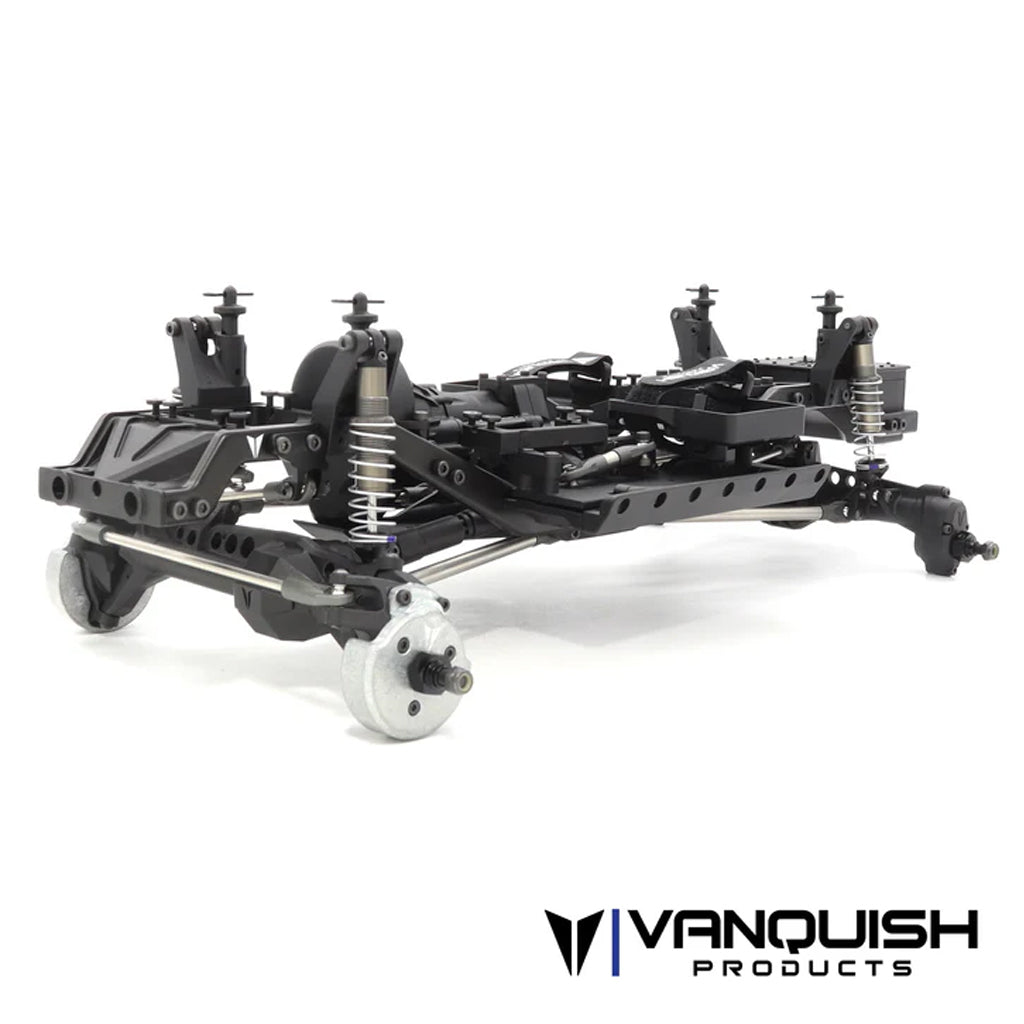

VS4-10 BUILDERS KIT - PORTAL AXLE
Precision Engineering Meets Ultimate Performance
The VS4-10 Portal Axle Builders Kit is built for performance and durability, featuring the highest-spec VFD Twin transmission and F10 Portal Axles available in a kit. Designed for demanding terrain, this kit brings drivetrain innovations, exceptional ground clearance, and a low center of gravity to maximize control and capability.

Drivetrain
At the heart of the VS4-10 Portal Axle Builders kit is the VFD Twin transmission, an advanced system with Selectable Overdrive Shifting (6.5% to 46%) and a 3-position dig unit—all in a compact, efficient package. Machined internal gears, metal bearing plates, and a durable machined aluminum motorplate ensure lasting performance.

Power is transferred through ISD10 driveshafts, featuring machined CV-style joints for smooth and efficient operation. The F10 Portal Axles optimize clearance with a compact design while integrating machined hypoid gears, chromoly spools, and brass axle tube inserts for added strength and weight distribution.

Key Drivetrain Features:
VFD Twin Transmission
Machined Motorplate
Machined VFD Front Gears
Machined VFD Twin T-Case Gears
Aluminum VFD Posts
F10 Portal Axle Housings
Machined Hypoid Axle Gears
Machined Portal Gears
Heavy Alloy Portal Knuckle Weights
Brass Axle Tubes
ISD10 Driveshafts

VFD Twin Transmission
The VFD Twin Transmission builds upon the proven VFD platform, integrating advanced drivetrain control with a focus on performance, durability, and scale realism. This system features Selectable Overdrive Shifting and a 3-position dig unit, providing real-time tuning for any terrain.

With on-the-fly overdrive shifting, drivers can toggle between 6.5% (standard) and 46% (high overdrive), dramatically changing the driving dynamics. The overdrive neutral position also allows for 2WD mode, disengaging the front output when needed. The integrated 3-position dig locks the rear axle for tight turns or full control on steep inclines, borrowing from Vanquish Products' proven Hurtz dig design for reliable, smooth operation.

Internally, the VFD Twin is built for durability with hardened chromoly shafts, machined internal gears, and bearing plates reinforcing critical load points. A slipper eliminator ensures maximum power transfer, while the molded transmission housing maintains a scale appearance. The extended skid plate provides added protection for the motor in rough terrain.

Compatible with 540 brushed and brushless motors*

On the fly Selectable Overdrive
Standard Overdrive 6.5%
Selectable High Overdrive 46%
Use Overdrive neutral position for 2WD (disengage front output)
Dig with 3 Positions
Slipper Eliminator
Machined Internal Gears
Hardened Chromoly Shafts
Molded VFD Twin Extended Skid Plate for Motor Protection
Sintered Shift arms with Brass pivot shift bushing
Chromoly slide dogs for Overdrive and Dig shifting
Scale Molded Transmission Housing
Machined Bearing Plates
Machined motor plate
Molded Spur Gear Cover
32P 52T Spur and 15T Steel Pinion
Silicone dust shields for shift arms***

F10 Portal Axles
The F10 Portal Axles are designed with a focus on durability, clearance, and smooth performance, leveraging Vanquish Products’ extensive experience in high-performance axle design. These axles feature a high-clearance portal configuration, reducing the size of the differential housing while maximizing ground clearance around the C-hubs and knuckles. This design improves obstacle clearance, minimizes hang-ups, and keeps your rig performing in technical terrain.

The rigid one-piece molded housings incorporate an integrated truss that strengthens the axle structure by tying both ends together. The high-pinion hypoid gear setup improves gear engagement, reduces driveline stress, and provides smoother power delivery.

For increased traction and stability, both front and rear axles include weighted brass tube inserts, while the front axle also features heavy alloy knuckle weights. This strategic weight placement lowers the center of gravity, improving climbing performance and reducing the risk of rollovers. The 49° of steering angle provides exceptional maneuverability, giving you tighter turning capability in challenging conditions.

Additional scale details include a removable third member, one-piece molded bearing retainers, and adjustable lower shock mounting positions for fine-tuning suspension geometry. The 6mm output shafts with M5 wheel nuts ensure durability and compatibility with a wide range of wheel setups.

Molded Plastic Axle housings
Universal Style Axle Shafts
49 Degrees of Steering
High Caster reinforced C-Hub
Heavy Alloy Portal Knuckle Weights
High-Pinion Machined Hypoid Axle Gears (30/8)
6mm Output shafts with M5 wheel nut
One-Piece Molded Bearing Retainers
Adjustable Lower Shock Mounting Position
Scale removable third member

Chassis
The VS4-10 chassis is built for a balance of scale realism and high-performance durability, utilizing a heavy-duty steel C-channel frame that provides exceptional rigidity and strength. Designed to handle the demands of extreme terrain, this chassis maintains scale proportions while maximizing functionality for optimal handling and weight distribution.

Molded front and rear cross members reinforce high-stress areas, increasing structural integrity where it matters most. These cross members also incorporate dual servo mounting locations, integrated winch line routing, and a scale fuel cell, adding both versatility and realism to the design.

The rock sliders feature a modular, replaceable outer section, allowing easy adjustments to accommodate different body widths while also serving as a protective barrier against obstacles. This ensures a precise fit for a wide range of body styles without sacrificing durability.

The aluminum panhard mount provides reliable steering geometry, keeping suspension movement controlled and predictable. Molded shock towers hold the 80mm Incision S8E shocks in a double shear configuration, ensuring maximum support and durability under extreme driving conditions.

Heavy Duty High Clearance Steel C-Channel Frame Rails
Integrated battery tray and electronic mounting positions
Stainless Steel links

Suspension
Equipped with Incision 80mm S8E shocks, the VS4-10 delivers smooth suspension articulation with hard-anodized aluminum shock bodies, dual X-ring seals, and keyed spring cups. The 3-link front suspension with panhard keeps the servo hidden for scale realism without sacrificing suspension travel.

SC8E Incision 80mm Shocks with bleeder screw shock cap
Hard Anodized Aluminum Shock Bodies
Stainless Steel Links
Stainless Steel Pivot Balls
Stainless Steel offset lower shock pivot balls for tuning shock width at axle
Includes
Threadlock
Grease
30wt Shock Oil
7mm to 8mm thin wall wheel nut adapter tool

Specifications

1/10th Scale
5.25:1 Axle Gear Ratio
15T Pinion
52T Spur Gear
Overall Width Hex to Hex - 200mm (7.87”)
Wheelbase: 313mm (12.3")
Overall Front Ratio (Standard 6.5% OD): 53.7:1
Overall Front Ratio (High 46% OD): 35.8:1
Overall Rear Ratio: 57.2:1

Required Electronics
ESC
540 Motor
Steering Servo (Vanquish 20mm servo horn included)
Battery
Transmitter and Receiver
Additional Electronics for VFD Twin Functionality
X2 Standard size servos for Dig and Selectable Overdrive (Standard or Low Profile)

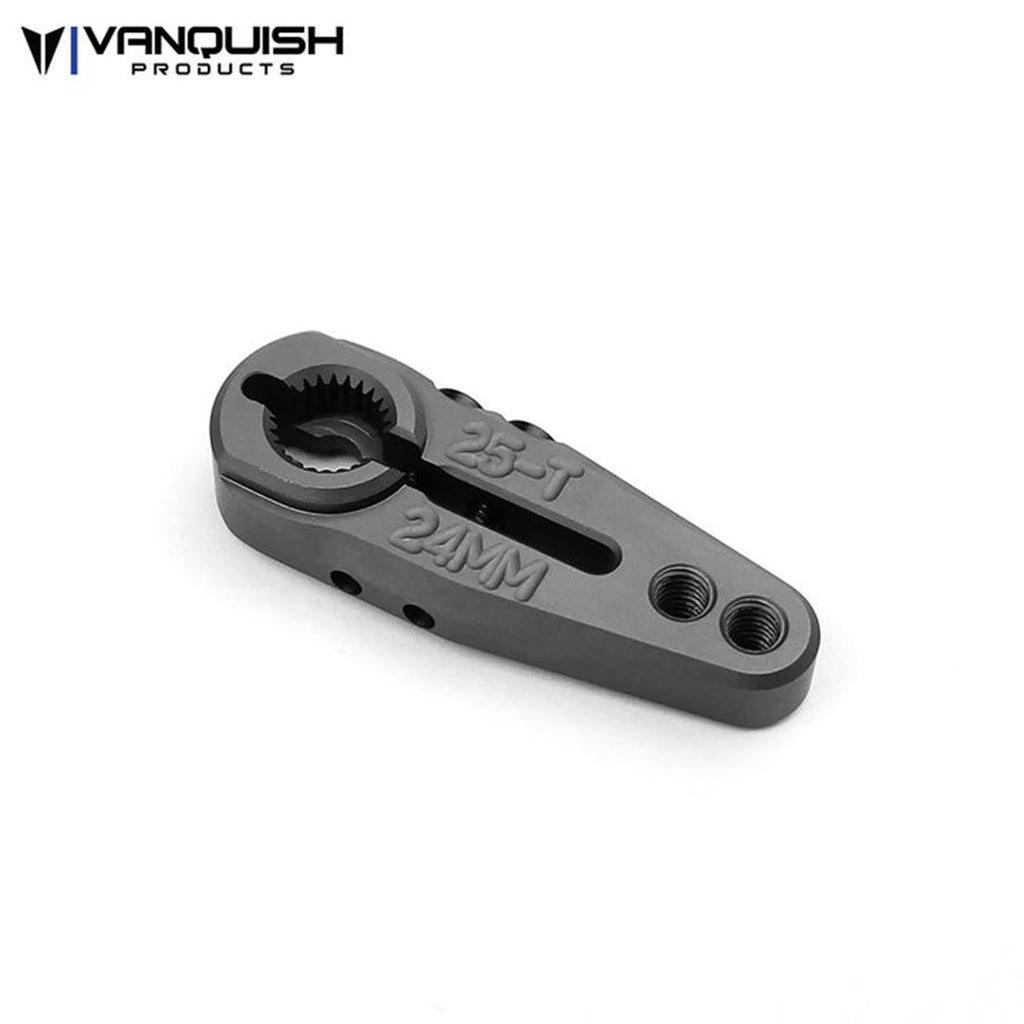

X2 24mm servo horns
4 Channel Transmitter and Receiver

Other Required Items to Complete
Tools
Paint
Body
1.9 Tires (Recommended)
1.9 Wheels (Recommended)
Battery
Charger
*Fits most 540 brushed and brushless motors

*** Transmission dust shield is not 100% element proof. Use access cover to regularly check transmission for debris and add grease as needed.

Vanquish Products Scale Hardware for beadlock wheels using 1-64 hardware.
True Forged Scale Hardware package includes 50 pieces of 1-64 hardware, styled to replicate the look of hardware most commonly used on fullsize vehicle beadlock wheels. The size of the hex on the hardware has been maximized (2mm) to provide ultimate strength while installing or removing.

Package includes:
50 Pcs - 1-64 Steel Forged Scale Hardware
Requires use of VPS08406 Scale Hardware - Small - Tool Tip which is also included in VPS08405 Scale Hardware Tool Set

*Note: Scale hardware should be installed with light tension to protect the tool and hardware.

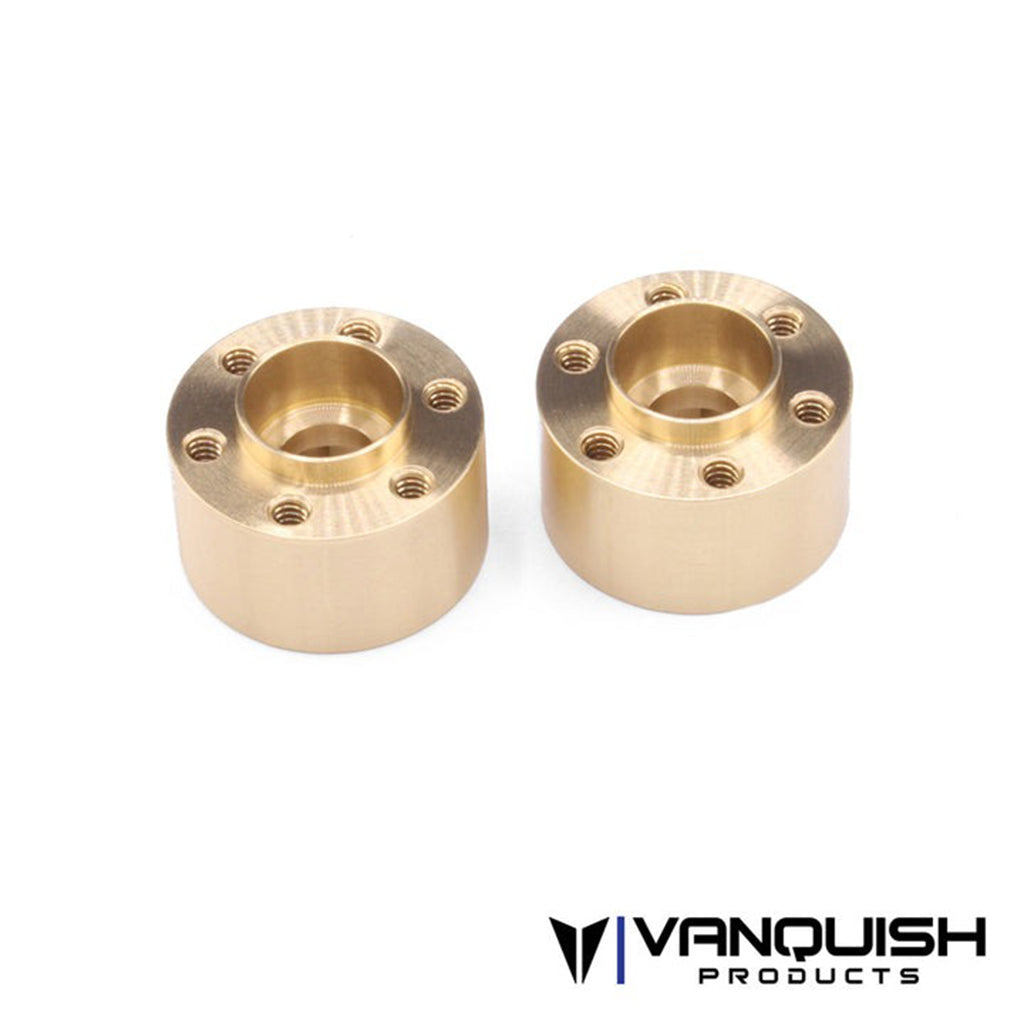

Vanquish Products Brass SLW 475 Wheel Hubs

Vanquish Products Brass SLW 475 Wheel Hubs
Compatible with SLW, OMF, KMC, Method, and SSZ style wheels.
Made from brass in the USA.
Sold in pairs.
Increments of 1/8 of an inch.
Uses six 4-40 screws to attach hub to wheels.
Hardware not included.
US Patent No. 8,167,380 B2

Weight By Size
SizeWeight (g)
225 Hub13
350 Hub20
475 Hub27
600 Hub34
725 Hub41
850 Hub48

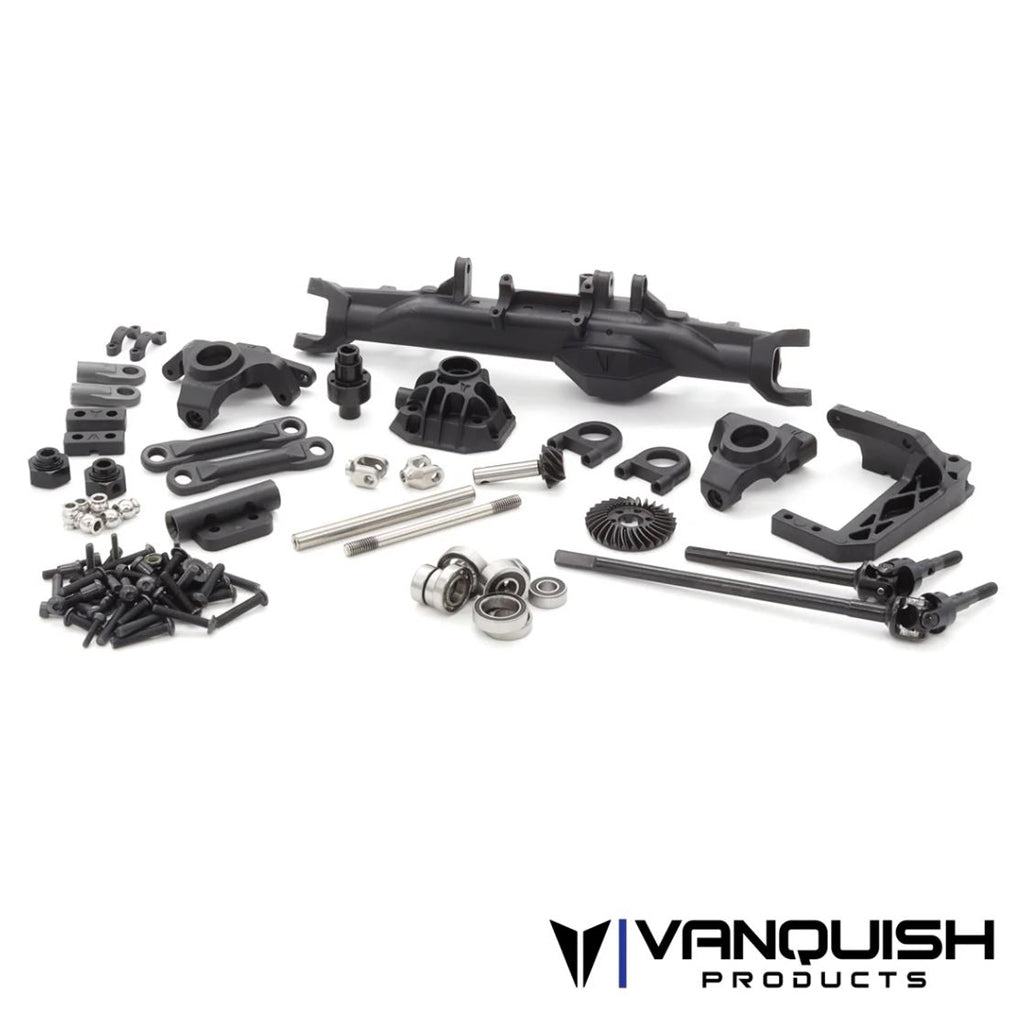

The H10 axle kit offers a complete axle package that brings performance and style to your build. The plastic moulded H10 axles feature an ultra rigid design that is made to run 4-link suspension with the behind the axle servo mount. The simulated hydraulic ram replaces a traditional tie rod and gives the appearance of hydraulic steering like is used on extreme full-size offroad buggies.

H10 Front Straight Axle Set:

206.5mm Hex Face Width (8.13")
Molded Plastic Axle housing
Universal Style Axle Shafts
49 Degrees of Steering
High Caster reinforced C-Hub
High-Pinion Hypoid Machined Axle Gears 30/8 (VPS08330)
6-Bolt Ring Gear and Spool
One-Piece Molded Bearing Retainers
Adjustable Lower Shock Mounting Position (S8E Offset Pivot Ball IRC00509)
Chromoly universal shafts
Scale removable third member

Note:

Optional lower ratio ring and pinion (8/33) available VPS08331
Compatible with all Vanquish SLW and Incision hubs.
Does not include link mounting hardware
Incision .280" width pivot ball compatible
For use with IRC00509 S8E lower shock mount offset pivot ball at shock mount locations

Compatible with the following:

VPS09010 H10 Optic RTR

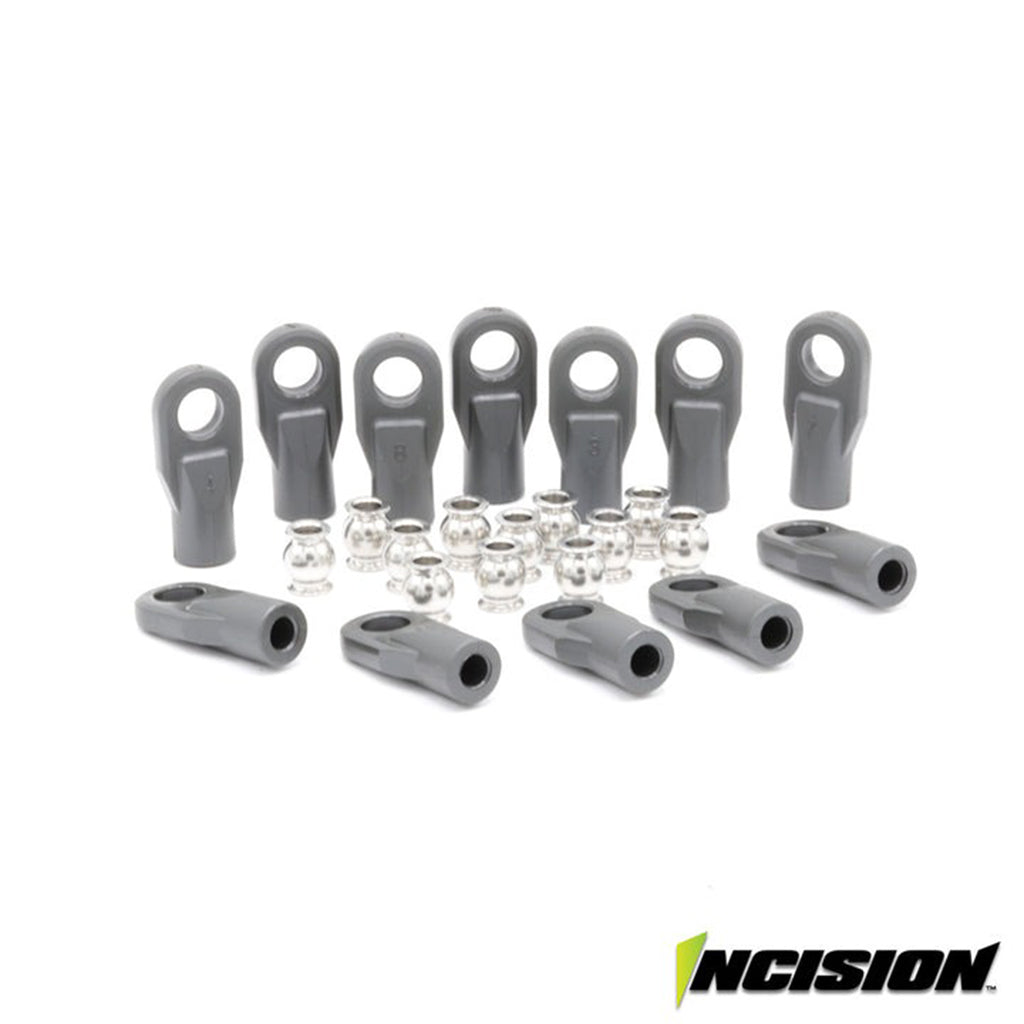

Pro Rod Ends are molded in a more rigid material to minimize rod end stretch in high stress applications. Pack of 12 Pro Rod Ends and Pivot Balls, these are compatible with all Vanquish and Incision Link kits*. They are designed to be threaded onto a 4mm thread used in many RC link applications. The pivot balls have a width of 0.280".

Package Includes:

12 pcs Incision Pro Rod Ends
12 pcs Stainless Pivot Balls
*Link sets that are designed to reuse factory rod ends instead of utilizing Incision rod ends are not compatible. Examples, Incision link sets compatible with Traxxas TRX4 models and Axial Capra links set.

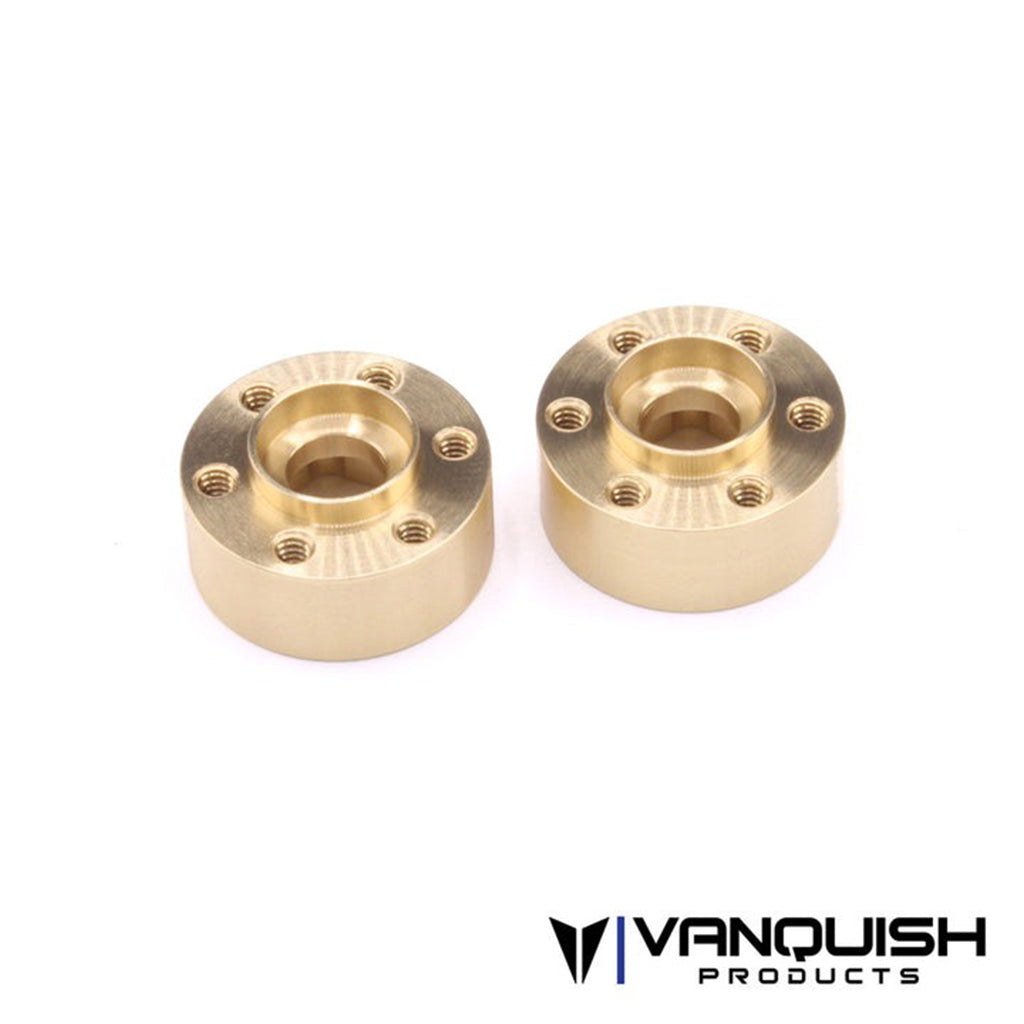

VPS01302 | Vanquish Brass SLW 350 Wheel Hub | Schumacher RC Racing

Vanquish Products Brass SLW 350 Wheel Hubs

Vanquish Products Brass SLW 350 Wheel Hubs.
Compatible with SLW, OMF, KMC, Method, and SSZ style wheels.
Made from brass in the USA.
Sold in pairs.
Increments of 1/8 of an inch.
Uses six 4-40 screws to attach hub to wheels.
Hardware not included.
US Patent No. 8,167,380 B2

Weight By Size
SizeWeight (g)
225 Hub13
350 Hub20
475 Hub27
600 Hub34
725 Hub41
850 Hub48

The H10 Optic Brushless RTR Trail Buggy was developed from the ground up as a purpose built ultimate trail truck. Styled after buggies that are designed to conquer difficult trails, the H10 caged chassis design allows for full view of the 2.2" Toyo Tires Open Country R/T Pros that are paired with 2.2" Battle Born Wheels Sierras. The H10 axles feature an increased width over the F10 axles and incorporate a scale licensed PSC hydraulic ram style steering. The servo is hidden behind the axle and tucks into the chassis during the suspension cycle, preserving the scale look while providing optimal performance. A 13.25” wheelbase and increased track width offer a new level of stability and capability with this 2.2 trail truck.

Powering the H10 Optic Brushless RTR is an industry proven Hobbywing Fusion SE 1800kv 2-in1 brushless motor and ESC; installed from factory for brushless performance and control - a first for Vanquish Products. Hobbywing’s FOC technology allows for smooth, low speed, precision driving over all obstacles. With an integrated ESC, wiring is simplified.

The proven VFD transmission with its low motor placement provides the H10 chassis a balanced and predictable driving dynamic. The innovations don't stop there, the all new H10 Front axle has an integrated Hydro style ram steering system that provides a direct and protected link between the front tires and hides the servo low behind the rear axle to enhance the scale appearance. The all new Front and Rear H10 axles are exclusive to the H10 Trail Buggy platform with a 4-Link front and rear suspension and 8.11” hex width providing more stability.

The Optic body design is made from durable injection molded ABS commonly referred to as a “Hard Body” giving the H10 Optic a truly scale driving experience of a rugged and solid Trail Buggy with rigid body panels. Beneath the Optic body panels is a highly detailed ABS interior tray and 3D driver comfortably seated in Sparco EVO L QRT racing seat and decked out in a full Sparco competition racing suit, RF-5W helmet, and Land+ gloves. The access to your battery compartments couldn't be easier with a single pin and latch system holding each side panel on to gain quick access on the trail.

Specifications
1/10th Scale
Toyo Tires R/T Pro Red Compound 4.9” x 2.2” Tires
Axle Ratio 3.75:1
Pinion 15T 32P
Spur 56T 32P
Overall Width Hex to Hex - 206mm (8.11”)
Wheelbase - 337mm (13.26”)
Overall Height - 200mm (7.87”)
Overall Front Ratio 41.3:1
Overall Rear Ratio 44.0:1
Final Overdrive 6%
RTR Weight (without battery) 5.35lbs (2.43kg)
Battery Compartment Size: 93mm x 36mm x 42mm

Required Items
2-3S LiPo Battery (Compartment Size: 93MM X 36MM X 42MM)
Battery Charger
Battery and Charger must be equipped with XT60 connection

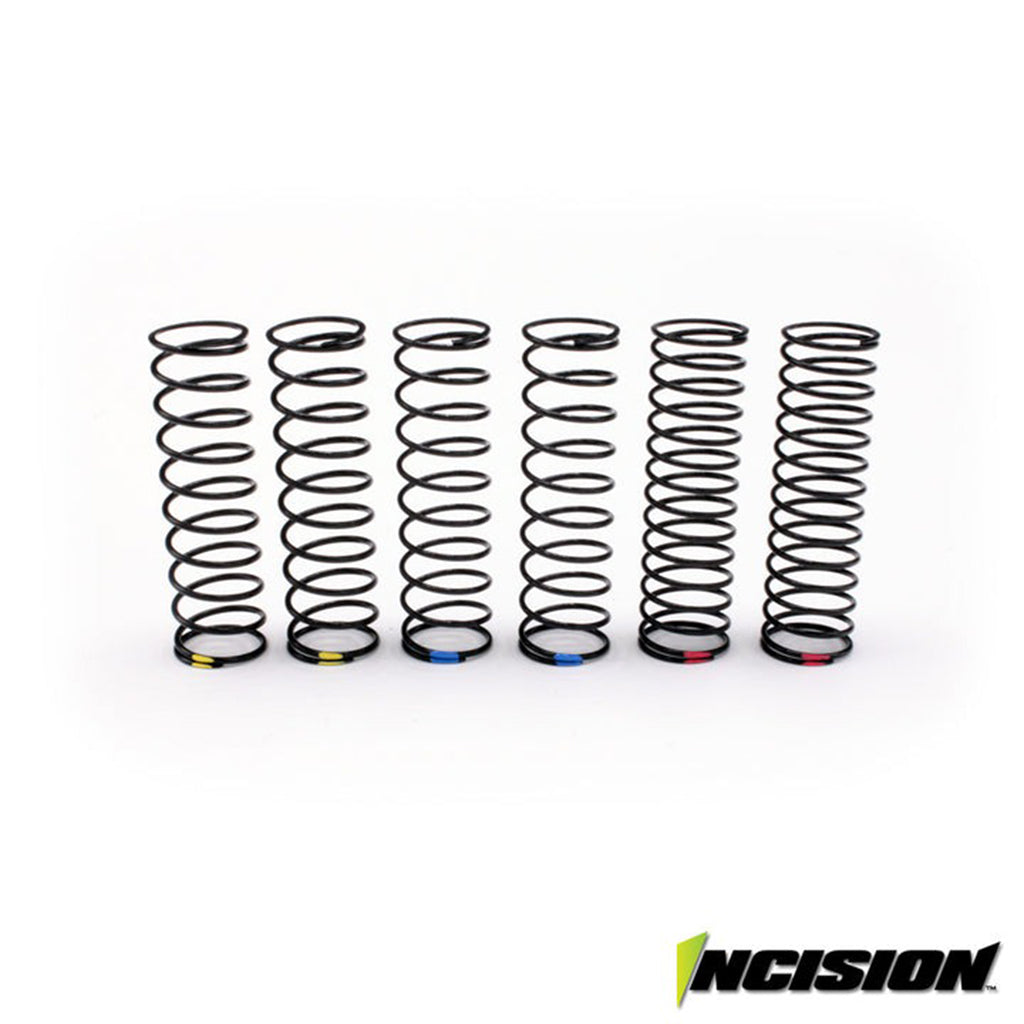

Incision 80mm Scale Shock Spring Set

Includes soft, medium, and hard spring rates to allow for tuning options on your Incision 90mm Scale Shocks.

Soft Spring Rate: 2.27in/lb

Medium Spring Rate: 3.10in/lb

Firm Spring Rate: 4.61in/lb

Fits IRC00215 Incision 80mm Scale Shocks Included with VPS09005 and VPS09006 VS4-10 Ultra Kit

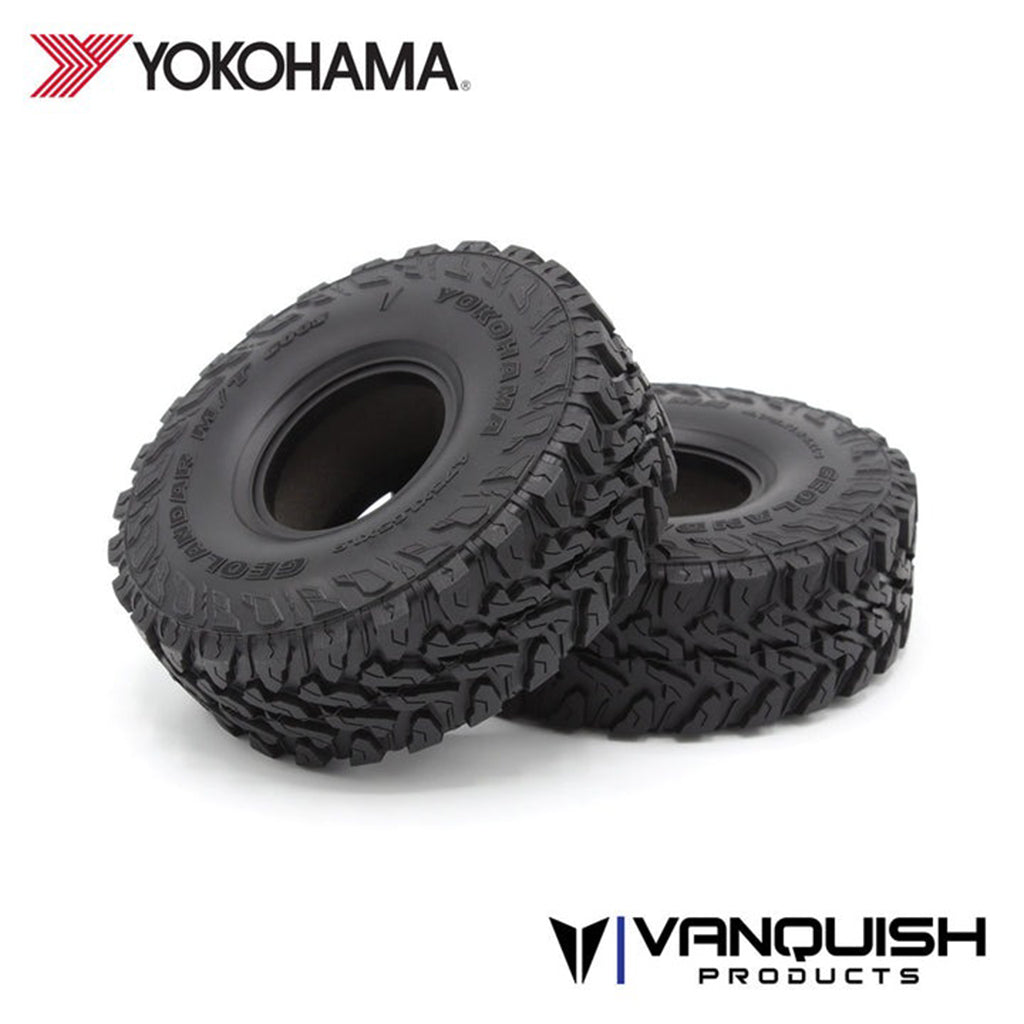

The Vanquish Products Licensed Yokohama Geolandar M/T Tire. The extra soft Vanquish Products RED compound offers excellent performance right out of the package.

Yokohama Geolandar M/T G003 - Conquering the off road is as much about conquering your fears as it is the terrain. The GEOLANDAR M/T G003 is engineered with rock-solid technologies providing crushing performance, intimidating looks, and outstanding tread life.

Specifications:

4.75” tall x 1.65" wide x 1.9" Wheel bead diameter

Vanquish Products Super Soft RED Compound Rubber

Medium density open cell foam

Package includes:

2pcs Yokohama Geolandar M/T 1.9 tires

2pcs Open Cell Foam

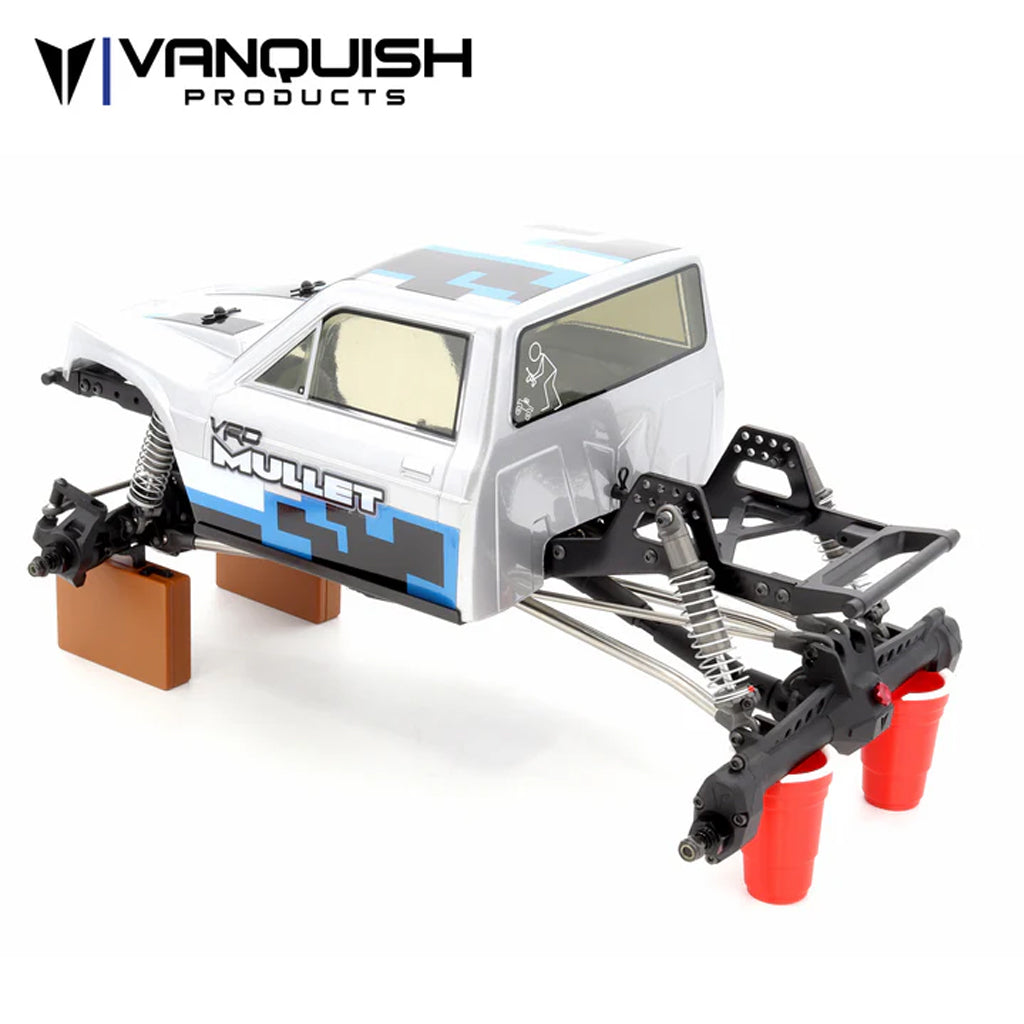

The Vanquish Products VRD Mullet Kit is built on our competition level platform proven by its predecessors such as the VRD Carbon and VRD Stance. The VRD Mullet utilizes the lightweight Carbon Spec VFD Transmission and an industry first combination of a F10 Straight front axle and F10 Portal Rear axle. The mix of straight front axle and portal rear axle has been referred to as a mullet setup in the RC Crawling world for years but this is the first time a consumer can buy it in a complete kit version. VRD Mullet Kit is a highly competitive, predictable and versatile platform. Taking advantage of the lower center of gravity that a straight axle offers, you can steer the front exactly where you need it, then take advantage of the additional clearance the F10 Portal rear axle to ensure that a hang-up doesn't stop your progress.

The VRD Mullet Kit features the new S25 frame rails which are optimized for the unique combination of axles and provides an 6 degree angle flat skid plate. The molded chassis components and skid plate place the lightweight Carbon spec VFD transmission as low as possible into the VRD chassis. For the front F10 Straight axle is equipped with a servo on axle and 4-link.

Features
- Carbon Spec VFD Transmission
- 3mm Aluminum Frame Rails - 6 degree flat skid plate
- 34% Overdrive
- Front Axle Underdrive Machined Ring and Pinion gears
- Rear Axle Overdrive Machined Ring and Pinion Gears
- Portal Rear Axle Overdrive Gears
- Lightweight Machined Chromoly VFD Transmission Gears
- Chromoly Universal axle shafts
- Hard Anodized Shock Bodies
- Stainless Steel Links with HD Bent rear links
- Incision Pro M4 Rod Ends
- Stamped Aluminum Rock Sliders
- Adjustable multi point body mounting system
- Chassis

The Vanquish Products VRD S25 chassis is equipped with molded chassis components that provide a tunable platform to adapt to the most demanding terrain. The S25 has been optimized for the new axle configuration with a new shock mounting positions and reduced rear overhang. Multiple shock and body mounting positions combined with minimalistic front/rear interchangeable bumpers make body mounting and fitment straight forward. Stamped aluminum rock sliders provide a flat location for electronics and/or battery mounting and are able to support and protect your body.

Drivetrain

The center of the VRD Mullet Kit is the Carbon spec VFD transmission. Equipped with a lightweight machined aluminum motor plate, aluminum motor plate standoffs, while omitting the cosmetic VFD tunnel for a high performance appearance. Internally the VFD is equipped with machined aluminum bearing plates and machined lightweight chromoly gears. Each internal gear has been re-designed to be as lightweight as possible dropping the weight of the overall transmission but maintaining a high level of durability. The T-Case has a built in 21% overdrive.

The front F10 Straight axle has machined underdrive ring and pinion gears while the Rear F10 portal axle has the machined overdrive ring and pinion with overdrive portal gears, combined with the VFD overdrive the final overdrive percentage is 34%.

Suspension

The VRD Mullet Kit includes the Incision S8E shocks with hard anodized shock bodies and multiple length tuning rod ends for a final length range of 85-95mm. Heavy duty stainless steel lower suspension links and lightweight upper links connect the chassis to the axles with the Incision Pro M4 rod ends. The rear lower links are bent for maximum breakover clearance. Multiple shock mounting locations and tunable shock length allow for a high range of ride height and breakover adjustment.

Specifications

- 1/10th Scale
- Front Axle Ratio 4.125:1
- Rear Axle Ratio 4.725:1
- Pinion 13T 32P
- Spur 52T 32P
- Front axle width hex to hex: 191.5mm (7.54")
- Rear axle width hex to hex: 196mm (7.70")
- Wheelbase - 320mm (12.6”)
- Overall Front Ratio 46.5:1
- Overall Rear Ratio 68:1
- Final Overdrive 34%

Required Items to Complete:

- Tools
- Paint
- 1.9 x 4.75” Tires (recommended)
- 1.9 Wheels (SLW Hub Compatible wheels with 475 Front Hub and 350 Rear Hub Recommended)
- Transmitter / Receiver
- Steering servo (25 spline 20mm Servo Horn included)
- 540 Motor
- ESC
- Battery (35mm x 35mm x 100mm Maximum)
- Charger

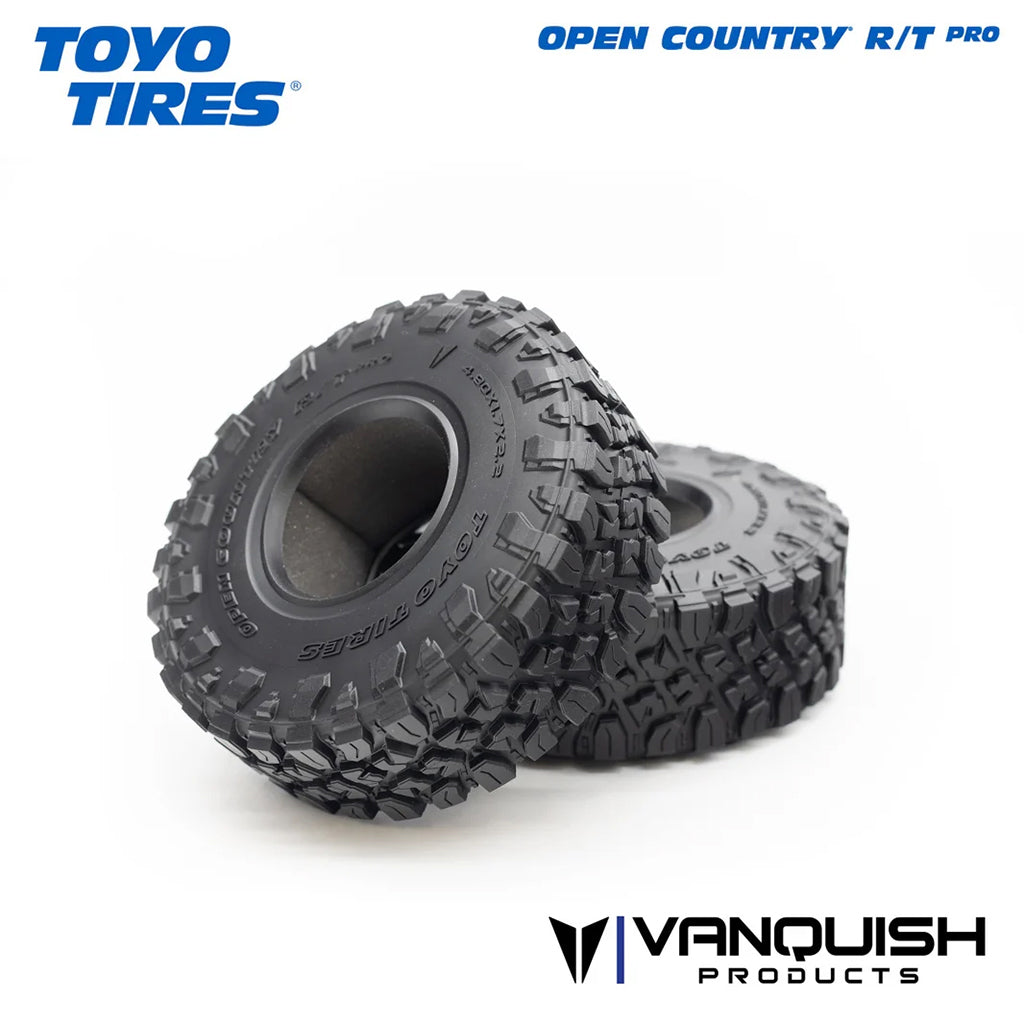

The Vanquish Products 2.2 Toyo Tires Open Country R/T Pro Tire.

Super Soft RED - Suggested for lighter weight rigs. Our stickiest / softest compound. Dry, Wet, Slick, high traction performance. Increased lug deflection due to soft compound.

Specifications:

4.9” tall x 1.75" wide x 2.2" Wheel bead diameter
Vanquish Products Super Soft RED Compound
 Rubber - VPS10168
Vanquish Products Soft WHITE Compound Rubber - VPS10167
Medium density open cell foam


Package includes:

2pcs Toyo Open Country R/T Pro 2.2 tires
2pcs Open Cell Foam

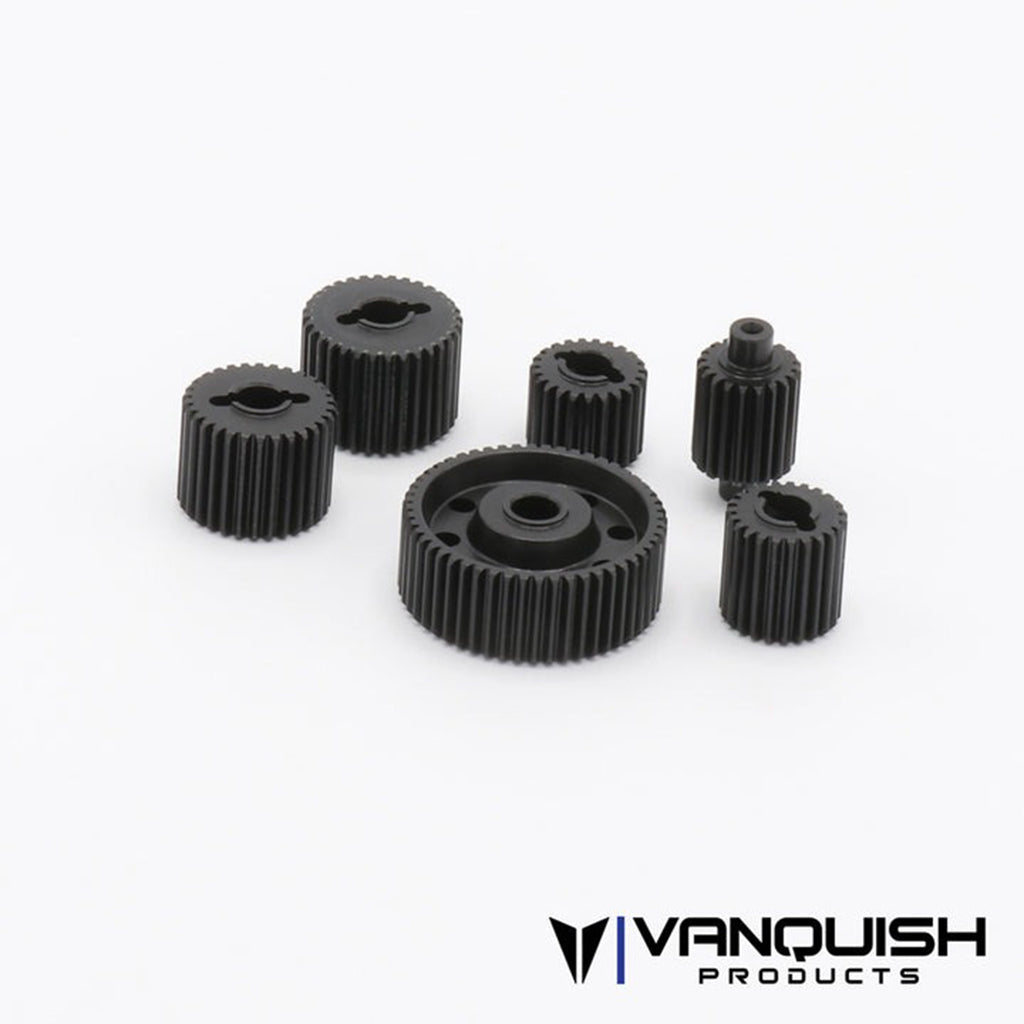

Heavy Duty Machined Steel 48P Gear set for the Vanquish VFD Transmission.

• Replacement part for VPS09003 and VPS09004 VS4-10 Pro Kit.
• Option part for the VPS10152 VFD Transmission Kit.

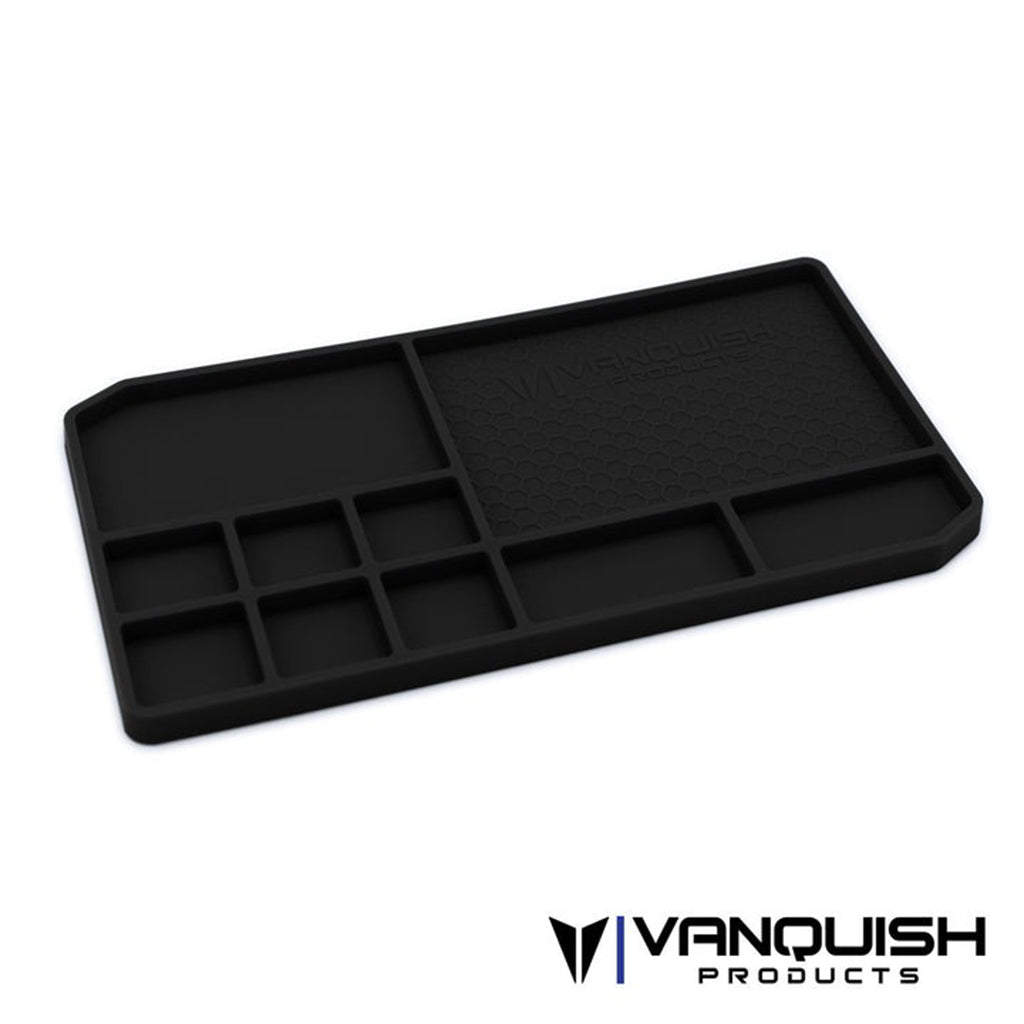

Vanquish Products rubber parts tray. The perfect accessory to organize your workbench or take with you on your next adventure. The high friction rubber material allows the tray to be used on a variety of surfaces and keep your hardware and parts safely organized.

Specifications:

Length: 235mm
Width: 125mm
Height: 10mm
Pocket Depth: 7mm
Thickness: 3mm

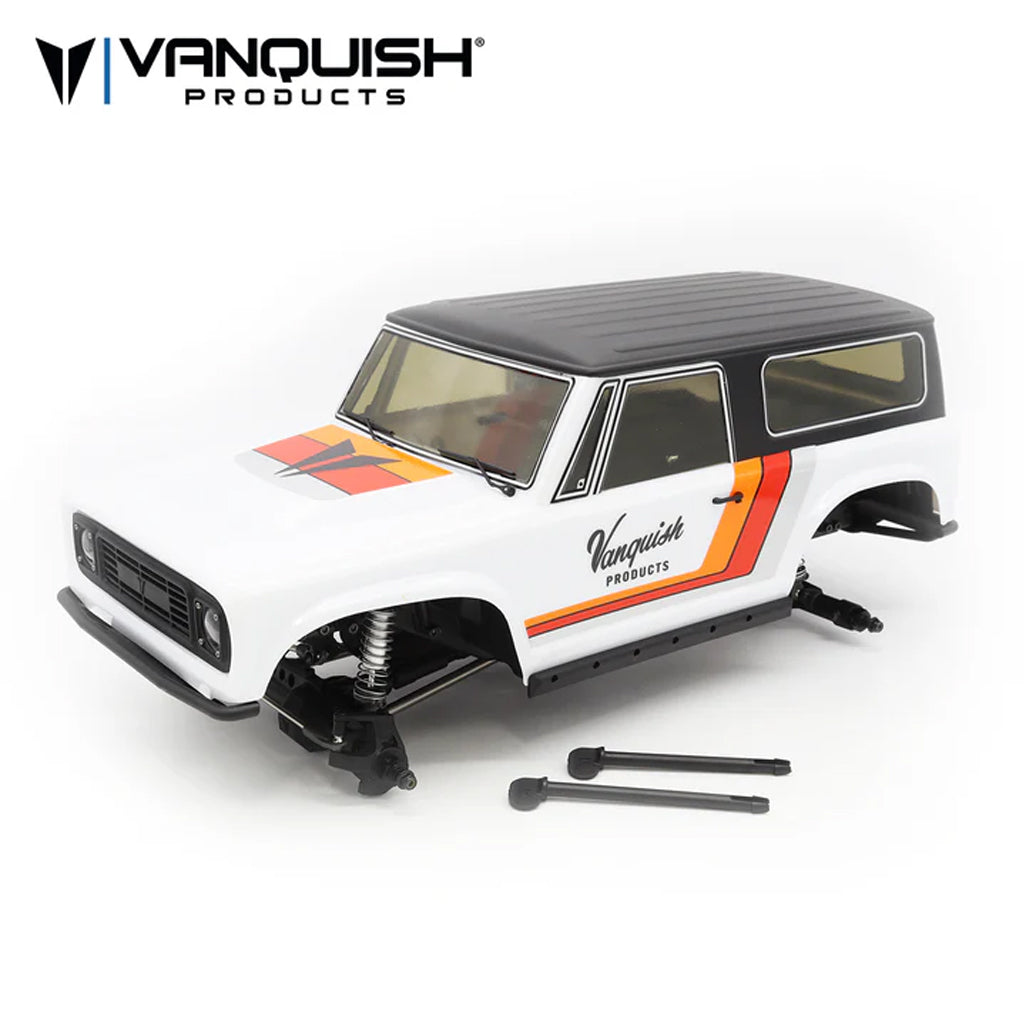

VS4-10 ORIGIN CLASSIC
Built on the proven VS4-10 chassis, the Origin Classic brings back the original body design from Vanquish Products' first kit with a refined, clip-less mounting system integrated into molded inner fenders. These new inner fenders feature adjustable shock positions with integrated shock towers, a first for the VS4-10 platform. The VFD transmission delivers durable performance with a low, forward biased weight distribution. Molded F10 straight axles provide reliable strength and broad compatibility with a wide range of option parts.

F10 STRAIGHT AXLES
The F10 Straight Axles are widely praised for their exceptional durability, precise engineering, and smooth performance, making them a top choice among enthusiasts.

DUAL ENGAGEMENT RETENTION PIN
The VS4-10 Origin Classic features a new Dual Engagement Retention Pins integrated into the updated molded inner fenders. This clip-free mounting design provides a clean scale appearance while retaining the body. The side-access pins are positioned discreetly within the inner fenders and lock in place with a snap-fit engagement. Each pin is equipped with a large pull tab designed for easy handling and quick body removal when needed.

INTEGRATED SHOCK TOWER
Adjustable shock positions are now integrated into the newly designed molded inner fenders.

MOLDED INNER FENDERS
Front and rear molded inner fenders to complete the scale look. Each fender has a cutout for your choice of light kit.

Machined Gears in the Axles
The front and rear axles of the Origin Classic get machined hypoid gears and chromoly spools. Made to hold up to whatever power you decide to run in your kit!

VFD TRANSMISSION
Trail-proven forward and low motor design.

ORIGIN CLASSIC BODY
Headlight and Tail Light buckets
Molded Grill
Molded Rear Tailgate
Molded details parts (Wipers, door handles)
(Supplied Clear)

Specification

- 1/10th Scale
- Overall Width Hex to Hex - 182mm (7.17”)
- Wheelbase - 313mm (12.3”)
- Axle Ratio 3.75:1
- Pinion 15T 32P
- Spur 52T 32P
- Overall Front Ratio 38.3:1
- Overall Rear Ratio 40.9:1
- Final Overdrive 6.5%
- 90mm Shocks

Required Items

- TOOLS
- PAINT
- 1.9x4.65” TIRES
- 1.9 WHEELS (VANQUISH PRODUCTS OR SLW HUB COMPATIBLE WHEELS REQUIRED)
- TRANSMITTER / RECEIVER
- 540 MOTOR (STANDARD LENGTH)
- STEERING SERVO (25T SERVO HORN INCLUDED IN KIT)
- ESC
- BATTERY

Disclaimer

Please note: This is an unassembled kit, and wheels, tires, and electronics are not included. Some product photos may show completed builds with wheels, tires, and electronics for demonstration purposes only.

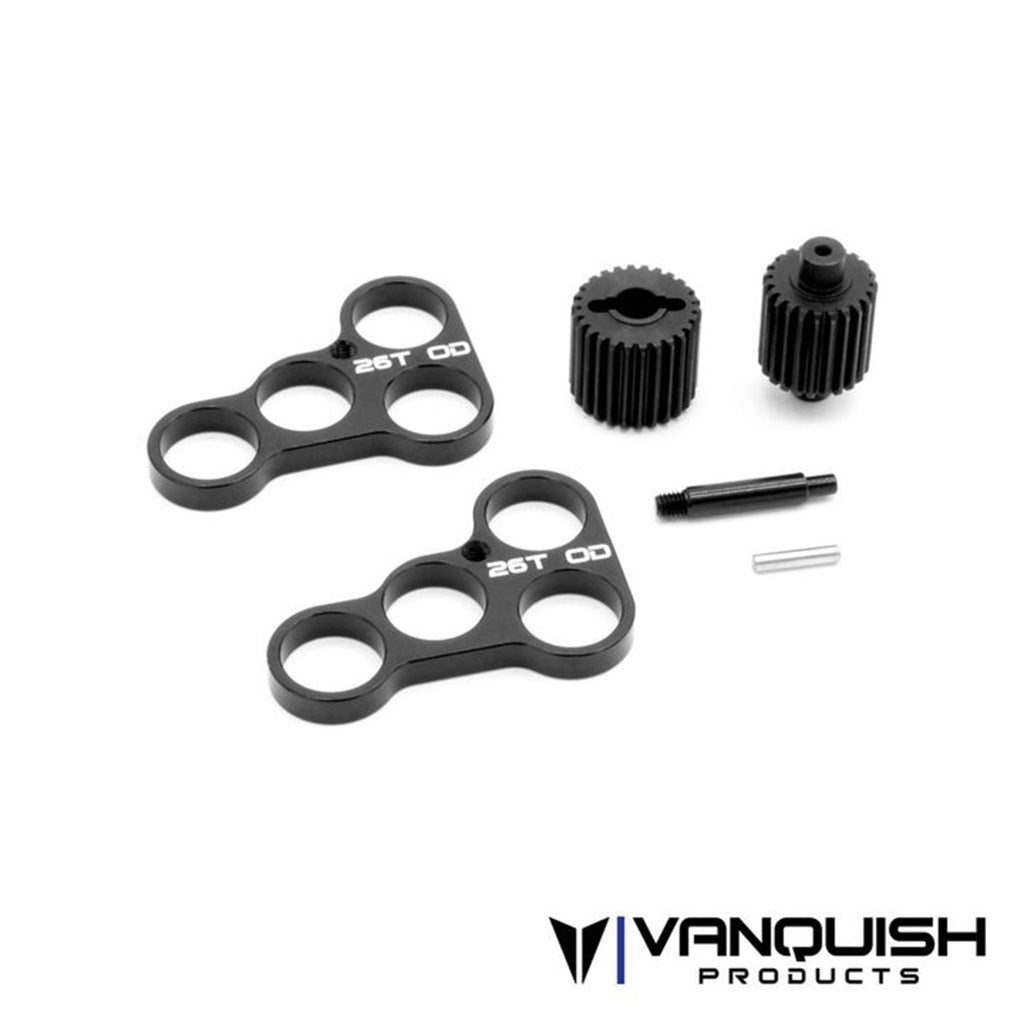

Machined Steel 26t Gear set for the Vanquish VFD Transmission Transfer Case.
• Provides a 21% Overdrive
• Overdrive is defined as the percentage difference between the gear ratio at the front wheels vs the ratio at the rear wheels
• Overdrive aids in steering
• Option part for the VPS10152 VFD Transmission Kit

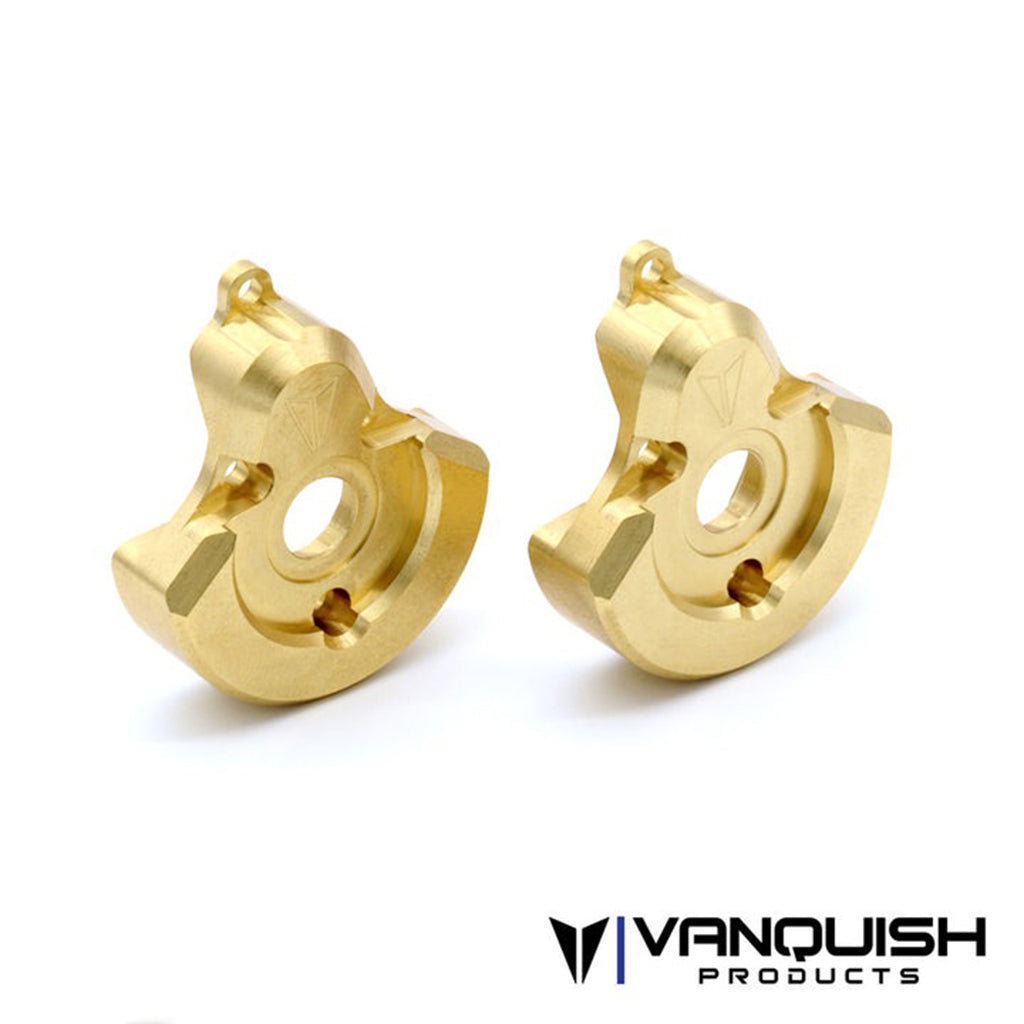

The Vanquish Products Brass F10 Rear Portal Cover Weights are a direct replacement for the F10 Portal rear covers. Compatible with the plastic VPS08605 or the machined aluminum VPS8617 & VPS8618 F10 rear portal housings.

The Brass F10 portal cover weights are built to add weight below the centerline of the axle to lower your COG. These covers weigh in at over 129g for the pair. Made in the USA with domestic sourced brass.

Features:

• Machined in the USA
• Made from high quality domestic sourced brass
• Direct replacement for F10 rear portal covers
• Machine engraved Vanquish Products logo
• Over grams per piece. 2 per package.

Package includes:

• 2 x Brass F10 Rear Portal Cover Weights.

*All bearings, hardware, gears, axle shafts, etc. are reused.

***Please refer to VPS09007 or VPS08601 instruction manuals for replacement assembly instructions.

Vanquish Products Scale Hardware for beadlock wheels using 1-64 hardware.
True Forged Scale Hardware package includes 50 pieces of 1-64 hardware, styled to replicate the look of hardware most commonly used on fullsize vehicle beadlock wheels. The size of the hex on the hardware has been maximized (2mm) to provide ultimate strength while installing or removing.

Package includes:
50 Pcs - 1-64 Steel Forged Scale Hardware
Requires use of VPS08406 Scale Hardware - Small - Tool Tip which is also included in VPS08405 Scale Hardware Tool Set

*Note: Scale hardware should be installed with light tension to protect the tool and hardware.

VRD STANCE RTR
The Vanquish Products VRD Stance RTR is a highly competitive, predictable and versatile performance platform. The heart of the VRD Stance RTR are the stamped aluminum frame rails mated to the 6 degree flat skid plate and VFD transmission. The molded chassis components and skid plate place the VFD transmission as low as possible into the VRD chassis. The front F10 Portal axle is equipped with a servo on axle and 4-link. Front and rear axles include weighted brass tube inserts in addition to the front alloy knuckle weights to keep the center of gravity as low as possible, translating to a high performance driving experience. The Red compound VXT2 tires are supported by 4.75" VTS Stance Dual Stage foams. The Lexan Stance body is competition inspired with its short overhangs and pinched design for maximum tire clearance.

F10 PORTAL AXLES
The F10 Portal Axles are widely praised for their exceptional durability, precise engineering, and smooth performance, making them a top choice among enthusiasts.

VRD CHASSIS DETAILS - low cog
Function forward design utilizing Aluminum Flat Rail Chassis and an angled skid plate for a performance focused layout. Equipped with molded chassis parts offers a customizable base to adjust to challenging terrain. Various shock and body mounting locations with simple front/rear bumpers ensure easy body installation and alignment. Low mounted electronics and battery paired with a forward bias motor position enables you to optimize your build for top performance.

VFD-Strength and Tunability
The VFD is designed for optimal performance, scale appearance, strength, and versatile accessories. It positions the motor forward and low for ideal weight distribution. The VFD Spec transmission offers a 6.5% overdrive for improved turning and climbing without stressing electronics. The T-case features replaceable bearing plates for adjustable positioning and optional gear ratios. Compatible with 540 brushed and brushless motors*. The VFD transmission has wide metal gears inside for strength in the areas that count. The option to build the VFD transmission with a variety of option parts allows you to tune the performance to your needs.

Performance Focused - Suspension
High clearance, low center of gravity. The VRD Stance RTR was designed to deliver the ultimate out of the box RTR trail driving experience. The VRD utilizes Incision 90mm S8E shocks with 8mm bore aluminum threaded bodies, dual X-ring seals, locking preload collars, keyed spring cups, and polished steel shock shafts. The front 4-link with suspension with servo-on-axle prioritizes steering effectiveness. Stainless steel links ensure low weight and durability.

LICENSED KMC KM237 RIOT BEADLOCKS

VTS DUAL STAGE PERFORMANCE FOAMS
VXT2 RED COMPOUND TIRES - A PROVEN COMPETITOR ON THE ROCKS

Specification

1/10th Scale
Front Axle Ratio 5.25:1
Rear Axle Ratio 6.25:1
Pinion 15T 32P
Spur 56T 32P
Overall Width Hex to Hex - 200mm (7.87”)
Wheelbase - 322mm (12.67”)
RTR weight (without battery): 4.95lbs (2.2kg)
Overall Front Ratio 57.8:1
Overall Rear Ratio 73.4:1
Final Overdrive 24%

VRD Stance RTR

The latest version of the Vanquish Products VRD Stance RTR now includes HD lower links and machined 30/8T Ring & Pinion gears in the axles. The VRD Stance RTR is a highly competitive, predictable and versatile performance platform. The heart of the VRD Stance RTR are the aluminum frame rails mated to the 6 degree flat skid plate and VFD transmission. The molded chassis components and skid plate place the VFD transmission as low as possible into the VRD chassis. The front F10 Portal axle is equipped with a servo on axle and 4-link. Front and rear axles include weighted brass tube inserts in addition to the front alloy knuckle weights to keep the center of gravity as low as possible, translating to a high performance driving experience. The Red compound VXT2 tires are supported by 4.75" VTS Stance Dual Stage foams. The Stance body is competition inspired with its short overhangs and pinched design for maximum tire clearance.

Stamped Aluminum Frame Rails - 6 degree flat skid plate
Stance Pre-Painted Lexan Body
24% Overdrive
F10 Portal Axles
Machined VPS08330 8/30T Ring and Pinion Gears
Machined Spools
Brass weight tubes in axles
Alloy heavy portal knuckle weights
Front Axle Overdrive Portal gears
Rear Axle Standard Portal Gears
Full Metal Gear Drivetrain
Chromoly Universal axle shafts
Incision S8E Shocks
Stainless Steel Links with Bent rear links
Incision M4 Rod Ends
Stamped Aluminum Rock Sliders
Adjustable multi point body mounting system

Chassis

The Vanquish Products VRD RTR chassis is equipped with all new molded chassis components that provide a tunable platform to adapt to the most demanding terrain. Multiple shock and body mounting positions combined with minimalistic front/rear interchangeable bumpers make body mounting and fitment straight forward. Stamped aluminum rock sliders provide a flat location for electronics and/or battery mounting and are able to support and protect your body.

Drivetrain

The center of the VRD RTR is the VFD transmission. Equipped with a low / forward motor position, sintered metal gears, and ball bearings. The T-Case has a built in 6% overdrive and can be tuned with optional overdrive gear sets and bearing plates.

The Front F10 Portal axle has overdrive portal gears while the Rear F10 portal axle has the standard ratio gears, combined with the VFD overdrive the final overdrive percentage is 24%. Both axles include brass weighted tubes inside in addition to the alloy portal knuckle covers on the front axle. This is the heaviest spec F10 axle yet keeping the center of gravity as low as possible and the weight bias forward.

Suspension

The VRD RTR includes the Incision S8E shocks. Stainless steel upper and lower suspension links connect the chassis to the axles with Incision M4 rod ends. The rear lower links are bent for maximum breakover clearance. Multiple shock mounting locations and tunable shock length allow for a high range of ride height and breakover adjustment.

Electronics

VT-1 Digital 4 Channel Transmitter provides industry leading features and tuning capabilities in an RTR. 15 model memory, multi-channel end point and rate adjustment, digital screen and multi-position switches for the 3rd and 4th channel.
VE-1 ESC is 3S LiPo capable and includes a strong BEC to power servo functions. The built-in jumpers can be moved to adjust LiPo cut-off and drag brake strength. Factory tuned for your VRD Stance RTR. The VE-1 ESC is our version of the Hobbywing 1060, one of the most trusted RTR ESC’s on the market.
VM-1 35T Brushed motor is a closed endbell design tuned for the VRD Stance RTR to provide trail torque with plenty of speed to conquer the roughest terrain with confidence.
VS-1 Metal Gear Servo tackles the steering duty on the VRD Stance RTR with 200oz-in of torque. Ready for all elements the VS-1 Servo is water resistant and durable with its metal gears and 25T output spline for industry standard servo horns.
­
Specifications

1/10th Scale
Front Axle Ratio 5.25:1
Rear Axle Ratio 6.25:1
Pinion 15T 32P
Spur 56T 32P
Overall Width Hex to Hex - 200mm (7.87”)
Wheelbase - 322mm (12.67”)
RTR weight (without battery): 4.95lbs (2.2kg)
Overall Front Ratio 57.8:1
Overall Rear Ratio 73.4:1
Final Overdrive 24%

Required Items to Complete:

Battery (35mm x 35mm x 100mm Maximum)
Charger

Vanquish Products Aluminium Black SLW 475 Wheel Hubs

Compatible with SLW, OMF, KMC, Method, and SSZ style wheels
Black anodized finish
Sold in pairs
Increments of 1/8 of an inch
Uses six 4-40 screws to attach hub to wheels
Hardware not included
US Patent No. 8,167,380 B2

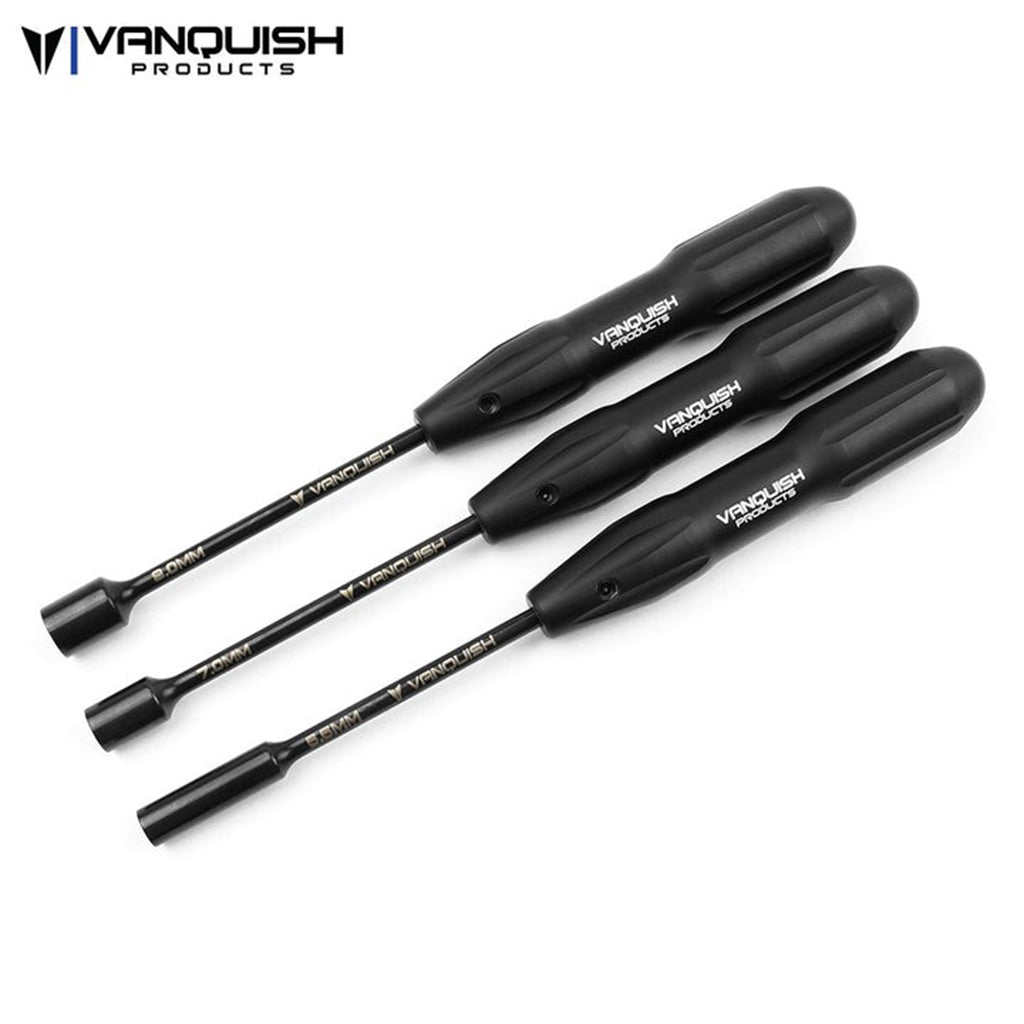

Machined aluminum handles with laser etched Vanquish Products Logo. The tool tips are laser etched with the Vanquish Products logo and nut driver size. 7mm and 8mm drivers are designed to fit easily into the Vanquish Products SLW hubs as well as Incision wheel hubs.

Kit Includes:

3pc - Tool Handle

3pc - Tool steel Nut Driver Tip (1x5.5mm, 1x7mm, 1x8mm)

1pc - 2mm L-key tool for assembly

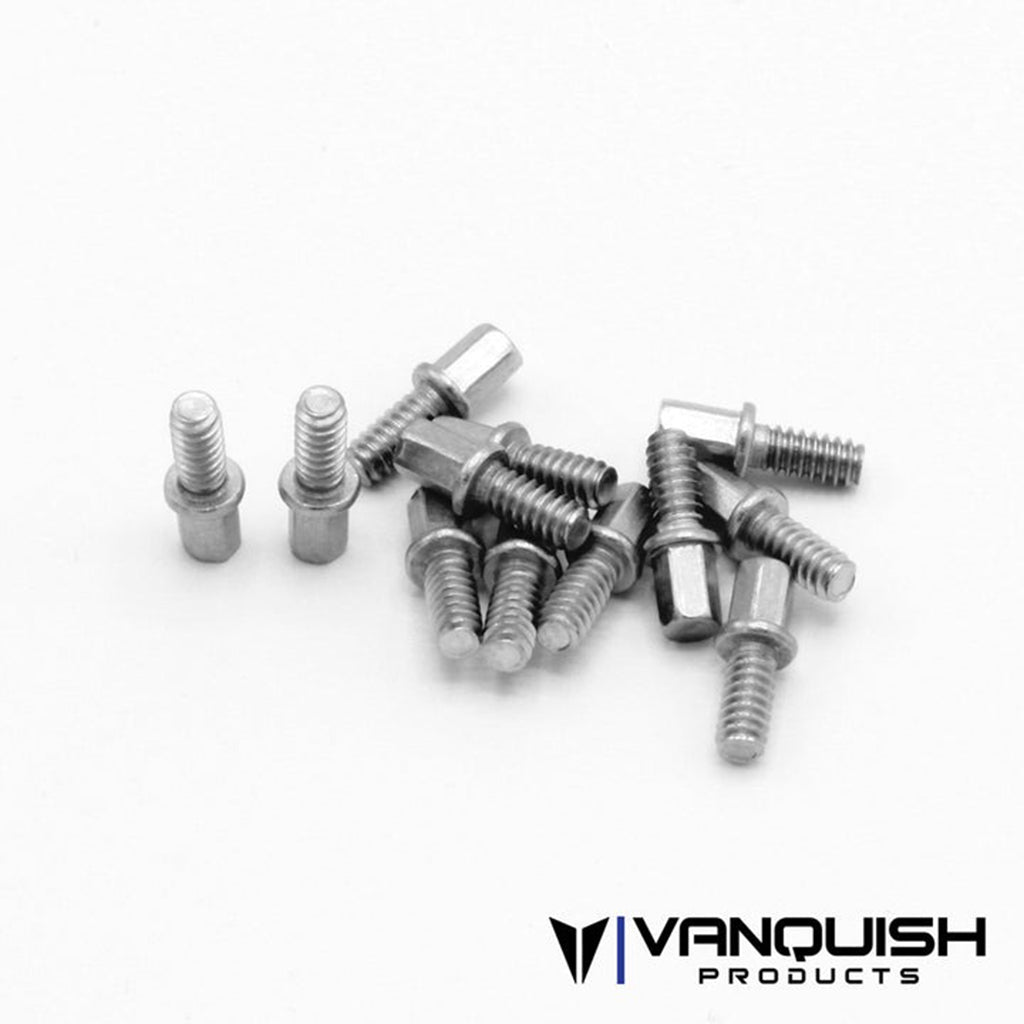

Vanquish Scale Stainless SLW Hub Screw Kit

Vanquish Products Scale Hardware for wheels using 4-40 hardware. True Forged Scale Hardware package includes 12 pieces of 4-40 hardware, styled to replicate the look of hardware most commonly used on fullsize vehicle lugnuts. The size of the hex on the hardware has been maximized (3mm) to provide ultimate strength while installing or removing.
Standard length is to be used with Vanquish Wheels and a SLW hub only. When using additional accessories such as center caps or brake weights, use VPS01704, VPS01705, VPS01706.

Package includes:
12 Pcs - 4-40 Forged Scale Hardware
Requires use of VPS08407 Scale Hardware - Large - Tool Tip which is also included in VPS08405 Scale Hardware Tool Set

*Note: Scale hardware should be installed with light tension to protect the tool and hardware.

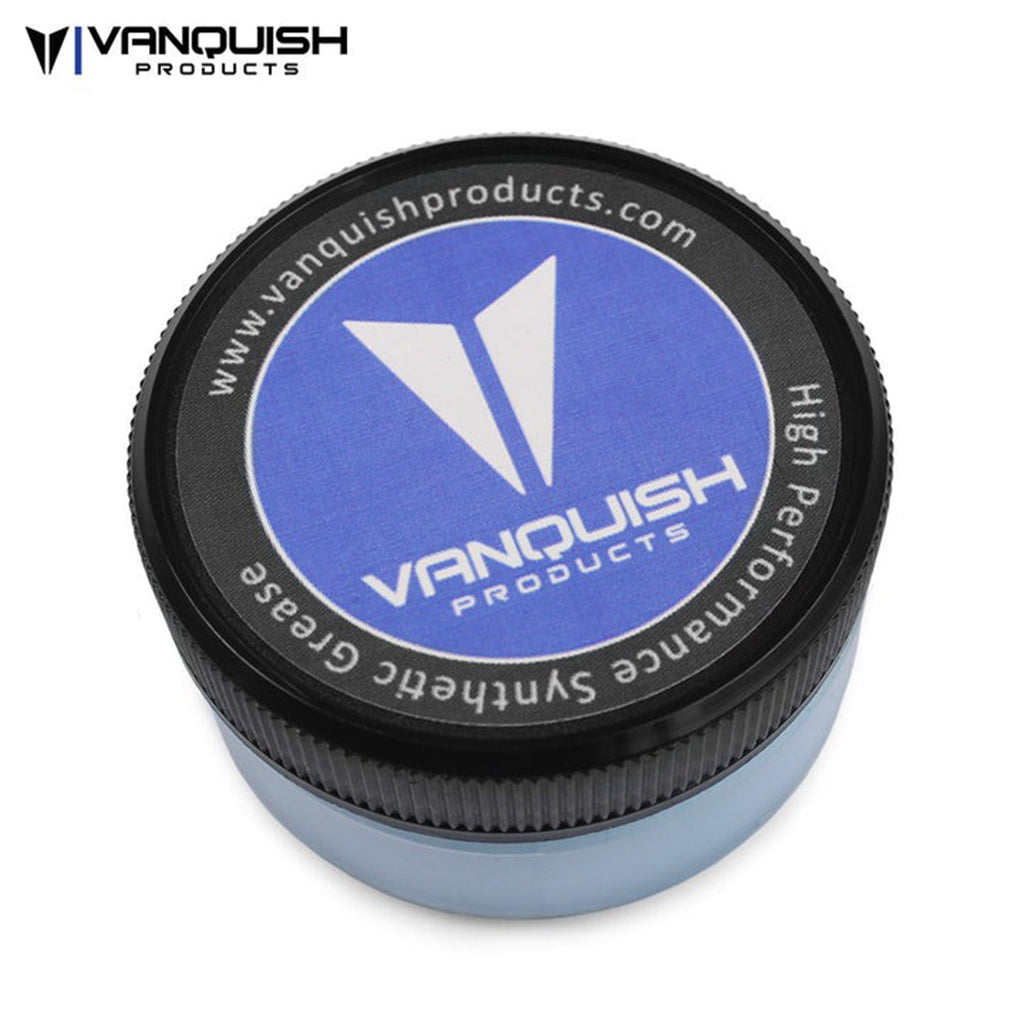

Vanquish Products RC Gear Grease Rock Lube

This is a high quality synthetic grease blend.
Formulated from the highest quality base stocks combined with state-of-the-art anti-wear additives
Water resistant, clean, safe and non-toxic.
Recommended as one of the best greases there is for lower tempature gear, bearing and general use applications.
Two ounce container.

Vanquish Products Clamping Servo Horn, 25T (25 tooth servo spline).

25T (25 tooth servo spline)*
24mm from center of servo output to center of outward most hole
Milled from high quality aluminium
Unique clamping style keeps splines more engaged on the servo output
*Check manufacturers specs to find what servo spline you need.

Vanquish Products Aluminium SLW 350 Wheel Hubs
Compatable with SLW, OMF, KMC, Method, and SSZ style wheels
Sold in pairs
Increments of 1/8 of an inch
Uses six 4-40 screws to attach hub to wheels
Hardware not included
Patent No. 8,167,380 B2

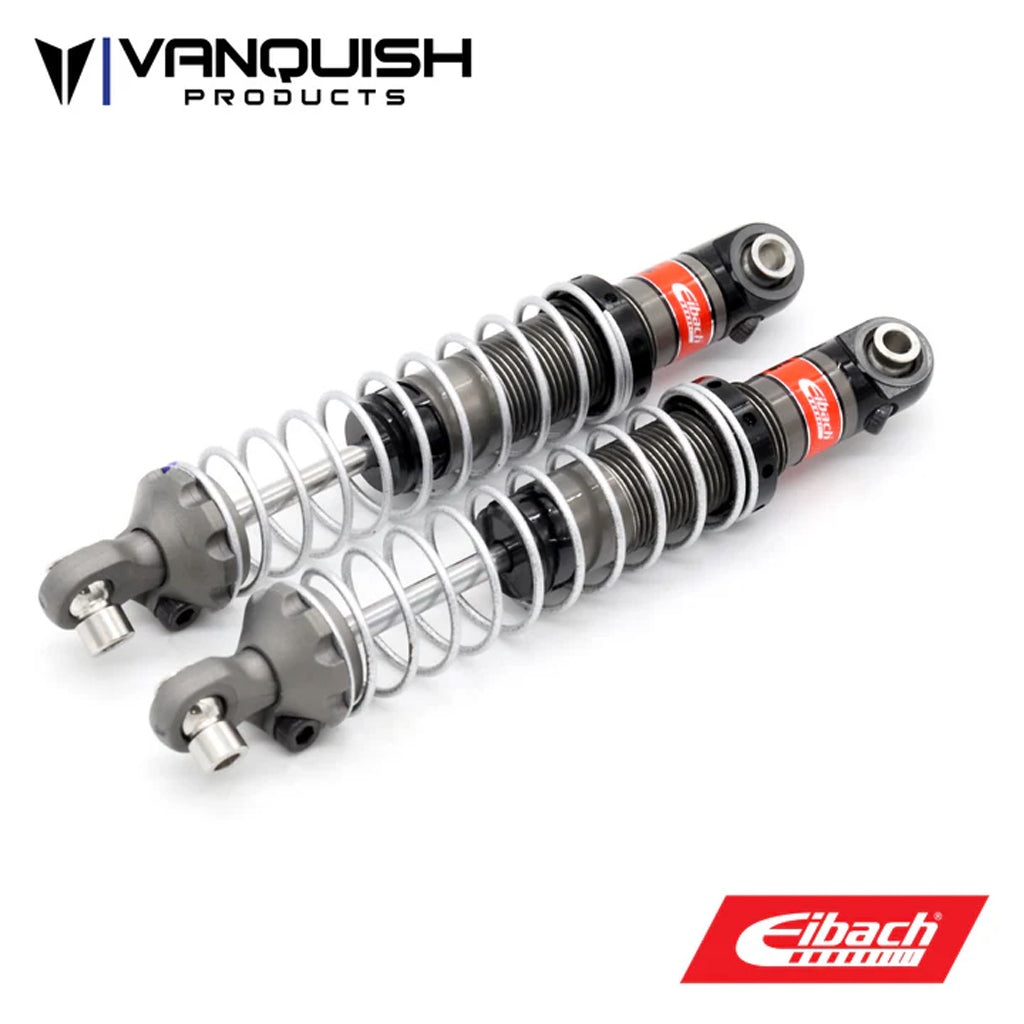

The Eibach S8E Scale Shocks are designed to replicate the styling of Eibach’s newest 2.5" coilover shocks, the PRO-TRUCK Coilover 2.5. Intricate design details of the full-size version are carried through to the machined aluminum top cap, preload collar, lower cartridge cap and included decal sheet to create an easily serviceable, high-end performance shock.

The lower cartridge cap now threads onto the bottom of the machined aluminum body and retains the dual O-ring seal pack. A machined piston is mounted on the polished steel shaft and secured with an M2X5mm screw rather than standard E-clips. Silver-painted springs and gray hard anodized shock bodies with a laser engraved Eibach logo complete the authentic Eibach look and deliver a true-to-scale finish.

Gray Hard Anodized Machined Aluminum Threaded shock bodies
Machined Aluminum shock cap with steel pivot ball and bleeder screw
Machined Aluminum lower shock cap
Machined Aluminum Preload collar with integrated o-ring
Polished Shock shafts
Dual O-Rings
8mm Bore
Included Eibach decal sheet
Notes:

Offset lower pivot ball IRC00509 included for Vanquish Products F10 axles. Standard width pivot ball required for other applications.
Shock oil is not included. 30-70wt oil is recommended
Shocks comes pre-assembled
Optional spring rates available IRC00513

• Gray Hard Anodized Machined Aluminum Threaded shock bodies
• Machined Aluminum lower shock cap
• Machined Aluminum Preload collar with integrated o-ring
• Polished Shock shafts
• Dual O-Rings
• 8mm Bore
• Included Eibach decal sheet

Machined Aluminum shock cap with steel pivot ball and bleeder screw

Notes:

• Offset lower pivot ball IRC00509 included for Vanquish Products F10 axles. Standard width pivot ball required for other applications.
• Shock oil is not included. 30-70wt oil is recommended
• Shocks comes pre-assembled
• Optional spring rates available IRC00513

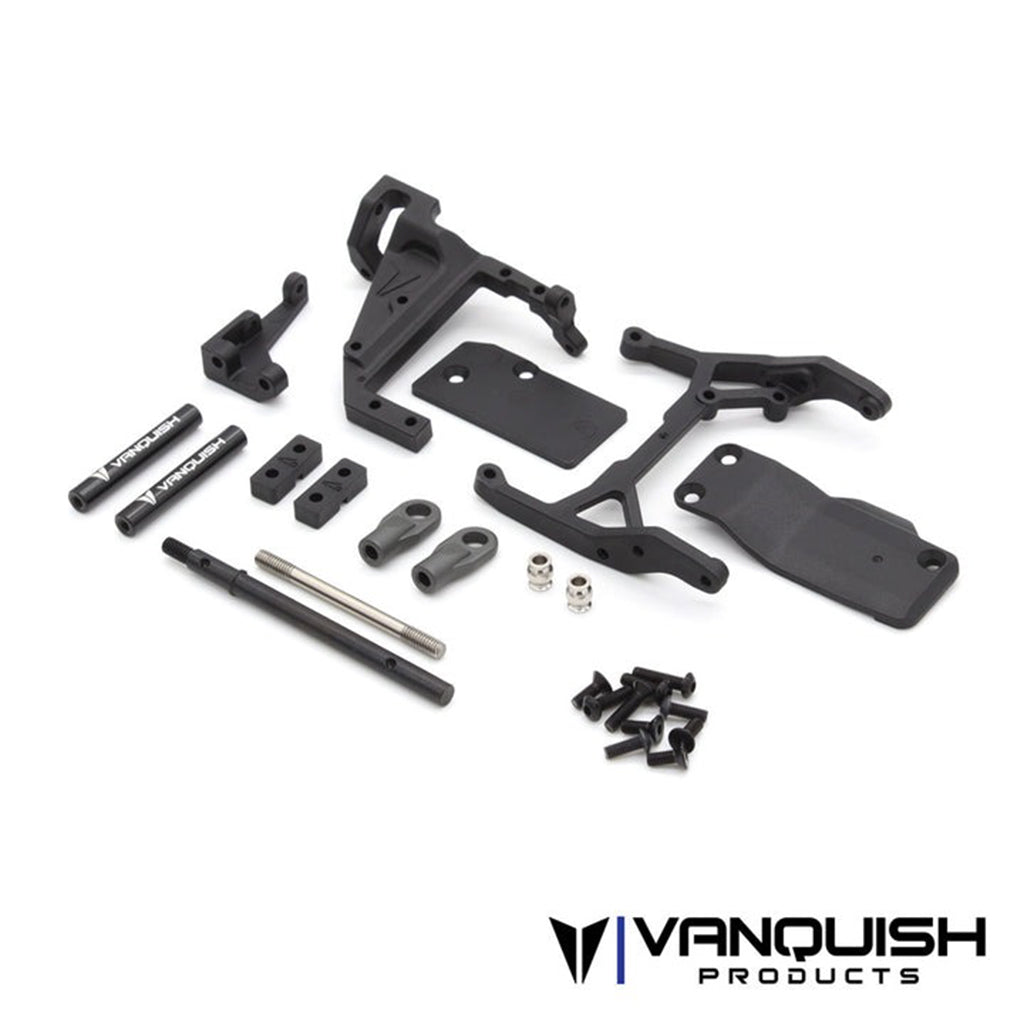

VFD Stubby conversion Kit for the VRD Chassis. Requires the use of a motor 35mm in length or less (typically outrunners). Shortens the length of the VFD transmission with a new topshaft and machined aluminum posts. Includes updated chassis bracing, behind the axle servo relocation mount and shortened VRD skid plate extension for the F10 axle. A lightweight outrunner motor and lowered servo position significantly lowers the center of gravity, increasing the performance of the VRD Carbon.

Package includes:

• Molded Servo Behind Axle F10 Mount
• Molded shortened skid plate
• Molded chassis bracing
• VFD Machined topshaft - shortened
• VFD Machined aluminum motor plate posts - shortened
• M4 rod ends and pivot balls
• 50mm drag link
• Required Hardware
• Instruction Sheet.

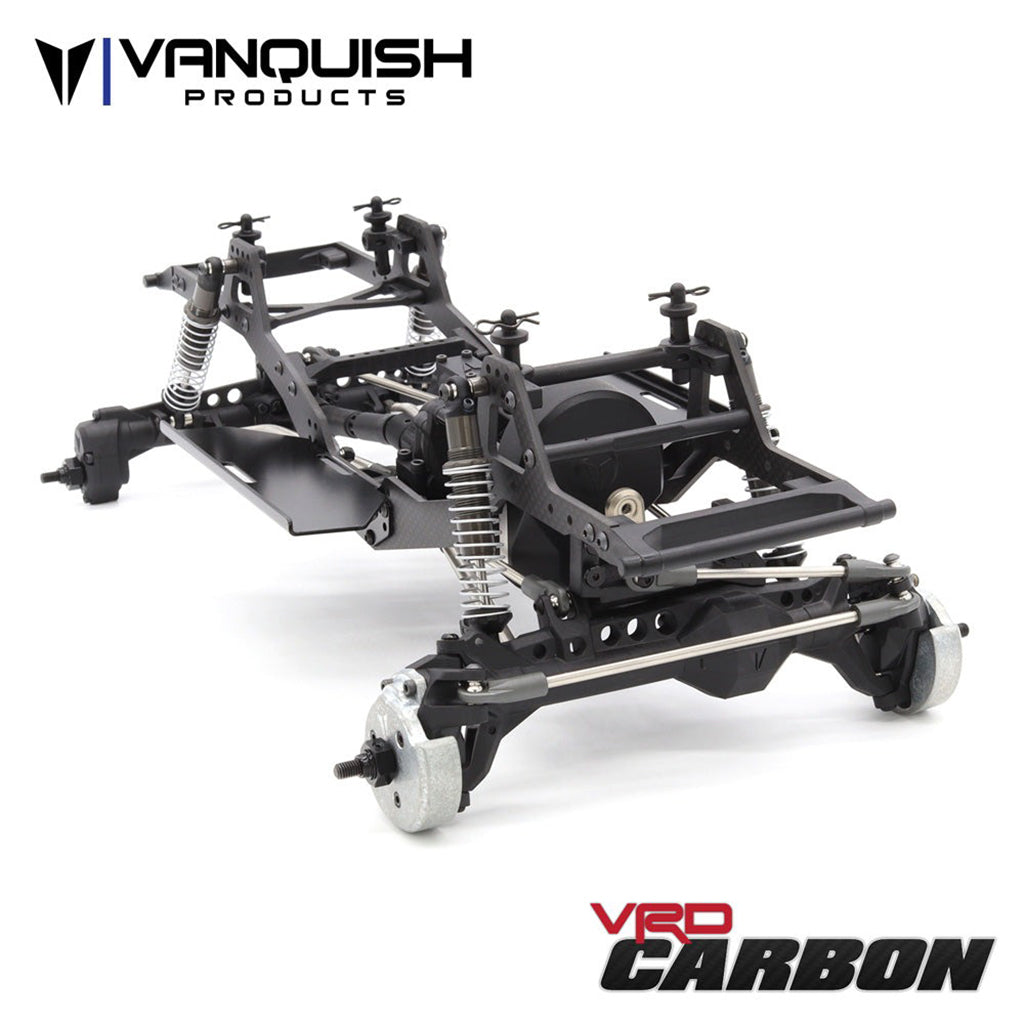

Works with VPS09015 VRD Carbon Kit

Notes:

• Maximum motor length: 35mm
• Use of 24mm length servo horn is recommend
• Not compatible with standard 540 length motors
• Not compatible with VRD CMS Conversion
• Not compatible with VS4-10.

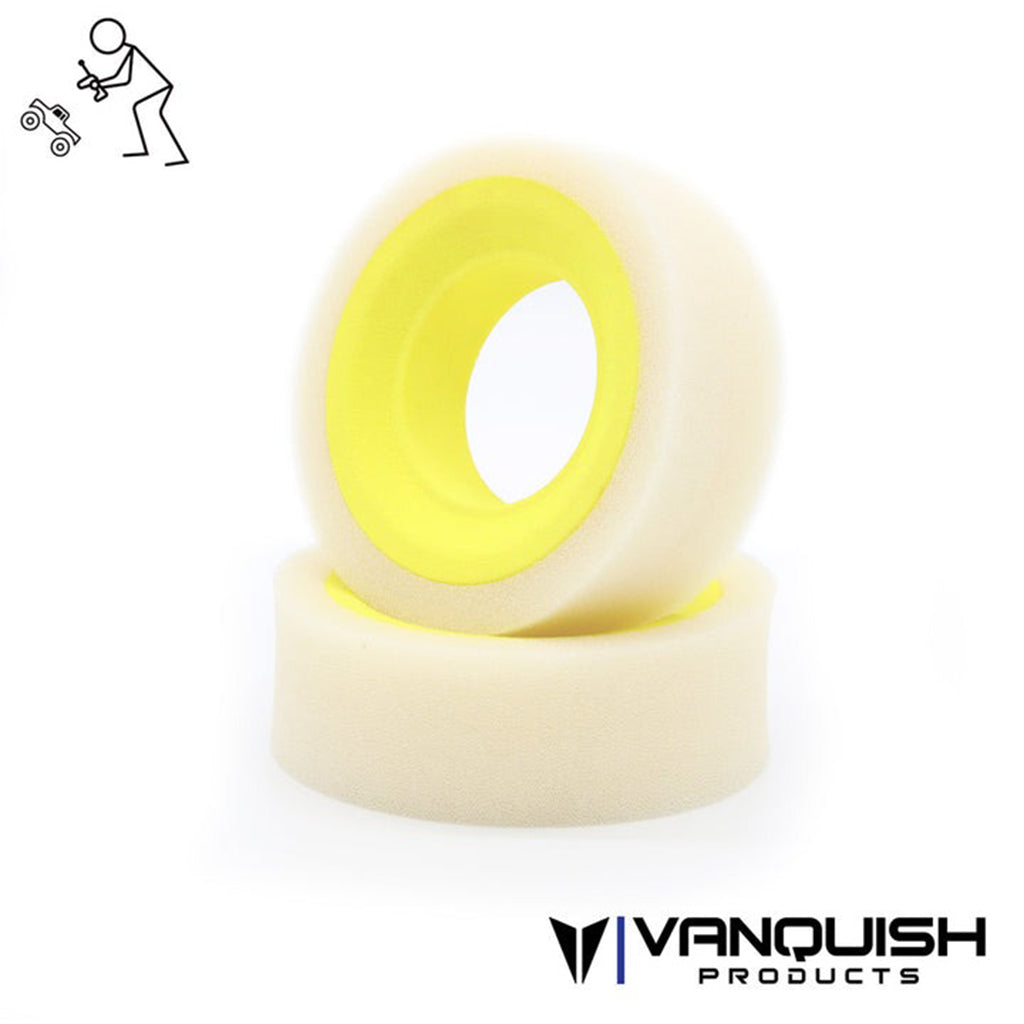

VTS Stance 4.75" Dual Stage Foams are designed to increase tire stability and performance when mated with Vanquish Products Red Compound tires. The firm inner closed cell foam has been shaped to fit the tire and wheel profile providing sidewall stability and predictability on trail. The soft outer foam layer is designed to let the tire tread pattern conform to terrain and increase traction.

The 4.75" Stance Dual Stage foam is developed specifically for the Vanquish Products VXT2 tire and is well suited for most 4.75"x1.9" tires.

The inner closed cell and outer open cell foams are glued together for consistency and ease of install.

Specifications:

Foam Width at outer layer: 41mm (1.6")

Foam Outer Diameter: 123mm (4.8")

Suitable for Vanquish Products 0.8" and 1.0" wide wheels

Suggested use: VXT2 Red Compound VPS10102

Package includes:

2pcs dual stage foams
