Enjoy all the fun of our popular 1/10 Trail Finder 2 in a 1/24 scale version!

This 1/24 Trail Finder 2 comes with all the true to scale detailing and quality performance to crawl through any terrain. Performance of the 1/24 is smooth with its R6 Mini Transmission, 4WD Drive-train, and 1/24 D44 Scale Axles, the 1/24 TF2 comes with Plastic 0.7" Beadlock wheels wrapped in some super scale Mickey Thompson 0.7" Baja Claw TTC Scale Tires to keep you trailing!

Whether it's outside on a trail or inside of your living room on an improvised course, the 1/24 TF2 comes prepared for creative challenges and is a perfect choice for any thrill seeking enthusiast. Experience all the fun and performance of the TF2 RTR, now in 1/24th scale!

Are you ready for your off-road experience?

Features

• 1/24 Trail Finder2 CNC Aluminium Chassis Set
• RC4WD Plastic Punisher Shafts (32mm - 37mm / 1.26" - 1.46")
• RC4WD 1/24 D44 Plastic Complete Axles
• R6 Micro Transmission
• Twister 5G Micro Servo
• N30 Micro Motor
• Spring Dampers for 1/24 TF2
• Super Scale 0.7" Beadlock Wheels
• RC4WD Mickey Thompson 0.7" Baja Claw TTC Scale Tires
• RC4WD 7.4V 320mAh Lithium Ion Battery W/ Balance Plug
• XR2 Ultimate Micro Radio and ESC/Receiver

Specifications

All New R6 Micro Transmission

• Motor: 30:1
• Internal Gear Ratio: 1.15:1
• Gear Material: Hardened Brass and Steel
• Case Material: Strong Durable Nylon

All New 1/24 D44 Plastic Complete Axles

• Ratio: 2.67:1
• Width at Hex: 71.6mm
• Case Material: Strong Durable Nylon
• Suspension: 4 Link Front and Rear Suspension

Wheels and Tyres

• Type: OEM Plastic 0.7" Beadlock Wheels (Black)
• Wheels Hub: Pin Type
• Width: 10mm
• OD: 19.5mm
• Tyres: officially licensed Mickey Thompson Baja Claw tyres

Dimensions and Weight

• Wheelbase: 120mm
• Length: 203mm
• Width: 91.7mm
• Height: 88.7mm
• Ground Clearance: 23.5mm
• Final Drive Ratio: 2.67:1
• Weight: 0.44lbs/0.2kg

What's Included

• 1x RC4WD 1/24 Trail Finder 2 RTR W/ Mojave II Hard Body Set (Black)

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.

Experience the versatility and advanced design of the 1/18 Gelande II for yourself. Packed full of capability, the Gelande II is ready for any challenging condition. Put your off-road driving to the test and see why the G2 is unmatched in its class!

The G2 is built with quality materials and craftsmanship. It can maneuver extreme descents and climbs with ease. The new 1/18 Mini Transmission provides power to the 1/18 Yota II Axles.

The core of the G2 is built for the true off-road enthusiast. From emergency and expedition vehicles, down and dirty off-road rigs and even daily drivers, the G2 can be customized to pull off any look you choose. The G2 delivers on performance and looks to match the drivers identity.

The G2 comes with double triangulated 4 Link Front and Rear Suspension. The servo is mounted on the chassis out of view for a more scale appearance.

Are you ready for your off-road experience?

Features

• Custom Designed for True to Scale Looks
• Realistic Aluminum Ladder Frame Chassis
• RC4WD Milestar Patagonia M/T 1.0'' Micro Crawler Tyres
• R5 1/18 Mini Transmission V2
• JK 1.0 Scale Beadlock Wheels
• 9G Analog Metal Gear Micro Servo
• 1/18 Cast Front and Rear Axle Set
• The Ultimate Mini Scale Shocks (40mm)
• 4 Link Front and 4 Link Rear Suspension

Specifications

All New R5 1/18 Mini Transmission V2
Total Gear Ratio: 5.5 : 1
Pinion Gear: 55P 10T
Gear Material: Hardened Brass and Steel
Case Material: Plastic Injection Molded

All New 1/18 Cast Yota II Axles
Ratio: 2.55 : 1
Width at Hex : 92mm
Case Material: Zinc Alloy

G2 Suspension
Double Triangulated 4 Link Front and Rear Suspension

Shock Absorbers
Ultimate 40mm Scale Shocks - Can not be Oil Filled

Wheels
Type: JK 1.0 Scale Beadlock
Wheels Hub: 7mm Hex
Width: 15mm
OD: 27.5mm

Bumpers
Molded Plastic Bumper, Light Weight

G2 Truck Dimensions
Wheelbase: 130.7mm (5.15") Length: 231mm (9.09")
Width: 113.6mm (4.47")
Height: 115.9mm (4.56")
Ground Clearance: 30.8mm (1.21")
Final Drive Ratio: 112 : 1
Weight: 1.25lbs / 0.57kg

What's Included

• 1 x RC4WD 1/18 Gelande II RTR w/ Black Rock Body Set (Orange)

Enjoy all the fun of our popular 1/10 Trail Finder 2 in a 1/24 scale version!

This 1/24 Trail Finder 2 comes with all the true to scale detailing and quality performance to crawl through any terrain. Performance of the 1/24 is smooth with its R6 Mini Transmission, 4WD Drive-train, and 1/24 D44 Scale Axles, the 1/24 TF2 comes with Plastic 0.7" Beadlock wheels wrapped in some super scale Mickey Thompson 0.7" Baja Claw TTC Scale Tires to keep you trailing!

Whether it's outside on a trail or inside of your living room on an improvised course, the 1/24 TF2 comes prepared for creative challenges and is a perfect choice for any thrill seeking enthusiast. Experience all the fun and performance of the TF2 RTR, now in 1/24th scale!

Are you ready for your off-road experience?

Features

• 1/24 Trail Finder2 CNC Aluminium Chassis Set
• RC4WD Plastic Punisher Shafts (32mm - 37mm / 1.26" - 1.46")
• RC4WD 1/24 D44 Plastic Complete Axles
• R6 Micro Transmission
• Twister 5G Micro Servo
• N30 Micro Motor
• Spring Dampers for 1/24 TF2
• Super Scale 0.7" Beadlock Wheels
• RC4WD Mickey Thompson 0.7" Baja Claw TTC Scale Tires
• RC4WD 7.4V 320mAh Lithium Ion Battery W/ Balance Plug
• XR2 Ultimate Micro Radio and ESC/Receiver

Specifications

All New R6 Micro Transmission

• Motor: 30:1
• Internal Gear Ratio: 1.15:1
• Gear Material: Hardened Brass and Steel
• Case Material: Strong Durable Nylon

All New 1/24 D44 Plastic Complete Axles

• Ratio: 2.67:1
• Width at Hex: 71.6mm
• Case Material: Strong Durable Nylon
• Suspension: 4 Link Front and Rear Suspension

Wheels and Tyres

• Type: OEM Plastic 0.7" Beadlock Wheels (White)
• Wheels Hub: Pin Type
• Width: 10mm
• OD: 19.5mm
• Tyres: officially licensed Mickey Thompson Baja Claw tyres

Dimensions and Weight

• Wheelbase: 120mm
• Length: 203mm
• Width: 91.7mm
• Height: 88.7mm
• Ground Clearance: 23.5mm
• Final Drive Ratio: 2.67:1
• Weight: 0.44lbs/0.2kg

What's Included

• 1x RC4WD 1/24 Trail Finder 2 RTR W/ Mojave II Hard Body Set (Yellow)

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.

The Bully 2.2 MOA Competition Crawler is a full out of the box, ready to compete Crawler Kit. The Bully 2.2 offers unmatched features that include carbon fiber chassis, Bully 2.2 Competition CNC machined axles, aluminum shocks, titanium links, carbon fiber and delrin Rocker 2.2" Beadlock Wheels and Bully Advanced XS22 Compound Competition Tires.

This unit is a prebuilt, ready to add batteries, purpose built crawler. Built with the intention to meet the U.S.R.C.C.A rules and destroy the competition. Bully axles offer ultimate strength and durability, full ball bearings, steel internal heavy duty gears, XVD's, clockable C's, sleek gearbox and tons of adjustability to meet your needs.

The MOA allows for ultimate control with its dual motor setup. This will reduce your center of gravity and increase the run time. Paired with a Rocker Dig II (Z-E0028) to allow for independent control of the motors giving you optimum power and other useful functions on the rocks.

Not all RC Crawler manufacturers are created equally, RC4WD sets itself apart from the competitors by offering amazing quality and details. Adding to our portfolio is this crafted crawler that will without a doubt rock your world with its out of the box features! No other crawler or crawler company can compare. The Bully 2.2 MOA Competition Crawler is a game changer!

Features

• CNC Machined Aluminum Axles
• MOA (Motor on Axle Design)
• Steel Internal Heavy Duty Gears
• Bully 2.2" Competition Tires (Advanced X2SS Compound)
• Carbon Fiber and Delrin Wheels
• Clockable C's
• Aluminium Shocks
• Titanium Links
• Carbon Fiber and Delrin Chassis
• High Clearance Chassis Design
• Carbon Fiber Battery Plate
• Easy to Paint Lexan Body Panels
• Endless Customizing for a Unique End User Experience

Specifications

Bully 2 Competition Crawler Axles
Ratio: 40.7 : 1
Pinion Gear: 0.8 Mod 14T
Hex Width: 219.5mm
Hardened Steel Gears
Case Material: Billet Aluminum

Bully 2 Suspension
4 Links Front and Rear Suspension

Shock Absorbers
Internal Spring 90mm Shocks - Can Be Oil Filled

Wheels
Type: 2.2" Lightweight Competition Beadlock Wheels
Hub: Hex Type
Width: 25.3mm
Back Spacing: 15mm

Bully 2 Dimensions
Wheelbase: 306mm (12'')
Width: 254mm (10'')
Height: 190mm (7.5'')
Ground Clearance: 97mm (3.8'')
Final Drive Ratio: 40.7 : 1
Weight: 4.38lbs / 1.99Kg

What's Included

• 1x RC4WD Bully II MOA RTR Competition Crawler

Required To Complete

• Battery (Consult your "ESC" manual) or Lipo battery
• Charger (Consult your battery guide) Chargers

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.

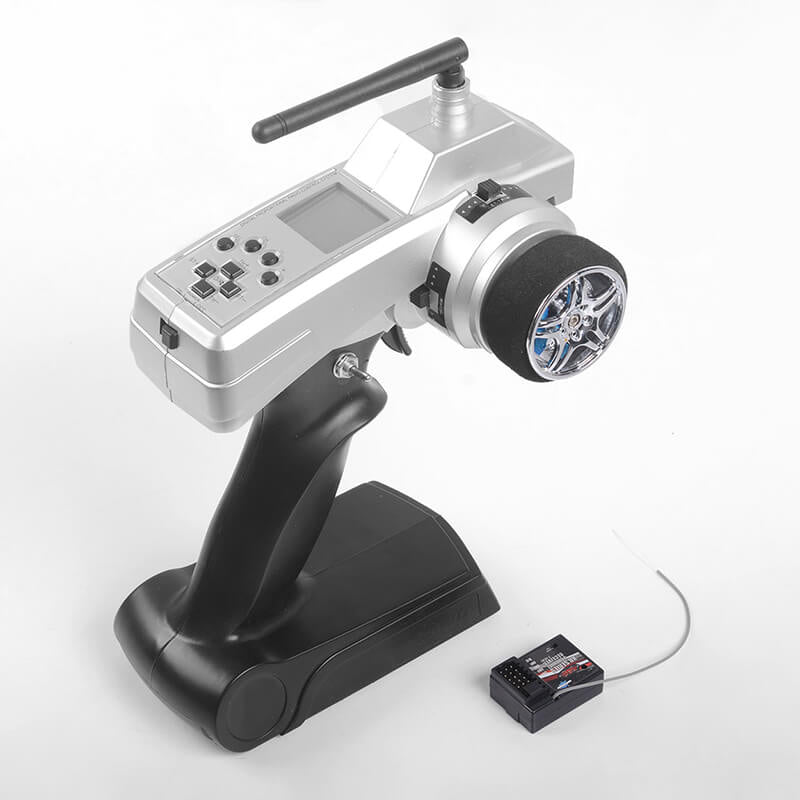

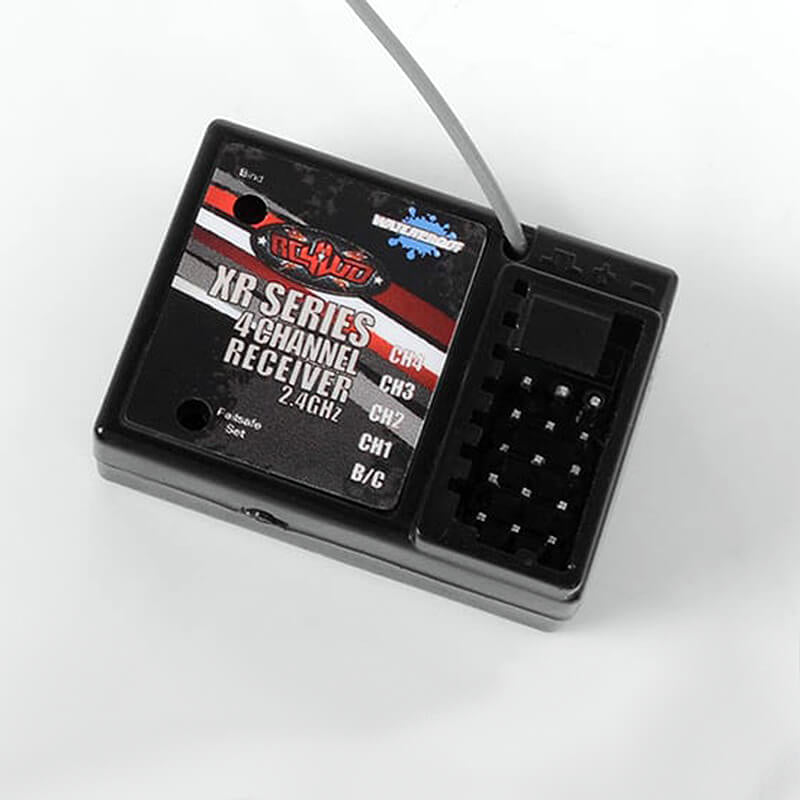

XR4 - A revolutionary advanced radio system at an unbelievable price. The only radio with 3rd and 4th channel 3 position switch, made for DIG switch, winch, light or other custom function.

Features

• Advanced Ultra Range 2.4Ghz System
• Micro Size Receiver
• Green Circuitry (Requires 4 AA Batteries)
• Cool Blue Backlit Large LCD Display for Manual Adjustment
• Ergonomical Designed Large Hand Grip
• Racing Style Steering Wheel Faux Brake Disc
• Number of Model Memory: 10+
• Supports EPA, ST SPD, ST EXP, TH EXP, TH SPD, M-SEL

What's Included

• 1 x XR4 2.4Ghz transmitter
• 1 x XR4 2.4Ghz receiver

Notes

• This radio can be used for nitro, gasoline truck, race car, tank or even boat.

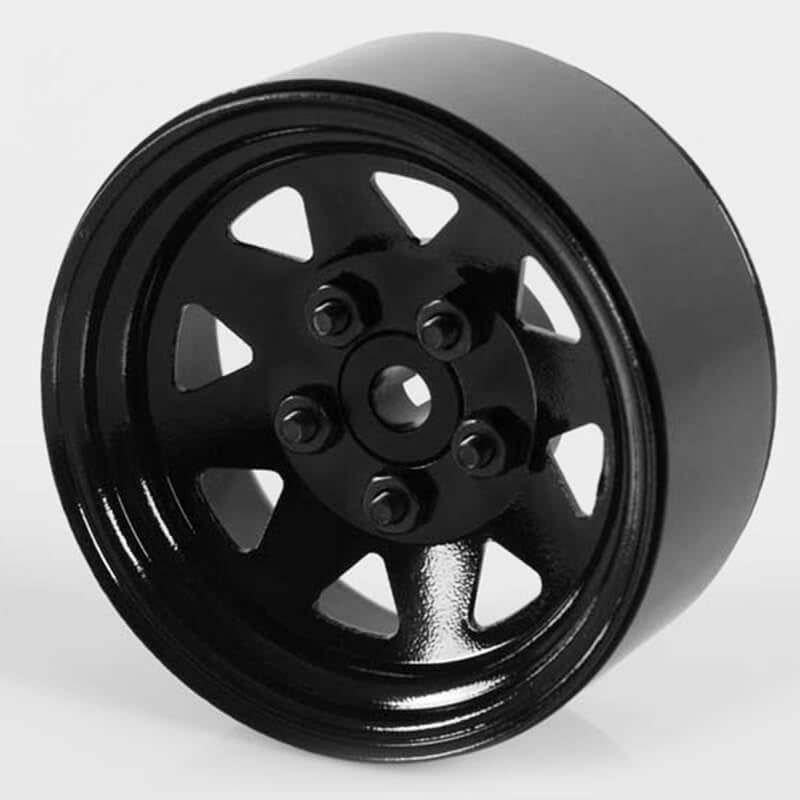

Pushing scale to new levels with this traditional wagon wheel design used as an upgrade for many years on trucks and trailers.

Specifications

Fits Tires: 1.9"
Hex Size: Pin Drive
Wheel Size: 1.9"
Wheel Width: 1.0" / 25mm
Negative Offset: 0.37 " / 9mm
Outside Diameter: 2.2" / 56mm
Each Wheel Weighs: 2.5oz / 71g
Colour: Black

What's Included

• 1 x Single 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheel
• 2 x M2.5 x 14mm SHCS (Black)

Replacement Hardware

• 5x M2.5 x 8mm SHCS (Black)
• 5x M2.5 Nuts (Z-S0303)

Optional Parts

• 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black)
• 1.9 Proline Tire Compatible Internal Beadlock Rings (Z-S0846)

Notes

• Stamped Steel Wheels with Internal Beadlock System
• This product will fit Optional Hubs (Z-S0734), (Z-S0532), (Z-S1273), (Z-S1278) and (Z-S1276), but you will need RC4WD 12mm Axle Wheel Hexes (Z-S0239)
• Fits Gmade Sawback
• Due to many different methods to design tires and wheels, we have no control over other manufacturers products. So we can only tell you that RC4WD tires and wheels work together. In some cases our wheels and tires will work with other brand wheels and tires, but we can not guarantee the outcome

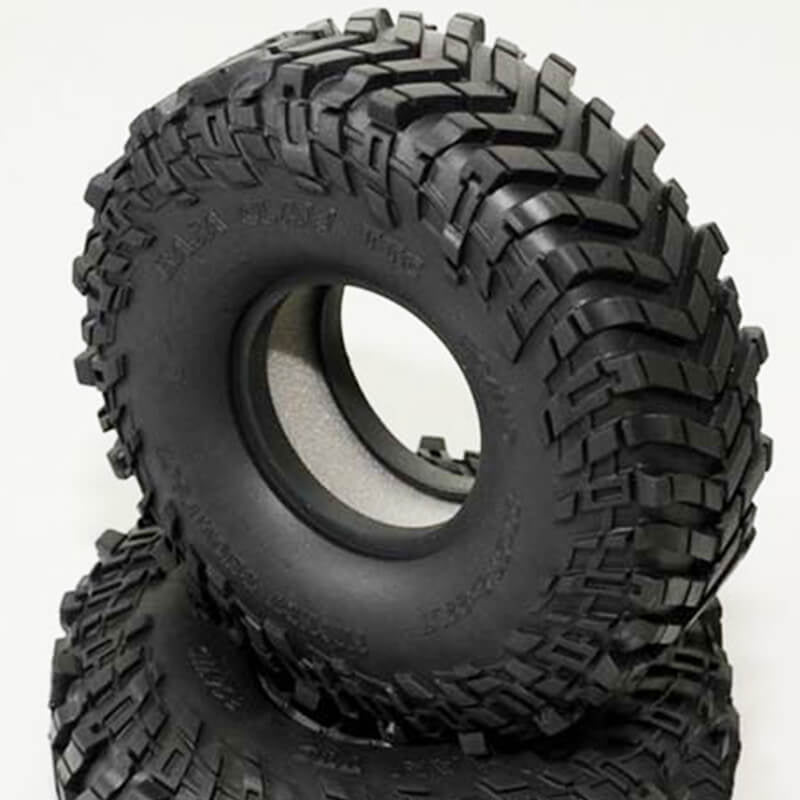

These are the all new Licensed Baja Claw TTC tires. These have been Officially Licensed by the Mickey Thompson Performance Tires and Wheels company and are only available from RC4WD.

Specifications

Compound: Advanced X2 SS
Fits: 2.2" Wheels
Outer Diameter: 5.70" / 145mm
Width: 2.07" / 52.6mm
Inner Diameter: 2.2" / 56mm
Tire Thread Depth: TBC
Each Tire Weighs: 4.97oz / 141g

What's Included

• 1 x RC4WD Mickey Thompson Baja Claw TTC 2.2" Tires
• 1 x Foam Inserts

Notes

• Fits Axial Yeti 1/10
• Due to many different methods to design tires and wheels we can tell you that RC4WD tires and wheels work well together, as we have no control over other manufacturers products, we cannot guarantee the fitment.
• Mickey Thompson, Baja Claw TTC and the Mickey Thompson logo are property of Mickey Thompson Performance Tires and Wheels and used under license to RC4WD.
• 2 tire set is Z-T0065

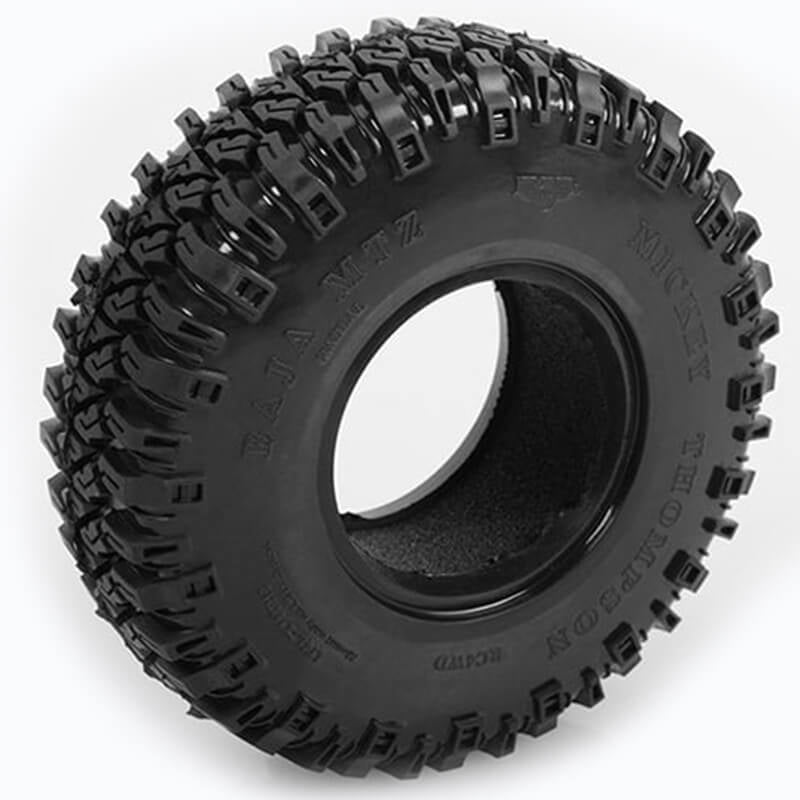

In an effort to bring out even more scale tires, we have teamed up with Mickey Thompson again with this 1.9" Baja MTZ. The scale detail is beyond what we have done before.

Specifications

Compound: Advanced X2 SS
Fits: 1.9" Wheels
Outer Diameter: 4.19" / 106.4mm
Width: 1.28" / 32.6mm
Inner Diameter: 1.9" / 48mm
Tire Thread Depth: TBC
Each Tire Weighs: 2.05oz / 58g

What's Included

• 1 x RC4WD Mickey Thompson 1.9" Baja MTZ Scale Tires
• 1 x Foam Inserts

Notes

• Fits Gmade Sawback
• Due to many different methods to design tires and wheels we can tell you that RC4WD tires and wheels work well together, as we have no control over other manufacturers products, we cannot guarantee the fitment.
• Mickey Thompson, Baja MTZ and the Mickey Thompson logo are property of Mickey Thompson Performance Tires and Wheels and used under license to RC4WD.
• 2 tire set is Z-T0061

Features

• Cloth Fabric

Specifications

Length: 11.8in / 300mm
Width: 22.6in / 575mm
Weight: 1.16oz / 33.0g

What's Included

• 1 x RC4WD 1x2 Cloth Banner

Features

• Cloth Fabric

Specifications

Length: 46.0in / 1170mm
Width: 23.0in / 586mm
Weight: 3.60oz / 102g

What's Included

• 1 x RC4WD 2x4 Cloth Banner

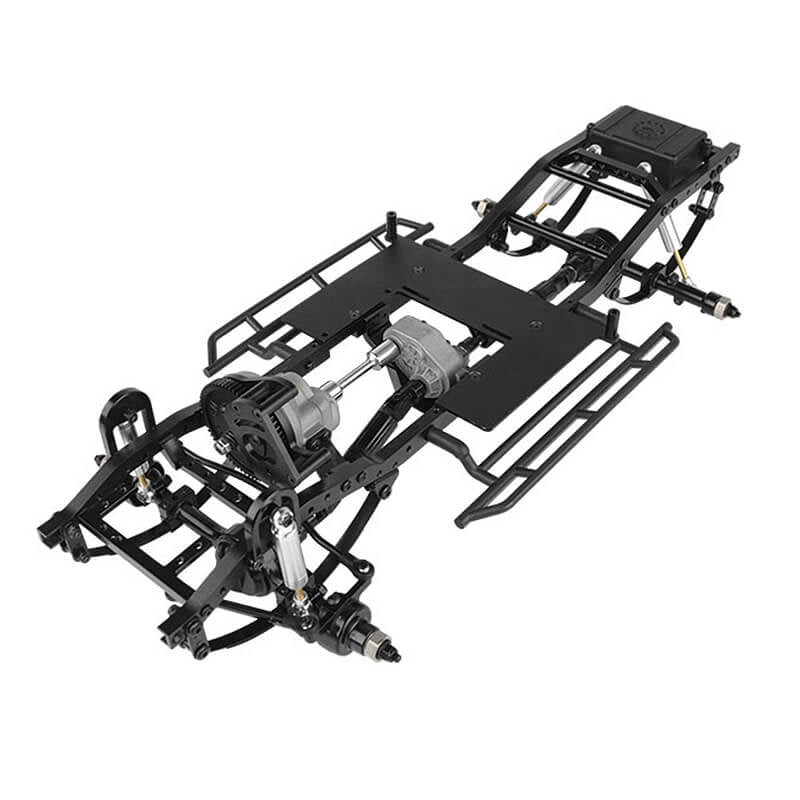

The Trail Finder 2 LWB has both style and aggressive performance. You can find a balance of scale details and performance in every build.

Performance is smooth with its R3 Scale Single Speed transmission, 4WD drivetrain, Bulletproof Transfer Case, and quality metal components. The front axles have been upgraded with XVD's, along with a sturdier construction and a greater steering angle. The Trail Finder 2 LWB is a product of innovative engineering that impresses in appearance and performance.

The Trail Finder 2 LWB is fully compatible with an array of options and performance enhancements crafted to elevate the user experience and enhance the authenticity of a 1/10 off-road truck!

Drivetrain

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

The Trail Finder 2 LWB Kit includes the Hammer Transfer Case. Packed with detail, the case features a cast metal exterior and the same 0.8 Mod widened gears for durability.

Drawing on the success of the RC4WD MOA gear sets, the Trail Finder 2 LWB Kit Drivetrain has the most durable gears RC4WD has to offer so the Trail Finder 2 LWB Kit can stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles (XVD) feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.

The Drive Shafts for the Trail Finder 2 LWB Kit are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.

Suspension

The chassis comes with leaf under mounting. This setup lowers the ride height, resulting in a lower overall vehicle stance and a more realistic appearance!

 The Trail Finder 2 LWB Chassis includes a set of RC4WD Ultimate Scale Shocks. These ultimate scale shock absorbers offer realistic looks and performance. They are machined from billet aluminum with internal springs and rebuildable internal parts!

With strength in mind, the ladder frame design of the Trail Finder 2 LWB Chassis is made with CNC machined, billet aluminum and comes with scale shock hoops, a chassis servo mount, and transmission and transfer case mounts.

Soft Steel Leaf Springs are constructed from high-quality material to reduce stiction. The unique sizing for this set is designed for a more finely tuned ride.

The RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 LWB are scale replicas designed to protect and mitigate the rough impacts of crawling over rocky terrain and trails!

Features

• Realistic Billet Aluminum Ladder Frame Chassis
• R3 Scale Single Speed Transmission
• Center Mounted Realistic 4x4 Transfer Case
• Yota Il Ultimate Scale Cast Axle V2 (Front) w/XVD's
• Yota Il Ultimate Scale Cast Axle (Rear)
• Ultimate Scale Shocks 60/80mm
• Marlin Crawlers Side Plastic Sliders for TF2 LWB
• Super Soft Flex Leaf Springs for TF2
• Leaf Under Mounts for Yota 2/K44 Axles

Hammer Transfer Case

• Ratio: 1.47:1
• Gears: Wide .8 Mod Steel Gears
• Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission

• Ratios: Pinion/Spur 14/64 = 1:4.57
• Internal Ratio: 1.78:1
• Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Yota II Ultimate Scale Cast Axles

• Ratio: 2.67:1
• Hex To Hex Width: 180mm (7.09")

Trail Finder 2 "LWB" Chassis

• Features: Billet Aluminum Construction, Adjustable Shock Hoops

Drive Shafts

• High Quality Plastic Material, Durable Steel Yokes

Specifications

Wheelbase: 310mm(12.2")
Width: 196mm(7.7")
Height: 106mm (4.17")
Final Drive Ratios: 31.9:1

What's Included

1 x RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Yota II)

Required To Complete

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Electronics

• Motor (35t, 45t, or 55t)

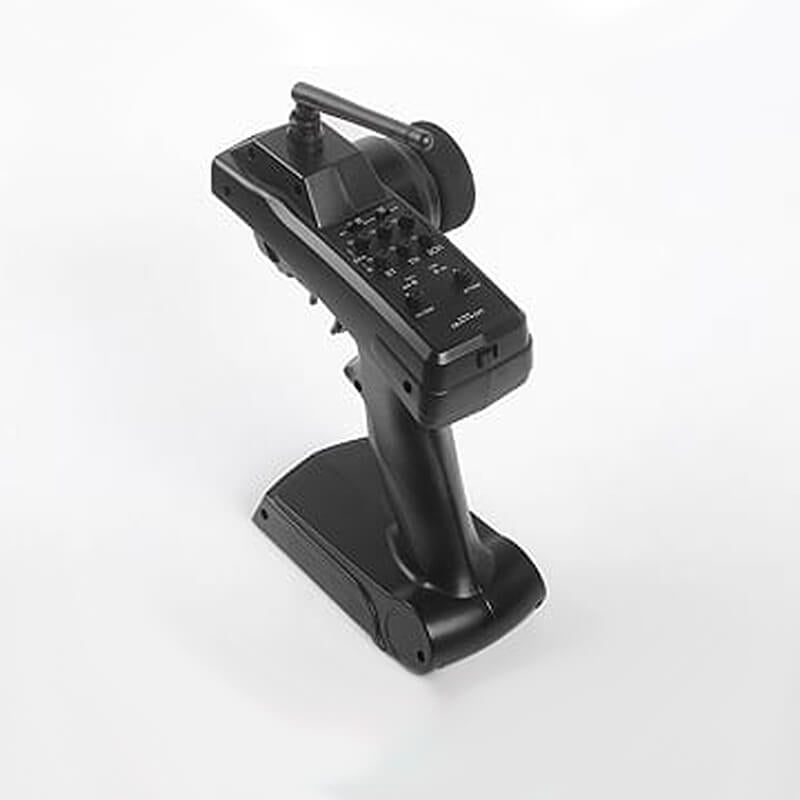

• Radio and Receiver (3 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery Z-E0090 or Lipo battery
• Charger Chargers

Suggested Bodies

• RC4WD 1987 Toyota XtraCab Hard Body Complete Set (Z-B0216)
• RC4WD Chevrolet K10 Scottsdale Hard Body Complete Set (Z-B0258)

Notes

• This is a kit that requires building time (appro. 2-3 hours), electronics, tyres and wheels.
• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock sparingly.
• Do not over tighten screws, otherwise you may strip the thread.
