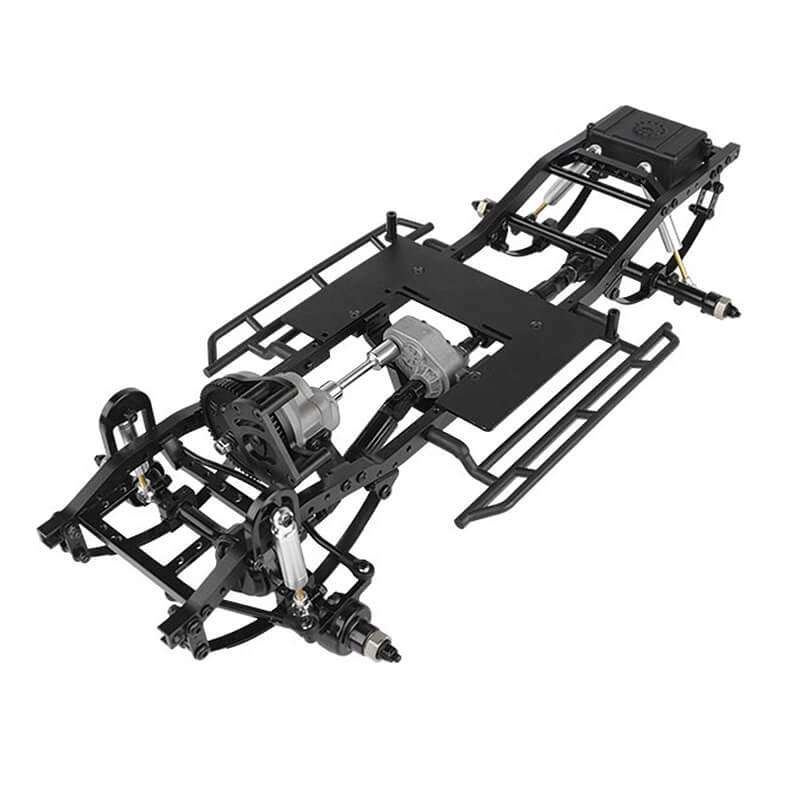

RC4WD - TRAIL FINDER 2 LWB 1/10 SCALE BUILDERS KIT (YOTA II) - Z-K0075

The Trail Finder 2 LWB has both style and aggressive performance. You can find a balance of scale details and performance in every build.

Performance is smooth with its R3 Scale Single Speed transmission, 4WD drivetrain, Bulletproof Transfer Case, and quality metal components. The front axles have been upgraded with XVD's, along with a sturdier construction and a greater steering angle. The Trail Finder 2 LWB is a product of innovative engineering that impresses in appearance and performance.

The Trail Finder 2 LWB is fully compatible with an array of options and performance enhancements crafted to elevate the user experience and enhance the authenticity of a 1/10 off-road truck!

Drivetrain

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

The Trail Finder 2 LWB Kit includes the Hammer Transfer Case. Packed with detail, the case features a cast metal exterior and the same 0.8 Mod widened gears for durability.

Drawing on the success of the RC4WD MOA gear sets, the Trail Finder 2 LWB Kit Drivetrain has the most durable gears RC4WD has to offer so the Trail Finder 2 LWB Kit can stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles (XVD) feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.

The Drive Shafts for the Trail Finder 2 LWB Kit are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.

Suspension

The chassis comes with leaf under mounting. This setup lowers the ride height, resulting in a lower overall vehicle stance and a more realistic appearance!

 The Trail Finder 2 LWB Chassis includes a set of RC4WD Ultimate Scale Shocks. These ultimate scale shock absorbers offer realistic looks and performance. They are machined from billet aluminum with internal springs and rebuildable internal parts!

With strength in mind, the ladder frame design of the Trail Finder 2 LWB Chassis is made with CNC machined, billet aluminum and comes with scale shock hoops, a chassis servo mount, and transmission and transfer case mounts.

Soft Steel Leaf Springs are constructed from high-quality material to reduce stiction. The unique sizing for this set is designed for a more finely tuned ride.

The RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 LWB are scale replicas designed to protect and mitigate the rough impacts of crawling over rocky terrain and trails!

Features

• Realistic Billet Aluminum Ladder Frame Chassis
• R3 Scale Single Speed Transmission
• Center Mounted Realistic 4x4 Transfer Case
• Yota Il Ultimate Scale Cast Axle V2 (Front) w/XVD's
• Yota Il Ultimate Scale Cast Axle (Rear)
• Ultimate Scale Shocks 60/80mm
• Marlin Crawlers Side Plastic Sliders for TF2 LWB
• Super Soft Flex Leaf Springs for TF2
• Leaf Under Mounts for Yota 2/K44 Axles

Hammer Transfer Case

• Ratio: 1.47:1
• Gears: Wide .8 Mod Steel Gears
• Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission

• Ratios: Pinion/Spur 14/64 = 1:4.57
• Internal Ratio: 1.78:1
• Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Yota II Ultimate Scale Cast Axles

• Ratio: 2.67:1
• Hex To Hex Width: 180mm (7.09")

Trail Finder 2 "LWB" Chassis

• Features: Billet Aluminum Construction, Adjustable Shock Hoops

Drive Shafts

• High Quality Plastic Material, Durable Steel Yokes

Specifications

Wheelbase: 310mm(12.2")
Width: 196mm(7.7")
Height: 106mm (4.17")
Final Drive Ratios: 31.9:1

What's Included

1 x RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Yota II)

Required To Complete

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Electronics

• Motor (35t, 45t, or 55t)
• Radio and Receiver (3 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery Z-E0090 or Lipo battery
• Charger Chargers

Suggested Bodies

• RC4WD 1987 Toyota XtraCab Hard Body Complete Set (Z-B0216)
• RC4WD Chevrolet K10 Scottsdale Hard Body Complete Set (Z-B0258)

Notes

• This is a kit that requires building time (appro. 2-3 hours), electronics, tyres and wheels.
• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock sparingly.
• Do not over tighten screws, otherwise you may strip the thread.
