1/12 GT12 ESC Program Modules

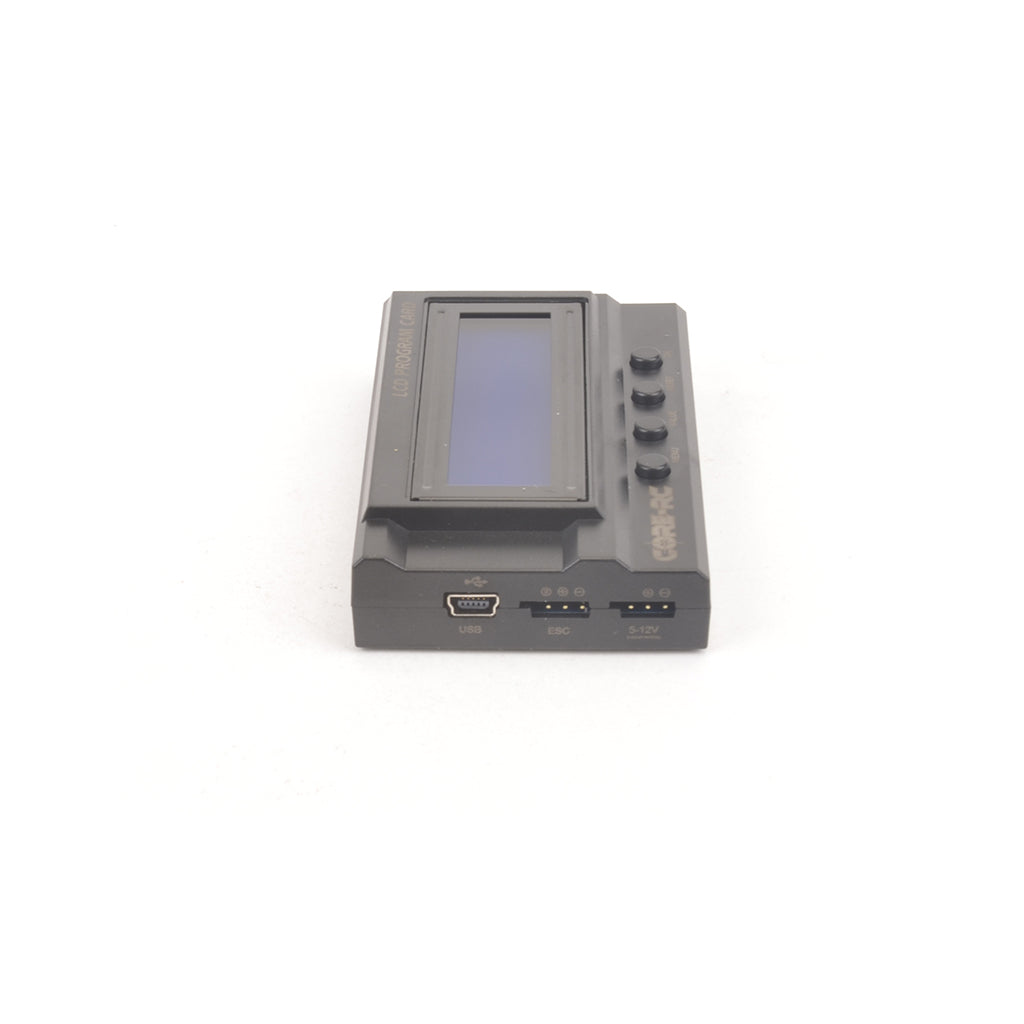

LCD Program Card for the PACE 95R Speed Control.

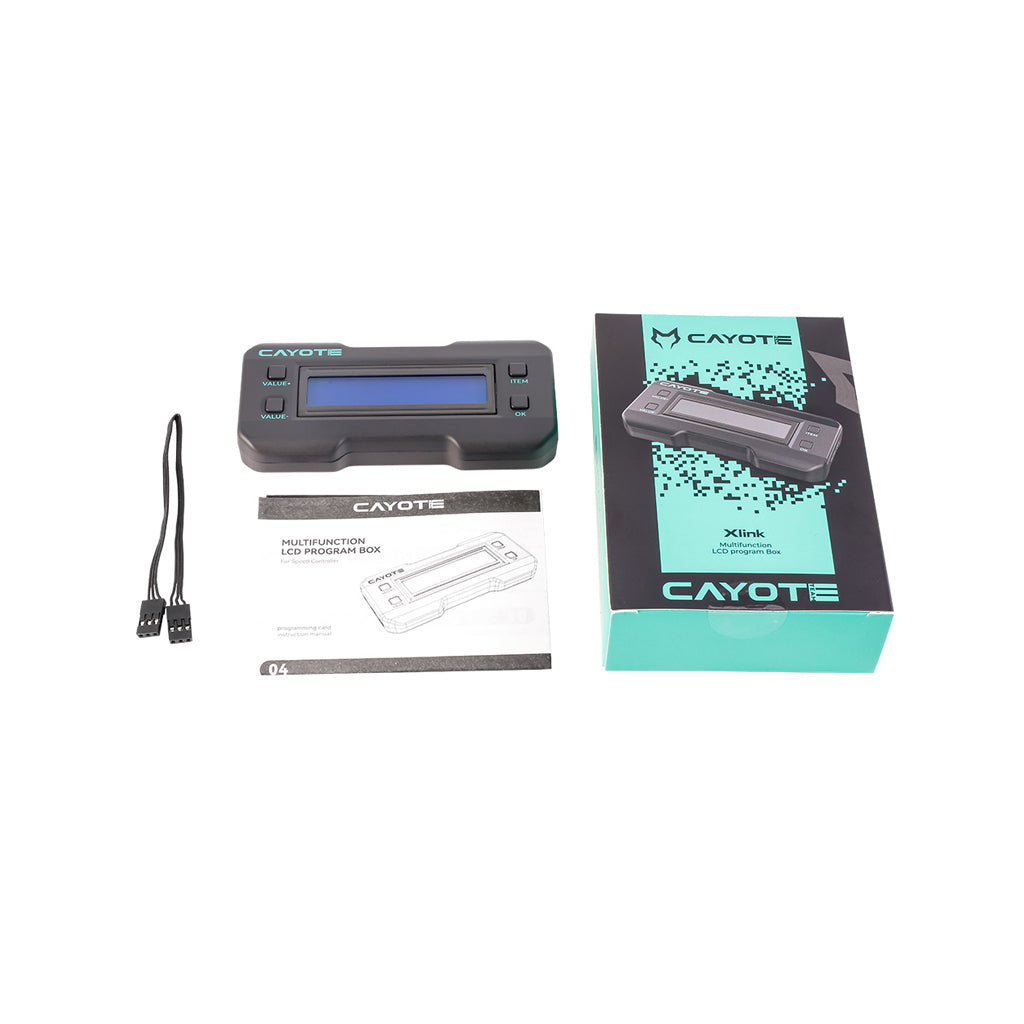

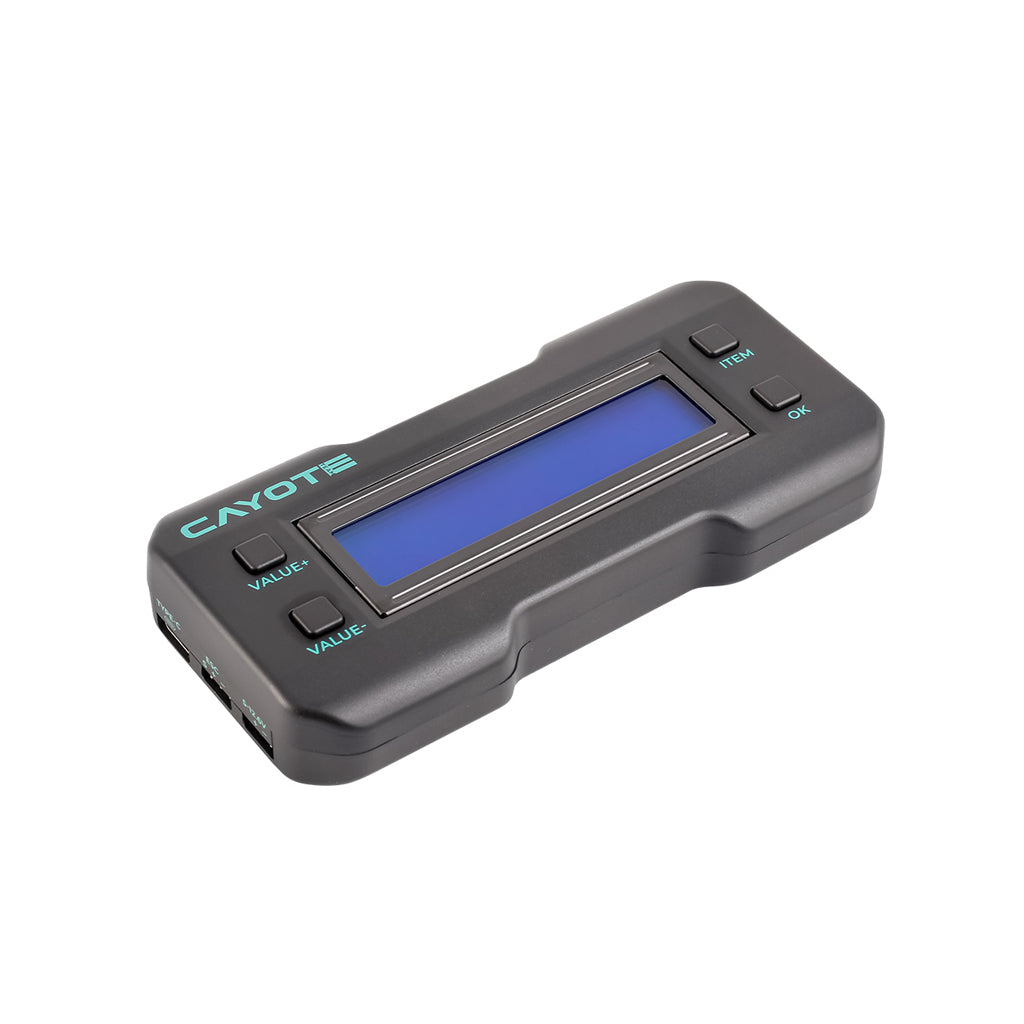

Xlink
With a user-friendly LCD interface, our Team Cayote Xlink system ensures that programming your ESC is now a quick and hassle-free job. Fine-tune your settings effortlessly, whether you’re at the track or in your workshop. Compact and portable, it’s your ultimate companion trackside.

Specifications

Brand: Cayote
Size: 115x55x18.5mm
Weight: 73.5g
ESC Port: Futaba Socket
Power Port: Futaba Socket
Input Voltage: 5-12.6V

Bluetooth Set Up Module for the CORE RC PACE 100R speed control.

After installing Bluetooth APP, the user can monitor the ESC data in real time, set the ESC parameters, and upgrade the firmware of the ESCs, etc, on the cell phone.

It  allows you to program the following;

Throttle Response-Coast-Neutral Range-Min. Throttle-Minus-Minus Range-Max. Forward force

Brake Response-Min. Brake Force-Max. Brake Force-Fwd. Drag Brake Force-Fwd. Drag Brake Response-Rev. Drag Brake Force-Rev. Drag Brake Response-PWM Freq.

Boost Timing-Trigger-RPM Threshold-Initial Angle-Angle Inc. Rate-Angle Dec. Rate

Turbo Timing-Angle Inc. Rate-Angle Dec. Rate-Turbo Delay-Delay Reload

Motor Rotation-Motor Poles-Running Mode-Drive PWM Freq.-CutOFF Voltage-CutOFF Thermal-BEC-Output-A/C Swap

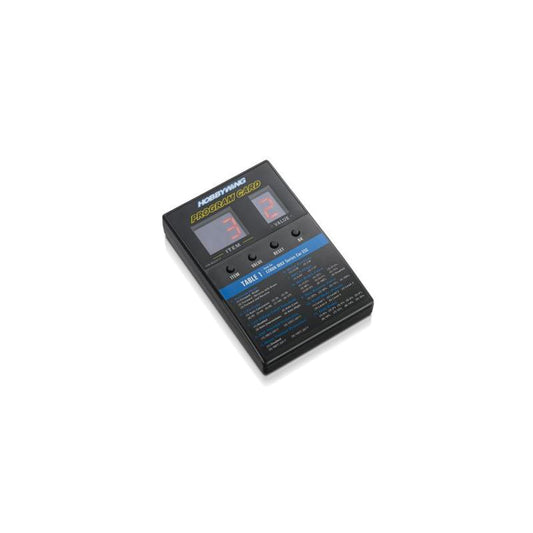

This LED program box is for programming HobbyWing brushless ESCs. Its friendly interface makes ESC programming easy and quick. It’s compact, portable and very applicable for field use.

Applications:

• Platinum V1/V2 series & FlyFun V5 SkyWalker V2 Series of brushless aircraft ESCs
• XeRun series (most), EzRun series & QuicRun series of brushless car ESCs
• SeaKing series of brushless boat ESCs

Specifications:

• Size: 88x58x14mm
• Weight: 40g
• Input Voltage: 4.8-6V
• Instruction and Lead included

NOTE: If the ESC doesnt have a built-in BEC, you will need to use an additional 6.0V battery to supply power to the program box.
