1/12 GT12 1S ESC

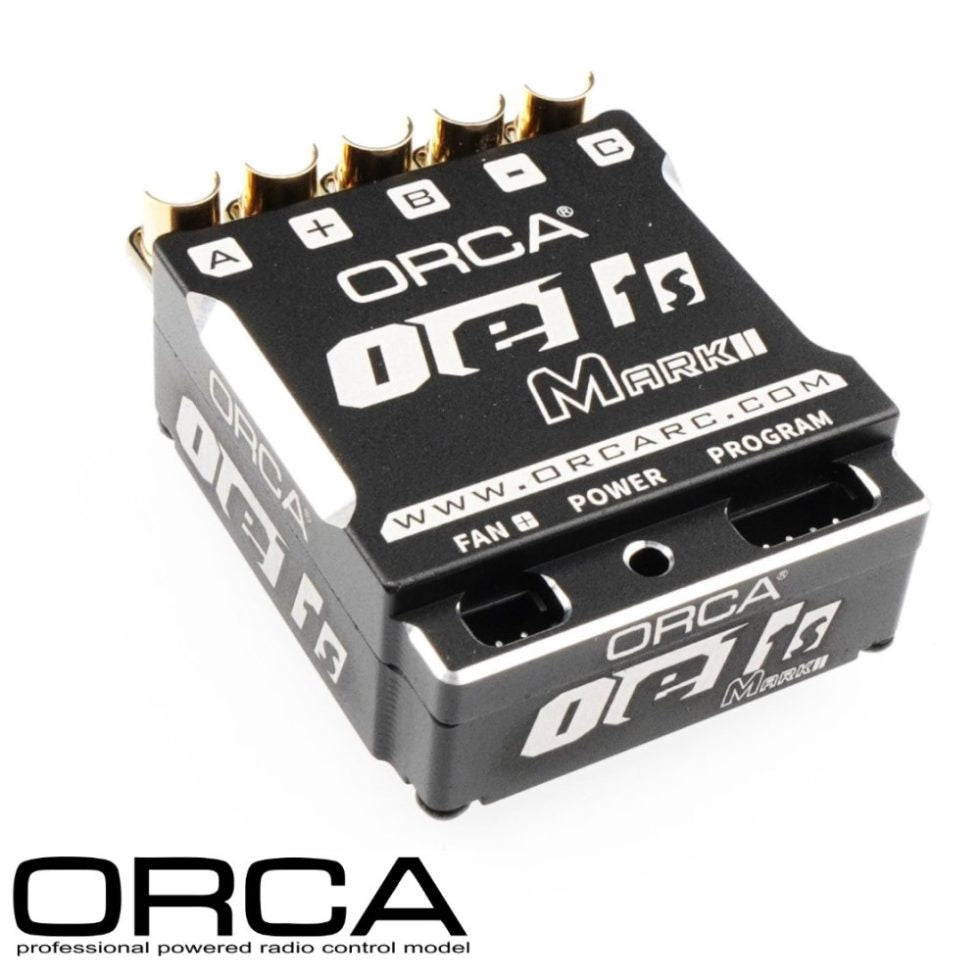

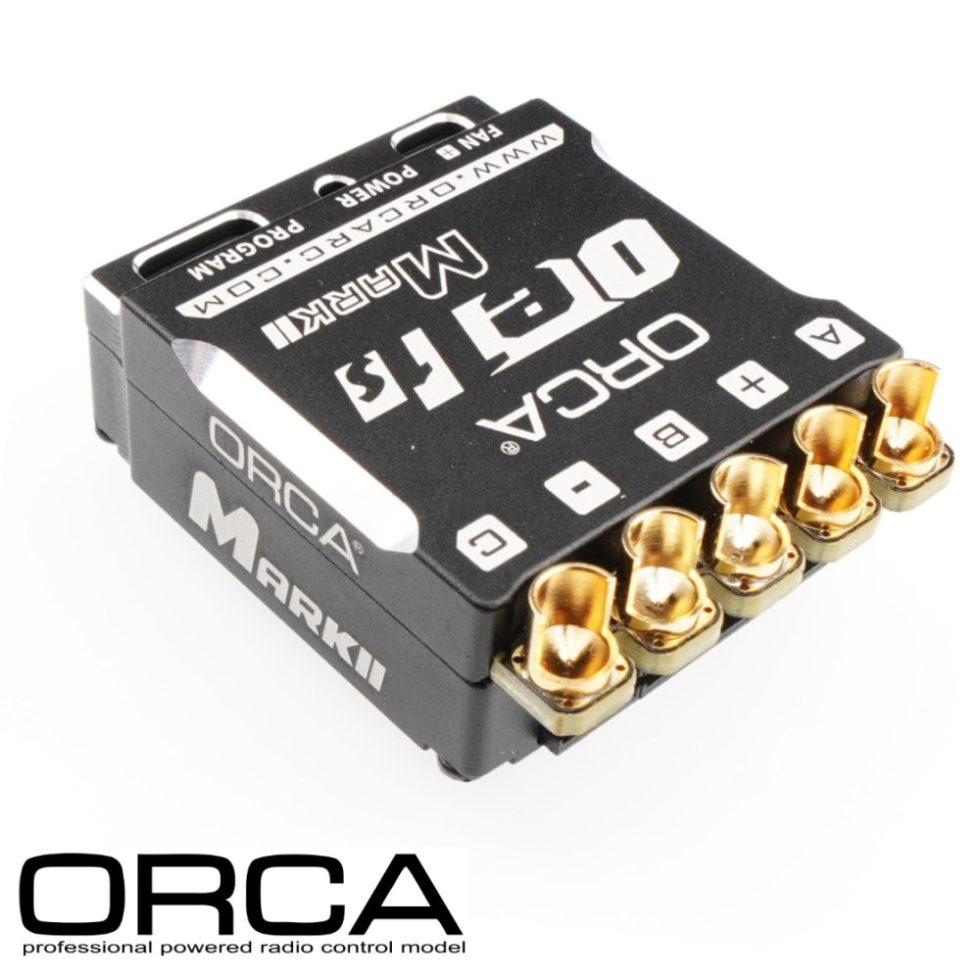

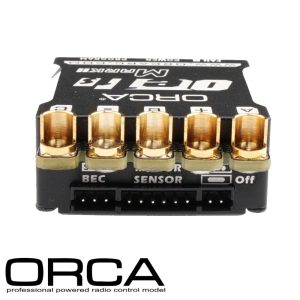

Introducing the ORCA OE1-1S MK2 PRO ESC For 1/12 RC Car.

With the OE1 -1S Mk2 Brushless Pro 1S ESC, ORCA has developed one of the very most advanced ESC’s in the RC market today. The OE1-1S Mk2 allows multiple parameters to be set (with ESC Programme Card or the new ORCA Blucon Bluetooth module to connect a smartphone for programming, sold separately).

Equipped with a powerful 32-bit processor and ultra high performance FETs with low internal resistance for the ultimate in smooth sensitive control. Capacitors and reverse polarity protection are all integrated in the housing. This means the OE1-1S Mk2 is ready to dominate straight from the box.

Features:

• For: 1/10 or 1/12 RC Car

• Motor Limited > 4.5T

• Material: Aluminium

• Color: Black

• Polar Reverse Protection

• Built-In Internal Capacitor

• Detachable on/off switch, ESC is always on when on/off switch disconnected

• Detachable receiver cable , ESC comes with 200mm wire, optional 105mm and 300mm BEC wires also available seperately

• New CPU, Newly Design Circuit Board and Lower IR MOSFET’s

• Ultimate Brushless System

• 32 bit Processor

• Multiple Adjustable Parameters (adjusted by an optional Blucon module via Android / iOS smart phone or by an optional OE1 Program card)

Specification:

• BEC : 8A 6V / 7.2V

• Peak Current 760A

• Continuous Current 160A

• Motor limit 3.5T

• Motor Type: Brushless sensored 540 size Motor

• Voltage input : DC 3.7V – 4.4V

• Dimensions : 30.54(L) x 34(W) x 13.75(H) mm

• Weight : 29.3g excluding wires

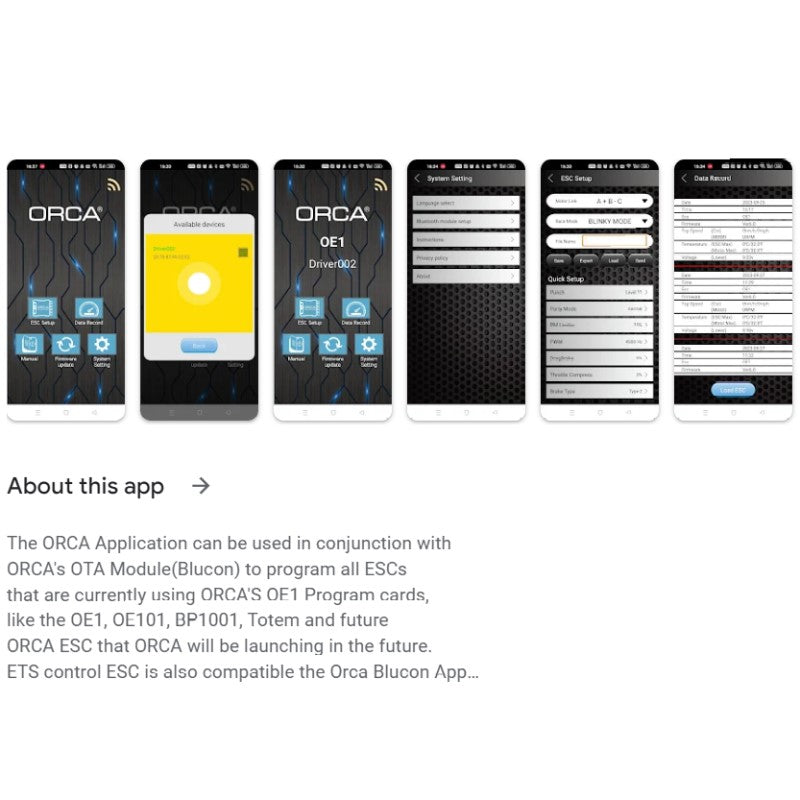

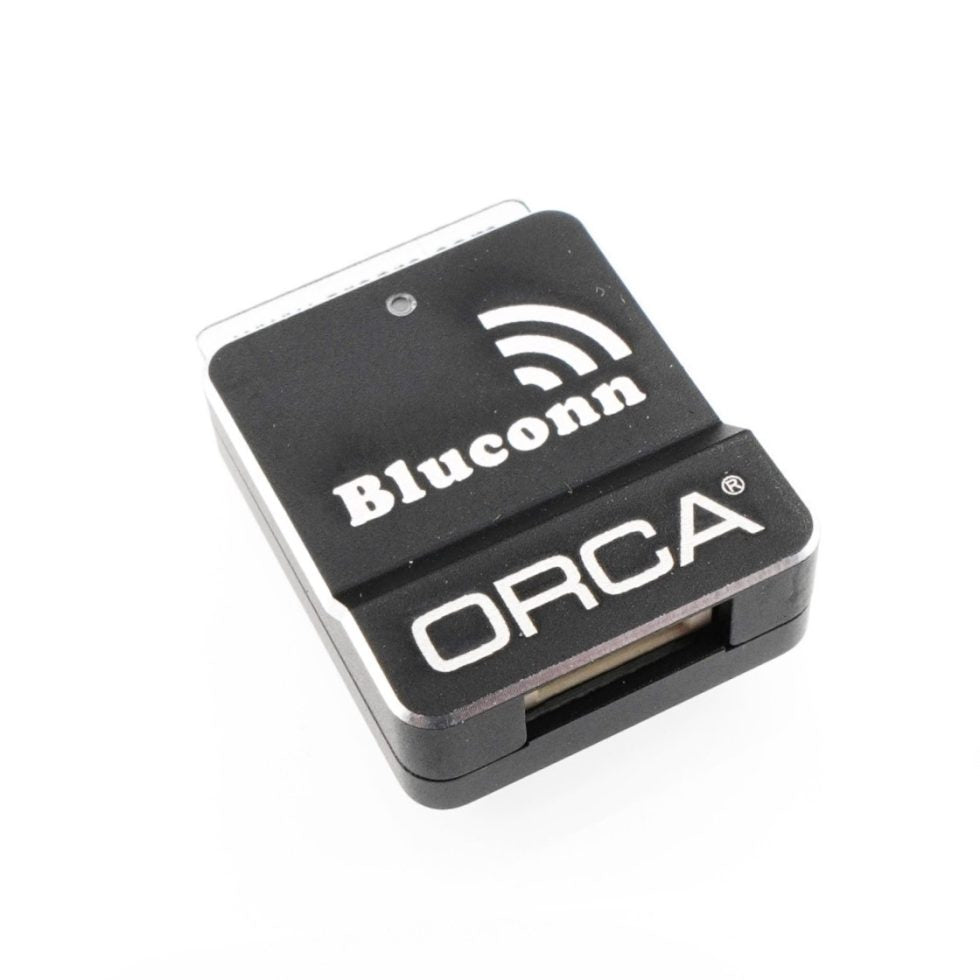

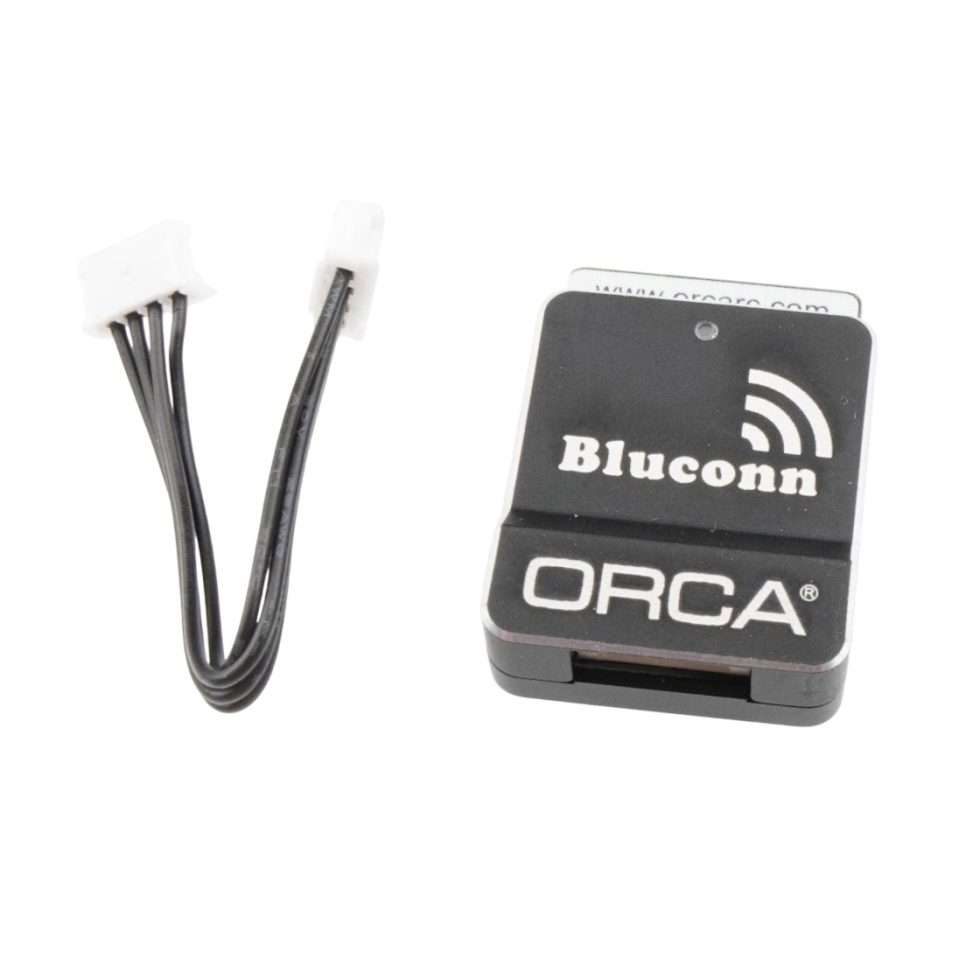

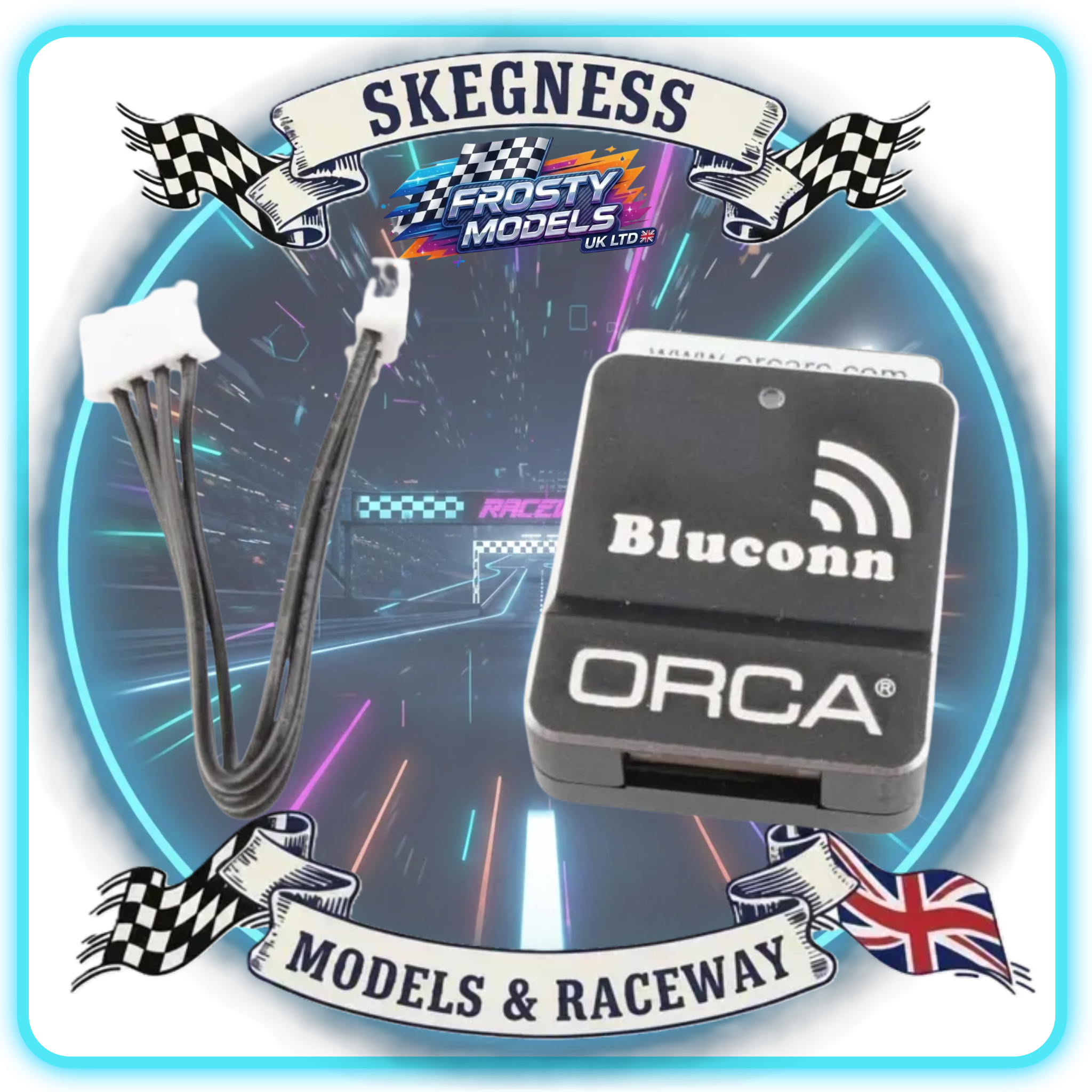

Introducing the all-new ORCA Blucon onboard programming module. Now all ORCA speed controllers can be configured in an ultra easy user-friendly and modern way.

All adjustable parameters can be conveniently selected and set using the “ORCA Blucon App”.

With this upgrade, ORCA offers ambitious racing drivers the opportunity to configure their controller easily and efficiently on their smartphone or tablet for every track and to read out the data during the race or Training.

Find the App Download here:

• Apple – ORCA Blucon on the App Store
• Android –  ORCA Blucon on the Google Play store

The Blucon is fully compatible with all ORCA ESCs that are currently using the ORCA OE1 programming box.

• BP1001 Blinky Pro
• OE1
• OE1 Mark II
• OE1 WLE World Limited Edition
• OE1.2 2-4cells
• OE101
• OE101S (1S)
• OE1-1S
• OE1-1S Mark II
• Totem
• Totem-1S

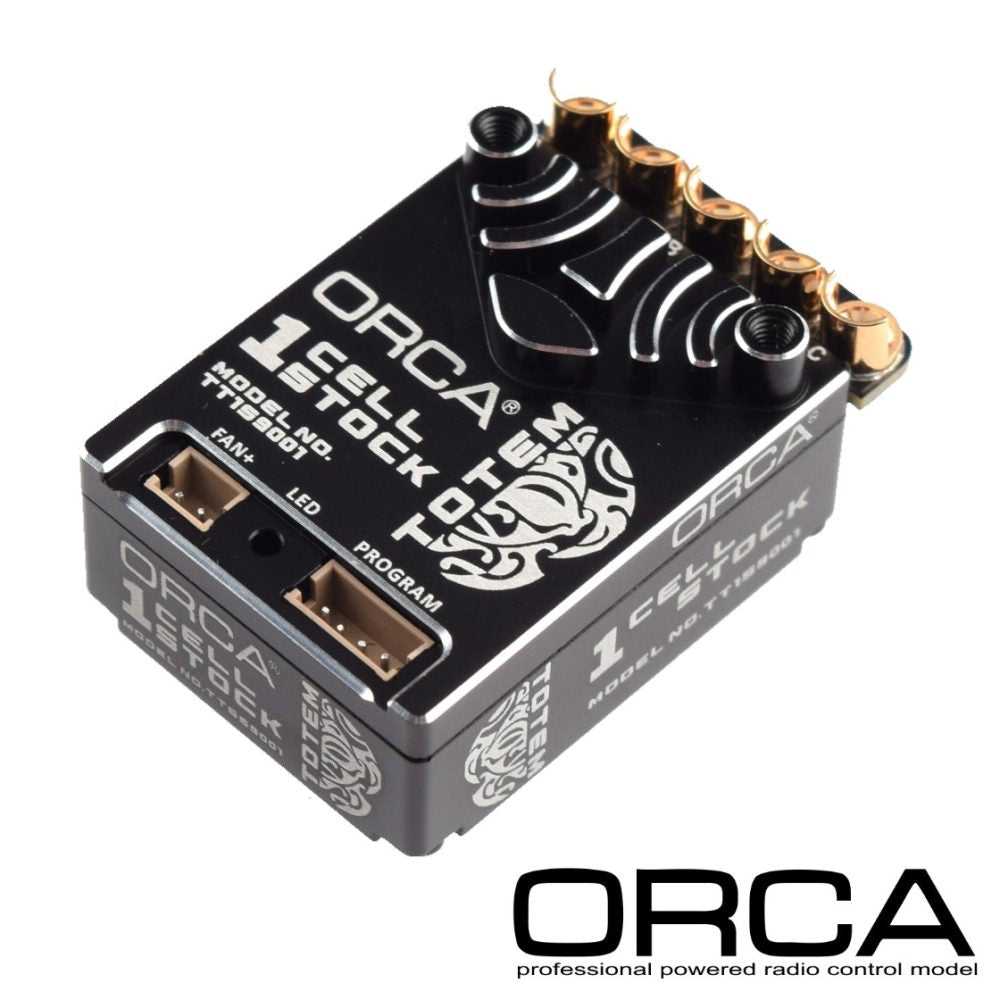

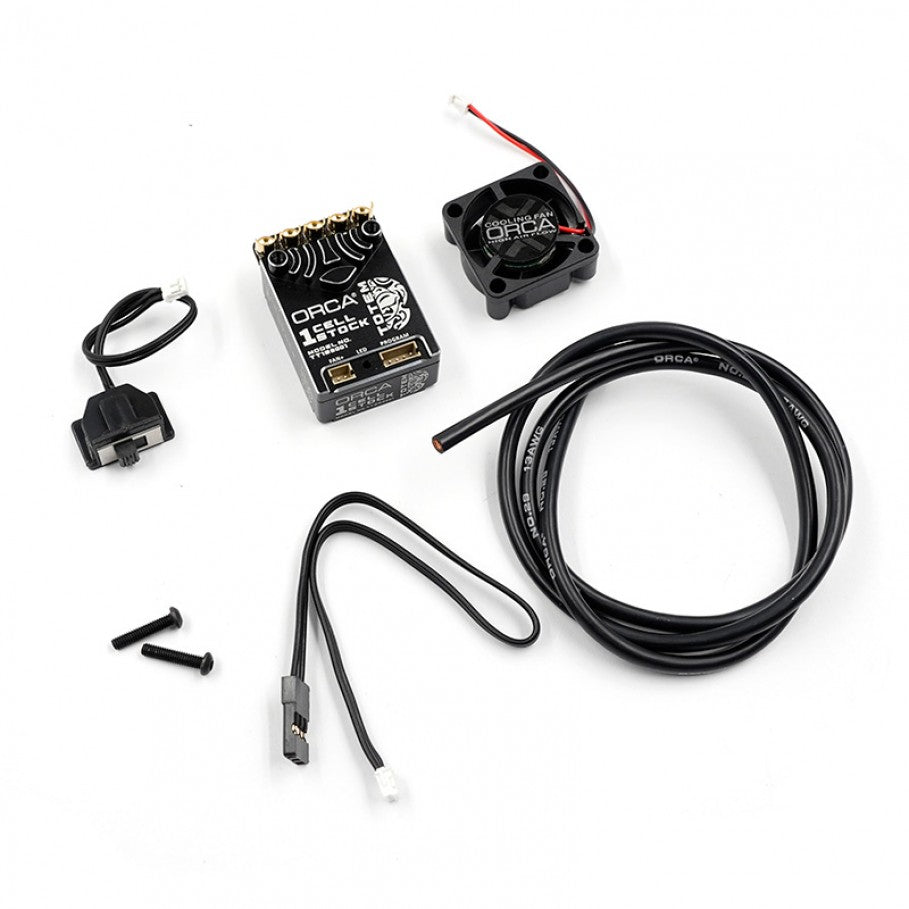

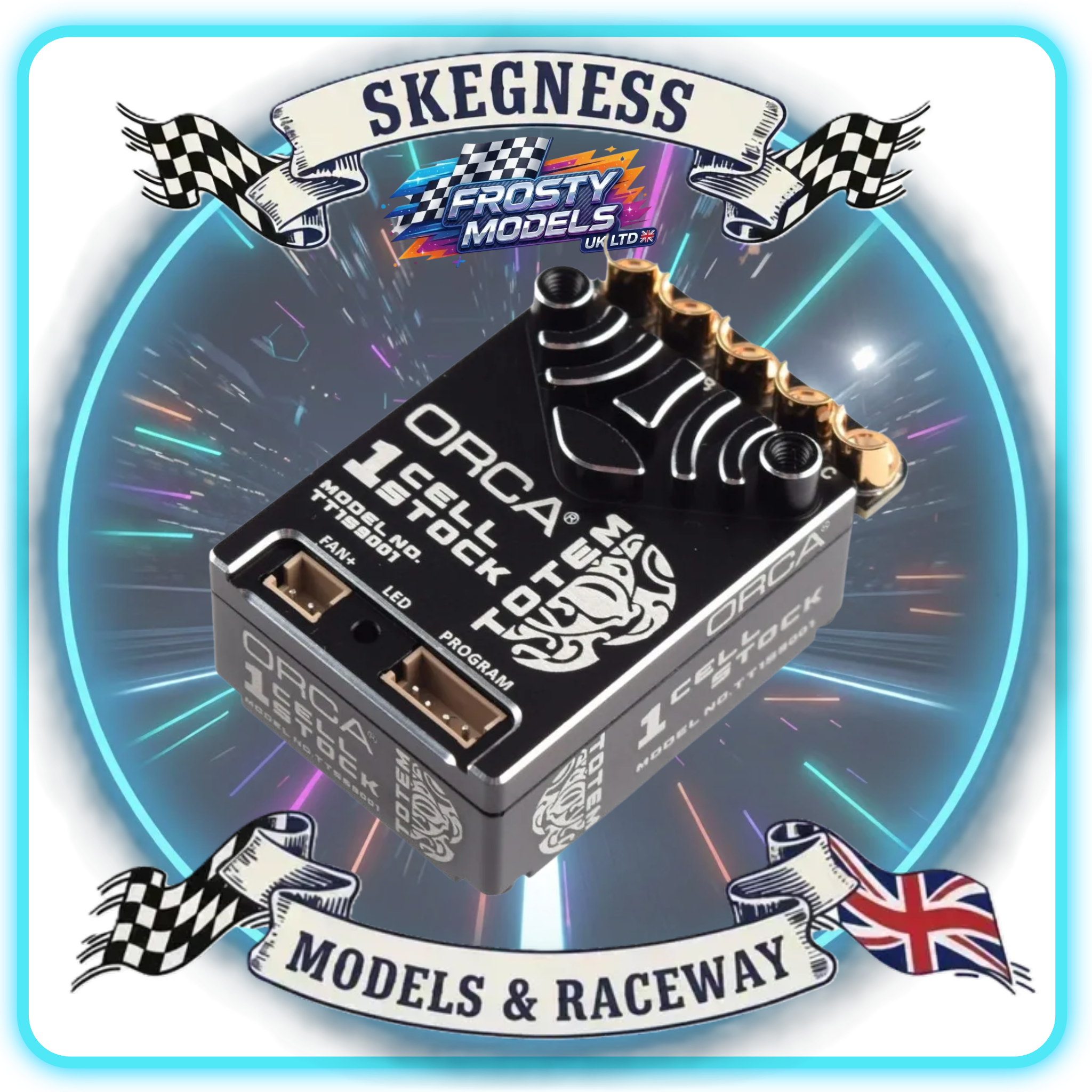

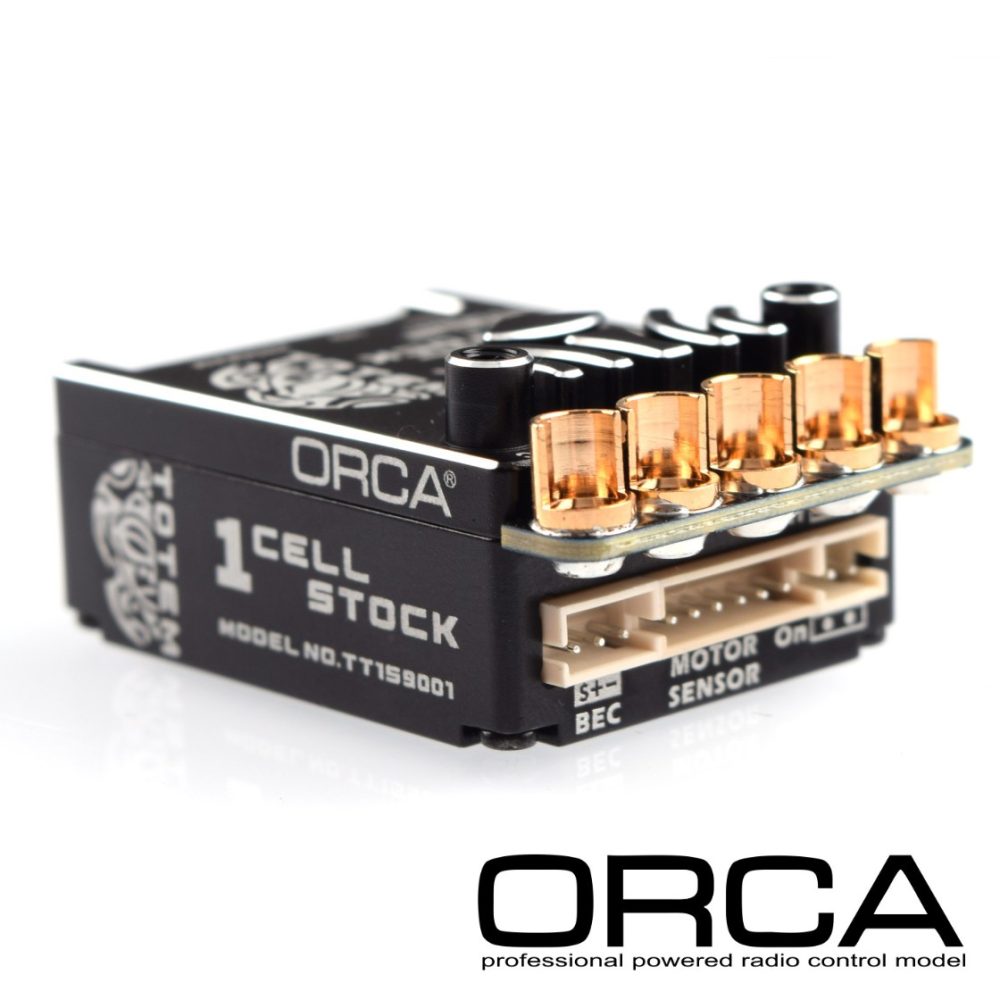

he ORCA Totem 1S 1/12 brushless esc is ORCA’s latest stock spec speed Controller developed for 1/12th LMP12 and GT12 pan cars.
It features a continuos current rate of 100A, which is enough for up to 10.5T motors while using the included fan mounted on top of the esc.
The 23.5g light Totem 1S esc comes with reverse polarity protection and integrated capacitors for a even smaller footprint that is just 25.8mm wide.
Centrally located cable outputs at the rear of the ESC.

Specifications:

Dimensions: 25.8mm x 33.6mm x 17.6mm

Weight: 23.5g

Voltage Input: 3-4.35V

Peak Current: 380A

Continous Current: 100A

Motor Limit: Over 10.5T

Motor Type: Sensored 540 sized brushless motors

BEC: 3A | 6V-7V

Multi Protection System: Yes

Introducing the CORE RC PACE 100RM 1S Mini Brushless Competition Speed Control.

With a huge range of features the PACE 100RM is suitable for a wide range of 1S racing classes including LMP12, and GT12.

Is Mini size at just 31.5x25x16mm is ultra small, perfect for the tight spaces in chassis for these classes.

Fully programmable with the CR886 CORE RC Bluetooth Set Up Module and app based technology.

BRCA 'Blinky' Legal.

Features

• PACE 100RM - Brushless 100 Amp E.S.C.
• Supports 1s LiPo's or 3 Cell NiCd/NiMh Battery Packs.
• Forward/Brake/Reverse, Forward/Brake or Forward/Reverse Options.
• Bluetooth Set up Module available.
• Full aluminium case and heat sink design.
• Plenty of adjustable parameters allows adjustment of settings for most types of racing classes.
• 32-bit microprocessor supports more powerful processing and more accurate motor output.
• Enhanced throttle response, excellent acceleration, linearity and drive ability.
• Multiple protection features for low voltage cut-off, over-heat and throttle signal loss.

Specification

Sensored/Sensorless - Sensored
Cont. Current - 100A
Burst Current - 360A
Input Voltage - 1S LiPo
BEC Output - 6.0,7.4v7A
Size(L*W*H) - 31.5x25x16mm
Weight - 48g
ESC Programming Via - Mobile Phone APP
Firmware Upgrade - Supported
Waterproof - No
Car Applicable - 1/12th On-Road

Or use 2S (7.4v) 8.4V ESC, remove voltage protection, then use 1S (3.2v) 4.2V lipo instead via this module, still giving 6v to the receiver. Or in applications where the ESC has no 6V BEC output.

1S DC-DC BOOSTERs, DC-DC power booster modules which can draw power from the 1S LiPo battery then boost it to the voltage level (6V) suits the receiver & servo and provide the continuous output current up to 3A, are mainly applied in 1/12 RC vehicles. Nowaday 1/12 cars usually use 1S LiPo batteries, and BECs in ordinary ESCs are step-down. In that case, the BEC output voltage will be lower than 4.2 V that cannot meet the power demand of the receiver & servo. Therefore, 1/12 cars have to run with purpose-built 1S ESCs installed in or external receiver batteries connected if speed controllers are common. No other solutions. However, things will be different after adopted this booster. Then the receiver battery can be abandoned and users can be free from charging and maintaining batteries.

Introducing the CORE RC PACE 100R 1S Lipo competition speed control.

With a huge range of features the PACE 100R is suitable for a wide range of 1S racing classes including LMP12, GT12 and F1 Stock cars.

Its programmable instant reverse option is especially important for the F1 Stock car class!

Fully programmable with the CR886 Core RC Bluetooth Setup Module and app based technology.

--------------- BRCA Approved ---------------

- Full aluminium case and heat sink design, with highly efficient heat dissipation system.
- Huge range of variable parameters allows adjustment of the settings for most 1S racing classes. These including Modified, Stock, Zero Timing (Blinky) and Drifting etc etc.
- 32-bit microprocessor can support more powerful processing capability and more accurate motor output.
- Enhanced throttle response, excellent acceleration, linearity and drive ability.
- Multiple protection features: Low voltage cut-off protection, over-heat protection and throttle signal loss protection.
- Uses Bluetooth module to allow programming the parameter settings and firmware upgrades via app (supports real time programming, no need to restart the esc).
Data logging for real-time maximum ESC temperature, Motor RPM, Voltage and Adv. Timing and so on.

Specifications

Sensored/Sensorless - Sensored
Cont. Current - 100A
Burst Current - 360A
Input Voltage - 1S LiPo
BEC Output - 6.0-7.4V/5A
Size(L*W*H) - 37.0*38.2*17mm
Weight - 83g
ESC Programming Via - Mobile Phone APP
Firmware Upgrade - Supported
Waterproof - No

Programmable Items

Throttle Response-Coast-Neutral Range-Min. Throttle-Minus-Minus Range-Max. Forward force

Brake Response-Min. Brake Force-Max. Brake Force-Fwd. Drag Brake Force-Fwd. Drag Brake Response-Rev. Drag Brake Force-Rev. Drag Brake Response-PWM Freq.

Boost Timing-Trigger-RPM Threshold-Initial Angle-Angle Inc. Rate-Angle Dec. Rate

Turbo Timing-Angle Inc. Rate-Angle Dec. Rate-Turbo Delay-Delay Reload

Motor Rotation-Motor Poles-Running Mode-Drive PWM Freq.-CutOFF Voltage-CutOFF Thermal-BEC-Output-A/C Swap

Includes; speed control, instructions, external switch. Does not include sensor lead or fan.
