Tamiya TT02 Parts & Hop-ups

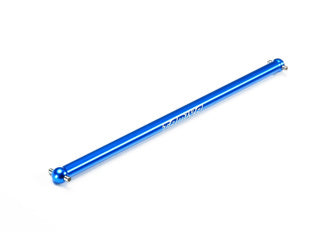

This option part, for the TT-02 chassis, is made from aluminum as opposed to the chassis kit-standard resin shaft. Therefore, it provides more stable rotation at higher speeds and reduces power loss from the transmission. It is made from Tamiya blue anodized aluminum and is laser-engraved with the TAMIYA RC Logo!

TT-02 Aluminum propeller shaft x1

• 1/10 scale R/C model assembly kit. Length: 459mm
• Polycarbonate body was designed with access to the actual car’s CAD data for superb accuracy. Front and rear light cases are also moulded in polycarbonate
• Wheel arches are pre-cut out for a simpler body assembly experience
• The beginner-friendly, highly adaptable TT-02 is a versatile and easy to maintain shaft-driven 4WD chassis
• Separately moulded plastic components depict rear wing and side mirrors
• Racy 10-spoke wheels are moulded in gun metal and paired with slick tyres
• Stickers are included to create an original livery, as are masking stickers for use when painting
• Includes Tamiya Torque Tuned Motor
• Includes Tamiya TBLE-02S ESC (electronic speed control) capable of running sensor brushless motors and brushed motors alike (21.5 Turn BL motor limit / 23 Turn brushed motor limit)

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

Sporty Evolution of the TT-02!
This sporty evolution of the TT-02 chassis sees the efficient shaft-driven 4WD unit given newly-designed parts and gives users the ability to make setup adjustments across the board, making it great for racing! It is equipped with long reversible suspension arms, and rigid metal suspension mounts. The rear is set up with 3°of toe-in. CVA oil dampers are attached to specially-designed 3.0mm thick FRP damper stays, with optimum damper angle and rebound stroke providing excellent road holding. Turnbuckle upper arms and steering linkage allow fuss-free adjustment of camber and front toe. Power loss is minimized by the use of full ball bearings and metal cup joints and drive shafts.

Featured Components
_Reversible Suspension Arms _CVA Oil Shocks _FRP Front & Rear Damper Stays (newly-designed) _Metal Suspension Mounts (w/3°rear toe-in) _Metal Wheel Axles, Gearbox Joints & Drive Shafts _Full Ball Bearings _Turnbuckle Upper Arms & Steering Linkage _Die-Cast Metal Hex Wheel Hubs

• 3mm thick Front/Rear FRP Damper Stays (NEW part)
• Metal Suspension Mounts (NEW part)
• Item 51297 Reversible Suspension Arms (Long)
• CVA Oil Shocks
• Turnbuckle Shaft Front/Rear Upper Arms
• Turnbuckle Shaft Steering Tie-Rods
• Type 540 Torque Tuned Motor
• Item 51023 Medium-Narrow Racing Radial Tires
• Metal Cup Joints Metal Drive Shafts
• Die Cast Aluminum Hex Wheel Hubs

• 1/10 Scale
• Length: 380mm, Width: 250mm, Height: 145mm
• Wheelbase: 266mm
• Tread: 217mm (Front), 208mm (Rear)
• Bathtub-type Frame
• Shaft-Driven 4WD
• Front/Rear 4-Bevel Resin Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Tyre Width/Diameter: 32/82mm (Front), 41/82mm (Rear)
• Front/Rear CVA Oil Dampers
• Gear Ratio = 10.71:1 (using kit-included pinion gear)
• Type 540 Motor
• Electronic Speed Controller included.

• Two-channel radio, steering servo, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint

These Tamiya blue anodized aluminum front and rear propeller joints are option parts designed for the TT-02 chassis. Like the TT-02 Aluminum Propeller Shaft (Item 54501), they reduce the power lost in the transmission from the stock resin parts.

TT-02 Aluminum propeller joints x2

PLEASE READ TITLE FOR SIZE - THESE ARE CUSTOM PRINTED AND WE MUST ALLOW FOR A 10% DEGREE IN SLIGHT MANUFACTURING ERROR.

PLEASE READ TITLE FOR SIZE - THESE ARE CUSTOM PRINTED AND WE MUST ALLOW FOR A 10% DEGREE IN SLIGHT MANUFACTURING ERROR.

Aluminum locker for the Tamiya TT02 differential or Yeah Racing's TT02 diff (#TATT-020). Can be used in the front when running powerful brushless motors for touring car racing or in the rear for drifting!

Feature:

• For: Yeah Racing TATT-S04, Tamiya TT-02
• Material: Aluminum
• Color: Black

Include:

• Differential Locker (1 pc)

Upgrade part for you to install shorty packs onto your Tamiya TT02, quick battery change with the included elastic bands

Feature:

• For: Tamiya TT02 Series (TT02,TT02B, TT02D ,TT02R,TT02SR, TT02S,TT02SRX)
• Material: Aluminum
• Color: Blue

Include:

• Aluminum Short Battery Holder Set (1pc)

This is the Yeah Racing Steel Front/Rear Gear Box Joint for Tamiya TT02. Great upgrade from the stock plastic part or could be used as a replacement of the broken parts. Yeah racing carefully crafted this item with high grade of material for maximum durability. Less room for flexing compare to the standard parts and therefore smoother acc/deceleration can be achieved. Additionally more power from the motor could be directly deliver to the wheels.

(use with Yeah Racing Universal Drive Shafts - Does not fit standard dog bones)

Feature:

• For: Tamiya TT02
• Material: Steel
• Color: Black

Include:

• Gear Joint (1 pair)
• Manual (1 pc)

Get more durability and cornering performance with these universals made from spring steel! Universals will give you better cornering when compared to a dog bone setup and be more durable than the kit plastic units!

Feature:

• For: Tamiya TT02  (Not Compatible Stock Gear Join , Need Small Gear Joint or TT02-017)


• Material: Strong Spring Steel

• Color: Brown

Include:

• Universals (2 pcs

The Yeah Racing aluminum upper suspension mounts replace the kit-standard plastic mount. Beside using quality aluminum to enhance smoothness and durability, this Mount is precisely machined to have minimum possible flexing area for more linear suspension action that leads to more accurate steering. Yeah Racing Highly recommend the use of this item with #TT002-008 Damper stay for the best performance result.

Feature:

• For: Tamiya TT02
• Material: Aluminum
• Color: Blue

Include:

• Aluminum Upper Suspension Mount (2 pcs)
• Manual (1 pc)

This is a TT02 Rear Lower Arm set upgrade made with Aluminum. The lower arm set is specifically designed to have the minimum flexing area and lowest possible friction at the joints for smoother and more linear movements, which allows the rear dampers to react and absorb to bumps and weight shifting at a much better fashion. Yeah Racing highly recommend to use this item with their Rear Suspension Mount #TT02-011 for even better handling performance and rear grip.

Feature:

• For: Tamiya TT02
• Material: Aluminum
• Color: Blue

Include:

• Aluminum Rear Lower Arm (1 pair)
• M3 x 10mm Screw (2 pcs)
• Screw Holder (2 pcs)
• Pin (2 pcs)
• E-Ring E2.5(2 pcs)
• Manual (1 pc)

Aluminum rear drift hub with a extra nub to install disc brake further down the line!

Feature:

    For: Yeah Racing TATT-S03
    Material: Aluminum
    Color: Blue

Include:

    Rear Hubs (2 pcs)
    Ballends (2 pcs)
    Spacers (2 pcs)

aeah Racing Aluminum Main Drive Shaft Joint For Tamiya TT02 #TT02-016BU

Description:

This aluminum main drive shaft joint is an excellent upgrade for Tamaya TT02! It is much stiffer than the standard stock parts, and offer more power transfer to the RC Cars. This main drive shaft joint also comes with an optional o-ring to provide more aggressive steering.

Feature:

• For: Tamiya TT02
• Material: Aluminum
• Color: Blue

Include:

• Aluminum Main Drive Shaft Joint (1 pair)
• O-Ring (1 pc)
• Manual (1 pc)

This is an TT02 Front Arm set upgrade made with Aluminum. The lower arm set is specifically designed to improve the steering feel and stability over the stock arms, by using high grade aluminum and precision machined to minimize flexing areas. Yeah Racing highly recommend to use this item with their Front upper Arm upgrade replacement for even better handling improvement and achieving smoother turning.

Feature:

• For: Tamiya TT02
• Material: Aluminum
• Color: Blue

Include:

• Aluminum Front Lower Arm (1 pair)
• M3 x 10 mm Screw (2 pcs)
• Screw Holder (2 pcs)
• 9 mm Ball (#TT-BA001) (2 pcs)
• Manual (1 pc)

Yeah Racing Aluminum Front Lower Arm Set For Tamiya TT02

Description:

This is an TT02 Front Arm set upgrade made with Aluminum. The lower arm set is specifically designed to improve the steering feel and stability over the stock arms, by using high grade aluminum and precision machined to minimize flexing areas. Yeah Racing highly recommend to use this item with their Front upper Arm upgrade replacement for even better handling improvement and achieving smoother turning.

This is a Yeah Racing Aluminum Rear Upper Arm Set, a handling performance upgrade to the TT02 plastic parts.

Yeah Racing constructed this Upper Arm with high grade Aluminum for maximum durability that will withstand the harshest impact and road condition where may break the stock plastic parts.

This upper arms upgrade set also allows camber adjustment for users to unleash the potential to achieve the maximum tyre contact during corners for faster cornering speed.

Note:Yeah Racing highly recommend to use this item with the Front upper arm set #TT02-003 for best cornering performance and stability.

Feature:

• For: Tamiya TT02
• Material: Aluminum
• Color: Blue

Include:

• Rear Upper Arm (2 Set)
• Turnbuckle (2 pcs)
• Set Screw (2 pcs)
• Pin (2 pcs)
• E-Ring E2.5 (4 pcs)
• Manual (1 pc)

The Yeah Racing Aluminum Lower suspension mounts replace the kit-standard plastic mount. Beside using quality aluminum to enhance smoothness and durability, this Mount is precisely machined to have minimum possible flexing area for more linear suspension movement that leads to more accurate steering. Yeah Racing Highly recommend the use of this item with #TT002-001 #TT02-002 Aluminum Suspension Arm for the best performance result.

Feature:

• For: Tamiya TT02
• Material: Aluminum
• Color: Blue

Include:

• Aluminum Lower Suspension Mount (2 pcs)
• Manual (1 pc)

Replacement turnbuckle set for the Competition Touring Car Upgrade Kit #TATT-S04. Features the camber and steering links, good to have a set in your parts bag for spares!

Feature:

• For: Competition TT02 Touring Car Upgrade Kit

• Material: Composite/Steel

• Color: White/Silver

Include:

• Turnbuckles (6 pcs)

• Ball Cups (12 pcs)

• Carbon damper stay for Tamiya's TT02S and also Yeah Racing's Upgrade Kit TATT-S04! Strong and lightweight carbon for strengthening and improving your suspension's efficiency!







  Feature:




  • For: Yeah Racing Competition Touring Car Upgrade Kit TATT-S04, TT02S

  • Material: Carbon

  • Color: Black




  Include:




  • Damper Stay (1 pc)

• Carbon damper stay for Tamiya's TT02S and also Yeah Racing's Upgrade Kit TATT-S04! Strong and lightweight carbon for strengthening and improving your suspension's efficiency!







  Feature:




  • For: Yeah Racing Competition Touring Car Upgrade Kit TATT-S04, TT02S

  • Material: Carbon

  • Color: Black




  Include:




  • Damper Stay (1 pc)
