RC4WD

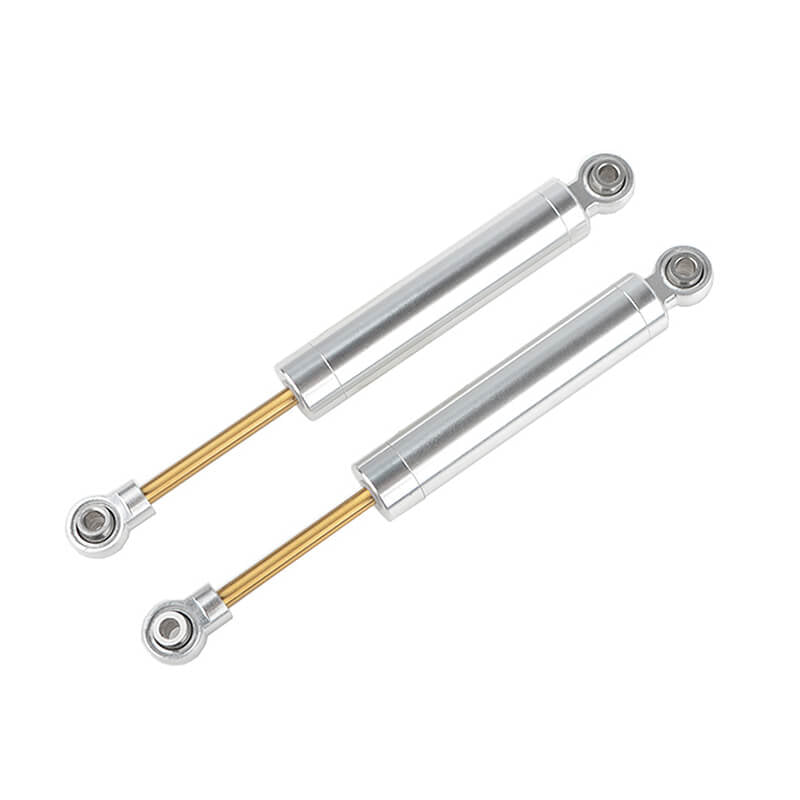

Features

• CNC Machined.
• Billet Aluminium.
• Silver Anodized Finish.
• Internal Spring Design.
• Steel Rod End Ball.
• X-ring Gaskets.
• Titanium Nitride Coated Shock Shafts.

Specifications

Hole to Hole (Compressed): 2.66in / 67.5mm
Hole to Hole (Uncompressed): 3.54in / 90mm
Overall Length: 3.88in / 98.67mm
Travel Length: 0.88in / 22.5mm
Shock Body OD: 0.39in / 10.0mm
Shaft OD: 0.11in / 3.00mm
Each Shock Weighs: 0.42oz / 11.9g

What's Included

• 2 x RC4WD Ultimate Scale Shocks 90mm

Fits

• RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Z-K0065)
• RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit (Z-K0069)
• RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set (Z-K0070)
• RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034)
• RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red) (Z-RTR0063)
• RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White) (Z-RTR0064)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Red) (Z-RTR0066)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black)(Z-RTR0067)
• RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edition) (Z-RTR0068)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) (Z-RTR0070)

Notes

• Use blue (medium) thread lock to the bottom shock shaft rod end before installing on to your vehicle to help keep it in place.
• The new X-ring shocks are designed to be oil filled for smooth damping.

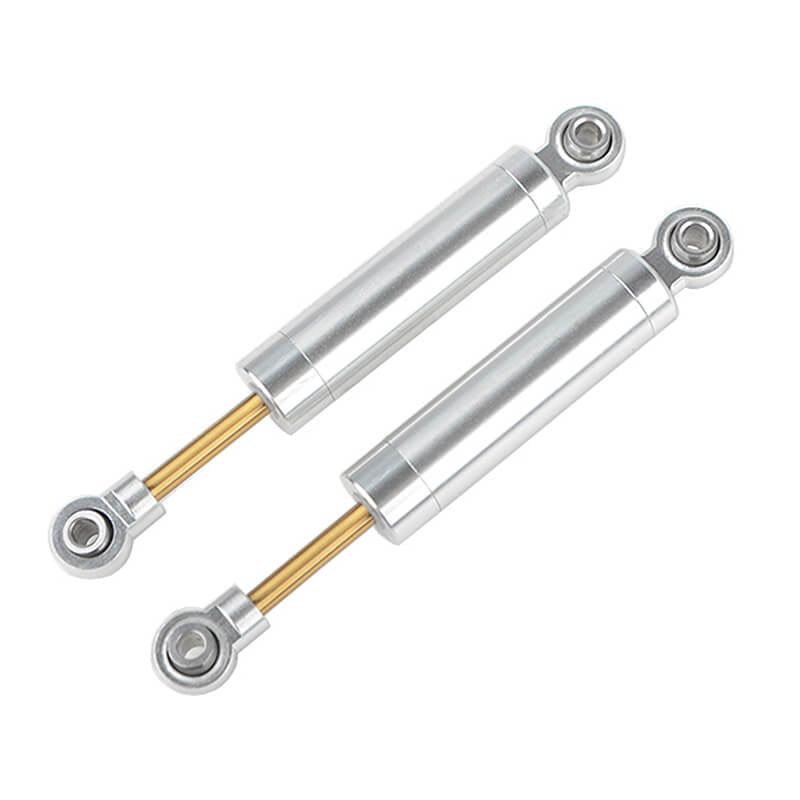

Features

• CNC Machined.
• Billet Aluminium.
• Silver Anodized Finish.
• Internal Spring Design.
• Steel Rod End Ball.
• X-ring Gaskets.
• Titanium Nitride Coated Shock Shafts.

Specifications

Hole to Hole (Compressed): 2.17in / 55.2mm
Hole to Hole (Uncompressed): 2.76in / 70mm
Overall Length: 3.10in / 78.74mm
Travel Length: 0.58in / 14.8mm
Shock Body OD: 0.39in / 10.0mm
Shaft OD: 0.11in / 3.00mm
Each Shock Weighs: 0.34oz / 9.9g

What's Included

• 2 x RC4WD Ultimate Scale Shocks 70mm

Fits

• RC4WD Trail Finder 2 Truck Kit "SWB" (Z-K0045)
• RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Z-K0065)
• RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit (Z-K0069)
• RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set (Z-K0070)
• RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034)
• RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red) (Z-RTR0063)
• RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White) (Z-RTR0064)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Red) (Z-RTR0066)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black)(Z-RTR0067)
• RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edition) (Z-RTR0068)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) (Z-RTR0070)

Notes

• Use blue (medium) thread lock to the bottom shock shaft rod end before installing on to your vehicle to help keep it in place.
• The new X-ring shocks are designed to be oil filled for smooth damping.

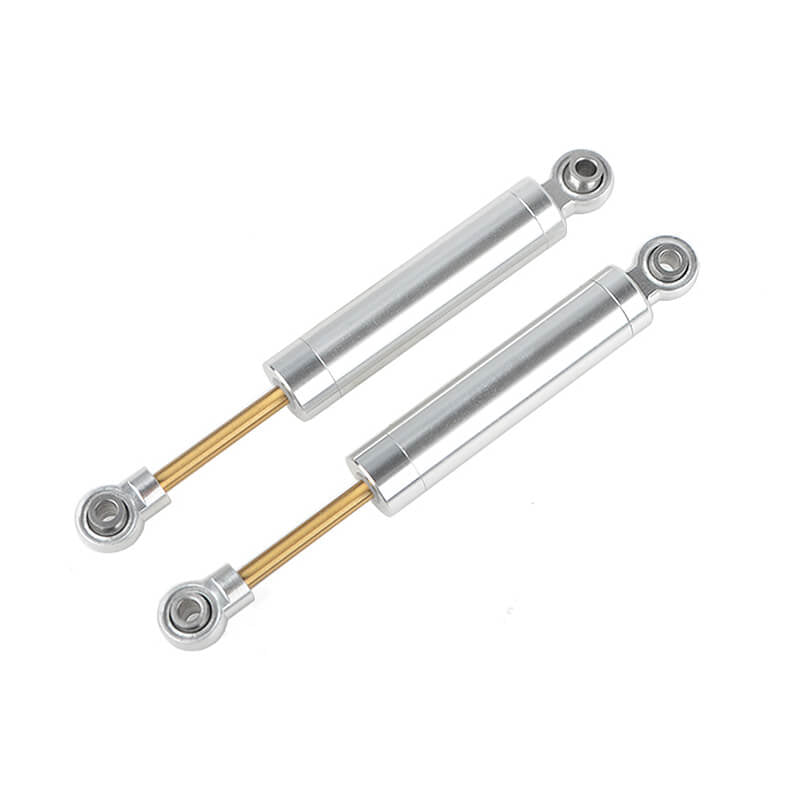

Features

• CNC Machined.
• Billet Aluminium.
• Silver Anodized Finish.
• Internal Spring Design.
• Steel Rod End Ball.
• X-ring Gaskets.
• Titanium Nitride Coated Shock Shafts.

Specifications

Hole to Hole (Compressed): 2.41in / 61.24mm
Hole to Hole (Uncompressed): 3.15in / 80.0mm
Overall Length: 3.49in / 88.75mm
Travel Length: 0.73in / 18.76mm
Shock Body OD: 0.39in / 10.0mm
Shaft OD: 0.11in / 3.00mm
Each Shock Weighs: 0.38oz / 10.8g

What's Included

• 2 x RC4WD Ultimate Scale Shocks 80mm

Fits

• RC4WD Trail Finder 2 Truck Kit "SWB" (Z-K0045)
• RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Z-K0065)
• RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit (Z-K0069)
• RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set (Z-K0070)
• RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red) (Z-RTR0063)
• RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White) (Z-RTR0064)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Red) (Z-RTR0066)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black)(Z-RTR0067)
• RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edition) (Z-RTR0068)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) (Z-RTR0070)

Notes

• Use blue (medium) thread lock to the bottom shock shaft rod end before installing on to your vehicle to help keep it in place.
• The new X-ring shocks are designed to be oil filled for smooth damping.

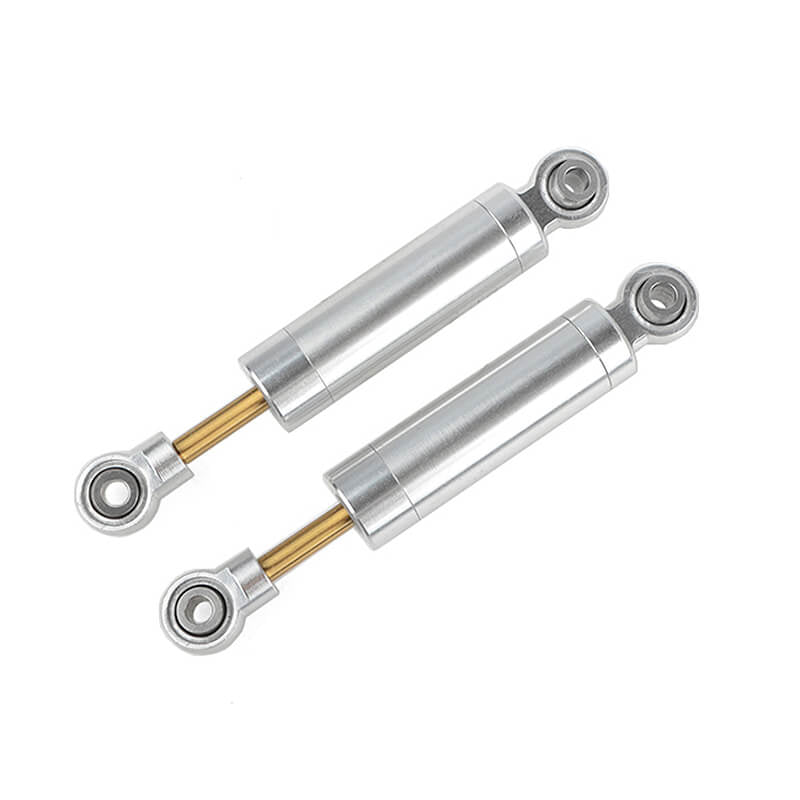

Features

• CNC Machined.
• Billet Aluminium.
• Silver Anodized Finish.
• Internal Spring Design.
• Steel Rod End Ball.
• X-ring Gaskets.
• Titanium Nitride Coated Shock Shafts.

Specifications

Hole to Hole (Compressed): 1.95in / 49.5mm
Hole to Hole (Uncompressed): 2.36in / 60mm
Overall Length: 2.71in / 68.88mm
Travel Length: 0.41in / 10.5mm
Shock Body OD: 0.39in / 10.0mm
Shaft OD: 0.11in / 3.00mm
Each Shock Weighs: 0.31oz / 8.9g

What's Included

• 2 x RC4WD Ultimate Scale Shocks 60mm

Fits

• RC4WD Trail Finder 2 Truck Kit "SWB" (Z-K0045)
• RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Z-K0065)
• RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit (Z-K0069)
• RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set (Z-K0070)
• RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034)
• RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red) (Z-RTR0063)
• RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White) (Z-RTR0064)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Red) (Z-RTR0066)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black)(Z-RTR0067)
• RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edition) (Z-RTR0068)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) (Z-RTR0070)

Notes

• Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
• The new X-ring shocks are designed to be oil filled for smooth damping.

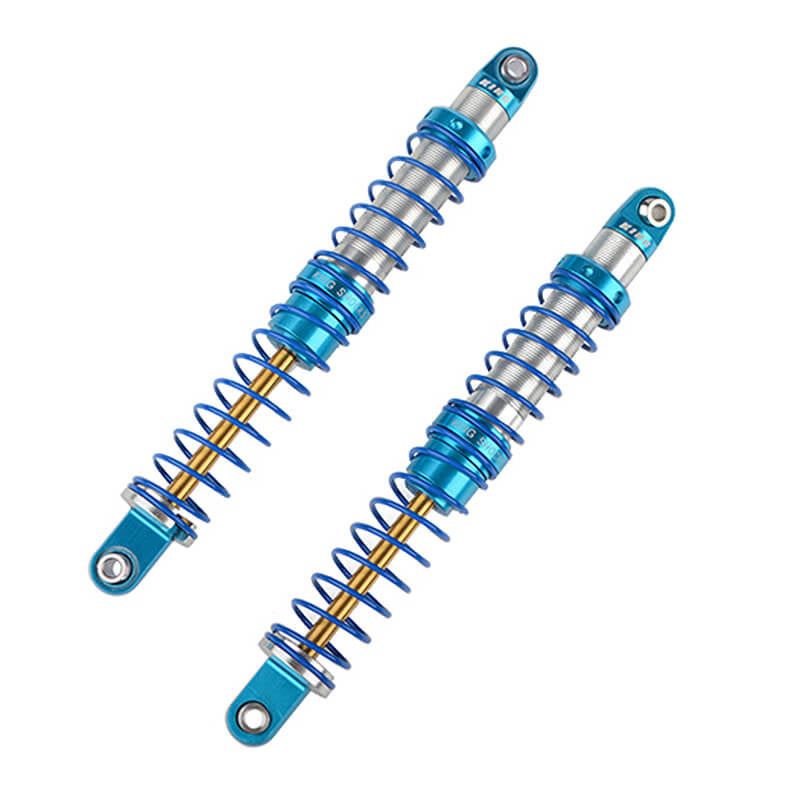

The latest update to the Licensed King Off-Road Racing Shocks feature our new X-ring technology that reduces contact friction for smooth shock shaft movement while improving oil retention around the shock shaft. Built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks!

Features

• Machined Billet Aluminium
• King Laser Etched on Top Cap and Retainer Ring
• Dual Spring Design
• X-ring Gaskets
• Titanium Nitride Coated Shock Shafts

Specifications

Hole to Hole (Compressed): 3.04in / 77.1mm
Hole to Hole (Uncompressed): 4.33in / 110mm
Overall Length: 4.72in / 120mm
Travel Length: 1.30in / 32.9mm
Shock Body OD: 0.57in / 14.6mm
Shaft OD: 0.15in / 3.9mm
Each Shock Weighs: 0.78oz / 22.3g

What's Included

• 2 x RC4WD King Off-Road Racing Shocks 110mm (Silver/Blue)
• 1 x King Decal Sheet

Fits

• Axail RR10 Bomber 1/10th Scale Electric 4WD RTR

Notes

• Designed with Titanium Nitride (TiN) shock shafts for long term wearability.
• X-ring Gaskets provide double the oil seals in the shock cartridge.

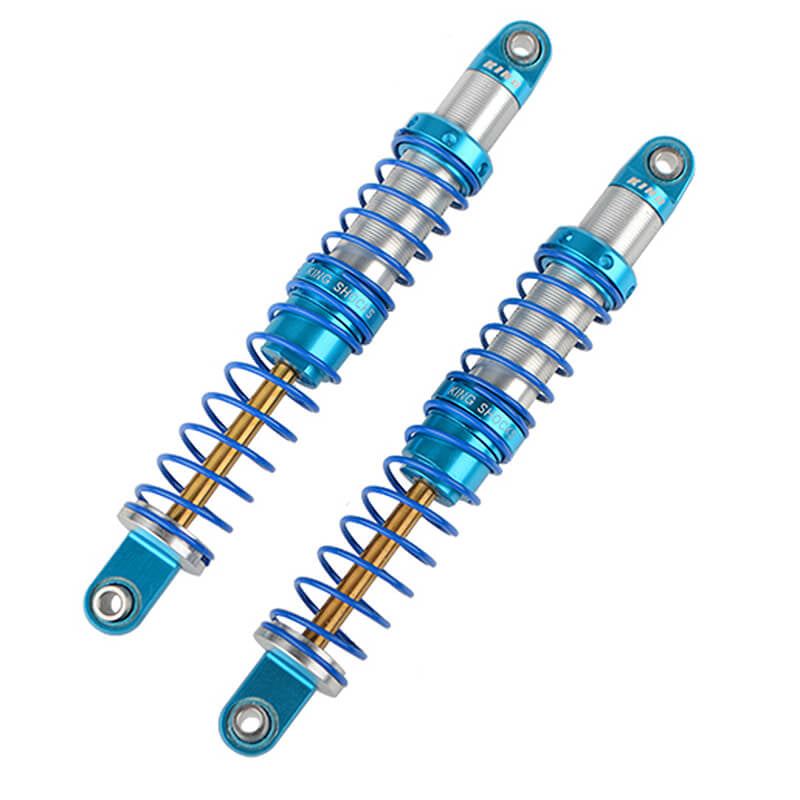

The latest update to the Licensed King Off-Road Racing Shocks feature our new X-ring technology that reduces contact friction for smooth shock shaft movement while improving oil retention around the shock shaft. Built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks!

Features

• Machined Billet Aluminium
• King Laser Etched on Top Cap and Retainer Ring
• Dual Spring Design
• X-ring Gaskets
• Titanium Nitride Coated Shock Shafts

Specifications

Hole to Hole (Compressed): 3.23in / 72.1mm
Hole to Hole (Uncompressed): 3.94in / 100mm
Overall Length: 4.33in / 110mm
Travel Length: 0.90in / 27.9mm
Shock Body OD: 0.57in / 14.6mm
Shaft OD: 0.15in / 3.9mm
Each Shock Weighs: 0.76oz / 21.8g

What's Included

• 2 x RC4WD King Off-Road Racing Shocks 100mm (Silver/Blue)
• 1 x King Decal Sheet

Fits

• Axail RR10 Bomber 1/10th Scale Electric 4WD RTR

Notes

• Designed with Titanium Nitride (TiN) shock shafts for long term wearability.
• X-ring Gaskets provide double the oil seals in the shock cartridge.

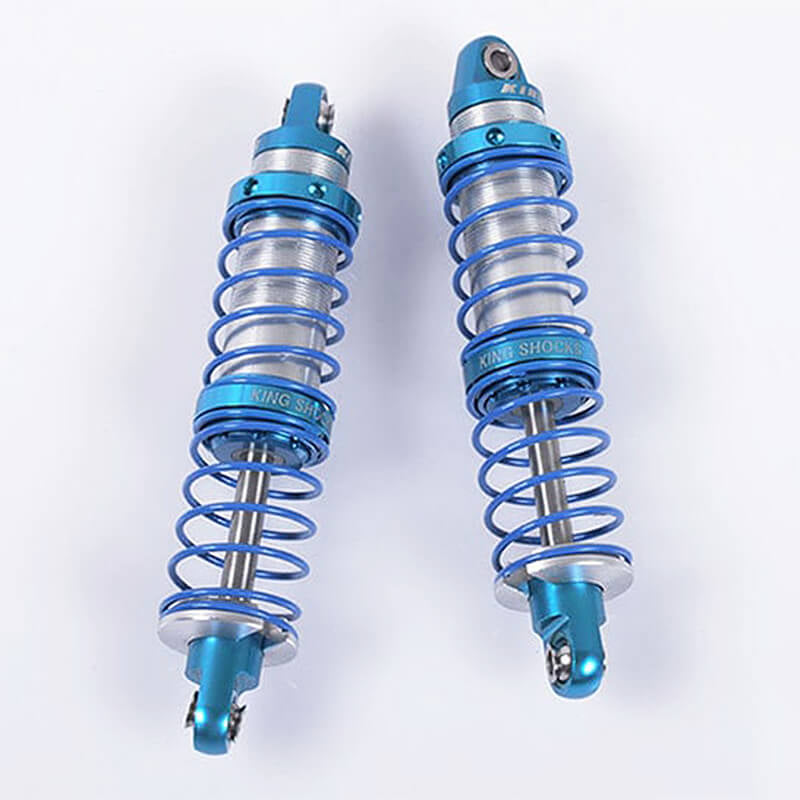

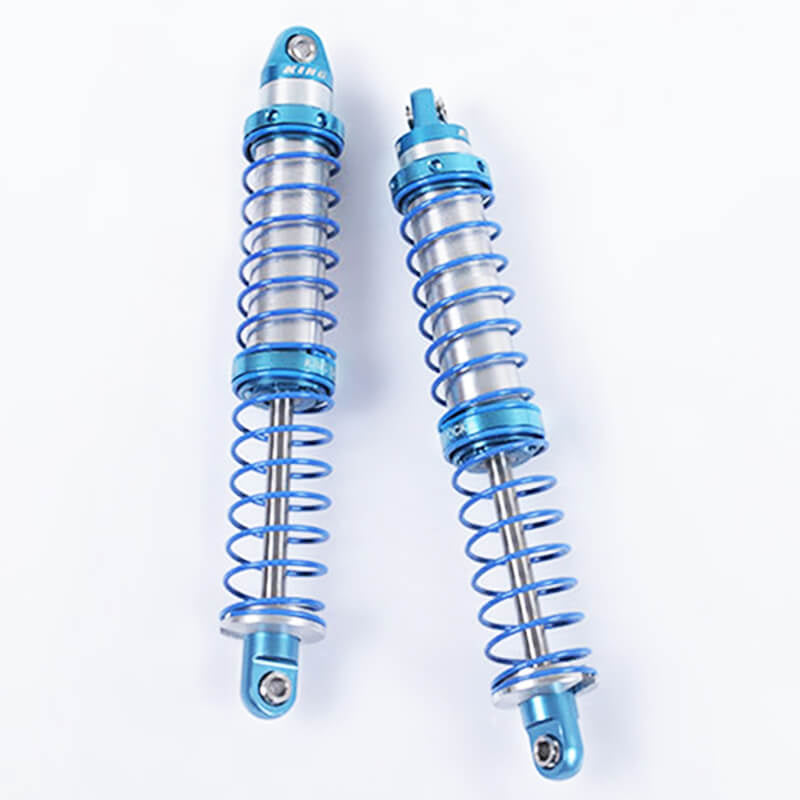

These are the all new Licensed Dual Spring Shocks to hit the market and are officially Licensed from King Off-Road Shocks. These new shocks feature a completely new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks!

Features

• Machined Billet Aluminum
• King on Top and Retainer Ring
• Dual Spring Design
• Steel Rod End Ball

Specifications

Ball Width: 0.25in / 6.3mm
Ball Lip Diameter: 0.19in / 4.8mm
Ball ID: 0.12im / 3mm
Hole to Hole (Compressed): 3.15in / 80mm
Hole to Hole (Uncompressed): 4.72in /120mm
Overall Length: 5.09in / 129.3mm
Travel Length: 1.57in / 40mm
Shock Body OD: 0.49in / 12.6mm
Shaft OD: 0.15in / 3.97mm
Spring Body OD: 0.66in / 16.98mm
Spring Body ID: 0.58in / 14.8mm
Each Weight: 1.05oz / 30g

What's Included

• 2 x RC4WD King Off-Road Dual Spring Shocks (120mm Medium OD)
• 1 x King Decal Sheet

Notes

• Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.

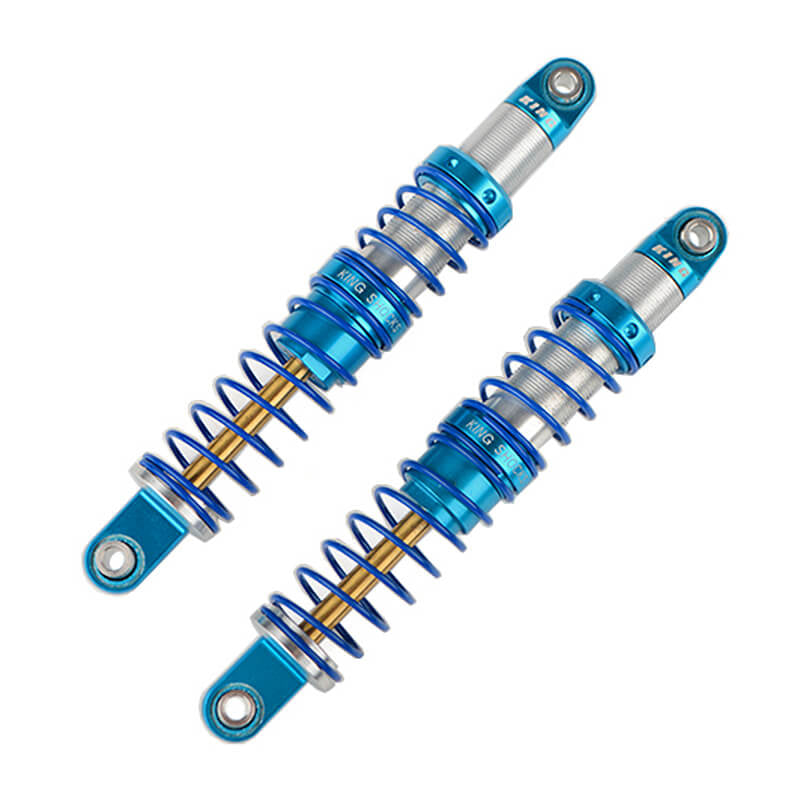

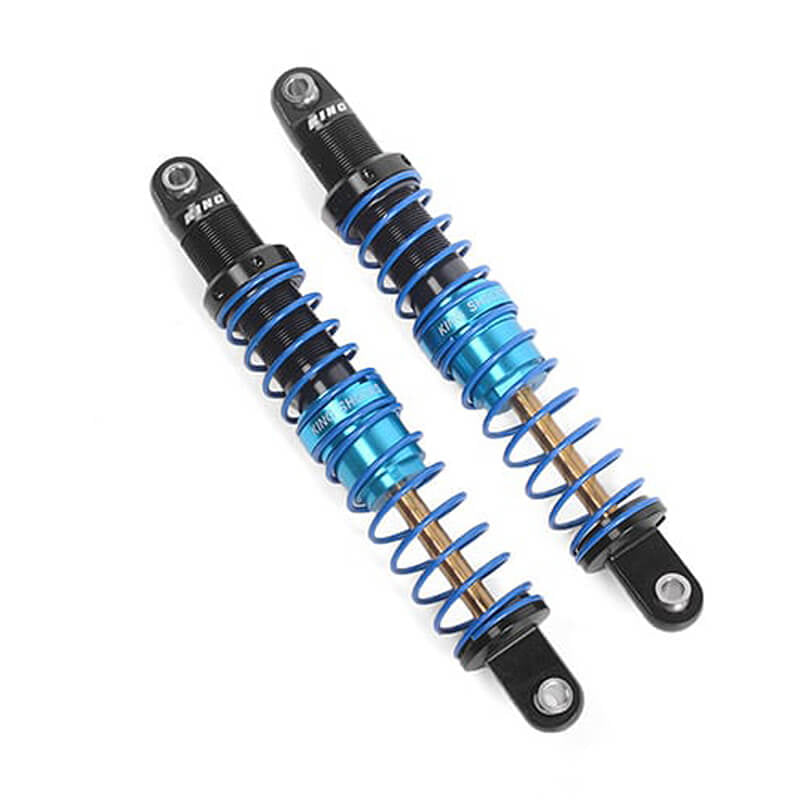

The latest update to the Licensed King Off-Road Racing Shocks feature our new X-ring technology that reduces contact friction for smooth shock shaft movement while improving oil retention around the shock shaft. Built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks!

Features

• Machined Billet Aluminium
• King Laser Etched on Top Cap and Retainer Ring
• Dual Spring Design
• X-ring Gaskets
• Titanium Nitride Coated Shock Shafts

Specifications

Hole to Hole (Compressed): 2.64in / 67.1mm
Hole to Hole (Uncompressed): 3.54in / 90mm
Overall Length: 3.94in / 100mm
Travel Length: 0.90in / 22.9mm
Shock Body OD: 0.57in / 14.6mm
Shaft OD: 0.15in / 3.9mm
Each Shock Weighs: 0.71oz / 20.3g

What's Included

• 2 x RC4WD King Off-Road Racing Shocks 90mm (Silver/Blue)
• 1 x King Decal Sheet

Fits

• Traxxas TRX-4 Land Rover Defender
• Traxxas TRX-4 '79 Bronco Ranger XLT
• Traxxas TRX-4 Sport Kit
• Traxxas TRX-4 Sport
• Traxxas TRX-4 Crawler Kit
• Traxxas TRX-4 Mercedes-Benz G 500 4x4
• Traxxas TRX-4 Chevrolet K5 Blazer
• Traxxas TRX-6 Mercedes-Benz G 63 6x6
• RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set (Z-K0064)
• RC4WD Gelande II Truck 1/10 Scale Builders Kit (Z-K0071)
• RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0072)
• RC4WD Gelande II RTR Truck w/Cruiser Body Set (Red) (Z-RTR0047)
• RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Grey) (Z-RTR0065)

Notes

• Designed with Titanium Nitride (TiN) shock shafts for long term wearability.
• X-ring Gaskets provide double the oil seals in the shock cartridge.
• Shocks do not come with oil. It is highly recommended to build the shocks with silicone shock oil and thick shock grease on the x-rings for maximum performance.
• When installing on Axial SCX10-3 please use a 5mm Black Spacer with M3 Hole (Z-S0821) on the shock tower.

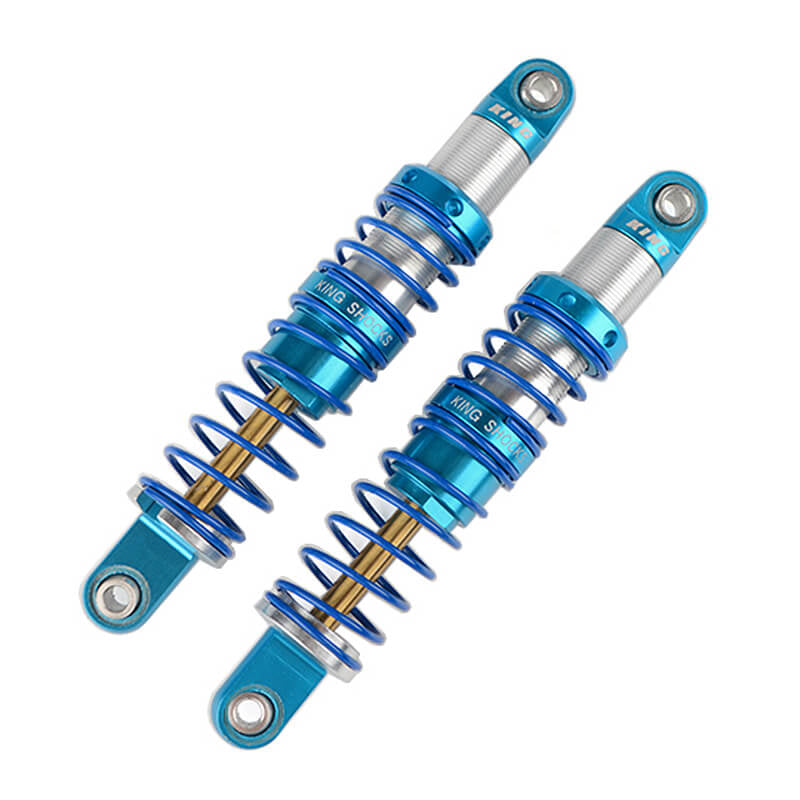

The latest update to the Licensed King Off-Road Racing Shocks feature our new X-ring technology that reduces contact friction for smooth shock shaft movement while improving oil retention around the shock shaft. Built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks!

Features

• Machined Billet Aluminium
• King Laser Etched on Top Cap and Retainer Ring
• Dual Spring Design
• X-ring Gaskets
• Titanium Nitride Coated Shock Shafts

Specifications

Hole to Hole (Compressed): 2.44in / 62mm
Hole to Hole (Uncompressed): 3.14in /80mm
Overall Length: 3.54in / 90mm
Travel Length: 0.70in / 18.0mm
Shock Body OD: 0.57in / 14.6mm
Shaft OD: 0.15in / 3.9mm
Each Shock Weighs: 0.65oz / 18.7g

What's Included

• 2 x RC4WD King Off-Road Racing Shocks 80mm (Silver/Blue)
• 1 x King Decal Sheet

Fits

• Traxxas TRX-4 Land Rover Defender
• Traxxas TRX-4 '79 Bronco Ranger XLT
• Traxxas TRX-4 Sport Kit
• Traxxas TRX-4 Sport
• Traxxas TRX-4 Crawler Kit
• Traxxas TRX-4 Mercedes-Benz G 500 4x4
• Traxxas TRX-4 Chevrolet K5 Blazer
• Traxxas TRX-6 Mercedes-Benz G 63 6x6
• RC4WD Gelande II RTR Truck w/Cruiser Body Set (Red) (Z-RTR0047)
• RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set (Z-K0064)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Scale Dept. Edition) (Z-RTR0071)

Notes

• Designed with Titanium Nitride (TiN) shock shafts for long term wearability.
• X-ring Gaskets provide double the oil seals in the shock cartridge.
• Shocks do not come with oil. It is highly recommended to build the shocks with silicone shock oil and thick shock grease on the x-rings for maximum performance.
• When installing on Axial SCX10-3 please use a 5mm Black Spacer with M3 Hole (Z-S0821) on the shock tower.

The latest update to the Licensed King Off-Road Racing Shocks feature our new X-ring technology that reduces contact friction for smooth shock shaft movement while improving oil retention around the shock shaft. Built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks!

Features

• Machined Billet Aluminium
• King Laser Etched on Top Cap and Retainer Ring
• Dual Spring Design
• X-ring Gaskets
• Titanium Nitride Coated Shock Shafts

Specifications

Hole to Hole (Compressed): 2.24in / 57mm
Hole to Hole (Uncompressed): 2.75in /70mm
Overall Length: 3.14in / 80mm
Travel Length: 0.51in / 13.0mm
Shock Body OD: 0.57in / 14.6mm
Shaft OD: 0.15in / 3.9mm
Each Shock Weighs: 0.61oz / 17.5g

What's Included

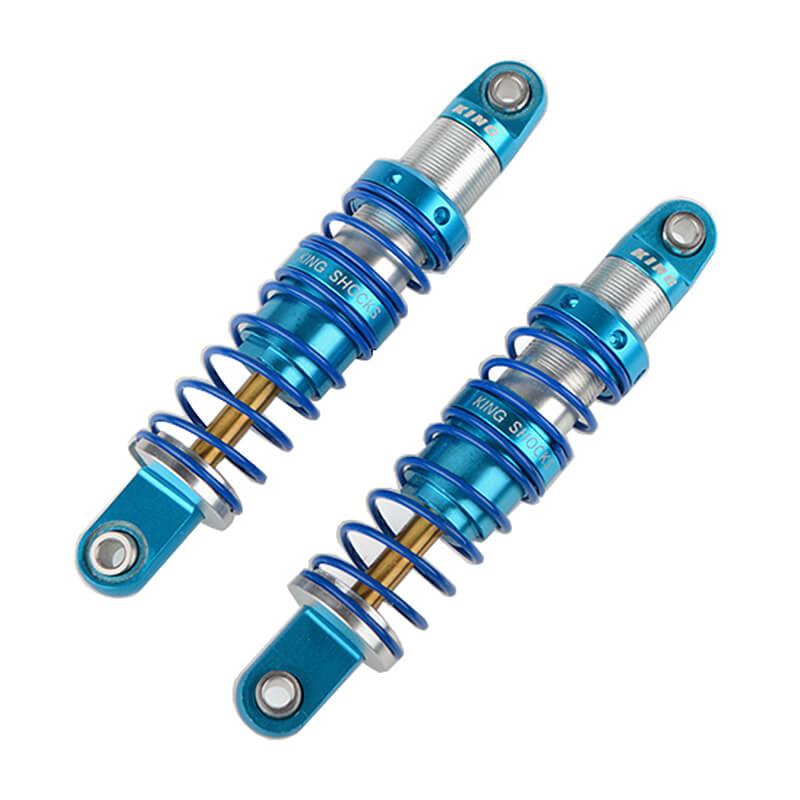

• 2 x RC4WD King Off-Road Racing Shocks 70mm (Silver/Blue)
• 1 x King Decal Sheet

Fits

• Traxxas TRX-4 Land Rover Defender
• Traxxas TRX-4 '79 Bronco Ranger XLT
• Traxxas TRX-4 Sport Kit
• Traxxas TRX-4 Sport
• Traxxas TRX-4 Crawler Kit
• Traxxas TRX-4 Mercedes-Benz G 500 4x4
• Traxxas TRX-4 Chevrolet K5 Blazer
• Traxxas TRX-6 Mercedes-Benz G 63 6x6
• RC4WD Gelande II RTR Truck w/Cruiser Body Set (Red) (Z-RTR0047)
• RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set (Z-K0064)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Scale Dept. Edition) (Z-RTR0071)

Notes

• Designed with Titanium Nitride (TiN) shock shafts for long term wearability.
• X-ring Gaskets provide double the oil seals in the shock cartridge.
• Shocks do not come with oil. It is highly recommended to build the shocks with silicone shock oil and thick shock grease on the x-rings for maximum performance.
• When installing on Axial SCX10-3 please use a 5mm Black Spacer with M3 Hole (Z-S0821) on the shock tower.

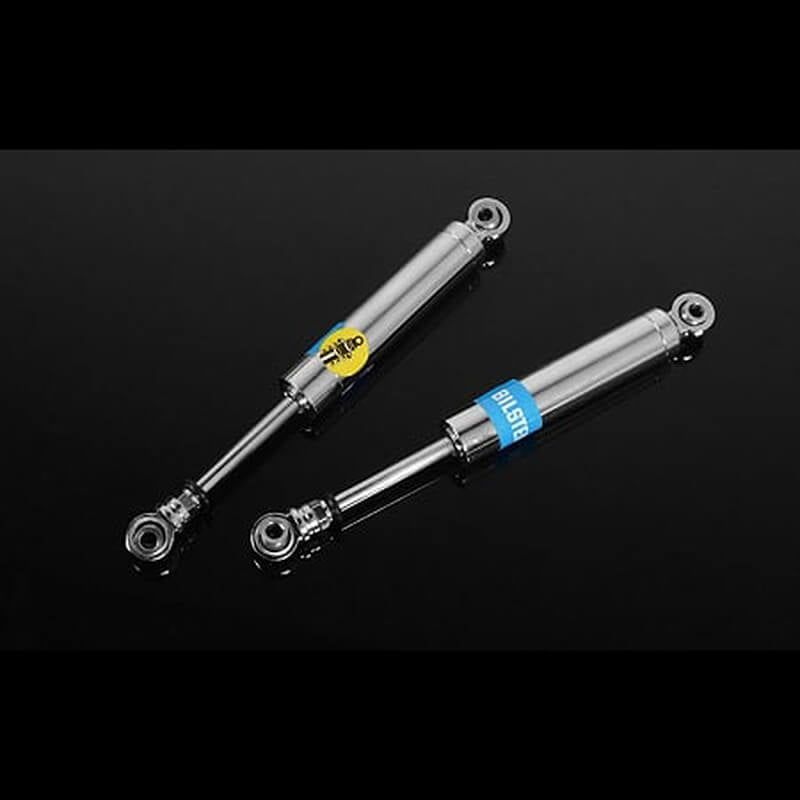

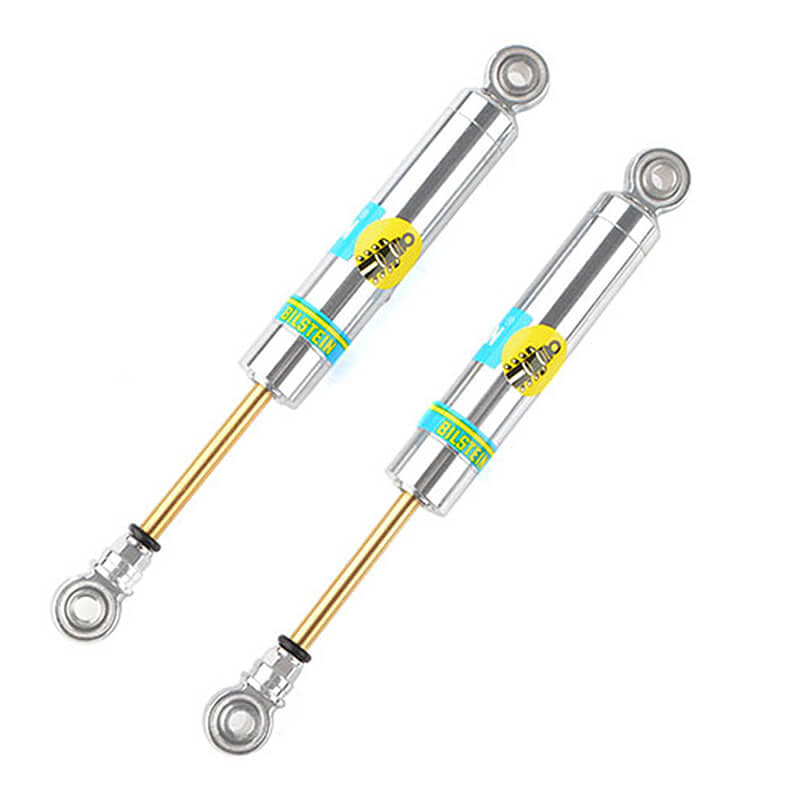

These are the all new RC4WD Bilstein SZ Series Shock Absorbers (90mm). These feature our new X-ring technology that reduces contact friction for smooth shock shaft movement while improving oil retention around the shock shaft.

Features

• Machined Billet Aluminium
• Chrome Plated Finish
• Internal Spring Design

Specifications

Hole to Hole (Compressed): 2.63in / 67mm
Hole to Hole (Uncompressed): 3.54in / 90mm
Overall Length: 3.91in / 99.4mm
Travel Length: 0.90in / 23mm
Shock Body OD: 0.39in / 10mm
Shaft OD: 0.11in / 3.0mm
Each Weighs: 0.38oz / 11.0g

What's Included

• 2 x RC4WD Bilstein SZ Series Shock Absorbers (90mm)
• 1 x Bilstein Decal Sheet

Bilstein is a registered trademark of the Bilstein company. The Bilstein logo is property of Bilstein and used under license to RC4WD.

These are the all new RC4WD Bilstein SZ Series Shock Absorbers (100mm). These feature our new X-ring technology that reduces contact friction for smooth shock shaft movement while improving oil retention around the shock shaft.

Features

• Machined Billet Aluminium
• Chrome Plated Finish
• Internal Spring Design

Specifications

Hole to Hole (Compressed): 2.83in / 72mm
Hole to Hole (Uncompressed): 3.94in / 100mm
Overall Length: 4.30in / 109.2mm
Travel Length: 1.10in / 28.0mm
Shock Body OD: 0.39in / 10mm
Shaft OD: 0.11in / 3.0mm
Each Weighs: 0.42oz / 12.0g

What's Included

• 2 x RC4WD Bilstein SZ Series Shock Absorbers (100mm)
• 1 x Bilstein Decal Sheet

Bilstein is a registered trademark of the Bilstein company. The Bilstein logo is property of Bilstein and used under license to RC4WD.

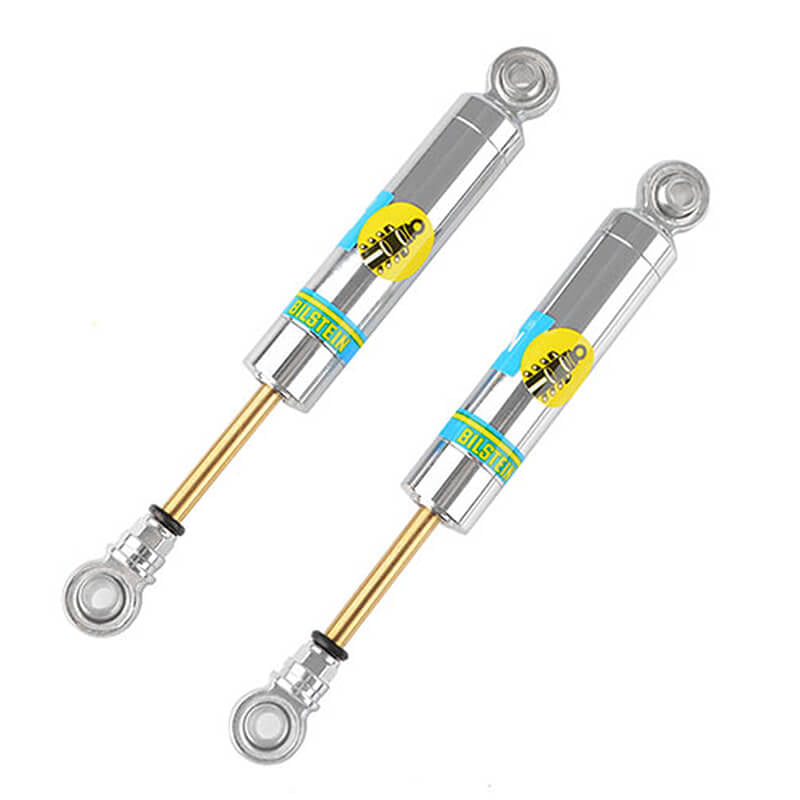

These are the all new RC4WD Bilstein SZ Series Shock Absorbers (80mm). These feature our new X-ring technology that reduces contact friction for smooth shock shaft movement while improving oil retention around the shock shaft.

Features

• Machined Billet Aluminium
• Chrome Plated Finish
• Internal Spring Design

Specifications

Hole to Hole (Compressed): 2.40in / 61mm
Hole to Hole (Uncompressed): 3.15in / 80mm
Overall Length: 3.51in / 89.2mm
Travel Length: 0.74in / 19.0mm
Shock Body OD: 0.39in / 10mm
Shaft OD: 0.11in / 3.0mm
Each Weighs: 0.36oz / 10.2g

What's Included

• 2 x RC4WD Bilstein SZ Series Shock Absorbers (80mm)
• 1 x Bilstein Decal Sheet

Bilstein is a registered trademark of the Bilstein company. The Bilstein logo is property of Bilstein and used under license to RC4WD.

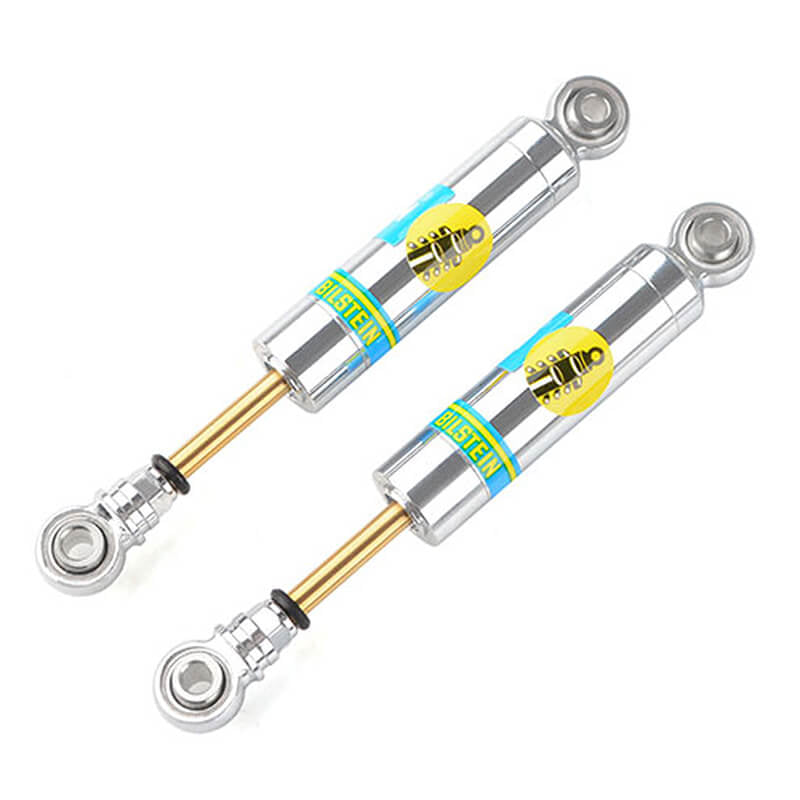

These are the all new RC4WD Bilstein SZ Series Shock Absorbers (70mm). These feature our new X-ring technology that reduces contact friction for smooth shock shaft movement while improving oil retention around the shock shaft.

Features

• Machined Billet Aluminium
• Chrome Plated Finish
• Internal Spring Design

Specifications

Hole to Hole (Compressed): 2.16in / 55mm
Hole to Hole (Uncompressed): 2.75in / 70mm
Overall Length: 3.12in / 79.3mm
Travel Length: 0.59in / 15mm
Shock Body OD: 0.39in / 10mm
Shaft OD: 0.11in / 3.0mm
Each Weighs: 0.32oz / 9.2g

What's Included

• 2 x RC4WD Bilstein SZ Series Shock Absorbers (70mm)
• 1 x Bilstein Decal Sheet

Bilstein is a registered trademark of the Bilstein company. The Bilstein logo is property of Bilstein and used under license to RC4WD.

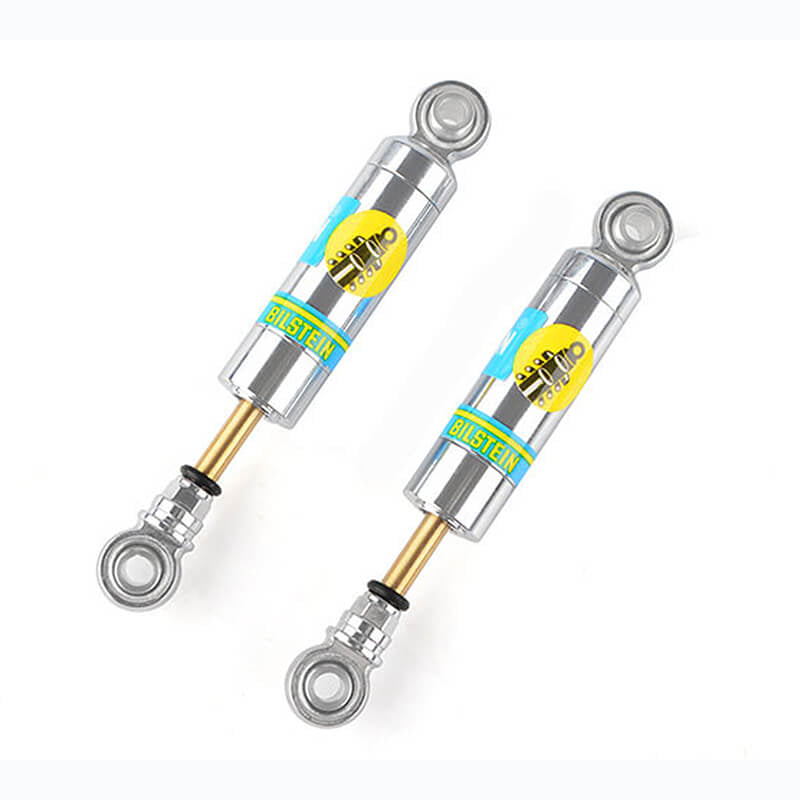

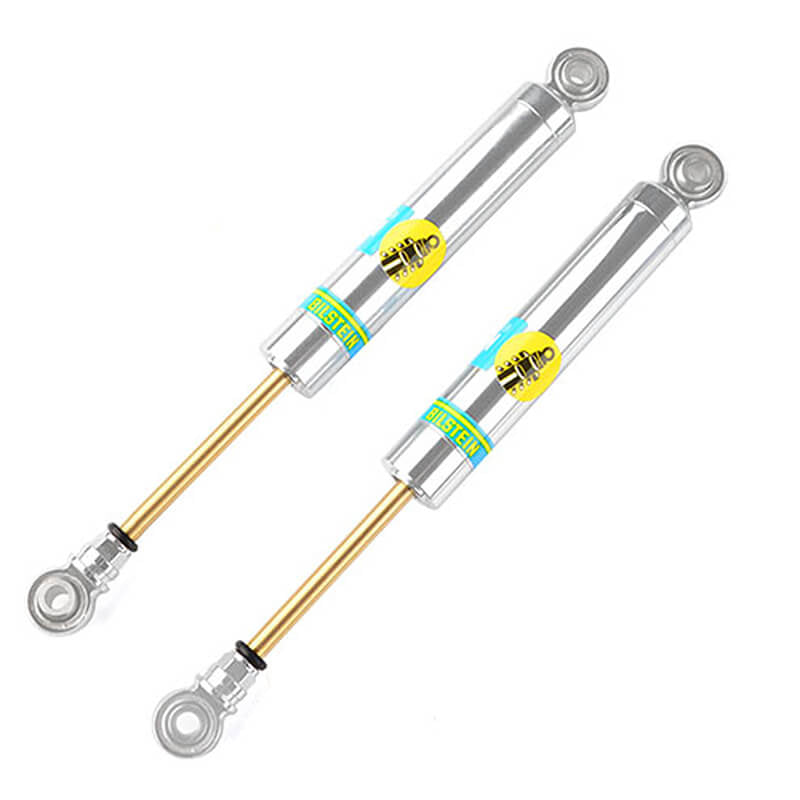

These are the all new RC4WD Bilstein SZ Series Shock Absorbers (60mm). These feature our new X-ring technology that reduces contact friction for smooth shock shaft movement while improving oil retention around the shock shaft.

Features

• Machined Billet Aluminium
• Chrome Plated Finish
• Internal Spring Design

Specifications

Hole to Hole (Compressed): 2.01in / 51mm
Hole to Hole (Uncompressed): 2.36in / 60mm
Overall Length: 2.72in / 69.2mm
Travel Length: 0.35in / 9.00mm
Shock Body OD: 0.39in / 10mm
Shaft OD: 0.11in / 3.0mm
Each Weighs: 0.31oz / 9.0g

What's Included

• 2 x RC4WD Bilstein SZ Series Shock Absorbers (60mm)
• 1 x Bilstein Decal Sheet

Bilstein is a registered trademark of the Bilstein company. The Bilstein logo is property of Bilstein and used under license to RC4WD.

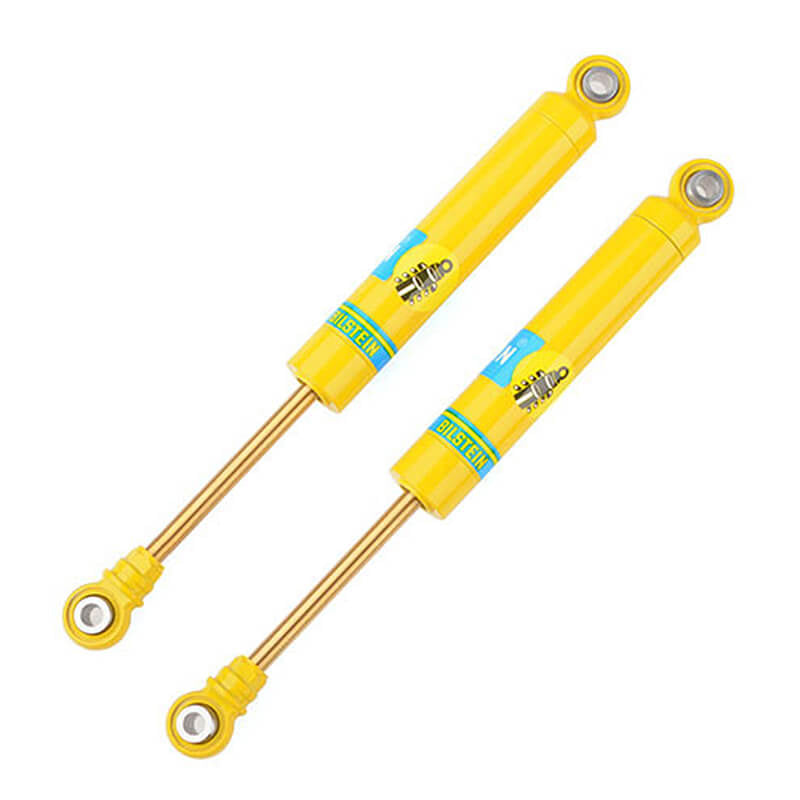

These are the all new RC4WD Bilstein B6 4600 Series Shock Absorbers (100mm). These have been Officially Licensed by Bilstein. These have our new X-Ring technology that reduces contact friction and improves oil flow and retention around the shock shaft!

Features

• Machined Billet Aluminium
• Yellow Powder Coated Finish
• Internal Spring Design

Specifications

Hole to Hole (Compressed): 2.83in / 72mm
Hole to Hole (Uncompressed): 3.94in / 100mm
Overall Length: 4.30in / 109.2mm
Travel Length: 1.10in / 28.0mm
Shock Body OD: 0.39in / 10mm
Shaft OD: 0.11in / 3.0mm
Each Weighs: 0.44oz / 12.5g

What's Included

• 2 x RC4WD Bilstein B6 4600 Series Shock Absorbers (100mm)
• 1 x Bilstein Decal Sheet

Bilstein is a registered trademark of the Bilstein company. The Bilstein logo is property of Bilstein and used under license to RC4WD.

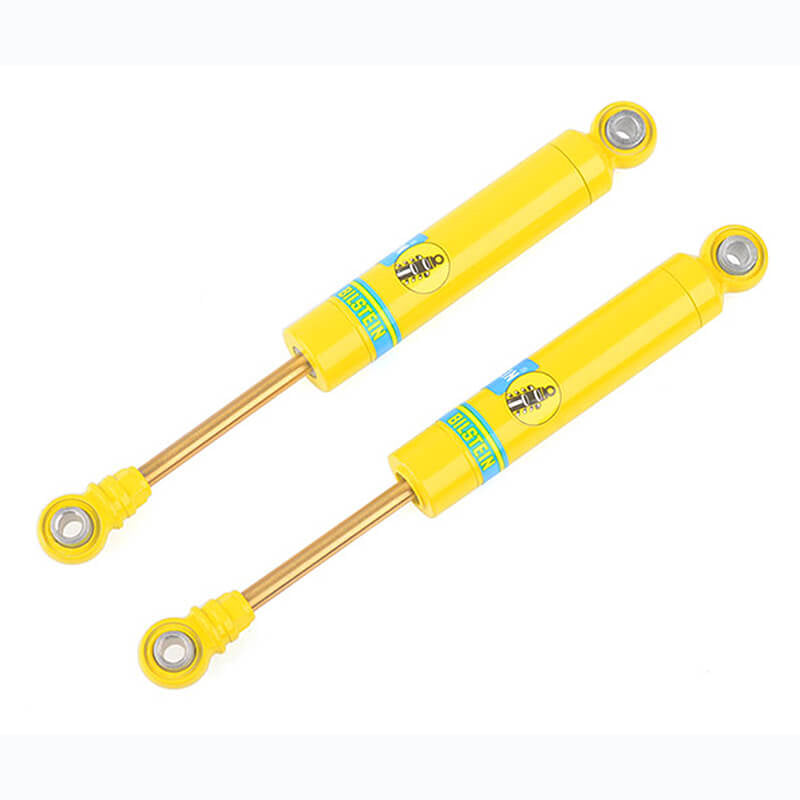

These are the all new RC4WD Bilstein B6 4600 Series Shock Absorbers (90mm). These have been Officially Licensed by Bilstein. These have our new X-Ring technology that reduces contact friction and improves oil flow and retention around the shock shaft!

Features

• Machined Billet Aluminium
• Yellow Powder Coated Finish
• Internal Spring Design

Specifications

Hole to Hole (Compressed): 2.63in / 67mm
Hole to Hole (Uncompressed): 3.54in / 90mm
Overall Length: 3.91in / 99.4mm
Travel Length: 0.90in / 23mm
Shock Body OD: 0.39in / 10mm
Shaft OD: 0.11in / 3.0mm
Each Weighs: 0.40oz / 11.4g

What's Included

• 2 x RC4WD Bilstein B6 4600 Series Shock Absorbers (90mm)
• 1 x Bilstein Decal Sheet

Bilstein is a registered trademark of the Bilstein company. The Bilstein logo is property of Bilstein and used under license to RC4WD.
