RC4WD

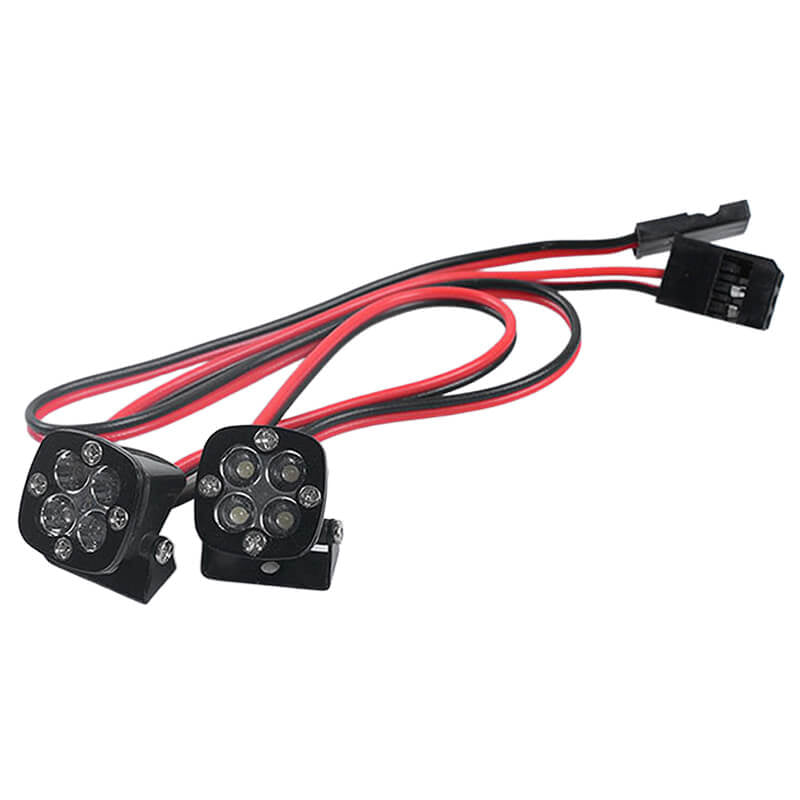

RC4WD has teamed up with Baja Designs to offer this awesome new licensed product to the scale community. Perfect for any project these little units work great at lighting the way. Made to fit anywhere

Features

• Plastic Moulded Housing
• Adjustable Bracket for Rotating Light
• 4 Individual LED's per Light
• Super Bright Lighting
• Standard Receiver Plug
• Connects to Extra Channel on Receiver
• Connects Directly to Battery
• Capable of 11.1v
• 2mm Mounting Holes

Specifications

Overall Length: 0.57in / 14.5mm
Light Bar Width: 0.52in / 13.4mm
Overall Height: 0.57in / 14.7mm
Light Bar Height: 0.55in / 14.2mm
Weight: 0.1oz / 3g

What's Included

• 2 x RC4WD 1/10 Baja Designs Squadron Pro LED Lights
• 1 x Baja Designs Decal Sheet

Replacement Hardware

• Steel Socket Head Cap Screws M2 X 6mm (10) (Z-S0611)
• M1.4 x 3mm Phillips Button Head (Silver)
• M1.2 x 3mm Phillips Flat Head (Silver)

Optional Parts

• RC4WD Mini ON/OFF Switch for Lighting Unit (Z-E0081)
• RC4WD Strobe Lighting Unit (Z-S1573)

Notes

• This unit has to be connected directly to 2 or 3 cell LiPo battery to operate properly with 7.4 volts or 11.1 volts.
• While the lightbar comes with a standard receiver plug, this is only for ease of use. The receiver will not allow enough power for the lightbar and it will be dim.
• To get the maximum light output, you will need to power it directly from your battery, or use a BEC to get more power to your receiver.
• Baja Designs is a registered trademark of the Baja Designs Inc. The Baja Designs logo is property of Baja Designs Inc and used under license to RC4WD.

Features

• Brushed motor design
• Dual precision ball bearings
• Machine wound armature
• High torque specifications
• Completely rebuildable
• Built for crawling and trail driving
• Adjustable timing

Specifications

Can Length: 52.9mm (2.08")
Can Diameter: 36mm (1.4")
Shaft Length: 13mm (0.51")
Shaft Diameter: 3.15mm (0.12")
Number of Turns: 35Included motor leads wires with connectors (Plug and Play)
Min and Max Voltage Range: 2.4V-30V

What's Included

• 1x 35T Boost Rebuildable Crawler Motor
• 1x Pair of Power Wires with/connectors

Fits

• RC4WD Trail Finder 3 RTR W/ Mojave II Hard Body Set (Z-RTR0045)
• Axial SCX10 III

Features

• 7 Light Colours Changeable.
• Lighting Modes: Steady, Strobe.

Specifications

Operating Voltage: 6V-9V
Wire Total Length: 28.7in / 730mm
Total Weight: 1.09oz / 31.0g

What's Included

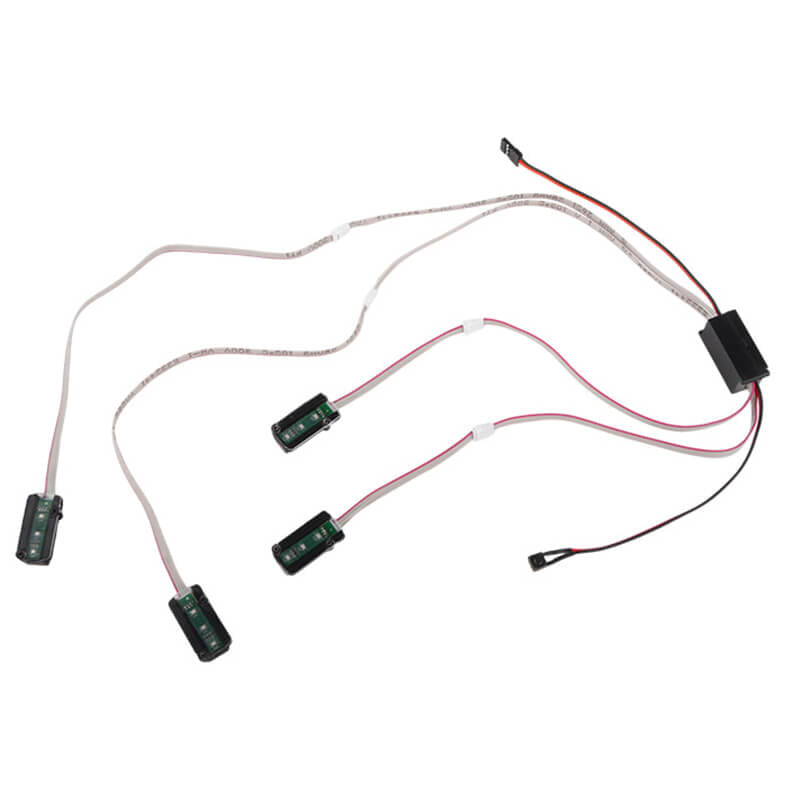

• 1 x RC4WD Universal LED Rock Lights
• 4 x Black Plastic LED Mounting Brackets
• 4 x Clear Plastic LED Mounting Bracket Covers
• 1 x Black Center Protection Box
• 1 x Black Center Protection Box Cover
• 10 x M1.6 X 6mm Socket Head Self Tapping Screws (Black) (Z-S2053)
• 8 x M1.6 X 5mm Socket Head Self Tapping Screws (Black)

Fits

• RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034)
• RC4WD C2X Class 2 Competition Truck w/ Mojave II 4 Door Body (Z-RTR0042)
• RC4WD Gelande II RTR Truck w/Cruiser Body Set (Red) (Z-RTR0047)
• RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red) (Z-RTR0063)
• RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White) (Z-RTR0064)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black) (Z-RTR0067)
• RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edition) (Z-RTR0068)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) (Z-RTR0070)
• RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Grey) (Z-RTR0065)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Scale Dept. Edition) (Z-RTR0071)

Notes

• Using CH3 on the transmitter to control the light switch, you then need to manually press the button on the light to change its lighting mode.

Features

• 2 x 5mm White LEDs
• 2 x 3mm White LEDs
• 2 x 3mm Red LEDs
• 2 x 2mm Yellow LEDs

Specifications

DC Voltage: 4.5 V ~ 9 V
Control Voltage: 7.4 V
Operating Voltage: 7.4 V
Wire Length: 25.5in / 650mm
Total Weight: 0.73oz / 20.9g

What's Included

• 1 x RC4WD Basic Lighting System for 2015 Land Rover Defender D90 Body Set (Pick-up/SUV)
• 1 x Servo Extension Wire 150mm

Fits

• RC4WD 2015 Land Rover Defender D90 Body Set (Z-B0215)
• RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set (Z-K0064)
• RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Grey) (Z-RTR0065)

Specifications

Rotational Speed: 1200(kv) RPM/V
Input Voltage: 8V to 11.1V
Max Efficiency: >82.3%
8V NO-Load Performance Current:  2.5A Max
11.1V Load Performance Current: 19.3A Max
Motor OD: 1.41in / 36mm
Motor Length: 2.67in / 68mm
Weight: 6.49oz / 184g

What's Included

• 1 x RC4WD 1200KV Brushless Motor for Miller Motorsports Pro Rock Racer

Features

• 2 x 5mm White LEDs
• 4 x 3mm Yellow LEDs
• 4 x 3mm Red LEDs

Specifications

DC Voltage: 4.5 V ~ 9 V
Control Voltage: 7.4 V
Operating Voltage: 7.4 V
Wire Length: 26.3in / 670mm
Weight: 0.80oz / 22.8g

What's Included

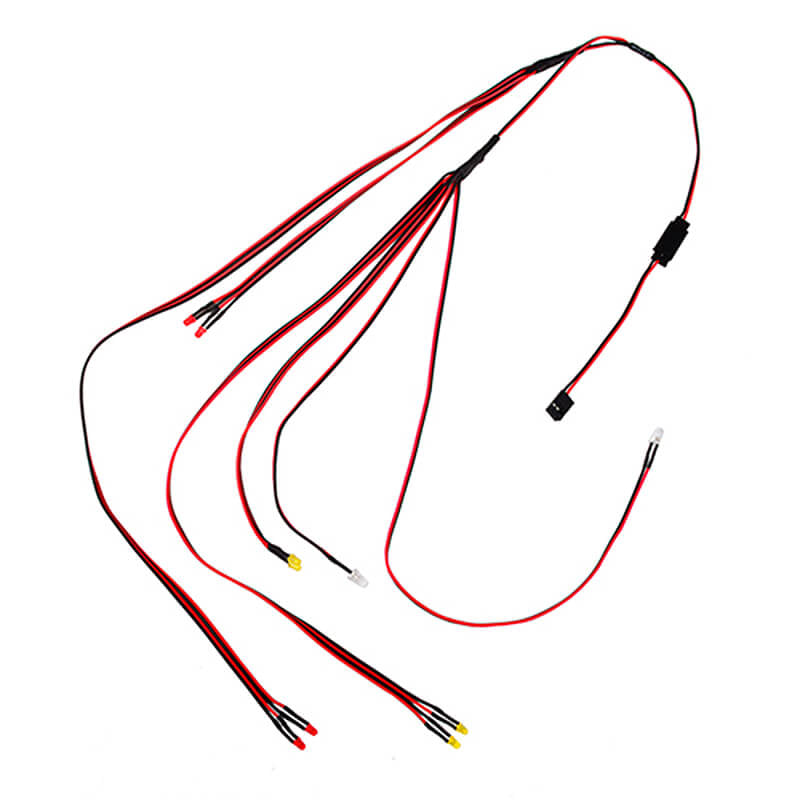

• 1 x RC4WD LED Basic Lighting System for Chevrolet Blazer and K10
• 1 x Servo Extension Wire 115mm

Fits

• RC4WD Chevrolet Blazer Hard Body Complete Set (Z-B0092)
• RC4WD Chevrolet K10 Scottsdale Hard Body Complete Set (Z-B0258)

Features

• 2 x 5mm White LEDs
• 2 x 5mm Red LEDs
• 2 x 5mm Yellow LEDs
• 4 x 3mm White LEDs
• 8 x 3mm Yellow LEDs
• 6 x 3mm Red LEDs
• 2 x 2mm Yellow LEDs
• 2 x 2mm Red LEDs
• 2 x 3mm Halogen LEDs
• 2 x 5mm Halogen LEDs

Specifications

DC Voltage: 4.5 V ~ 9 V
Control Voltage: 7.4 V
Operating Voltage: 7.4 V
Wire Length: 35.8in / 425mm
Total Weight: 3.10oz / 88g

What's Included

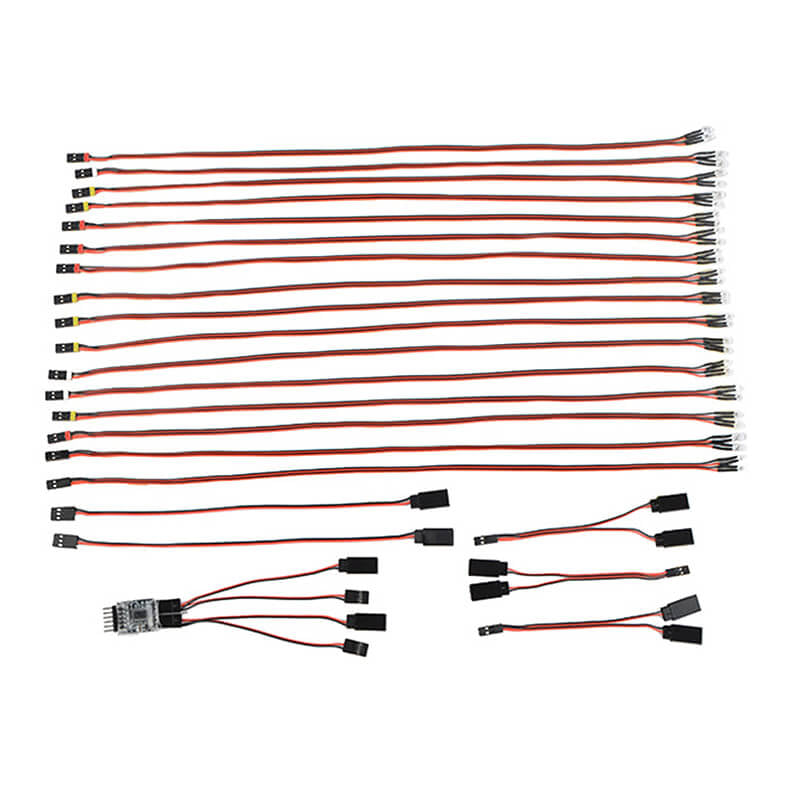

• 28 x Pre Wired LED Light Diodes
• 1 x LED Light Controller
• 2 x 10cm 2 Male to 1 Female Y Harness Leads Splitter Futaba Cables
• 3 x 10cm 1 Male to 2 Female Y Harness Leads Splitter Futaba Cables
• 2 x Servo Extension Wire 150mm (Z-E0030)

Fits

• RC4WD C2X Class 2 Competition Truck w/ Mojave II 4 Door Body (Z-RTR0042)
• RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Autobiography Limited Edition) (Z-RTR0043)
• RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Heritage Edition) (Z-RTR0044)
• RC4WD Gelande II RTR Truck w/Cruiser Body Set (Red) (Z-RTR0047)
• RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red) (Z-RTR0063)
• RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White) (Z-RTR0064)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Red) (Z-RTR0066)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black) (Z-RTR0067)
• RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edition) (Z-RTR0068)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) (Z-RTR0070)
• RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034)
• RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set (Z-K0064)
• RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set (Z-K0070)
• RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0072)
• RC4WD Complete Cruiser Body Set For Gelande II (Z-B0109)
• RC4WD Chevrolet Blazer Hard Body Complete Set (Z-B0092)
• RC4WD Chevrolet Blazer Hard Body Complete Set (Z-B0152)
• RC4WD Chevrolet Blazer Hard Body Complete Set (Light Blue) (Z-B0148)
• RC4WD 2001 Toyota Tacoma 4 Door Body for TF2 LWB 313MM/12.3" (Z-B0169)
• RC4WD 1985 Toyota 4Runner Hard Body Complete Set (Z-B0167)
• RC4WD 2015 Land Rover Defender D90 Body Set (Z-B0215)
• RC4WD 1987 Toyota XtraCab Hard Body Complete Set (Z-B0216)
• RC4WD Chevrolet K10 Scottsdale Hard Body Complete Set (Z-B0258)
• RC4WD 1985 Toyota 4Runner Hard Body Complete Set (Black) (Z-B0252)
• RC4WD 1985 Toyota 4Runner Hard Body Complete Set (Medium Blue) (Z-B0254)
• RC4WD 1987 Toyota XtraCab Hard Body Complete Set (Grey) (Z-B0271)
• RC4WD 1982 Toyota Pickup Hard Body Complete Set (Z-B0257)
• RC4WD Chevrolet Blazer Hard Body Complete Set (Navy/Blue) (Z-B0272)
• RC4WD Chevrolet Blazer Hard Body Complete Set (Silver/Warm Grey) (Z-B0273)

Features

• 2x 5mm White LEDs
• 2x 3mm Yellow LEDs
• 6x 3mm Red LEDs

Specifications

DC Voltage: 4.5 V ~ 9 V
Control Voltage: 7.4 V
Operating Voltage: 7.4 V
Wire Length: 35.8in / 910mm
Total Weight: 0.6oz / 17.3g

What's Included

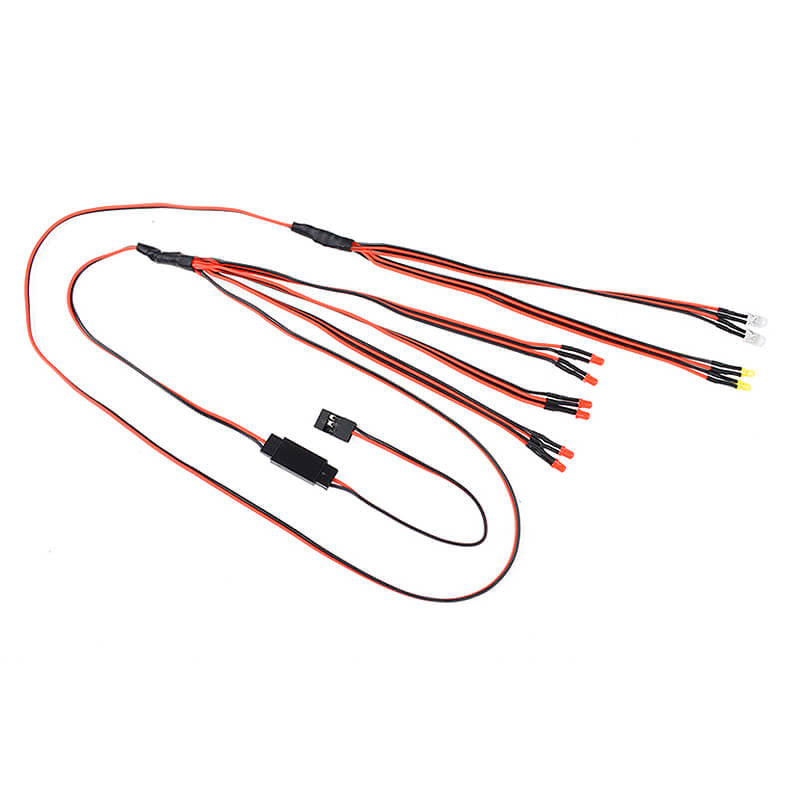

• 1 x RC4WD LED Basic Lighting System for 1982 Toyota Pickup/Mojave II
• 1 x 165mm Extension Wire

Fits

• RC4WD Mojave II Body Set for Trail Finder 2 (Primer Gray) (Z-B0084)
• RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Midnight Edition) (Z-RTR0054)
• RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) (Z-RTR0070)
