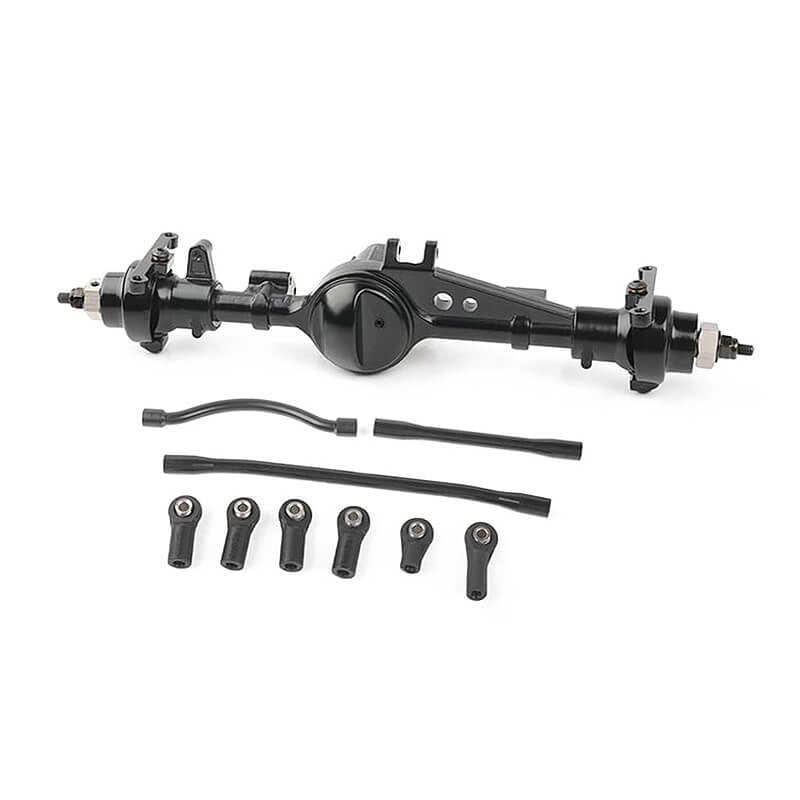

RC4WD - TEQ ULTIMATE SCALE CAST AXLE (FRONT) - Z-A0127

With improved steering and durability, the TEQ Ultimate Scale Axles are a modern version of the Yota II axles designed as an upgrade for Axial SCX10 II and Element Enduro line of RC trucks. These scale axles are cast from a high grade aluminum alloy and come with integrated suspension link mounts that construct a single, hardened unit. Solid and maneuverable, this set features universal style XVD shafts that deliver a tighter turning radius and high strength driveline. The ring and pinion gears are a CNC machined, hypoid tooth design and are linked to a 6 bolt hardened steel locker. The C-hubs feature interlocking grooves on the front axle which enables caster customization and the front pumpkin is offset providing more ground clearance. All of this is packed into a high strength cast aluminum case with a long lasting powder-coated finish.

Features

• Die Cast Light Weight Metal Housing
• Hardened Steel Spool Gears
• 5mm Axle Output Shaft
• Full Ball Bearings
• Powder-coated in Black
• 12mm Steel Wheel Hex
• Includes XVD Universal Axle Shafts

Specifications

Width: 189.6mm / 7.46in
Gear Ratio: 8T/30T
Weight: 6.24oz / 177g

What's Included

• 1 x TEQ Ultimate Scale Cast Axle (Front)
• 1 x 115.8mm Link
• 1 x 63mm Link
• 1 x 66mm Bent Link
• 1 x M3 Plastic Bent Rod End
• 1 x M3 Mini Plastic Rod End
• 4 x RC4WD M3/M4 Plastic Short Rod Ends
• 2 x M3 x 10mm Set Screws
• 4 x M4 x 20mm Set Screws

Fits

• Axial SCX10 II
• Associated Element Enduro

Notes

• To install on Element Enduro chassis you will need to use the stock panhard and drag link.
• To retain a centered front axle the stock panhard link and drag link will need to the lengthened by loosening the rod ends 1-2 revolutions.
• Please do routine maintenance.
• Check the grease around the gears and also oil the bearings.
• Do not over tighten screws as you can strip the holes. Use Locktite but do not use too much or you can damage the casing.
