RC Cars

This is a R/C model assembly kit recreating the form of the outstanding new NSX super sports car. The included polycarbonate body is lightweight and durable, and captures the aerodynamically-styled NSX silhouette with aplomb. Stickers are included to recreate markings on the car, including the distinctive "Jewel Eye" 6-lamp headlights, window frames and air intake mesh. The model runs on the adaptable TT-02 chassis, a beginner friendly unit with tuning potential!

TT-02 Chassis:
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color mesh wheels are paired with radial tires.

Specifications
_Length: 438mm, Width: 190mm, Height: 124mm _Wheelbase: 257mm__Tire Width/Diameter: 27/67mm (Front & Rear) _Bathtub-type Frame _Shaft-Driven 4WD _Front/Rear 4-Bevel Resin Differentials _3-Piece Steering Tie-Rod _4-Wheel Double Wishbone Suspension _Front/Rear Friction Dampers _Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions) _Type 540 Motor

• 1/10 scale R/C model assembly kit. Length: 444mm, width: 185mm, height: 125mm. Wheelbase: 257mm
• Lightweight, durable 1.0mm thick polycarbonate body
• Separate parts realistically depict side mirrors and rear wing
• The model utilizes the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability
• 16-spoke silver colour wheels are paired with racing slick tyres
• Comes with stickers and window masking tape for use in the paint job.
•  Includes ESC and motor

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

• 1/10 scale R/C model assembly kit. Length: 451mm, width: 186mm, height: 134mm
• Wheelbase: 257mm
• Durable 1.0mm-thick polycarbonate body
• The model utilizes the efficient shaft-driven 4WD TT-02 chassis which features superior adaptability and stability
• 10-spoke wheels moulded in Gun Metal are paired with tread pattern racing radial tyres
• Includes stickers and window masking tape for use in the painting process
• Includes 540 brushed motor and ESC

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger

• 1/10 scale R/C model assembly kit. Length: 416mm, width: 190mm, height: 146mm
• Wheelbase: 257mm
• Lightweight, durable polycarbonate body
• Separate polycarbonate front light cases add three-dimensional look (note: front LED lights cannot be attached)
• Separate plastic parts moulded in black realistically depict side mirrors, 2-piece large rear wing, side ducts and caps
• The model utilises the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability
• Dark gun metal colour multi-spoke wheels (Item 50678) are paired with racing radial tyres (Item 50419)
• Includes Urethane Bumper for crash protection
• Comes with stickers and window masking tape for use in the painting process
• Includes 540 Torque Tuned motor and ESC

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

• This is a 1/10 scale R/C model assembly kit. Length: 435mm, width: 194mm, height: 121mm. Wheelbase: 257mm.
• The lightweight, durable 1.0mm thick polycarbonate body authentically captures the form of the 1998 Honda NSX Racing in style.
• The model utilizes the shaft-driven 4WD TT-02 chassis, which features superior adaptability and stability.
• Gun metal 6-spoke wheels are paired with racing slick tires.
• Comes with stickers and masking stickers for use in the paint job.

• 1/10 scale R/C model assembly kit. Length: 397mm, width: 163mm.
• The model uses the 239mm L wheelbase.
• Body is made of polycarbonate. Bumpers and side mirrors are recreated using separate metal-plated parts.
• Front light pods and rally-style stickers included. Includes Rally block tyres.
• The MF-01X is at home on-road or on flat dirt, thanks to 4-wheel double wishbone suspension.
•  Power from the rear mounted motor is transmitted by gear differential to the rear wheels, and via a propeller shaft to the front.
• The chassis can be assembled into S and M wheelbases using separately sold propeller shafts.
• A host of Hop-Up Option parts are available to tune the MF-01X chassis.
• Requires: 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS Paint.

• 1/10 scale R/C model assembly kit. Length: 422mm, width: 186mm, height: 132mm
• The injection moulded body offers a highly realistic recreation of the 037
• Comes with metal-plated light cases for headlights, taillights and fog lamps
• Side mirrors and windscreen wipers are made using separate parts
• The interior features depictions of driver & co-driver, plus dashboard
• The TA02S chassis is a shaft-driven 4WD unit with bathtub frame, a rear ball diff and front gear diff
• Four-wheel independent double-wishbone suspension is paired with CVA oil shock dampers
• New front bumper and sticker sheet
• Compatible with standard Type 540 motors
• Includes 540-Type brushed motor
• Includes Tamiya TBLE-02S ESC (electronic speed control) capable of running sensored brushless motors and brushed motors alike (21.5 Turn BL motor limit, 23 Turn brushed motor limit)

• Two-channel radio, steering servo, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint

This high-performance front-wheel drive R/C chassis assembly kit is constructed around a rigid monocoque with lower deck and upper frame sections. It offers responsive drive characteristics and fuss-free maintenance of parts such as the easy-access differential, which can be removed from the underside with minimal disassembly. C.V.A. (Constant Volume Adjustable) oil shock-damped 4-wheel double wishbone suspension features dedicated long arms and steering linkage components for a range of setup options. A silky-smooth drivetrain utilizes full ball bearings, oil-filled gear differential unit and universal drive shafts. It can be assembled with a 225mm (M) or 239mm (L) wheelbase, making it compatible with appropriately-sized existing Tamiya M-chassis body parts sets.

Featured Components:

Monocoque frame chassis (with detachable lower section)
Long suspension arms
CVA oil dampers
Full ball bearings
Gear differential unit
Universal drive shafts
Hi-torque servo saver

• 1/10 scale R/C chassis assembly kit. Length: 332mm, width: 164mm.
• The core of the chassis is a 1-piece monocoque with integrated upper frame elements similar to the TA-07 Pro. It is designed to offer excellent rigidity with easy maintenance.
• Choose between 2 different wheelbases (M: 225mm, L: 239mm), simply by changing rear arm attachment direction.
• Newly designed front and rear suspension use long arms for ideal leverage ratio, in tandem with long steering linkage components. Rear toe can be adjusted simply using spacers.
• 4-wheel double wishbone suspension is fitted with CVA oil shocks.
• The TA06 oil-filled gear differential is used to drive the M-07. It is paired with universal drive shafts and full ball bearings.
• Compatible with standard IFMAR (Li-Po cell-type) regulation square-shaped battery packs.
• Compatible with Low-Profile servos.
• The chassis was designed with easy access to the stabilizers (sold separately) for quick, precise adjustments vital at the racetrack.
• Body mounts have a new reinforced design for more secure body attachment.
• The chassis gives its driver excellent “feedback,” allowing you to judge with clarity how your setup changes have impact.

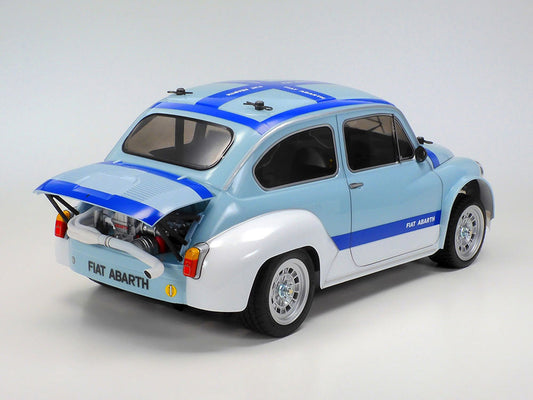

• Length: 322mm, width: 163mm. Wheelbase: 209mm (S) / 224mm (M) / 239mm (L) (*Fiat Abarth uses the LONG wheelbase setup).
• The multi-purpose, 2WD MB-01 chassis gives choices of three types of wheelbases (*), and front- or rear- wheel drive system. Six setups are available in total.
• Simply change attachment directions of final gears and steering linkage to switch between front- and rear- wheel drive; low or high motor position can be chosen for rear-wheel drive cars.
• Unitized sections such as motor mount and final gears facilitate ease of assembly and effective maintenance.
• The 4-wheel double wishbone suspension features symmetrical structure and friction dampers.
• While this is a 2WD model, multi-link suspension is compatible with tires featuring the same compound and rear tire with toe-in as 4WD models.
• Gear ratio: 5.83:1 (when using kit-standard 29T pinion gear)
• Features 55mm diameter front tires and 60mm diameter rear tires to authentically recreate the stance of the actual car.
• Many Hop-Up Option parts for M-chassis and TT-chassis cars can be used to fine-tune setup.
• Includes 540 motor and ESC.
• Requires 2-channel radio, 7.2-7.4volt battery with compatible charger and Tamiya PS paint to complete.

• This is a 1/10 scale R/C model assembly kit. Length: 417mm, width: 174mm, height: 138mm. Wheelbase: 239mm (Long wheelbase).
• The form of the Opel Kadett GT/E is authentically recreated in lightweight polycarbonate, and the colour scheme of the works Opel Eurohändler team is employed.
• Features 60mm front and rear tires. Use 60D tires when changing tires.

• 1/10 scale R/C model assembly kit.
• Length: 414mm. Width: 172mm. Height: 135mm
• Wheelbase: 239mm (L)
• Tyre Width/Diameter (Front & Rear): 26/60mm
• Tread (Front & Rear): 138mm
• Polycarbonate body pre-painted in White.
• Separately moulded plastic components are included to recreate bumper, side mirrors and fog lamps.
• Polycarbonate front and rear light cases are compatible with separately sold Tamiya 5mm LEDs.
• Stickers are included to recreate blue livery sections, sponsor logos and more.
• The MF-01X is at home on-road or on flat dirt, thanks to 4-wheel double wishbone suspension.
• Power from the rear mounted motor is transmitted by gear differential to the rear wheels, and via a propeller shaft to the front. The chassis can be converted to S and M wheelbases with separately sold propeller shafts.
• A host of Hop-Up Option parts are available to tune the MF-01X chassis.
• Tamiya Torque Tuned Motor included.

• Two-channel radio, steering servo, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint

• Length: 412mm, width: 197mm, height: 137mm
• Wheelbase: 239mm (Long)
• Tread: 148mm (front), 140mm (rear)
• Tire width/diameter: 25/59mm (front & rear)
• Bathtub type chassis
• Front-midship motor, front-wheel drive
• 4-bevel differential gear
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Friction dampers
• Gear ratio = 5.83:1 (using kit 29T pinion)
• Type 540 motor
• ESC included

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

Tamiya is no stranger to recreating classic cars from different eras! This specific kit recreates a true classic in the form of the Volkswagen Karmann Ghia. The Karmann Ghia was a stylish coupé based upon the same platform as the legendary Beetle. Its body was designed by Italian firm Ghia and manufactured by the German company Karmann. The polycarbonate body in this replica sits on top of the Tamiya RWD M-06 chassis.

Great RR Performance from the M-06
The M-06 chassis features a rear-mounted motor, rear-drive setup and features a longitudinally-mounted battery pack, with R/C equipment positioned on either side for optimum balance and a low center of gravity. 4-wheel double wishbone suspension uses metal-plated wheels, equipped with 60D radial tires at the front and 60D super grip tires at the rear. In addition, a 3-piece steering linkage offers nimble handling response. A large bumper is included.

• 1/10 scale R/C model assembly kit. Length: 410mm, width: 182mm, height: 125mm.
• Lightweight and durable polycarbonate. Separate plated parts depict side mirror, bumpers and light cases.
• Includes marking stickers, and window masking stickers for use during the painting process.
• The M-06 chassis features a rear-motor, RWD setup with a longitudinally-mounted battery pack and R/C units positioned on either side for optimum balance and a low center of gravity.
• This model utilizes the 239mm wheelbase M-06L chassis.
• Metal-plated wheels paired with front radial and rear super grip radials for superior stability and sharp handling.
• A host of Hop-Up Option parts are available to customize the chassis to your driving needs.
• Includes Tamiya 540-motor.
• Includes: Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
• Required Items: 2-Channerl radio, steering servo, 7.2volt battery pack with compatible charger, and Tamiya PS paint.

• 1/10 scale R/C model assembly kit. Length: 383mm, width: 170mm, height: 138mm
• Wheelbase: 239mm (Long)
• Polycarbonate body
• Separate plastic parts moulded in black realistically depict side mirrors and bumpers
• Separate transparent parts capture headlights and taillights
• Porous dish wheels are paired with radial tyres
• Includes 540-Type Torque Tuned brushed motor and Hobbywing produced ESC

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint
