About the Lazer ZX7.5
The 1/10 scale EP (electric) buggy, particularly high-traction 4WD models, offers an ideal entry point into R/C cars while also representing a long-established racing category. From World Championships to elite competitions worldwide, this class delivers intense, high-performance racing. Kyosho’s latest weapon for this competitive arena is the Lazer ZX7.5. Carrying the legendary “Lazer” name synonymous with Kyosho’s 4WD racing buggies, it builds on the proven ZX7 platform with comprehensive refinements and new components, delivering performance capable of competing at the highest level. A key focus of the ZX7.5 is keeping pace with the ever-increasing speeds of modern racing. A newly designed main chassis combines optimized center of gravity and weight distribution to enhance overall performance. Components from the Ultima RB7.5 2WD buggy have also been strategically adopted to further elevate its capabilities. Beyond pure speed, the ZX7.5 also improves durability, expands setup options, and enhances maintenance efficiency. Modern buggy racing spans a wide range of surfaces from ultra-high-grip carpet and artificial turf to slippery dirt tracks, and the ZX7.5 is engineered to handle them all. Whether you’re aiming for competitive racing or stepping up from mid-range models like the Lazer SB Dirt Cross 4WD, you can rely on the Lazer ZX7.5 as a racing partner to perform at every level.

- 1/10 scale 4WD racing buggy designed for wide range of surfaces from high-grip carpet to loose dirt tracks.
- Shaft-driven 4WD system delivers excellent drivetrain efficiency and high traction performance.
- Front and rear double wishbone suspension provides superior traction and stability.
- Optimized balance achieved through revised front-to-rear weight distribution and component layout.
- Floating servo mount and battery holder preserve chassis flex for improved handling.
- Includes two types of front upper plates for fine-tuning front-end grip characteristics.
- Sliding motor mount allows easy gear backlash adjustment and quick motor removal.
- Includes mount for optional motor cooling fan installation.
- Front universal shafts feature retaining rings to prevent pin loss, supporting high-power setups.
- R/C system, ESC, motor, chassis battery, and front/rear tires are required separately.

Thickness of the high-rigidity A7075-T6 aluminum main chassis has been reduced from 2.5mm to 2.0mm for lighter weight. Increased chassis flex also contributes to improved grip.

Centre bulkhead (gearbox) is positioned 7mm further forward compared to the Lazer ZX7, rebalancing front-to-rear weight distribution for improved traction and stability. It is equipped with a geared center differential, with an optional slipper clutch conversion available.

Steering servo stay changed to a one-piece aluminum design. Floating servo mount layout minimizes the effect on chassis flex for smoother steering characteristics.

Includes new aluminum big bore oil shocks with φ13mm pistons as standard. Resin damper caps improve speed over surface gaps and recovery from changes in posture for improved driving stability.

Caster angle can be adjusted to 7°, 10°, or 13° by changing resin bushings. Enables quick setup changes to suit driver preference and track conditions.

New design rear hub carrier separates the upper arm mounting point to allow adjustment of upper arm length, mounting height, and roll center. Outer suspension pin height can also be changed with resin bushings. High-rigidity aluminum construction.

Sintered steel internal gears deliver higher durability in the front and rear differentials. Revised gear ratios enhance stability. Also compatible with optional ball differential units.

Designed exclusively for shorty LiPo batteries. The compact carbon battery holder secures the pack without fully restricting it, preserving chassis flex characteristics.

High-downforce forward-cabin body design improves aerodynamic performance. The rear wing is shared with the Ultima RB7.5 2WD model, delivering stable downforce and increased grip.

Front Upper Plates (2 Types) ・Type A: Promotes front-end roll with sharper steering response. ・Type X: Increased front rigidity for improved stability.

The simple chassis of the Dirt Cross delivers its high performance on all fields of action, from flat dirt to off-road racing circuits. The shaft drive 4WD at its core is based on the Lazer ZX-5, which competes at the highest levels around the world including the world championships.

(Requires all electrics & Assembly

The newly designed body positions the cabin near the rear in traditional racing buggy style to create fresh impressions with new drivers and a sense of nostalgia for those with more years behind the controls.

The driver figure used to be standard in Kyosho R/C buggies in earlier times and has been revived in this model to increase the sense of realism. The driver figure can also be attached to the 2WD Dirt Master. Polycarbonate gear cover protects the spur and pinion gear when driving on surfaces with gravel and stones. The gear cover can be easily attached and detached with screws.

Compatible with most mainstream R/C car batteries available. The battery is secured with a hook-and-loop fastener belt, so various battery sizes and shapes can be secured in place.

Resin oil shocks equipped on front and rear suspensions soak up the bumps from the road surface. Dial adjustment of spring tension makes it easy to change chassis height setting.

H-pattern pin tires are equipped on front and rear to provide reliable grip on any surface. Newly designed spoke wheels recreate that retro style to match the body form.

Slipper clutch protects the gears and drive system from excessive loads. Tension settings of the slipper clutch can be adjusted to change driving characteristics.

Front and rear suspension upper arms and steering rod use turnbuckles so simply turn to adjust rod length and change camber angle and toe angle settings.

Body Designed combining retro vibe with a modern touch. The conventional rear motor chassis design with some modern enhancements allows great driving experience on all types of surfaces.

Off-road buggies are famous for their ‘go-anywhere’ capabilities and the 1/10 scale EP (electric) format is particularly popular. True to its dirt bashing prowess, Kyosho is proud to introduce the ‘Dune Master’ to the Ultima SB series of mid-class EP buggies. Built on the Ultima SB chassis with rear motor RWD (rear wheel drive) for its superior rear tire traction and manoeuvrability, the Dune Master features a new basher body that looks like a modified car rather than the open wheel buggy style. New tire and wheel designs highlight the appeal of the original car body style. Based on the Ultima RB5 chassis which was previously a competition-level racer, each component has been reviewed to deliver superior handling and control for beginners at an optimal price. The rear motor configuration improves rear grip, allowing for traction stability on low-grip surfaces such as sports fields and open terrain as well as delivering high-speed performance on proper R/C race tracks. The new Ultima SB Dune Master and its highly popular Ultima SB Dirt Master predecessor, set the standard for modern mid-class buggies that can be enjoyed by all drivers, either as a step up from entry-level models, or as a second car for experienced drivers.
●Standard EP unassembled buggy based on racing model design delivers high-performance at a great value priced.
●Newly designed basher body (unpainted) is included with decal set.
●Easy to assemble resin main chassis exhibits optimal flexibility and is compatible with most standard R/C systems.
●Rear motor design produces effective grip of the rear tires, making it easier to control.
●Includes front & rear tires with wheels that provide stable grip on various road surfaces and enhance scale appearance.
●Slipper clutch equipped as standard protects the gears from excessive loads on the drive system. Can be adjusted for different driving characteristics.
●Double wishbone suspension on front and rear delivers superior surface tracing. Supported by precision resin oil shocks.
●Turnbuckles on suspension and steering rods allow length adjustment while installed for fast and accurate setting changes.
●Steering mechanism is equipped with a servo saver function that protects the servo from crashes and shocks.
●Full bearing specifications are standard and deliver exceptional drive system efficiency.
●Compatible with optional parts for the Ultima series for further tuning and and styling.
●Paint in your choice of color and then apply the included decals to achieve the finish shown in the photo.

Newly designed body is based on a full-scale off-road vehicle in the basher or Baja style. Its realistic sense of scale recreates a dynamic off-road atmosphere different to other off-road racing buggies.

Front fog lights can be fitted with optional LED light unit (sold separately). In addition, side mirrors and driver figure in the cockpit recreate a more realistic driving experience.

Realistic molded resin roll cage mounted on the rear of the chassis recreates that wasteland dirt basher style. Roll cage can also be fitted with vintage car rear wing (sold separately) to add a wild style to its elevated driving performance.

Wheel design is aligned to its real-car like body styling. Rear wheels are the same dish type used on the Dirt Cross 4WD while the front wheels are newly designed for the Dune Master.

Micro pin spike tires on front and rear deliver extreme grip. Wider front tires than the Ultima SB Dirt Master optimize front/rear grip balance while elevating overall appearance.

Rear 2WD off-road buggy based on the competition-level Ultimate RB5 chassis with a rich track record at major races including World Championships. Compatible with almost all batteries for 1/10 scale models including standard straight packs.

Resin oil shocks absorb and moderate feedback from the road surface to maintain stable posture of the vehicle. Dial adjustment of spring tension makes it easy to set chassis height. Wide range of race-spec springs can also be fitted.

Gear differential on rear enables smooth cornering and is easy to assemble and maintain. Add diff oil (sold separately) to convert into oil-filled diff. Ultima series ball differential can also be fitted for circuit driving.

Tapping screws with easy maintenance 2mm hex heads are mainly used for fixing plastic parts, instead of plus-head screws usually used on entry-level models.

Versatile and easy to drive 2WD buggy for pure off-road action !

Kit Form - Requires all electrics

Buggies were created to venture off-road over rough surfaces at high speed and the Ultima SB Dirt Master is a return to the purest form of this fun and excitement. If you want more than the entry-level model can deliver but top-end models are too focused on racing, the Dirt Master is perfect for good honest bush-bashing fun! Based on the competition-level Ultima RB5, the Dirt Master was developed as a mid-class buggy featuring high quality key performance components, at a reasonable price. The rear motor layout ensures secure rear tire grip that demonstrates rock-solid stability over low grip surfaces such as gravel and riverbeds. As the Ultima SB Dirt Master shares its racing heritage with the RB5, it is also at home on fully-fledged RC racing circuits too. With the excellent basic chassis design and a completely new body with a nostalgic flair, beginner drivers looking to step up to the next level of performance or hard-core racers looking for some fun will discover the Ultima SB Dirt Master is true to the original spirit of the buggy.

●Based on a competition-level racing buggy, this unassembled EP buggy kit delivers high performance at a low price.
●Rear motor design delivers excellent rear tire grip and superior control.
●Included front/rear tires and wheels demonstrate stability over various types of road surfaces.
●Classic style body with ageless smart design is equipped with a rear wing that enhances driving stability.
●Resin main chassis is easy to assemble and exhibits moderate flex characteristics, and can be equipped with standard RC components.
●Race-proven double-wishbone front and rear suspension is equipped with precision resin oil shocks.
●Steering mechanism is equipped with a servo saver function that protects the servo from crash shocks.
●Full bearing specifications as standard greatly improves drive system efficiency.
●Compatible with optional parts for the Ultima series and racing springs.
●Driver Set from 2014 Beetle (No.SCB003B) can be installed to enhance scale realism.

Unique retro modern body design. A great balance of modern air flow technology with a touch of nostalgia in the design. Clear kit body for customizing and graphics decals are also included. Rear wing is included for increased rear traction.

Grip and drive power is increased with the rear overhang motor mount that achieves superior traction and driving stability. A motor guard is also equipped to protect the motor from impact after jump landings.

Superior surface tracing from the proven double-wishbone suspension system incorporates turnbuckle rods that allow length to be adjusted for efficient setting changes.

Moderate flex characteristics of the resin main chassis enhances grip for control stability and allows plenty of room for easy installation and assembly of RC components.

Resin oil-filled shocks absorb and reduce shocks from the road surface to maintain stable posture. With dial-adjustable spring tension, chassis height is easily changed. Compatible with competition-level springs.

Rear gear differential enables smooth cornering and is easy to assemble and maintain. For elevated performance on racing circuits, the ball differential for the Ultima series can be installed.

Full ball bearings that reduce drive loss equipped throughout the drive system.

Tapping screws are used to secure resin parts. Unlike entry-level models which use Phillips screws, the 2mm hex head screws make assembly and maintenance easier.

Slipper clutch is included as standard to protect the gears by allowing moderate slip when the drive system is under heavy load and allows adjustment of driving characteristics. Gear cover can also be installed to protect the gears from dirt and dust.

Kyosho’s 1/10 scale Ultima EP buggy boasts a rich racing history, including multiple world championship titles, and continues to offer a diverse lineup ranging from entry-level to high-end models. Now, its top-tier RB7 has evolved into the upgraded RB7.5, incorporating numerous refinements to enhance performance.
The new model adopts big-bore oil shocks equipped with X-ring seals for smoother operation and leak prevention. The shock stays have been upgraded to lightweight yet highly durable carbon fiber, offering greater strength for intense racing conditions. A newly added front shock stay guard helps prevent damage during rollovers. At the rear, aluminum bulkheads and hub carriers enhance rigidity while broadening setup options. The body is based on the RB7, but a spoiler on the rear of the cabin combines with an improved rear wing and the addition of a front wing to optimize aerodynamic performance.
By integrating newly developed components and standardizing several high-performance upgrades, the RB7.5 remains true to its original strengths while evolving into a machine capable of competing at the highest level. Whether on traditional dirt tracks or modern high-grip carpet surfaces, this latest Ultima model is built to meet the demands of competitive drivers.

- Low center of gravity design 1/10 scale EP (electric) racing buggy, adapted for high-grip surfaces.
- Features new body with improved aerodynamics based on the previous model. The body comes unpainted in the kit.
- The double wishbone front and rear suspension provides excellent surface tracking and is equipped with newly designed aluminum oil shocks.
- Lightweight aluminum front shafts and universal swing-type rear shafts provide excellent drive efficiency.
- Turnbuckle upper suspension rods and steering linkage rods are made from highly durable, crash-resistant chrome-molybdenum steel.
- Aluminum rear suspension holder allows adjustment of rear toe angle and tread by swapping bushings.
- Laydown-type gearbox features a spur gear cover. Gearbox type can be changed by purchasing parts separately.
- Equipped with a ball differential for dirt track use and a slipper clutch to protect the gears from excessive load.
- Differential balls are made from high-precision, durable tungsten.
- The kit is primarily designed for dirt track use but can be easily modified for high-grip carpet surfaces with minimal adjustments.
- Compatible with existing optional parts for setting modifications and upgrades.

This rear-wheel-drive off-road buggy features a midship layout, positioning the motor just ahead of the rear wheels. The high-rigidity duralumin main chassis has undergone slight modifications, while the proven low-profile gearbox and other key components have been carried over from the Ultima RB7.

A new body based on the superb aerodynamics of the RB7, features design modifications to the rear cabin to further enhance efficiency. The rear wing has also been redesigned for increased strength, generating powerful and stable downforce.

The front and rear shock stays have been upgraded from the RB7's plastic material to 4mm thick carbon fiber, significantly enhancing strength and rigidity. The new design provides better protection against damage during rollovers, and a resin protector comes standard to safeguard both carpet and artificial grass surfaces.

New aluminum oil shocks with 13mm pistons enhance stability at high speeds and over uneven surfaces while effectively absorbing landing impacts. The springs have also been upgraded for improved performance.

The aluminum steering crank and plate ensure smooth operation and high rigidity, enhancing steering response. Additionally, the upper bulkhead shape has been modified to prevent interference with the servo horn.

The completely redesigned aluminum rear hub carriers allow for changes in upper rod length by adjusting spacer thickness, increasing the capacity for ball bearings. The height of the suspension pins can be adjusted by replacing the resin bushings.

The new rear bulkhead features a separate upper rod mounting point. The aluminum upper rod mount enhances suspension rigidity and allows for tuning of the suspension geometry by adjusting the rod mounting height.

The LCG battery mount allows forward-back weight distribution adjustments and features a tool-free, one-touch system for quick battery installation and removal.
*Only LL size wheelbase can be used with rear double wishbone suspension set.

The previously optional front wing is now included as standard. It helps adjust aerial posture during jumps and serves as an effective tuning part, also altering cornering characteristics.

Require all electrics

The increased rigidity from the addition of the center bulk support results in improved traction when exiting corners.

Secret high performance works team buggy
Finally revealed to the world!

At the 1987 EP (Electric) Off-Road World Championships in the UK, the Kyosho Ultima achieved total domination with a clean sweep of the podium. This limited-edition model based on the Kyosho Works team car designed and driven by Akira Kogawa, has been released to commemorate the 20th anniversary of Kyosho America. Featuring the works model specifications with gunmetal anodized aluminum and carbon fiber parts, this model combines a wide range of optional upgrades including new components to elevate its dynamic driving performance. With the same sharp low-profile body designed for the Optima Pro combining with the latest R/C engineering technology, the new Ultima ‘87 World Championship Spec lets you relive the cutting edge driving performance of that era, 37 years after its spectacular World Championship performance.

- Commemorating the 20th anniversary of Kyosho America, the World Championship Works 2WD buggy becomes the 17th release in the Kyosho Vintage Car series.
- Special components and unique colors distinguish this limited-edition reproduction of the 1987 World Championship winning model.
- Features a wide variety of optional parts that were previously optional upgrades at a great value price compared to individual purchase.
- While following the original design from 1987, each part has been updated to match modern R/C systems and power sources.
- All rods are turnbuckle type, making it easy to adjust camber and toe angles.
- Full bearing specification, even in the servo saver.
- Dial-adjustable oil shocks allow for easy vehicle height adjustment.
- Unassembled kit requires R/C system, motor and batteries.

Rear motor mounted 2WD buggy produces excellent driving stability with its high-strength aluminum monocoque chassis anodized in limited edition gunmetal color in combination with a newly designed hybrid carbon upper plate.

Recognised for its stylish form and superior aerodynamics, the included Optima Pro body features a special Kyosho America 20th anniversary decal set with cut lines matched to the Ultima.

Large capacity oil shocks feature titanium coated shafts for smooth function and durability plus dial adjustable chassis height. Shock caps and cases are finished in the Kyosho Works signature gunmetal color.

Carbon fiber shock stays are included as standard and absorb the feedback from the road surface to ensure maximum suspension effectiveness. These were an optional upgrade on the original.

Engraved with a logo commemorating Kyosho America’s 20th anniversary, the aluminum motor guard is also finished in gunmetal and protects the motor from crash damage.

Gear shaft and slipper plate are made from aircraft-grade 7075 Duralumin. Not only effective in reducing weight of the drive system and overall chassis, they also combine with the HD final pinion gear to deliver superior acceleration and deceleration.

Ball differential unit delivers smooth cornering and sharp acceleration even on low grip off-road surfaces. This latest Ultima incorporates components that were previously optional upgrades.

Universal swing shafts ensure motor power is efficiently transferred to the rear wheels, not only improving drive efficiency but also minimizing the risks of parts falling off after jump landings.

Moderate flexibility in the nylon resin rear wing provides excellent crash resilience. The large side plates increase the wing’s downforce and are the same as the JJ Ultima.

High-grip soft compound front and rear tires combine with wheels molded in Kogawa’s (designer of the Ultima) signature peppermint green, which are unique to this limited edition.

<Technical Data>

- Length 353mm
- Width 172mm
- Height 86mm
- 3P suspension system with direct drive
- Wheelbase 201-202mm（Adjustable）
- Tread F:137mm/R:133mm
- Tire F:φ48×23mm/R:φ53×35mm
- Gear ratio 3.38：1
- Weight approx 900g(with GAB4202）
- Motor 540class（sold separately）
- Used transmitter 2ch1servo1ESC
- ※※Maximum Speed approx.55km/h (with Le Mans480G）
- ※Driving Time approx.23minutes(with Le Mans480G）

<Kit Contents>

- Chassis kit
- Adhesive shaped tire
- Unpainted body
- Decal
- Wheel wrench（12/4.0）
- 5.5/5.0wrench
- Shock wrench
- Shock oil

<Required for Operation>

- Radio transmitter with 2 channel, 1-servo
(Receiver size:L37xW27xH16.5mm / Servo size:L37xW16.5xH30mm)
Recommended:No.82147 Syncro 2.4GHz TX/RX set / No.82278 Mini servo・KS3031-04M
- 1 Electronic speed controller (ESC size：38x31x23mm)
Recommended:No.37051B LE MANS 240S ESC
- 540 Motor
Recommended:No.37035 LE MANS 480 GOLD Brushless Motor
- Battery for chassis
Recommended:No.GAB4202 Gens ace LiPo 4000
Battery size：138x48x24.5mm
- Batteries for transmitter
- Charger for Battery
- Paint for body

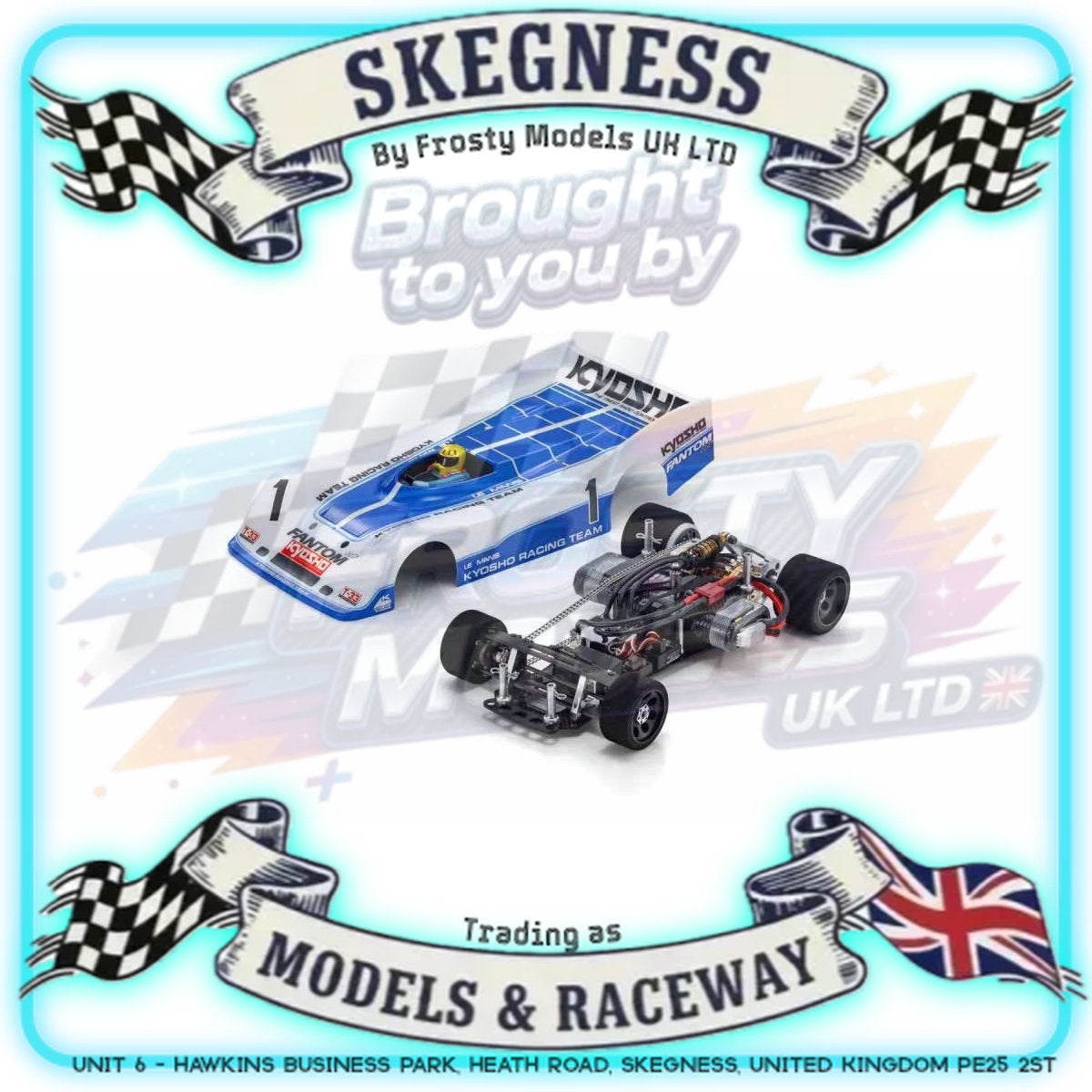

Legendary hybrid 1/12 racer with 4WD & 3P suspension
Arrives as a kit after more than 30 years!

In the 1980s, 1/12 scale electric on-road racing was defined by fierce competition between 4WD models with ladder chains and agile 2WD cars with 3-point (3P) suspension. Kyosho’s Phantom EP-4WD dominated on both temporary parking-lot tracks and permanent asphalt circuits, while the rear 2WD Plazma series leveraged its lightweight design and simple drivetrain to excel where battery efficiency was key.
From this competitive era emerged a hybrid — the Plazma Phantom — which combined the Plazma’s main chassis and rear suspension with the Phantom’s drivetrain. Piloted by Kyosho works drivers, it blended 4WD traction with 3P suspension adaptability to deliver outstanding race results. But no kit was ever sold, leaving enthusiasts to build conversions from individual parts. Now, decades later, the wait is over. The Phantom PZF T-33 brings the Plazma Phantom to market as a kit for the first time. More than just a parts combination, the Phantom PZF T-33 features newly developed components for performance beyond what was possible in the ’80s. The quick-handling T-33 body also returns, expanding the body lineup. Compared to building a Plazma Phantom from separate re-releases, the Phantom PZF delivers better cost efficiency and puts a true works-spec machine within reach. Now enhanced with modern refinements for even greater performance!

- Kyosho Vintage Series No.19 is the first full-kit release of the special 4WD Plazma + Phantom model that was popular in the late 1980s.
- Ladder-chain 4WD delivers high-level traction even on low-grip surfaces.
- Includes reproduction of the T33 body, renowned for its sharp handling. Body is also compatible with existing Phantom & Plazma series.
- High-rigidity carbon main chassis and upper plate are paired with an FRP rear A-bar with optimal flex for enhanced tire grip.
- Newly developed rear A-bar joints with ball-connect design.
- 1.5 mm thick spacers for the front axle mount allow adjustable ride height.
- Kingpin coil-type front suspension absorbs vibrations from surface gaps for optimal front tire traction.
- Tires come pre-mounted and trued on black wheels, eliminating the need for tire-setting.
- Dial-adjustable oil shock allow easy spring tension adjustments.
- Unassembled kit includes pre-mounted front and rear tires and an unpainted body.

This special edition pairs a ladder-chain 4WD system with A-arm suspension, delivering supple movement that maximizes rear-tire traction. Never offered as a kit in the 1980s, it is now available at last in response to long-standing fan demand.

This faithful reproduction of the T-33 body from the first Plazma model released in 1985 delivers strong front downforce for quick, responsive handling and excellent straight-line stability. Includes decals that recreate the original package colors from that era.

Kingpin coil suspension, with springs mounted above the front knuckle arms as seen on the Phantom EP-4WD Ext, enhances cornering precision and boosts traction when powering out of turns.

Dedicated servo plate, designed specifically for this model, is isolated from the main chassis to prevent steering influence from chassis flex. This layout also optimizes Ackermann geometry for sharper, more consistent control.

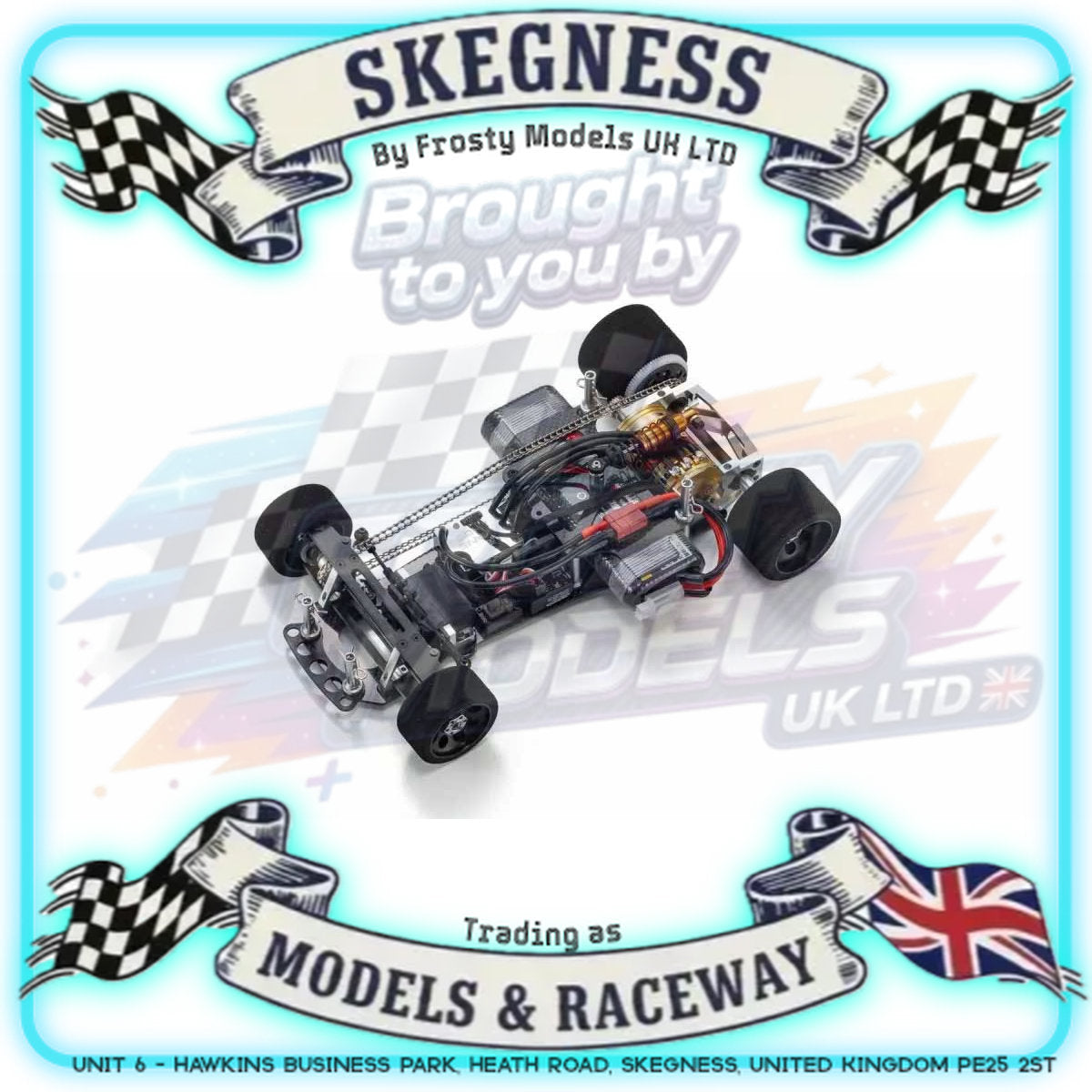

Proven ladder-chain system drives the front tires, with tension adjustable by changing the rear axle adapter and link count. The main chassis is precision-milled to eliminate chain interference.

The Plazma MKⅢ Limited features an FRP A-bar that allows rear suspension adjustment to suit a variety of surfaces.

Newly developed metal ball-connect system pairs ball joints with a 7075 duralumin plate to deliver smooth suspension movement. O-rings are added on both sides for roll control, enabling a wide range of setup options.

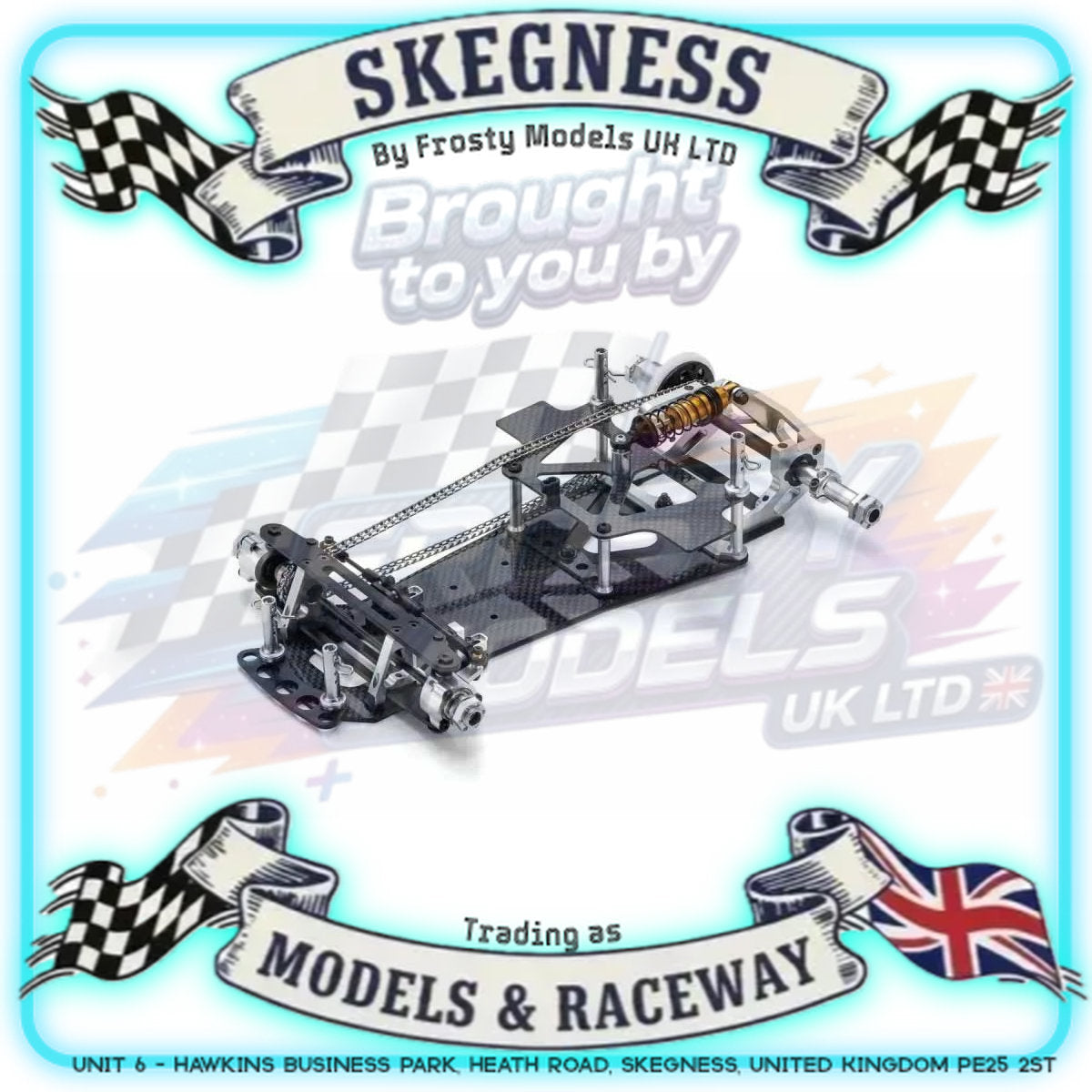

Carbon fiber main chassis, based on the reproduced Plazma MK.3 Limited, is optimized for chain drive. Precision milling minimizes chain interference, while a relocated servo mount balances moderate flex with high rigidity for improved cornering performance.

Includes previously optional ball differential as standard. Its LSD-like effect delivers stable traction, with adjustable tension via the nut. Matching the Plazma MK.3 Limited reproduction, it uses a lightweight, high-rigidity 6 mm carbon shaft.

Previously optional dial-adjustable rear damper is now standard, allowing for quick and easy setup changes.

<Technical Data>

- Length 340mm
- Width 172mm
- Height 83mm
- 3P suspension system with direct drive
- Wheelbase 203-204mm（Adjustable）
- Tread F:137mm/R:133mm
- Tire F:φ48×23mm/R:φ53×35mm
- Gear ratio 3.38：1
- Weight approx.850g(with GAB4202）
- ※Maximum Speed approx.55km/h(with Le Mans480G）
- ※Driving Time approx.23minutes(with Le Mans480G）

<Readyset Contents>

- Chassis kit
- Adhesive shaped tire
- Unpainted body
- Decal
- Wheel wrench（12/4.0）
- 5.5/5.0wrench
- Hexagonal wrench
- Caster angle jig
- Shock wrench
- Shock oil
- Ball differential grease

<Required for Operation>

- Radio transmitter with 2 channel, 1-servo(Receiving size: Max 37x30x16.5mm / Servo size: Max 37x16.5x30mm )
- 1 Electronic speed controller (ESC size：38x31x23mm)
- 540 Class Motor
- Battery for chassis(Battery size：138x48x24.5mm)
- Batteries for transmitter
- Charger for Battery
- Paint for body

Recommended product：No.82147 Syncro 2.4GHz TX/RX Set / No.82278 Mini Servo KS3031-04M All Metal Gear / No.GAB4202 Gens ace LiPo 4000 Straight pack（60C/7.4V）/ No.37035 LE MANS 480GOLD Brushless Motor 21.5T / No.37051B LE MANS 240S ESC

Dynamic 2WD racer that ruled 1/12 on-road Returns with a vengeance!

1/12 scale was the center of on-road electric R/C car racing in the 1980’s and was dominated by the Kyosho Fantom EP-4WD series. However, the Fantom enjoyed a strong rivalry with the rear drive 2WD Plazma series, also made by Kyosho. The Plazma’s final and ultimate model was the MKIII Limited which was released in 1987. More than 30 years later it lives again as part of the Kyosho Vintage Series! Like other Vintage Series models, the reborn Plazma MKIII Limited is true to the original design but features some modern adaptations for the latest R/C systems and power sources. Now you can relive the glory days of the 1980’s while enjoying the power and performance of modern racing! While sharing some components with the Fantom EP-4WD Ext, the simple structure of the Plazma makes it lighter and faster than the Fantom over circuits with enough grip. Like the 1987 original, the new Plazma MKIII Limited features a carbon fiber main chassis, but the original black FRP upper plate and A-shaped joint bar are now also made of carbon fiber. The rear differential unit has been upgraded to the same high-performance ball-diff installed on the Fantom EP-4WD Ext Kyosho 60th Anniversary Model released in 2023. The front suspension uses the same simple king-pin & coil structure with adjustable caster angle, but now also includes two king-pin diameter types for precision adjustment of control characteristics. The α-2 open cockpit and aerodynamic body are faithfully reproduced, and all aluminum parts are finished in Kyosho Works silver color. With its dynamic performance and definitive style, the new Plazma MKIII Limited lights up the Kyosho Vintage Series!

- The long-awaited 1/12 Plazma revival with its famous agile 2WD performance is the 16th installment of Kyosho's Vintage Series.
- Recreation of the pure racing Limited Edition model released in 1987.
- Retains the key design features from the 1987 original but with updated components to suit modern R/C systems and power sources.
- All aluminum parts feature the Plazma’s unique silver finish.
- Incorporates the proven reliability of the 3-point suspension system standard in 1/12 EP racers.
- Equipped with a high-rigidity carbon main chassis & upper plate with an FRP rear A-bar that enhances tire grip with moderate flex.
- Features a king-pin coil front suspension system that allows fine tuning of control feel.
- Includes rear oil damper with a dial-adjustable spring tension tuning.
- Ball differential can be adjusted by tightening the nut.
- Standard equipment includes lightweight and high-strength φ6 carbon rear shaft.
- Unassembled kit includes pre-glued and trued front and rear tires and an unpainted body.

Simple rear-wheel-drive 2WD model in the classic style of 1/12 on-road racers from the 1980s. Features king-pin spring front suspension and a rear 3-point suspension system with A-bar configuration.

Includes black front and rear wheels adopted from the Fantom EP-4WD Ext 60th Anniversary Model. As the tires come pre-glued and trued in the kit, there is no need for adjustment with a tire setter.

King-pin & spring suspension system is equipped with springs on the upper part of the front knuckle arm. Adjust steering characteristics by changing caster angle with different diameter king-pins or using set screws. Driving stability can also be enhanced by offsetting the wheel shaft behind the king-pin.

Steering servo is secured to the main chassis with a special plate and aluminum mount that replaces the double-sided tape and fiberglass tape mount in the original. This allows various modern servo sizes to be used without affecting chassis flex characteristics.

Lightweight and high-rigidity carbon fiber upper plate is included as standard. The oil shock feature a dial system that allows for easy adjustment of spring tension.

A-bar made from highly flexible black FRP plate functions as rear suspension as well as supporting the rear axle unit.

Includes modified 540-motor compatible motor mount based on the modern Fantom EP-4WD Ext. Replacing the rear shaft adapter enables 1mm adjustment of the wheelbase and 1.3mm for ground clearance.

Newly adopted ball-diff unit (not equipped on the original Plazma) delivers increased traction stability through its limited slip disc (LSD) effect. Special wheel bolts secure the right-side wheels and aluminum parts are finished in the Plazma’s unique silver color.

6mm diameter rear shaft is made from lightweight high-rigidity carbon, which is included as standard. The shaft supports the ball-diff and boasts high impact-resistance.

High-precision rear left wheel hub adopts the same double screw clamp mechanism with a silver finish as the Fantom EP-4WD Ext 60th Anniversary Model and prevents loosening during operation.

Original Plazma MK.III body, renowned for its sharp cornering characteristics, has been recreated in the new model and comes with a separate rear wing for increased rear tire grip.

<Technical Data>

- Length: 370mm
- Width: 244mm
- Height: 106mm
- Wheelbase: 260-263mm
- Tread (F/R): 206mm / 208mm
- Tire(F/R): 75f x 20mm / 82f x 36mm
- Gear Ratio: 8.64:1
- Weight: approx. 1,500g
- Motor: 540 class size

<Contents>

- Pre-assembled kit
- Polycarbonate clear body
- Decals
- Chassis parts
- Cross wrench
- Shock wrench
- Grease

<Required for Operation>

- 2ch 1 servo R/C system for cars
- 540 class motor
- ESC compatible with motor used
- Battery for chassis compatible with ESC used
- Battery charger
- Paint for polycarbonate body
- Batteries for transmitter

The sensation is set to shock the world again!
ULTIMA becomes the 8th model in the Kyosho Vintage Series

The impact of the ULTIMA’s dominantTQ & 1-2-3 finish in the 2WD class at the 2nd Electric Off Road World Championship in England in 1987 was felt across the RC car scene. Now Kyosho’s famous ULTIMA turns back the clock with its return as the 8th model in the Kyosho Vintage Series! Now Kyosho’s famous ULTIMA turns back the clock with its return as the 8th model in the Kyosho Vintage Series! First released in 1986, the 2WD ULTIMA channeled racing tech from the OPTIMA into an electric racing buggy whirlwind that swept across the world. Consistent with the Vintage Series, the 2019 ULTIMA version has evolved in design and build to satisfy performance standards for modern R/C racing circuits and power sources. For example, the monocoque frame is made from aircraft grade A60601T6 aluminum alloy and multi-pin block pattern rear tires deliver optimal performance on modern off-road tracks. Full ball bearing specs minimize drive loss and combine with high-durability sintered alloy metal gears, slipper clutch and motor guard to protect the drive system while crash-resistant resin rear wing is also included. Relive the nostalgia of the ULTIMA’s glory with the 2019 version that has evolved into a modern-day racing machine that lets you drive like a world champion. - ULTIMA has been faithfully recreated, with component upgrades for compatibility with modern power sources.
- Polycarbonate body with driver cockpit recreates the style and atmosphere of the original ULTIMA.
- Full ball bearing specifications (14)
- Equipped with battery guard that prevents battery short circuit during a crash.

A monocoque frame made from tempered A6061T6 pressed clear anodized aluminum alloy used for aircraft manufacture combines with a glass reinforced resin upper deck to deliver light weight and durability for hard driving. The battery stay is compatible with all battery types and uses a hook & loop fastener (includes battery strap printed with KYOSHO logo) for easy battery mounting.

Front and rear double wishbone suspension adopts the proven OPTIMA design. Similar front-rear geometry ensures handling stability at all speed ranges. Impact-resistant nylon lower arm combines with metal rod upper arm to enable camber adjustment. Upgrade with optional titanium adjust rod 38mm (No.92413) for both front and rear.

The same large capacity 12mm diameter oil shocks as the OPTIMA deliver superior running stability over uneven surfaces. Long type nylon resin molded shock tower enables tuning for modern RC racing circuits. Upgrade with optional gold shocks OTW128 (F) and OTW129 (R).

Optimized geometry with aluminum steering link and metal bushings in combination with the servo saver incorporating aluminum pipe and metal spring design used in current racing buggies, delivers stable and precise steering feel. Upgrade with optional ball bearings and titanium adjust rod 50mm (No.92416).

Toe angle settings on the rear hub carriers can be set to 1.0°, 2.0°, 2.5°by replacing resin bushings. Detailed settings can be adjusted according to the specific racing conditions.

Gear module has been changed to 48-pitch from the original model’s 8-pitch to deliver reduced drive loss. In addition to the newly designed 46 nylon 57T 1st gear, all other gears are upgraded to the sintered metal gears from the OPTIMA. Upgrade with optional diff OTW101 to improve driving feel.

Gearbox is equipped with slipper clutch to protect the gearbox and drive system from sudden load changes such as jump landings. Easy to adjust and adaptable to various racing conditions. Upgrade with optional slipper pad (SCW021 HD) for compatibility with higher power and hard driving.

Included motor guard (was only available as optional upgrade on the original ULTIMA) is made from A6061T6 material and delivers increased durability. Resin wing mount provides choice of 2 height settings and angle can be set between 3 ° - 6 ° with shims. Previously made from polycarbonate, the resin wing delivers improved crash resistance. In addition to white, there are 5 color options to add extra style to your machine.

Rear tires feature optimized multi-pin pattern to produce stable grip on a wide variety of surfaces and have been recreated in the image of the original hard block tires. Upgrade with optional OTT244S (Soft) and OTT244H (hard) tires. High rigidity one-piece wheels replace the 50mm three-piece wheels of the original Ultima. In addition to white, there are 3 color options to choose from.

30623 KIT + 37034 Kyosho Le Mans 240 Gold BLS Motor 13.5 Legendary Serie + 37051B Kyosho Le Mans 240S BLS ESC 60A - Legendary Series

At the 1987 Electric Off-Road Car World Championship in the UK, the prototype Optima Mid dominated the 4WD A-Main final race securing 5 out of 10 starting positions. Following its success, the Optima Mid was commercialized to achieve worldwide racing acclaim. In 1988, the Turbo Optima Mid Special was released in limited quantities as the final evolution of the Optima Mid and sold out instantly due to overwhelming demand. Now, this legendary machine returns in 2025 as Volume 18 of Kyosho's Vintage Series. The original Turbo Optima Mid Special featured an 18mm longer wheelbase than the Optima Mid, enhancing high-speed stability and cornering performance. Its main chassis was designed for improved battery weight distribution and constructed from FRP sandwiched between carbon plates, striking an optimal balance of flexibility and rigidity. The belt and belt cover were also specifically designed for the Turbo Optima Mid Special, and the body was newly created to match the chassis. This faithful reproduction retains all these defining features while incorporating updates to support modern power systems and R/C electronics. Previously optional parts are now included as standard, along with several newly developed components. Unlike the original, this is not a limited edition but a permanent addition to Kyosho’s catalog. The return of the Turbo Optima Mid Special to modern circuits is a dream come true for all fans, whether they were lucky enough to own the original, or missed out due to its limited production. Now anyone can drive the ultimate evolution of the Optima!

• The 18th model in the Kyosho Vintage Series faithfully recreates the legendary Turbo Optima Mid Special. The original limited edition released in 1988 sold out almost immediately.
• Eight new parts were specifically designed for the Turbo Optima Mid Special.
• While maintaining the original design, updates have been made to support modern R/C electronics and power sources.
• High-efficiency belt-drive 4WD system delivers stability and smooth control on both R/C circuits and dirt tracks.
• 48-pitch pinion and spur gears are used, with the option to install 78T/80T spur gears.
• Equipped with reinforced slipper clutch designed for powerful motors and batteries. Can be adjusted with the dual slipper seat from the Ultima RB.
• Included battery holder is compatible with various battery shapes. By trimming part of the main chassis, side-by-side Nickel-Metal Hydride (NiMH) or Nickel-Cadmium (NiCd) batteries can be mounted.
• The reinforced nylon rear wing provides a balance of strength and flexibility, and is shared with the previously released Optima Mid. It can also be swapped with a Scorpion-style wing for further tuning.
• The rear hub carrier allows adjustment of toe angles to 0°, 1°, or 2° by changing the bushings.
• Aluminum hex wheel hubs are securely fixed with screw pins.
• Drivetrain features full ball bearings, ensuring high rotational efficiency.
• Blister-style packaging, similar to the original release, evokes nostalgia from that era.
• With a wide range of optional parts, this model offers extensive tuning options. This model is not just a simple remake – it's ready to be enjoyed as a modern-day racer!

New Features:

• Hybrid Carbon Chassis!! Long Wheelbase design (18mm longer)!
• Front and Rear ball diffs!! OTW101C
• Front universal swing shafts! OTW125C
• New narrow front tire and wheel design!!
• Turbo Optima Mid Special body and under body!! Rear molded plastic wing (Optima Mid)!!
• Threaded Oil Filled Shocks!! New medium hard springs!!
• Gunmetal anodized aluminum Motor mount, suspension plate,. Steering ring and other parts!
• Servo saver with ball bearing!!

Technical Data

• Length: 397mm
• Width: 250mm
• Height 135mm
• Wheelbase: 273mm
• Tread (F/R): 212mm/208mm
• Tire Diameter (F/R): φ82mm / φ82mm
• Tire width (F/R) : 30mm / 36mm
• Gear Ratio: 8.28 : 1
• Weight: 1620g (When equipped with GAB4202)

Kit Contents

• Chassis
• Tire
• Wheel
• Clear body＆underbody
• Decals
• Hexagon wrench
• Cross wrench
• Shock wrench
• Grease
• Shock
• Motor
• ESC

Required for Operation

• 2 Channel R/C System
• 1 Standard Size Servo
• 7.2V NiMh Battery or 2S Li-Po pack (ESC needs to be compatible)
• Suitable Battery Charger
• Paint for Body

At the 1987 Electric Off-Road Car World Championship in the UK, the prototype Optima Mid dominated the 4WD A-Main final race securing 5 out of 10 starting positions. Following its success, the Optima Mid was commercialized to achieve worldwide racing acclaim. In 1988, the Turbo Optima Mid Special was released in limited quantities as the final evolution of the Optima Mid and sold out instantly due to overwhelming demand. Now, this legendary machine returns in 2025 as Volume 18 of Kyosho's Vintage Series. The original Turbo Optima Mid Special featured an 18mm longer wheelbase than the Optima Mid, enhancing high-speed stability and cornering performance. Its main chassis was designed for improved battery weight distribution and constructed from FRP sandwiched between carbon plates, striking an optimal balance of flexibility and rigidity. The belt and belt cover were also specifically designed for the Turbo Optima Mid Special, and the body was newly created to match the chassis. This faithful reproduction retains all these defining features while incorporating updates to support modern power systems and R/C electronics. Previously optional parts are now included as standard, along with several newly developed components. Unlike the original, this is not a limited edition but a permanent addition to Kyosho’s catalog. The return of the Turbo Optima Mid Special to modern circuits is a dream come true for all fans, whether they were lucky enough to own the original, or missed out due to its limited production. Now anyone can drive the ultimate evolution of the Optima!

• The 18th model in the Kyosho Vintage Series faithfully recreates the legendary Turbo Optima Mid Special. The original limited edition released in 1988 sold out almost immediately.
• Eight new parts were specifically designed for the Turbo Optima Mid Special.
• While maintaining the original design, updates have been made to support modern R/C electronics and power sources.
• High-efficiency belt-drive 4WD system delivers stability and smooth control on both R/C circuits and dirt tracks.
• 48-pitch pinion and spur gears are used, with the option to install 78T/80T spur gears.
• Equipped with reinforced slipper clutch designed for powerful motors and batteries. Can be adjusted with the dual slipper seat from the Ultima RB.
• Included battery holder is compatible with various battery shapes. By trimming part of the main chassis, side-by-side Nickel-Metal Hydride (NiMH) or Nickel-Cadmium (NiCd) batteries can be mounted.
• The reinforced nylon rear wing provides a balance of strength and flexibility, and is shared with the previously released Optima Mid. It can also be swapped with a Scorpion-style wing for further tuning.
• The rear hub carrier allows adjustment of toe angles to 0°, 1°, or 2° by changing the bushings.
• Aluminum hex wheel hubs are securely fixed with screw pins.
• Drivetrain features full ball bearings, ensuring high rotational efficiency.
• Blister-style packaging, similar to the original release, evokes nostalgia from that era.
• With a wide range of optional parts, this model offers extensive tuning options. This model is not just a simple remake – it's ready to be enjoyed as a modern-day racer!

New Features:

• Hybrid Carbon Chassis!! Long Wheelbase design (18mm longer)!
• Front and Rear ball diffs!! OTW101C
• Front universal swing shafts! OTW125C
• New narrow front tire and wheel design!!
• Turbo Optima Mid Special body and under body!! Rear molded plastic wing (Optima Mid)!!
• Threaded Oil Filled Shocks!! New medium hard springs!!
• Gunmetal anodized aluminum Motor mount, suspension plate,. Steering ring and other parts!
• Servo saver with ball bearing!!

Technical Data

• Length: 397mm
• Width: 250mm
• Height 135mm
• Wheelbase: 273mm
• Tread (F/R): 212mm/208mm
• Tire Diameter (F/R): φ82mm / φ82mm
• Tire width (F/R) : 30mm / 36mm
• Gear Ratio: 8.28 : 1
• Weight: 1620g (When equipped with GAB4202)

Kit Contents

• Chassis
• Tire
• Wheel
• Clear body＆underbody
• Decals
• Hexagon wrench
• Cross wrench
• Shock wrench
• Grease
• Shock

Required for Operation

• 2 Channel R/C System
• 1 Standard Size Servo
• ESC x 1
• 540 size brushed motor recommended)
• 7.2V NiMh Battery or 2S Li-Po pack (ESC needs to be compatible)
• Suitable Battery Charger
• Paint for Body

Even more competitive, even more cool…
Recreation of the original, but updated with the latest racing tech!

<Technical Data>

- Length 395mm
- Width 244mm
- Height 120mm
- Wheelbase 260mm
- Front Tread 208mm
- Rear Tread 208mm
- Weight 1,600g (approx.)
- Tires (F/R) φ82×36mm
- Motor 540 class size (sold separately)
- Gear ratio 9.24 : 1

<Contents>

- Kit chassis
- Decals
- L-shaped hexagon wrench
- Cross wrench
- Shock wrench
- Shock oil
- Grease

<Required for Operation>

- 2 channel R/C system (servo x 1, ESC x 1)
- 540 motor (27T-20T recommended)
Brushless motor specifications: No.37031 Le Mans 240S Brushless motor 19.5T, No. 37051 Le Mans 240S ESC (60A/MAX 13.5 turn)
Brushed motor specifications: No.37021 Le Mans brushed motor 30T, No. 82245 KA060-91W ESC
- Battery (7.2V NiMH battery or 7.4V Li-Po battery)
- Battery charger (DC 12V regulated power supply)
- Paint tools for body painting
- Batteries for transmitter
- Tools (1.5/2.0/3.0mm hex wrench screwdriver, needle nose pliers, curved scissors, cutter. When replacing servo horn Phillips screwdriver may be required)

After the dynamic impact of the Optima was felt across the R/C racing scene, the Turbo Optima launched in 1986 as the strongest machine in the series. Until now. In addition to large diameter tires, large capacity pressure shocks, front & rear stabilizers and Le Mans 240S motor, the immortal Turbo Optima has modernized for 8.4V power and makes its debut as the 7th model of the vintage series. Key components of the Turbo Optima chassis have been redesigned to meet the demands of modern racing conditions and power sources, and share DNA with the Optima and Javelin. The new Turbo Optima is not simply a reproduction of the original and includes gold anodized parts that were optional upgrades on the original, gold shocks with dial adjustment of chassis height and new modern block pattern tires. Higher specs and design features deliver modern performance standards and visual impact that captures the magic of the original. - While a faithful reproduction the original Turbo Optima, each key performance component has been revised for compatibility with modern power sources.
- 4WD belt drive. Pulley for chain is also included in the kit so purchase of an optional chain can change the drive system.
- Equipped with FRP radio plate that is compatible with major brand ESC’s (speed controllers).
- Three toe angle settings ( 0°, 1°, 2°) can be used by inserting resin bushes into the rear hub carrier.
- Modernized aluminum hexagon wheel hubs can be securely fixed with set screws.
- Equipped with metal counter gear.
- Full ball bearing specifications (18 bearings).
- Includes separate helmet and polycarbonate body.
- Battery stays are compatible with various modern batteries and secured with hook and loop fasteners (battery strap with KYOSHO logo) for easy removal of battery.
- Hex screws used for assembly provide secure construction.

Nylon pipe frame and aluminum rooftop form a high strength roll cage body structure. Includes large bumper similar to the original design as well as a mini bumper suitable for racing.

New large size wing and wing stay is made from reinforced nylon material. The original Javelin wing was mounted on the roll cage directly. The new wing stay is now separate from the roll cage adding more durability and the wing is fixed with body clips for easier maintenance. The wing mounting position is the same as the Scorpion series allowing installation of the smaller wing used for the Scorpion onto the new Javelin.

Two drive system selections: chain drive or belt drive.

The gearbox is equipped with a slipper clutch to protect the drive system from sudden load changes such as jump landings. It can respond to various road conditions with simple adjustments.

Main chassis, shock stay and plates are made from 6061T6 aluminum alloy for corrosion resistance and increased strength. Countersunk flat head and tapping screws realize flush finish and reduce the number of nuts used.

While faithfully replicating the original 1986 design, the oil shocks on the new version lift performance potential with stainless steel shafts on front and rear and aluminum cylinders with outer diameter increased from φ10 mm to φ12 mm.

Shock resistant nylon double wishbone suspension with long stroke delivers superior durability and running stability in combination with the increased bore of the oil shocks.

Replace resin bushes on the rear hub carriers to chose from three different toe angles (0°, 1°, 2°). Aluminum hexagonal wheel hubs can be fixed with set screws.

While staying true to the Javelin’s original design, tires feature more pins and a revised compound to ensure increased grip. Includes lightweight chrome dish-type wheels.

The legend returns…
Javelin. A machine that redefines what it means to be the best.

<Technical Data>

- Length 403mm
- Width 240mm
- Height 130mm
- Wheelbase 260mm
- Front Tread 204mm
- Rear Tread 204mm
- Weight 1,700g (approx.)
- Tires (F & R) φ86×40mm
- Motor 540 Class size（sold separately）
- Gear Ratio 9.24：1

• Assembled some parts kit chassis (gear box, oil shock are pre assembled)
  - Body frame
  - Decals
  - L-shape hexagonal wrench
  - Cross wrench
  - Shock wrench
  - Shock oil
  - Grease
• <Required for Operation>

  - 2 Channel R/C System (1 x servo, 1 x ESC)
  - 540 Motor (20T – 27T recommended) No.82140 EP Starter Pack (KT-231P, KR-331, VORTEX WP45A, G2X Motor)
  - Battery for motor (7.2V NiMH or Li-Po battery)
  - Charger for motor battery (stable 12V power supply required if using DC)
  - Paint for body
  - Batteries for transmitter
  - Tools (maybe required: 1.5 / 2.0 / 3.0 hexagonal wrench driver, needle nose pliers, wire cutters, box cutter, Philips screwdriver for replacing servo horn)
•
  The Javelin’s design concept was to create “A machine that redefines what it means to be the best”. After more than 30 years since the original release in 1986, this electric off-road competition model has been recreated as the sixth model in the Kyosho Vintage Series. Incorporating a resin pipe-frame body resembling the innovative aluminum pipe frame body of the 1/8 scale Land Jump engine powered buggy, the new Javelin features the proven performance of double wishbone suspension with a narrow backbone-style skid frame that delivers ideal geometry for wide-angled steering. This combines with the Javelin’s superior sealed compartment 4WD chain-drive system to produce excellent performance and durability. At the heart of the external features that faithfully represent the image of the Javelin of 30 years ago, this Vintage Series version is packed with modern racing performance potential and is compatible with modern power sources. At the heart of the drive system is a counter gear equipped with slipper function and a final gear case made from metal to strengthen its load bearing capacity. The adoption of precision 48-pitch gear modules reduces power loss and the optimal combination of nylon and sintered alloy delivers both improved drive efficiency and reduced noise. In addition to chain drive, the drive system can also be changed to a belt system, which was optional in the original model. Also, the large diameter aluminum shocks, recreated in the original design, combine with long stroke suspension to deliver increased performance potential. Rediscover the joy of off-road buggy racing with the latest in racing technology and the nostalgic style of the ‘Javelin’.

  - Each part has been upgraded to correspond with modern power sources while retaining Javelin’s unique original design. - New updated heavy duty aluminum inner roll bar for increased durability. - The new wing stay is compatible with the Optima(requires some cutting of the PC body). - Rear wing has been changed to chassis mounting to generate high downforce. The pedestal parts have been included with insert nuts to keep the wing securely fixed. Incorporation of insert nuts into the pedestals delivers even more secure mounting. - Just like the original Javelin, white, pastel green and fluorescent yellow colored roll cage bodies and wings are available. Red and black colors are on plan. - The aluminum plate on the front area of the roll cage body is now securely fixed with screws adding rigidity to the body. - Simple yet high rigidity aluminum backbone type chassis. - Two types of drive system can be selected. The 4WD chain system with sealed compartment that took the world by storm, or the 4WD belt system that was later released as an option. - FRP radio plate is suitable for ESC’s of any brand. - One-piece wheels replicate the original stylish design while delivering a reduction in weight. - Full ball bearing specifications use 18 ball bearings. (chain drive system uses 16). - hex heads ensure easy use and fastening security. - Includes separate helmet and polycarbonate body. - Hook and loop fastener battery stay (including battery straps printed with Kyosho logo) is compatible with various batteries and allows easy installation and removal. - Equipped with metallic counter gear.

Nylon pipe frame and aluminum rooftop form a high strength roll cage body structure. Includes large bumper similar to the original design as well as a mini bumper suitable for racing.

New large size wing and wing stay is made from reinforced nylon material. The original Javelin wing was mounted on the roll cage directly. The new wing stay is now separate from the roll cage adding more durability and the wing is fixed with body clips for easier maintenance. The wing mounting position is the same as the Scorpion series allowing installation of the smaller wing used for the Scorpion onto the new Javelin.

Two drive system selections: chain drive or belt drive.

The gearbox is equipped with a slipper clutch to protect the drive system from sudden load changes such as jump landings. It can respond to various road conditions with simple adjustments.

Main chassis, shock stay and plates are made from 6061T6 aluminum alloy for corrosion resistance and increased strength. Countersunk flat head and tapping screws realize flush finish and reduce the number of nuts used.

While faithfully replicating the original 1986 design, the oil shocks on the new version lift performance potential with stainless steel shafts on front and rear and aluminum cylinders with outer diameter increased from φ10 mm to φ12 mm.

Shock resistant nylon double wishbone suspension with long stroke delivers superior durability and running stability in combination with the increased bore of the oil shocks.

Replace resin bushes on the rear hub carriers to chose from three different toe angles (0°, 1°, 2°). Aluminum hexagonal wheel hubs can be fixed with set screws.

While staying true to the Javelin’s original design, tires feature more pins and a revised compound to ensure increased grip. Includes lightweight chrome dish-type wheels.

Speed has form. The winning formula is …

<Technical Data>

- Length: 395mm
- Width: 240mm
- Height: 120mm
- Ground Clearance: 36mm
- Wheelbase: 260mm
- Tread (F/R): 204mm / 204mm
- Tire(F/R): 86f x 40mm / 86f x 40mm
- Gear Ratio: 9.24:1
- Weight: approx. 1,600g
- Motor: 540 class size
- Battery: Ni-MH / Li-PO ?Li-PO: Standard Size / short size
- R/C System: 2 channel, 1-servo, ESC

<Contents>

- Decals
- L-shape hex wrench
- Cross wrench
- Shock wrench
- Shock oil
- Grease
- Threadlock glue
- Clear Lexan body

<Required for Operation>

- 2-channel R/C system (servo x 1, ESC x 1)
- 540 Size Motor
- 7.2V NiMH battery or 7.4V Li-PO battery
- Charger for motor battery (For DC: Regulated 12V power supply)
- Tools for body painting
- Batteries for transmitter
- Tools (phillips head screw driver large, small. Needle Nose Pliers, Scissors, Sharp Hobby Knife)

The first OPTIMA model was heralded as a technical masterpiece at its release in 1985 and from then, Kyosho has set the standard in R/C development. Memories of the OPTIMA are fresh even after 30 years and its stylish form and ruthlessly efficient performance still resonate amongst modern racing machines. Now the new OPTIMA is ready to continue the battle for racing dominance, embodying the latest in technological evolution but with the distinctive OPTIMA style. The narrow backbone shaped chassis provides the platform for optimal geometry with large steering angles and double wishbone suspension with long 35mm suspension stroke. Recreated in the image of the original design, the the 4WD chain system is housed inside a sealed compartment and the gears and gearbox at the center of the drive train are equipped with robust metal counter gear pinion and rear diff case. The drive train also features a slipper clutch and precision 48-pitch gear modules that reduce drive loss and fulfill the potential of modern power sources. Modern features include the choice of chain drive or belt drive as well as big bore shocks on front and rear that have been recreated in the original OPTIMA colors, plus hex screws. As a true racing partner, the OPTIMA is ready to race again with the latest advancements in driving performance.

- Impact resistant resin bumper. Comes with two types of bumpers, a large bumper that reproduces those days and a mini bumper that is suitable for racing. - High precision front-only (12φ x 18mm) oil shock. - Shock resistant nylon double wishbone suspension. - Aluminum backbone type chassis. Simple and highly rigid. - 12φ x 31mm stroke large capacity rear oil shock. - The wheel was changed to a one-piece type while maintaining the stylish design of the time. - Taking over the image of the initial model, Optima's exclusive tuck spike tire with a new softer compound for increased grip. - You can choose from two types of drive system: the compartment 4WD chain drive that took the world by storm, and the 4WD belt drive that was released as an option later to minimize drive loss and has gained tremendous trust and is still used today. - FRP mechanical plate that can be equipped with each company's ESC (speed controller). - The battery stay, which can be used with various current batteries, has a hook-and-loop fastener (a battery strap with a KYOSHO logo print is included), making it easy to attach and detach the battery. - The gear module has been revised to 48 pitches to reduce drive loss, and each gear and rear differential case are made of durable metal as standard equipment. - A slipper clutch has been added to the gearbox to protect the mission while effectively utilizing traction to raise the level even further. - All bearings are standard equipped with ball bearings. (Chain specification/16 pcs. Belt specification/18 pcs.) - Comes with pre-cut decals that can reproduce the vivid coloring of the package. - The screw used for assembly is a hex type that can be securely tightened and has high workability.

The “OPTIMA” name signifies optimal performance. This famous off-road racer is equipped to win in any conditions.

4WD mechanics are condensed into a narrow open frame chassis 6061T6 aluminum bars (caunter sunk)

Two drive system selections: chain drive or belt drive.

Gearbox equipped with slipper clutch for transmission protection and effective traction control.

Precision 48-pitch gear modules. Sintered alloy gears combined with high impact nylon gears and newly added slipper clutch. This durable design allows efficient power delivery and will cope with the current high power motors.

Precision 48-pitch gear modules deliver reduced drive loss. Metal rear diff case and metal gears deliver excellent durability.

Glass mixed nylon material used in rigid double wishbone system suspension.

Strong impact-resistant resin bumper. Includes mini bumper suitable for racing and large bumper for sports driving.

More performance and style with improvements to each key component.

This machine is more than just a reproduction!

As the 5th model to make its return as part of the vintage series, the ever-popular Scorpion released in 1982 was relaunched 2 years ago and has undergone a detailed overhaul to match modern performance with retro styling. The new Turbo Scorpion remains true to the essence of the unique Scorpion design throughout, but features Scorpion-style wheels in the larger 2.2 inch modern standard wheels for improved off-road performance. In addition, 12mm oil shocks based on the Optima deliver rock-solid running stability and excellent damping characteristics that work in combination with high-grip front and rear tires with a 20mm wider front tread and 10mm longer wheelbase than the original Scorpion to realize improved control and handling performance. With a thorough modernization, the new Turbo Scorpion is ready and willing to accept modern-day power sources and compete on modern race circuits. The standard Turbo Scorpion is a fully optioned chassis configuration and is ready to take the punishment that goes with hard driving.

• Turbo Scorpion updated to meet the demands of the modern off-road racing scene.
• Kit includes pre-assembled gearbox and oil shocks.
• Features same racy-style mini bumper as the original.
• Rear section reinforced with Rear Sus Post L, strengthened by added flange.
• Features accurate recreation of the original loop-mount light buckets. Optional LED lights can be simply bolted on.
• Screwed surfaces are countersunk for flat finish.
• Decals included in kit are diecut. Stretch for easy application and beautiful body finish.

Kit Contents

• Pre-assembled kit (gear box is pre-assembled)
• Polycarbonate clear body
• Decals
• Chassis parts
• L type hexagonal wrench
• Cross wrench
• Shock wrench
• Shock oil
• Grease

Required for operation

• 2ch 1 servo R/C system for cars
• 540 class motor
• ESC compatible with motor used
• Battery for chassis compatible with ESC used
• Battery charger
• Paint for polycarbonate body
• Batteries for transmitter
• Tools (1.5, 2, 2.5mm hexagonal wrench driver)

Technical data

• Length : 408mm
• Width : 256mm
• Height : 145mm
• Ground Clearance : 28mm
• Wheelbase : 273mm
• Tread (F/R) : 218mm/215mm
• Tire(F/R) : ?82×27mm / ?86×42mm
• Gear Ratio : 6.9 : 1 / 8.3 : 1 (select from 2-type)
• Weight : 1,500g (approx.)
• Motor : 540-type (sold separately)

The Second ultimate revival! Get ready for the resurgence of Kyosho’s famous Beetle!

In the spirit of the original but with upgrades throughout!

The legendary Kyosho Beetle is credited with taking the racing buggy category into the realm of pure motorsports.
Even after 30 years since it was first released in 1983, the indelible mark of the Beetle still exists with its

Kyosho is proud to renew this model to all its former glory! While maintaining the wild and free spirit of the original baja bug style body and chassis layout, the 2014 version features the latest in performance technology and sacrifices nothing in speed and endurance on modern buggy racing tracks.
Externally it may look like the original Beetle with its semi-trailing suspension arms, but the advanced 6061T6 forged aluminum material delivers futuristic levels of strength, rigidity and durability. Following the original design, the Beetle 2014 features a new two-piece die-cast aluminum gearbox with differential gears.
In addition, the included slipper clutch protects the transmission as well as delivers efficient traction that takes the Beetle’s control feel and durability to a new higher level. Precision 48 pitch gears reduce traction pulsation for direct driving control characteristics while the flat under surface of the countersunk chassis has no protruding screw heads for minimal contact resistance and scraping, resulting in higher durability. Stainless shafts combine with aluminum shock bodies on the oil shocks for smooth stroke from top to bottom and running performance worthy of a true racing buggy.
Like the original Beetle, the 2014 version is packaged as an unassembled kit, but nearly all tapping screws and nuts have been replaced with the improved lightweight and security of hex screws.

From expert racers who knew the magic of the original Beetle to modern-day racers, discover for yourself why the Beetle 2014 commands such respect!

Requires: RC system with steering servo, 540 class electric motor and ESC, stick type battery, suitable charger, paint for body shell and tools to assemble.

Mad Flow V3 Brushless Power F1 Speed Boat
Model No.: 8653 V3

SPECIFICATIONS:
Hull Length: 480 mm
Total Length: 590 mm
Width: 225 mm
Weight: 990g(model only)
Hull Material: Plastic Molded with colorful painting decal stickers
Self Righting, No worry Boat Capsize

WHAT'S INCLUDED:
Hull with Graphic and Assembly Finished
Powerful water-cooled outrunner brushless motor
30A water cooled & waterproof brushless ESC with BEC
2.4G 2CH digital proportional radio control system
Powerful waterproof 9g metal gear rudder servo
Shaft drive system: 3mm flex cable drive
Two Blade nylon propeller x 2pcs
Plastic boat stand
REQUIREMENTS:
11.1V 1300~2200mAh LiPo pack (included)
Lipo balance charger and adapter (included)
4 x AA Alkaline batteries for transmitter (Not included)

E1 RaceBird RC Hydrofoil Boat 2.4GHz RTR
Model No.: 8608
Four Basic liveries available:Blue,Green,Red,White

SPECIFICATIONS:
Length: 545mm
Width: 238mm
Height: 148mm
Weight: 740g(RTR)
Hull Material: Plastic molding with painting & decal stickers

FEATURES:
Combining a sleek and futuristic design with innovative hydrofoil technology.
First foiling electric power RC boat
behaves and foils exactly like the full size RaceBird
Manoeuvrable driving and glide on the water
Top Speed: 25 km/h

WHAT'S INCLUDED:
Hull with graphic and assembly finished
2.4GHz digital proportional transmitter with 200m range
2.4GHz receiver & water cooling ESC combo set
Powerful water cooling 390 motor with gear box
9g waterproof rudder servo
7.4V 900mAh Li-ion battery pack
2S USB balance charger
Two blades nylon propeller
4pcs AA batteries (for transmitter)
Boat stand

PACKAGING:
Gift box + Polyfoam tray

REQUIREMENTS: All included, ready to run

About the UIM E1 World Championship:
E1 is the world’s first and only all-electric raceboat championship sanctioned by the Union Internationale Motonautique (UIM), which is the international governing body for all powerboating activities. The UIM E1 World Championship will see up to 10 teams racing on the water in iconic cities around the world. Season 1 will feature seven thrilling races around the world.

E1’s teams are owned by some of the biggest names in their fields from Tom Brady, Rafael Nadal, Virat Kohli, Didier Drogba and Sergio Pérez in sport to Steve Aoki and Marc Anthony in the world of music and entertainment. More celebrities are expecting to join in.

For more details of E1, pls visit follow their social media platforms.
About the RaceBird:
The world’s first all-electric raceboat, combining a sleek and futuristic design with innovative hydrofoil technology.

About the RaceBird 1:14 scale RC raceboat:
The UIM E1 World Championship has granted Joysway the exclusive global licence to produce 1:14 scale remote control RaceBird models.

The model produced for E1 is Joysway’s first foiling electric model and behaves and foils exactly like the full size RaceBird thanks to Joysway’s extensive development. E1 team and Rodi Basso, CEO of E1, highly recognize the quality and foiling performance.
The first E1 Jeddah GP was a successful Race, Check below photos and highlights:

Magic Vee V6 Deep Vee Micro RC Speed Boat 2.4GHz RTR Model No.: 8106V6

SPECIFICATIONS:
Hull Length: 225 mm
Total Length: 270 mm
Width: 70 mm
Weight: 177g(RTR)
Hull Material: Plastic molding with painting & decal stickers
Speed: 20 km/h
Self-Righting function(2023 New Function)

WHAT'S INCLUDED:
Hull with graphic and assembly finished
J2C96 hobby style 2.4GHz digital proportional transmitter
Receiver & 5A ESC combo set
Powerful water cooled 180 motor
9g waterproof rudder servo
6.4V 320mAh LiFePo battery with balance charging plug
6.4V USB balance charger
Three Blades Nylon propeller
4pcs AA batteries (for transmitter)
ABS boat stand

REQUIREMENTS:
All included, ready to run

PACKAGING:
Window gift box + Polyfoam tray
Gift box dimension : 31.5 x 26 x 11 cm
Carton box pack: 8 pcs
Carton box dimension : 46 x 33 x 54.5 cm

UPDATES & UPGRADES COMPARE TO OLD VERSION:
Hobby style radio with steering trim, Throttle trim, travel angle adjustment.
2023 New graphic design.
Boat feature with self-righting function.
Battery and USB charger with balance charging function.
Including 4pcs AA batteries for transmitter.

• This is a 1/10 scale R/C model assembly kit.
• Length: 445mm, width: 184mm, height: 137mm. Wheelbase: 257mm
• The kit features an existing body
• The powerful form of the Mercedes-Benz 190 E 2.5-16 EVO II 1991 is captured in style by a lightweight, rigid 1.0mm thick polycarbonate body
• Separate black ABS plastic parts realistically depict side mirrors, rear wing, front grille and emblems
• The efficient shaft-driven 4WD TT-02 chassis features superior adaptability and stability
• Silver colour dish wheels are paired with racing slick tyres
• Comes with stickers and masking stickers for use in the paint job
• Carton quantity is 6 and EAN is 4950344587520

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

• 1/10 scale R/C model assembly kit. Length: 434mm, width: 194mm, height: 120mm
• Wheelbase: 257mm
• 1.0mm-thick polycarbonate body
• The efficient shaft-driven 4WD TT-02 chassis features superior adaptability and stability
• Black 16-spoke wheels are paired with racing slick tyres
• Includes stickers and window masking tape for use in the painting process
• Includes 540-Type Torque Tuned brushed motor and Hobbywing produced ESC

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

• 1/10 scale R/C model assembly kit. Length: 383mm, width: 170mm, height: 138mm
• Wheelbase: 239mm (Long)
• Polycarbonate body
• Separate plastic parts moulded in black realistically depict side mirrors and bumpers
• Separate transparent parts capture headlights and taillights
• Porous dish wheels are paired with radial tyres
• Includes 540-Type Torque Tuned brushed motor and Hobbywing produced ESC

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

• 1/10 scale R/C model assembly kit. Length: 404mm, width: 187mm, height: 155mm
• Wheelbase: 257mm (standard)
• BT-01 chassis is set up for the front motor, front drive configuration for this model
• The form of the Peugeot 306 Maxi is authentically recreated in lightweight polycarbonate
• 6-spoke wheels are paired with racing radial tyres
• Separate moulded plastic parts recreate side mirrors and the rear wing
• Livery markings are Tamiya original design to recreate fictitious team
• Includes 540-Type Torque Tuned brushed motor and Hobbywing produced ESC

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

• 1/10 scale R/C model assembly kit. Length: 479mm, width: 188mm, height: 127mm (approximate)
• Wheelbase: 251mm (short)
• Polycarbonate body with separate polycarbonate rear wing and light case details
• Separate plastic parts moulded in black realistically depict side mirrors and wing stays
• The model utilizes the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability
• Black mesh-type wheels are paired with slick tyres
• Includes Item 51226 (Urethane Bumper L (TT-01, TGS)) to keep the body in top condition
• Includes stickers and window masking tape for use in the painting process
• Includes 540-Type Torque Tuned brushed motor and Hobbywing produced ESC

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

• 1/10 scale R/C model assembly kit. Length: 451mm, width: 186mm, height: 134mm. Wheelbase: 257mm.
• Durable 1.0mm-thick polycarbonate body.
• The model utilizes the efficient shaft-driven 4WD TT-02 chassis, which features superior adaptability and stability.
• 10-spoke wheels moulded in Gun Metal are paired with tread pattern racing radial tires.
• Comes with stickers and window masking stickers for use in the paint job.
• Includes 540 brushed motor and ESC.
• Required to complete: 2-channel radio, servo, 7.2 volt battery with compatible charger, and Tamiya PS paints.

• 1/10 scale R/C model assembly kit.
• The 0.7mm thick polycarbonate body has the same shape as the classic body from the original Hornet.
• The 2WD chassis has the same bathtub frame as the one used in the original Hornet. (Item 58336)
• While the colour scheme of the original Hornet is carried over, this kit features an updated sticker design.
• Includes 540 Brushed motor and ESC.
• Required to complete: 2-channel radio, steering servo, 7.2 volt battery with compatible charger, and Tamiya PS paints.

• Suspension: 4-wheel independent double wishbone suspension.
• Rear gearbox: Sealed gearbox with differential gear from the DT-02 chassis.
• Includes full ball bearings!
• CVA oil dampers (front & rear)

• This is a 1/10 scale R/C model assembly kit. Length: 395mm (with 265mm wheelbase) / 404mm (with 280mm wheelbase), height: 120mm, width: 248mm.
• Two wheelbases can be selected: 265mm for emphasis on handling or 280mm for emphasis on stability. Reassemble the front section (arms, etc.) to switch between two different wheelbases.
• The distinctive body features multiple body panels connected to pipe frames, a design inspired by full size racing buggies.
• Its 2WD rear-wheel drive chassis has a lightweight, durable bathtub frame which is newly designed.
• The chassis has an inline battery pack position, and a rear-mounted motor to give the rear wheels plenty of traction.
• The sealed gearbox has a built-in gear differential for smooth cornering and helps keep out dust and dirt.
• Side pontoons have the ESC in the left and the receiver in the right.
• The 4-wheel independent double wishbone suspension with long arms employs CVA oil dampers.
• Front suspension arms have a skid angle of 22.5 degrees for superlative off-road handling and performance.
• The 3-piece steering tie-rod gives true steering. (It is the first time to employ 3-piece steering tie-rod in this series.)
• Access the battery pack from the car top. Turn the hood lever and remove the side pins then lift up the roof. After that, slide the driver figure forward to access the battery.
• Ribbed tyres are on the front, and grippy square spike tyres on the rear.
• Hex hubs on the front allow attachment of different wheels.
• Rear damper attachment positions and rear upper arms can be changed.
• Comes with two marking options and one driver figure.
• Use Tamiya Colour paints (sold separately) to paint the driver figure.
• Many separately sold DT-02/DT-03 parts are compatible, with a wealth of options for fine-tuning setup

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger

• This is a 1/10 scale R/C model assembly kit. Length: 390mm, width: 235mm, height: 160mm.
•  The shaft-driven 4WD gives speed and stability off road, and through corners.
• The 4-wheel independent double wishbone suspension employs CVA oil dampers (II) (one for front and two for rear) with a front stabilizer to help get the most out of the 4-wheel drive.
• Dynamic body and rear wing are lightweight polycarbonate (0.7mm thick), and use a colour scheme featuring orange lines on a black base. Polycarbonate body is pre-cut and pre-painted in black.
• Gearboxes are sealed to keep out dirt and sand, and contain differentials for smooth cornering.
• Sections such as ABS monocoque frame and suspension arms feature reinforced plastic for high durability.
• Semi-pneumatic oval block / pin spike hybrid tires are paired with large-diameter one-piece nylon wheel.
• Includes updated stickers
• Includes 540 motor and ESC

• Length: 412mm, width: 197mm, height: 137mm
• Wheelbase: 239mm (Long)
• Tread: 148mm (front), 140mm (rear)
• Tire width/diameter: 25/59mm (front & rear)
• Bathtub type chassis
• Front-midship motor, front-wheel drive
• 4-bevel differential gear
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Friction dampers
• Gear ratio = 5.83:1 (using kit 29T pinion)
• Type 540 motor
• ESC included

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint
