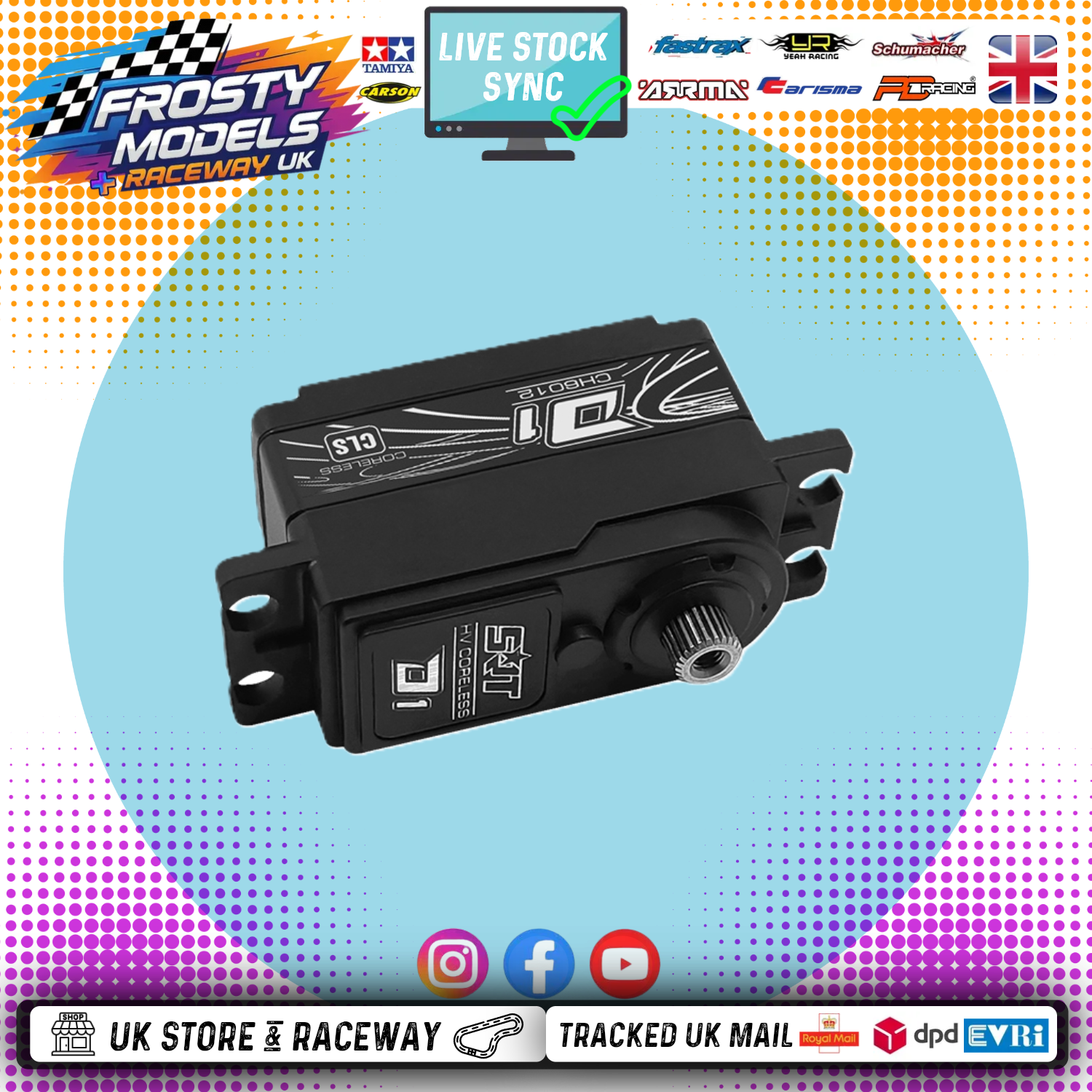

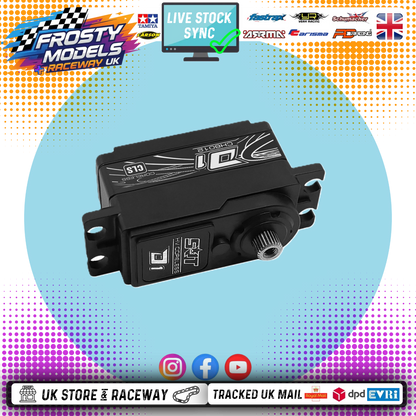

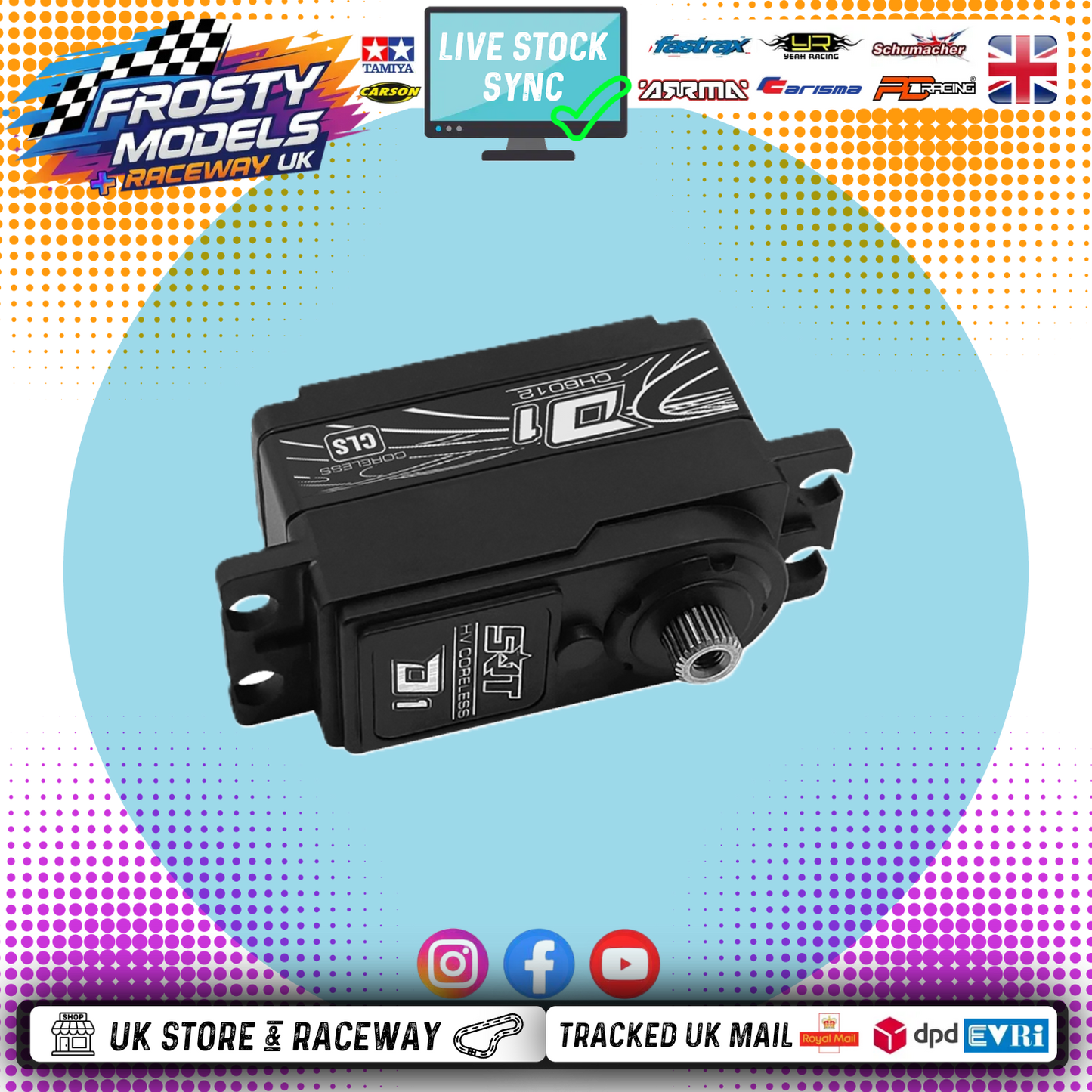

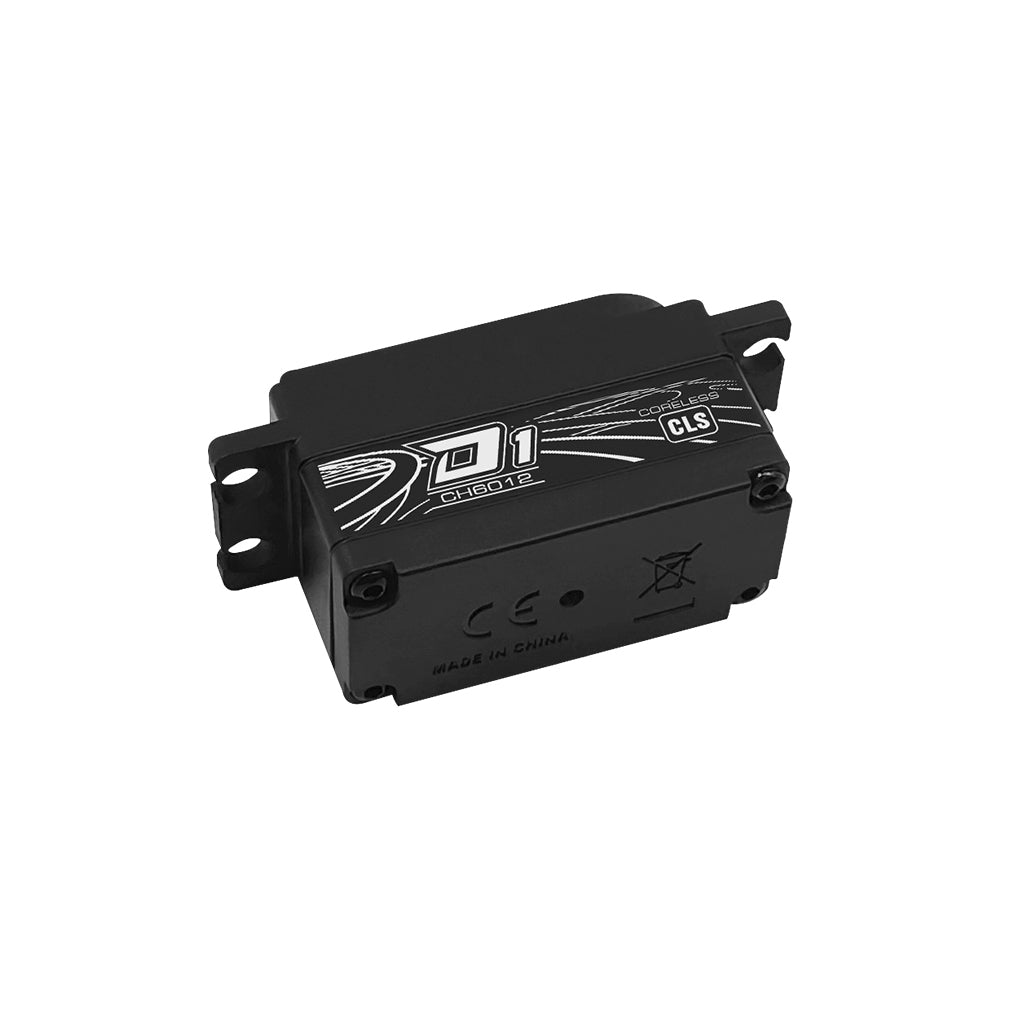

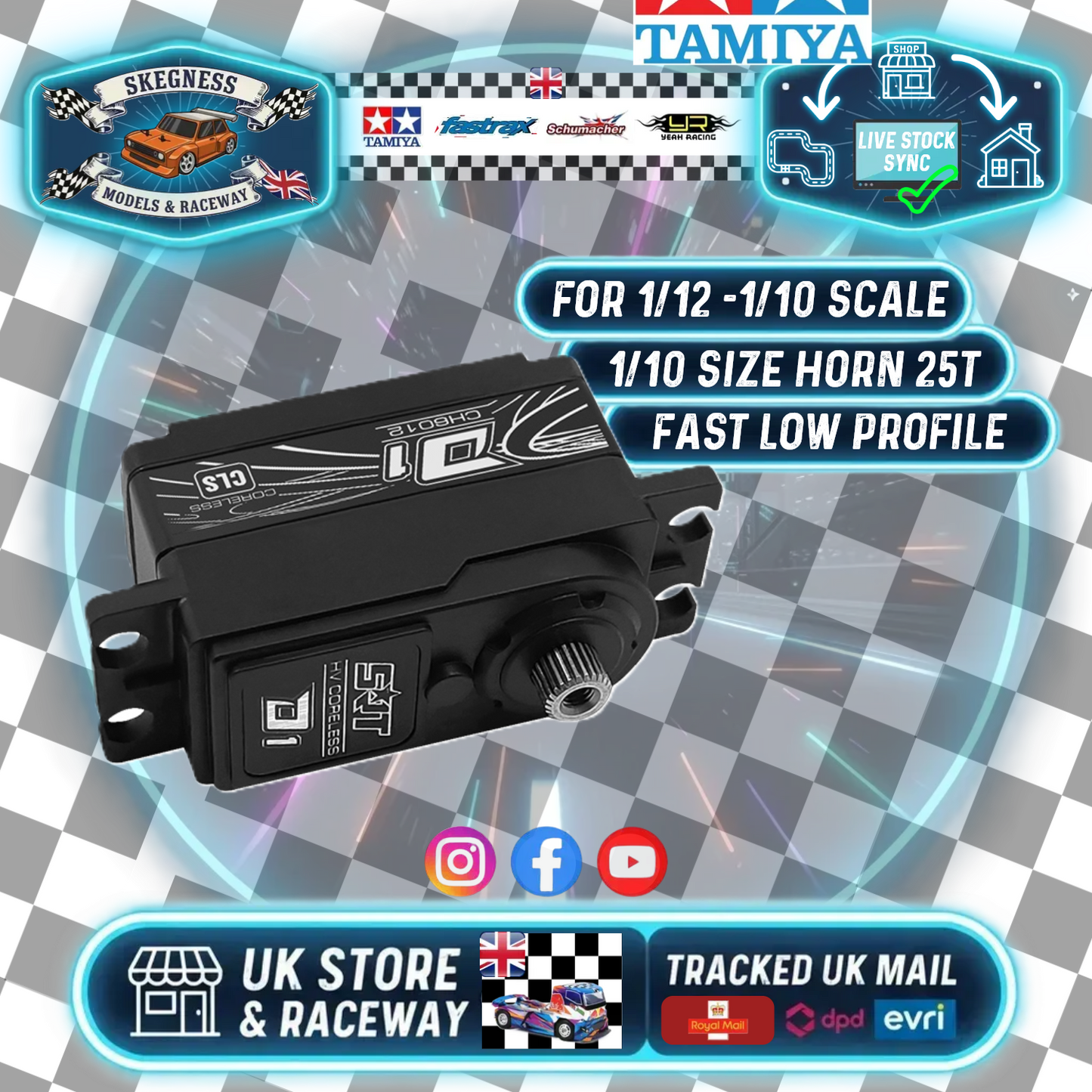

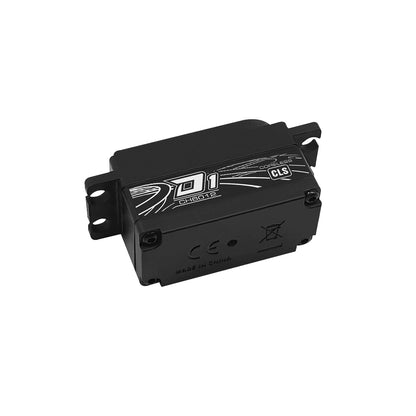

SRT - Metal Geared, Fast, Coreless & Low Profile - HV 6.0V ~ 7.4v STD Digital Servo - SRTCH6012 (6.0v): 0.07 sec - (Ideal for 1/10 On-road Cars / Euro Trucks)

KEY FEATURES

• Super Fast!

  - Ideal for 1/10 on road scale applications
  - Incredible efficiency and low power consumption
  - 2 μsec Dead Band
  - 1-Year Limited Warranty

  Application :
  1/10 Electric Touring
  1/10 Drift
  Formula One

  PRODUCT SPECIFICATIONS

  Type: Digital
  Bearing: Dual
  Motor Type: Coreless

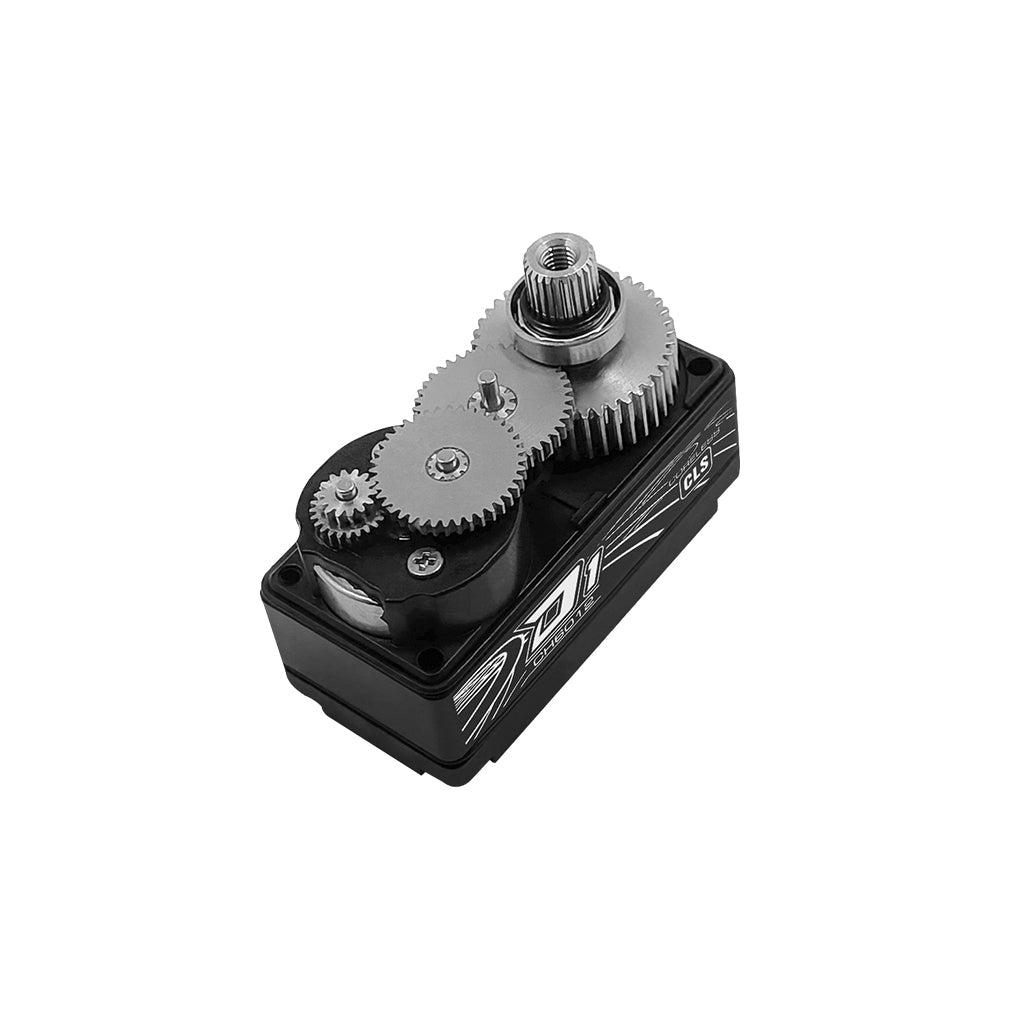

  Gear Type: Metal
  Gear Material: Titanium & Alu
  control system: pulse width control
  working frequence: 1520μs / 330hz
  operating voltage: dc6.0-7.4v
  operating temperature range: -10 to + 60 degree
  operating speed (6.0v): 0.07 sec/60 degrees at no load
  operating speed (7.4v): 0.06 sec/60 degrees at no load
  stall torque (6.0v): 9.0kg.cm (125.0 oz/in)
  stall torque (7.4v): 12.0kg.cm (166.6 oz/in)
  potentiometer drive: direct drive

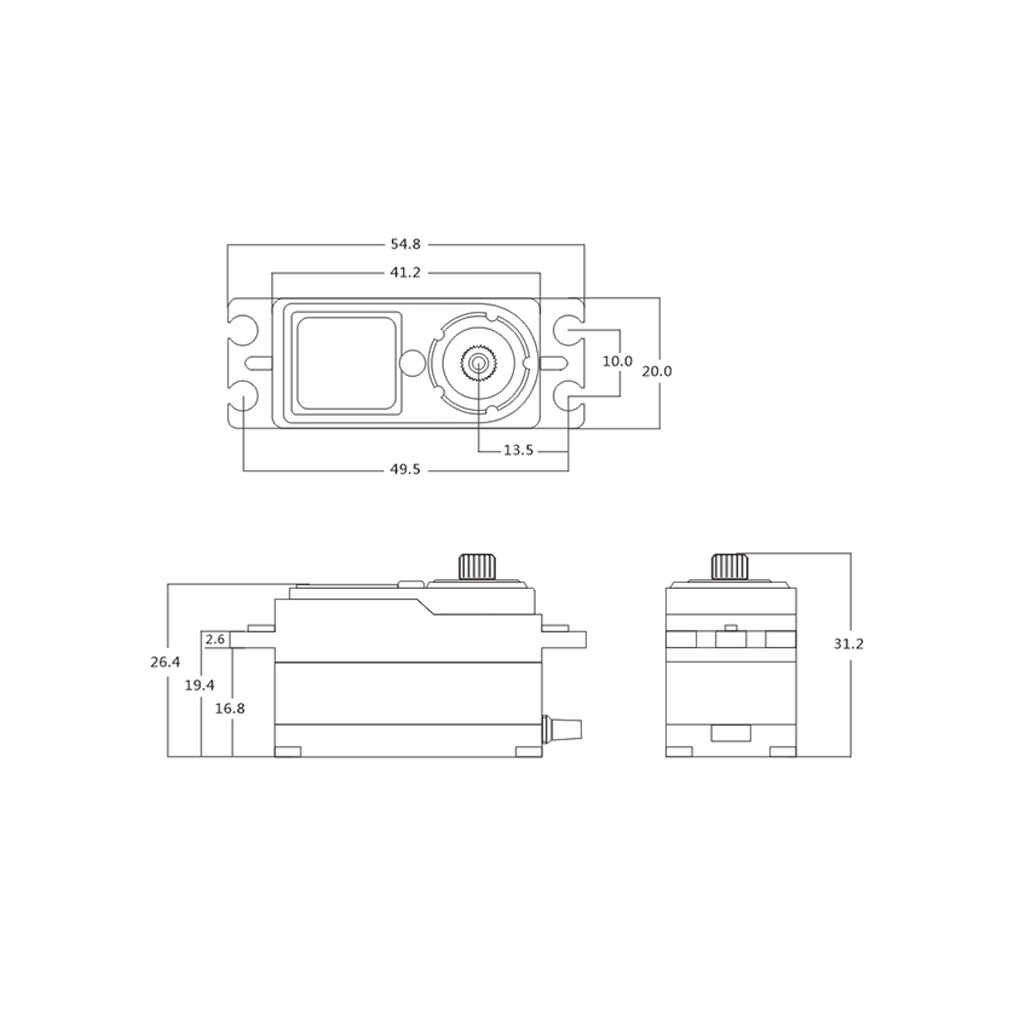

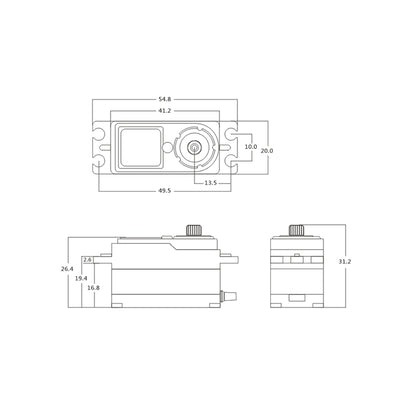

  dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
  weight: 48.0g (1.69 oz)
  connector wire length: jr 110 mm
