What is Kamtec 1/12 GT Series by Frosty Models?

The Kamtec GT Series is our very own brand. With the aim to allow racers to compete with a chassis for under £200 on a brushed or brushless setup (Brushless version is higher cost). They feature cross usable parts from all Mini, Supastox & Nascar to allow racers easy access and adaptability on one chassis.

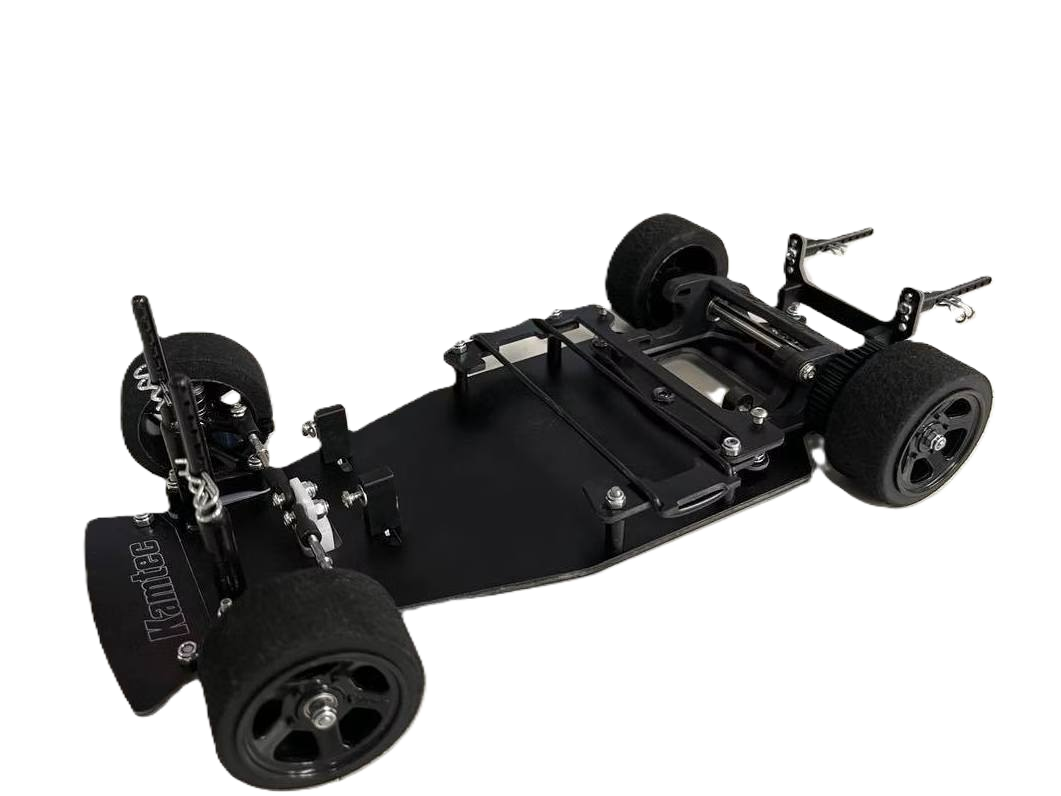

They are a 1/12th Scale RWD Pan Car, with Solid rear axle (Optional Diff allowed, and adaptors with different wheel types) Very simular to the Atom GT12 series, but half the price.

Rules for 1/12th GT Series

Applies to Kamtec Mini Pro / Supastox / Nascar

  • Pinion - ANY
  • NEW Brushed Option 1 (Core 21 Motor & Hobbywing 1S 1060 ESC, with any Shorty 1S 93mm long Lipo / 4.8v Nimh Battery)
  • Old Brushed Option 2 (Core 27 Motor & hobbywing 2S 1060 ESC, with any Shorty 2S
    Lipo)
  • NEW Brushless Option (Hobbywing Justock - Fixed Timing 25.5T Motor & ESC Combo, with any Shorty 2S Lipo.

Kamtec 1/12th GT Series Manual, Help and Tips Below

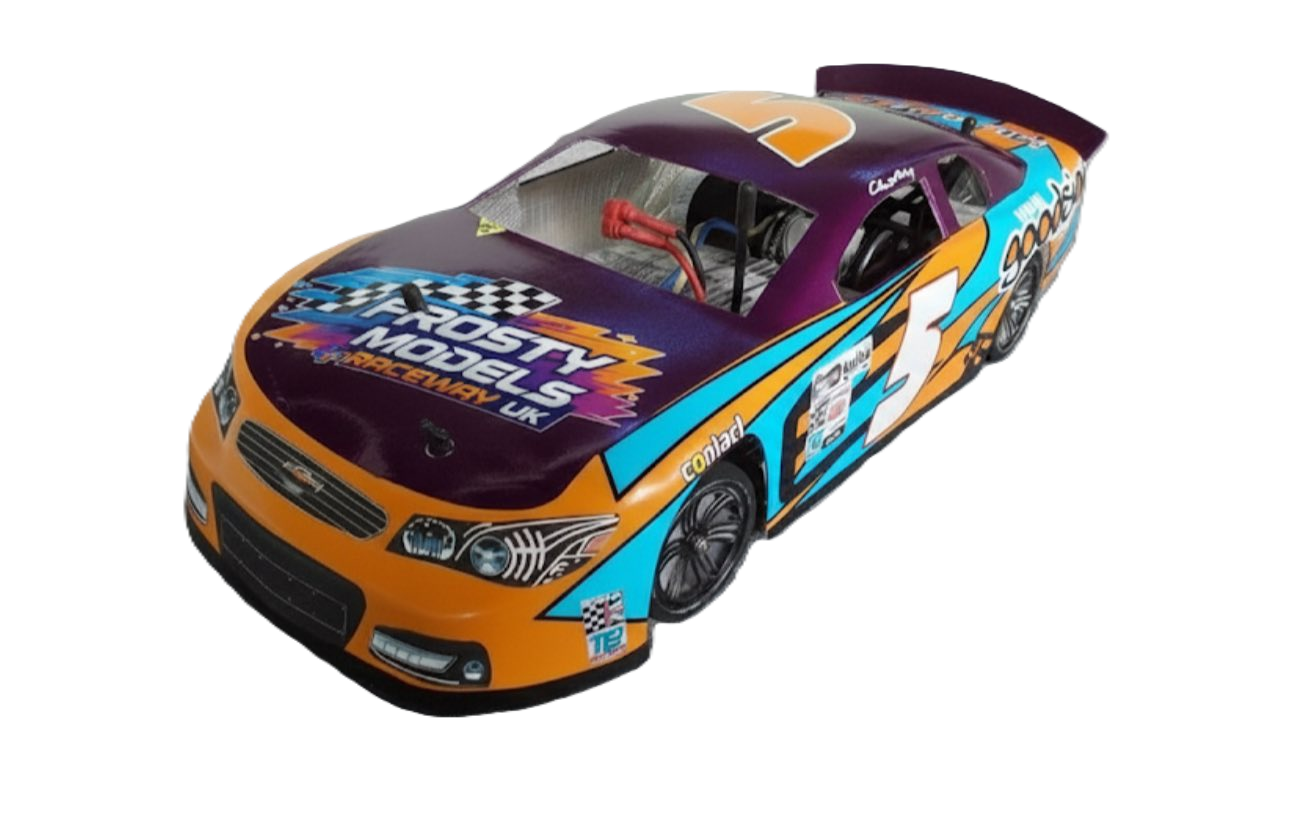

NEW - 1/12 GT NASCAR

Based on the Supastox RWD Chassis

Rules:

  • BODIES: Any 205mm Wheelbase by 160mm Wide NASCAR Lexan Body
  • Any spec electrics as above to GT Series
  • Any GT12 Oval/Circuit Tyres (Not ATOM or LMP)

NEW - 1/12 GT Supastox

Based on the Supastox RWD Chassis

Rules:

  • BODIES: Any 205mm Wheelbase by 160mm Wide GT Lexan Body
  • Any spec electrics as above to GT Series
  • Any GT12 Oval/Circuit Tyres (Also ATOM or LMGT3 with adaptors)

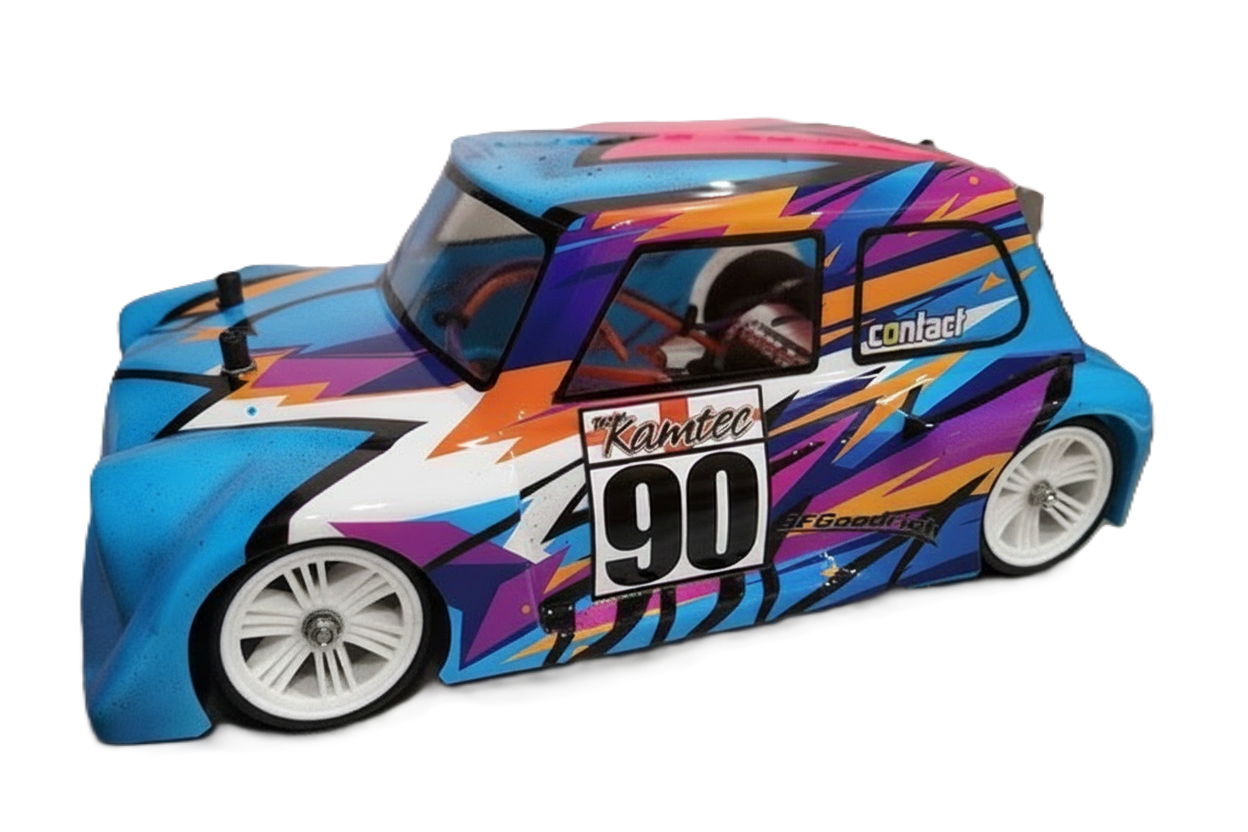

NEW - 1/12 GT Mini

Based on the Supastox RWD Chassis, but shorter

Rules:

  • BODIES: Any 175mm Wheelbase by 160mm Wide Mini Lexan Body (includes clubman, and other brand small cars)
  • Any spec electrics as above to GT Series
  • Any GT12 Oval/Circuit Tyres (Not ATOM or LMP / LMGT3)

Kamtec/Frosty Models - Mini Racer, Supastox & Nascar

Comprehensive manual - with hints and tips, pleus parts list.

(Produced using third party information - Frosty Models UK LTD do not claim to own any images or text used.

Introduction of Kamtec 1/12 Scale GT Series

All Kamtec cars are made to our very own Spec.

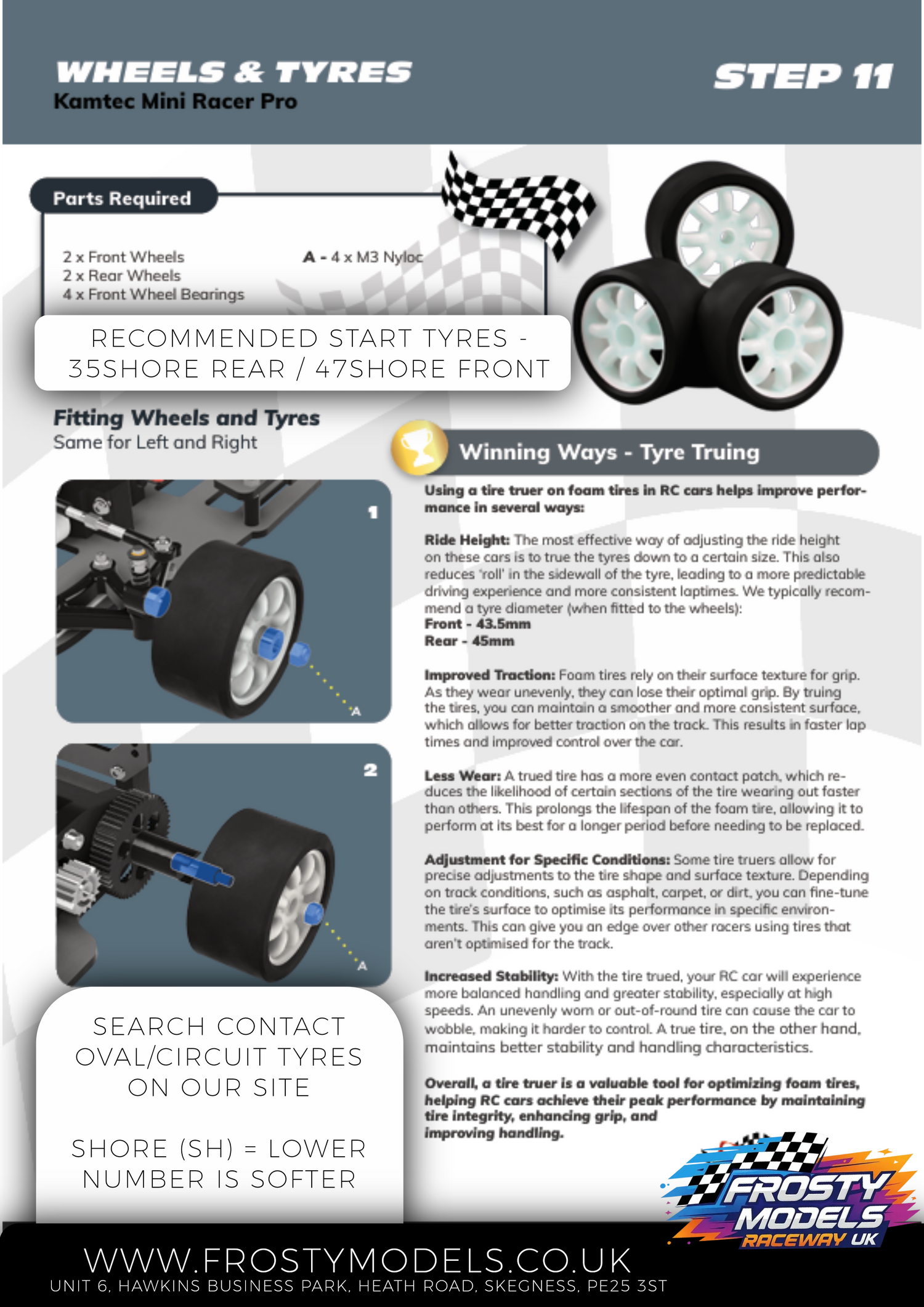

Wheels & Tyres

Typically the rear of the car will run between 32Shore and 40Shore. 35Shore being the best to start.

Front run between 42Shore and 50Shore for a harder front end.

There is also some other types available for grip changes throughout the day.

Tip: DO NOT OVER TIGHTEN FRONT BEARING NUTS

Frosty Models Recommends Part Numbers:

Contact Pre-Glued - Front JM47FB - Rear JM32RN

Hints & Tips

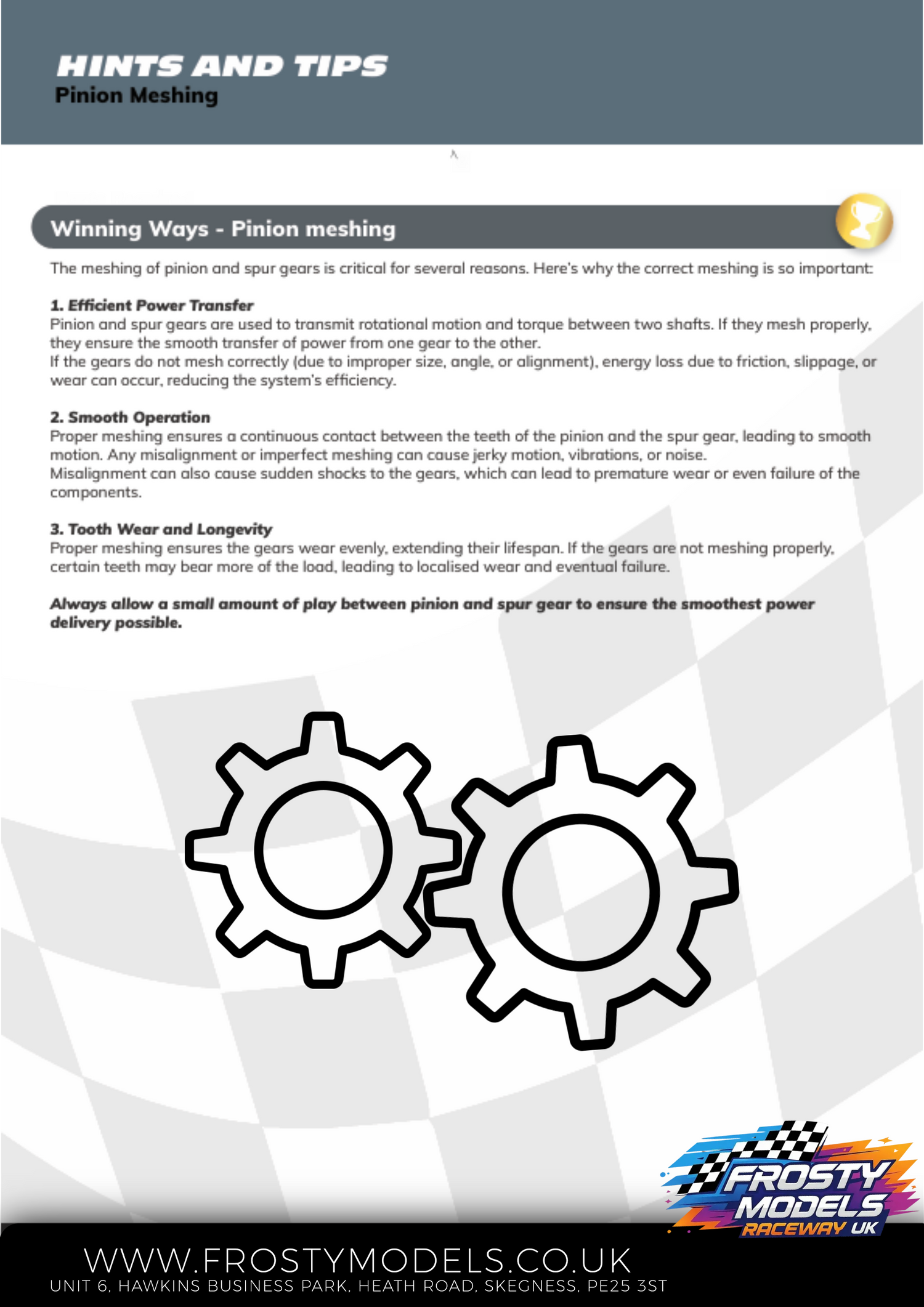

Gearing

Hints & Tips

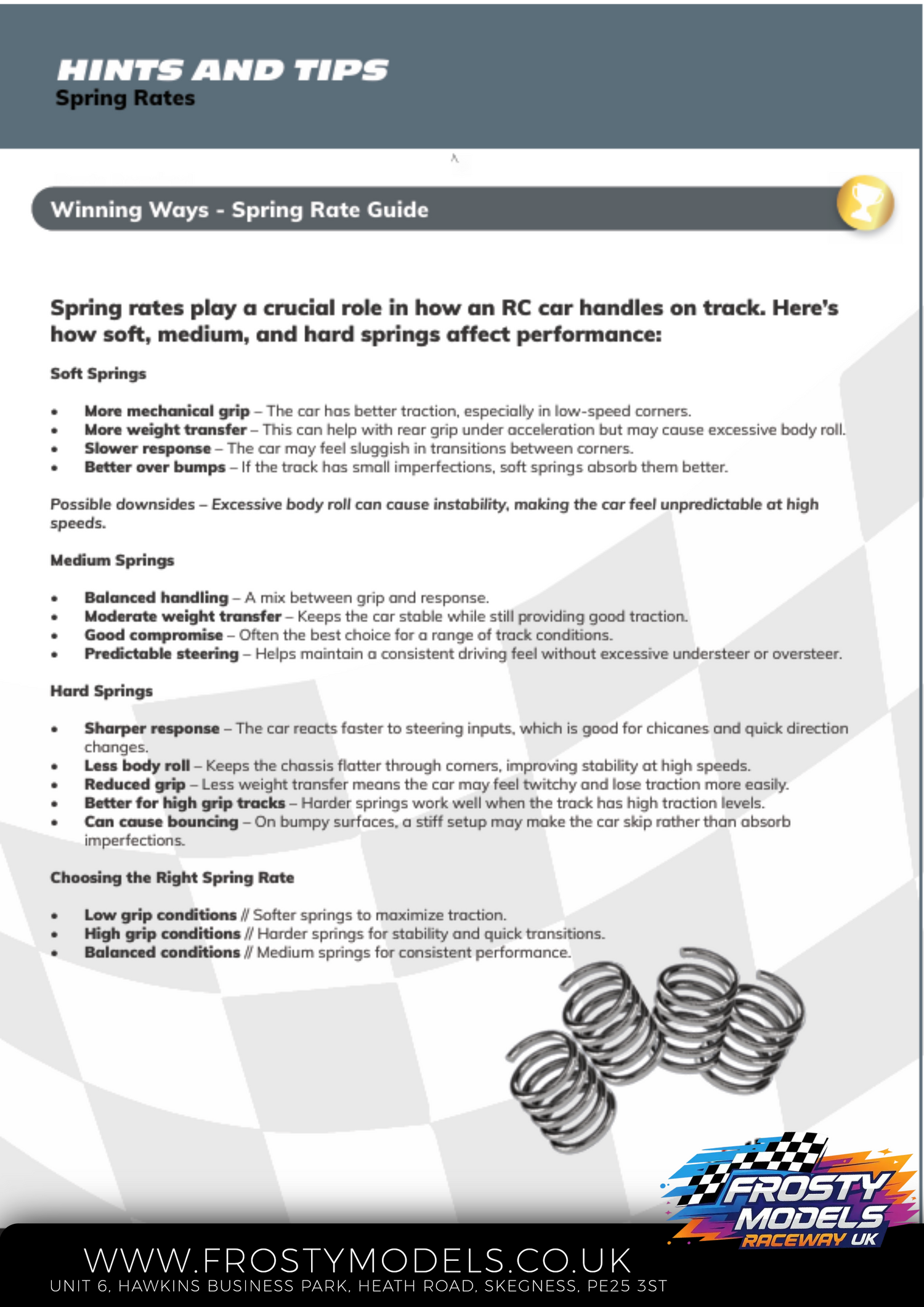

Spring Rate Guide

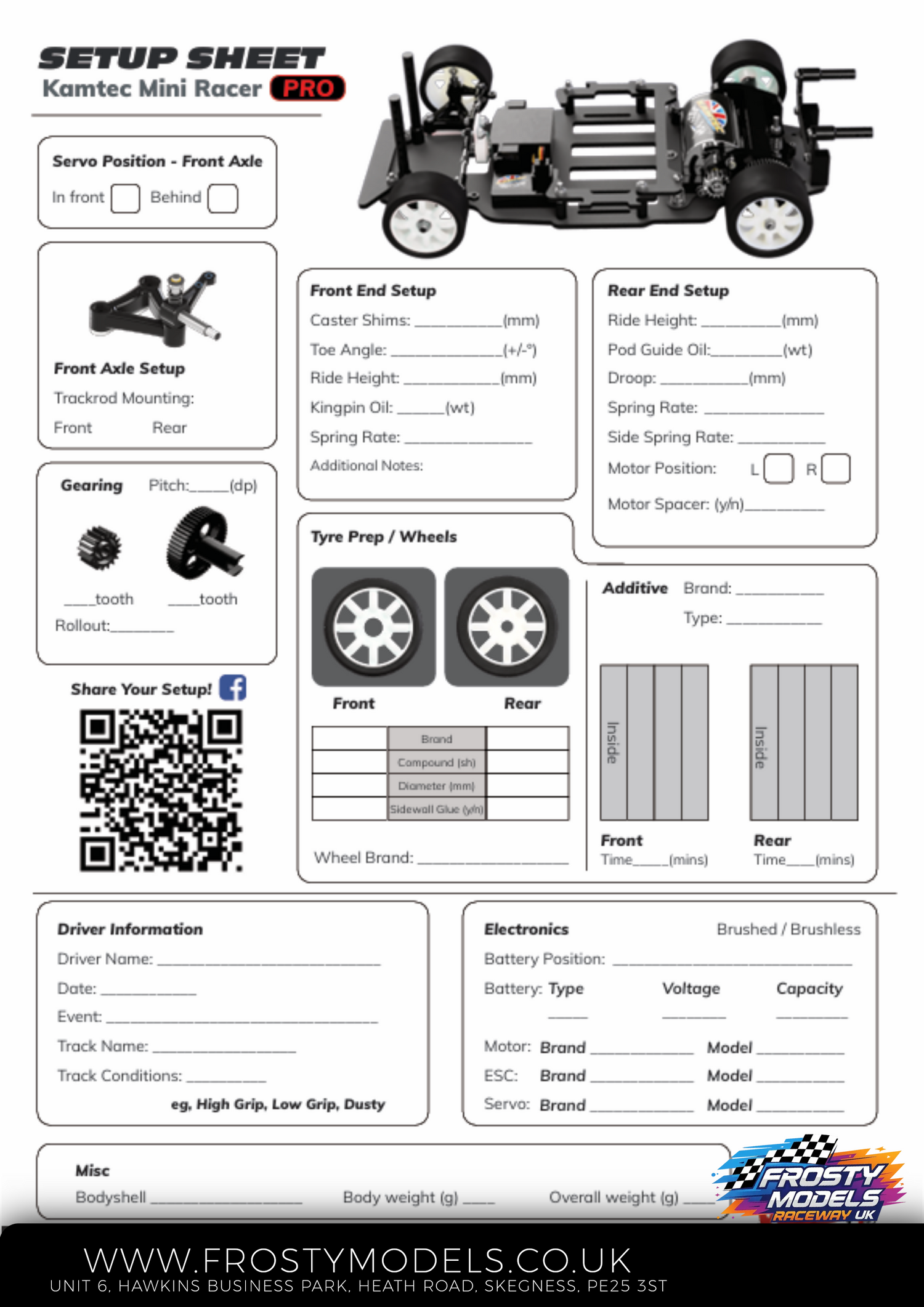

Setup Sheet

Share your setup!

Printable Sheet Link

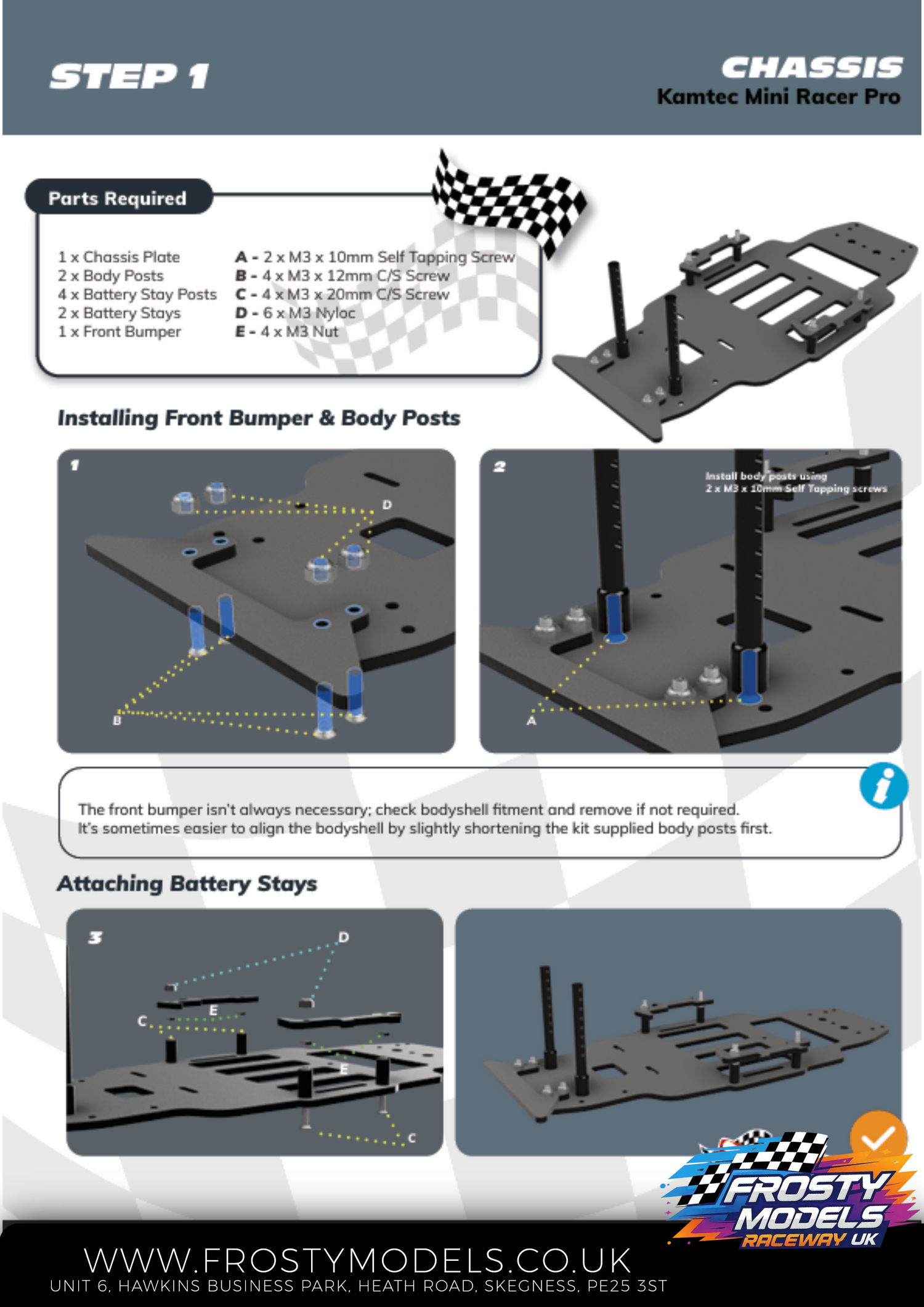

Building - Step 1

Chassis Assembly

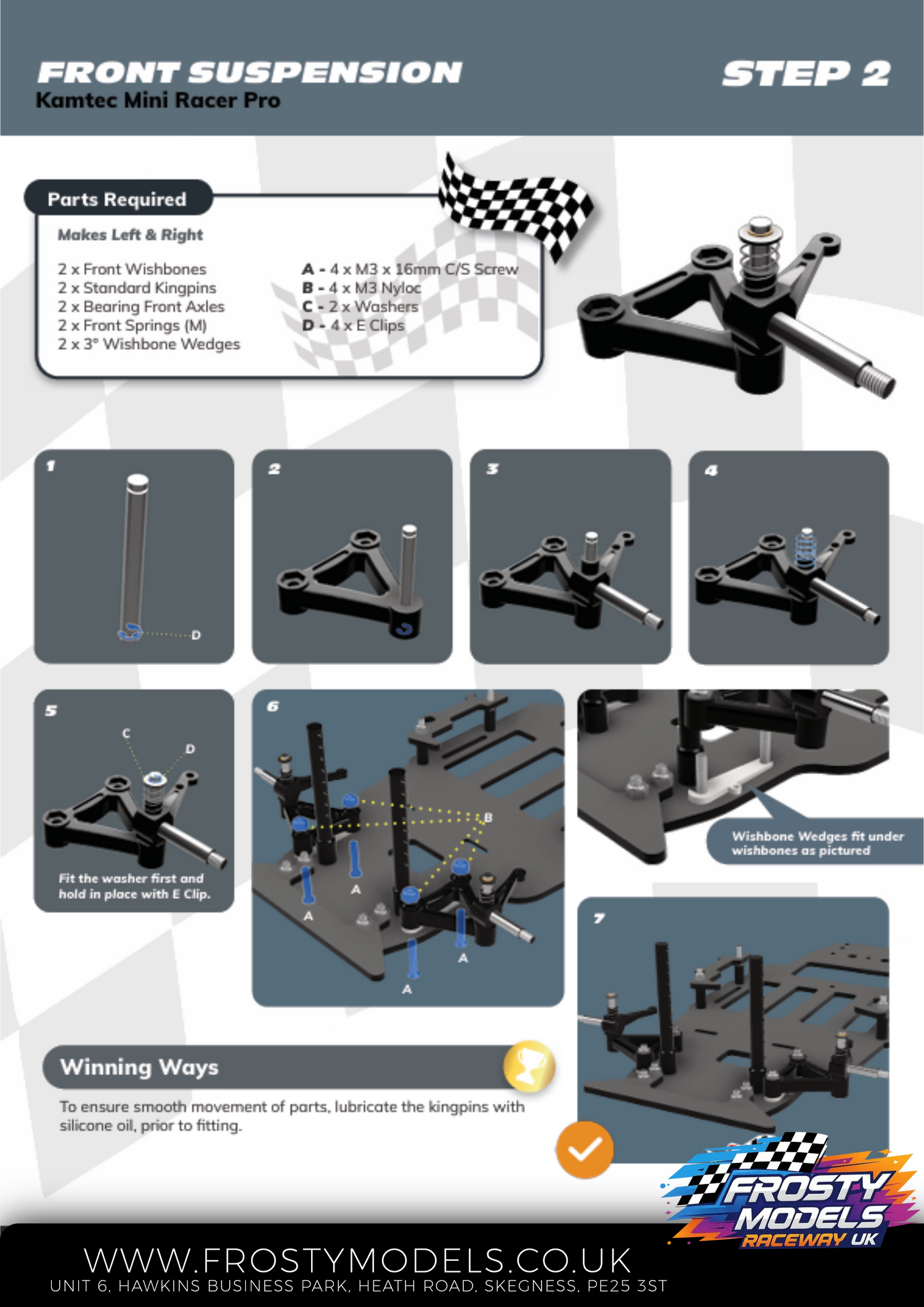

Building - Step 2

Front Suspension Assembly

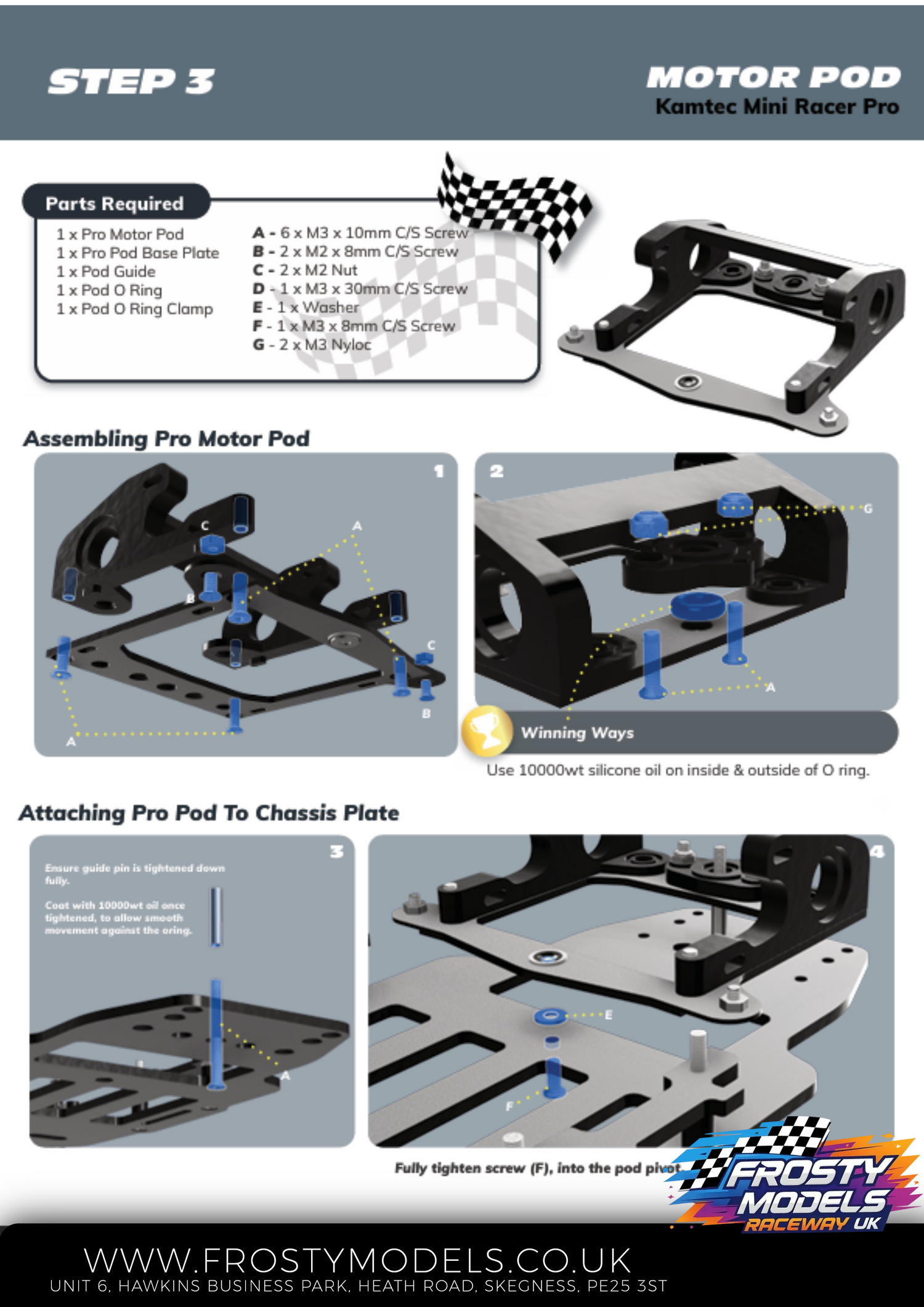

Building - Step 3

Rear Pod Assembly

Note: Make sure to thread lock the pod to chassis bolts. As they will come loose.

Note: Put grease on the rear O-ring before installing.

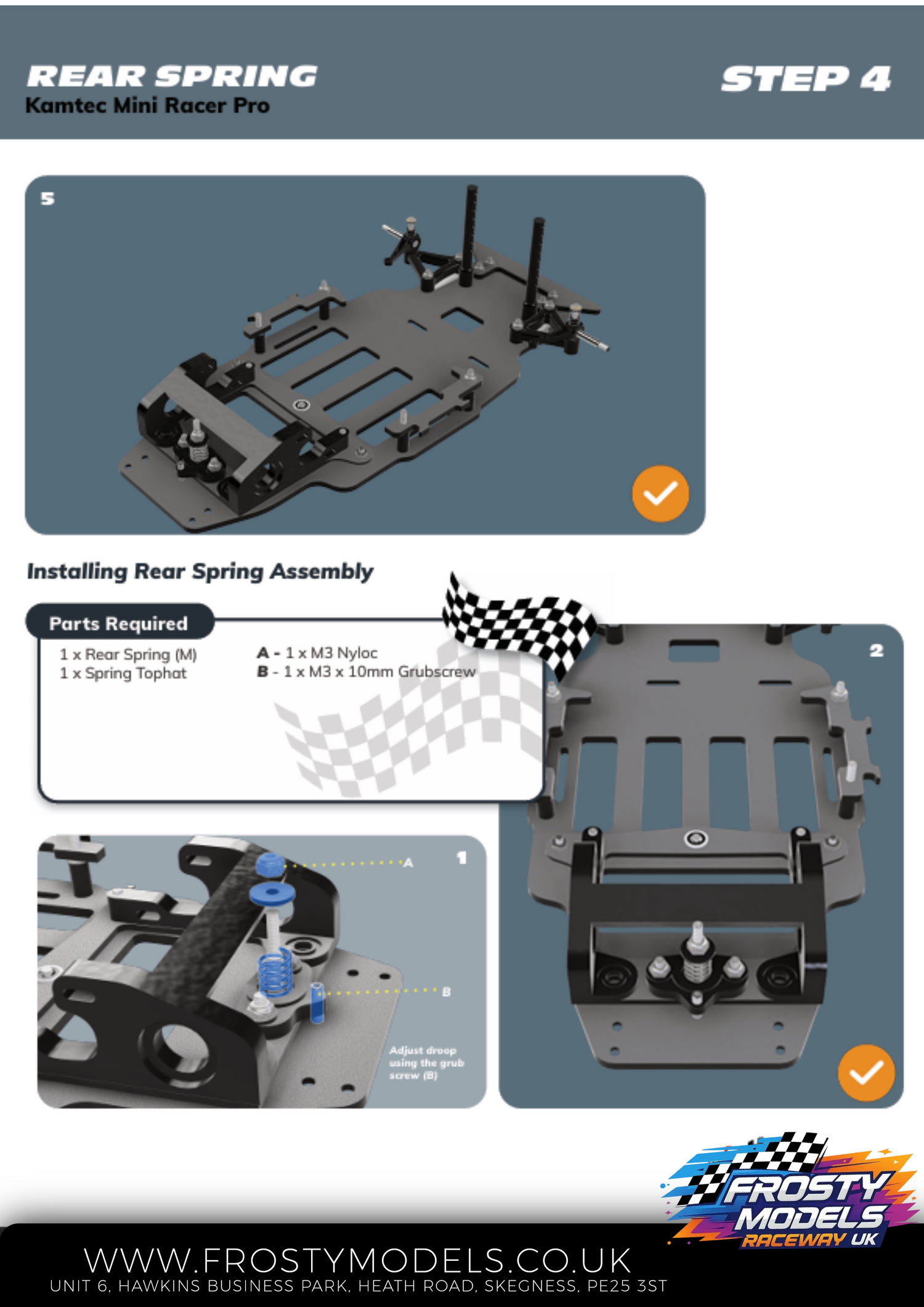

Building - Step 4

Rear Springs

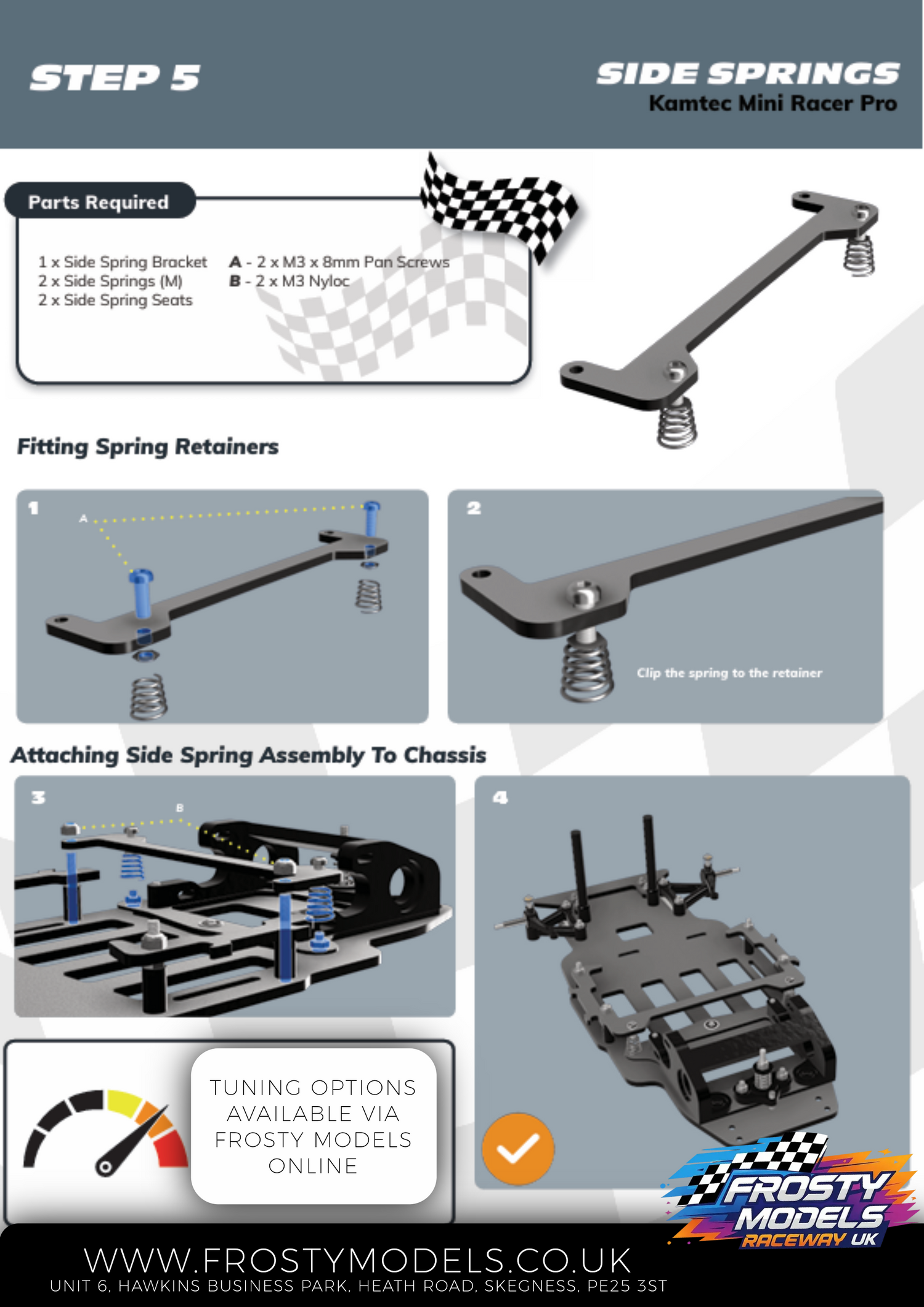

Building - Step 5

Building the Rear Spring Retainers

NOTE: Colour Coded Spring Rates:

u4838 - Black - Soft

u4839 - Silver - Med/Soft

u4841 - Nickle - Hard

u7322 - Red - Hard/Ultra

u7323 - Black - Ultra Hard

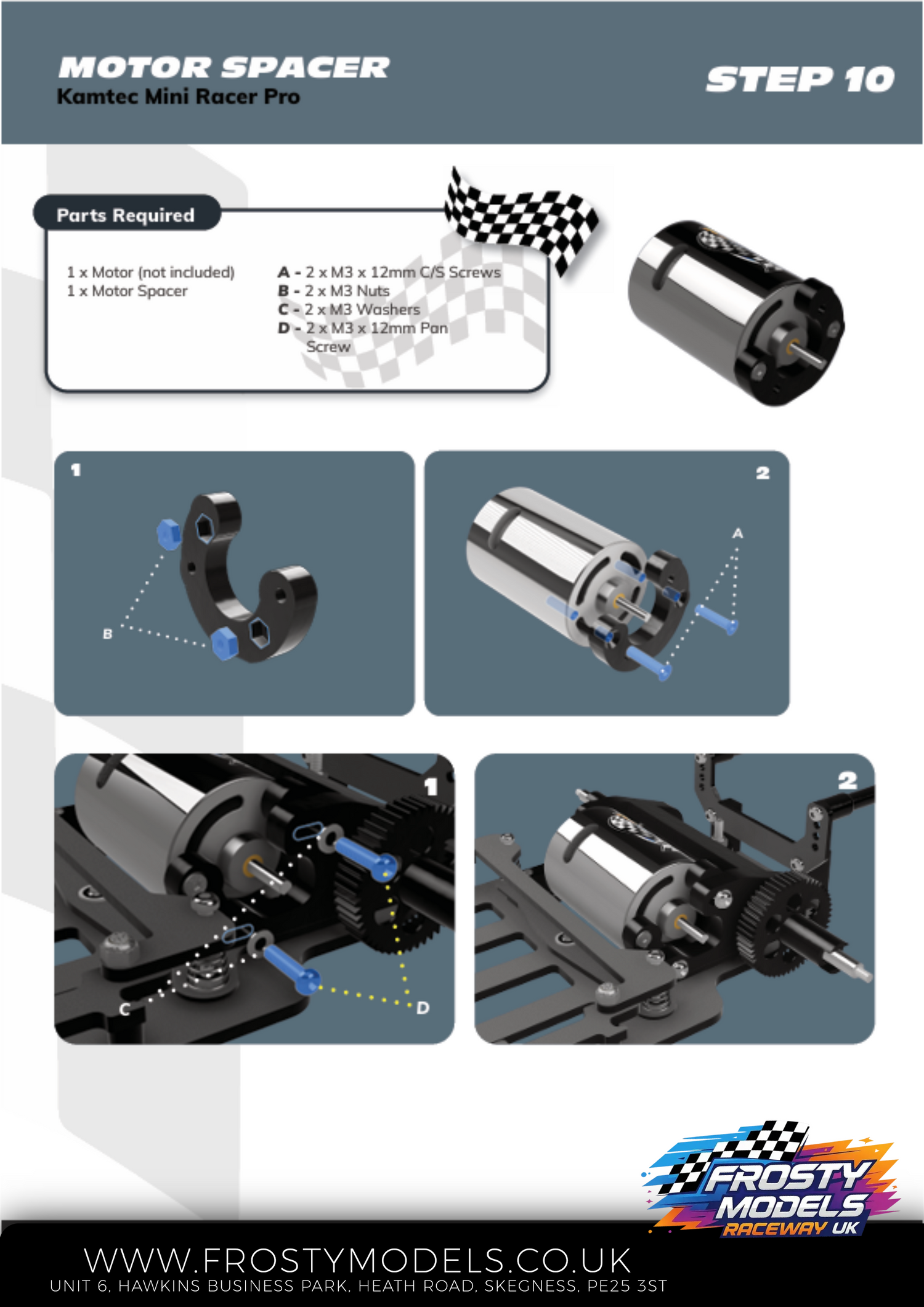

Building - Step 10

Motor Spacer (Now supplied in alloy)

Upgrades available

- CNC Machines Rear Pod

- Brushed Motor Support

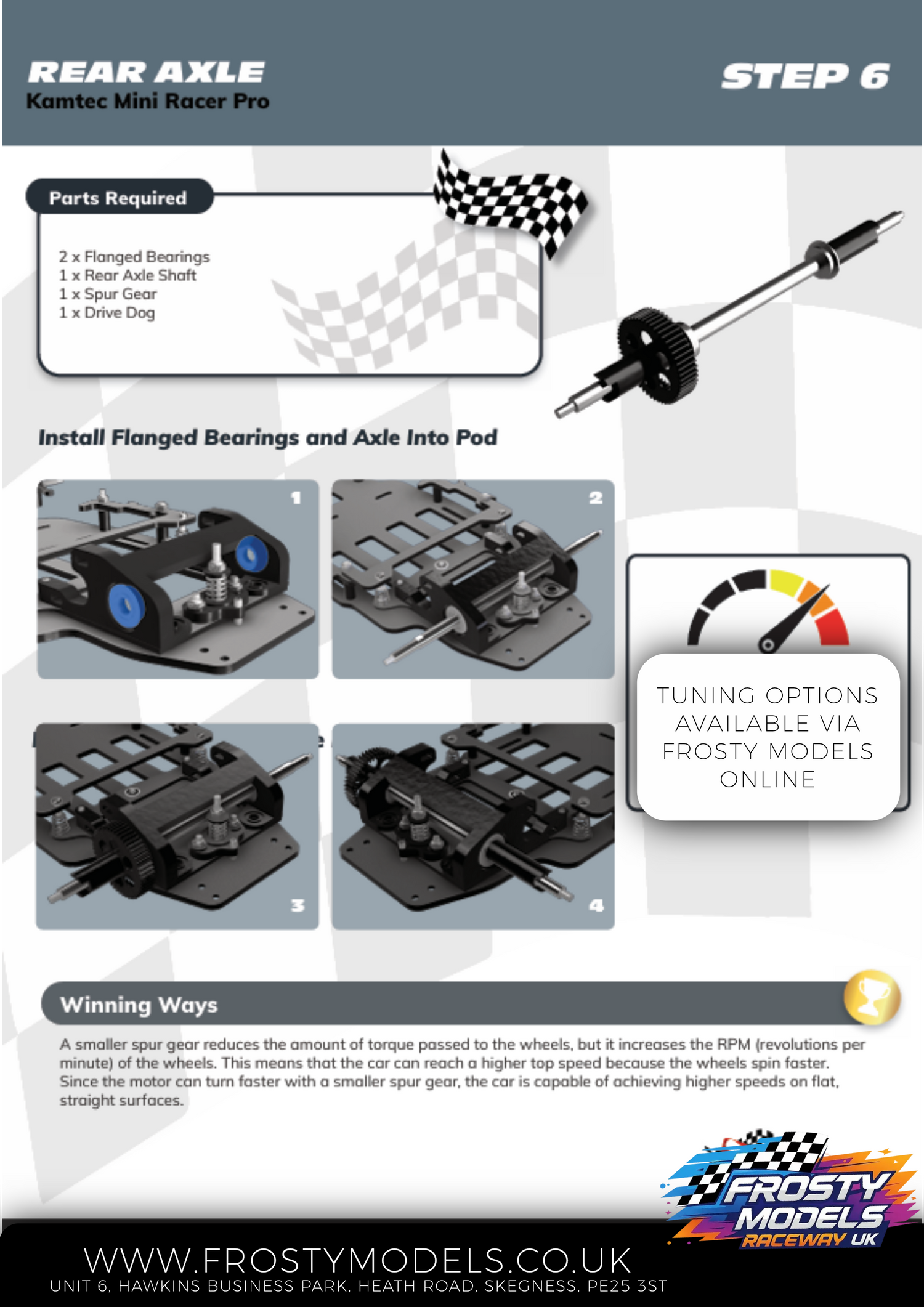

Building - Step 6

Rear Bearing & Axle Install

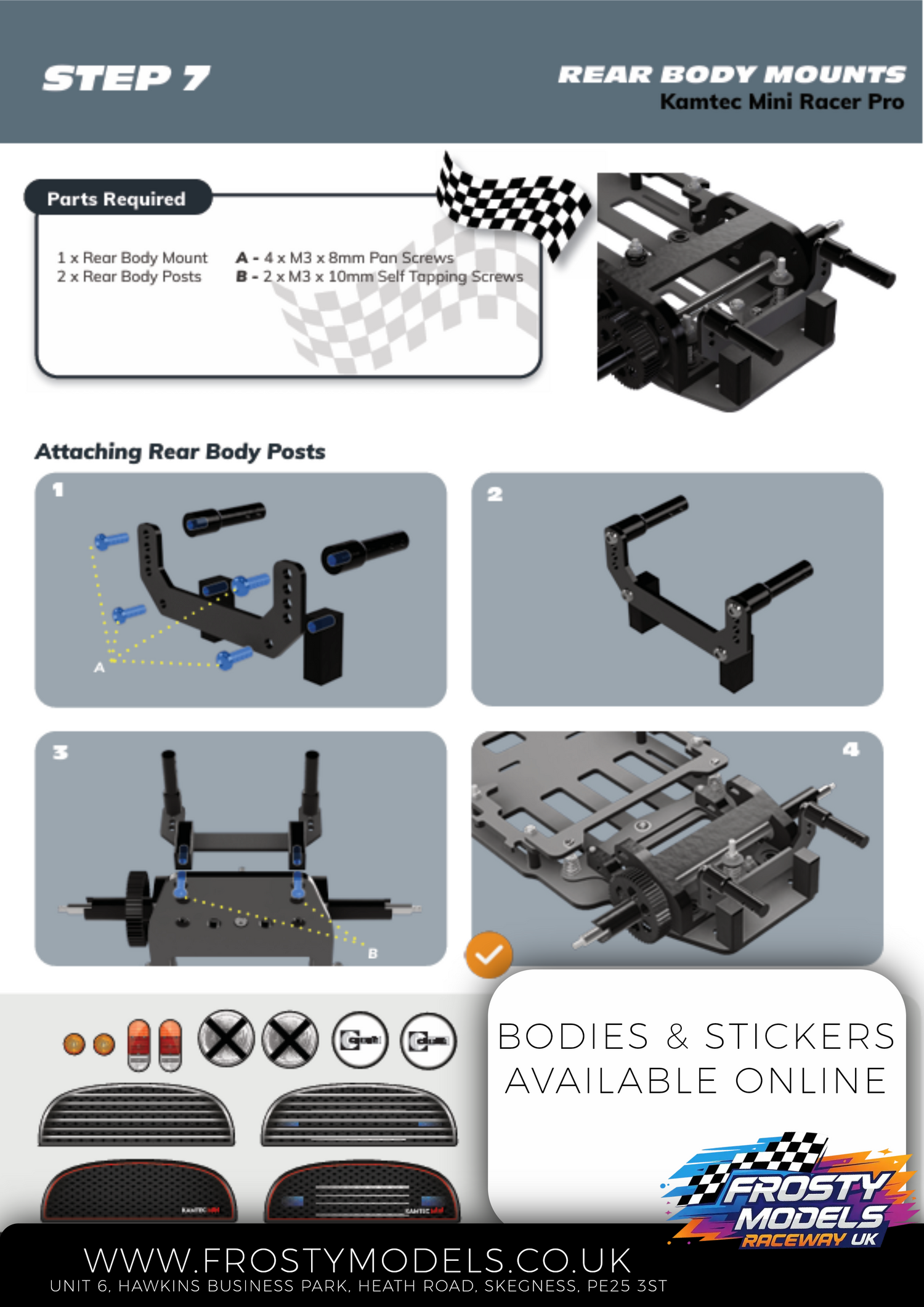

Building - Step 7

Rear Body Mount Install

Note: Take note on direction the mount is facing, else some mini bodies will not fit.

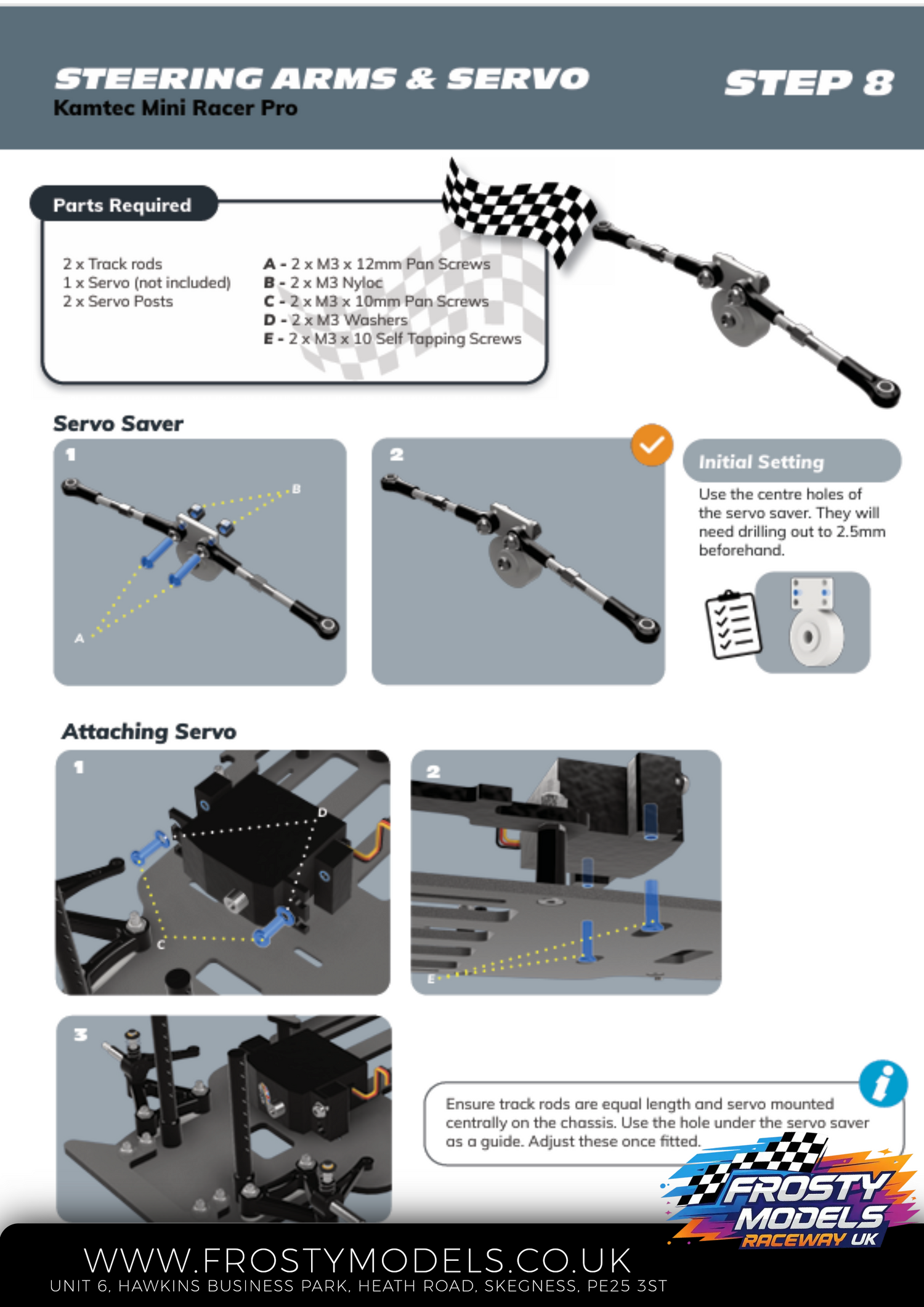

Building - Step 8

Steering Arm & Servo Install

Upgrades: You can use either a Standard 1/10, a smaller 1/12th servo with current supplied parts. Or even a micro 1/24th servo the reversed smaller servo mounts available at extra cost.

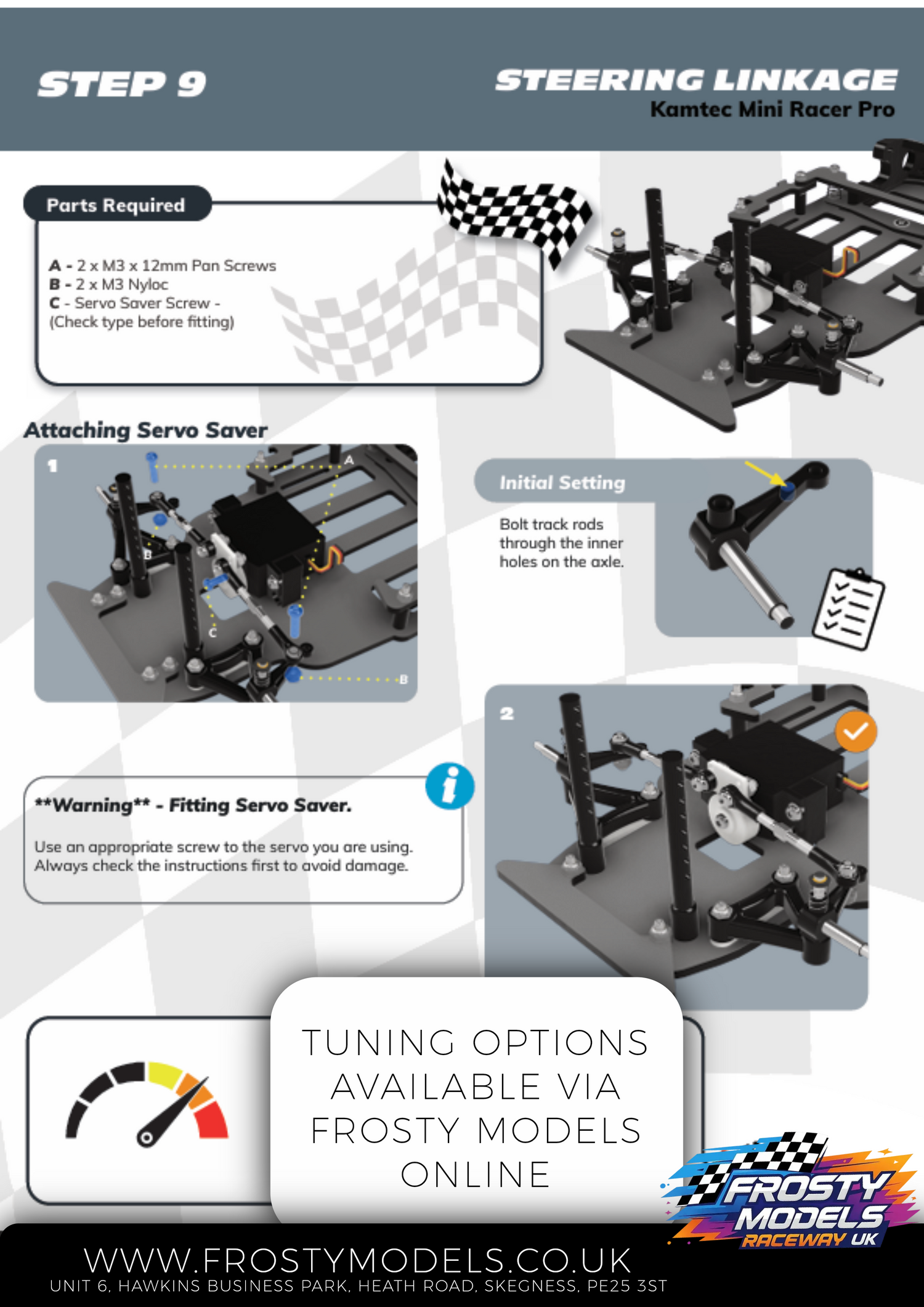

Building - Step 9

Steering Linkage

Note Servo Saver should clear the class and be as central to the steering links as possible - and the links should be as flat as possible.

There is also two positions to mount the links onto the arms - for further tuning.

Building - Step 10

Motor Spacer (Now supplied in alloy)

Upgrades available

- CNC Machines Rear Pod

- Brushed Motor Support
