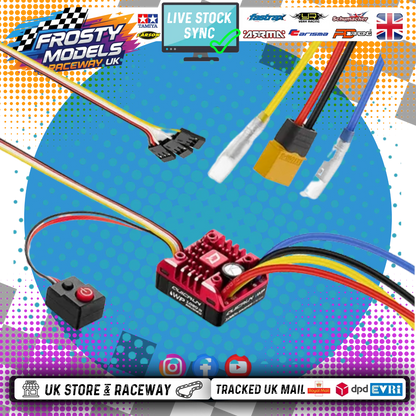

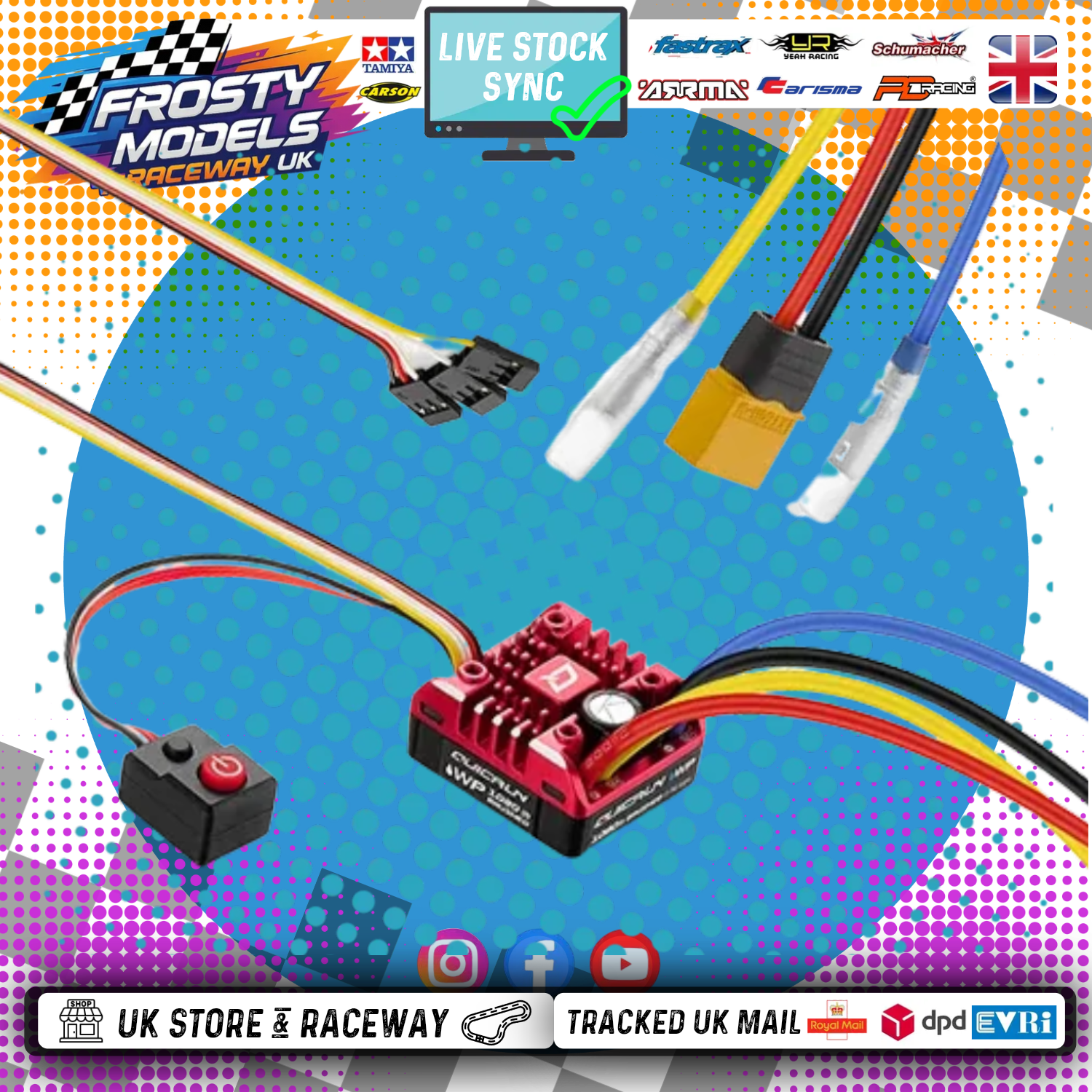

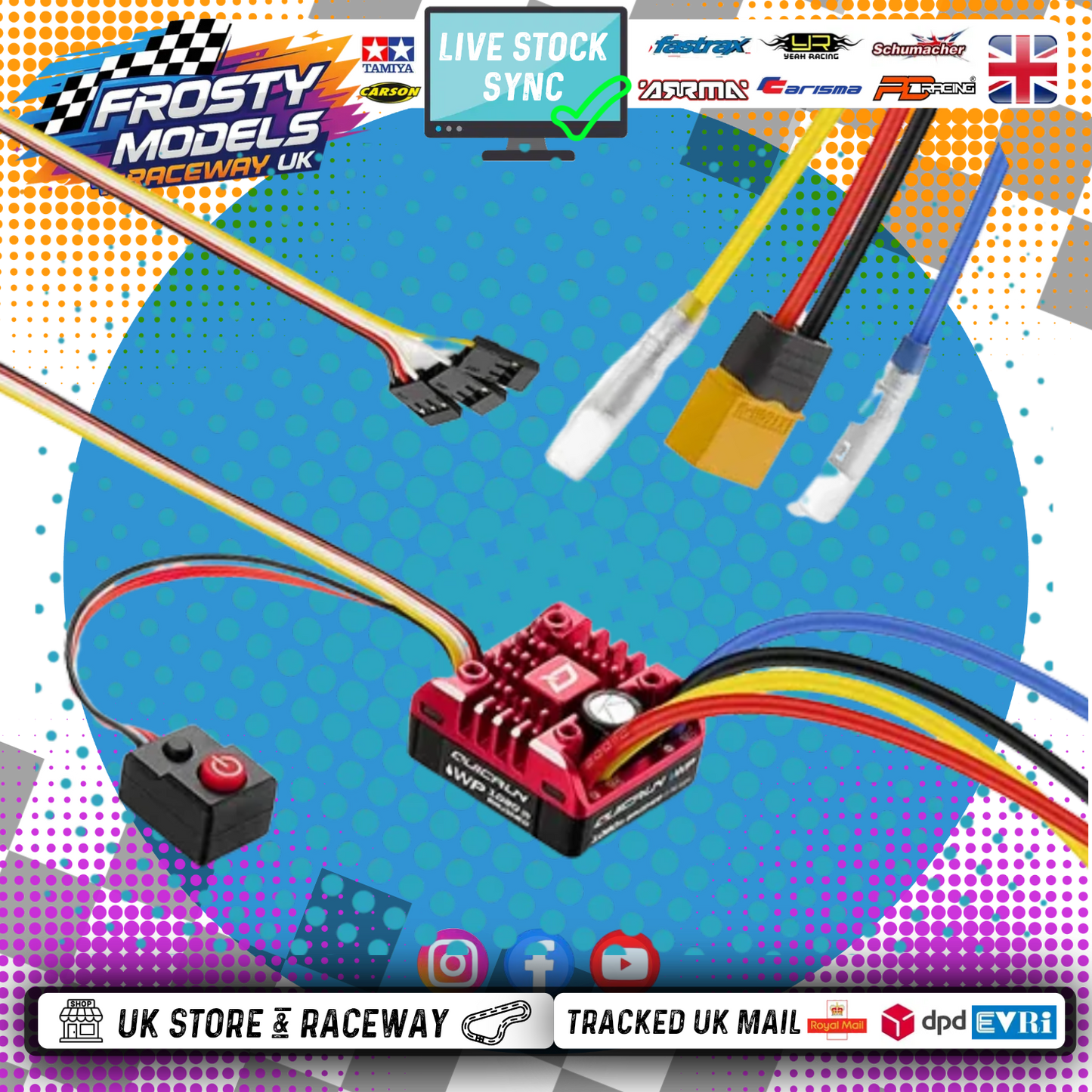

HOBBYWING - QUICRUN WP 1080 G2 - 1/10 On/Off Road BRUSHED ESC (WITH XT60 PLUG) HW30120202 (IDEAL FOR TRUCKS & CRALWERS WITH 'REAL DRIVE' MODE)

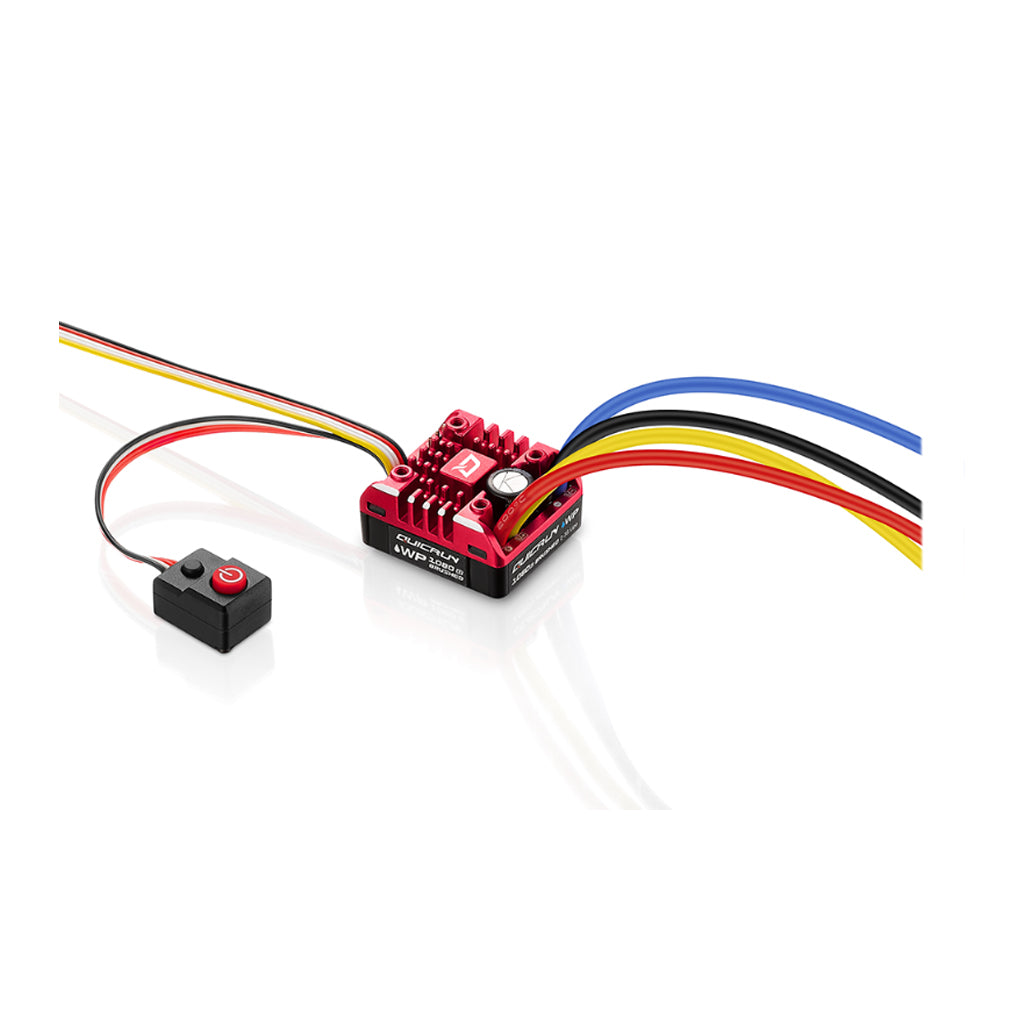

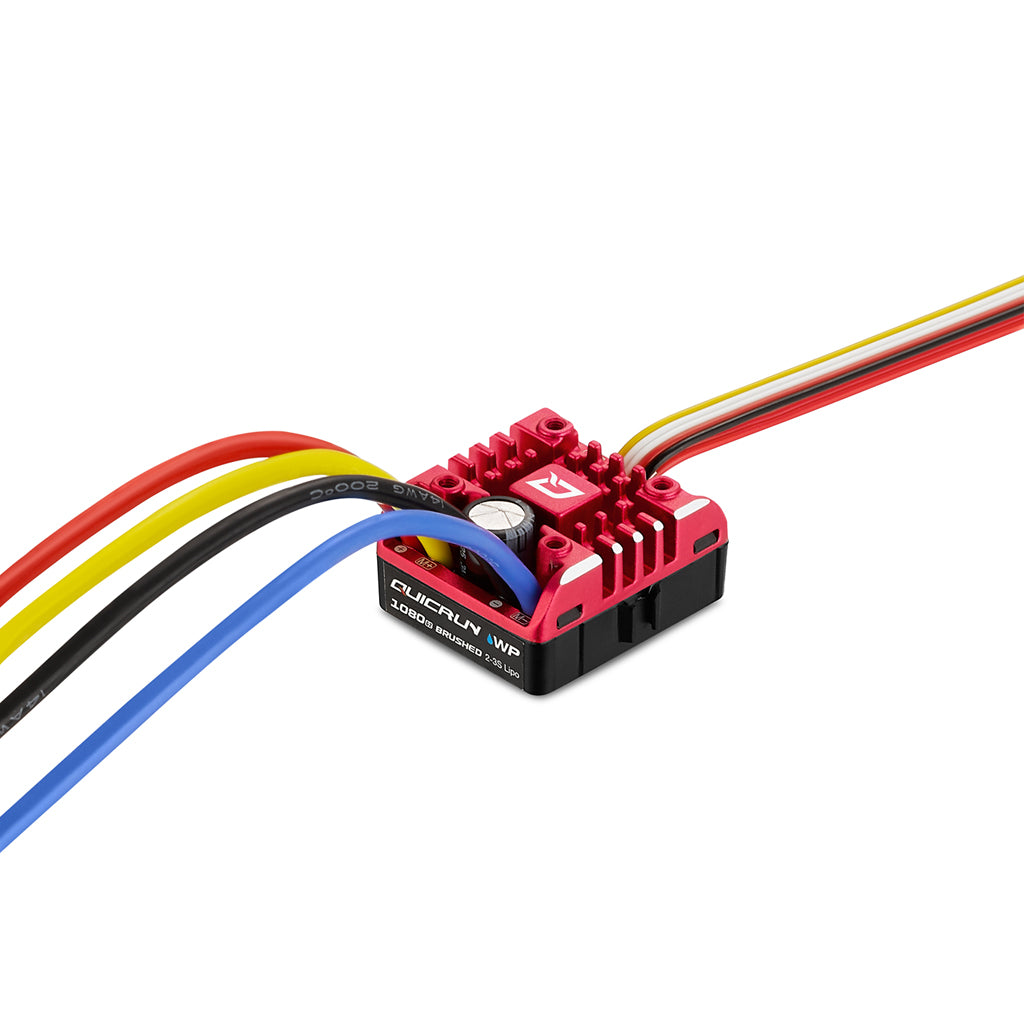

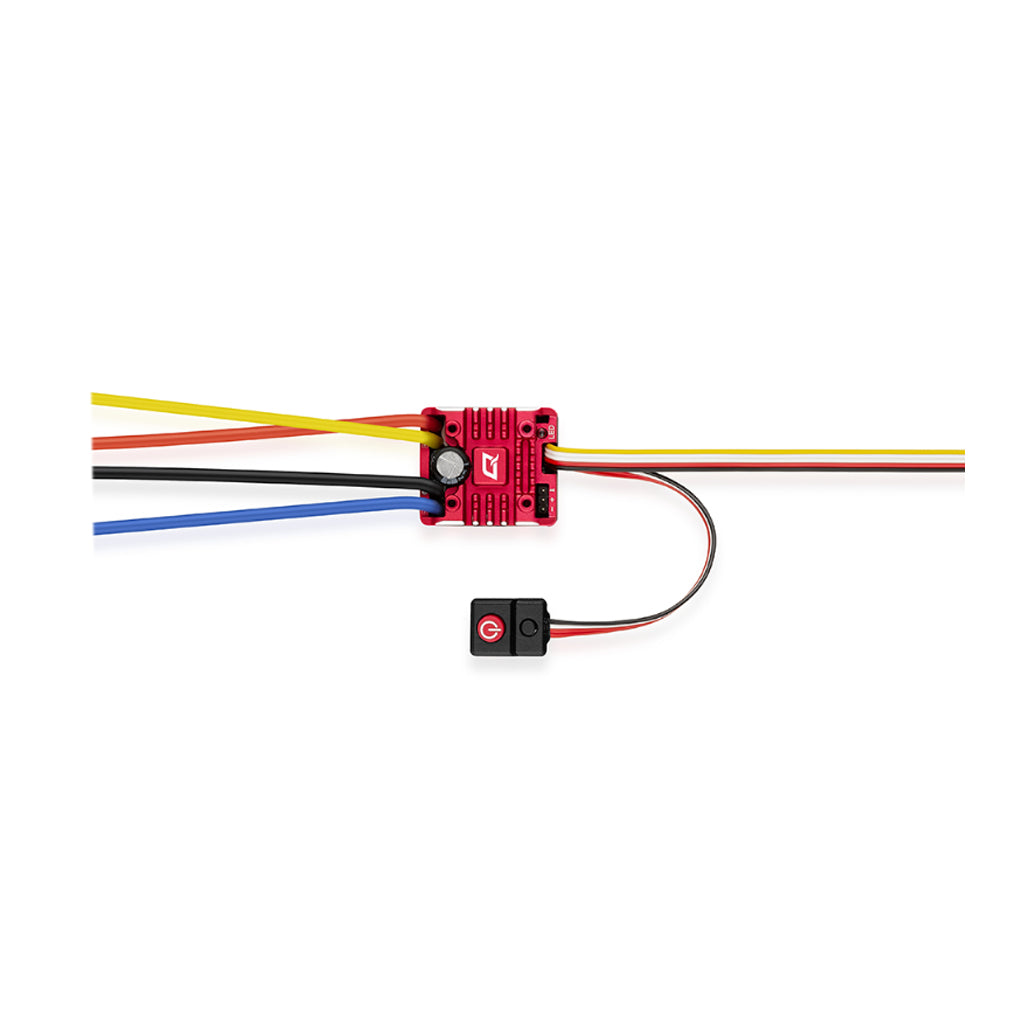

From Hobbywing is the QUICRUN WP 1080-G2 - Brushed ESC.

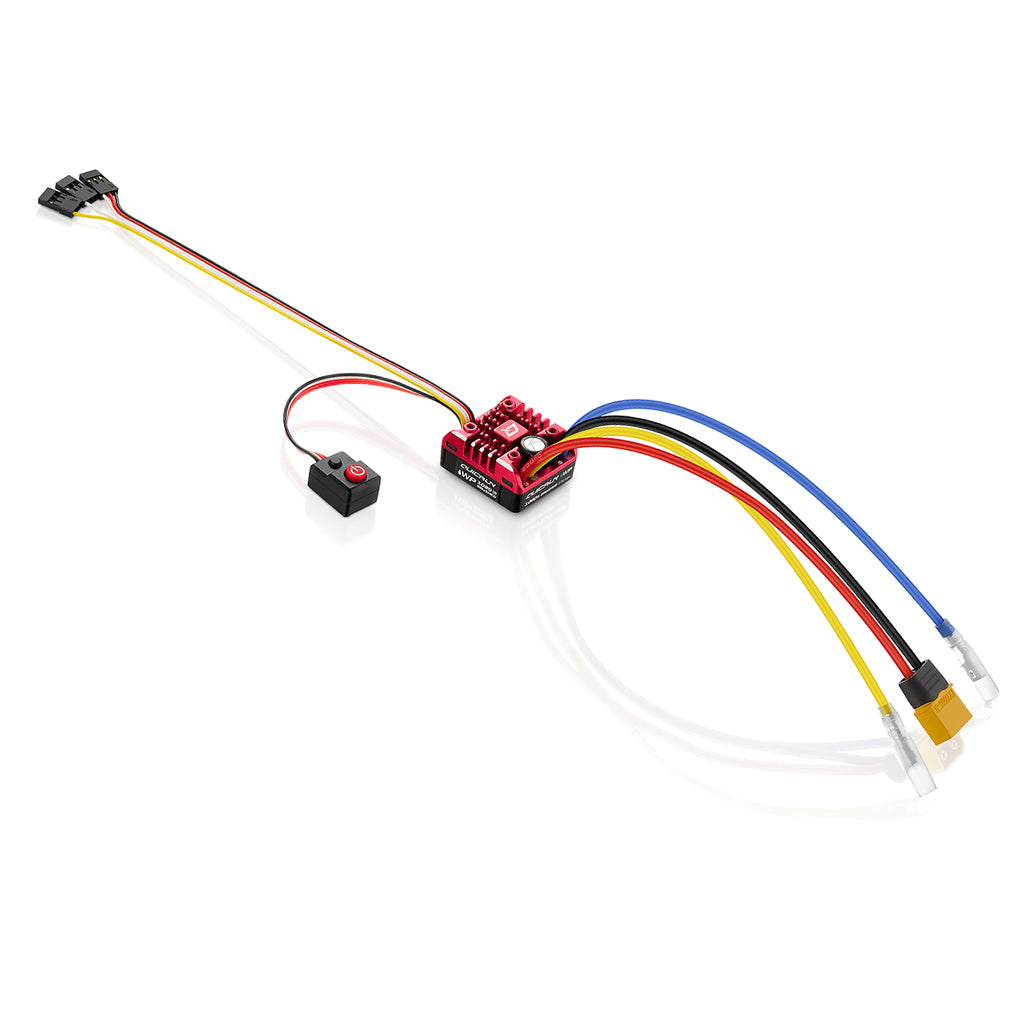

*COMES FITTED WITH A XT60 BATTERY PLUG AND PLUG AND PLAY MOTOR WIRE BULLETS*

Especially designed for crawler fans!

"The first real car mode"

The direction of the motor is switchable in real time by using the idle channel on the transmitter.
Pull the trigger for "forward"
Push the trigger for "brake"
Pull the trigger with the "reverse channel" on will give you "reverse"
(Requires an open channel on the receiver)
This new feature will provide the user with a unique experience unlike any other.

Four running modes available.

Fits a variety of control habits and control needs;

- Forward with brakes.
- Forward, reverse with brakes.
- Forward and reverse.
- Real car running mode.

Real-time adjustment of drag braking force.

Adjust the drag brake force in real time!
With the Drag brake Force Signal connected to an open channel on the receiver, users can adjust the drag brake force on the fly without the need to connect the Programmer.
(Requires open channel on receiver)

Temperature control upgrade.

The New design reduces operating temperatures of the ESC by about 15 degrees improving reliability.
The ESC also has a fan mount to meet additional cooling needs.

BEC Upgrade.

The BEC Upgrade includes maximum output to 6A and provides 6V/7.4V/8.4V output options to support most of the servos on the market.

Multiple, easy to set parameters.

15 Programmable Items lets drivers easily tune their vehicle with the LED Programming Box connected to the programming port.

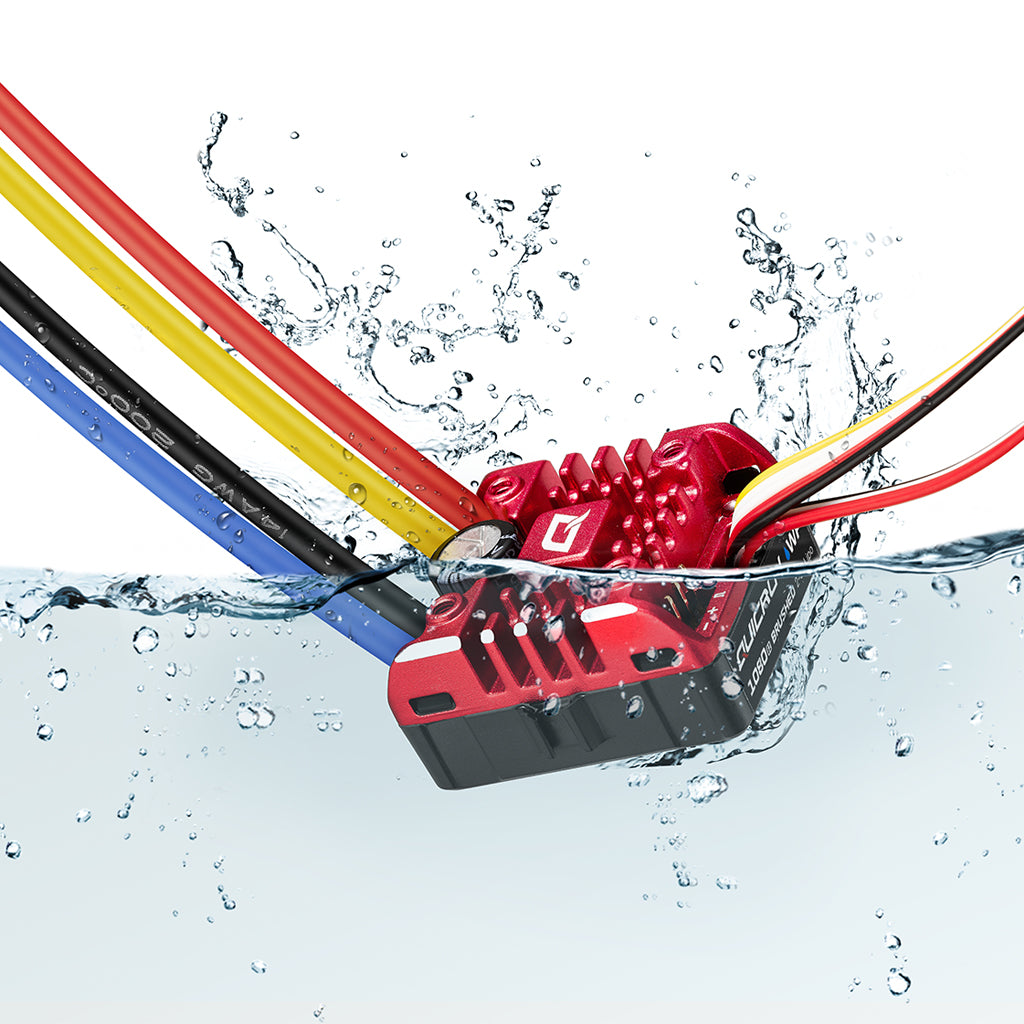

IP67 Protection

IP67 Standard for being waterproof and dust-proof for various weather conditions, and driving surfaces.

Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and is tested under controlled laboratory conditions. Its effect is in the GB / T 4208-2017 (domestic) / IEC 60529 (overseas) standard to IP67 level. Splash, water and dust resistance are not permanently effective, and the level of protection may decline due to ageing.

High reliable electronic switch design prevents mechanical switch failure due to dirt, water, dust etc.

Multiple protections: low-voltage cutoff protection, thermal protection, and throttle signal loss protection.

Separate programming port to easily connect the LED program card to the ESC.

Single-button ESC programming and factory reset.

ESC programming via Hobbywing LED program card - HW30501003

Specifications

Scale - 1/10th
Brushed/Brushless - Brushed
Waterproof - Waterproof

Cont./Peak Current - 80A/400A
Input Voltage - 2-3S Lipo
BEC Output - Switch Mode: 6/7.4/8.4V@3A, 6A Peak.

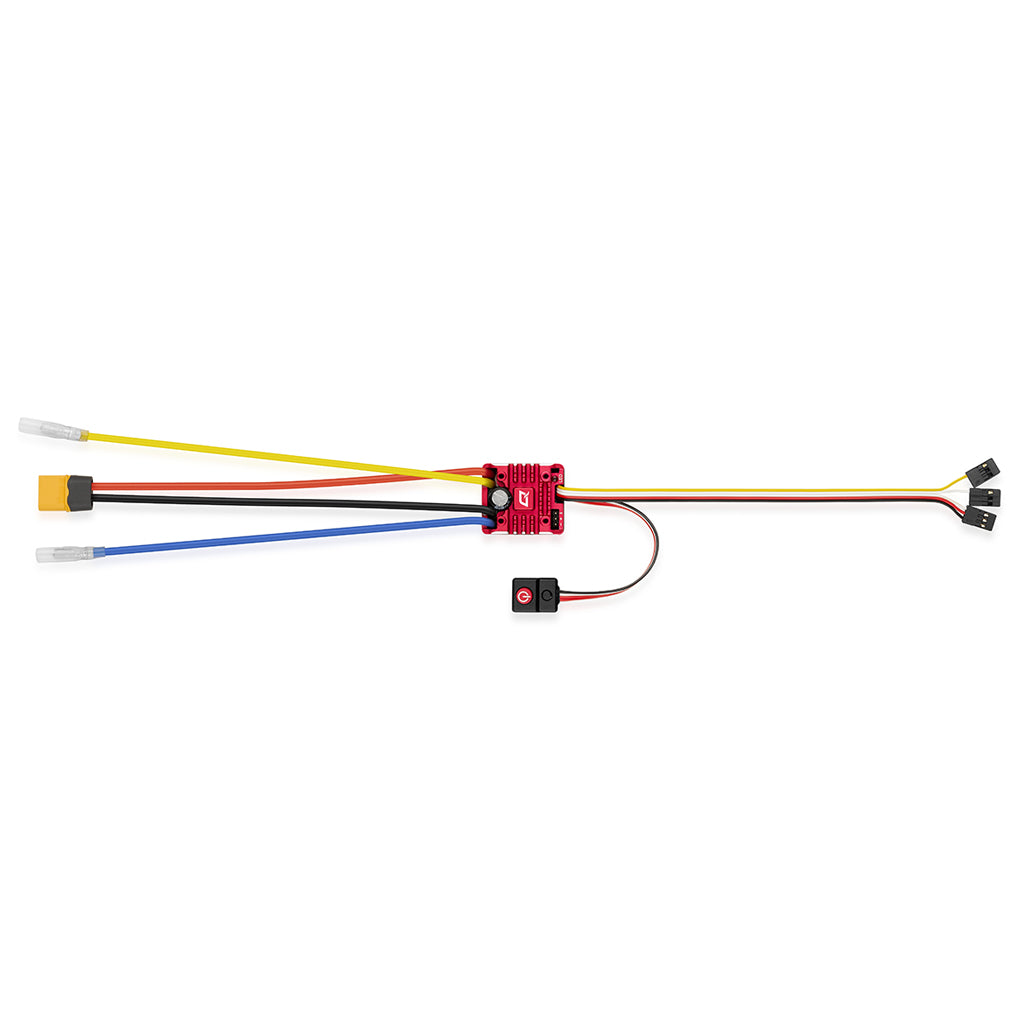

Wires & Connectors
Input Wires - Black-14AWG-200mm / Red-14AWG-200mm
Output Wires - Yellow-14AWG-200mm / Blue-14AWG-200mm
Input Connectors - XT60 Connectors
Output Connectors - 4.0mm Bullet Connectors (Female)
(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD Program Box - Not Supported
WiFi Module - Not Supported
Program Port - Separate Program Port

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 37.2X31.9X18.4mm
Weight - 70.2g (w/Wires)

Applications
Motors - Brushed Motor (540/550 Size Brushed Motors)
Vehicles - 1/10th Rock Crawlers
