SRT - Metal Geared LV 4.8V ~ 6v STD Digital Servo - SRTDL3017 (6.0v): 0.15 sec / 17.0kg) - (Standard & Low voltage applications)

Application :

Low voltage required vehicles, such as a 4.8v battery powered GT12 or for Standard 1/10th Off road Torque requirements at 6V BEC.

• Incredible efficiency and low power consumption
• 2 μsec Dead Band
• 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: DC
• Gear Type: Metal
• Gear Material: Titanium & Copper
• Control system: Pulse width control
• Working frequence: 1520μs / 330hz
• Operating voltage: DC 4.8-6.0v
• Operating temperature range: -10 to + 60 degree
• Operating speed (4.8v): 0.17 sec/60 degrees at no load
• Operating speed (6.0v): 0.15 sec/60 degrees at no load
• Stall torque (4.8v): 15.5kg.cm (215.2 oz/in)
• Stall torque (6.0v): 17.0kg.cm (236.0 oz/in)
• Potentiometer drive: direct drive

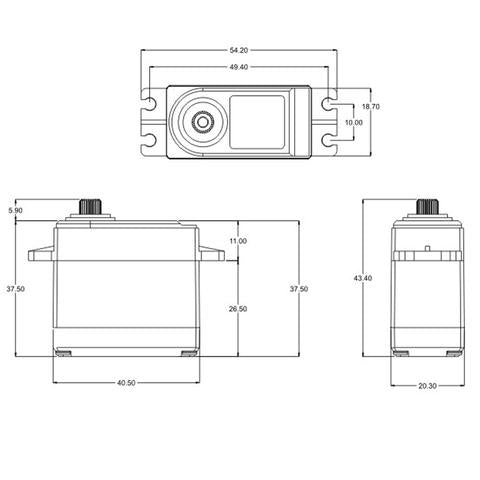

• Dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
• Weight: 63.0g (2.22 oz)
• Connector wire length: JR 250 mm
