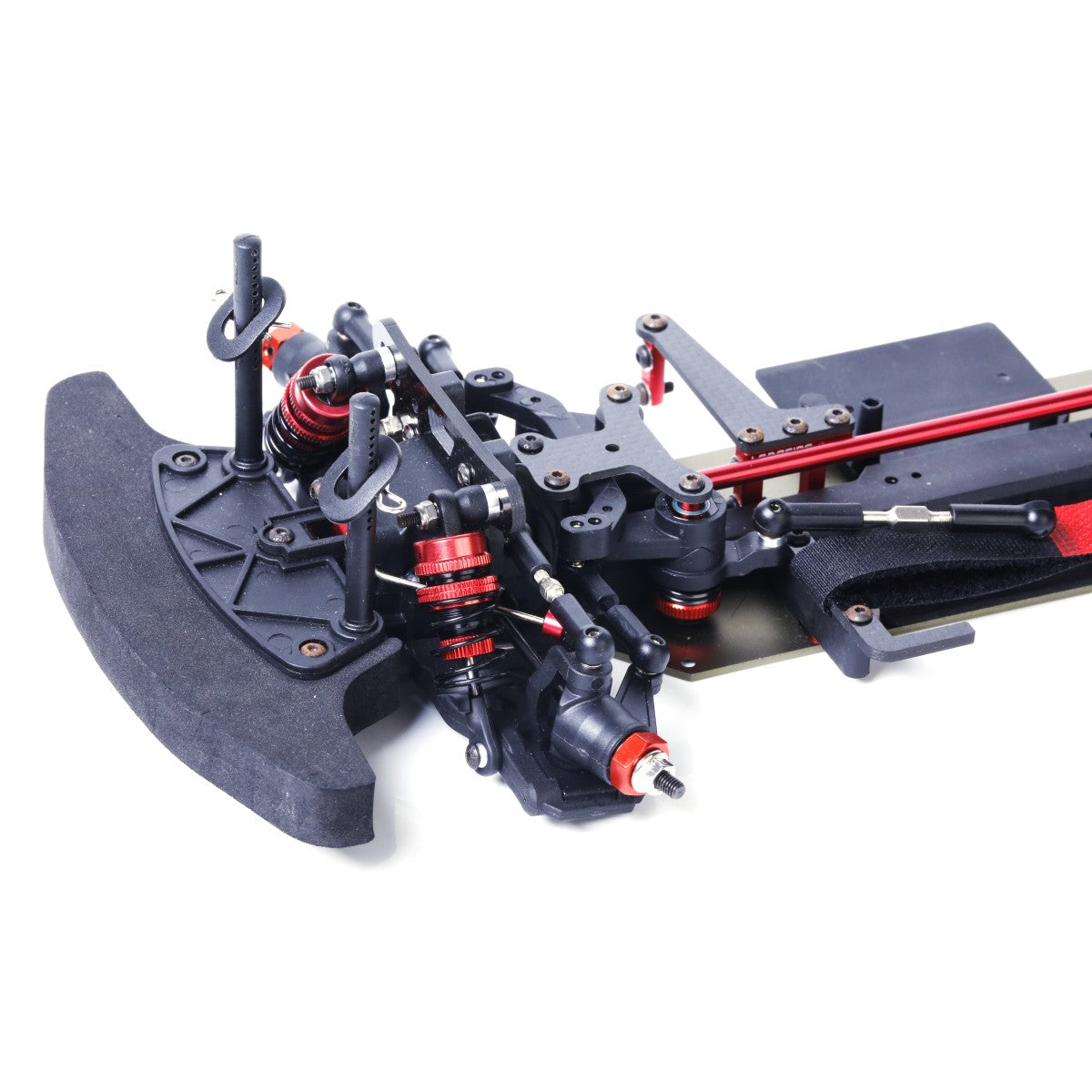

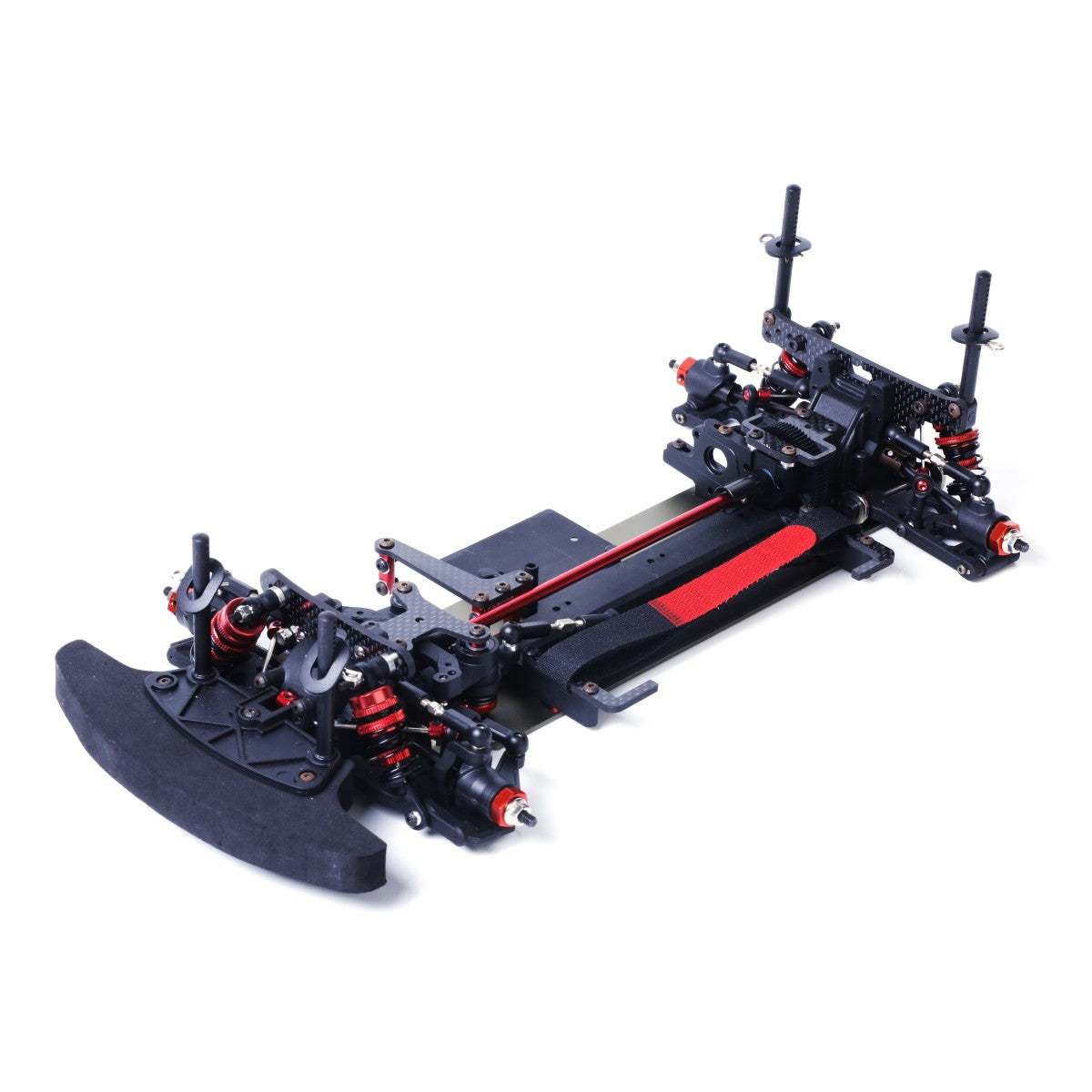

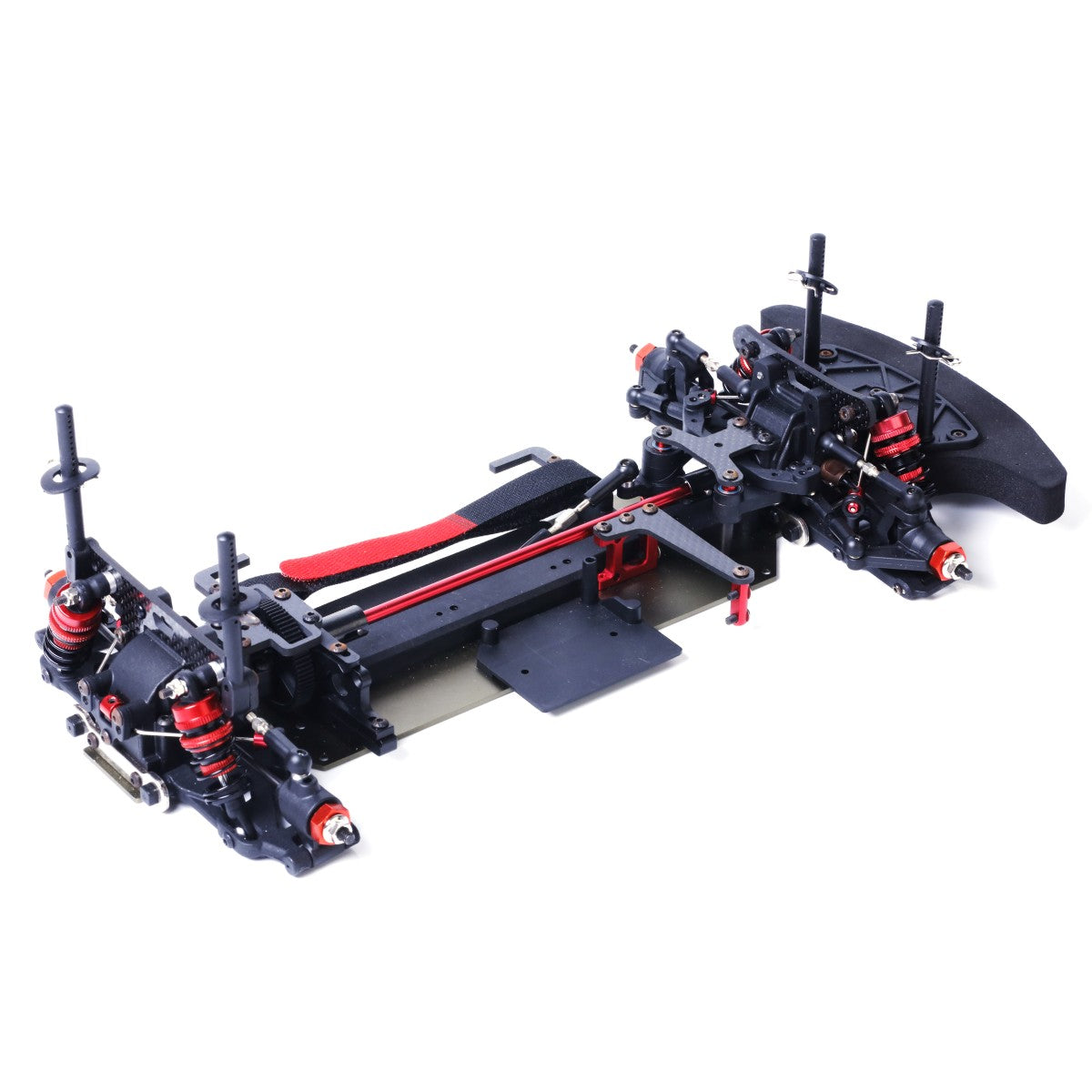

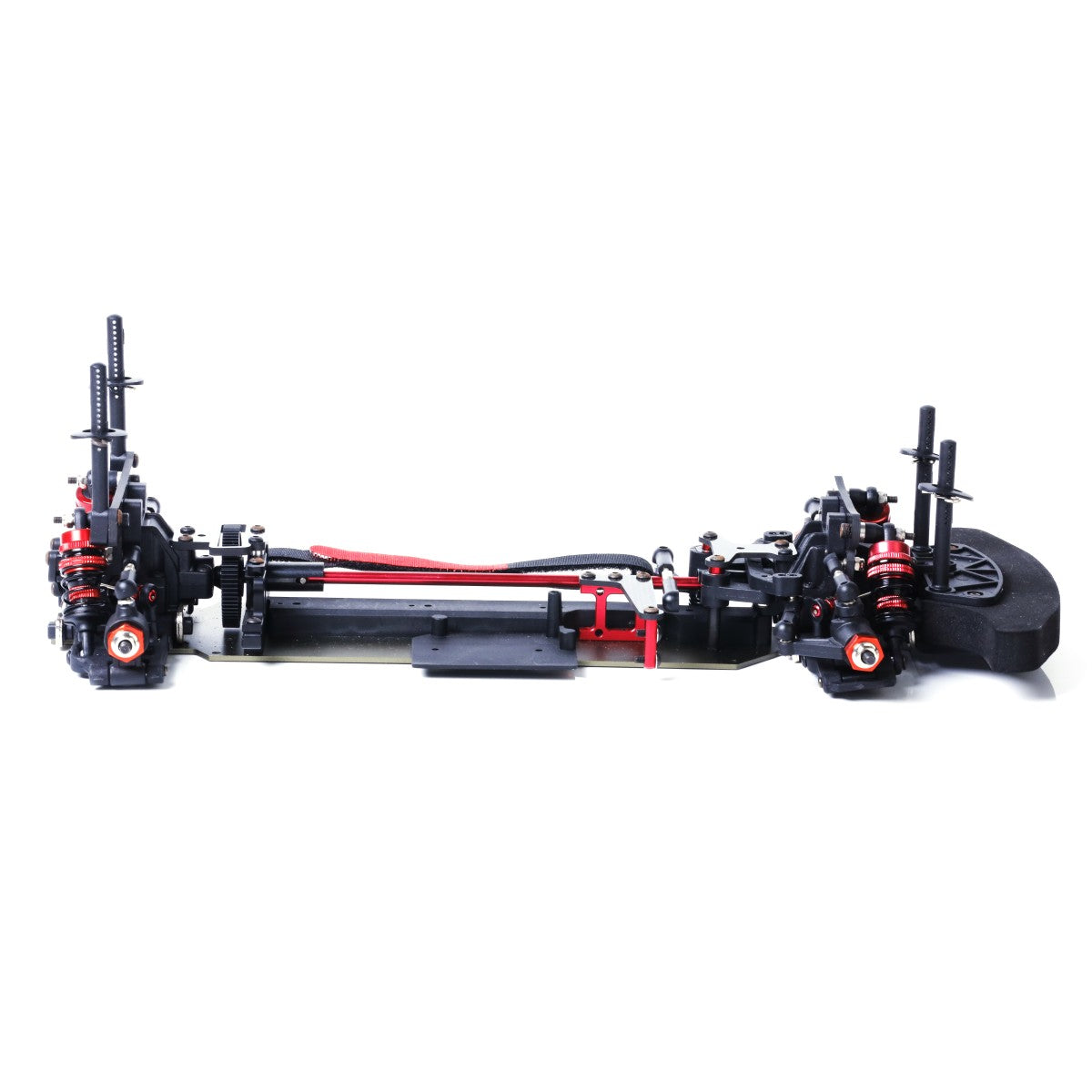

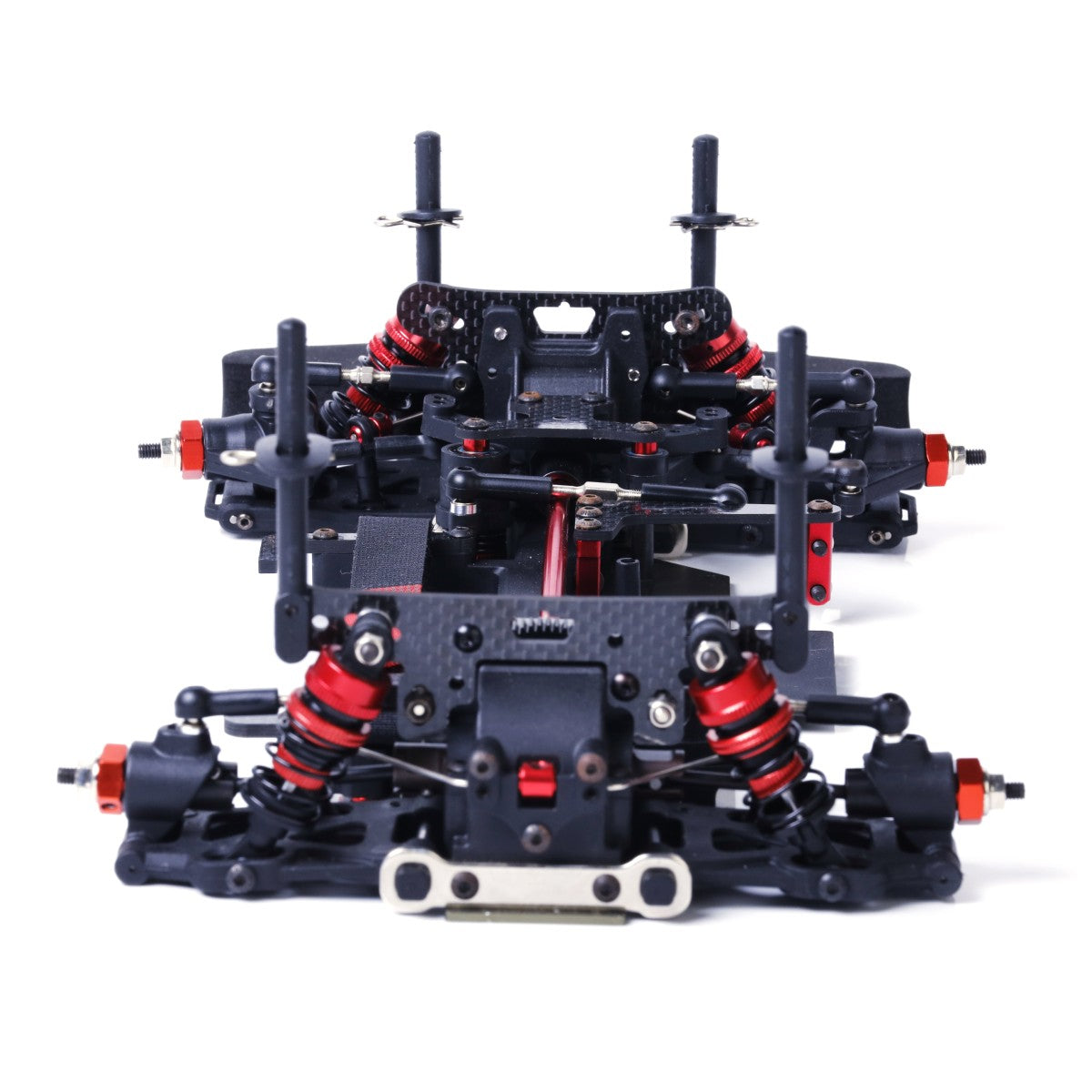

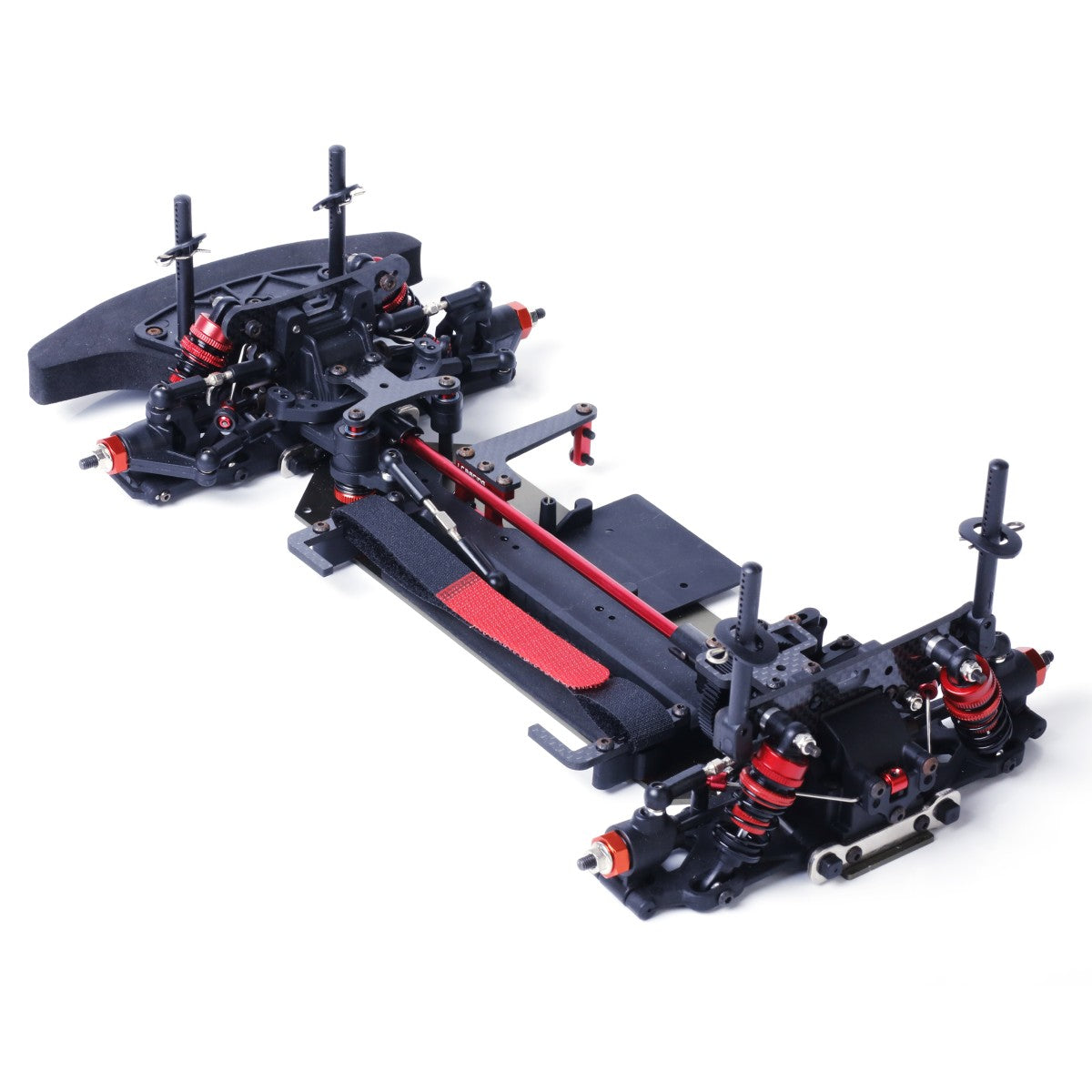

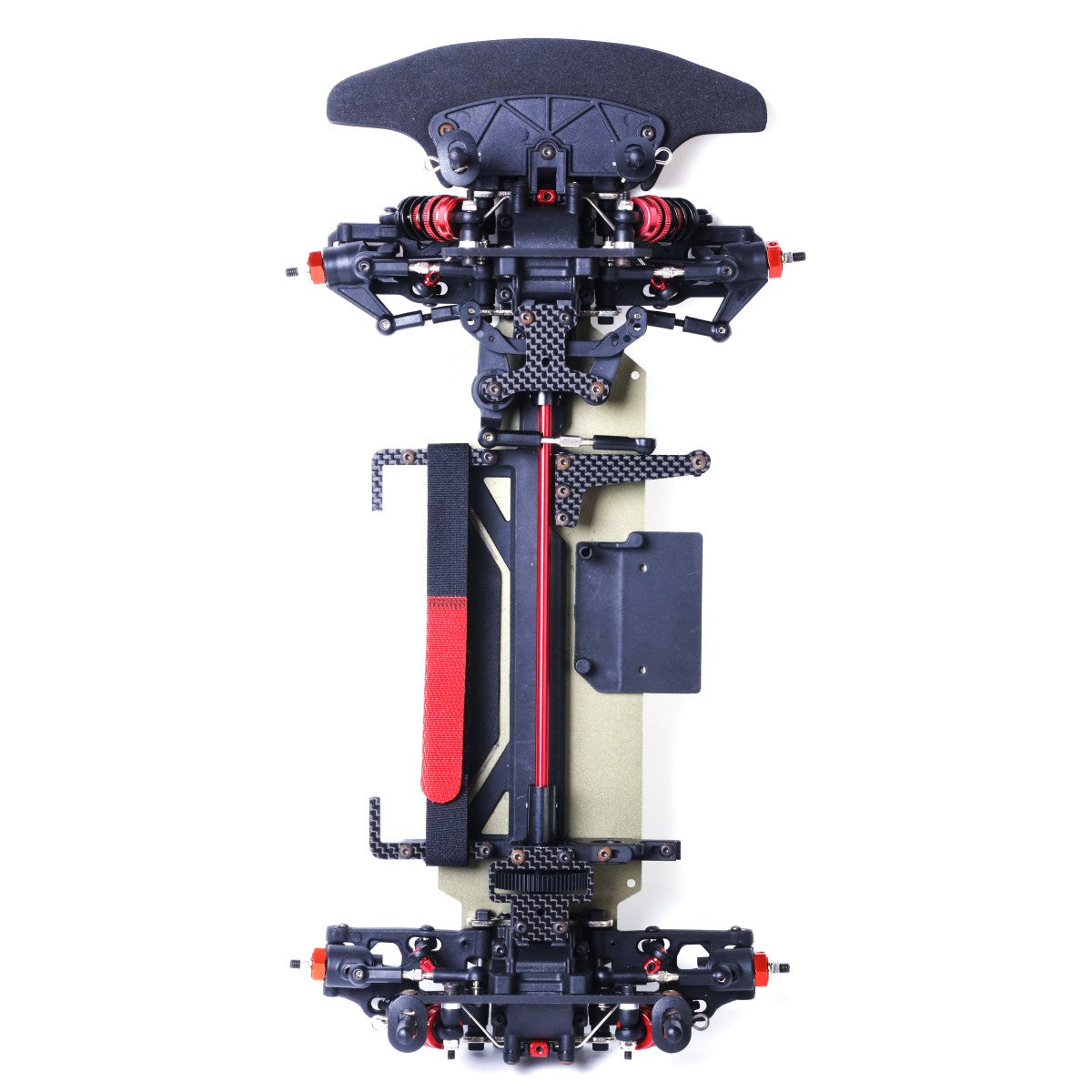

LC Racing – PTG-2TC – 1/10th 4wd touring car chassis kit (Alloy Chassis, Carbon Fibre Towers, Shaft Driven Fully Adjustable Race Car) - Chassis kit only

LC Racing PTG-2TC 4wd 1/10th touring car kit

DESCRIPTION

Elevate your RC experience with the LC Racing 1/10 PTG-2TC Touring Car Kit! Renowned for its high-quality 1/14 off-road models, LC Racing makes a significant entry into the 1/10 touring car market with this chassis. This kit combines precise engineering with thoughtful design to provide you with a competitive and exhilarating RC driving experience. LC Racing’s new touring car will help them expand their current range of vehicles, while giving you loads of affordable performance. Here are some key highlights-

Key Features:

• 4WD with shaft drive: Ensures reliable and smooth power delivery for excellent handling on any track.
• Carbon shock towers: Lightweight and robust, they enhance suspension performance while reducing overall weight.
• Velcro battery mount: Keeps the battery securely in place, even during intense runs.
• Rear-mounted motor: Optimized weight distribution for improved stability and precise cornering.

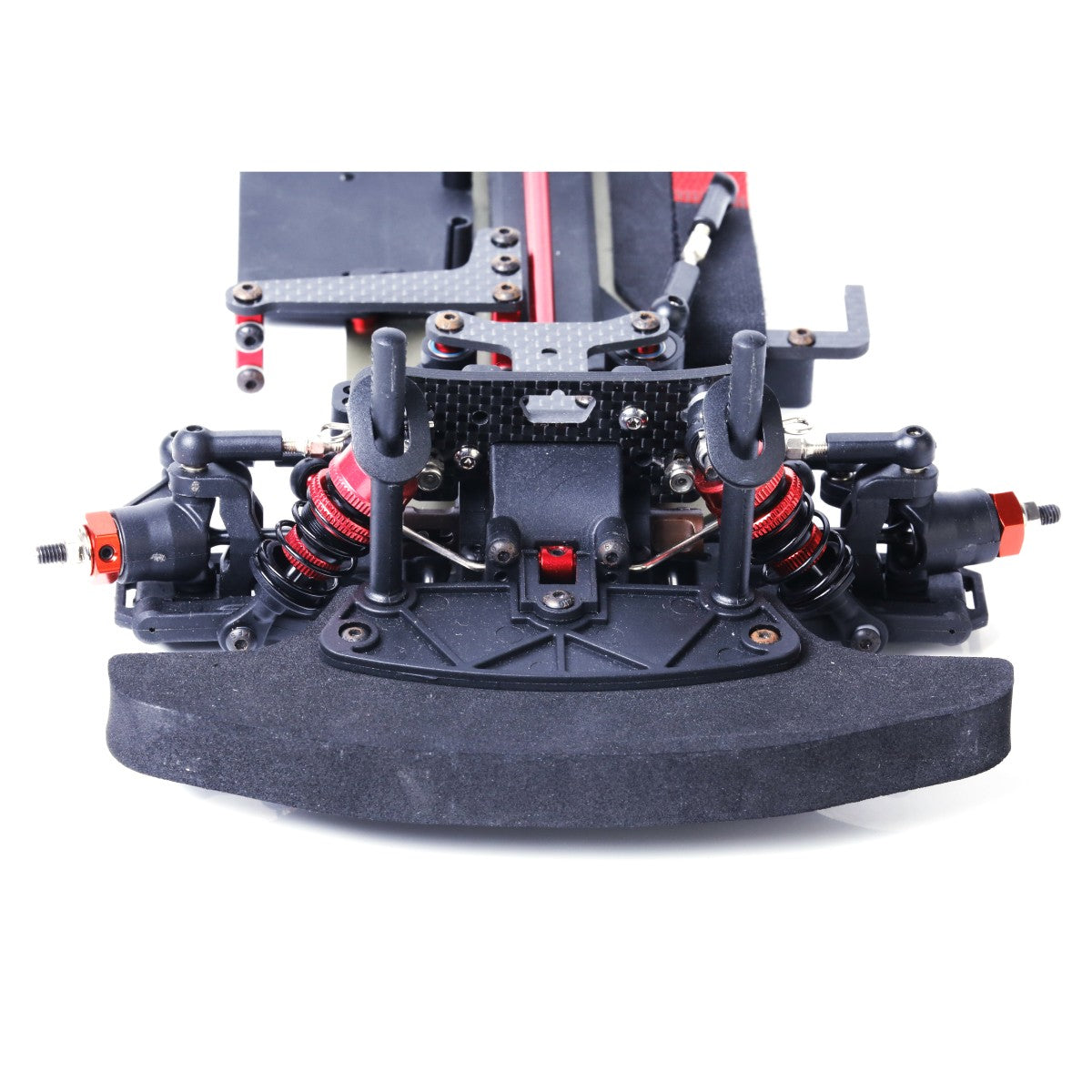

• Front and rear stabilizers: Minimize body roll and provide better control at high speeds.
• Aluminum shock caps: Offer added durability and a premium look.

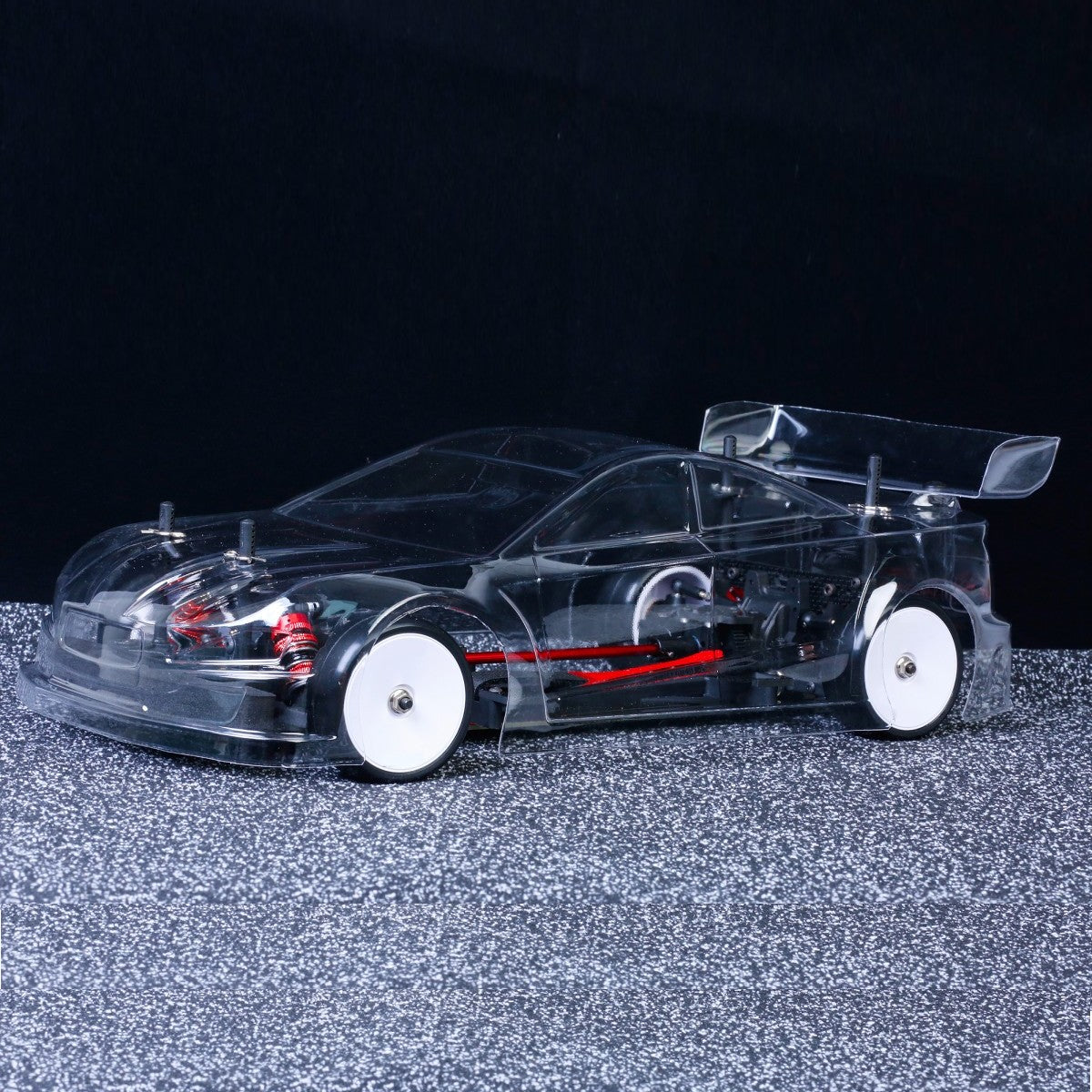

The kit also includes a clear touring car body that you can customize to your liking.

Transmission

The ultra-high-strength metal geared shaft transmission system is at the heart of the PTG-2TC, all-metal construction from the aluminium centre shaft through to the steel crown and pinion gears and internal small bevel gears/differential planetary gears. These professional spec competition gear differentials, provide transmission system durability beyond imagination.

Shock Absorbers

The large-capacity aluminium oil filled adjustable shock absorbers, and the 10mm large-diameter are optimized for super silky smooth suspension and bump handling.

Fully ballraced throughout, CVD driveshafts and high-strength spring steel hinge pins front and rear.

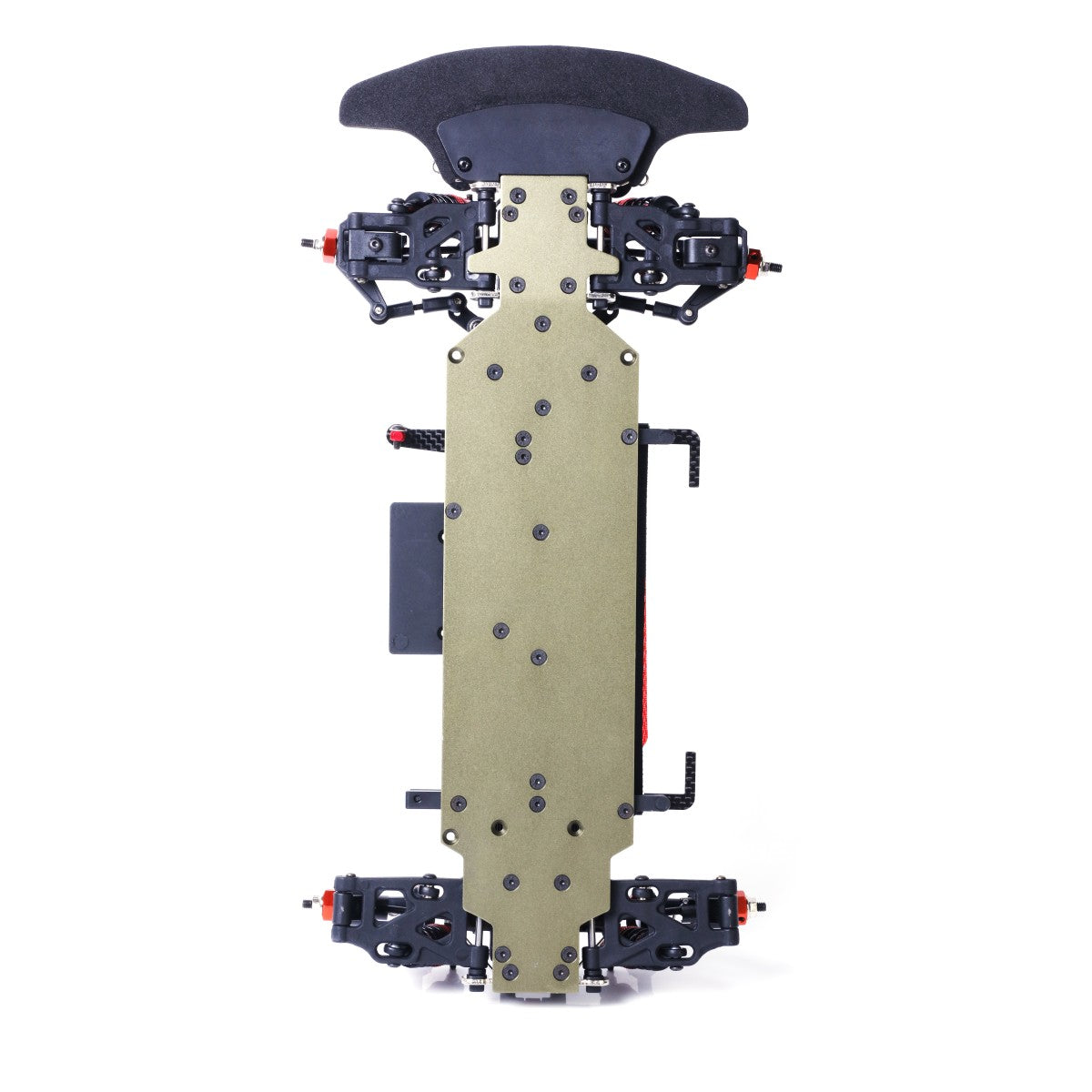

Aluminium 6061 alloy chassis at the base, optimized for performance.

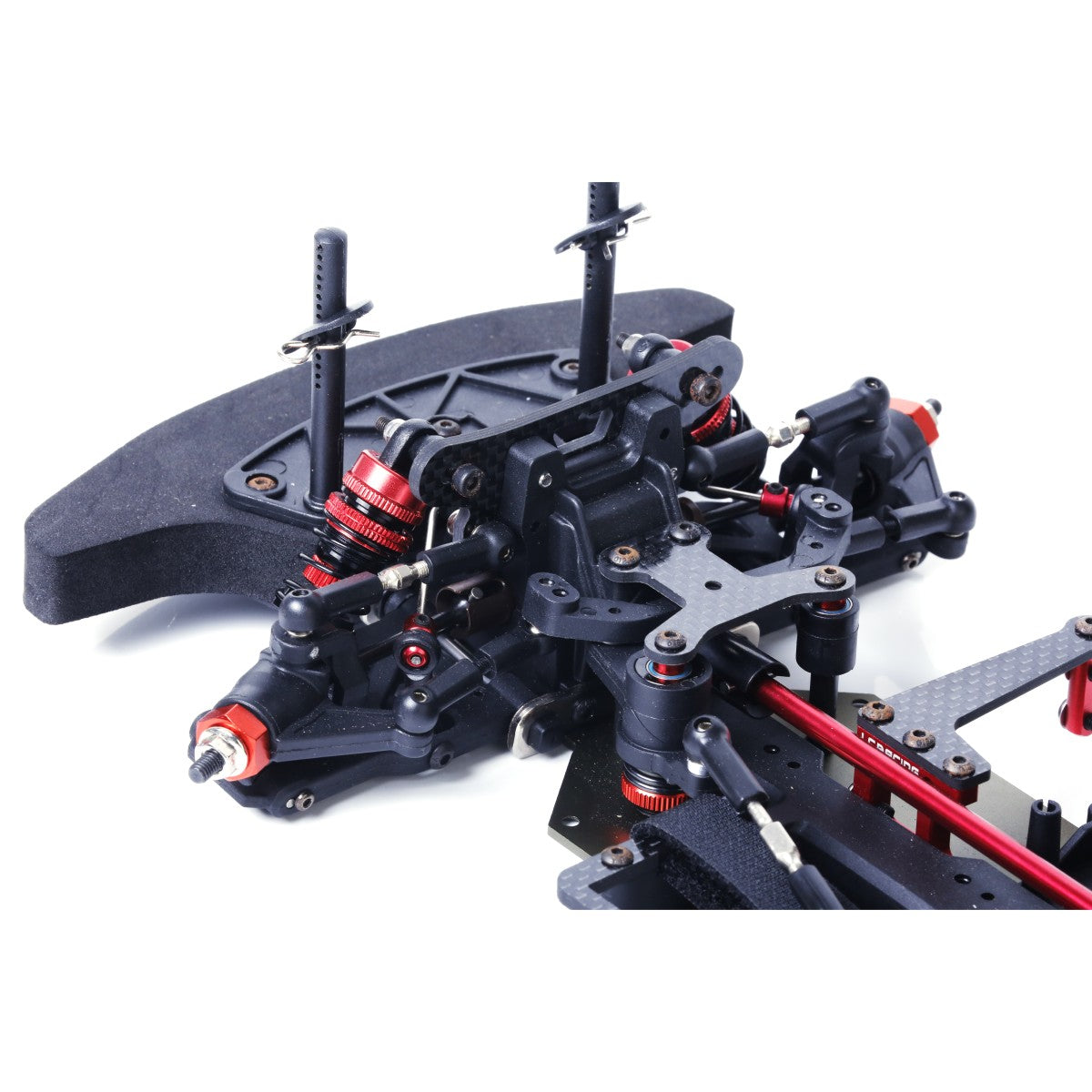

The newly designed suspension assembly, new steering block and front/rear hubs are in an new material providing super durability. The steering system is also designed with a built-in servo saver mechanism optimized for tension whilst protecting your steering servo

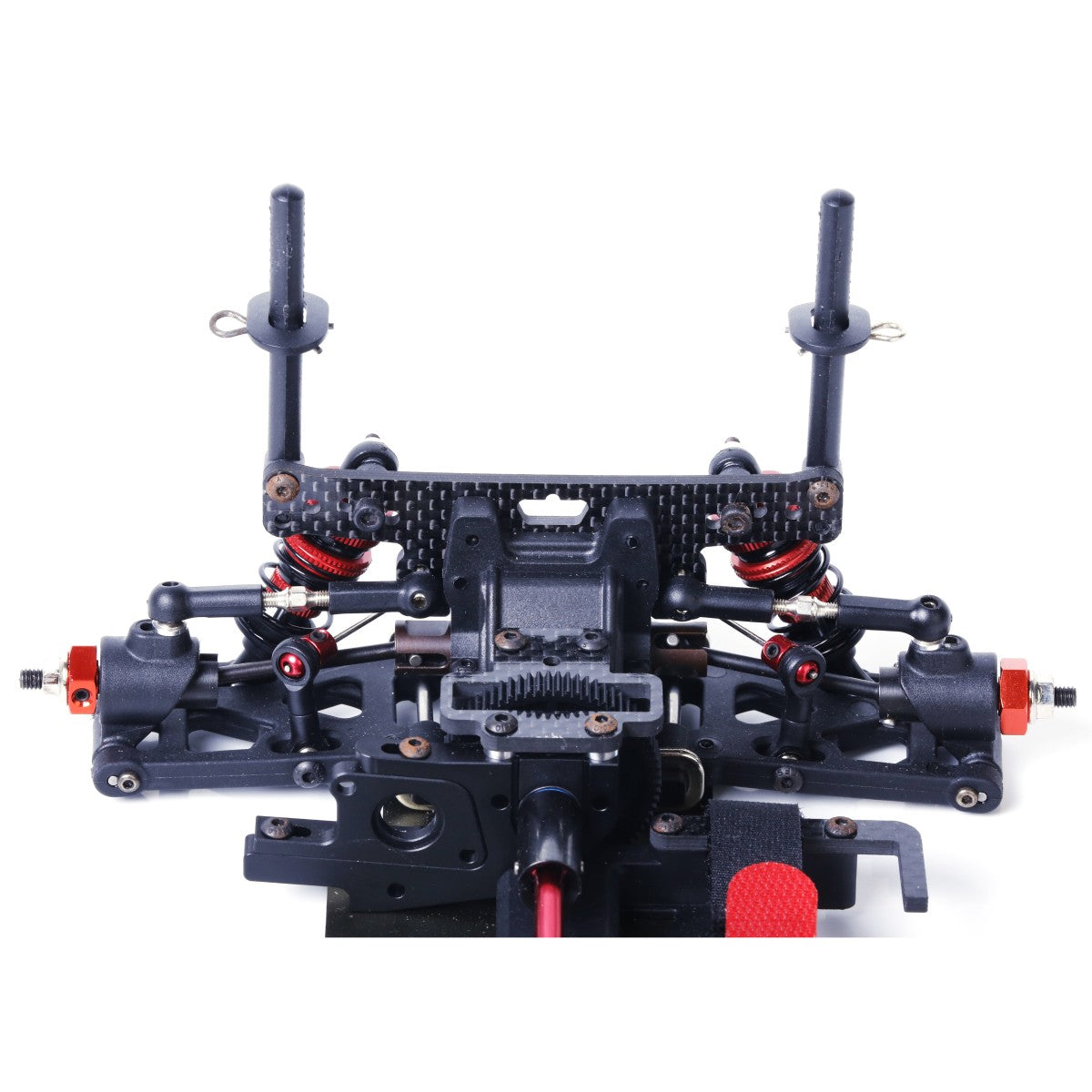

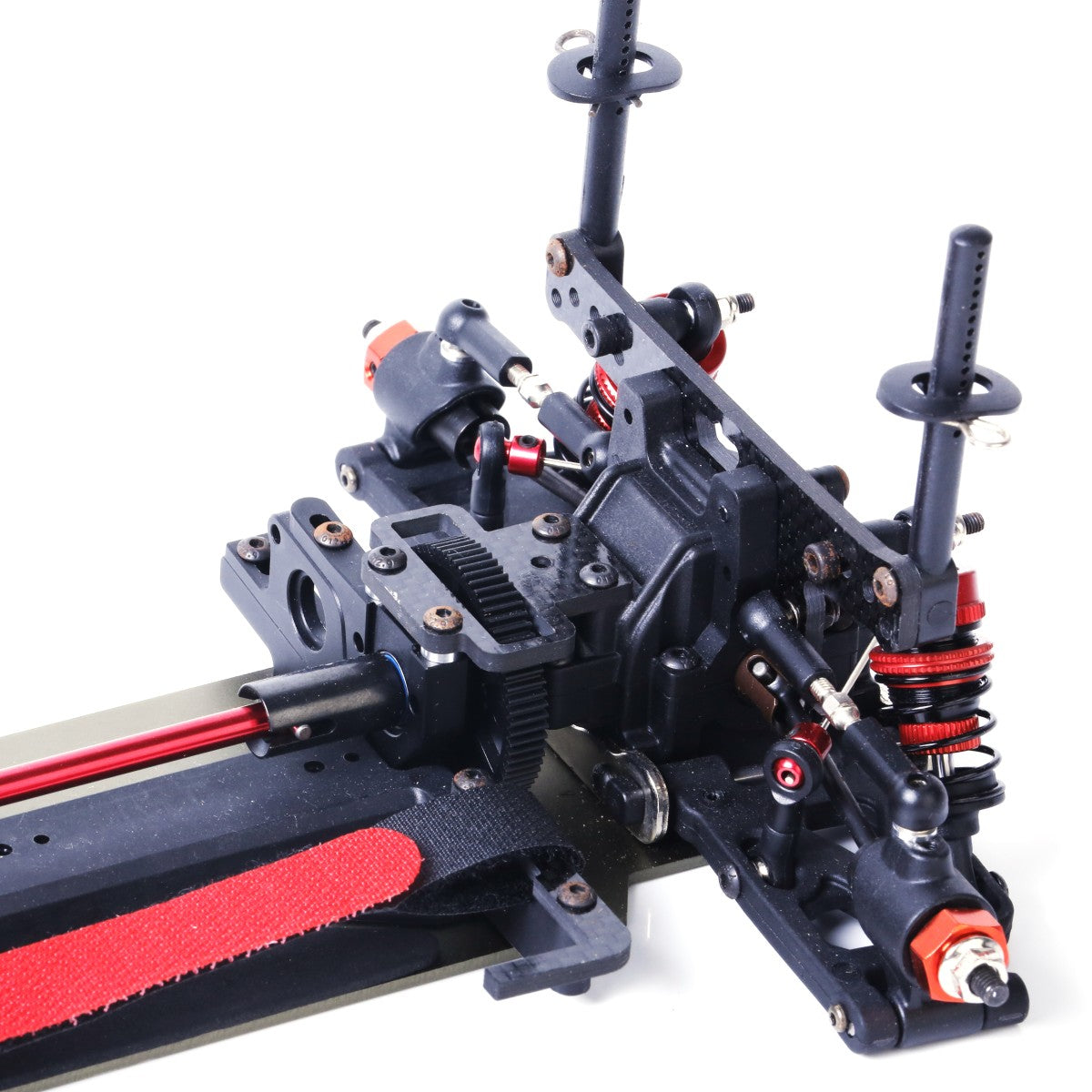

Quick access to the front and rear gearboxes, which are easy to disassemble and assemble, which saves valuable maintenance time and more time on the rally course!!
The equipment needed to be purchased separately is all compatible with standard 1/10 equipment. It is recommended to use a low profile servo (but a standard servo can be used). The gear pitch is 48dp with a standard 3.175MM shaft diameter/24T. It is recommended to use a 540 size motor (no more than 3652 size). Transmitter, receiver, electronic speed controller, rally bodyshell, suitable battery pack and charger also all required

OTHER FEATURES

SPECIFICATIONS

Scale: 1/10th
Wheelbase: 257/262mm – Length: 370mm – Width: 185mm
Tire Type: LC Racing rally tires pre-mounted
Chassis: 2.0mm 6061 anodized aluminium
Gear ratio: 2.5:1
Shock Type: Aluminium-threaded, oil-filled, coil-over, 6061-T6 adjustable
Ball bearings: Complete

INCLUDED IN THE BOX

1 x 1:10th PTG-2TC 4wd RC Car self assembly kit & TC Body

REQUIRED TO COMPLETE

540-size electric motor
Electronic Speed Controller
7.2v NIMH or 7.4v LIPO Battery pack and charger
2-channel transmitter & receiver
Steering servo
Touring Car wheels and Tyres
