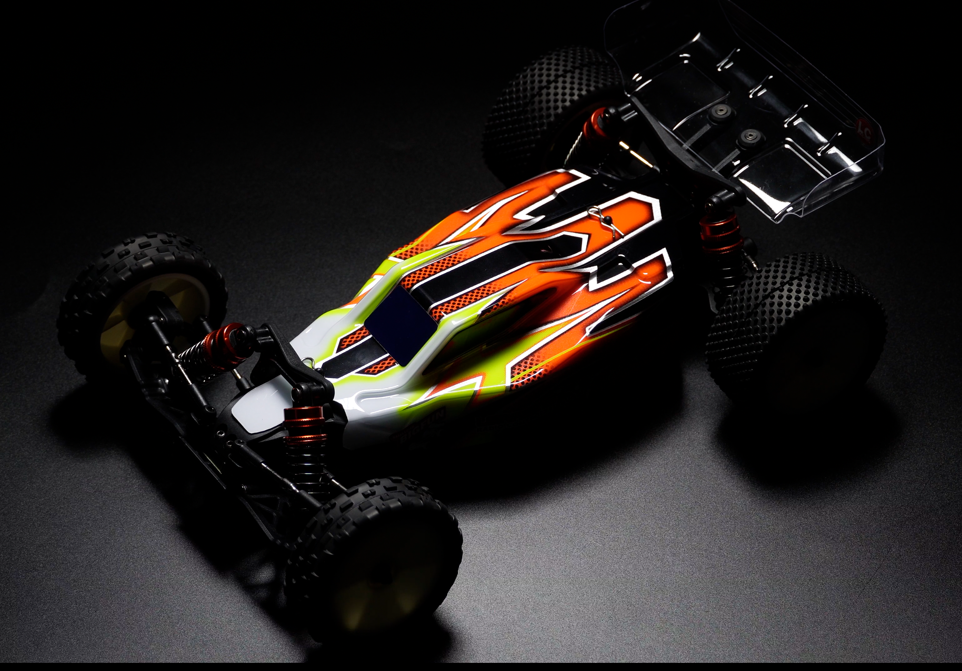

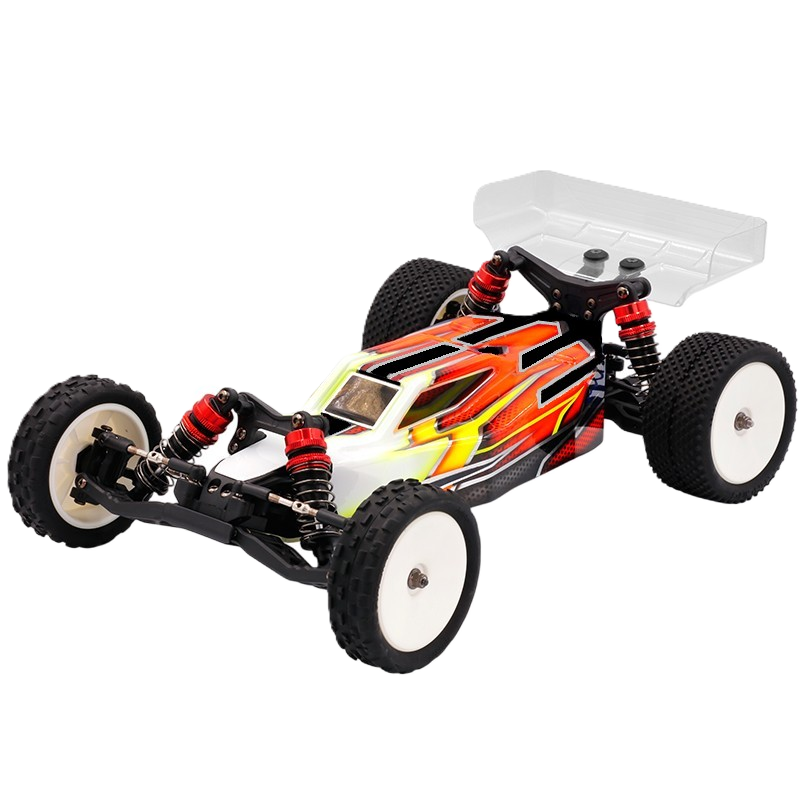

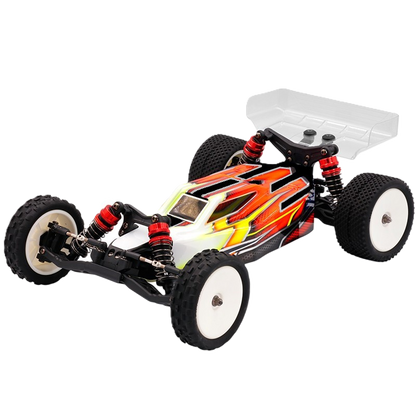

LC Racing – BHC-1 – (Black) 1/14 scale 2wd entry level buggy – Assembled Rolling Chassis - Needs all electrics

LC Racing BHC-1RC, is an all new 1/14th scale buggy “rolling chassis” with a 2WD mid motor drivetrain. Reliable performance for great fun and excitement

Stock motor plate can fit 2440 (4600kv) brushless or brushed motor (if you want to use the emb brushless motor, you will need a new motor plate.)

Shocks can be replaced with existing EMB-1 shocks (requires new set of shock springs)

Available in a choice of two body colour schemes black or blue (and unpainted version as an option part), rear wing is unpainted

Product Features:

1/14 2wd racing buggy designed for racing from the ground up with race spec geometry

Mid Motor chassis layout

2.0mm T6 6061 Aluminum Chassis

Threaded oil filled shocks (can use EMB aluminium shocks for option parts)

Oil filled rear differential (same diff gear as EMB)

Fully Assembled Rolling Chassis (requires electronics)

“Jetgo” Front and rear tire set for Carpet/Astro Turf mounted on white dished wheels

“Batan” D116 digital direct drive metal geared steering servo included

Rear CVA driveshafts

Full ball bearings throughout

Full range of optional tuning parts available

Specifications：

Scale：1/14

DriveTrain: 2wd

Gear pitch: 0.5 MOD

Motor size: 380

Tire Tread: Front – Staggered Ribs     Rear –  Mini Pin

Wheelbase:   210mm (8.26in)

Length          305mm (12in)

Width           195mm (7.677in)

Height           110mm (4.33in)

Ride Height   20 mm (0.8in)

INCLUDED IN THE KIT

1 x 1:14th BHC-1 buggy rolling chassis

1 x Instruction Manual

REQUIRED TO COMPLETE

1 x Transmitter and receiver

1 x Micro Servo

1 x Electronic Speed Controller

1 x 380 sized brushed or brushless motor

1 x LIPO type battery pack and suitable charger
