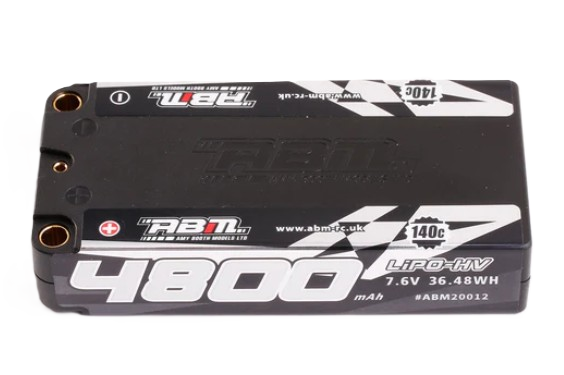

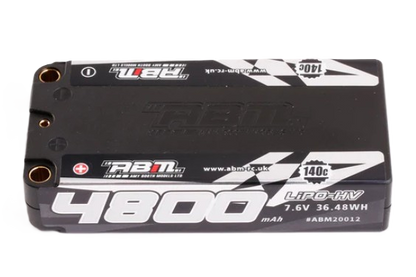

ABM - 4800mAh LCG SLIM Shorty 7.6v Lipo LiHV 140c (5mm Bullets) (L96.4xW46.5xH20mm) - ABM20012

ABM 4800 LCG Shorty 7.6v Lipo-HV 140c 5mm connectors BRCA and EFRA legal for 2025 onwards

Dimension and Visual

Configuration: Shorty LCG Style
Battery pack weight: 180 ± 7.2
Length: 96.4mm +0/-1mm
Width: 46.5mm +0/-1mm
Thickness: 20mm +0/-1mm
Casing material: ABS+PC
Casing nominal thickness: 1.0mm
Casing sealing: Sonic-welding
Discharge point: dia. 5mm tubes (positive / negative terminals)
Charging port: dia. 2mm tube balance

Ratings

Nominal Voltage: 7.6V
Nominal Capacity: 4600mAh-4900mAh
Nominal Impedance: .9-1.3 mOhm per cell
Charging method: CC/CV mode (high quality LiPo chargers only)
Charge cutoff voltage: 8.40V ±0,05V
Charging current: 4.8 amps(typical)
2C charging possible, with special attention for accurate cutoff
Discharge cutoff voltage: 6.2V ±0,05V
Discharge continuous: 70c
Discharge pulse (max): 140c (less than 6sec. for each pulse)
Discharge Temp range: -20~+60 deg-C
Charging Temp range: 0~ +45 deg-C
Storage Temperature: -20~+45 deg-C
Storage Humidity: 65 ±20% RH
