1/10 Car Kits

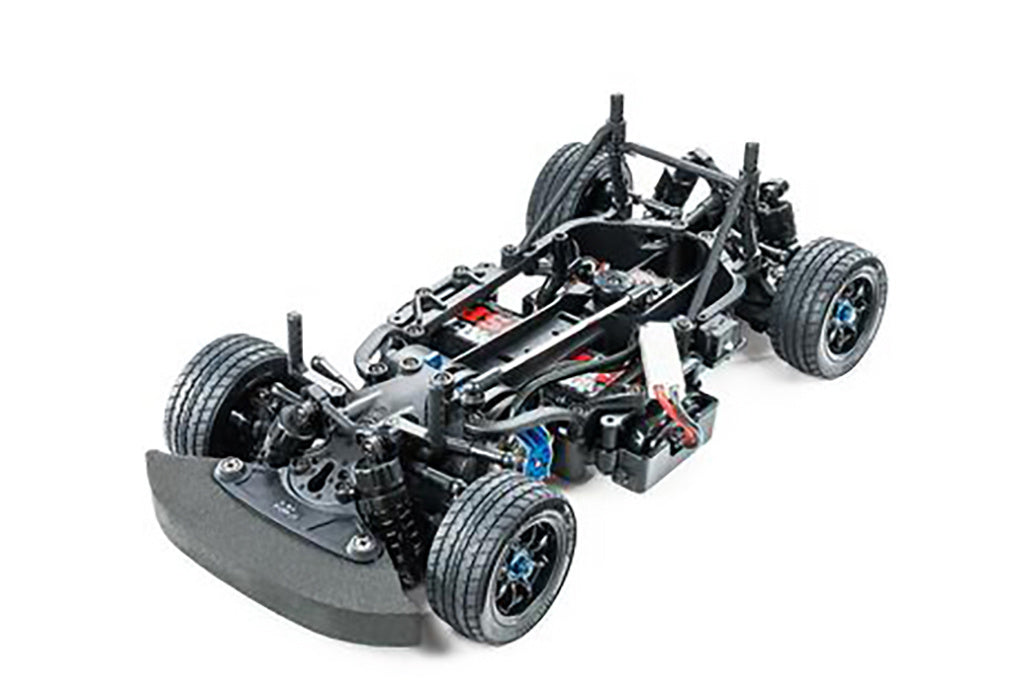

The M-08R adds a plethora of race-spec parts to the balanced, compact RWD M-08 Concept chassis: an example being the hopped-up drivetrain with a ball differential, universal shafts featuring low-friction cross joints and lightweight aluminium swing shafts, plus 5mm wheel hubs. Turnbuckle shaft suspension arm and steering setup components simplify fine-tuning of the M-08R, and titanium-coated shafts are a durable inclusion in the kit. Carbon fibre damper stays are paired with M-Chassis big bore aluminium dampers+ featuring dedicated blue anodized top and bottom caps for a touch of class, while a 20-gram ballast weight is included to get the chassis feeling just how you want it to.

Featured Drivetrain Components

• Full ball bearings
• Ball differential (52T)
• 33mm lightweight aluminium swing shafts
• Cross joint for LF assembly type universal shafts
• 06 module fluorine coated 20T pinion gear
• M-08 Concept aluminium shafts
• M-Chassis reinforced freewheel axles
• 5mm clamp-type wheel hubs
• Suspension
• Carbon fibre damper stays (front/rear)
• Reinforced D parts (suspension arms)
• Aluminium turnbuckle shafts
• Titanium coated suspension shafts
• 5x5mm, 5x11mm hard hex head ball connectors
• M-Chassis big bore aluminium dampers+
• 3x 1.3mm-hole pistons
• 4mm aluminium serrated wheel nuts (blue)
• 5mm reinforced open face adjusters

Chassis

• Carbon fibre battery holder
• Carbon fibre body mount base
• Reinforced K parts (gearbox)
• Chassis balance weight (20g)
• Hi-torque servo saver
• Aluminium ball connectors (blue)
• Hex head screws

Specifications

• Scale is 1:10
• Length: 319mm (with 225mm wheelbase), width: 165mm
• Alterable wheelbase: 210mm, 225mm, 239mm
• Monocoque frame with separate front and rear sections
• Midship motor, rear-wheel drive
• Ball differential
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• M-Chassis big bore aluminium dampers+
• Gear ratio = 5.776:1 (using kit 20T pinion); 8 ratios between 6.795:1 and 4.813:1 are possible with separately sold pinions)
• Electronic speed controller (ESC) is sold separately.

Separately Required Items

• Body
• Type 540 motor (brushless is recommended)
• Tyres
• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

Photos of the Chassis

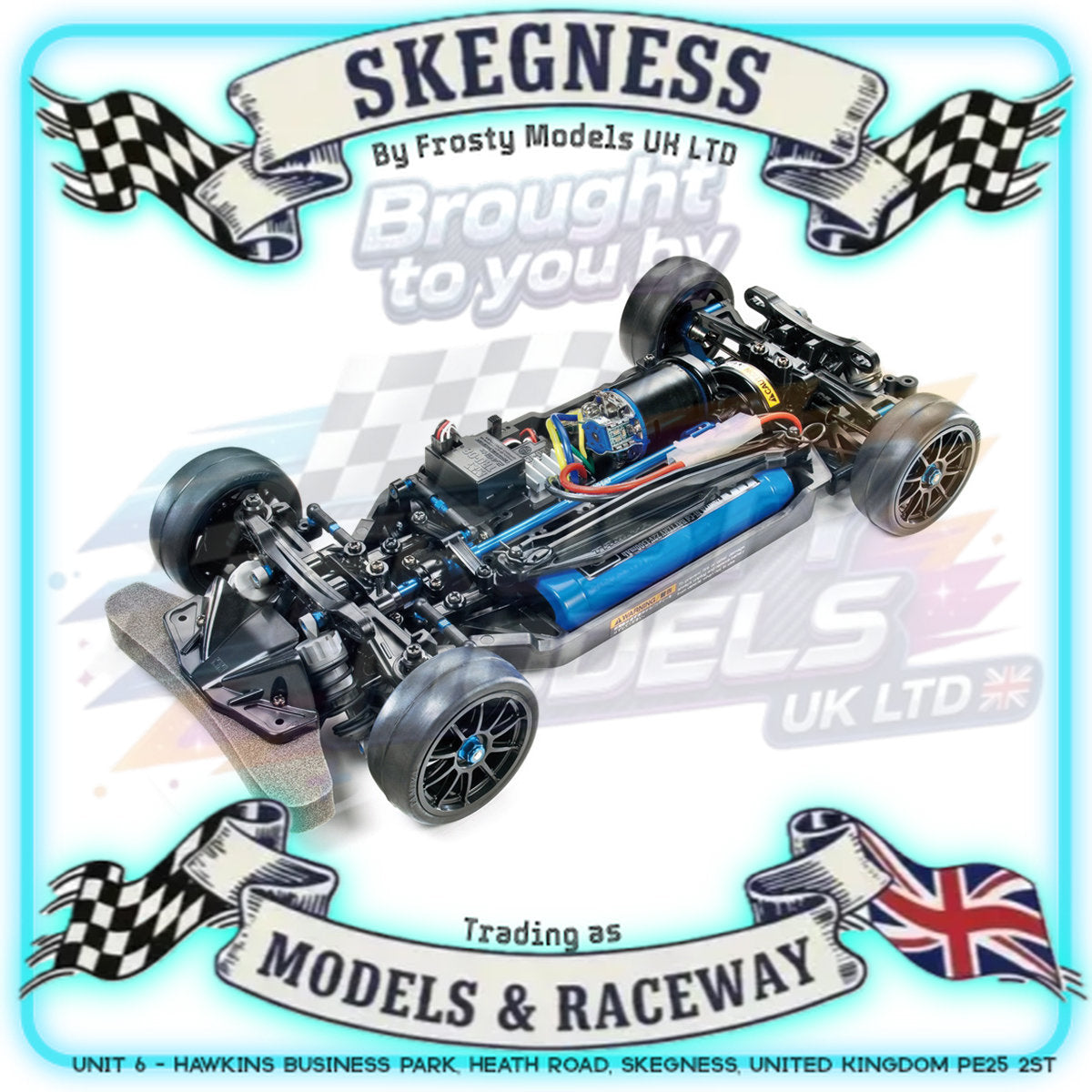

This variant of the efficient 4WD TT-02 chassis includes a range of option parts, allowing you to compete at the front of the race! Aluminium rear uprights give 3-degree toe-in for more stable cornering, while an aluminium motor mount makes for greater rigidity and enhanced heat dissipation. A highly reliable drivetrain employs full ball bearings, aluminium propeller shaft and centre cups, plus metal drive shafts and joint cups. Suspension is fitted with CVA oil dampers and black coil springs; they provide superior cushioning and improved traction. The kit also includes a TT-02 high speed gear set (68T).

Featured Components
Aluminium Rear Uprights (3-Degree Toe-In)
Aluminium Motor Mount
TT-02 Aluminium Propeller Joints
TT-02 Aluminium Propeller Shaft
TT-02 Full Ball Bearing Set
Metal Drive Shafts, Wheel Axles and Gearbox Joints
3x18mm Aluminium Turnbuckle Shafts
4mm Aluminium Flange Lock Nuts (Blue)
5mm Aluminium Short Ball Connector Nuts (Blue)
5mm Aluminium Ball Connectors (Blue)
Medium-Narrow Racing Slick Tires
5mm Ball Connectors
CVA Oil Dampers & Springs

Specifications

• Scale is 1:10
• Length: 376mm, width: 182mm
• Wheelbase: 257mm　
• Tire width/diameter: 24/64mm (front & rear)
• Bathtub-type frame
• Shaft-driven 4WD

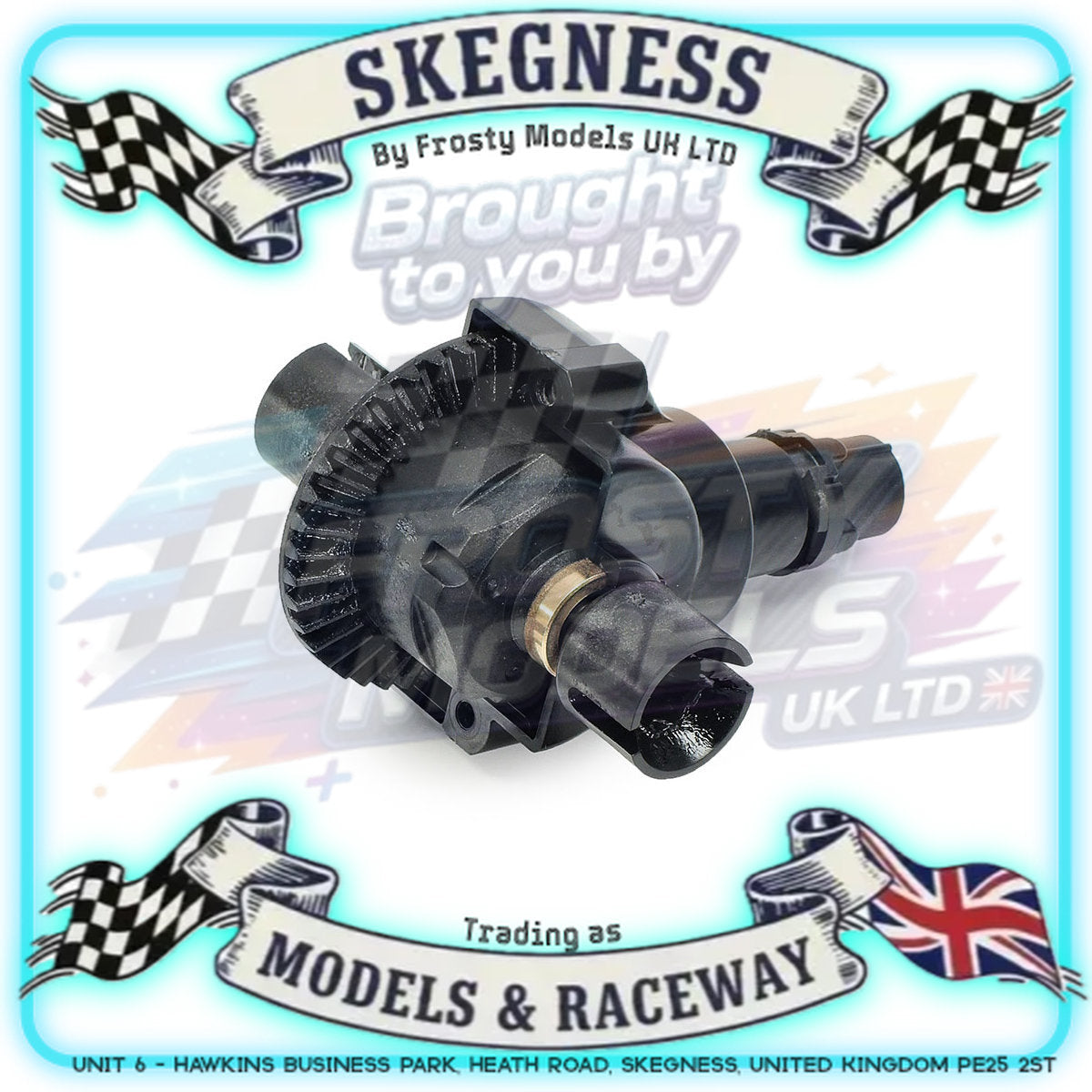

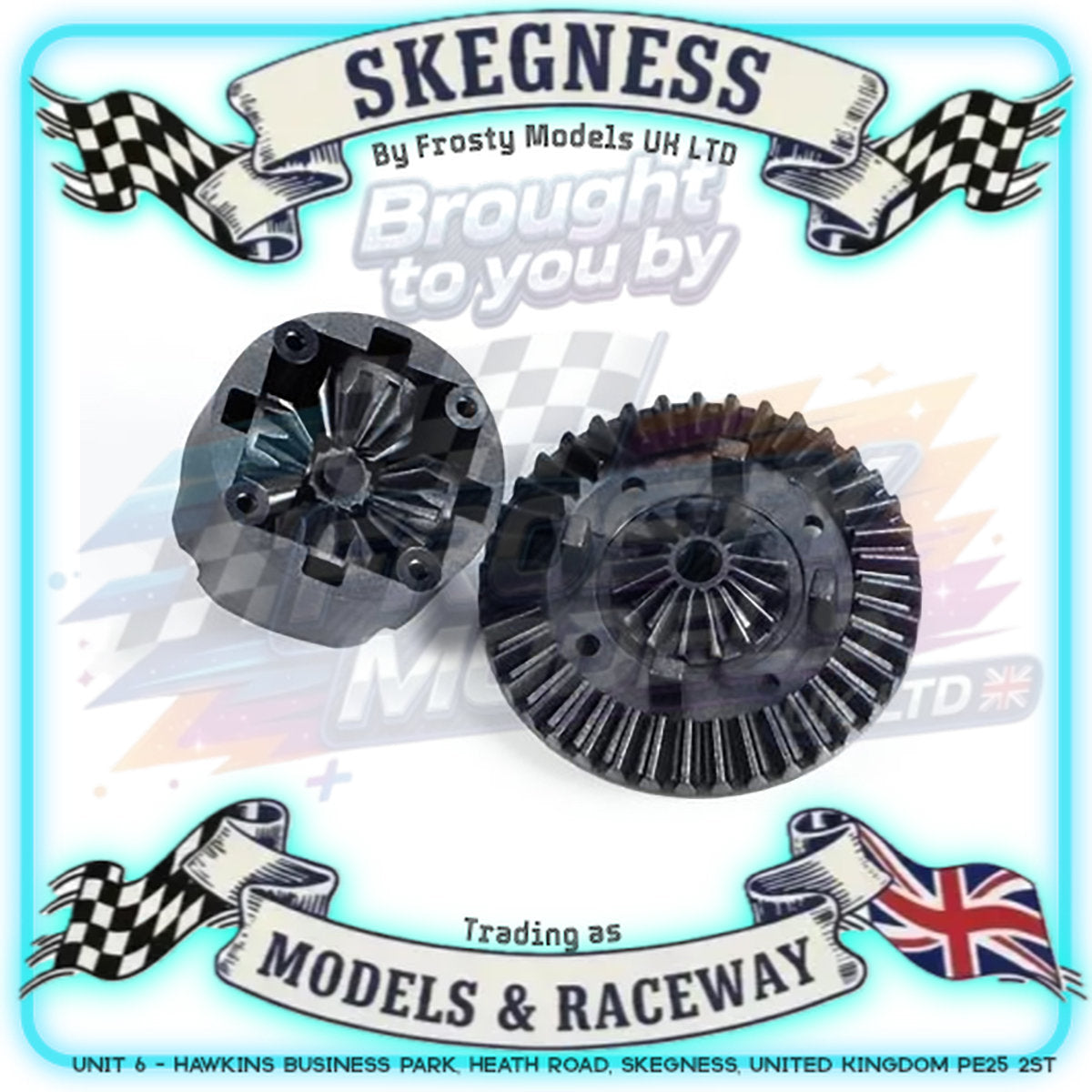

• Front/rear 4-bevel resin differentials
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Front/rear CVA oil dampers
• Includes 68T and 64T spur gears. Combine with separately-sold pinions for gear ratios from 9.82:1 to 5.74:1

Separately Required Items
2-channel R/C system with ESC
Battery pack and charger
Batteries for transmitter
Type 540 Motor
Body

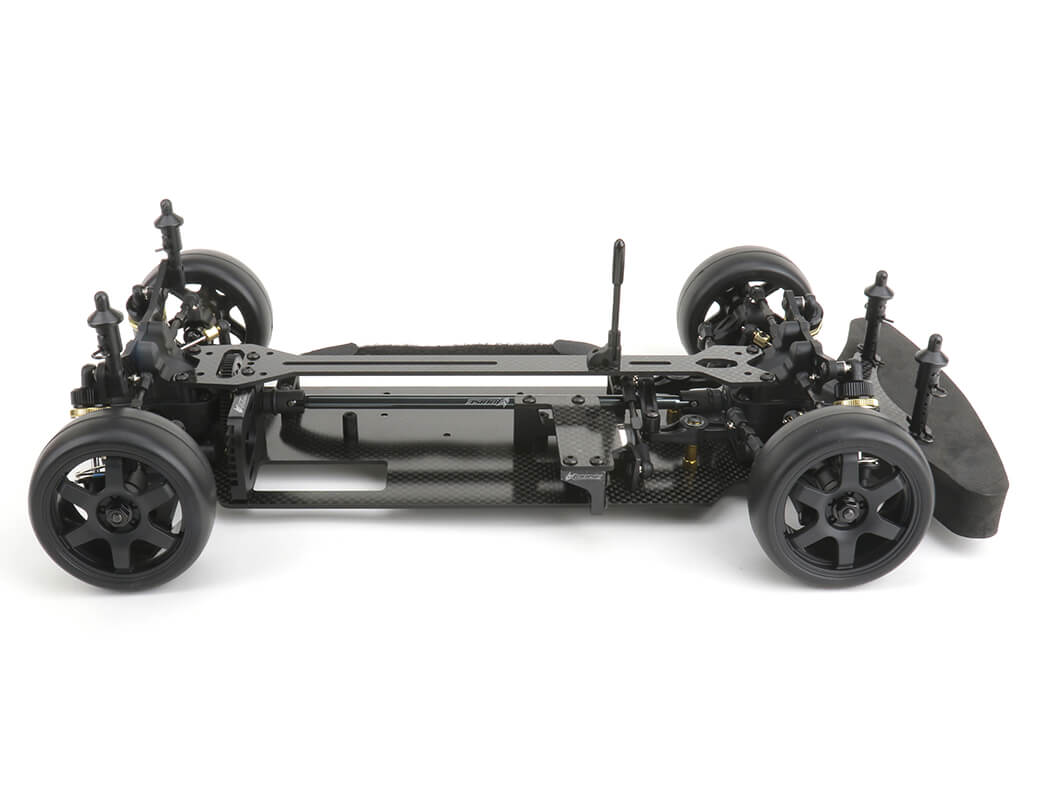

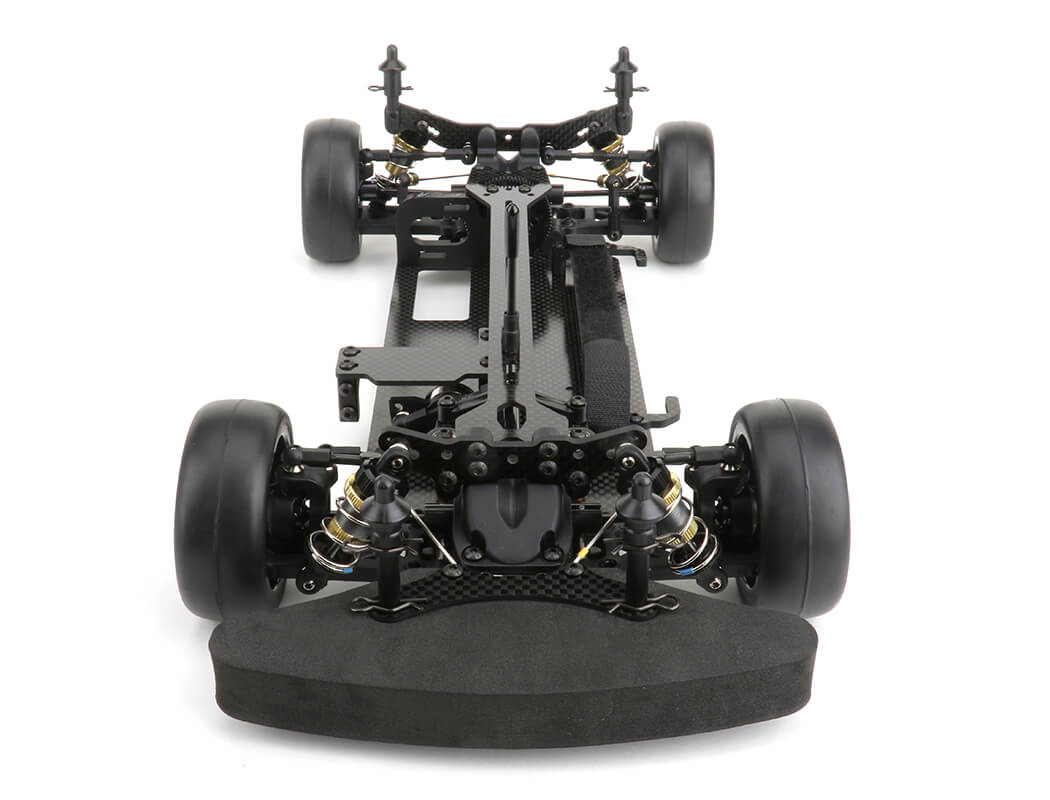

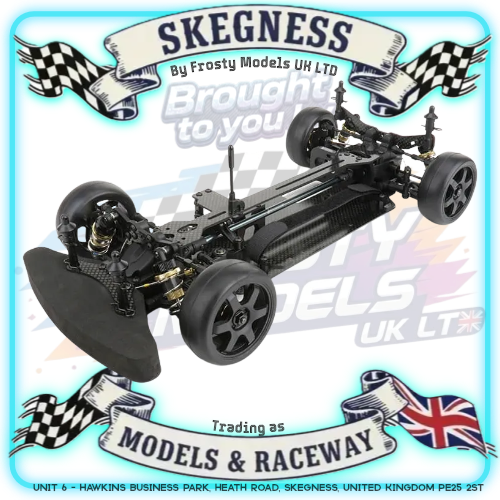

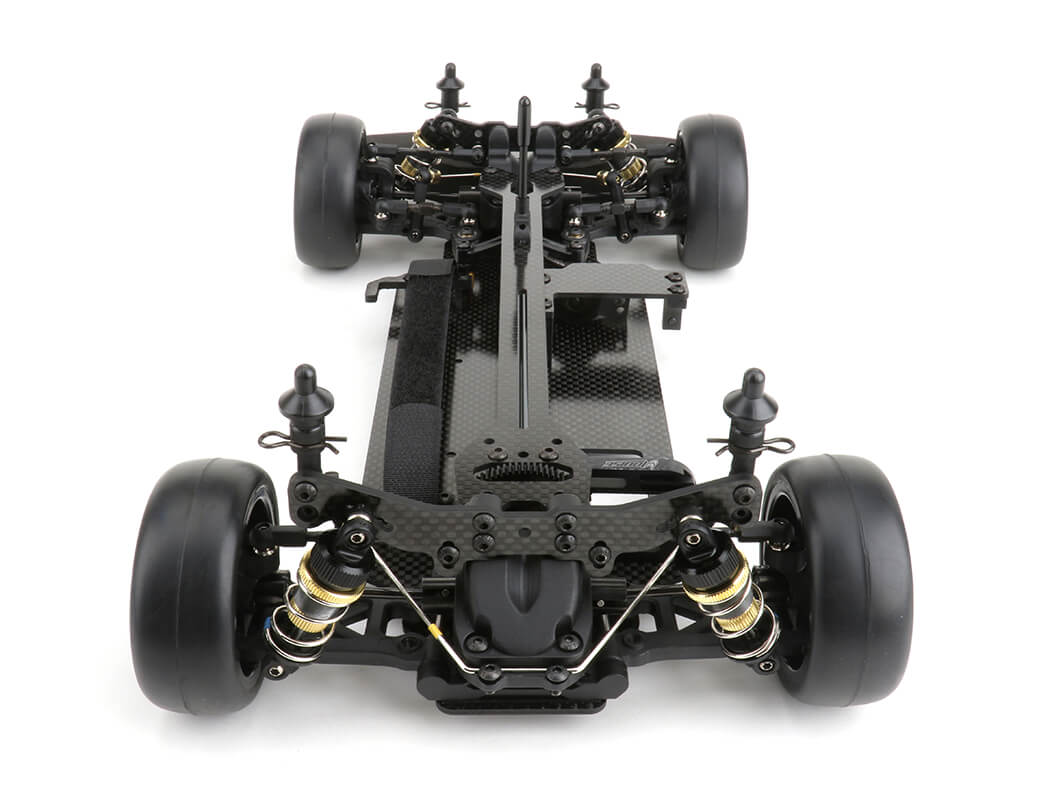

OUISE RC 1/10 LTX TOURING CAR KIT

Same As Carten T410R Pro

This is a full sized 1/10 Car, 190mm wide by 256-258mm Wheelbase.

Features

• Full Bearing.
• CVD Drive Shaft.
• Carbon Fibre Chassis, Upper Deck, Shock Tower.
• Aluminium Motor Mount.
• Aluminium Servo Mount.
• Aluminium Centre Drive Shaft.
• Aluminium Spur Gear Hub.
• Aluminium Shocks.
• Aluminium 12mm Hex Hub.
• Metal Gear Diff.
• Full Turnbuckle.

Requires:

1/10 Car Body, 7.4V Square Lipo, Radio Set, Servo, ESC & Motor. Wheels and Tyres normally included.

Specifications

Drivetrain: Shaft Drive 4WD
Track Width: 190mm
Wheelbase: 258mm
Internal Ratio: 2.47
Gear Ratio: 4.56
Tyre Diameter: 65mm

Manufacturer	Louise RC
Part Number	LNHA102
EAN	4711233150085
Motor Type	No Motor Supplied
Drive	4WD
Surface Type	On-Road
Assembly Type	Un-Assembled (Kit)
Scale	1:10
Vehicle	On-Road
Skill Level	Skill Level PRO
Power Bundles	Power Combo Required - All electrics required

Equipped with popular optional parts

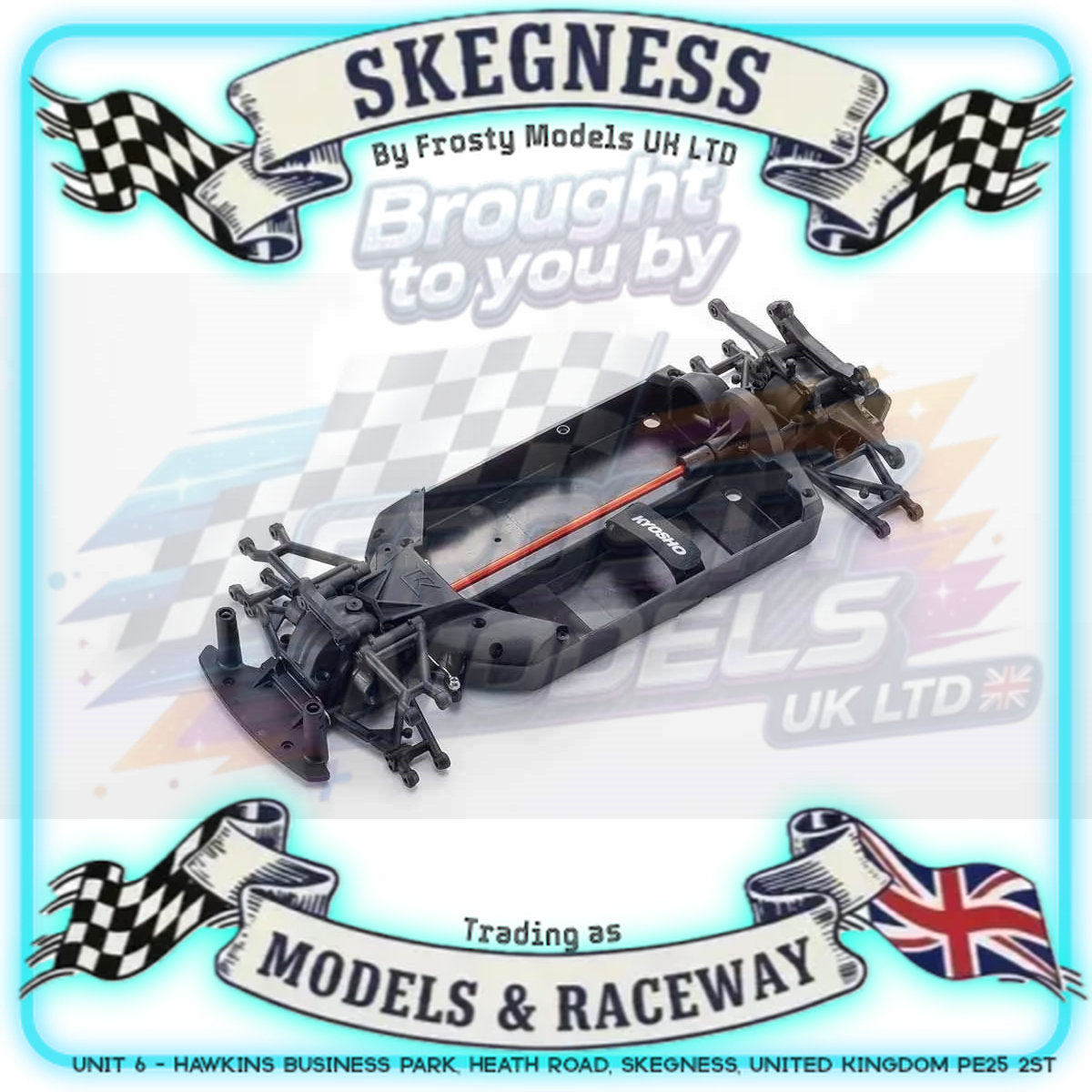

This chassis kit is an optimal base for a racing vehicle

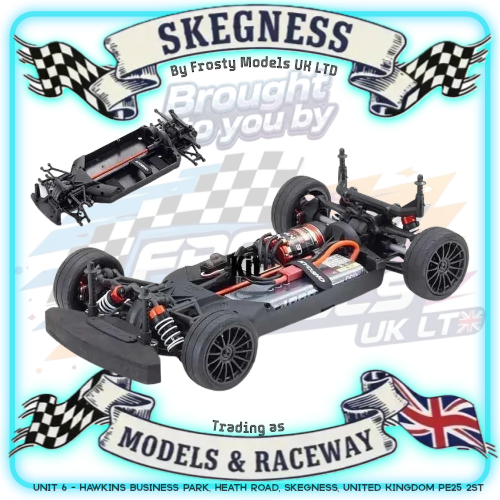

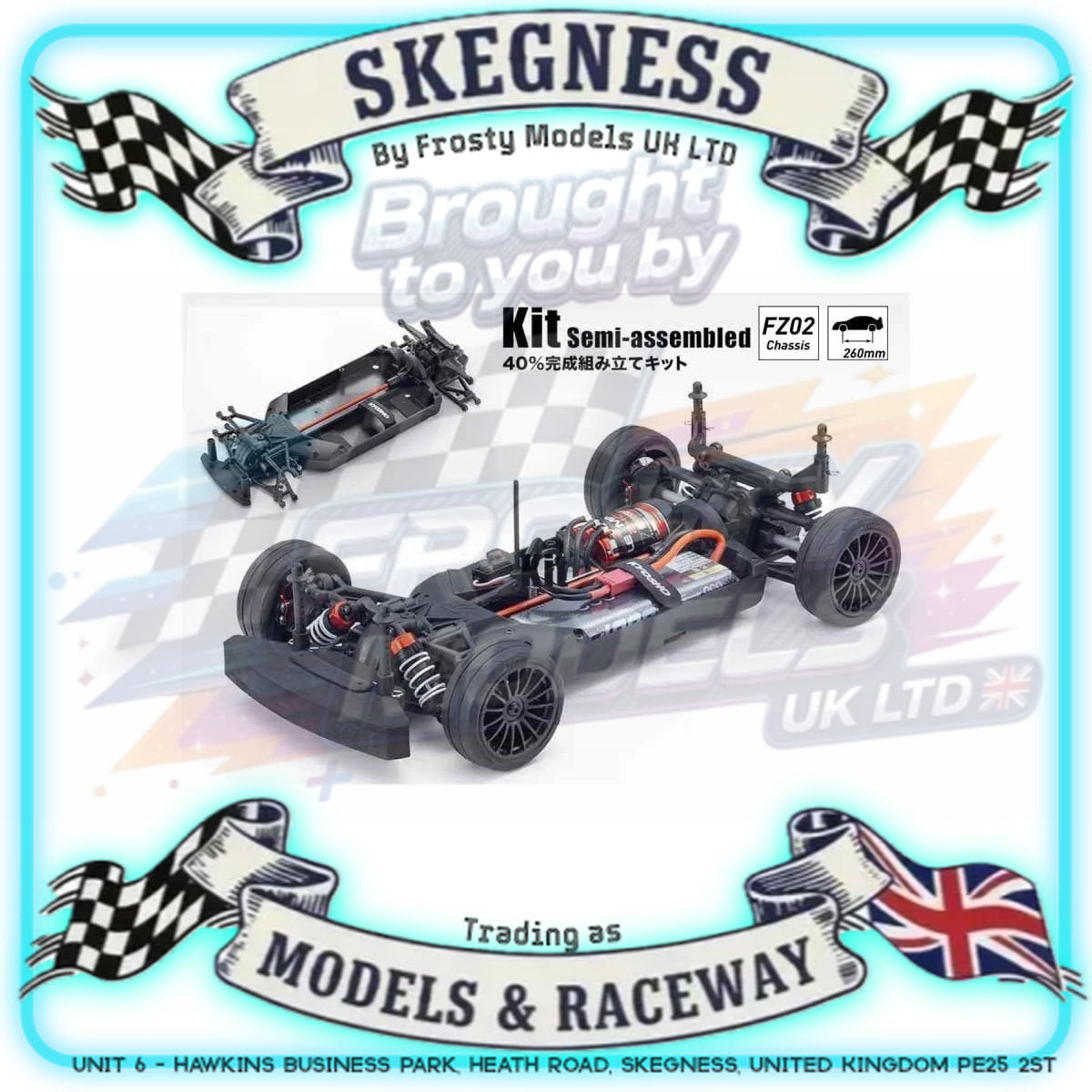

The FAZER Mk2 Readyset was created for the pure enjoyment of R/C car driving. Now available as a chassis kit, owners have the flexibility to add their own body and R/C system. Specifications have been elevated with optional parts such as HD TC center shaft S and TC universal swing shaft L to enhance the unrivaled symmetrical design and front-rear suspension balance of the lightweight chassis for R/C racers to enjoy. While the deckless design looks simple, a reduced number of components improves maintenance efficiency and optimizes torsional rigidity. Incorporation of nylon material further reduces weight and improves impact resistance. With its unique design, the FZ02 chassis embodies features and performance that will appeal to R/C drivers of all levels.

40% pre-assembled (shocks and diff gears are not filled with oil so assembly can be completed to preferred setting). The FZ02’s effective low center of gravity design compliments the high strength and rigidity realized through front & rear stiffeners and rib reinforcement at key sections of the chassis.

Duralumin HD TC center shaft S (FAW209) provides increased rigidity compared to the standard resin shaft included in the Readyset. In addition to smoother driving transmission, the red anodized color has striking visual appeal.

TC Universal swing shafts L (FAW202) on the front drive section don’t drop out on heavy contact like dog bone shafts. In addition, the swing shafts deliver consistent drive transmission even when joint is at a wide steering angle.

A special resin transponder mounting stay is included for when the chassis is competing in race events. There is no need to make a handmade stay or holes in the body to fit a transponder.

Included body mounts enable bodies from various manufacturers to be fitted. In addition, two different brake-disk wheel hubs allow 190mm and 200mm chassis width settings for compatibility with various body types.

Included aluminum plate protects the motor from dirt and provides effective heat dissipation, especially in the heat of summer racing.

Oil shocks and springs optimize the front-rear geometric balance, delivering both light handling and precise control. (Silicone oil for the shocks is sold separately)

Bump steer and scrub radius, the two factors with the greatest influence on handling, have been optimized on the front suspension. Interchangeable front-rear and left-right hub carriers improve parts efficiency and maintenance.

Original low-profile semi-slick pattern tires and inner sponge (FAT701M) combine with 15-spoke black wheels for enhanced racing appeal.

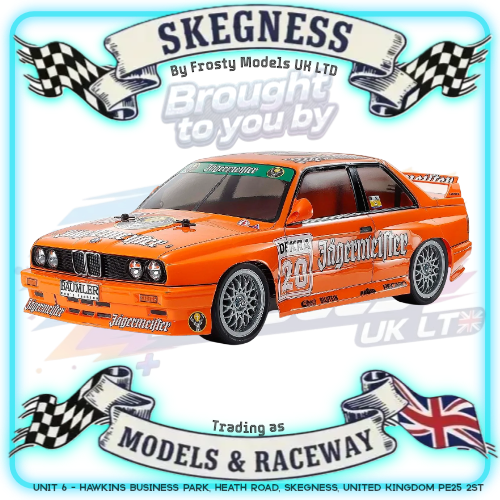

Tamiya welcomes another racing car – this time, the BMW M3 Sport EVO Jägermeister 1992 – paired with our popular TT-02 chassis. The BMW M3 SPORT EVO had fierce races with Mercedes-Benz in the German Touring Car Championship (DTM) in 1992. Among the many private teams that ran the car, the Linder team had their car decked out in the famed orange Jägermeister livery.

About the Model

• This is a 1/10 scale R/C model assembly kit. Length: 448mm, width: 185mm, height: 135mm. Wheelbase: 257mm
• The kit features existing body and updated markings
• The form of the BMW M3 Sport EVO Jägermeister 1992 is captured in style by a lightweight, rigid 1.0mm thick polycarbonate body
• The efficient shaft-driven 4WD TT-02 chassis features superior adaptability and stability
• Silver mesh type wheels are paired with racing slick tyres
• Comes with stickers and masking stickers for use in the paint job
• Carton quantity is 6 and EAN is 4950344587605

Separately Required Items

• What's included?
  • ESC
  • Torque-Tuned motor
• What's needed?
  • Transmitter & receiver
  • Servo
  • Battery and charger
  • Paint for the polycarbonate body
  • Tools to help with assembly of the kit

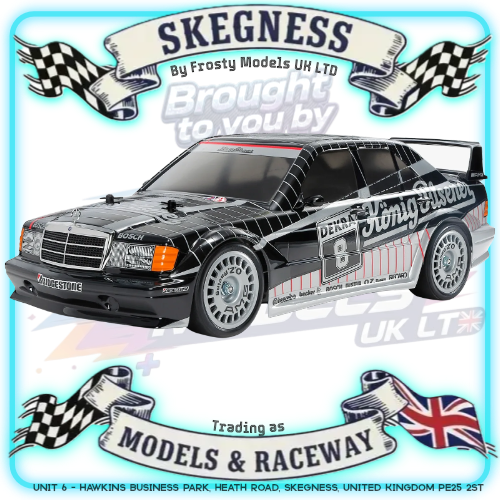

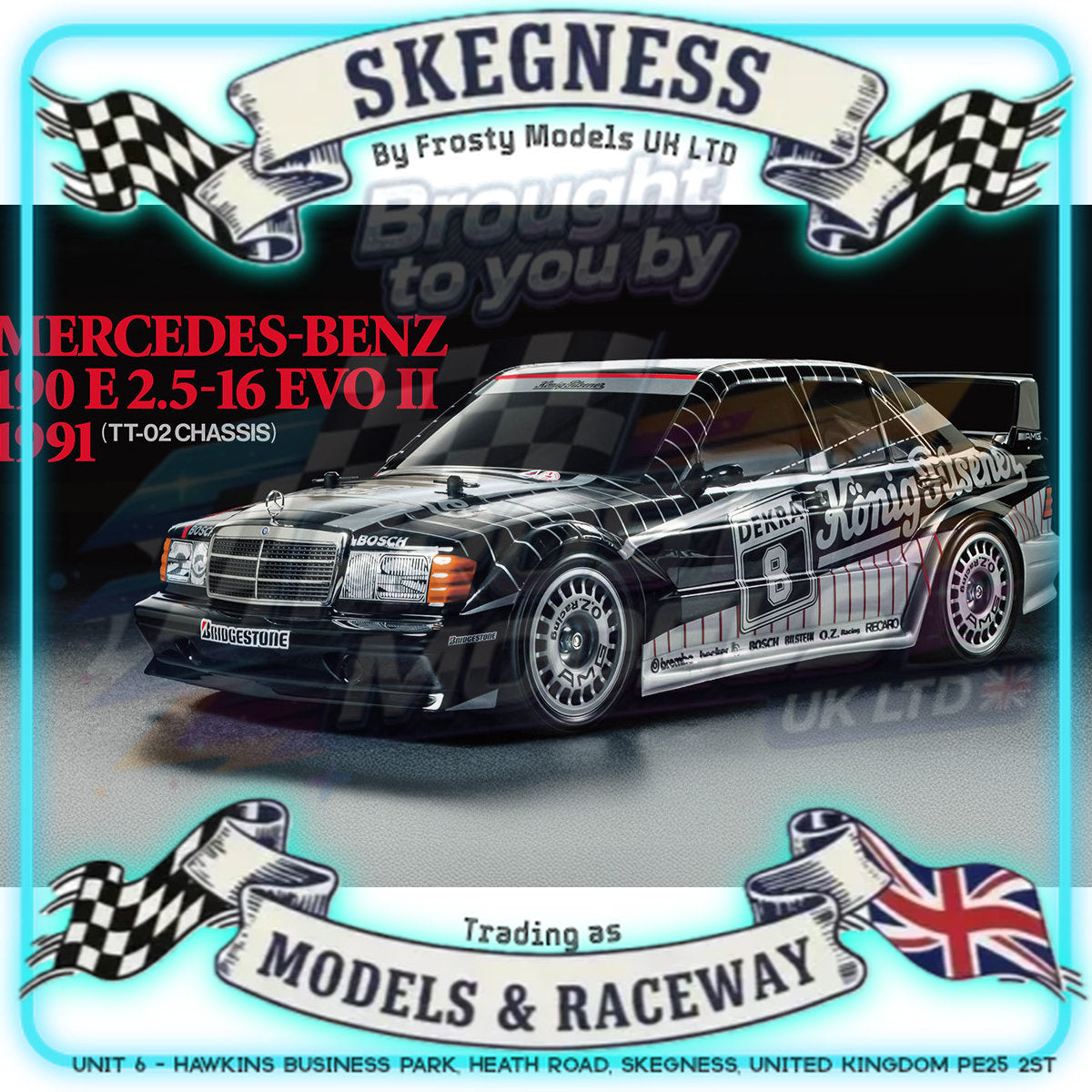

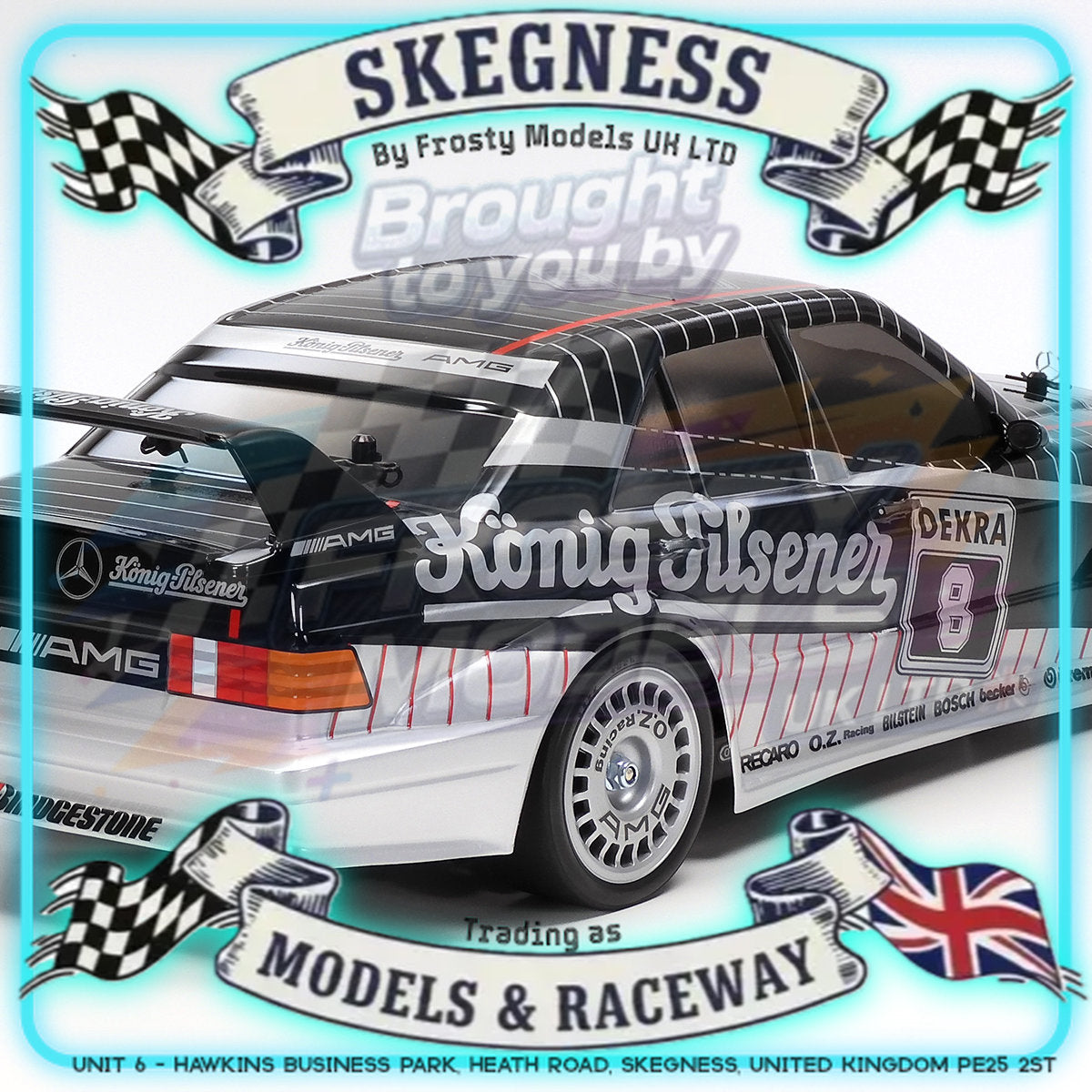

Tamiya welcomes another racing car – this time, the Mercedes-Benz 190 E 2.5-16 EVO II 1991 – paired with our popular TT-02 chassis. This car took part in the German Touring Car Championship (DTM) in 1991. Based upon the compact Mercedes-Benz 190 E, it was given improved aerodynamics with components such as over fenders, front and rear spoilers and a large rear wing, and employed a 2.5-litre inline-4 DOHC engine capable of 340hp. In the same year, the works team car sponsored by German beer brand König Pilsener secured second place in the Championship and brought the Manufacturer’s Championship to Mercedes-Benz.

About the Model

• This is a 1/10 scale R/C model assembly kit.
• Length: 445mm, width: 184mm, height: 137mm. Wheelbase: 257mm
• The kit features an existing body
• The powerful form of the Mercedes-Benz 190 E 2.5-16 EVO II 1991 is captured in style by a lightweight, rigid 1.0mm thick polycarbonate body
• Separate black ABS plastic parts realistically depict side mirrors, rear wing, front grille and emblems
• The efficient shaft-driven 4WD TT-02 chassis features superior adaptability and stability
• Silver colour dish wheels are paired with racing slick tyres
• Comes with stickers and masking stickers for use in the paint job
• Carton quantity is 6 and EAN is 4950344587520

Separately Required Items

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

Photos of the Finished Vehicle
1) The long nose, short deck form is recreated in style by the polycarbonate body.
2) Metal-plated parts are used for the front grille and the bonnet three-pointed star emblem.
3) Side mirrors are separately moulded plastic parts, with plated components for the mirror surfaces.

1) Stickers are used for the rear lights with wrap-around turn signals.
2) The rear wing is depicted by two parts.
3) Silver colour dish wheels are paired with slick tyres.

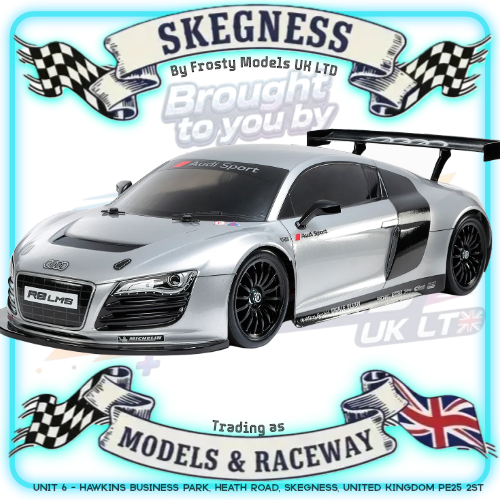

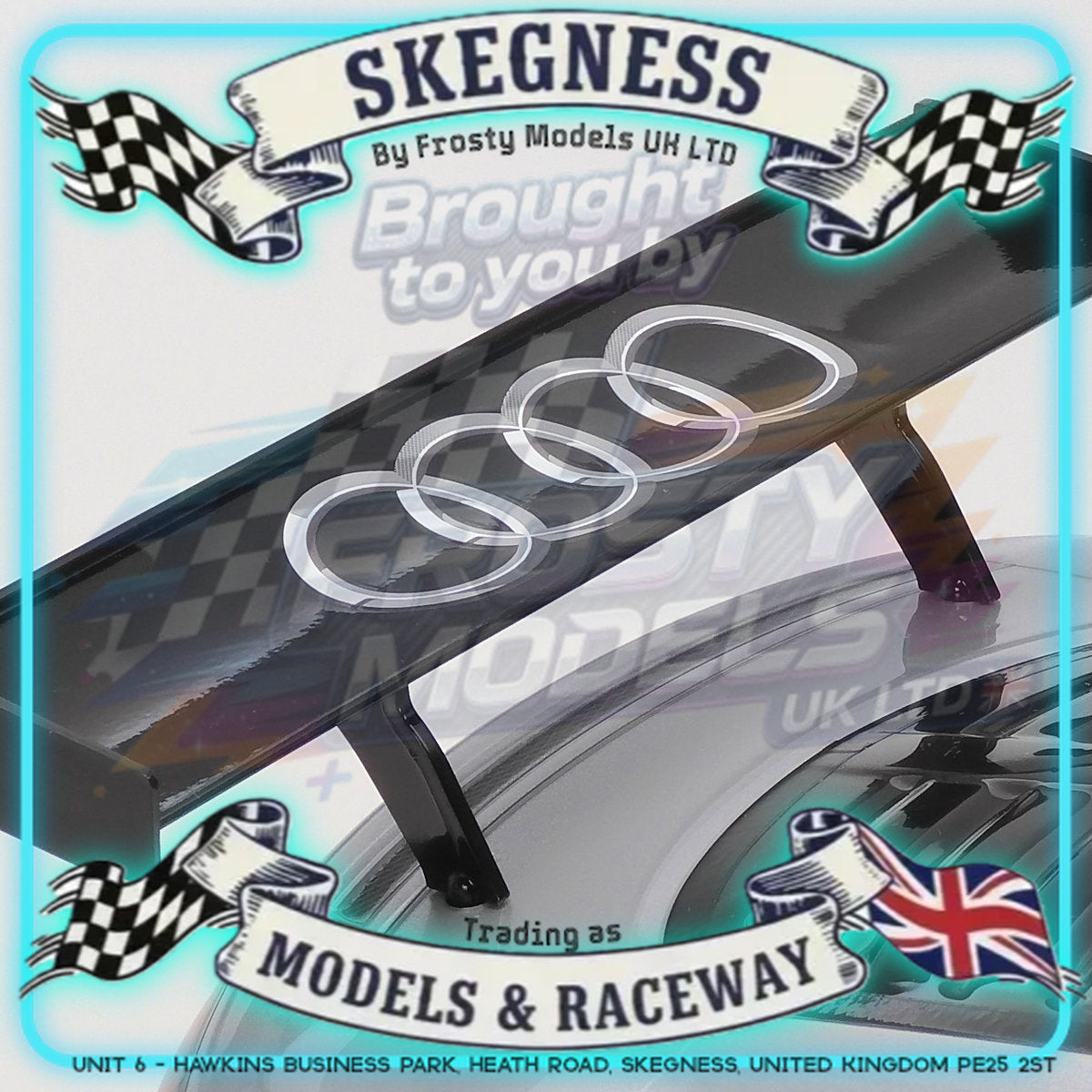

This radio-controlled model assembly kit recreates the Audi R8 LMS 2008 with a stunning and highly detailed polycarbonate body. The kit is based on the beginner-friendly and highly customizable TT-02 chassis, which allows hobbyists to grow as their driving and building skills develop.

About the Audi R8 LMS
Based upon the Audi R8 sports car and conforming to GT3 regulations, the Audi R8 LMS was announced in 2008. A 5.2-litre V10 midship engine capable of over 500hp was mounted in a lightweight aluminium space frame. Body sections were modified, and the drivetrain was changed from 4WD to a rear-wheel drive system. From 2009 onward, this car was delivered to racing teams around the world and achieved many racing successes.

The TT-02 Chassis
The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Mesh-type wheels are paired with racing slick tyres.

About the Model

• 1/10 scale R/C model assembly kit. Length: 434mm, width: 194mm, height: 120mm
• Wheelbase: 257mm
• 1.0mm-thick polycarbonate body
• The efficient shaft-driven 4WD TT-02 chassis features superior adaptability and stability
• Black 16-spoke wheels are paired with racing slick tyres
• Includes stickers and window masking tape for use in the painting process
• Includes 540-Type Torque Tuned brushed motor and Hobbywing produced ESC

Separately Required Items

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

Photos of the Chassis

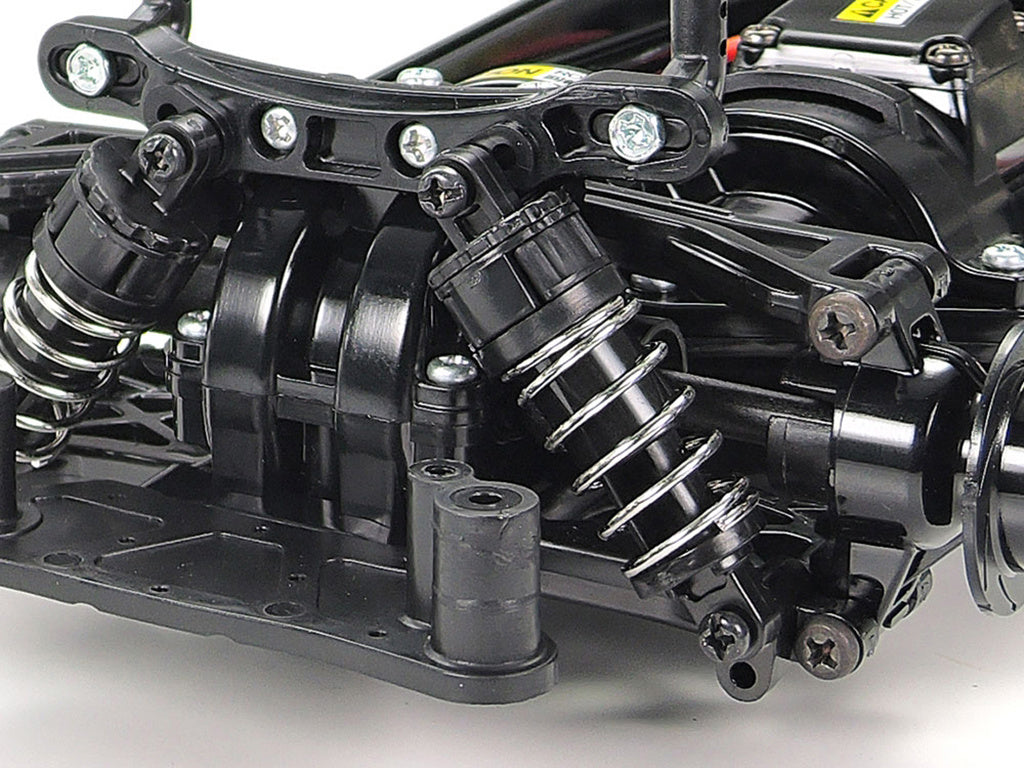

1) This image gives a closer look at the rear double-wishbone suspension with friction dampers.
2) Resin ball links in the steering linkage joints make for smooth, comfortable motion.
3) Wheel hubs are shaped to look like brake discs.

Photos of the Body1) The powerful form of the car is recreated by a lightweight and durable polycarbonate body.
2) Stickers are used to depict the front grille, headlights and bonnet air duct.
3) Black wheels have 16 fin spokes and are paired with slick tyres.

Mini Coopers have been automotive fan favourite machines for decades! This 1/10 scale radio control model kit recreates the version of the Mini Cooper built by the British Motor Corporation (BMC) as it existed between 1959 until the year 2000. Original Minis were built for four decades without model changes. It had a front-wheel drive layout which was rare at that time, and it featured compact mechanics and maximum interior space. With its design featuring the necessary bare minimum features, it helped contribute to this car’s iconic status. The recreated R/C version comes on the MB-01 chassis in the short wheelbase and front motor / front-wheel drive (FF) configuration layout.

The MB-01 Chassis
The compact, 2WD MB-01 chassis gives a choice of three types of wheelbases, and a front- or rear- wheel drive system. Without removing battery pack, motor, and R/C equipment setups from the centre frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.

About the Model

• 1/10 scale R/C model assembly kit
• Length: 315mm, width: 167mm, height: 140mm.
• Wheelbase: 210mm (Short)
• Features updated markings for the body
• The form of the Mini Cooper Racing body is authentically recreated in lightweight polycarbonate
• Features 8-spoke wheels paired with 60D radial tyres
• Includes ESC (electronic speed controller)

Separately Required Items

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

Photos of the Body
1) Stickers are used for white stripes, racing numbers, bonnet pin and more.
2) 8-spoke wheels are paired with treaded 60D radial tyres.
3) The bumperless rear features depictions of rectangular tail lamps and the large rear windscreen.

Photos of the Chassis
1) The compact MB-01 chassis. For this model, it is assembled with a short wheelbase: 210mm.
2) The four-wheel double wishbone suspension uses symmetrical arms.
3) This versatile chassis can be assembled into three wheelbases and two drivetrain layouts.

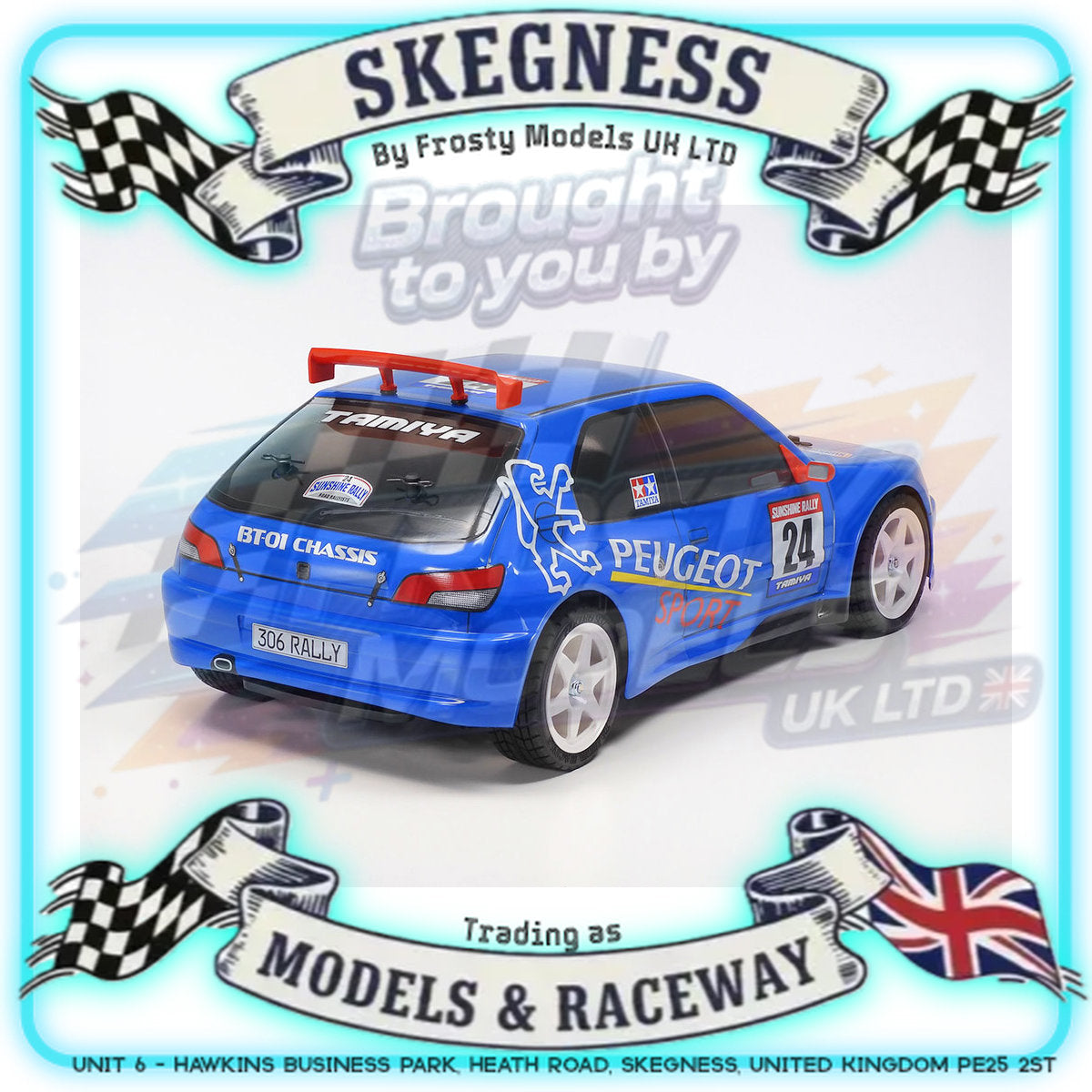

This radio-controlled model assembly kit recreates the Peugeot 306 Maxi. The kit is based on the beginner-friendly and highly customizable BT-01 chassis, which allows hobbyists to grow as their driving and building skills develop. Like the full-size car it depicts, the chassis configuration on the BT-01 chassis is set up in the front motor, front drive configuration for unparalleled realism.

About the Peugeot
Based upon the FF hatchback Peugeot 306, the Peugeot 306 Maxi was developed with dedicated components for rallying. A 2.0-litre naturally aspirated engine in front was capable of 280hp, and the car had enlarged fenders, roof spoiler, and a lightened body. Including the victories in 1996 and 1997 rally races in France, this car achieved many racing successes such as the class championship in the 1996 rally in Monte Carlo and third place in the 5th and 6th races on the 1997 global rally circuit. This R/C model assembly kit is inspired by such rally champions.

The BT-01 Chassis
The 2WD BT-01 chassis gives the choice of two types of wheelbases, and front-or rear-wheel drive system. Without removing the battery pack, motor, and R/C equipment setups from the centre frame, simply change attachment directions of final gears and steering linkage to switch between front-and rear-wheel drive; front (FR) or midship rear (MR) motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as the motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.

About the Model

• 1/10 scale R/C model assembly kit. Length: 404mm, width: 187mm, height: 155mm
• Wheelbase: 257mm (standard)
• BT-01 chassis is set up for the front motor, front drive configuration for this model
• The form of the Peugeot 306 Maxi is authentically recreated in lightweight polycarbonate
• 6-spoke wheels are paired with racing radial tyres
• Separate moulded plastic parts recreate side mirrors and the rear wing
• Livery markings are Tamiya original design to recreate fictitious team
• Includes 540-Type Torque Tuned brushed motor and Hobbywing produced ESC

Separately Required Items

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

Photos of the Chassis
1) Here is the BT-01 chassis, which is a joy to build and work on thanks to its use of various unitised sections.
2) Suspension components are also unitised for smoother pit work.
3) Motor and servo are located in the right of the chassis, which uses a 3-piece steering tie-rod.

Photos of the Body1) The racy form with bulging fenders is recreated by a polycarbonate body.
2) Six-spoke wheels are paired with semi-pneumatic tyres.
3) Stickers are included to give the model its Tamiya original livery.

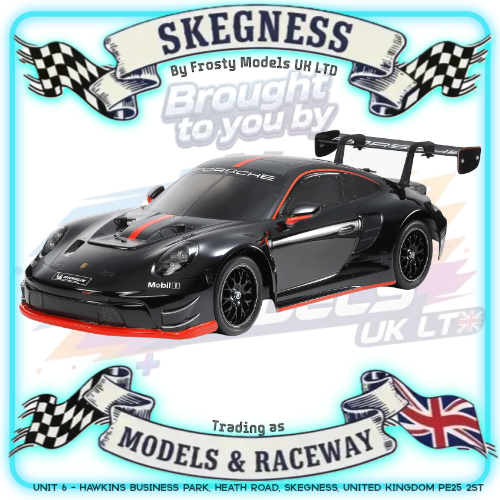

This radio-controlled model assembly kit recreates the Porsche 911 GT3 R (992) with a stunning and highly detailed polycarbonate body. The kit is based on the beginner-friendly and highly customizable TT-02 chassis, which allows hobbyists to grow as their driving and building skills develop.

About the Porsche
The full-size Porsche 911 GT3 R (992) is a car which was developed to conform to GT3 race regulations. It is used by customer teams around the world that compete globally in races such as the Fanatec GT World Challenge Powered by AWS and the SRO Motorsports Group in Europe, North America, Asia, and Australia. The harmonious shape of the 911 emphasizes its heritage while combining it with sophisticated new efficiency. Functionality is paramount too! The body is made of particularly lightweight carbon to reduce vehicle weight. The result: increased agility and precision unparalleled throughout GT racing. The perfect starting point for success on the racetrack. With its increased displacement, the heart of the vehicle – the water-cooled six-cylinder naturally aspirated boxer engine – can achieve up to 416 kW (565 hp). Its purpose is clear: race to win.

The TT-02 Chassis
Adaptable TT-02 Chassis offers balanced shaft driven 4WD:
The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Mesh-type wheels are paired with racing slick tyres.

About the Model

• 1/10 scale R/C model assembly kit. Length: 479mm, width: 188mm, height: 127mm (approximate)
• Wheelbase: 251mm (short)
• Polycarbonate body with separate polycarbonate rear wing and light case details
• Separate plastic parts moulded in black realistically depict side mirrors and wing stays
• The model utilizes the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability
• Black mesh-type wheels are paired with slick tyres
• Includes Item 51226 (Urethane Bumper L (TT-01, TGS)) to keep the body in top condition
• Includes stickers and window masking tape for use in the painting process
• Includes 540-Type Torque Tuned brushed motor and Hobbywing produced ESC

Separately Required Items

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

Photos of the Body

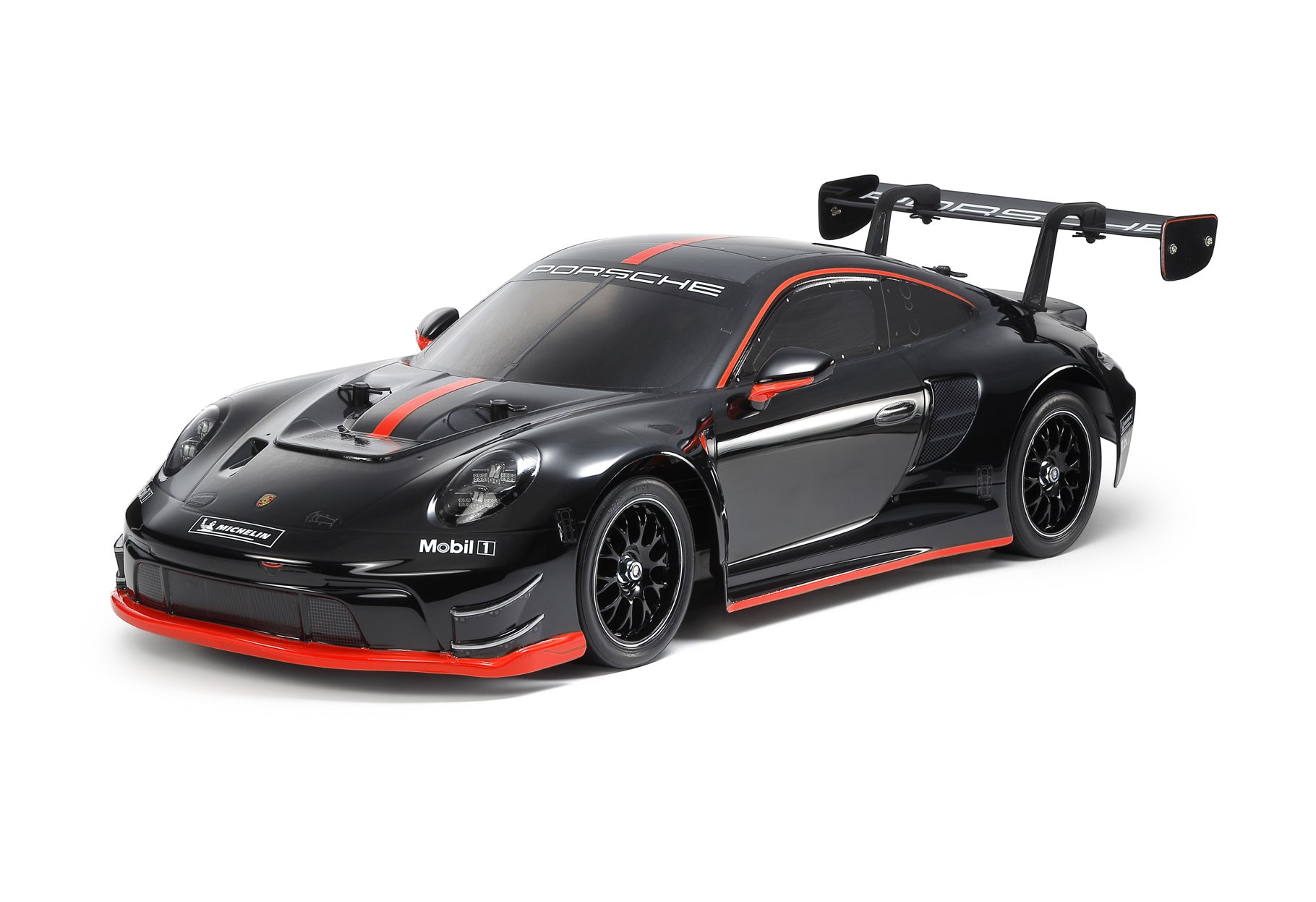

1) The mesmerising form of this modern race-spec 911 is captured by a polycarbonate body.
2) Black mesh type wheels have stickers for the silver rim detail.
3) Stickers depict rear combination lights, centre twin exhausts, air outlets and more.

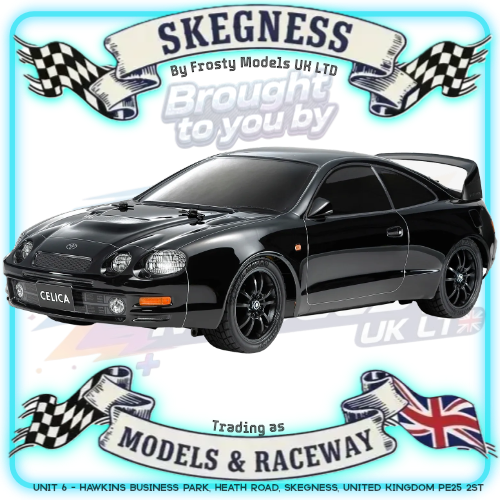

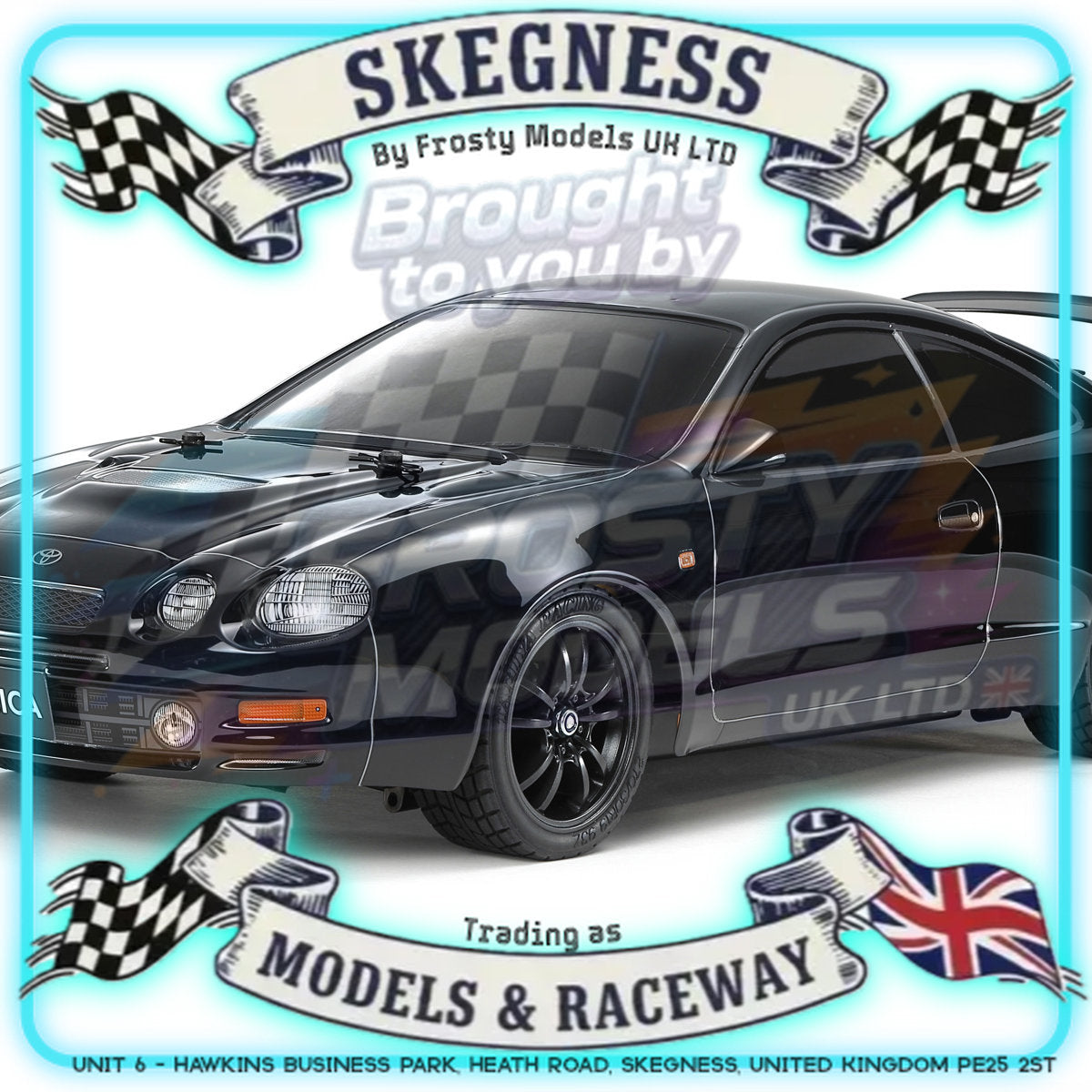

Tamiya classic car R/C replicas are a fan favourite! This assembly kit recreates another 1990’s era favourite with the addition of the Toyota Celica GT-FOUR (ST205) on our easy to assemble and drive TT-02 chassis.

About the Toyota Celica GT-FOUR
Toyota developed this high-spec version of the sixth generation Celica with the aim of repeating in 1994 their global rally championship of the previous year. It possessed curved, aerodynamic body lines, a distinctive front with four headlights of different sizes, and a 2 litre 4 cylinder DOHC turbo engine capable of 255hp. The 4WD system utilized a centre viscous coupling and a Torsen differential at the rear for superior traction. Also, 2,100 Japanese models featuring an arched rear spoiler were produced to the acclaim of Celica fans.

• 1/10 scale R/C model assembly kit. Length: 451mm, width: 186mm, height: 134mm. Wheelbase: 257mm.
• Durable 1.0mm-thick polycarbonate body.
• The model utilizes the efficient shaft-driven 4WD TT-02 chassis, which features superior adaptability and stability.
• 10-spoke wheels moulded in Gun Metal are paired with tread pattern racing radial tires.
• Comes with stickers and window masking stickers for use in the paint job.
• Includes 540 brushed motor and ESC.
• Required to complete: 2-channel radio, servo, 7.2 volt battery with compatible charger, and Tamiya PS paints.

Tamiya Release Date: End of August 2024

The 2WD BT-01 chassis – which offers choices of FF/MR/FR drive system – welcomes another R/C kit; this time, a short wheelbase, midship rear motor / rear wheel drive (MR) setup with the body which recreates the Porsche 911 Carrera RSR 2.8. The Porsche Carrera RS 2.7 is a legend of the Porsche 911 series. Developed to join European GT races in 1973, it employed a 2,687cc horizontally opposed 6-cylinder engine capable of 210hp, a lightweight body with improved aerodynamics, and wide rear tires. The Carrera RSR 2.8 racing version increased displacement to 2,808cc and output to over 300hp; in 1973, it was a European GT race champion and took numerous global victories

About the Model
This is a 1/10 scale R/C model assembly kit. Length: 457mm, width: 204mm, height: 138mm.

Wheelbase:
251mm. (Short)

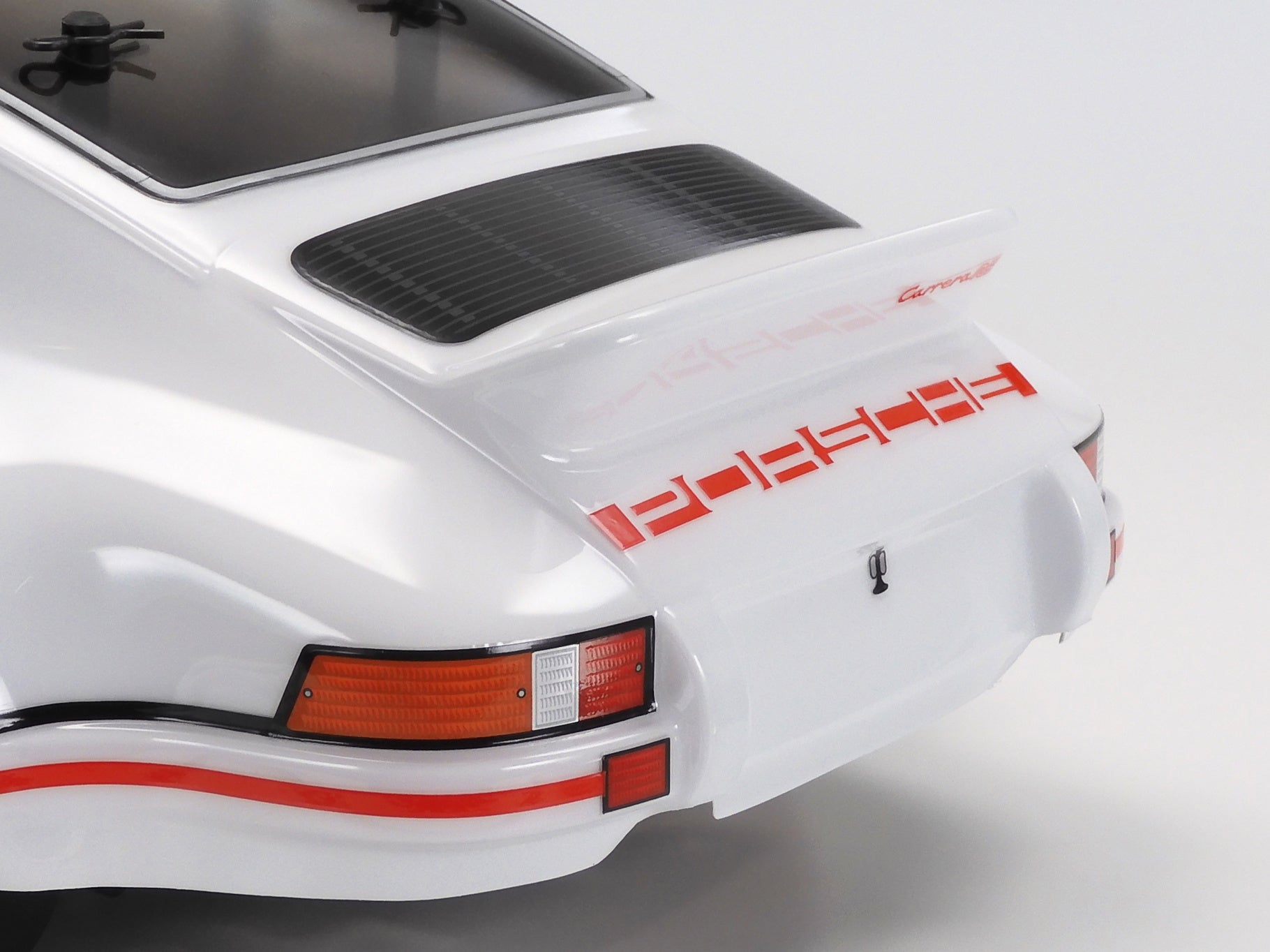

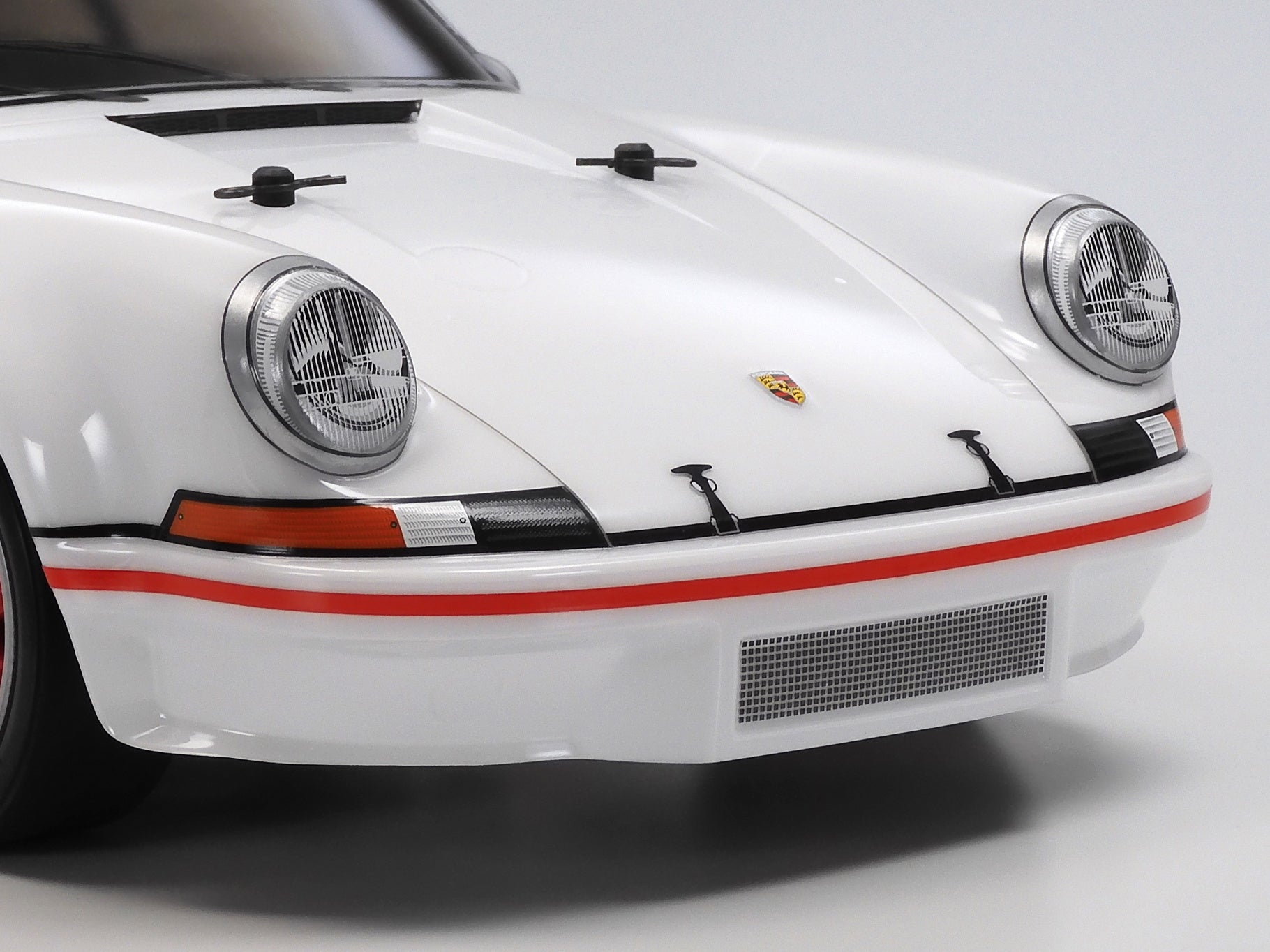

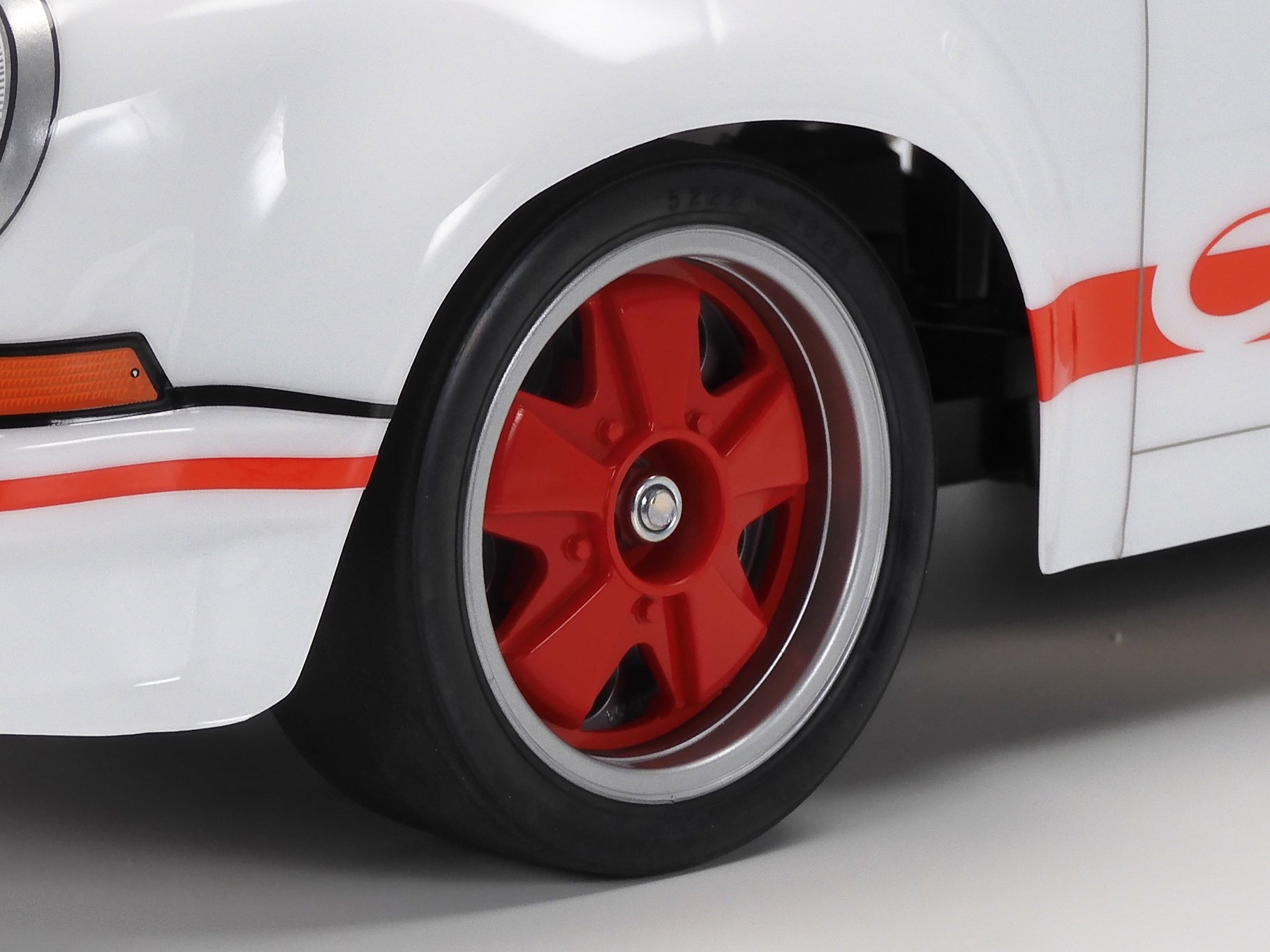

The form of the Porsche 911 Carrera RSR 2.8 is realistically recreated in lightweight polycarbonate. Silver colour wheels (front: narrow, rear: wide / rims and red wheel caps are separate) are paired with racing slick tires (front: Item 50454, rear: Item 50547). Please note that the kit does not have the inner sponges for either front or rear. A separate moulded plastic part recreates the side mirror.
Link to parts list for BT-01 https://www.tamiya.com/cms/english/rc/catalogs/BT-01_parts_catalog.pdf

The 2WD BT-01 chassis gives a choice of two types of wheelbase, and front- or rear- wheel drive system. Without removing battery pack, motor and R/C equipment setups from the centre frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; front (FR) or midship rear (MR) motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.

Type 540 motor and ESC included.

Tamiya welcomes another release on our popular TT-02 chassis; this time, the 1998 Honda NSX Racing! The NSX - a midship engine sports car released in 1990 – achieved success in races all over the world and also took part in Japanese GT car races from 1996. The 1998 version employed a 3.5-liter V6 engine, and featured improved aerodynamics, low centre of gravity, improved brake system and easier maintenance. Four cars were raced that year and achieved five victories.

About the Model

• This is a 1/10 scale R/C model assembly kit. Length: 435mm, width: 194mm, height: 121mm. Wheelbase: 257mm.
• The lightweight, durable 1.0mm thick polycarbonate body authentically captures the form of the 1998 Honda NSX Racing in style.
• The model utilizes the shaft-driven 4WD TT-02 chassis, which features superior adaptability and stability.
• Gun metal 6-spoke wheels are paired with racing slick tires.
• Comes with stickers and masking stickers for use in the paint job.

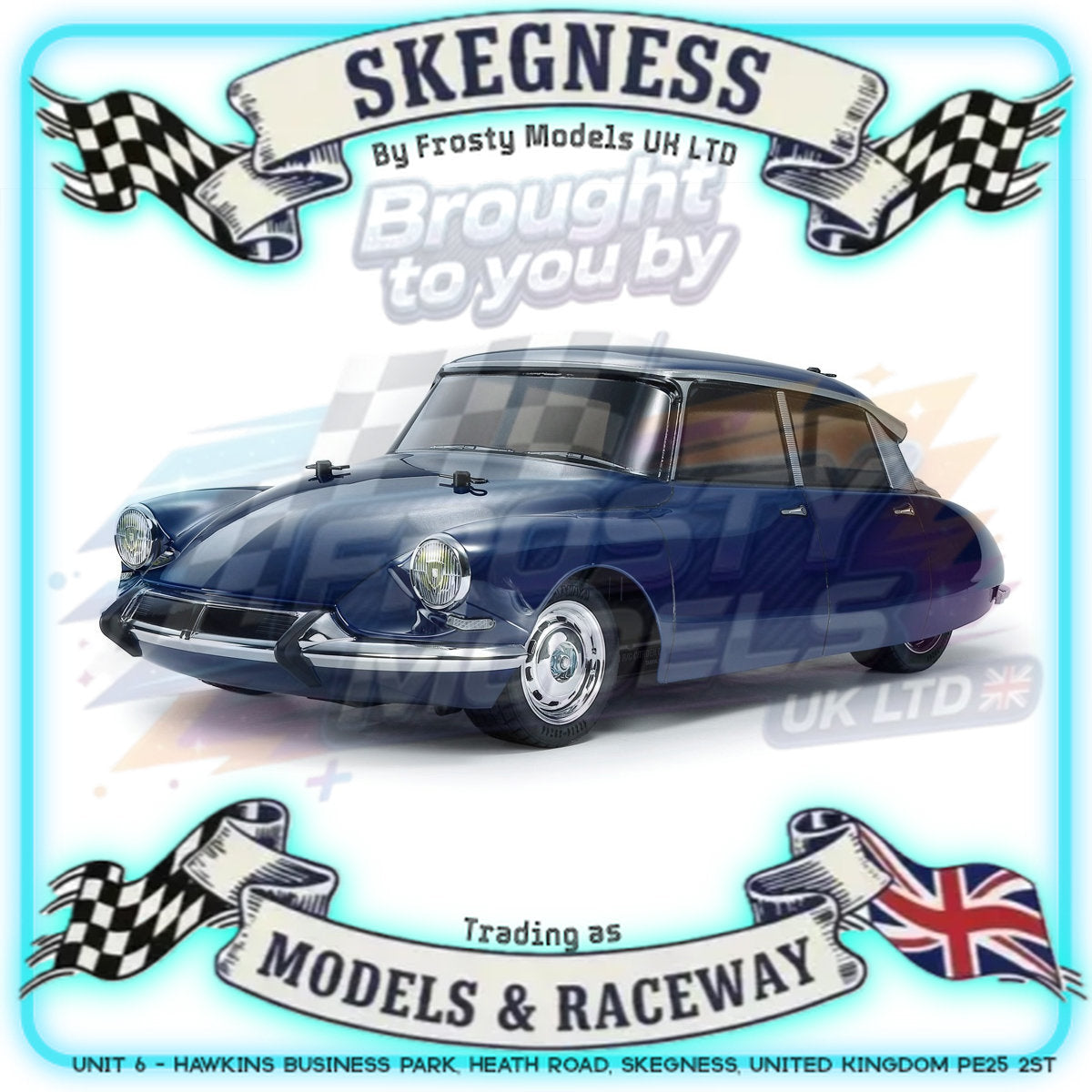

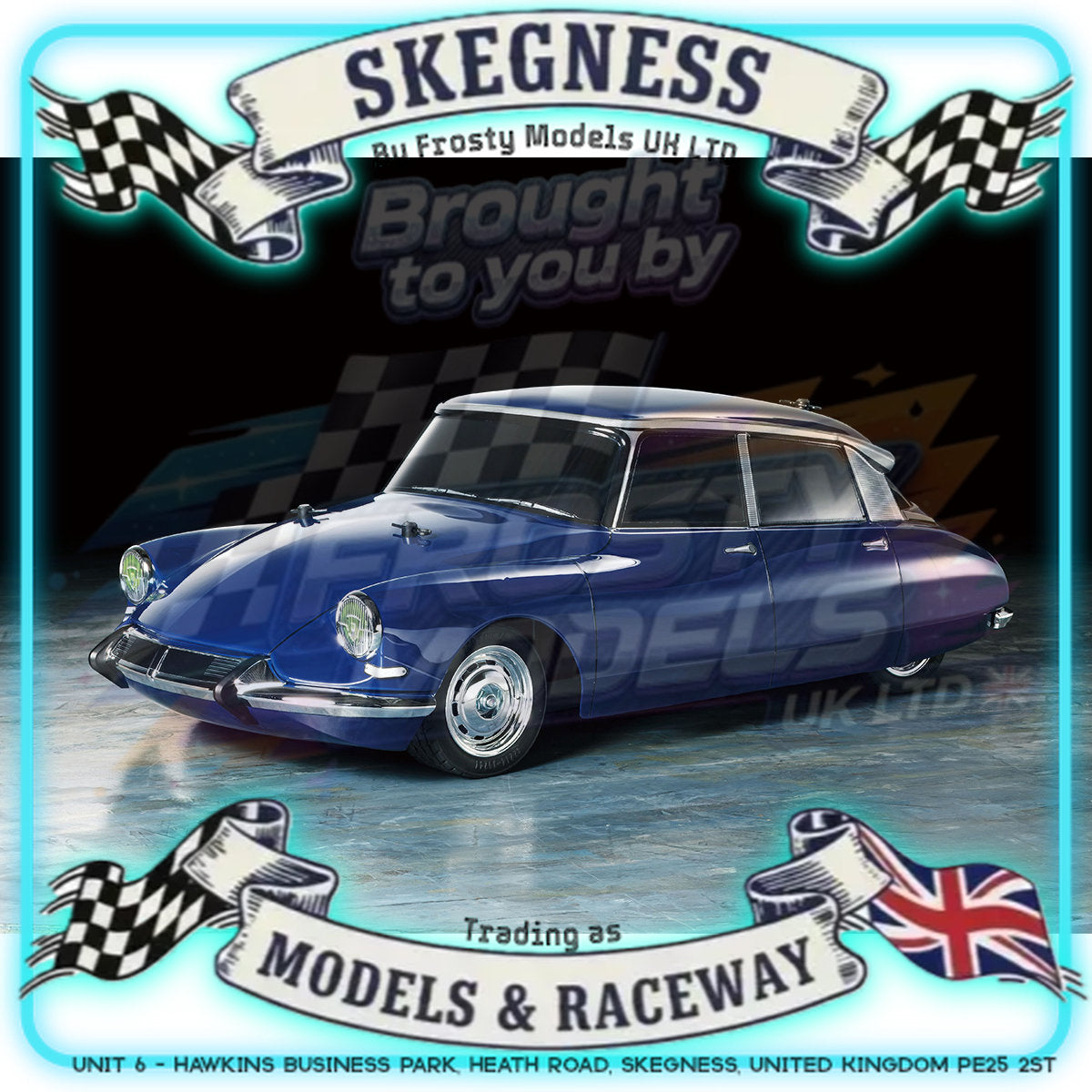

This R/C assembly kit recreates the Citroën DS which made its debut in 1955 and caught people’s attention with its innovative structure and style. Over 1,450,000 were sold up to 1975, and it became one of the better-known cars of the 20th century. This car was used as the official car for the President of France and achieved the overall championship in 1966 global rallies. The version recreated in this assembly kit recreates the early-period model featuring two rounded headlights. The polycarbonate body sits on top of the MB-01 chassis configured in the long wheelbase and front motor / front-wheel drive (FF) configuration.

The MB-01 Chassis
The compact, 2WD MB-01 chassis gives a choice of three types of wheelbase, and front- or rear- wheel drive system. This model employs a front-wheel drive setup. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance. What is more, without removing battery pack, motor and R/C equipment setups from the centre frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars.

About The Model

• Length: 412mm, width: 197mm, height: 137mm
• Wheelbase: 239mm (Long)
• Tread: 148mm (front), 140mm (rear)
• Tire width/diameter: 25/59mm (front & rear)
• Bathtub type chassis
• Front-midship motor, front-wheel drive
• 4-bevel differential gear
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Friction dampers
• Gear ratio = 5.83:1 (using kit 29T pinion)
• Type 540 motor
• ESC included

Separately Required Items

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

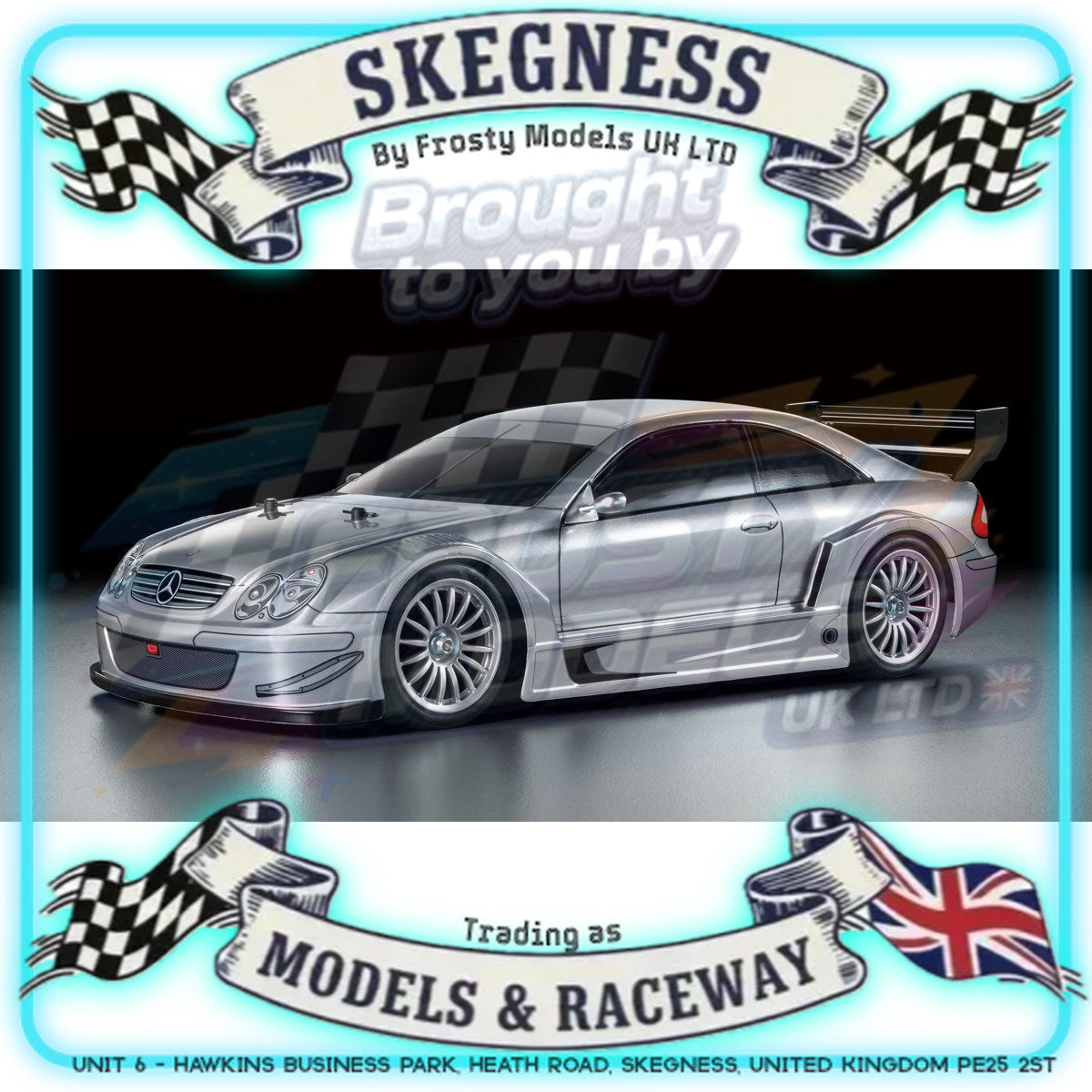

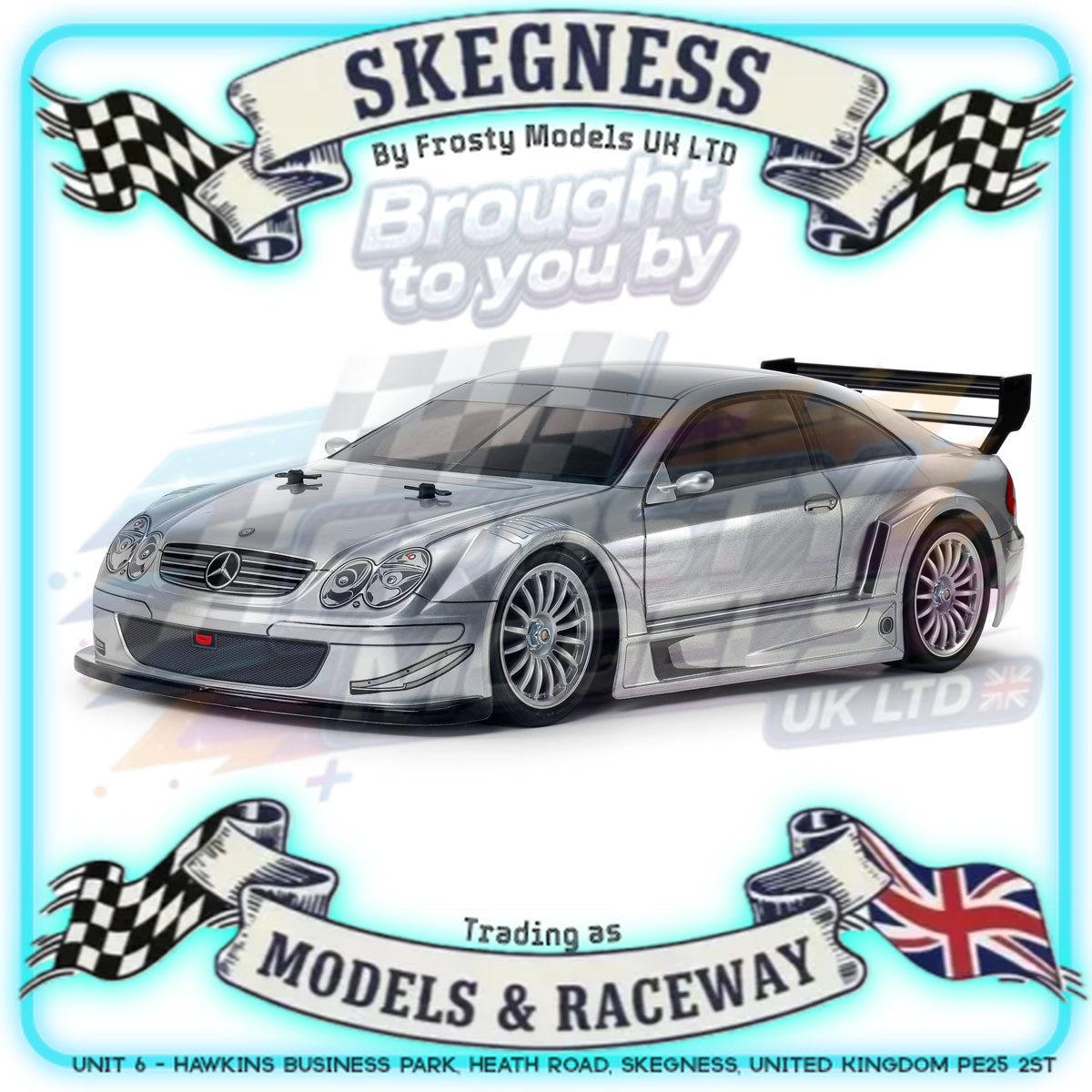

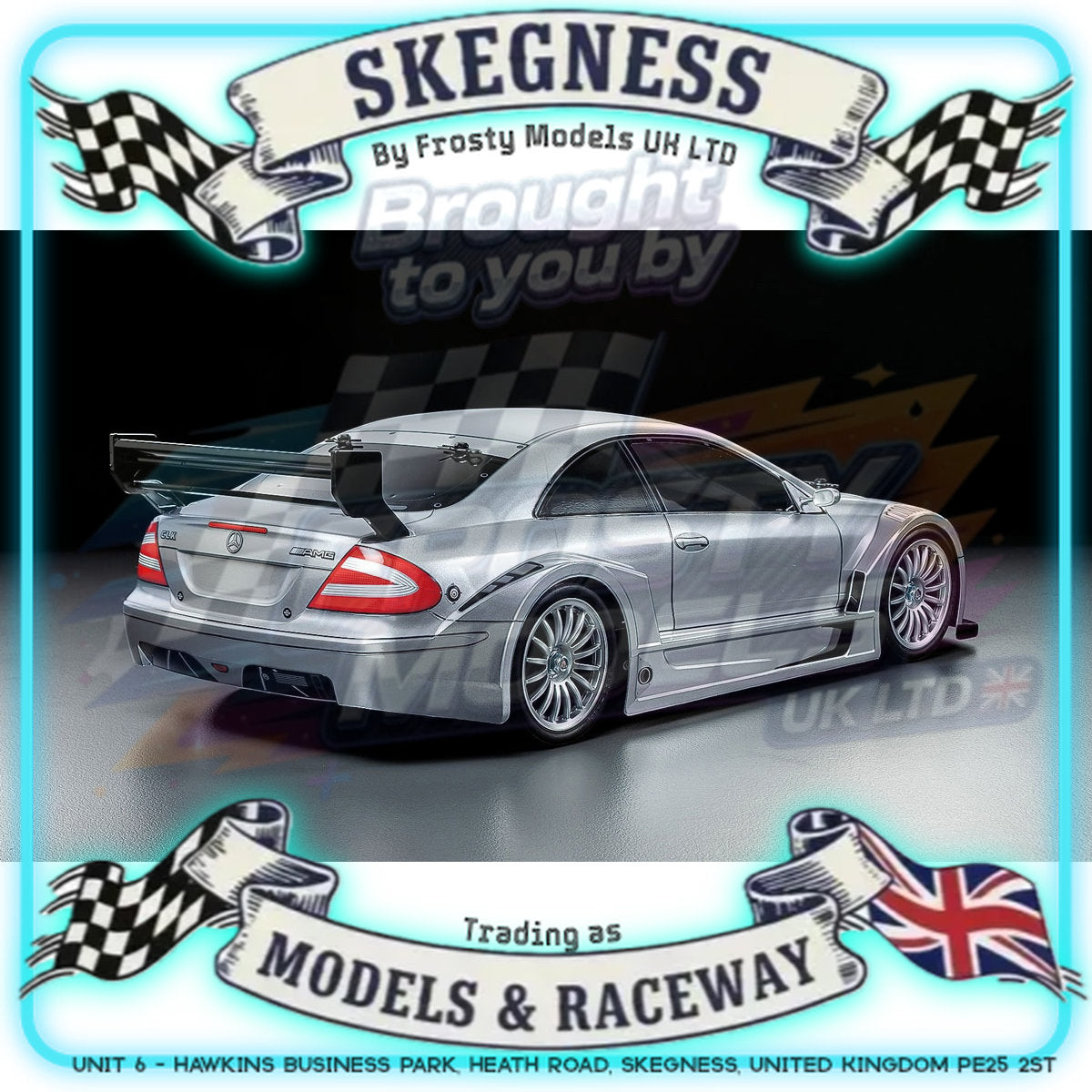

This R/C model assembly kit recreates the 2002 Mercedes-Benz CLK AMG Racing Version and is based on our popular TT-02 chassis. The body used in this kit was last seen on product 58296 CLK-DTM 2002 AMG-Mercedes on the TL-01LA chassis from 2002. It’s now being used to create the iconic race car as it appeared as the homologation version which inherits the racecar's powerful form with enlarged over fenders and rear wing, without sponsor logos.

Adaptable TT-02 Chassis
The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

About The Model

• 1/10 scale R/C model assembly kit. Length: 444mm, width: 185mm, height: 125mm. Wheelbase: 257mm
• Lightweight, durable 1.0mm thick polycarbonate body
• Separate parts realistically depict side mirrors and rear wing
• The model utilizes the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability
• 16-spoke silver colour wheels are paired with racing slick tyres
• Comes with stickers and window masking tape for use in the paint job.
•  Includes ESC and motor

Separately Required Items

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

Tamiya Release Date: Due early August 2023

The origin of M-chassis series history goes back to December 1994, and this series has been popular due to cost-effective kits with a wide choice of bodies, ease of maintenance and control for any level user. Enter, the all-new MB-01!

The new MB-01 chassis continues that tradition and allows six setups by choosing from three types of wheelbases, and front- or rear- wheel drive system. Its first body recreates the Fiat Abarth 1000 TCR Berlina Corse which was a car developed with high level tune-ups based upon the compact 2-door Fiat 600.

MB-01 Chassis Features

• Length: 322mm, width: 163mm. Wheelbase: 209mm (S) / 224mm (M) / 239mm (L) (*Fiat Abarth uses the LONG wheelbase setup).
• The multi-purpose, 2WD MB-01 chassis gives choices of three types of wheelbases (*), and front- or rear- wheel drive system. Six setups are available in total.
• Simply change attachment directions of final gears and steering linkage to switch between front- and rear- wheel drive; low or high motor position can be chosen for rear-wheel drive cars.
• Unitized sections such as motor mount and final gears facilitate ease of assembly and effective maintenance.
• The 4-wheel double wishbone suspension features symmetrical structure and friction dampers.
• While this is a 2WD model, multi-link suspension is compatible with tires featuring the same compound and rear tire with toe-in as 4WD models.
• Gear ratio: 5.83:1 (when using kit-standard 29T pinion gear)
• Features 55mm diameter front tires and 60mm diameter rear tires to authentically recreate the stance of the actual car.
• Many Hop-Up Option parts for M-chassis and TT-chassis cars can be used to fine-tune setup.
• Includes 540 motor and ESC.
• Requires 2-channel radio, 7.2-7.4volt battery with compatible charger and Tamiya PS paint to complete.

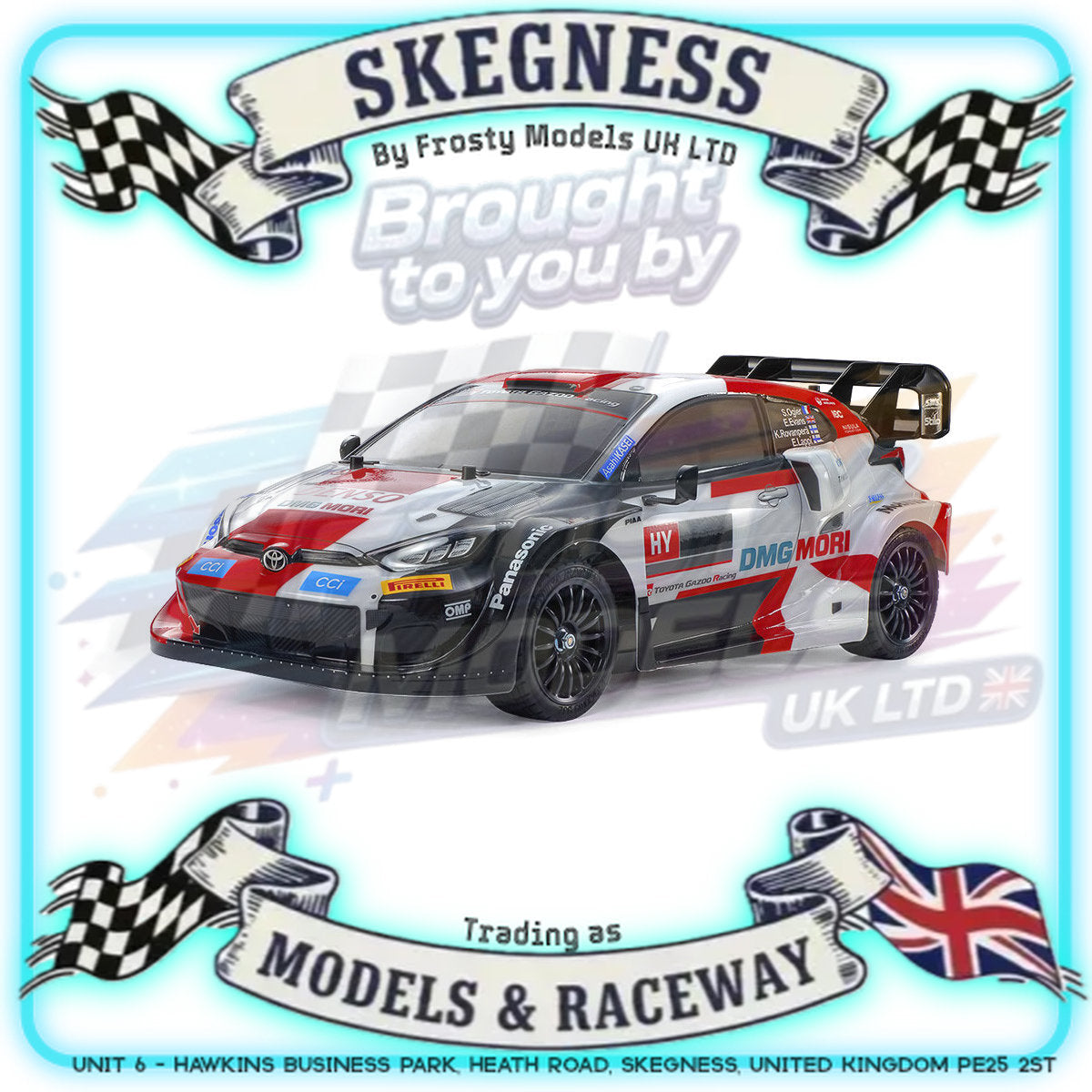

This is a radio control assembly kit of the Toyota GAZOO Racing WRT/GR Yaris Rally1 Hybrid that began competing in 2022 in compliance with Rally 1 restrictions. The combination of hybrid unit integrated with motor and generator and engine is capable of over 500PS and 500Nm, while the car also features regenerative charging during brake function. A 1.6-litre inline 4-cylinder direct injection turbo engine uses non-fossil fuel. In addition to side skirts and large rear wing, air ducts are equipped right and left at the rear to cool down the hybrid unit. In 2022, it achieved both Manufacturer’s and Driver’s Championships.

Adaptable TT-02 Chassis with 4WD
The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

About the Model

• 1/10 scale R/C model assembly kit. Length: 416mm, width: 190mm, height: 146mm
• Wheelbase: 257mm
• Lightweight, durable polycarbonate body
• Separate polycarbonate front light cases add three-dimensional look (note: front LED lights cannot be attached)
• Separate plastic parts moulded in black realistically depict side mirrors, 2-piece large rear wing, side ducts and caps
• The model utilises the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability
• Dark gun metal colour multi-spoke wheels (Item 50678) are paired with racing radial tyres (Item 50419)
• Includes Urethane Bumper for crash protection
• Comes with stickers and window masking tape for use in the painting process
• Includes 540 Torque Tuned motor and ESC

Separately Required Items

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

Photos of the Body

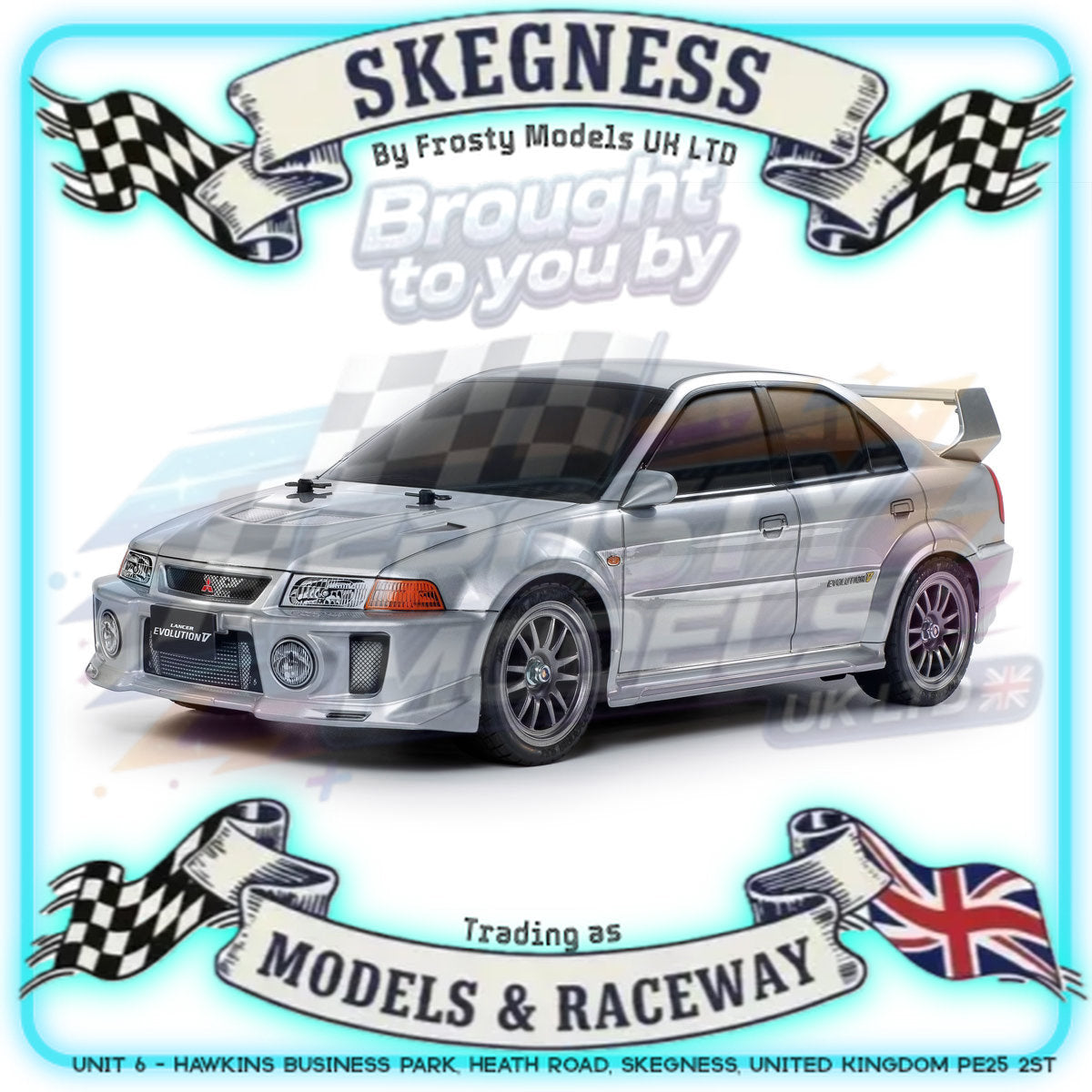

This R/C car recreates the Mitsubishi Lancer Evolution V as a 1/10 R/C model assembly kit based on our popular TT-02 chassis. The Mitsubishi Lancer Evolution 5th generation model took part in global rally races in 1998 and achieved both Maker’s and Driver’s Championships. This car featured a powerful body with bulging fenders, louvers and air intakes on the hood, and rear wing. This kit depicts it as a road car.

Adaptable TT-02 Chassis offers balanced shaft driven 4WD
The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

• 1/10 scale R/C model assembly kit. Length: 445mm, width: 185mm, height: 145mm. Wheelbase: 257mm.
• Lightweight, durable 1.0mm thick polycarbonate body.
• Separate ABS plastic parts realistically depict side mirrors and rear wing.
• The model utilizes the shaft-driven 4WD TT-02 chassis which features ease of assembly, superior adaptability and stability.
• 12-spoke silver wheels are paired with tread patterned racing radial tires.
• Comes with stickers and window masking stickers for use in the painting process.
• Includes 540-size motor and ESC.
• Requires: 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS paint to complete.

This R/C model assembly kit recreates the Porsche 911 GT3 (992) with a stunning and highly detailed polycarbonate body. The kit is based on the beginner friendly and highly customizable TT-02 chassis. The full-size 7th generation model, Porsche 911 GT3 features double-wishbone front suspension – changed from MacPherson strut – and a horizontally opposed 6-cylinder engine. Lightweight components and aerodynamic design extensively improved its performance. Carbon fibre reinforced plastic front hood, which was employed for production vehicles for the first time, gives lightweight design. Also, hanging type wing stay supply greater downforce and lower drag.

Adaptable TT-02 Chassis offers balanced shaft driven 4WD
The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Mesh-type wheels are paired with racing slick tires.

• 1/10 scale R/C model assembly kit. Length: 467mm, width: 188mm, height: 131mm
• Wheelbase: 251mm (Short-size wheelbase spec).
• Lightweight, durable polycarbonate body with separate polycarbonate rear wing and light cases.
• Separate plastic parts moulded in black realistically depict side mirrors and wing stays.
• The model uses the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability.
• Dark gun metal colour spoke wheels are paired with racing radial tires.
• Includes ESC and motor.
• Comes with trim detail stickers and window masking tape for use in the paint process.
• Requires 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger and Tamiya PS paint to complete.

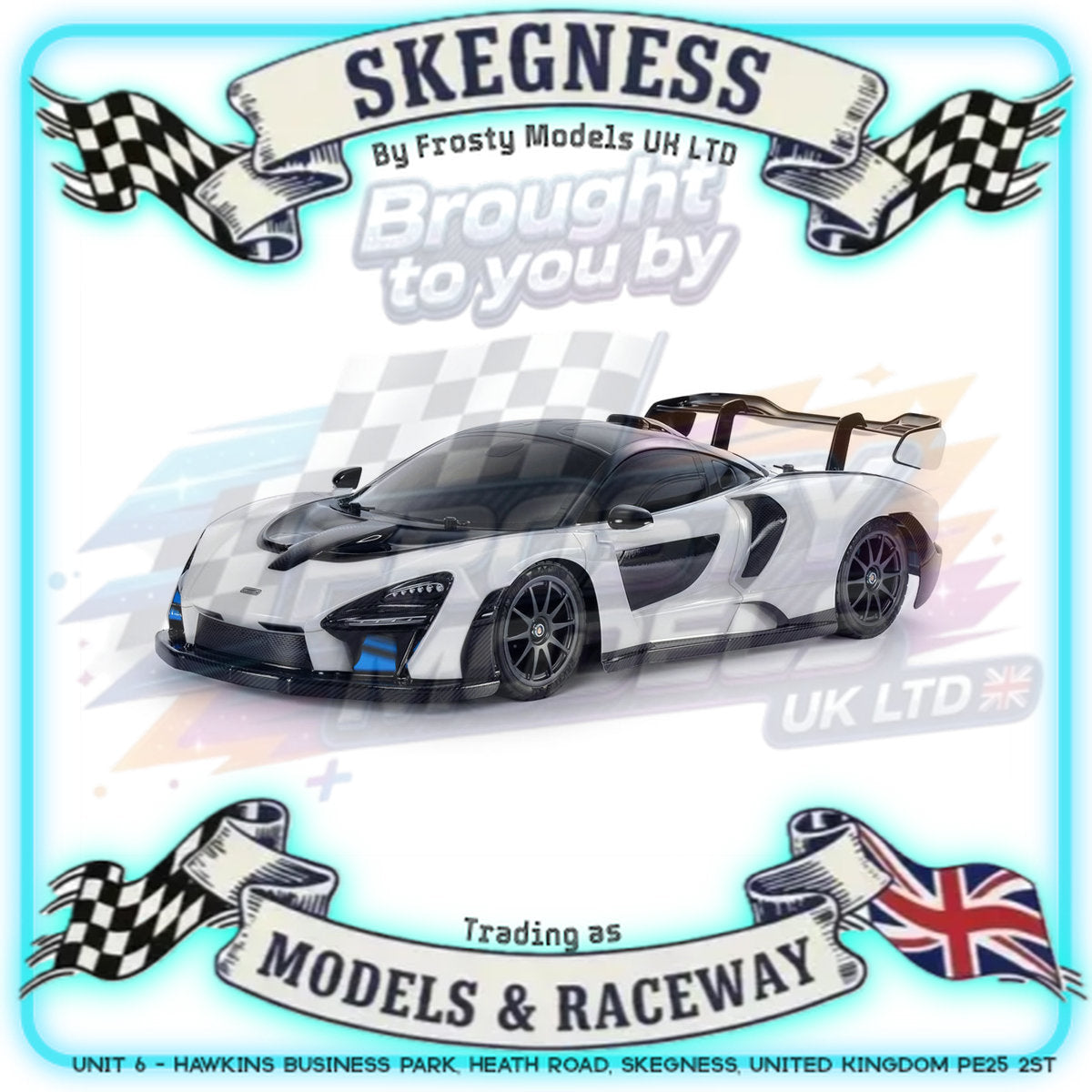

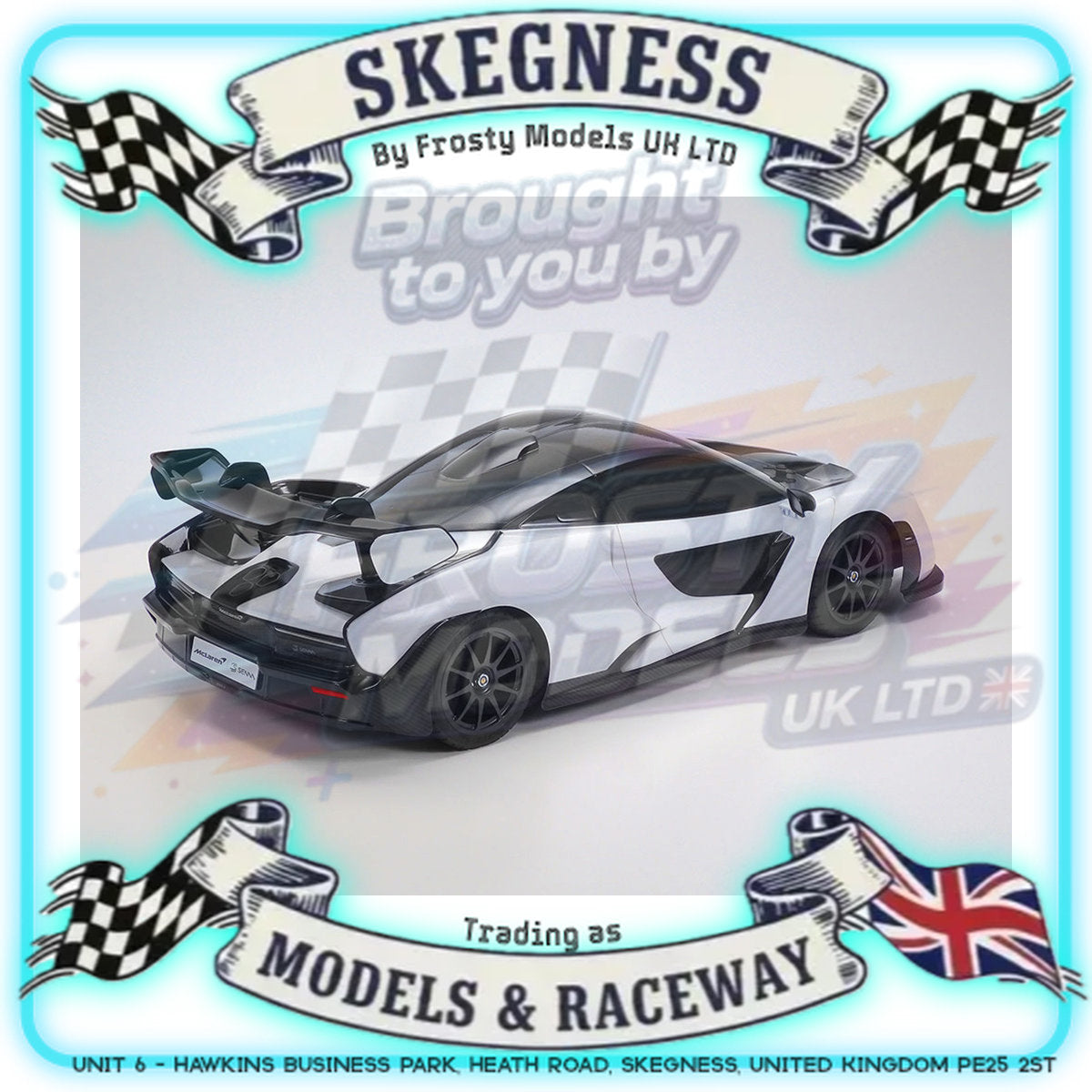

Unleashed on the world at the 2018 Geneva International Motor Show, this super car bears the name of legendary racer Ayrton Senna. Its body features extensive carbon fibre sections, and is designed for impeccable aerodynamics and cooling. Power is provided by an 800PS 4-litre V8 twin turbo engine. With only 500 produced, the McLaren Senna is hot property indeed.

Tamiya has recreated this legendary supercar as a radio control model in 1/10 scale. The body has been faithfully captured in polycarbonate while the rear wing and rearview mirrors are recreated with ABS plastic. Furthermore, the body sits on top of our easy-to-assemble TT-02 chassis.

TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

About the Kit

• 1/10 scale R/C model assembly kit. Length: 466mm, width: 194.6mm, height: 118mm. Wheelbase: 257mm
• The complex, aerodynamically honed form of the McLaren Senna is captured in polycarbonate with dedicated black ABS side mirrors and rear wing
• Based upon the shaft-driven 4WD TT-02 chassis which gives high adaptability with various kinds of setups
• Includes Large Urethane Bumper L (Item 51226) which helps protect your model
• 10-spoke wheels moulded in Gun Metal are paired with racing radial tyres (Item 50419)
• Body requires painting, cutting out, attachment of parts, application of stickers, and other work
• Includes 540-type brushed motor and ESC
• Requires: 2-channel radio, servo, 7.2-7.4volt battery with charger, and Tamiya PS paint to complete

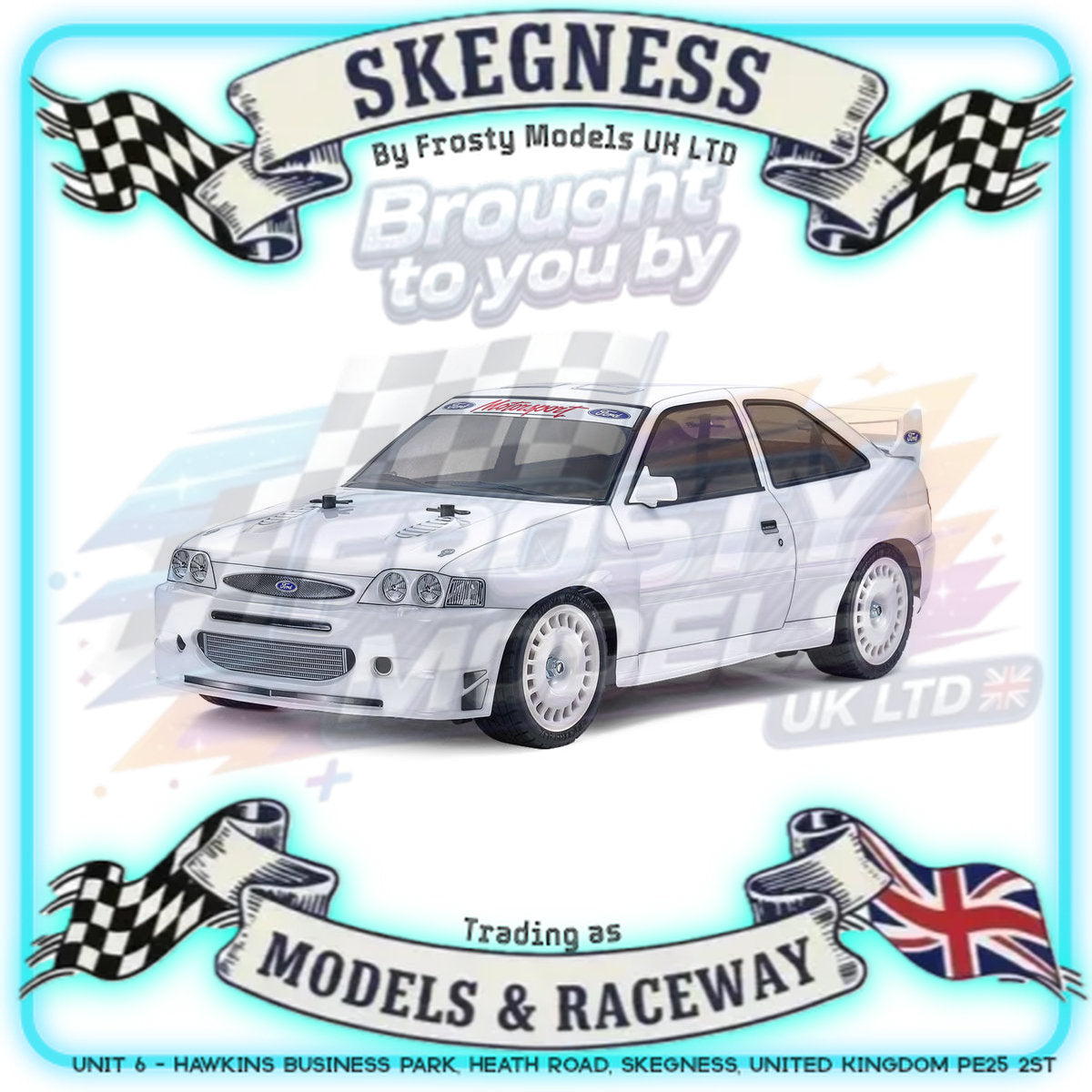

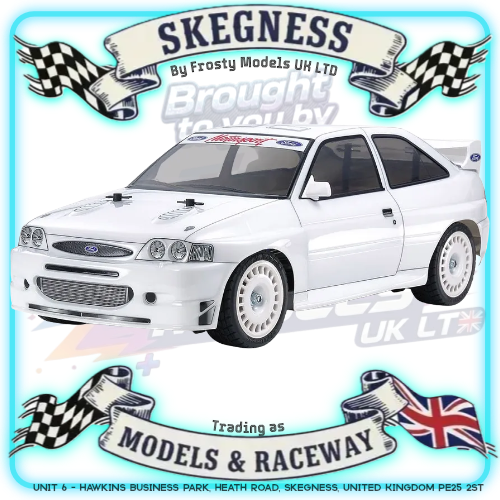

This is a special custom (street spec) version of the 1998 Ford Escort. The body depicts the Ford Escort as a customized street version of the WRC car, and is based upon the TT-02 chassis. The actual car was powered by an inline-4 2-litre engine offering 300PS and 50Kgm of torque.

TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

About the Model

• 1/10 scale R/C model assembly kit. Length: 425mm, width: 189mm, height: 145mm. Wheelbase: 257mm
• Features a 1.0mm thick polycarbonate body
• Dish-type wheels are moulded in white ABS plastic, and paired with treaded tyres
• Stickers and window painting masking stickers for use in the paint process included
• The TT-02 chassis is a highly versatile shaft-driven 4WD unit, based around a durable bathtub
• 4-wheel independent double wishbone suspension has identical arm and upright parts for ease of maintenance
• A wide range of Hop-Up Option parts is available to customize your chassis
• Includes 540-brushed type motor with ESC
• Requires: 2-channel radio, steering servo, 7.2-7.4volt battery pack and compatible charger, and Tamiya PS polycarbonate paint

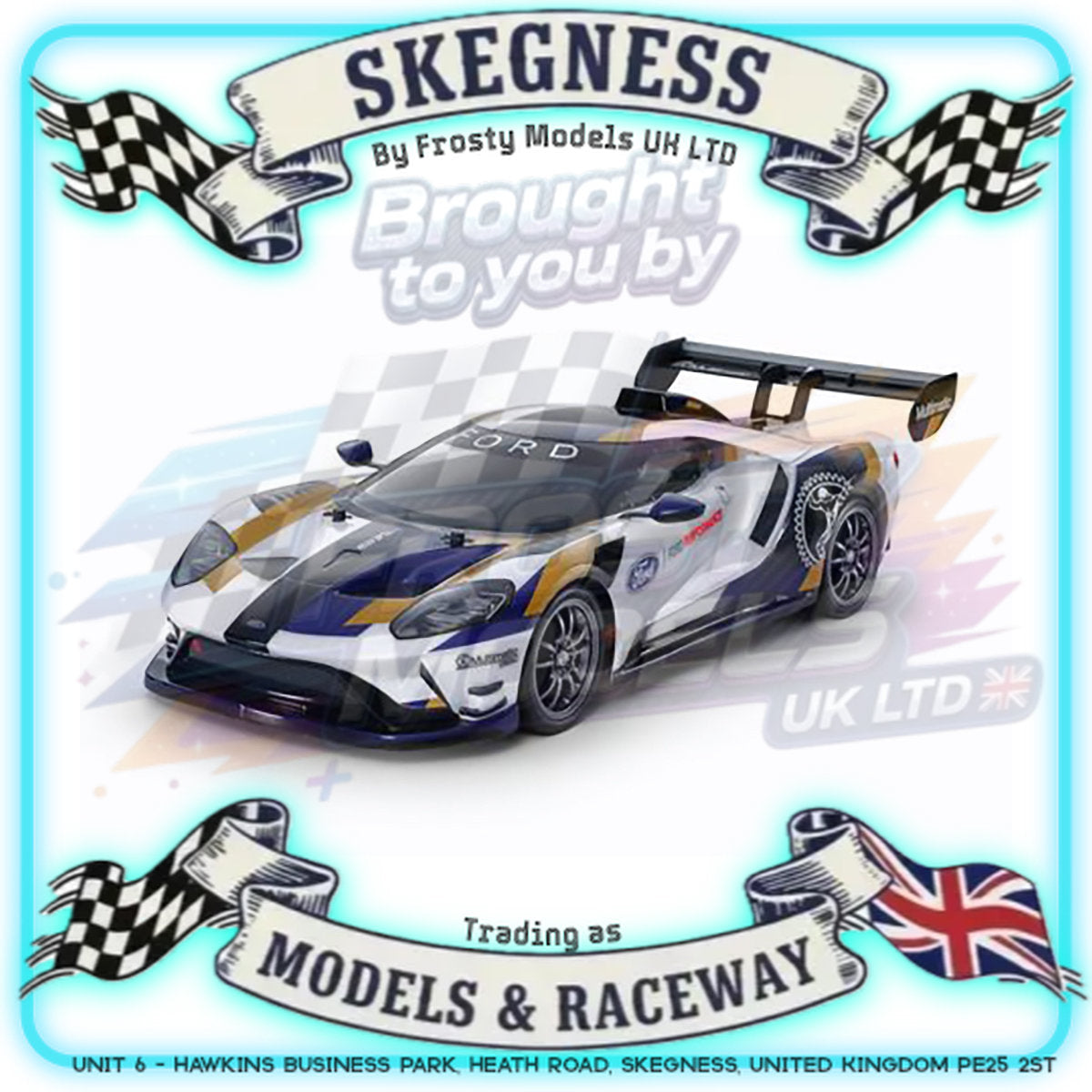

This R/C model assembly kit recreates the 2020 Ford GT Mk II track-only supercar. The MK II was built to celebrate Fords race winning heritage at Le Mans which was accomplished with the legendary GT40 MKII back in 1966. This version of the Ford GT will be limited to 45 hand-built machines, but the Tamiya R/C version is available for all fans!

The accurately depicted Ford GT MK II body is made of polycarbonate and ABS plastic wing and mirror pieces, which sits on top of our most builder user friendly TT-02 entry-level on-road chassis.

TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color 10-spoke wheels and slick tires make for a racy finish.

• 1/10 scale R/C model assembly kit. Length: 479mm, width: 188mm, height: 112mm. Wheelbase: 257mm.
• The ultra-honed form of the car is recreated in lightweight polycarbonate, with separate parts used to depict flying buttresses, rear wing and side mirrors.
• Body is made of polycarbonate with ABS plastic wing and mirror parts.
• Stickers are included to decorate the body as the car appeared in its unveiling.
• Twin five-spoke wheels with slick tires.
• The TT-02 chassis is a highly versatile shaft-driven 4WD unit, based around a durable bathtub.
• 4-wheel independent double wishbone suspension has identical arm and upright parts for ease of maintenance.
• A wide range of Hop-Up Option parts is available to customize your chassis.
• Includes 540-brushed type motor.
• Includes NEW TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.
• Requires: 2-channel radio, steering servo, 7.2-7.4volt battery pack and compatible charger, and Tamiya PS paint.

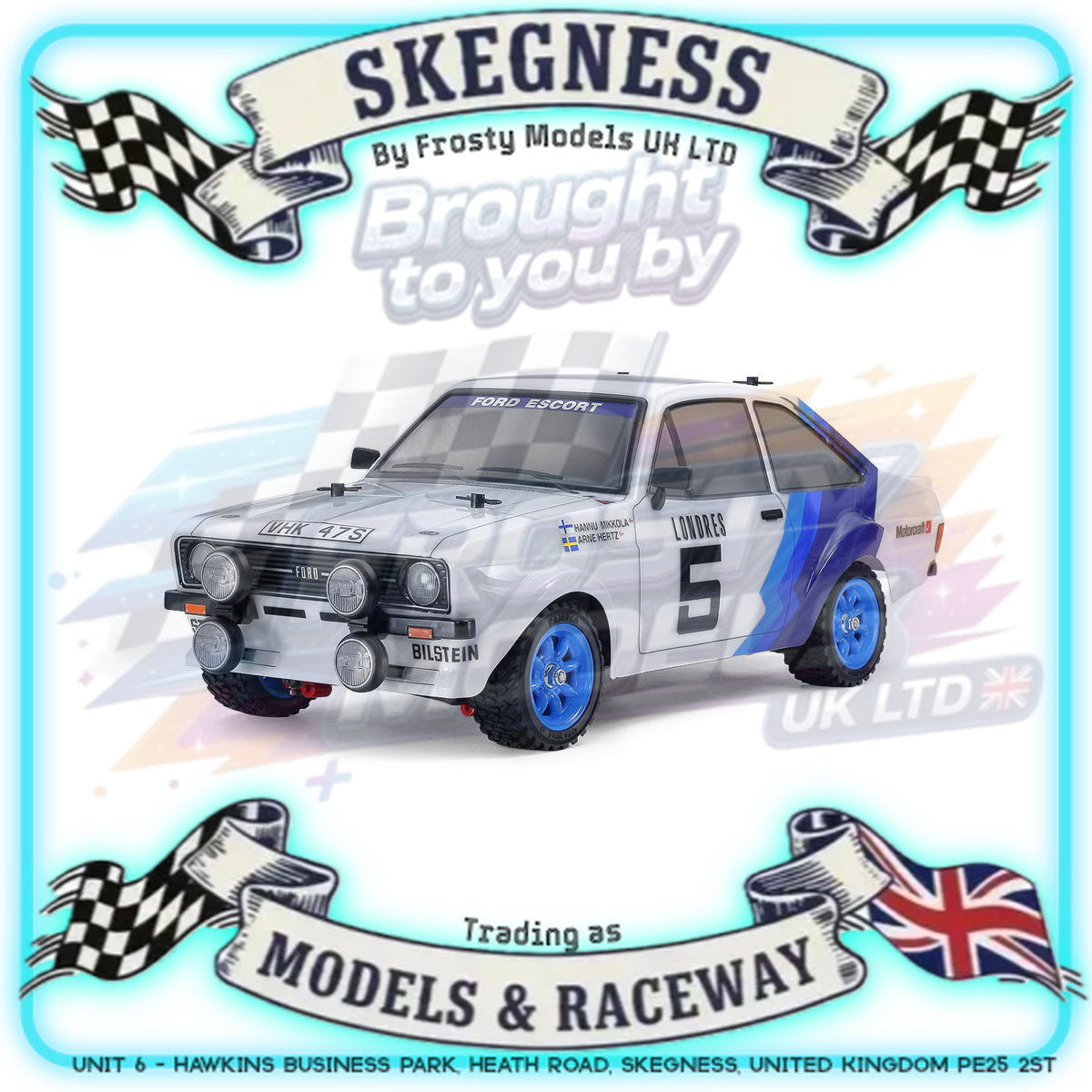

This R/C model assembly kit recreates the classic Ford Escort Mk.II in rally racing form. It was a RAC Rally Champion from 1975-1979. The pre-painted body sits on top the Tamiya MF-01X chassis that is capable both on asphalt and flat dirt surfaces.

MF-01X Chassis
Based around a tough monocoque frame with integrated gearboxes, this compact 4WD chassis gives a thrilling drive whether you take it on road or flat dirt surfaces. It features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front. Both front and rear gearboxes have differential gears. The battery pack location in the chassis centre secures excellent balance, while 4-wheel independent double wishbone suspension employs friction dampers. Rally Block tyres with width/diameter of 27/69mm are also included.

About the Model

• 1/10 scale R/C model assembly kit.
• Length: 414mm. Width: 172mm. Height: 135mm
• Wheelbase: 239mm (L)
• Tyre Width/Diameter (Front & Rear): 26/60mm
• Tread (Front & Rear): 138mm
• Polycarbonate body pre-painted in White.
• Separately moulded plastic components are included to recreate bumper, side mirrors and fog lamps.
• Polycarbonate front and rear light cases are compatible with separately sold Tamiya 5mm LEDs.
• Stickers are included to recreate blue livery sections, sponsor logos and more.
• The MF-01X is at home on-road or on flat dirt, thanks to 4-wheel double wishbone suspension.
• Power from the rear mounted motor is transmitted by gear differential to the rear wheels, and via a propeller shaft to the front. The chassis can be converted to S and M wheelbases with separately sold propeller shafts.
• A host of Hop-Up Option parts are available to tune the MF-01X chassis.
• Tamiya Torque Tuned Motor included.

Separately Required Items

• Two-channel radio, steering servo, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint

Photos of the Model
1) The iconic boxy form of this two-door legend is rendered artfully in polycarbonate, pre-painted white.
2) Eight-spoke light blue wheels are paired with 60mm-diameter, 26mm-width rally block tyres for great grip.
3) Plenty of separately moulded parts up the realism - spotlights, headlight cases, bumper and side mirrors.

1) A slimline three-piece monocoque forms the centrepiece of the MF-01X chassis, and the propeller shaft is positioned to the right.
2) This chassis features highly capable 4-wheel independent double wishbone suspension, with friction dampers front and rear.
3) Why not employ the separately sold Tamiya LED Light Unit to add even more realism to your Escort Mk.II Rally?

Tamiya is no stranger to recreating classic cars from different eras! This specific kit recreates a true classic in the form of the Volkswagen Karmann Ghia. The Karmann Ghia was a stylish coupé based upon the same platform as the legendary Beetle. Its body was designed by Italian firm Ghia and manufactured by the German company Karmann. The polycarbonate body in this replica sits on top of the Tamiya RWD M-06 chassis.

Great RR Performance from the M-06
The M-06 chassis features a rear-mounted motor, rear-drive setup and features a longitudinally-mounted battery pack, with R/C equipment positioned on either side for optimum balance and a low center of gravity. 4-wheel double wishbone suspension uses metal-plated wheels, equipped with 60D radial tires at the front and 60D super grip tires at the rear. In addition, a 3-piece steering linkage offers nimble handling response. A large bumper is included.

• 1/10 scale R/C model assembly kit. Length: 410mm, width: 182mm, height: 125mm.
• Lightweight and durable polycarbonate. Separate plated parts depict side mirror, bumpers and light cases.
• Includes marking stickers, and window masking stickers for use during the painting process.
• The M-06 chassis features a rear-motor, RWD setup with a longitudinally-mounted battery pack and R/C units positioned on either side for optimum balance and a low center of gravity.
• This model utilizes the 239mm wheelbase M-06L chassis.
• Metal-plated wheels paired with front radial and rear super grip radials for superior stability and sharp handling.
• A host of Hop-Up Option parts are available to customize the chassis to your driving needs.
• Includes Tamiya 540-motor.
• Includes: Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
• Required Items: 2-Channerl radio, steering servo, 7.2volt battery pack with compatible charger, and Tamiya PS paint.

The Audi Quattro A2 is an iconic Rally Race Car that made its mark in the 1980s. Tamiya’s 1/10 scale radio control replica brings rally racing fun to hobbyists on the adaptable and easy-driving TT-02 chassis.

TT-02: Adaptable, Balanced Shaft Driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

About the Model

• 1/10 scale R/C model assembly kit. Length: 458mm, width: 187mm
• A2 body is moulded accurately in durable polycarbonate
• Features separate metal-plated ABS parts for front and rear light cases, plus fog lamps. Side mirrors, wing and wing caps are moulded in white ABS
• Light cases are compatible with separately sold LEDs; fog lamps are not
• 5-spoke wheels are moulded in silver, and paired with racing radial tyres
• The TT-02 chassis is an adaptable and balanced design with excellent stability, plus features such as identical suspension arm and upright components for ease of assembly
• 4-bevel differential gears and 4-wheel double wishbone suspension
• Includes Tamiya Torque Tuned Motor
• Includes Tamiya TBLE-02S ESC (electronic speed control) capable of running sensor brushless motors and brushed motors alike (21.5 turn BL motor limit / 23 Turn brushed motor limit)
• An extensive TT-02 option parts line-up offers a number of opportunities to tune your car

Separately Required Items

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

Photos of the Chassis

Photos of the Body

Inspired by the Ford Shelby GT350R-C, the Ford Mustang GT4 has been designed and engineered jointly by Ford Performance and Multimatic Motorsports to compete in sports car championship racing series globally, including the IMSA Continental Tyre SportsCar Challenge, Pirelli World Challenge GTS/GT4, and GT4 European Series.

The Tamiya Ford GT4 faithfully captures this sleek racing car as a 1/10 scale radio control replica. The highly-detailed polycarbonate body sits atop the easy-to-build Tamiya TT-02 chassis that you can customize for added performance!

TT-02 Chassis
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

About The Model

• 1/10 scale R/C model assembly kit. Length: 459mm
• Polycarbonate body was designed with access to the actual car’s CAD data for superb accuracy. Front and rear light cases are also moulded in polycarbonate
• Wheel arches are pre-cut out for a simpler body assembly experience
• The beginner-friendly, highly adaptable TT-02 is a versatile and easy to maintain shaft-driven 4WD chassis
• Separately moulded plastic components depict rear wing and side mirrors
• Racy 10-spoke wheels are moulded in gun metal and paired with slick tyres
• Stickers are included to create an original livery, as are masking stickers for use when painting
• Includes Tamiya Torque Tuned Motor
• Includes Tamiya TBLE-02S ESC (electronic speed control) capable of running sensor brushless motors and brushed motors alike (21.5 Turn BL motor limit / 23 Turn brushed motor limit)

Separately Required Items

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

This R/C assembly car kit replicates the Lancia Rally 037 as raced in the early 1980s. The highly detailed body is made of durable ABS plastic, and it sits on top of Tamiya’s TA-02 S chassis.

The Lancia body is specifically mounted on a TA-02 variant. Known as the TA-02S, this version exhibits a short-wheelbase to accommodate the scale form of the real sports car. It features a tub chassis with 4-wheel, fully independent suspension coupled with a rear ball differential and a front gear type differential.

About The Model

• 1/10 scale R/C model assembly kit. Length: 422mm, width: 186mm, height: 132mm
• The injection moulded body offers a highly realistic recreation of the 037
• Comes with metal-plated light cases for headlights, taillights and fog lamps
• Side mirrors and windscreen wipers are made using separate parts
• The interior features depictions of driver & co-driver, plus dashboard
• The TA02S chassis is a shaft-driven 4WD unit with bathtub frame, a rear ball diff and front gear diff
• Four-wheel independent double-wishbone suspension is paired with CVA oil shock dampers
• New front bumper and sticker sheet
• Compatible with standard Type 540 motors
• Includes 540-Type brushed motor
• Includes Tamiya TBLE-02S ESC (electronic speed control) capable of running sensored brushless motors and brushed motors alike (21.5 Turn BL motor limit, 23 Turn brushed motor limit)

Separately Required Items

• Two-channel radio, steering servo, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint

This high-performance front-wheel drive R/C chassis assembly kit is constructed around a rigid monocoque with lower deck and upper frame sections. It offers responsive drive characteristics and fuss-free maintenance of parts such as the easy-access differential, which can be removed from the underside with minimal disassembly. C.V.A. (Constant Volume Adjustable) oil shock-damped 4-wheel double wishbone suspension features dedicated long arms and steering linkage components for a range of setup options. A silky-smooth drivetrain utilizes full ball bearings, oil-filled gear differential unit and universal drive shafts. It can be assembled with a 225mm (M) or 239mm (L) wheelbase, making it compatible with appropriately-sized existing Tamiya M-chassis body parts sets.

Featured Components:

Monocoque frame chassis (with detachable lower section)
Long suspension arms
CVA oil dampers
Full ball bearings
Gear differential unit
Universal drive shafts
Hi-torque servo saver

• 1/10 scale R/C chassis assembly kit. Length: 332mm, width: 164mm.
• The core of the chassis is a 1-piece monocoque with integrated upper frame elements similar to the TA-07 Pro. It is designed to offer excellent rigidity with easy maintenance.
• Choose between 2 different wheelbases (M: 225mm, L: 239mm), simply by changing rear arm attachment direction.
• Newly designed front and rear suspension use long arms for ideal leverage ratio, in tandem with long steering linkage components. Rear toe can be adjusted simply using spacers.
• 4-wheel double wishbone suspension is fitted with CVA oil shocks.
• The TA06 oil-filled gear differential is used to drive the M-07. It is paired with universal drive shafts and full ball bearings.
• Compatible with standard IFMAR (Li-Po cell-type) regulation square-shaped battery packs.
• Compatible with Low-Profile servos.
• The chassis was designed with easy access to the stabilizers (sold separately) for quick, precise adjustments vital at the racetrack.
• Body mounts have a new reinforced design for more secure body attachment.
• The chassis gives its driver excellent “feedback,” allowing you to judge with clarity how your setup changes have impact.

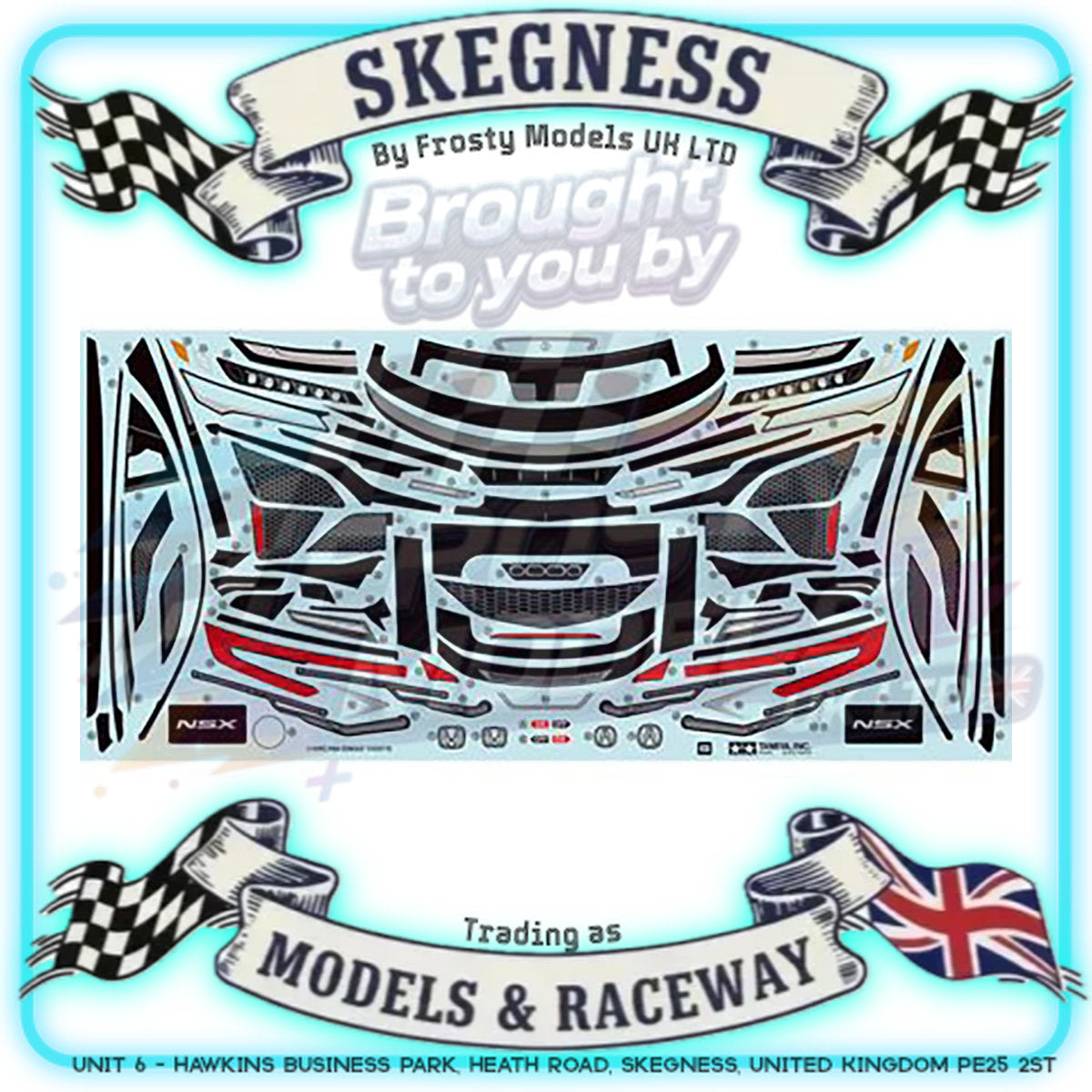

This is a R/C model assembly kit recreating the form of the outstanding new NSX super sports car. The included polycarbonate body is lightweight and durable, and captures the aerodynamically-styled NSX silhouette with aplomb. Stickers are included to recreate markings on the car, including the distinctive "Jewel Eye" 6-lamp headlights, window frames and air intake mesh. The model runs on the adaptable TT-02 chassis, a beginner friendly unit with tuning potential!

TT-02 Chassis:
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color mesh wheels are paired with radial tires.

Specifications
_Length: 438mm, Width: 190mm, Height: 124mm _Wheelbase: 257mm__Tire Width/Diameter: 27/67mm (Front & Rear) _Bathtub-type Frame _Shaft-Driven 4WD _Front/Rear 4-Bevel Resin Differentials _3-Piece Steering Tie-Rod _4-Wheel Double Wishbone Suspension _Front/Rear Friction Dampers _Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions) _Type 540 Motor

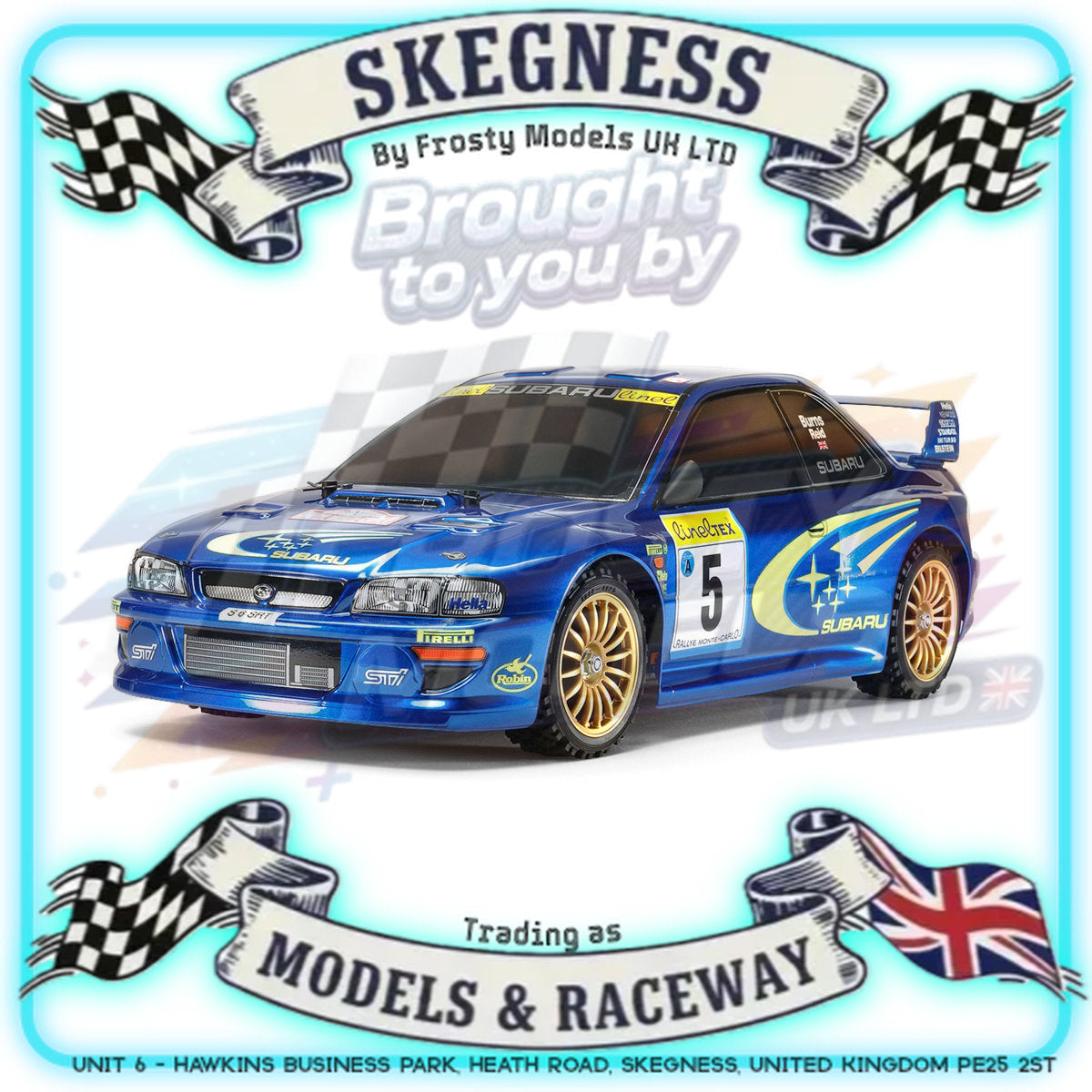

The 1999 version of the two-door Subaru Impreza rally car was a highly balanced beast, with 4-cylinder turbocharged all-aluminium boxer engine, a drive-by-wire throttle and semi-automatic 6-speed transmission. This R/C model assembly kit recreates the Impreza from the year's opening rally in Monte-Carlo, with the form faithfully depicted in durable polycarbonate, and separate parts used to recreate the rear wing and side mirrors. Stickers are included to recreate the multitude of team and sponsor logos. The model runs on the adaptable TT-02 chassis, which is equally at home on road and flat dirt surfaces.

The TT-02 Chassis
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gold colour fin-spoke wheels are paired with rally block tyres.

About The Model

• With 4WD drivetrain
• ECS included
• Torque-tuned 540-brushed type motor is included
• The classic form of the car is recreated in polycarbonate, with separately-moulded side mirror and rear wing parts
• The TT-02 chassis features a shaft-driven 4WD system that offers easy handling and great customisation
• Stickers are included to recreate the markings on the car, as are window masking stickers for use when painting
• 16-spoke gold colour moulded wheels are paired with rally block tyres (50476)
• A wide range of option parts are available to tune the TT-02 chassis
• Fully independent double wishbone suspension
• Suitable for both off-road and on-road terrain

Separately Required Items

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint
