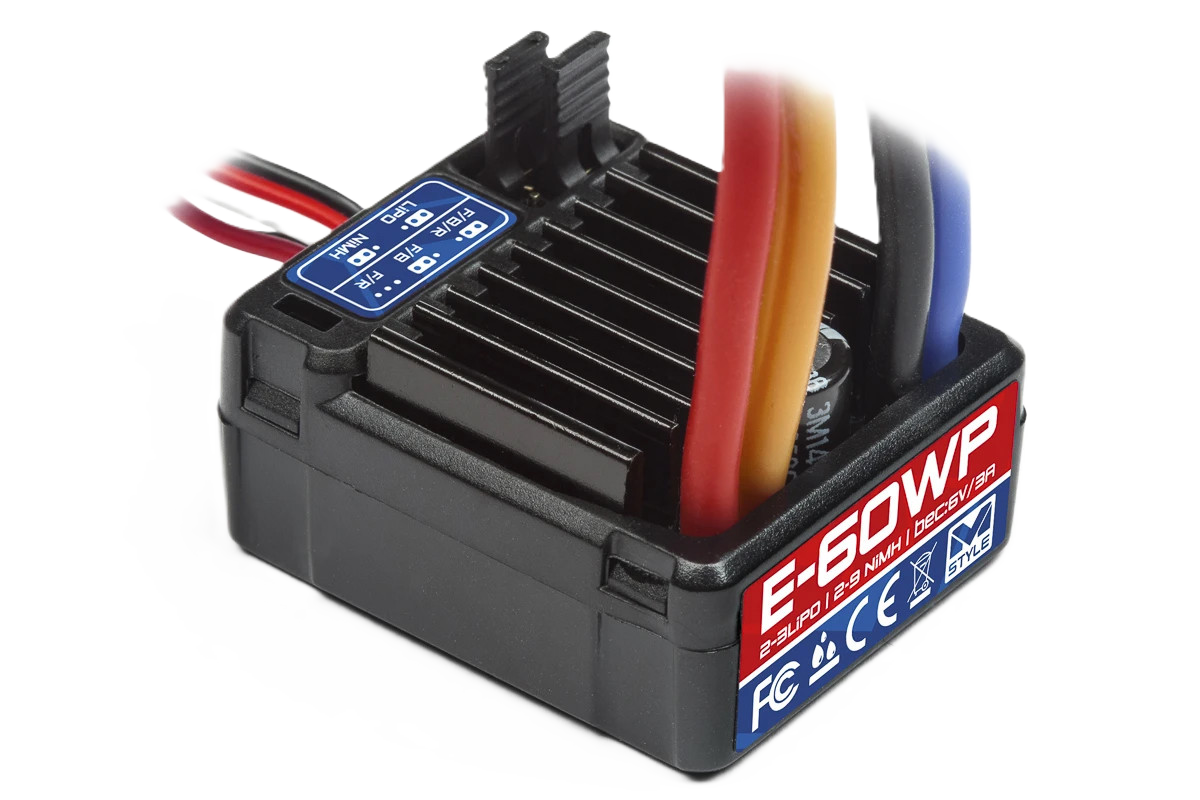

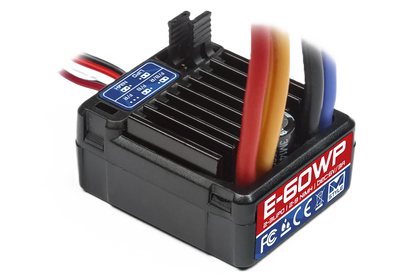

M-Style (Same as Hobbywing) 1060 60A - 1/10 RC BRUSHED ESC - (TAMIYA PLUG) E-60WP (TT01E Euro Truck Racing Stock Spec)

(TAMIYA PLUG FITTED - FOR OTHER PLUG'S, PLEASE SEE ADAPTOR LEADS OR CONNECTORS)

SUPPLIED WITH MOST TAMIYA KITS (SAME AS WP1060)

(TT01E Euro Truck Racing Stock Spec)

Plug & Play

(BLACK VERSION)

The E-60WP is a powerful and durable speed controller that is fantastic for RC vehicles of all type! Whether you’ve got a touring car, buggy or truck, this is the ideal unit to control the power for any vehicle equipped with a brushed motor of 12 turns or more.

If you’ve got plenty of power to strap into your RC, you can count on the E-60WP to handle it: able to handle LiPo power of 2S and 3S or between 5 and 9 NiMH cells, this speedo can handle just about anything can you fit into the chassis! Of course, a safety cut-off is fitted to protect your LiPo batteries.

Fit the E-60WP in your RC vehicle so you can see for yourself what toughness, versatility and durability is all about!

Features:

• 2S or 3S LiPo with voltage protection (Using jumper to select LiPo)
• 5-9 cell NiMH or NiCd (Using jumper to select NiMH)
• Suitable for all types of 1/10th scale vehicles

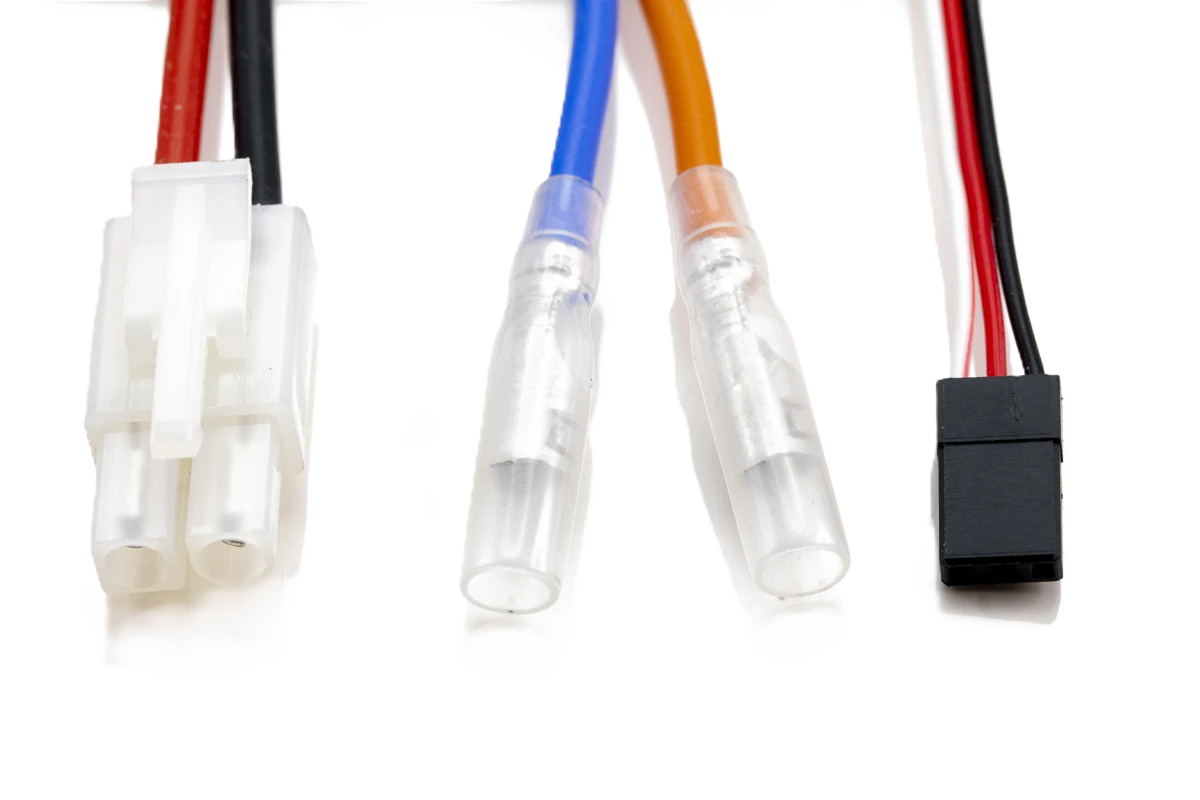

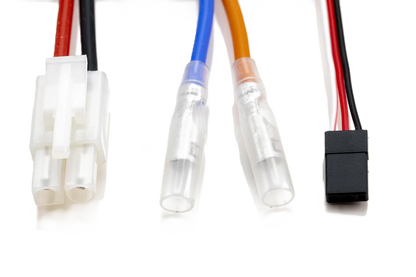

• Fitted with a Tamiya plug

Specification:

• Forward Continuous Current: 60A
• Forward Burst Current: 360A
• Reverse Continuous Current: 230A
• Reverse Burst Current: 180A
• Input: 2-3S LiPo, 5-9 cell NiMH/NiCd
• Applications: 1/10 on-road, off-road buggy, short course truck, truggy, crawler, tank, boat
• Motor Limit: 2S LiPo or 6 cell NiMH: 540 or 550-size motor great than or equal to 12 turn, RPM over 30,000 at 7.2v
• Motor Limit: 3S LiPo or 9 cell NiMH: 540 or 550-size motor great than or equal to 18 turn, RPM over 20,000 at 7.2v
• Resistance: FWD 0.001 Ohm, BWD 0.002 Ohm
• PWM Frequency: 1 KHz
• BEC: 6V/3A
• Dimensions: 36.5x32x18mm
• Weight: 39g
