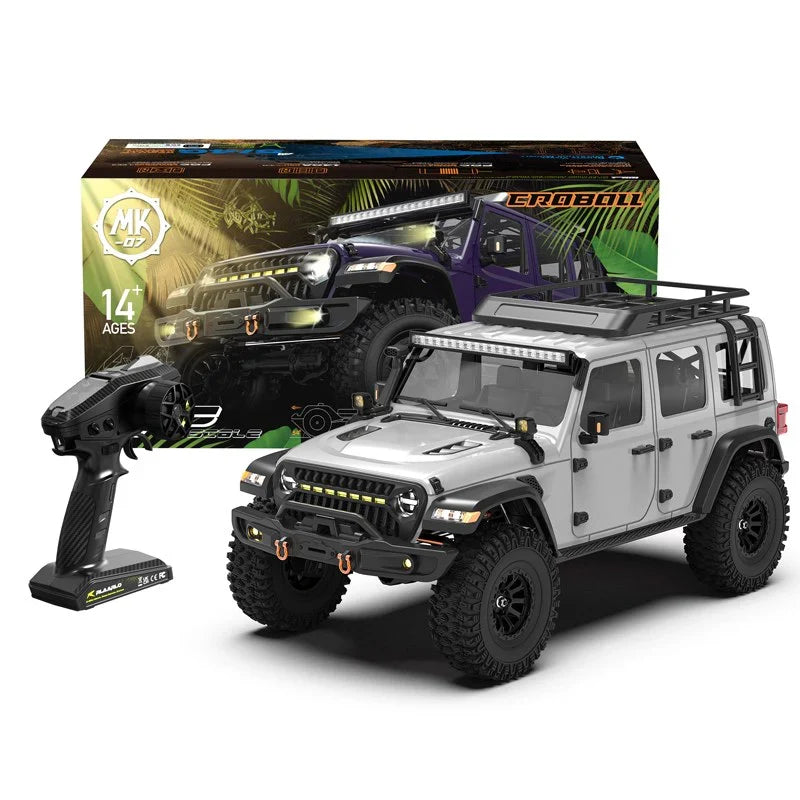

Rlaarlo - MK-07 V2 Brushless 1/7 Scale RC Rock Crawler Truck - Grey Edition - MK07Z-BS-V2-Grey

The Rlaarlo MK-07 V2 Grey Edition is a serious large-scale RC crawler built for drivers who want realistic scale looks, powerful brushless performance and proper off-road capability.

At 1/7 scale, this is a big, heavy-duty crawler with plenty of presence. The detailed body, working lighting system, large tyres and scale accessories give it a realistic trail truck appearance, while the capable 4WD drivetrain and portal axle setup allow it to take on rough terrain with confidence.

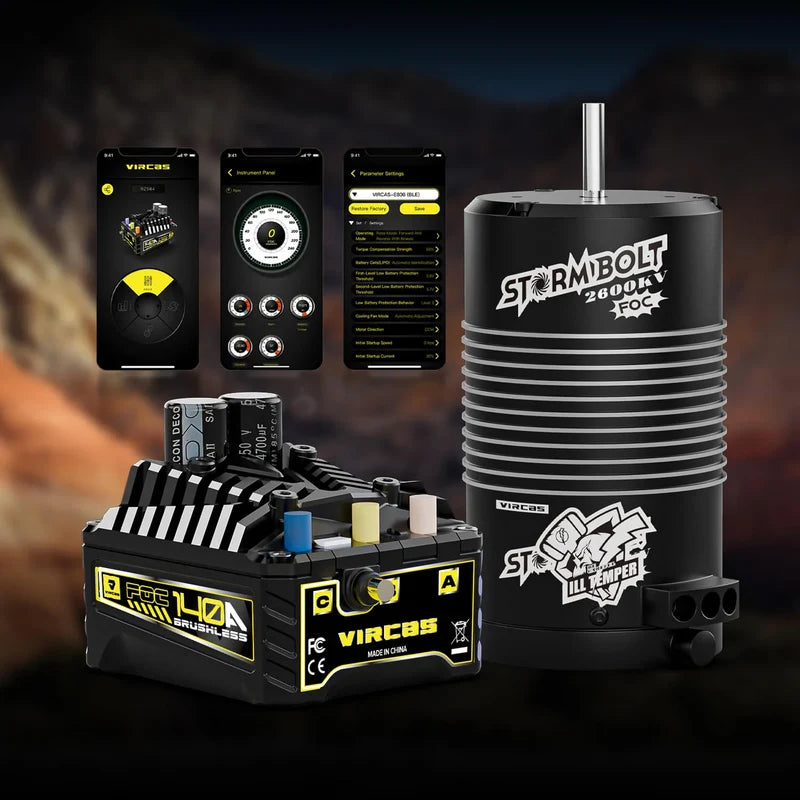

Power comes from a 4282 2600KV brushless motor paired with a 140A brushless ESC, giving the MK-07 V2 smooth throttle control, strong torque and plenty of pulling power for climbing, trail driving and technical off-road use. The brushless system is designed to deliver precise low-speed control while still offering enough power for more open terrain.

The MK-07 V2 features lockable front and rear differentials, allowing you to adjust the drivetrain to suit the surface. Unlock the diffs for tighter steering and smoother driving, or lock them when you need maximum traction over rocks, mud, ruts and steep climbs.

Portal axles help increase ground clearance, making it easier to clear obstacles without catching the underside of the vehicle. Combined with the forward-mounted gearbox and front motor layout, the MK-07 V2 offers improved weight distribution and better climbing stability when the terrain gets more challenging.

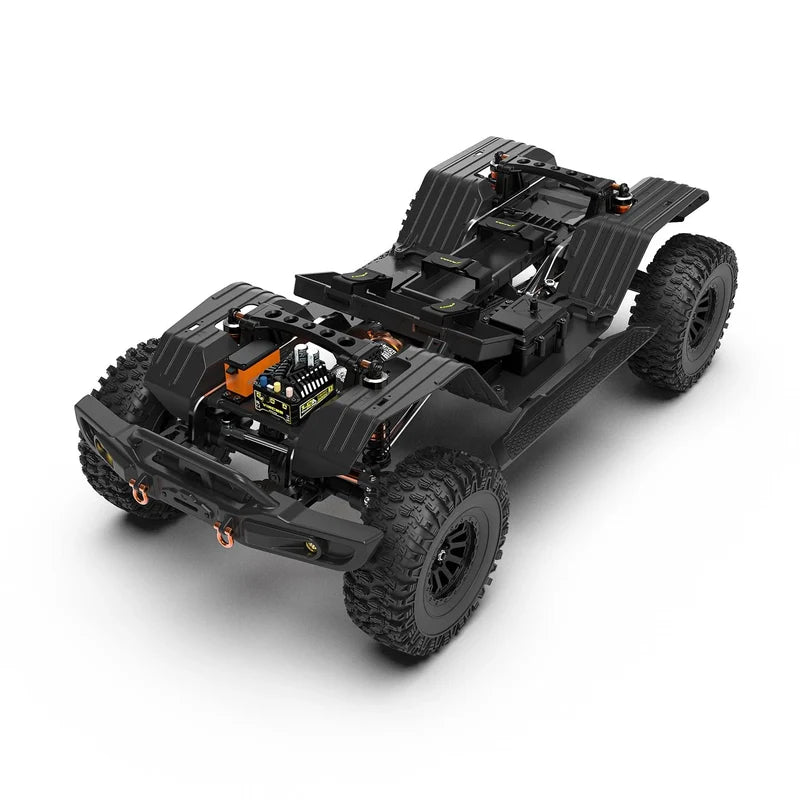

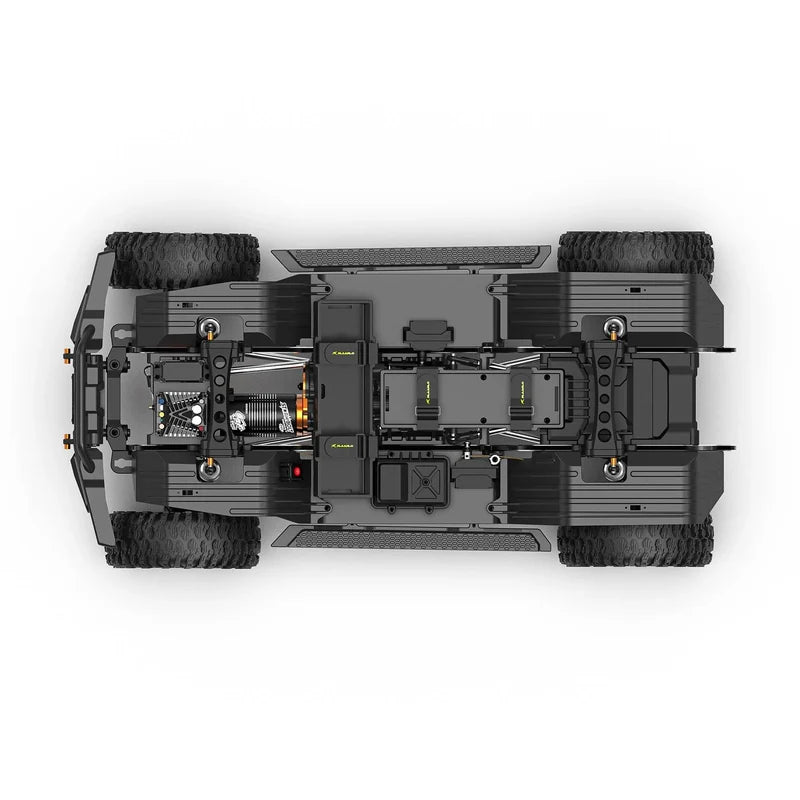

The chassis is built around tough 6mm CNC aluminium alloy rails, giving the truck a strong and rigid foundation. Stainless steel suspension links, adjustable metal oil-filled shocks and rubber-sealed bearings all help make this a capable and durable platform for serious off-road use.

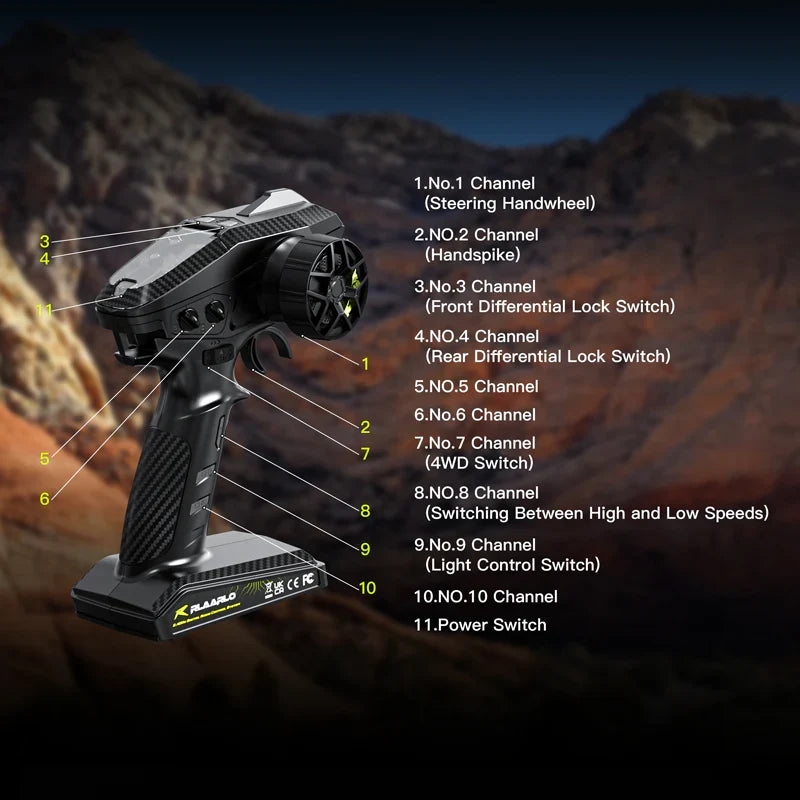

A 40kg steering servo provides strong steering power, while additional servos operate key functions including high and low speed switching, front and rear differential lock and rear-wheel drive control. The included 10-channel 2.4GHz radio system gives you control over the main driving functions, lighting and drivetrain settings.

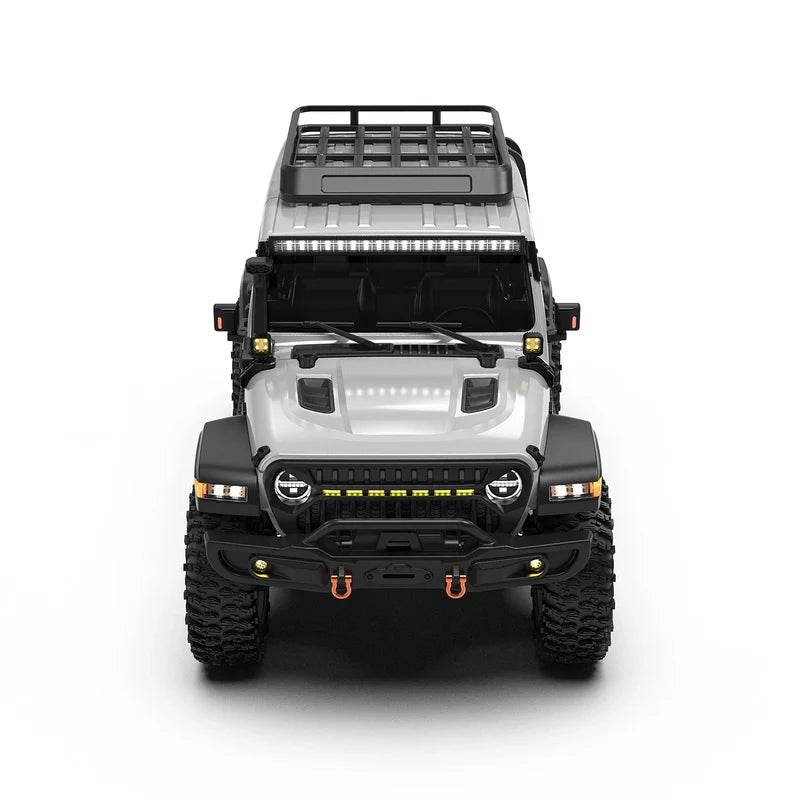

The MK-07 V2 also includes an impressive scale lighting system with front lights, daytime running lights, high and low beam settings, roof light bar, indicators and additional body lighting effects. This gives the crawler a much more realistic appearance, especially when used on trails or in low-light conditions.

Supplied as an RTR model, the Rlaarlo MK-07 V2 is supplied with the vehicle and radio system included. Simply add a suitable 2-4s LiPo battery with XT60 connector and a compatible charger to complete the package (optional 3S battery and charger available from the drop-down choice).

Key Features

• Large 1/7 scale RC crawler

• Brushless RTR version

• 4WD drivetrain

• 4282 2600KV brushless motor

• 2-4S 140A brushless ESC

• 10-channel 2.4GHz radio system

• Lockable front and rear differentials

• Portal axle design for increased ground clearance

• Forward-mounted gearbox for improved climbing stability

• Front motor layout for better weight bias

• 40kg waterproof steering servo

• Additional servos for drivetrain functions

• High and low speed switching

• 6mm CNC aluminium alloy chassis rails

• 8mm stainless steel suspension links

• Adjustable metal oil-filled shock absorbers

• Rubber-sealed ball bearings

• Twin friction plate slipper clutch

• High-mounted steering and drag links

• Full scale lighting system

• Realistic body details including mirrors, handles, fenders and wipers

• Large 145mm off-road tyres

• Battery tray suitable for larger LiPo packs

• XT60 battery connector

Features Explained

The lockable differentials allow you to choose between smoother steering or maximum traction depending on the terrain. This makes the MK-07 V2 much more versatile than a basic crawler.

The portal axles give the truck extra ground clearance, helping the drivetrain and suspension links clear rocks, roots and uneven ground more easily.

The front-mounted motor and forward gearbox layout improve weight distribution, giving the crawler better grip and stability when climbing.

The 6mm CNC chassis rails, stainless steel suspension links and metal oil-filled shocks give the MK-07 V2 the strength and control needed for large-scale off-road driving.

The full lighting system adds excellent realism, with multiple lighting modes that help bring the scale body to life.

Specifications

• Scale: 1/7

• Drive System: 4WD

• Vehicle Type: RC Crawler

• Version: Brushless RTR

• Length: 700mm

• Width: 325mm

• Height: 340mm

• Wheelbase: 439mm

• Weight: Approx. 7kg


• Range: Approx. 350m

• Body: 1.5mm Polycarbonate

• Transmitter: 2.4GHz 10-Channel Radio System

• Motor: 4282 2600KV Brushless Motor

• ESC: 140A Brushless ESC

• Input Voltage: 2-4S LiPo

• Steering Servo: 40kg rated

• Shock Type: Adjustable Metal Oil-Filled Shocks

• Chassis: 6mm High-Strength CNC Beam Chassis

• Drivetrain: 4WD with Differential Lock

• Differential Type: Steel

• Spur Gear: Metal

• Motor Gear Type: Steel

• Servo Gear Type: Metal

• Battery Tray Size: 164 x 49mm

• Tyre Diameter: 145mm

• Tyre Width: 58mm

• Battery Connector: XT60

What's Included

• Rlaarlo MK-07 V2 Brushless 1/7 Scale RC Crawler (Grey Edition)

• 2.4GHz 10-Channel Transmitter

• OPTIONAL - 3S 5200mAh LiPo battery and USB Charger (select from the drop-down choice).
