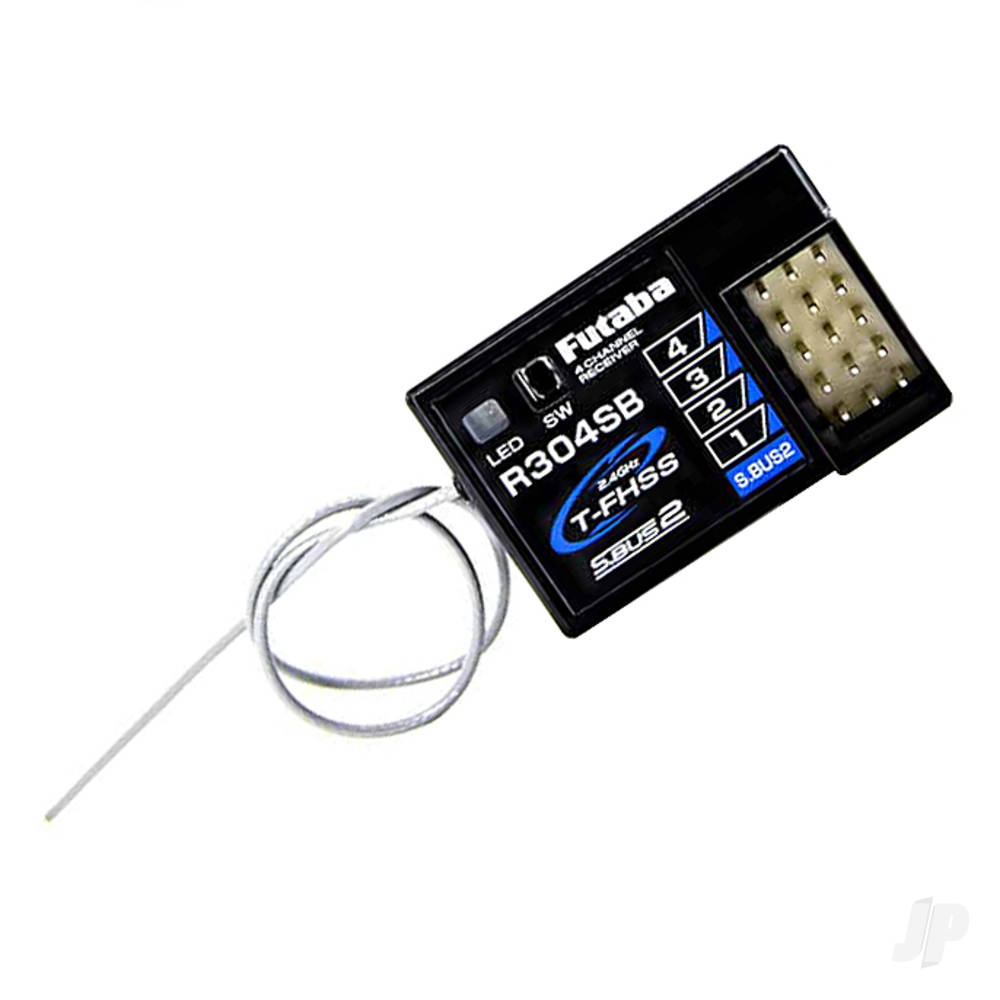

The R304SB is a compact little 4 channel receiver using T-FHSS telemetry. Suitable for HV applications the R304SB has an operating voltage range of 3.6 up to 8.4v.
T-FHSS is a variation of Futaba's FHSS technology with the added bonus of telemetry. As standard the receiver will monitor its own voltage and transmit that back to your T-FHSS transmitter. There is also a S.Bus2 port included allowing you to plug in additional futaba telemetry sensors.
Key Features
- Input Voltage: 4.8-7.4 V
- High Voltage
Receiver Technical Specifications
Weights & Dimensions
| Weight |
6.6g |
0.23oz |
| Shipping Weight |
0.04kg |
0.09lbs |
| Product Height |
9mm |
0.33in |
| Product Width |
23mm |
0.92in |
| Product Length |
35mm |
1.38in |
| Age Recommendation |
14+ |
|
| Channels |
4 |
|
| Colour |
Black |
