Motors & ESCs & Accessories

Specifications

Motor - Application: 1/10 Buggy 4WD, 1/10 Touring, 1/12 Pan Car, 1/10 Buggy 2WD, 1/10 Pan Car
Motor - Class: Modified Motor
Motor - Compliant: ROAR / BRCA / EFRA / IFMAR
Motor - Input Voltage Range (V): 1S - 3S Li-Po
Motor - IO (A): 3,3
Motor - KV (Rpm/V): 3900
Motor - Max. Amps:75
Motor - Poles: 2-Pole Rotor
Motor - Resistance (Ohm): 0,01
Motor - Rotor Size: OD 12.3mm x ID 5.0mm x L 24.5mm - C-16180
Motor - Size ID: 540 Type
Motor - Stator: 3-Slot Stator - 0.2 Steel Laminations
Motor - Timing: Adjustable Timing
Motor - Turns (T): 9,5
Motor - Type: Brushless - Sensored
Motor - Watts: 295
Motor - Diameter. ø (mm): 35,8
Motor - Length (mm): 52
Motor - Mounting Holes: M3 @ 25.4 mm
Motor - Shaft Dia. ø (mm): 3.17 mm
Motor - Shaft Length (mm): 13

Specifications

Motor - Application: 1/10 Buggy 2WD, 1/10 Touring, 1/12 Pan Car, 1/10 Buggy 4WD, 1/10 Pan Car
Motor - Class: Modified Motor
Motor - Compliant: ROAR / BRCA / EFRA / IFMAR
Motor - Input Voltage Range (V): 1S - 3S Li-Po
Motor - IO (A): 3,7
Motor - KV (Rpm/V): 4450
Motor - Max. Amps: 85
Motor - Poles: 2-Pole Rotor
Motor - Resistance (Ohm): 0,01
Motor - Rotor Size: OD 12.3mm x ID 5.0mm x L 24.5mm - C-16180
Motor - Size ID: 540 Type
Motor - Stator: 3-Slot Stator - 0.2 Steel Laminations
Motor - Timing: Adjustable Timing
Motor - Turns (T): 8,5
Motor - Type: Brushless - Sensored
Motor - Watts: 345
Motor - Diameter. ø (mm): 35,8
Motor - Length (mm): 52
Motor - Mounting Holes: M3 @ 25.4 mm
Motor - Shaft Dia. ø (mm): 3.17 mm
Motor - Shaft Length (mm): 13

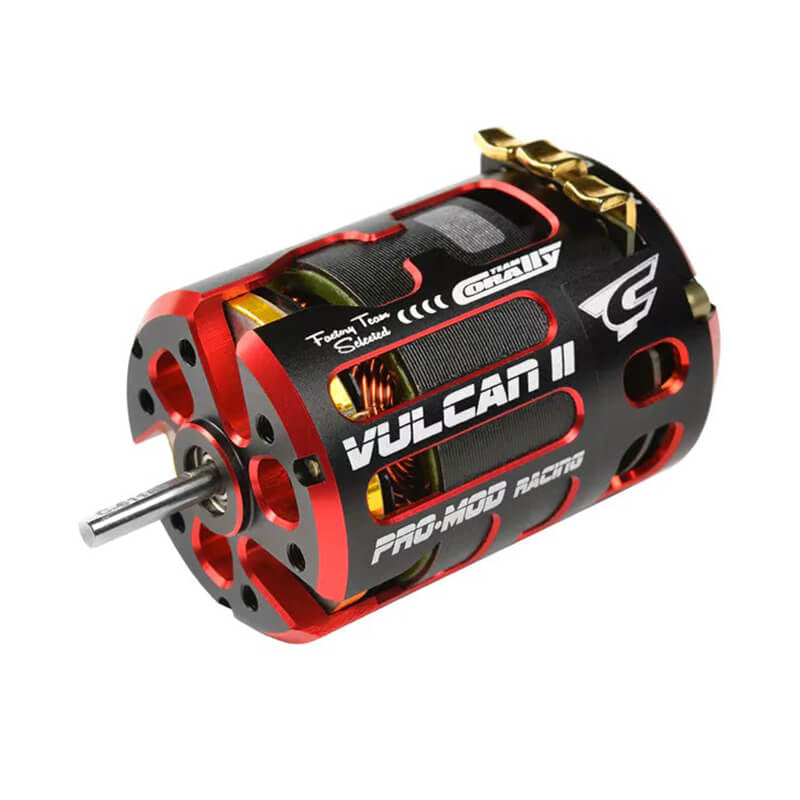

Specifications

Motor - Application: 1/10 Touring, 1/10 Pan Car, 1/10 Buggy 2WD, 1/10 Buggy 4WD, 1/12 Pan Car
Motor - Class: Modified Motor
Motor - Compliant: ROAR / BRCA / EFRA / IFMAR
Motor - Input Voltage Range (V): 1S - 2S Li-Po
Motor - IO (A): 4,3
Motor - KV (Rpm/V): 4900
Motor - Max. Amps: 89
Motor - Poles: 2-Pole Rotor
Motor - Resistance (Ohm): 0,01
Motor - Rotor Size: OD 12.3mm x ID 5.0mm x L 24.5mm - C-16180
Motor - Size ID: 540 Type
Motor - Stator: 3-Slot Stator - 0.2 Steel Laminations
Motor - Timing: Adjustable Timing
Motor - Turns (T): 7,5
Motor - Type: Brushless - Sensored
Motor - Watts: 365
Motor - Diameter. ø (mm): 35,8
Motor - Length (mm): 52
Motor - Mounting Holes: M3 @ 25.4 mm
Motor - Shaft Dia. ø (mm): 3.17 mm
Motor - Shaft Length (mm): 13

Specifications

Motor - Application: 1/10 Buggy 2WD, 1/10 Buggy 4WD, 1/12 Pan Car, 1/10 Pan Car, 1/10 Touring
Motor - Class: Modified Motor
Motor - Compliant: ROAR / BRCA / EFRA / IFMAR
Motor - Input Voltage Range (V): 1S - 2S Li-Po
Motor - IO (A): 4,5
Motor - KV (Rpm/V): 5600
Motor - Max. Amps: 98
Motor - Poles: 2-Pole Rotor
Motor - Resistance (Ohm): 0,01
Motor - Rotor Size: OD 12.3mm x ID 5.0mm x L 24.5mm - C-16180
Motor - Size ID: 540 Type
Motor - Stator: 3-Slot Stator - 0.2 Steel Laminations
Motor - Timing: Adjustable Timing
Motor - Turns (T): 6,5
Motor - Type: Brushless - Sensored
Motor - Watts: 395
Motor - Diameter. ø (mm): 35,8
Motor - Length (mm): 52
Motor - Mounting Holes: M3 @ 25.4 mm
Motor - Shaft Dia. ø (mm): 3.17 mm
Motor - Shaft Length (mm): 13

Specifications

Motor - Application: 1/12 Pan Car, 1/10 Pan Car, 1/10 Touring, 1/10 Buggy 4WD, 1/10 Buggy 2WD
Motor - Class: Modified Motor
Motor - Compliant: ROAR / BRCA / EFRA / IFMAR
Motor - Input Voltage Range (V): 1S - 2S Li-Po
Motor - IO (A): 6,5
Motor - KV (Rpm/V): 6400
Motor - Max. Amps: 105
Motor - Poles: 2-Pole Rotor
Motor - Resistance (Ohm): 0
Motor - Rotor Size: OD 12.3mm x ID 5.0mm x L 24.5mm - C-16180
Motor - Size ID: 540 Type
Motor - Stator: 3-Slot Stator - 0.2 Steel Laminations
Motor - Timing: Adjustable Timing
Motor - Turns (T): 5,5
Motor - Type: Brushless - Sensored
Motor - Watts: 435
Motor - Diameter. ø (mm): 35,8
Motor - Length (mm): 52
Motor - Mounting Holes: M3 @ 25.4 mm
Motor - Shaft Dia. ø (mm): 3.17 mm
Motor - Shaft Length (mm): 13

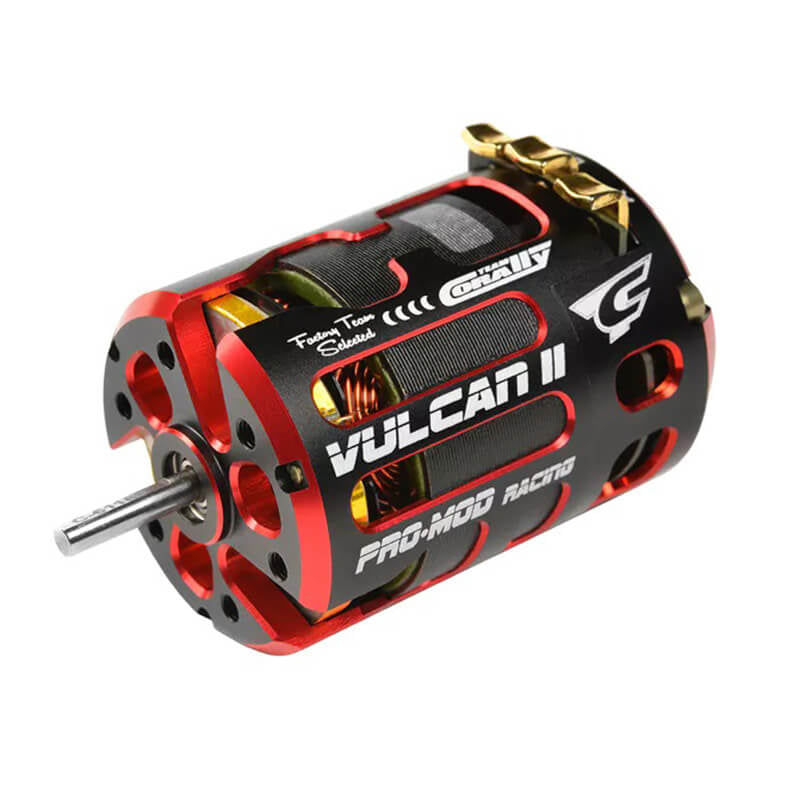

Specifications

Motor - Application: 1/10 Touring, 1/12 Pan Car, 1/10 Buggy 2WD, 1/10 Pan Car, 1/10 Buggy 4WD
Motor - Class: Modified Motor
Motor - Compliant: ROAR / BRCA / EFRA / IFMAR
Motor - Input Voltage Range (V): 1S - 2S Li-Po
Motor - IO (A): 7,9
Motor - KV (Rpm/V): 8170
Motor - Max. Amps: 111
Motor - Poles: 2-Pole Rotor
Motor - Resistance (Ohm): 0
Motor - Rotor Size: OD 12.3mm x ID 5.0mm x L 24.5mm - C-16180
Motor - Size ID: 540 Type
Motor - Stator: 3-Slot Stator - 0.2 Steel Laminations
Motor - Timing: Adjustable Timing
Motor - Turns (T): 4,5
Motor - Type: Brushless - Sensored
Motor - Watts: 495
Motor - Diameter. ø (mm): 35,8
Motor - Length (mm): 52
Motor - Mounting Holes: M3 @ 25.4 mm
Motor - Shaft Dia. ø (mm): 3.17 mm
Motor - Shaft Length (mm): 13

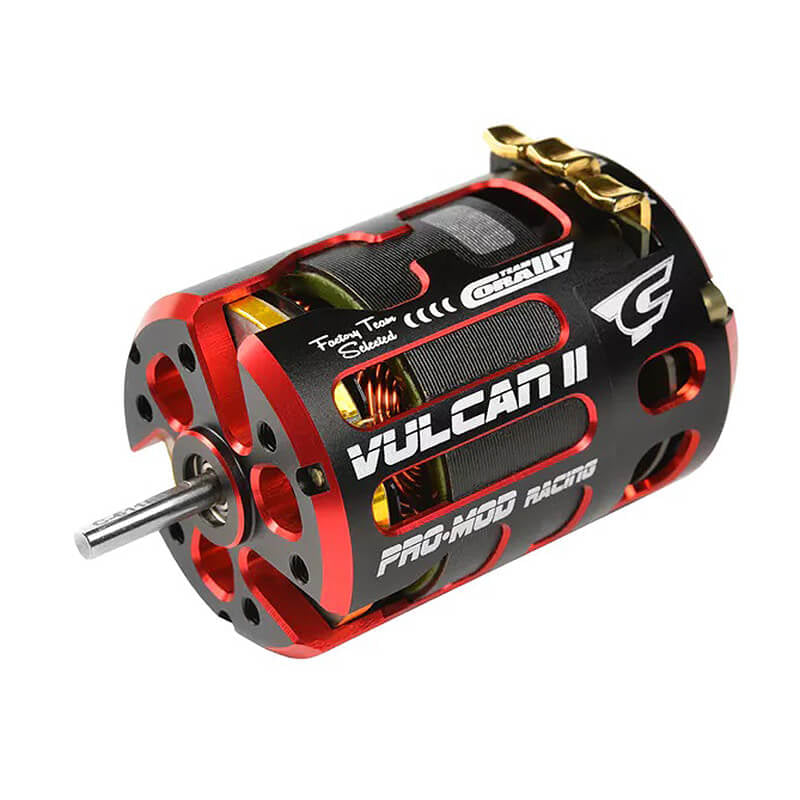

Specifications

Motor - Application: 1/12 Pan Car
Motor - Class: Modified Motor
Motor - Compliant: ROAR / BRCA / EFRA / IFMAR
Motor - Input Voltage Range (V): 1S Li-Po
Motor - IO (A): 7,9
Motor - KV (Rpm/V): 9350
Motor - Max. Amps: 133
Motor - Poles: 2-Pole Rotor
Motor - Resistance (Ohm): 0
Motor - Rotor Size: OD 12.3mm x ID 5.0mm x L 24.5mm - C-16180
Motor - Size ID: 540 Type
Motor - Stator: 3-Slot Stator - 0.2 Steel Laminations
Motor - Timing: Adjustable Timing
Motor - Turns (T): 3,5
Motor - Type: Brushless - Sensored
Motor - Watts: 610
Motor - Diameter. ø (mm): 35,8
Motor - Length (mm): 52
Motor - Mounting Holes: M3 @ 25.4 mm
Motor - Shaft Dia. ø (mm): 3.17 mm
Motor - Shaft Length (mm): 13

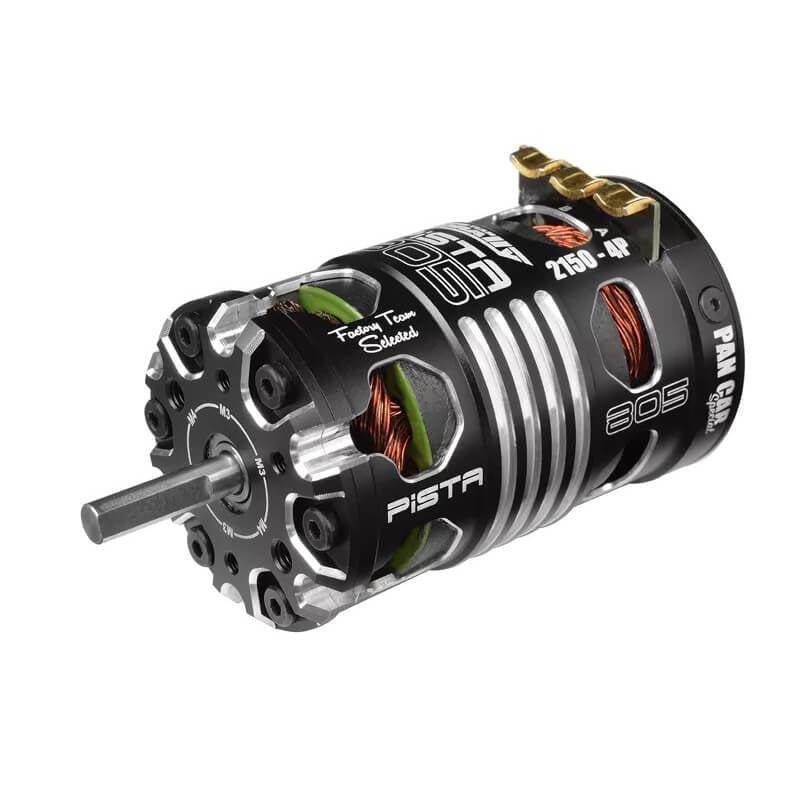

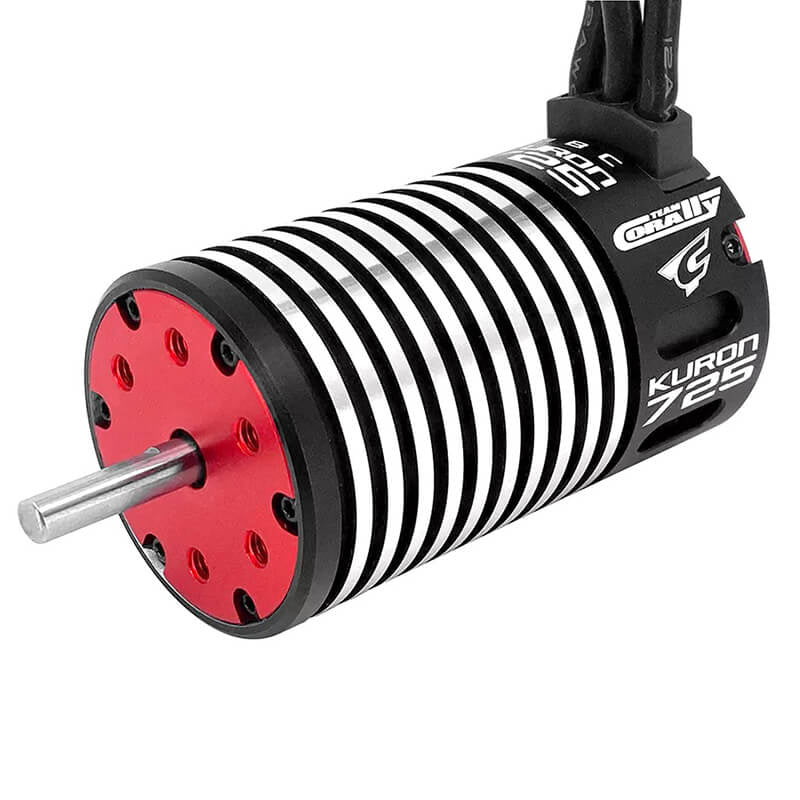

Specifications

Motor - Type: Brushless - Sensorless
Motor - Class: Sport Motor
Motor - Application: 1/8 Buggy / 1/8 SCT / 1/8 GT - Rally Game / 1/10 SCT 2WD
Motor - Input Voltage Range (V): 2S - 4S Li-Po
Motor - Turns (T) Motor - KV (Rpm/V): 2150,00
Motor - Timing: Fixed Timing
Motor - Poles: 4-Pole Rotor
Motor - Dia. ø (mm): 40,00
Motor - Length (mm): 68,00
Motor - Shaft Dia. ø (mm): 5.0 mm
Motor - Shaft Length (mm): 18,50
Motor - Mounting Holes: M4 @ 25.4 mm
Motor - Wires (AWG): 12 AWG
Motor - Connector: Bullit 4.0mm
Motor - Ball Bearing - Front: 5x16x5 mm
Motor - Ball Bearing - Rear: 5x13x4mm - 695ZZ

Ultra High Speed Cooling Fan XF-40 w/BEC connector - 40mm: Precision Cooling for RC Car Racing
When it comes to RC car racing at the highest level, every detail matters. That's why we've developed the XF-30 Ultra High-Speed Cooling Fan, a cutting-edge solution meticulously engineered to deliver precision cooling, performance, and reliability.

Tailored for RC Car Racing
The XF-40 is more than just a cooling fan; it's a specialized tool designed exclusively for RC car racing applications. This fan is your secret weapon for keeping your vehicle at peak performance.

Unique All-Aluminum Fan Case
Crafted with innovation in Belgium, the XF-40 boasts a unique all-aluminum fan case that not only sets it apart in terms of aesthetics but also enhances its durability. This fan is built to withstand the rigors of racing and keep your vehicle cool under pressure.

Blistering Speed
When we say "ultra high-speed," we mean it. The XF-40 is engineered to spin at a blistering rate, with speeds of up to 25,000 RPM at 8.4V. This ensures that it delivers maximum cooling power when you need it most, even in the heat of competition.

Reliable Dual Ball Bearing Design
To guarantee longevity and consistent performance, the XF-30 features a dual ball bearing design. Say goodbye to worries about fan failures or interruptions during your races.

BEC Connector for Easy Installation
We've made installation a breeze with the BEC connector. Simply plug and play, and you're ready to enjoy the benefits of superior cooling without the hassle.

Sleek 2-Tone Color Anodizing
Aesthetics matter, and the XF-40 doesn't disappoint. Its sleek 2-tone color anodizing not only adds a touch of style to your RC car but also reflects its quality and attention to detail.

Wide Voltage Input Range
The XF-40 can handle a voltage input range of 6V to 9V, giving you flexibility in choosing the power source that best suits your setup.

When the competition heats up, trust the XF-40 Ultra High-Speed Cooling Fan to keep your RC car cool and your performance at its peak. It's more than a fan; it's a game-changer. Upgrade your racing experience today with the XF-40.

Ultra High Speed Cooling Fan XF-40 w/BEC connector - 40mm: Precision Cooling for RC Car Racing
When it comes to RC car racing at the highest level, every detail matters. That's why we've developed the XF-30 Ultra High-Speed Cooling Fan, a cutting-edge solution meticulously engineered to deliver precision cooling, performance, and reliability.

Tailored for RC Car Racing
The XF-40 is more than just a cooling fan; it's a specialized tool designed exclusively for RC car racing applications. This fan is your secret weapon for keeping your vehicle at peak performance.

Unique All-Aluminum Fan Case
Crafted with innovation in Belgium, the XF-40 boasts a unique all-aluminum fan case that not only sets it apart in terms of aesthetics but also enhances its durability. This fan is built to withstand the rigors of racing and keep your vehicle cool under pressure.

Blistering Speed
When we say "ultra high-speed," we mean it. The XF-40 is engineered to spin at a blistering rate, with speeds of up to 25,000 RPM at 8.4V. This ensures that it delivers maximum cooling power when you need it most, even in the heat of competition.

Reliable Dual Ball Bearing Design
To guarantee longevity and consistent performance, the XF-30 features a dual ball bearing design. Say goodbye to worries about fan failures or interruptions during your races.

BEC Connector for Easy Installation
We've made installation a breeze with the BEC connector. Simply plug and play, and you're ready to enjoy the benefits of superior cooling without the hassle.

Sleek 2-Tone Color Anodizing
Aesthetics matter, and the XF-40 doesn't disappoint. Its sleek 2-tone color anodizing not only adds a touch of style to your RC car but also reflects its quality and attention to detail.

Wide Voltage Input Range
The XF-40 can handle a voltage input range of 6V to 9V, giving you flexibility in choosing the power source that best suits your setup.

When the competition heats up, trust the XF-40 Ultra High-Speed Cooling Fan to keep your RC car cool and your performance at its peak. It's more than a fan; it's a game-changer. Upgrade your racing experience today with the XF-40.

Ultra High Speed Cooling Fan XF-30 w/BEC connector - 30mm: Precision Cooling for RC Car Racing
When it comes to RC car racing at the highest level, every detail matters. That's why we've developed the XF-30 Ultra High-Speed Cooling Fan, a cutting-edge solution meticulously engineered to deliver precision cooling, performance, and reliability.

Tailored for RC Car Racing
The XF-30 is more than just a cooling fan; it's a specialized tool designed exclusively for RC car racing applications. This fan is your secret weapon for keeping your vehicle at peak performance.

Unique All-Aluminum Fan Case
Crafted with innovation in Belgium, the XF-30 boasts a unique all-aluminum fan case that not only sets it apart in terms of aesthetics but also enhances its durability. This fan is built to withstand the rigors of racing and keep your vehicle cool under pressure.

Blistering Speed
When we say "ultra high-speed," we mean it. The XF-30 is engineered to spin at a blistering rate, with speeds of up to 29,000 RPM at 8.4V. This ensures that it delivers maximum cooling power when you need it most, even in the heat of competition.

Reliable Dual Ball Bearing Design
To guarantee longevity and consistent performance, the XF-30 features a dual ball bearing design. Say goodbye to worries about fan failures or interruptions during your races.

BEC Connector for Easy Installation
We've made installation a breeze with the BEC connector. Simply plug and play, and you're ready to enjoy the benefits of superior cooling without the hassle.

Sleek 2-Tone Color Anodizing
Aesthetics matter, and the XF-30 doesn't disappoint. Its sleek 2-tone color anodizing not only adds a touch of style to your RC car but also reflects its quality and attention to detail.

Wide Voltage Input Range
The XF-30 can handle a voltage input range of 6V to 9V, giving you flexibility in choosing the power source that best suits your setup.
When the competition heats up, trust the XF-30 Ultra High-Speed Cooling Fan to keep your RC car cool and your performance at its peak. It's more than a fan; it's a game-changer. Upgrade your racing experience today with the XF-30.

Ultra High Speed Cooling Fan XF-30 w/BEC connector - 30mm: Precision Cooling for RC Car Racing
When it comes to RC car racing at the highest level, every detail matters. That's why we've developed the XF-30 Ultra High-Speed Cooling Fan, a cutting-edge solution meticulously engineered to deliver precision cooling, performance, and reliability.

Tailored for RC Car Racing
The XF-30 is more than just a cooling fan; it's a specialized tool designed exclusively for RC car racing applications. This fan is your secret weapon for keeping your vehicle at peak performance.

Unique All-Aluminum Fan Case
Crafted with innovation in Belgium, the XF-30 boasts a unique all-aluminum fan case that not only sets it apart in terms of aesthetics but also enhances its durability. This fan is built to withstand the rigors of racing and keep your vehicle cool under pressure.

Blistering Speed
When we say "ultra high-speed," we mean it. The XF-30 is engineered to spin at a blistering rate, with speeds of up to 29,000 RPM at 8.4V. This ensures that it delivers maximum cooling power when you need it most, even in the heat of competition.

Reliable Dual Ball Bearing Design
To guarantee longevity and consistent performance, the XF-30 features a dual ball bearing design. Say goodbye to worries about fan failures or interruptions during your races.

BEC Connector for Easy Installation
We've made installation a breeze with the BEC connector. Simply plug and play, and you're ready to enjoy the benefits of superior cooling without the hassle.

Sleek 2-Tone Color Anodizing
Aesthetics matter, and the XF-30 doesn't disappoint. Its sleek 2-tone color anodizing not only adds a touch of style to your RC car but also reflects its quality and attention to detail.

Wide Voltage Input Range
The XF-30 can handle a voltage input range of 6V to 9V, giving you flexibility in choosing the power source that best suits your setup.

When the competition heats up, trust the XF-30 Ultra High-Speed Cooling Fan to keep your RC car cool and your performance at its peak. It's more than a fan; it's a game-changer. Upgrade your racing experience today with the XF-30.

These cooling fans are made in an aluminium housing for better heat dissipation.

Specifications

• T6 Aluminum Heat Sink Designed Case
• Reverse Polarity Protected
• Size: 30 x 30 x 10mm
• Plug: 2 Pin JST/Receiver
• Wire Length: 180mm
• Speed: 28,000RPM
• Max Voltage: 8.75v (2 cell lipo)
• Current 0.65Amps at 7.4V
• Weight: 15g
• Color: Black/Silver

These cooling fans are made in an aluminium housing for better heat dissipation.

Specifications

• T6 Aluminum Heat Sink Designed Case
• Reverse Polarity Protected
• Size: 30 x 30 x 10mm
• Plug: 2 Pin JST/Receiver
• Wire Length: 180mm
• Speed: 28,000RPM
• Max Voltage: 8.75v (2 cell lipo)
• Current 0.65Amps at 7.4V
• Weight: 15g
• Color: Black/Red

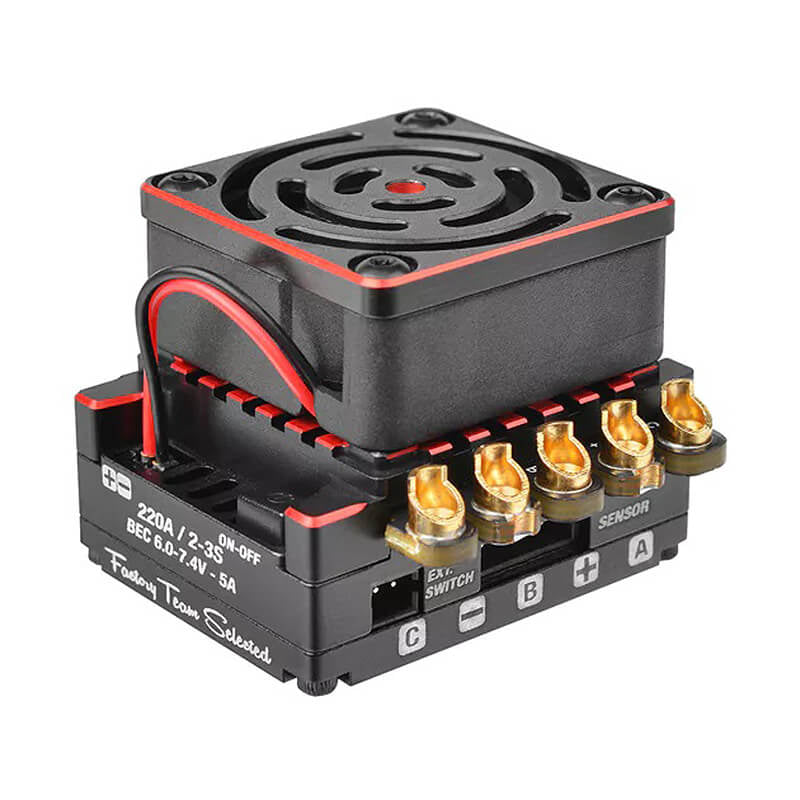

Introducing the CMM-10 Racing Controller - 2-3S: Unleash the Power.

For top-level 1/10 racing, where speed and precision are everything, the CMM-10 Racing Controller - 2-3S is the key to unlocking your true potential on the track. Crafted with relentless attention to detail, this controller is designed to deliver unmatched performance when you need it most.

Pure Power, Uncompromising Performance.
With up to 220A continuous current and a staggering 860A burst current, the CMM-10 Racing Controller - 2-3S is built to provide the power and reliability required for elite-level racing. It's your path to victory, and it doesn't compromise.

32-Bit MCU for Precision Control.
At its core, the CMM-10 features a high-performance 32-Bit Microcontroller Unit (MCU). This powerhouse provides superior processing capabilities, ensuring that your controller delivers accurate power output and lightning-fast response times.

Optimized Software for Dominant Racing.
Our software design is honed to perfection, offering enhanced throttle response, exceptional acceleration, linearity, and driveability. With the CMM-10, every twist of the throttle translates into pure precision.

Sensored and Sensorless Versatility.
The CMM-10 Racing Controller - 2-3S seamlessly accommodates both sensored and sensorless motors, allowing you to choose the power source that suits your style and strategy.

Revolutionary Remote Programming.
Enjoy unparalleled convenience with direct remote programming through the custom Corally iOS and Android App. All the communication devices are seamlessly integrated, allowing you to fine-tune your controller settings effortlessly.

Customise Your Racing Experience.
Multiple programmable parameters put you in control, letting you adjust your racing settings to perfection. Adapt to track conditions, driving styles, and competition with ease.

Real-Time Data at Your Fingertips.
Stay ahead of the competition with real-time data logging. Monitor crucial parameters such as temperature, voltage, timing, motor RPM, and more. This invaluable data empowers you to make informed decisions and optimise your racing strategy.

Reliability Built to Last.
Crafted with A-Grade components, the CMM-10 Racing Controller - 2-3S achieves super low Internal Resistance (IR) and delivers maximum performance consistently, propelling you to the front of the pack.

Built-In BEC for Ultimate Convenience.
Experience convenience like never before with the super built-in BEC, offering up to 5A boost current and switchable voltage between 6.0V and 7.4V. Your power needs are met with ease.

Safety is Paramount.
Multiple safety protections are integrated, including high voltage protection, low voltage cut-off protection, throttle signal loss protection, over-heat protection, and locked rotor protection. Your controller is designed to keep you safe and your equipment in top shape.

Compact and Efficient Design.
The ultra-compact design of the CMM-10 ensures it won't hinder your racing experience. Its full aluminum case is not just for aesthetics—it's engineered for maximum heat dissipation, ensuring optimal performance.

Ready for Any Challenge.
Racing doesn't always happen under ideal conditions. That's why the CMM-10 features a waterproof polymer-potted PCB and switch. Rain or shine, this controller is built to endure and excel.

The CMM-10 Racing Controller - 2-3S is your ultimate tool for domination on the track. Elevate your racing experience, gain the competitive edge, and make every race a victory with this exceptional racing controller. Step into the future of racing with Corally.

Specifications

ESC- Input Voltage Range (V): 2S - 3S Li-Po
ESC - Current - Cont. (A): 220
ESC - Current - Peak (A): 0
ESC - Current - Burst (A): 860
ESC - BEC - Voltage (V): Select. 6.0V - 7.4V
ESC - BEC - Cont. (A): 5
ESC - BEC - Peak (A): 0
ESC - Protection: Splashproof
ESC - Cooling Fan: Yes, 30mm
ESC - Case Material: Full Aluminium
ESC - Programming ESC
Firmware Update: Supported
ESC - Telemetrie Aux.: No
ESC - Data Logging: Yes, Real Time Data - Max Values
ESC - Real-Time Data: - Timing (deg) (Current / Max.)
- Voltage (V) (Current / Min.)
- Throttle Status (%) (Input / Output)
- Temperature (°C) (Current / Max.)
- RPM (T/min)
ESC - Dimensions
ESC - Length (mm): 38
ESC - Width (mm): 31
ESC - Thickness (mm): 31
ESC - Wires (AWG) - Battery: 12 AWG
ESC - Wires (AWG) - Motor: 12 AWG
ESC - Connector - Battery: None
ESC - Weight (g): 54
ESC - Application: 1/10 Cars
ESC - Motor Type: Sensored & Sensorless Brushless Motors
ESC - Motor Control: Forward - Brake - Reverse (30%)
ESC - Level: Competition - High-End

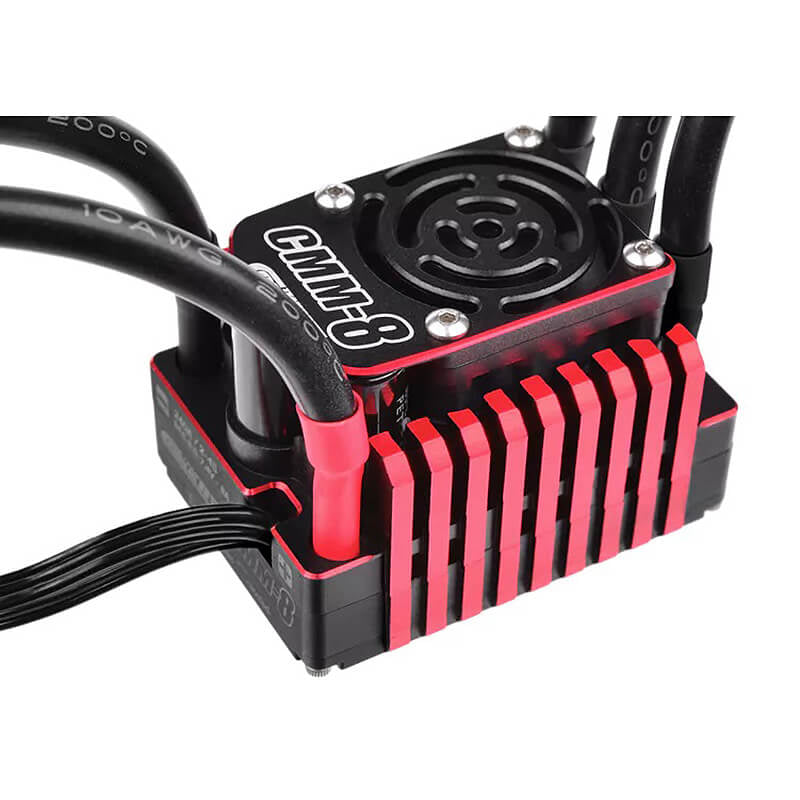

Introducing the CMM-8 Racing Controller - 2-4S: Unleash the Power.

For top-level 1/8 racing, where speed and precision are everything, the CMM-8 Racing Controller - 2-4S is the key to unlocking your true potential on the track. Crafted with relentless attention to detail, this controller is designed to deliver unmatched performance when you need it most.

Pure Power, Uncompromising Performance.
With up to 240A continuous current and a staggering 1100A burst current, the CMM-8 Racing Controller - 2-4S is built to provide the power and reliability required for elite-level racing. It's your path to victory, and it doesn't compromise.

32-Bit MCU for Precision Control.
At its core, the CMM-8 features a high-performance 32-Bit Microcontroller Unit (MCU). This powerhouse provides superior processing capabilities, ensuring that your controller delivers accurate power output and lightning-fast response times.

Optimized Software for Dominant Racing.
Our software design is honed to perfection, offering enhanced throttle response, exceptional acceleration, linearity, and driveability. With the CMM-8, every twist of the throttle translates into pure precision.

Sensored and Sensorless Versatility.
The CMM-8 Racing Controller - 2-4S seamlessly accommodates both sensored and sensorless motors, allowing you to choose the power source that suits your style and strategy.

Revolutionary Remote Programming.
Enjoy unparalleled convenience with direct remote programming through the custom Corally iOS and Android App. All the communication devices are seamlessly integrated, allowing you to fine-tune your controller settings effortlessly.

Customise Your Racing Experience.
Multiple programmable parameters put you in control, letting you adjust your racing settings to perfection. Adapt to track conditions, driving styles, and competition with ease.

Real-Time Data at Your Fingertips.
Stay ahead of the competition with real-time data logging. Monitor crucial parameters such as temperature, voltage, timing, motor RPM, and more. This invaluable data empowers you to make informed decisions and optimise your racing strategy.

Reliability Built to Last.
Crafted with A-Grade components, the CMM-8 Racing Controller - 2-4S achieves super low Internal Resistance (IR) and delivers maximum performance consistently, propelling you to the front of the pack.

Built-In BEC for Ultimate Convenience.
Experience convenience like never before with the super built-in BEC, offering up to 15A boost current and switchable voltage between 6.0V and 7.4V. Your power needs are met with ease.

Safety is Paramount.
Multiple safety protections are integrated, including high voltage protection, low voltage cut-off protection, throttle signal loss protection, over-heat protection, and locked rotor protection. Your controller is designed to keep you safe and your equipment in top shape.

Compact and Efficient Design.
The ultra-compact design of the CMM-8 ensures it won't hinder your racing experience. Its full aluminum case is not just for aesthetics—it's engineered for maximum heat dissipation, ensuring optimal performance.

Ready for Any Challenge.
Racing doesn't always happen under ideal conditions. That's why the CMM-8 features a waterproof polymer-potted PCB and switch. Rain or shine, this controller is built to endure and excel.

The CMM-8 Racing Controller - 2-4S is your ultimate tool for domination on the track. Elevate your racing experience, gain the competitive edge, and make every race a victory with this exceptional racing controller. Step into the future of racing with Corally.

Specifications

ESC- Input Voltage Range (V): 2S - 4S Li-Po
ESC - Current - Cont. (A): 240
ESC - Current - Burst (A): 1100
ESC - BEC - Voltage (V): Select. 6.0V - 7.4V
ESC - BEC - Cont. (A): 8
ESC - BEC - Peak (A): 12
ESC - Protection: Waterproof
ESC - Cooling Fan: Yes, 30mm
ESC - Case Material: Full Aluminium
ESC - Programming
ESC - Firmware Update: Supported
ESC - Telemetrie Aux.: No
ESC - Data Logging: Yes, Real Time Data - Max Values
ESC - Real-Time Data:
- Voltage (V) (Current / Min.)
- Timing (deg) (Current / Max.)
- Temperature (°C) (Current / Max.)
- Throttle Status (%) (Input / Output)
- RPM (T/min)
- Current (A)
ESC - Dimensions
ESC - Length (mm): 55
ESC - Width (mm): 42
ESC - Thickness (mm): 36
ESC - Wires (AWG) - Battery: 10 AWG
ESC - Wires (AWG) - Motor: 10 AWG
ESC - Connector - Battery: None
ESC - Weight (g): 155
ESC - Application: 1/8 Racing
ESC - Motor Type: Sensored & Sensorless Brushless Motors
ESC - Motor Control: Forward - Brake - Reverse (30%)
ESC - Level: Competition - High-End

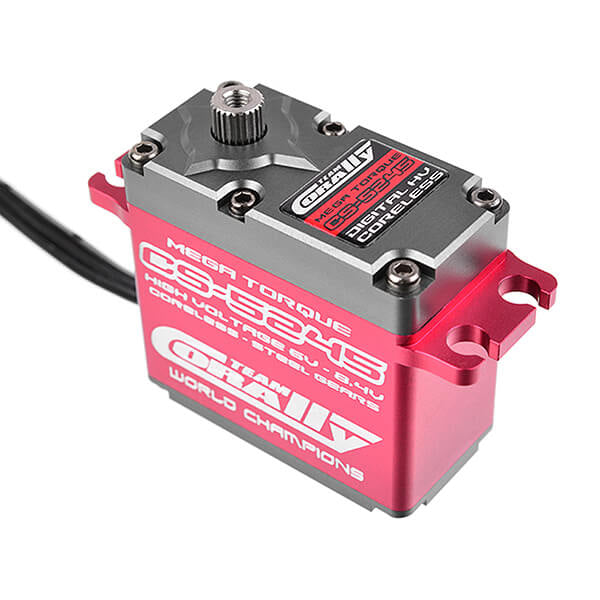

Are you looking for some powerful control for your Monster Truck or Crawler?

We developped this servo with the racer in mind, ultimate digital power, precision and reliable.

Features

• Full CNC machined alloy case
• High Voltage 6.0 - 8.4V
• Steel gears
• Ball Raced
• Coreless motor
• Ultra high torque
• Water resistant

Specifications

Servo Technology: Digital Ultra High Voltage
Application: RC Car, RC Airplane
Input Voltage (V): 6.0V - 8.4V
Weight (g): 73 g
Servo Type / Size: Standard
Length (mm): 40.0 mm
Gear Material: Steel Gears
Width (mm): 20.0 mm
Ball Beared: Ball Beared
Motor Type: Coreless Motor
Height (mm): 37.0 mm
Servo Case: CNC alloy
Servo Power - Torque Kg/cm: > 25 Kg/cm
Servo Speed 60°/sec: 0.05 - 0.10 Sec/60°
Speed @ 6.0V: 0.12 sec/60°
Speed @ 7.4V: 0.11 sec/60°
Speed @ 8.4V: 0.10 sec/60°
Torque @ 6.0V: 37.5 kg/cm
Torque kg/cm @ 7.4V: Kg/cm
Torque @ 8.4V: 46.9 kg/cm
Connector type: JR
Spline size: 25T Spline
Water Protection: Waterproof
