Core RC

CORE RC -  Titanium Nitride Coated Curved Body Scissors for easy cutting out of complex body shapes.

With smart Core RC logo.

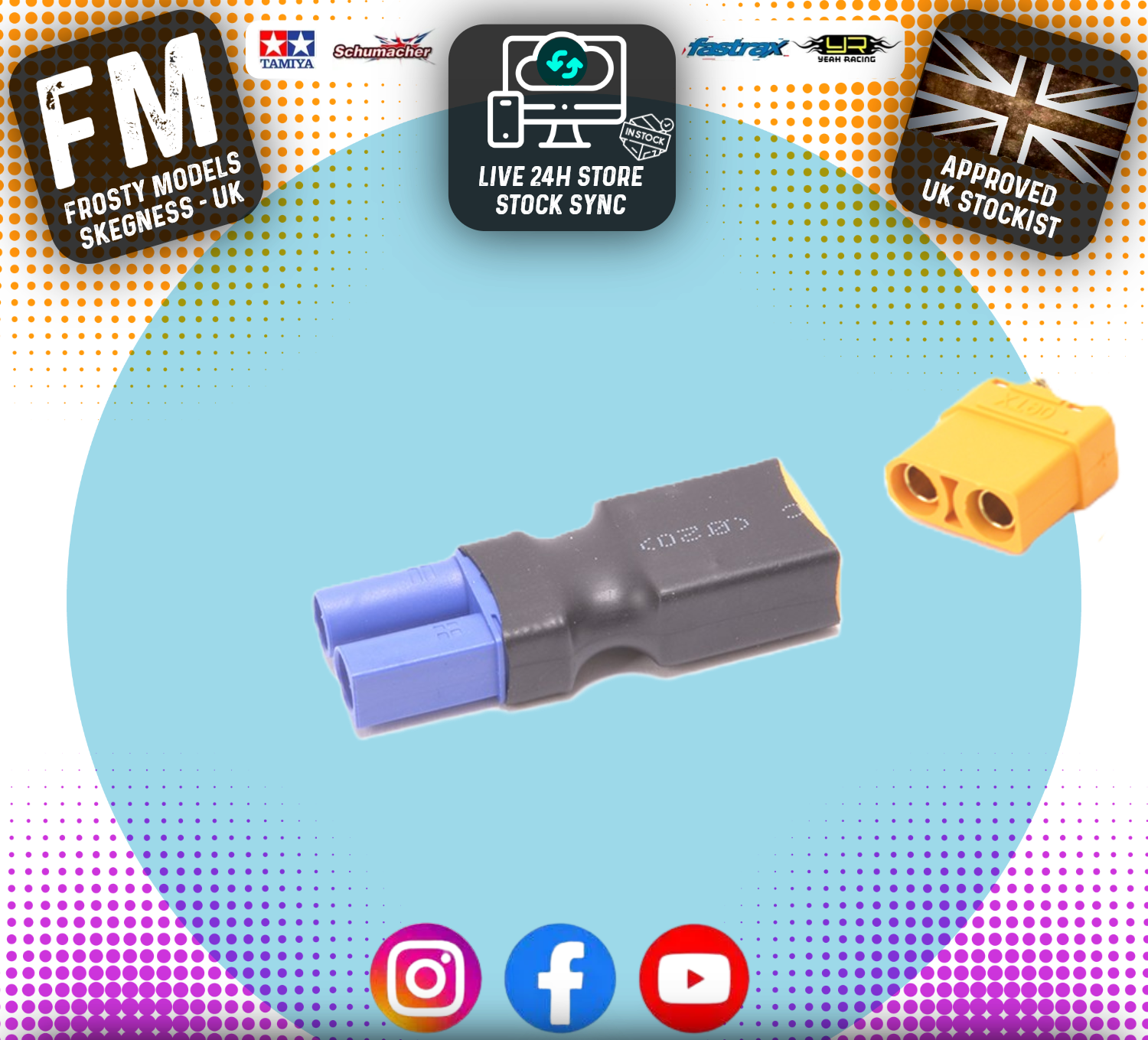

Allows fitment of a Male IC5 battery connect, to plug into a Female XT90 on the ESC/Charger. Allows IC5 batteries to plug into XT90 ESC's

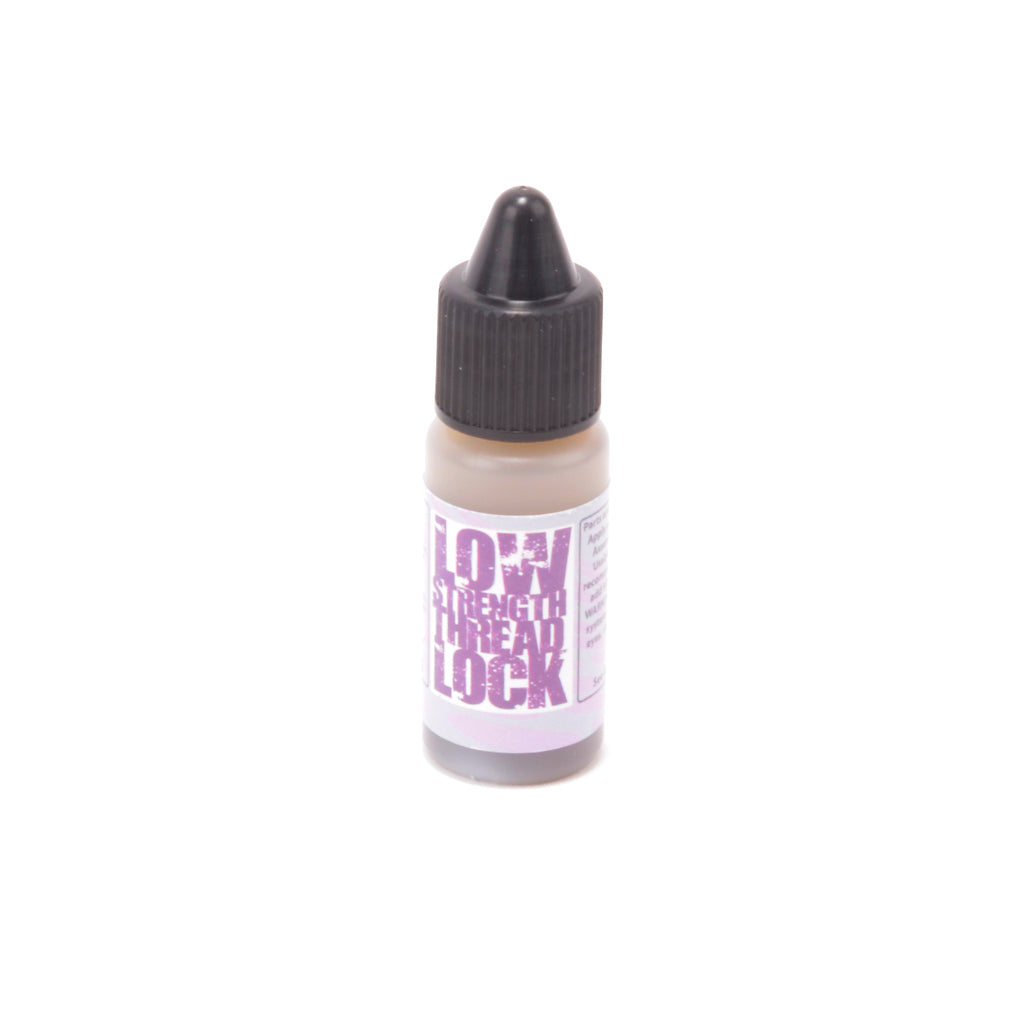

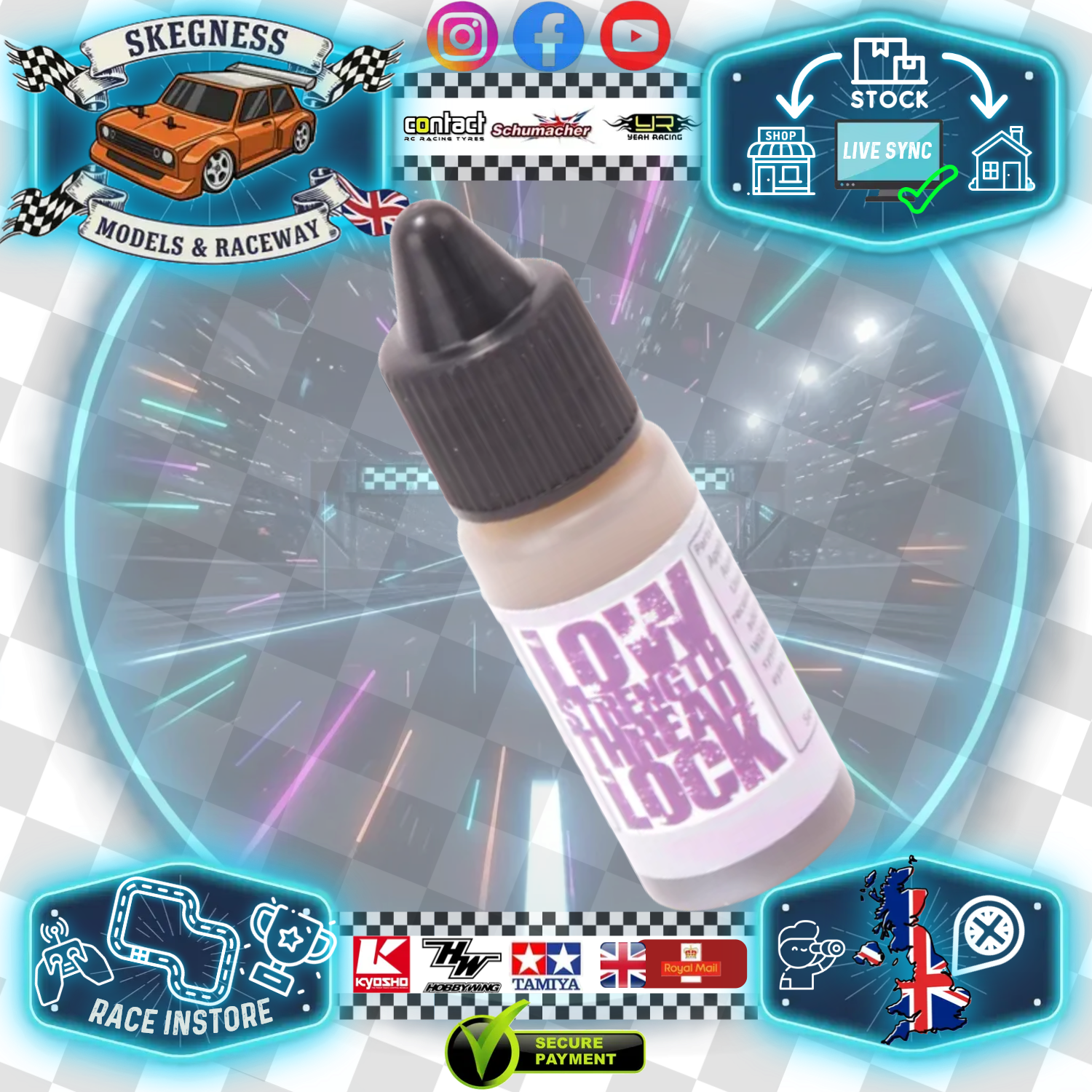

Low strength thread lock.

Supplied in a very handy pit bag sized 3ml plastic bottle this thread lock is of mild strength so you will easily be able to remove screws, but they will be less likely to come unscrewed!

For metal to metal applications.

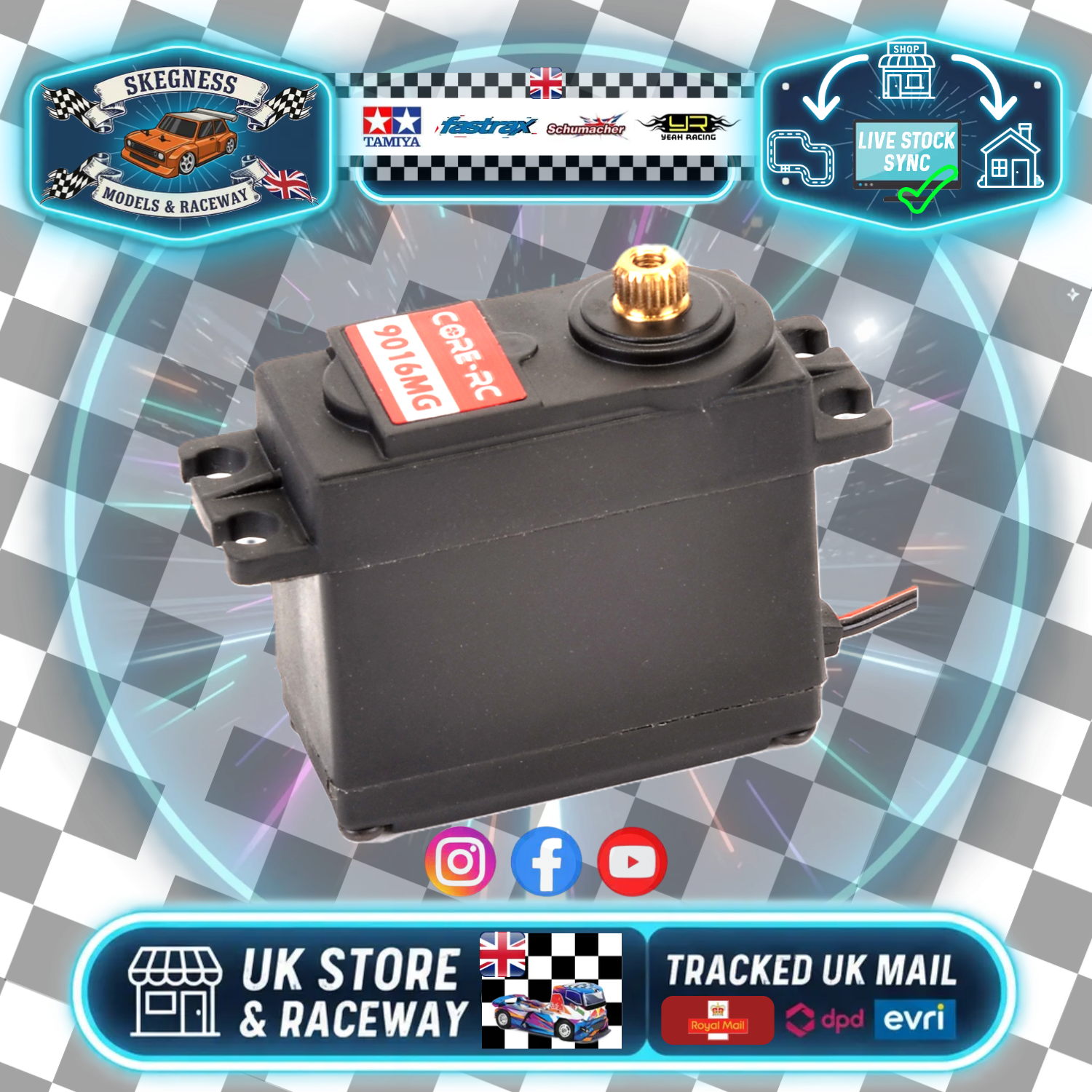

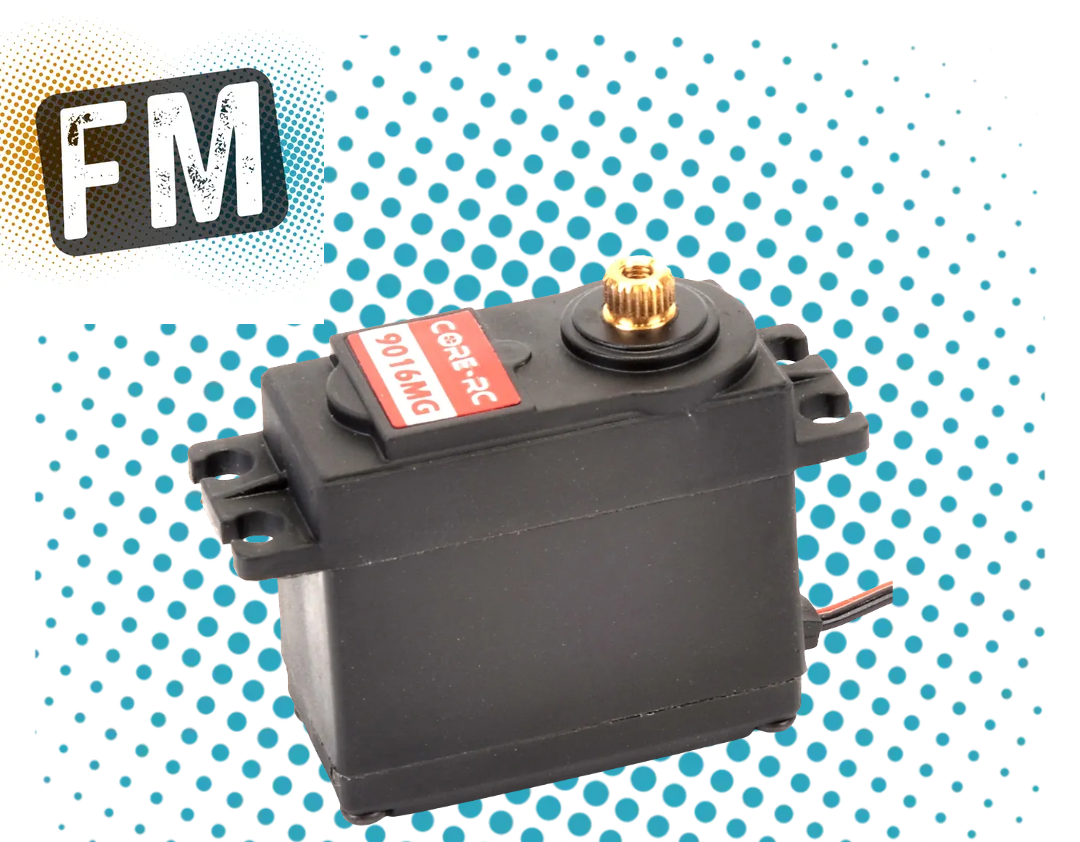

High performance servo with metal gears, for many vehicles including 1/10th Off Road.

Specification

Weight - 60g (PRETTY LIGHT)

Speed - 0.16s (6v) (FAST ENOUGH FOR OFFROAD USE - MIGHT BE A BIT SLOW FOR ONROAD USE)

Torque - 9.0 kg/cm (GOOD FOR OFFROAD USE)

Dimensions - 41.5 x 39.0 x 20.0mm (STANDARD 1/10TH SIZE)

25T Spline (SAME AS FUTABA)

Analogue (DIGITAL SERVOS ARE BETTER AT HOLDING A STRONG STRAIGHT LINE AND HOLDING A GOOD CORNER THAT REQUIRES MORE FORCE)

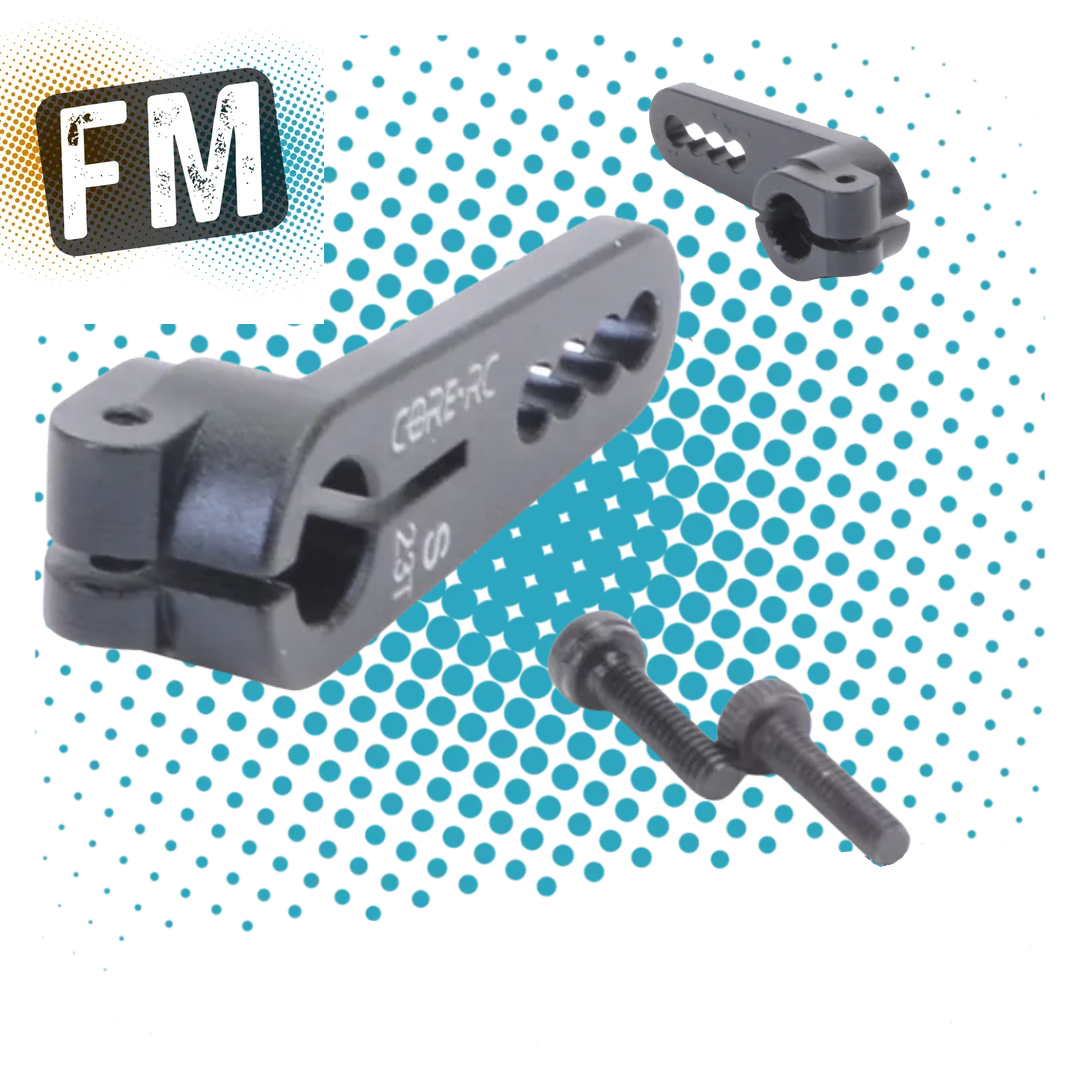

Includes mounting hardware and various horns.

Awesome plug covers that help with the removal of your battery plugs. Plus, assist you in plugging in the correct polarity.

Super bling look!

From CORE RC are these new low profile M3 Alloy nuts.  Suitable for where space or access is tight also super lightweight.  These slim nuts measure in at 3.3mm in height where a regular M3 Nyloc is 4.0mm.

Core RC EC5F to XT60M Lead

For use on ESC's/Chargers fitted with EC5 Male Plugs as output.

- Side cutters or also known as wire cutters or diagonal cutters.

- For cutting wire or trimming plastic.

- Spring loaded.

- Comfortable grip.

Awesome plug covers that help with the removal of your battery plugs. Plus, assist you in plugging in the correct polarity.

5mm diameter.

Super bling look!

These Low profile versions are held in place with a spot of cyanoacrylate glue, not supplied.

Core RC - Curved Body Scissors for easy cutting out of complex body shapes.
With smart Core RC logo.

Core RC brass weight measuring 92 x 47mm and with 1mm thickness to allow you to position weight directly under your 1S or 2S shorty battery for the lowest centre of gravity. Super flat with Core RC logo etched on.

To plug into any SKY RC charger and adapt to charge IC5 Batteries.

• Version: XT60 to EC5
• Suitable for all common chargers with XT60 output connector
• Cable length: 150 mm
• Cable type: 14AWG

Bluetooth Set Up Module for the CORE RC PACE 100R speed control.

After installing Bluetooth APP, the user can monitor the ESC data in real time, set the ESC parameters, and upgrade the firmware of the ESCs, etc, on the cell phone.

It  allows you to program the following;

Throttle Response-Coast-Neutral Range-Min. Throttle-Minus-Minus Range-Max. Forward force

Brake Response-Min. Brake Force-Max. Brake Force-Fwd. Drag Brake Force-Fwd. Drag Brake Response-Rev. Drag Brake Force-Rev. Drag Brake Response-PWM Freq.

Boost Timing-Trigger-RPM Threshold-Initial Angle-Angle Inc. Rate-Angle Dec. Rate

Turbo Timing-Angle Inc. Rate-Angle Dec. Rate-Turbo Delay-Delay Reload

Motor Rotation-Motor Poles-Running Mode-Drive PWM Freq.-CutOFF Voltage-CutOFF Thermal-BEC-Output-A/C Swap

Light oil for bearings and transmissions etc. Easy to use pen type needle applicator with lid.

CORE RC Silicone Wire 12g - Red/Black/Blue 3x50cm - Heavy gauge extra flex silicone wire for powerful motor and battery wiring. Half metre each of red; black and blue in the pack.

RC BODY POST HOLE REAMER WITH PROTECTION CAP FOR POLYCARBONATE RC BODY SHELLS

CORE RC Stepped reamer.

Cool blue anodising with knurling for easy grip.

Fixed stepped increments for holes of 2, 4, 6, 8 and 12mm diameter.

Introducing the CORE 20 Silver Can Brushed 540 Motor.

- 20 Turns especially designed for the 1/12th Mini class.
- Standard 540 can size for use in 1/10th scale or 1/12th scale vehicles.
- Motors are designed for use with 4 cell or 6 cell Nimh packs, or 1s or 2s lipo packs.
- Supplied with leads for easy connection in RTR cars.
- Includes internal cooling fan.

Awesome plug covers that help with the removal of your battery plugs. Plus, assist you in plugging in the correct polarity.

5mm diameter.

Super bling look!

These Low profile versions are held in place with a spot of cyanoacrylate glue, not supplied.

Introducing the CORE RC PACE 100R 1S Lipo competition speed control.

With a huge range of features the PACE 100R is suitable for a wide range of 1S racing classes including LMP12, GT12 and F1 Stock cars.

Its programmable instant reverse option is especially important for the F1 Stock car class!

Fully programmable with the CR886 Core RC Bluetooth Setup Module and app based technology.

--------------- BRCA Approved ---------------

- Full aluminium case and heat sink design, with highly efficient heat dissipation system.
- Huge range of variable parameters allows adjustment of the settings for most 1S racing classes. These including Modified, Stock, Zero Timing (Blinky) and Drifting etc etc.
- 32-bit microprocessor can support more powerful processing capability and more accurate motor output.
- Enhanced throttle response, excellent acceleration, linearity and drive ability.
- Multiple protection features: Low voltage cut-off protection, over-heat protection and throttle signal loss protection.
- Uses Bluetooth module to allow programming the parameter settings and firmware upgrades via app (supports real time programming, no need to restart the esc).
Data logging for real-time maximum ESC temperature, Motor RPM, Voltage and Adv. Timing and so on.

Specifications

Sensored/Sensorless - Sensored
Cont. Current - 100A
Burst Current - 360A
Input Voltage - 1S LiPo
BEC Output - 6.0-7.4V/5A
Size(L*W*H) - 37.0*38.2*17mm
Weight - 83g
ESC Programming Via - Mobile Phone APP
Firmware Upgrade - Supported
Waterproof - No

Programmable Items

Throttle Response-Coast-Neutral Range-Min. Throttle-Minus-Minus Range-Max. Forward force

Brake Response-Min. Brake Force-Max. Brake Force-Fwd. Drag Brake Force-Fwd. Drag Brake Response-Rev. Drag Brake Force-Rev. Drag Brake Response-PWM Freq.

Boost Timing-Trigger-RPM Threshold-Initial Angle-Angle Inc. Rate-Angle Dec. Rate

Turbo Timing-Angle Inc. Rate-Angle Dec. Rate-Turbo Delay-Delay Reload

Motor Rotation-Motor Poles-Running Mode-Drive PWM Freq.-CutOFF Voltage-CutOFF Thermal-BEC-Output-A/C Swap

Includes; speed control, instructions, external switch. Does not include sensor lead or fan.

Core RC - Serrated M4 Steel Wheel Nuts feature sharp serrations on the steel face that's sits against the wheel making lost wheel nuts a thing of the past. Never face the embarrassment of losing a big final as your wheel rolls down the track again.

From CORE RC is this Performance Brake Cleaner.

Brake cleaner is universally used in RC for cleaning and degreasing a wide range of items.

This particular brake cleaner is excellent for rubber tyres but uses could also include; bearings, diff parts, drive shafts, foam tyres, body scuffs, electrical contacts, double sided tape stickiness/residue, motors, Sharpie/marker pen writing etc etc etc

Includes nozzle and straw for those hard to reach places.

- 500ml
- Powerful Spray

This is classed as a hazardous material by our shippers and consequently can only be sent within the UK by UPS not Post. Outside the UK it cannot be sent by air transport (UPS Express Saver), only road (UPS Standard).

Keep your wiring super neat with this CORE RC sensor wire. Cool black look.

Keep your wiring super neat with this CORE RC flat sensor wire. Cool black look.
