(PLEASE PURCHASE BATTERY CONNECTOR SOLD SEPERATELY - FEMALE XT60 OR T-PLUG RECOMMENDED)
Ideal Vehicles - 1/10th Short course truck, Monster truck, Truggies & Buggies
(SENSORLESS = LESS THINGS TO GO WRONG! HOWEVER NOT AS SMOOTH AS SENSORED VERSIONS. YOU WILL ONLY NOTICE WHEN STOPPED ON AN INCLINE - YOU MAY EXPERIENCE 'COGGING' WHERE YOU WILL NEED TO REVERSE, IN ORDER TO REINGADGE FORWARD MOVEMENT.)

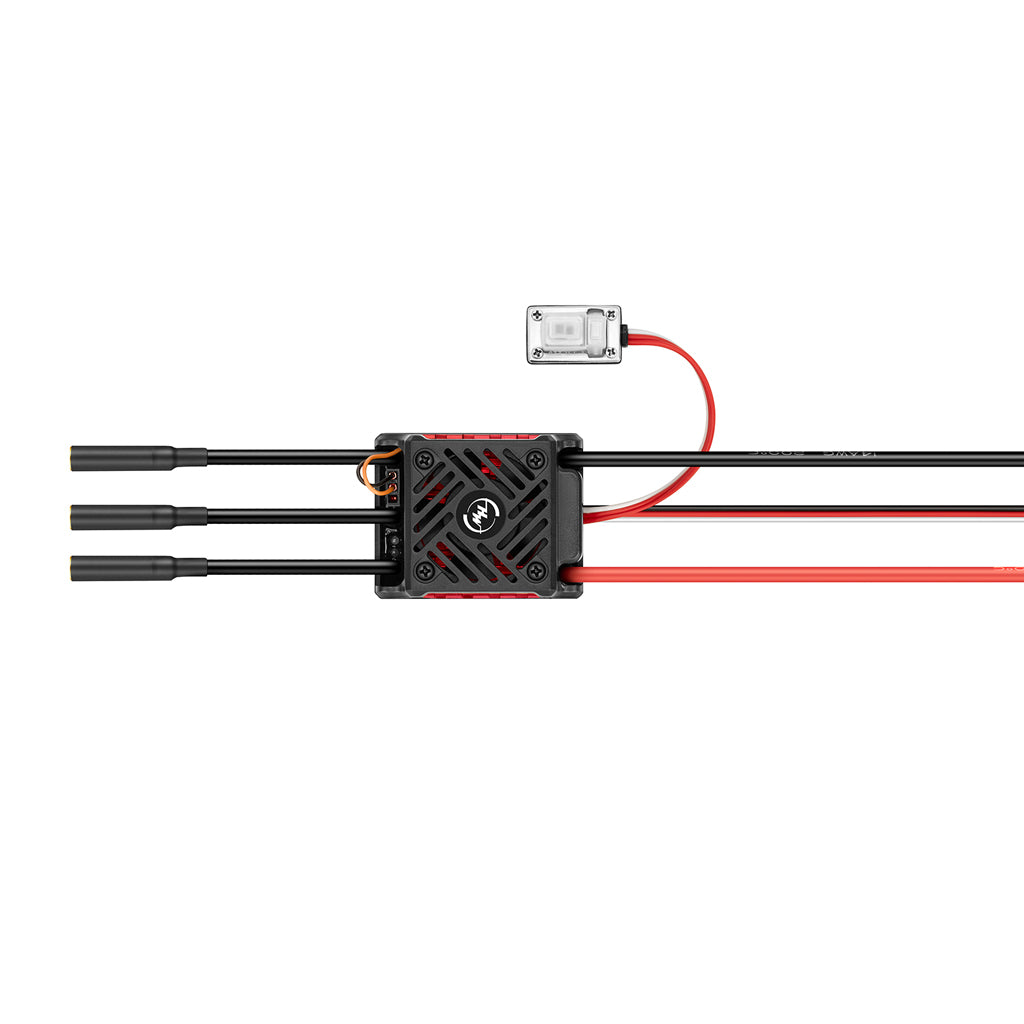

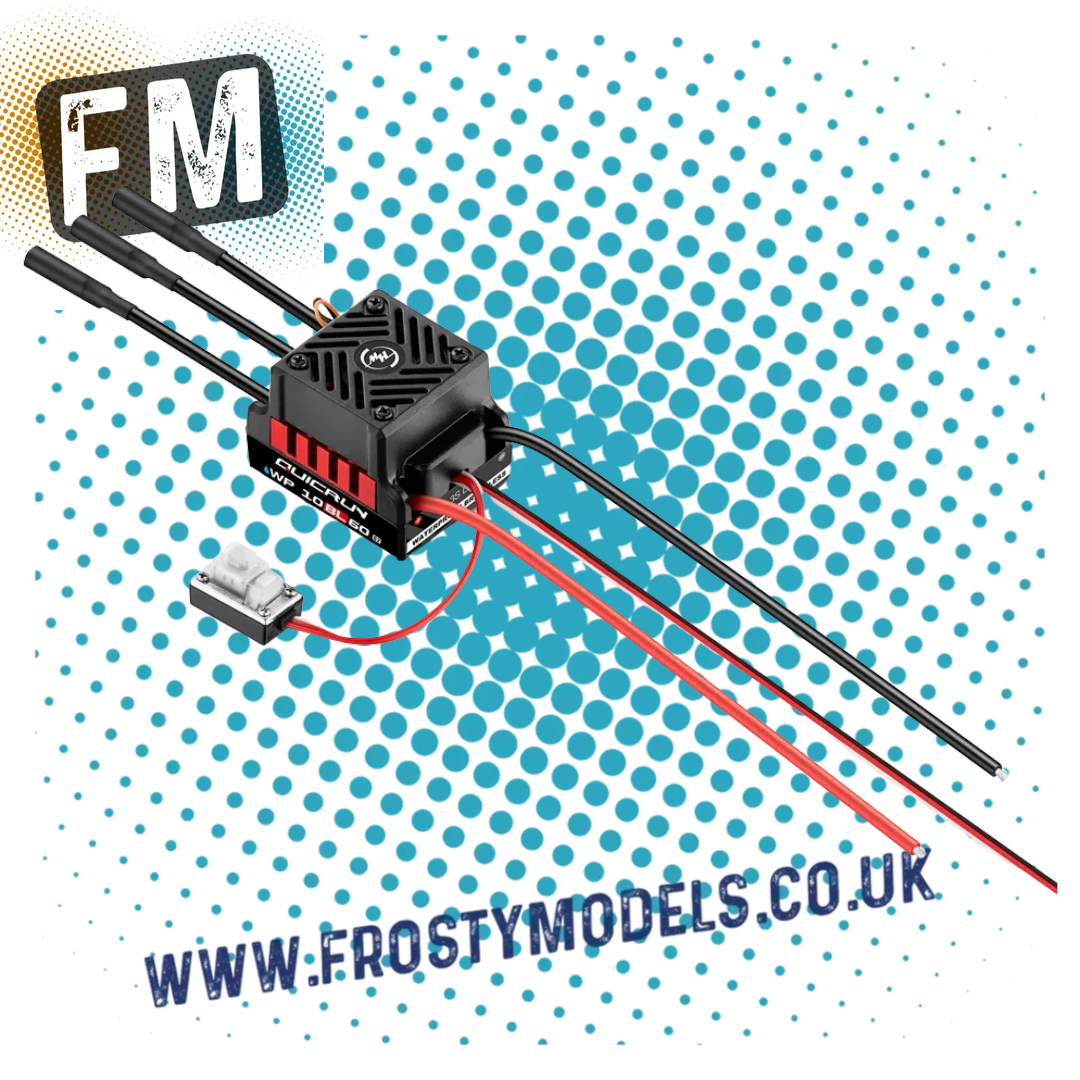

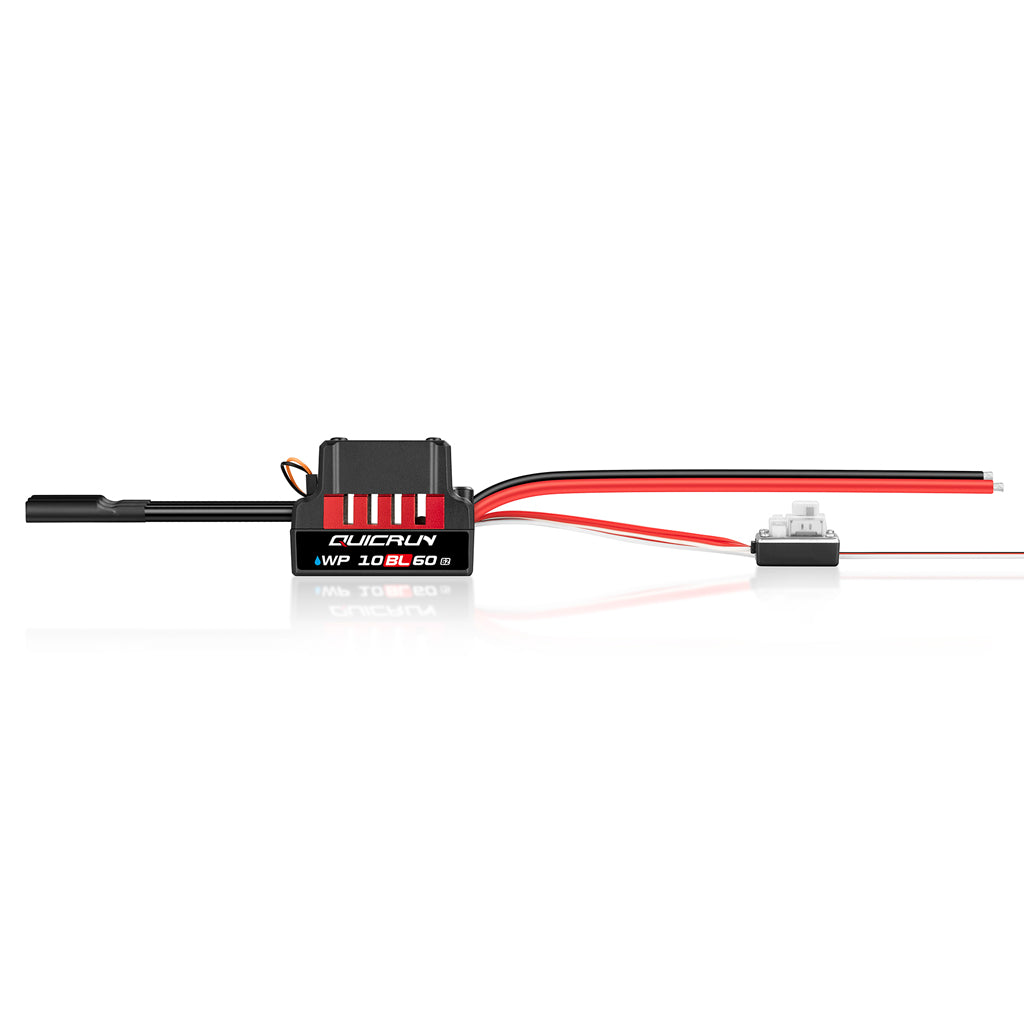

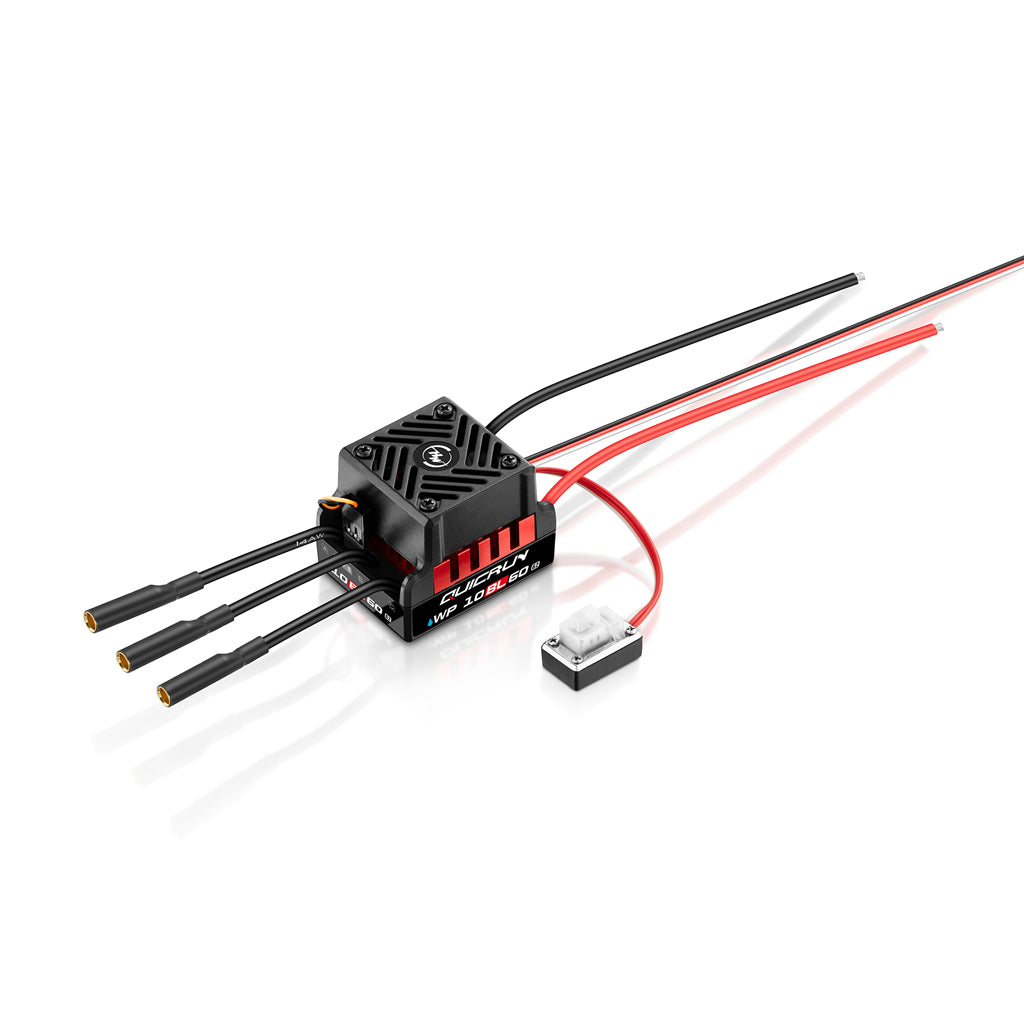

Introducing QuicRun WP 10BL60 G2 Brushless Speed Control - SENSORLESS VERSION
Intelligent freewheeling technology effectively reduces heat generation
The intelligent freewheeling technology enables the ESC to be able to achieve higher driving efficiency at a lower operating temperature.
It further improves on the stability and reliability of the ESC.
Small and compact
The new QuicRun WP 10BL60 ESC is more compact than its predecessor
It is shorter in length by 2.5mm
The width is reduced by 1.5mm
Overall, it makes the layout and wiring convenient
Efficient cooling system
The mesh design of the heat sink is used for efficient cooling of the ESC. Each of the phases adapt a copper thermal bar for better cooling.
The heat sink designed with the fan ensures the ESC is always in the best operating temperatures.
Capacitor overheating protection
The capacitor overheating protection function will effectively prevent exploding capacitors due to overload usage. It prevents users from completely damaging the ESC.
All-weather operation capability
The ESC's protection level reaches IP67. Able to easily cope with various competition environments such as rain, dust, and sand with its excellent waterproof and dust-proof protection.
The above-mentioned IP67 protection level is splash-proof, water-resistant, and dust-proof under normal use. It is not permanently effective, and the protective performance may degrade due to daily wear and aging. Do not submerge in water for a long time, otherwise the product may be damaged.
A vast variety of programming methods
It supports three programming methods:
Multi-function LCD programming box PRO, LED programming box, and SET key, making it easy for users to choose their favourite programming method for parameter adjustment.
Great value for money
Designed specifically for entry-level users. Simple to use high quality product. Easy to install and go!
Specifications
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Waterproof - Yes
Cont./Peak Current - 60A/360A
Input Voltage - 2-3S LiPo
BEC Output - Switch Mode 6V @3A
Input Wires - Black-14AWG-150mm*1 Red-14AWG-150mm*1
Output Wires - Black-14AWG-60mm*3
Input Connectors - No
Output Connectors - 4.0MM Gold (female)
Fan
Size - 30.0x30.0x10.0mm
Voltage Range - 6V
Powered by BEC
ESC Programming via
SET Button on ESC - Supported
LED Program Box - Supported
LCD G2 Program Box - Supported
OTA - Not Supported
Programming Port - Shared with fan port
Firmware Upgrade - Not Supported
Data Recording - Not Supported
Size - 46x36.5x34.3mm
Weight - 82.6g(w/Wires)
Applications - Sensorless / Sensored Brushless Motor (only in sensorless mode)
Vehicles - 1/10th On-road, Buggy, Short course truck
KV Rating/T Count - 2S LiPo:KV≤6000；3S LiPo:KV≤3500（3652/3660 size motor）
