MORE INFO TO FOLLOW - Announced August 2025 (Updated 24-3-25)
SCALE M-Chassis 1/10 - SMALLER THAN MOST 1/10 TOURING CARS
Proposed size is same as original. 210mm Wheelbase by 168mm wide. Using standard M-Chassis wheels.
CHASSIS DETAILS:
The MB-01 Chassis
The compact, 2WD MB-01 chassis gives a choice of three types of wheelbase, and front- or rear- wheel drive system. This model employs a midship motor, rear-wheel drive setup. Without removing battery pack, motor and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.
Specifications
★Length: 374mm, width: 168mm, height: 140mm ★Wheelbase: 210mm (Short) ★Tread: 140mm (front & rear) ★Tire width/diameter: 25/55mm (front), 25/59mm (rear) ★Bathtub type chassis ★Midship motor, rear-wheel drive ★4-bevel differential gear ★3-piece steering tie-rod ★4-wheel double wishbone suspension ★Friction dampers ★Gear ratio = 5.83:1 (using kit 29T pinion) ★Type 540 motor ★Electronic speed controller (ESC) is sold separately.
Separately Required Items
★2-channel R/C system ★2 or more Channel transmitter & receiver ★Battery pack & charger, paint and tools. (Motor and ESC Included)
-

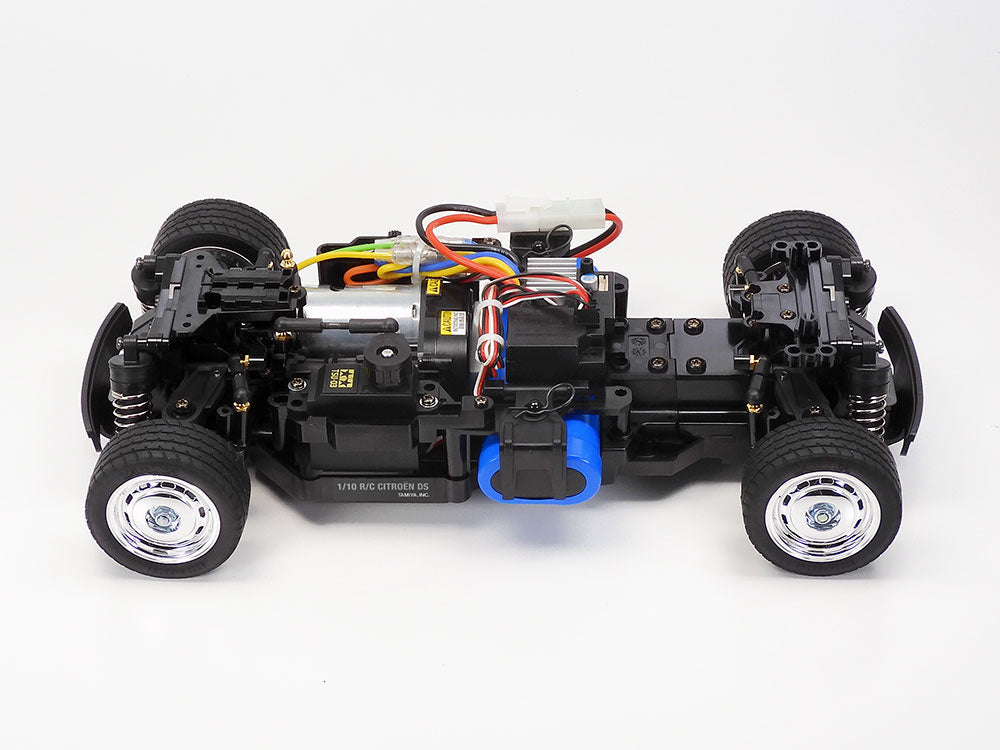

The compact MB-01 chassis. For this model, it is assembled with a short wheelbase: 210mm.
-

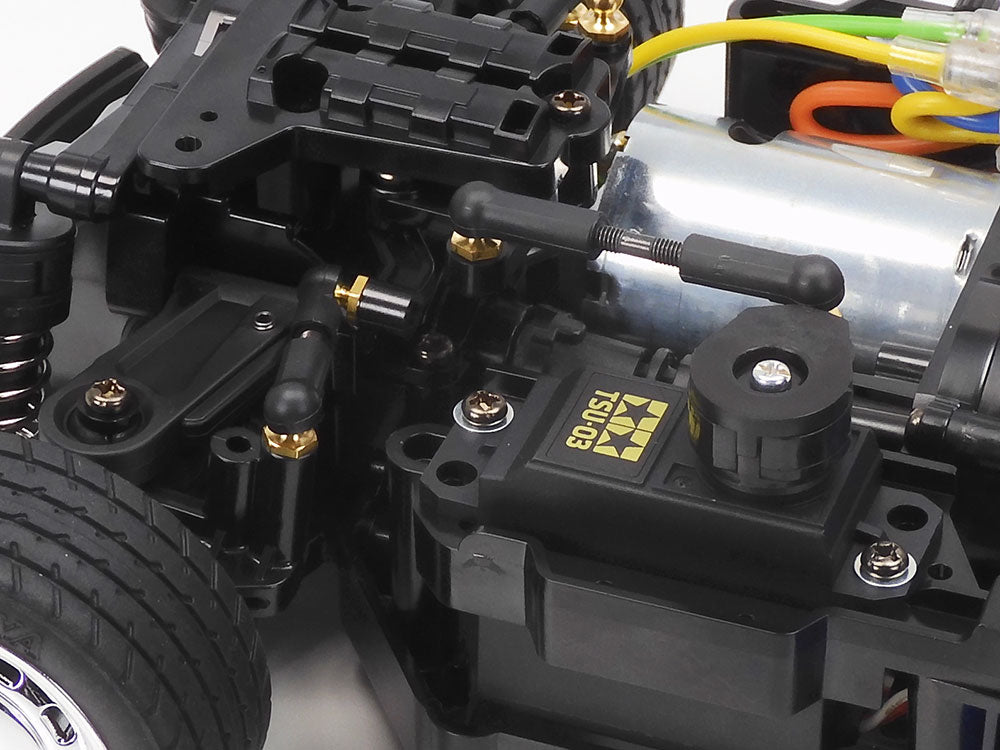

A 3-piece steering tie-rod is combined with a front-left servo.
-

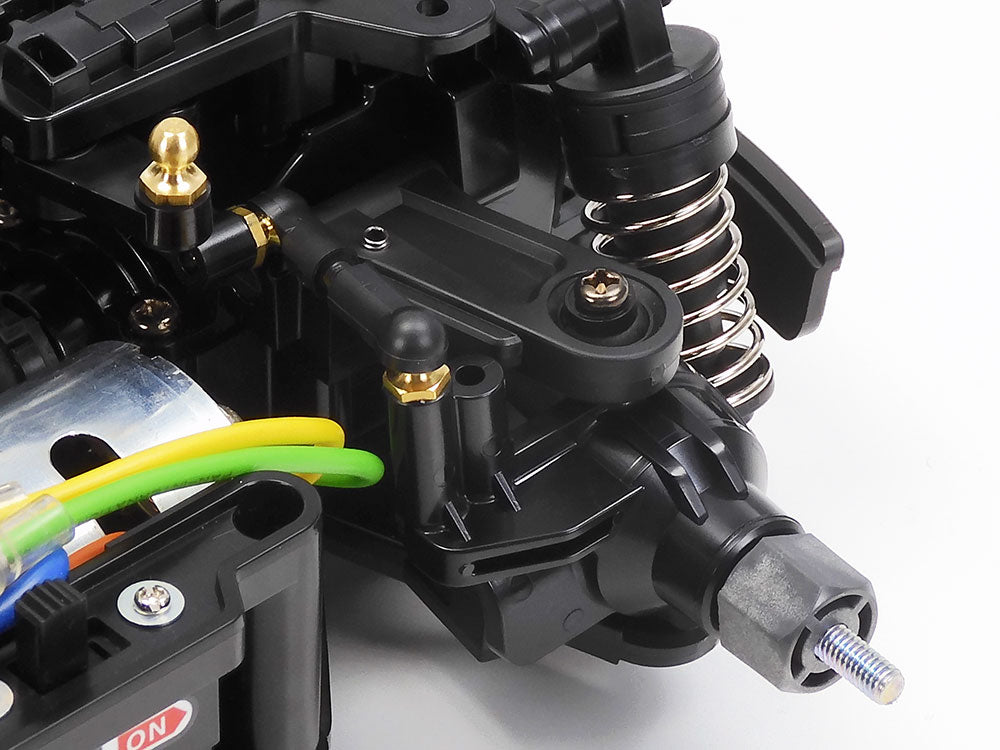

Wide front tread is achieved with long wheel hubs and axles.
-

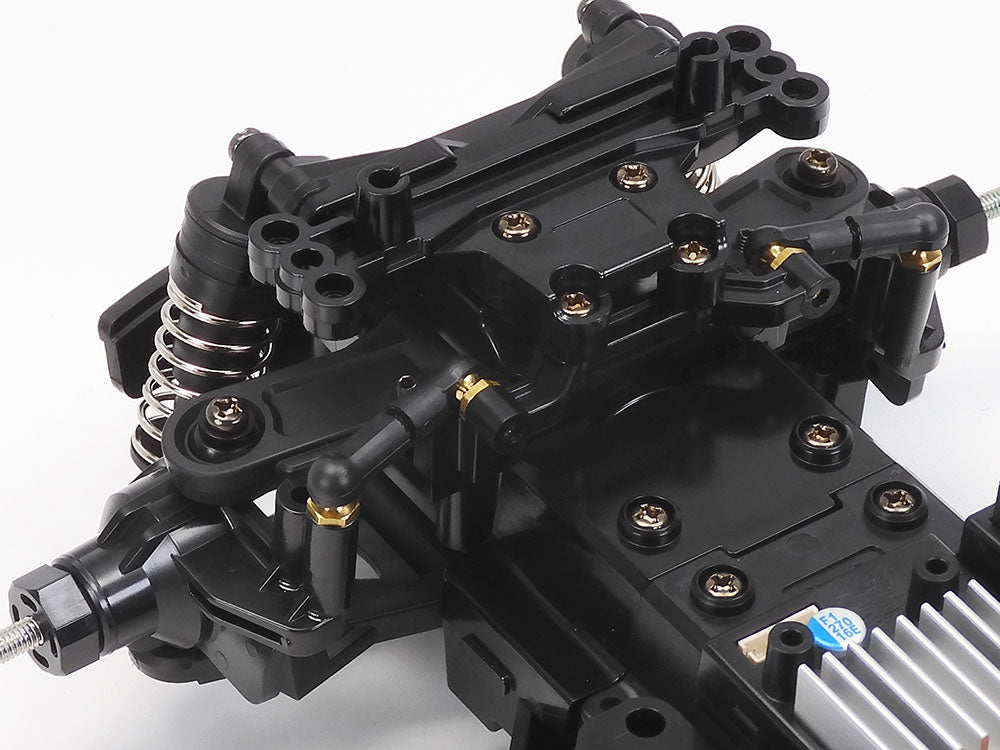

The four-wheel double-wishbone suspension uses symmetrical arms.
-

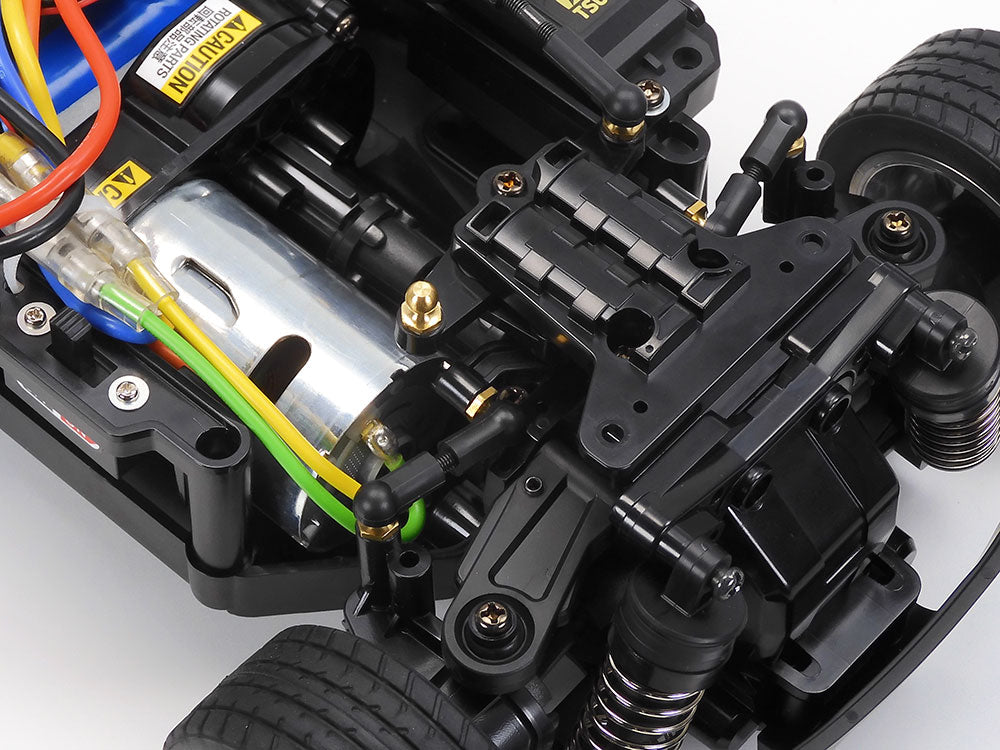

The motor sits in the front right, and provides power via a short propeller shaft.
-
The motor mount is assembled as a unit, and secured to the chassis using two screws.
-
The 4-bevel gear differential is the same as that on the TT-02; this chassis is compatible with TT-02 Hop-Up Option differentials.
-

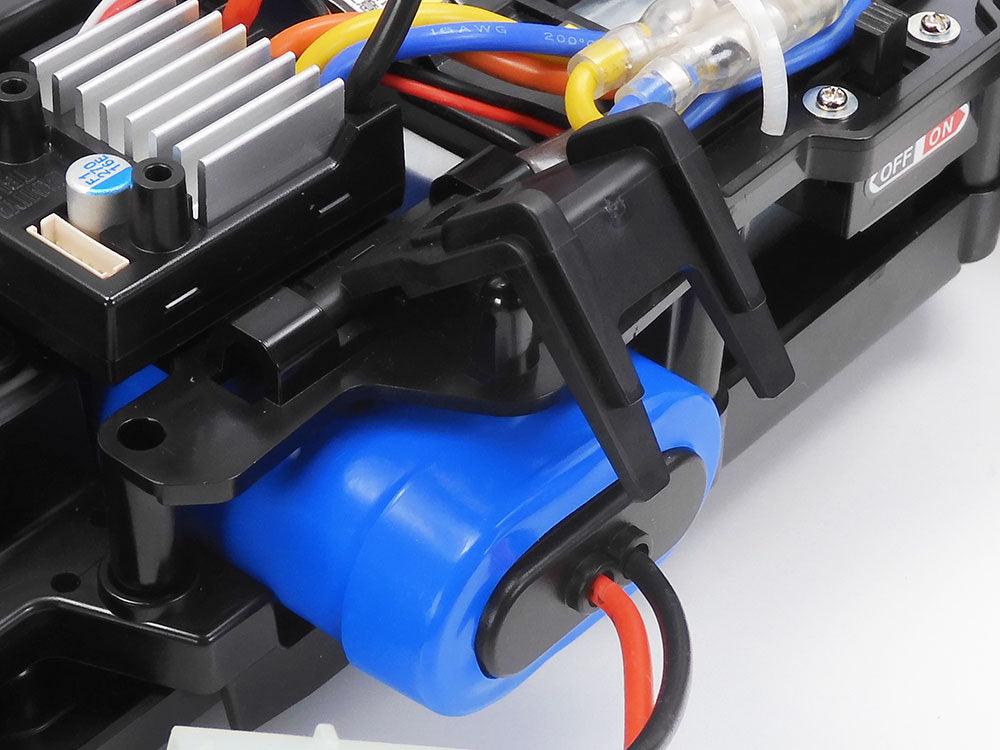

The flip-up battery holder gives quick access.
-
With spacer attached to the sub deck, the wheelbase can be set to Long (239mm) for longer bodies.
-
A close-up on the rear double wishbone suspension, which uses friction dampers.
-

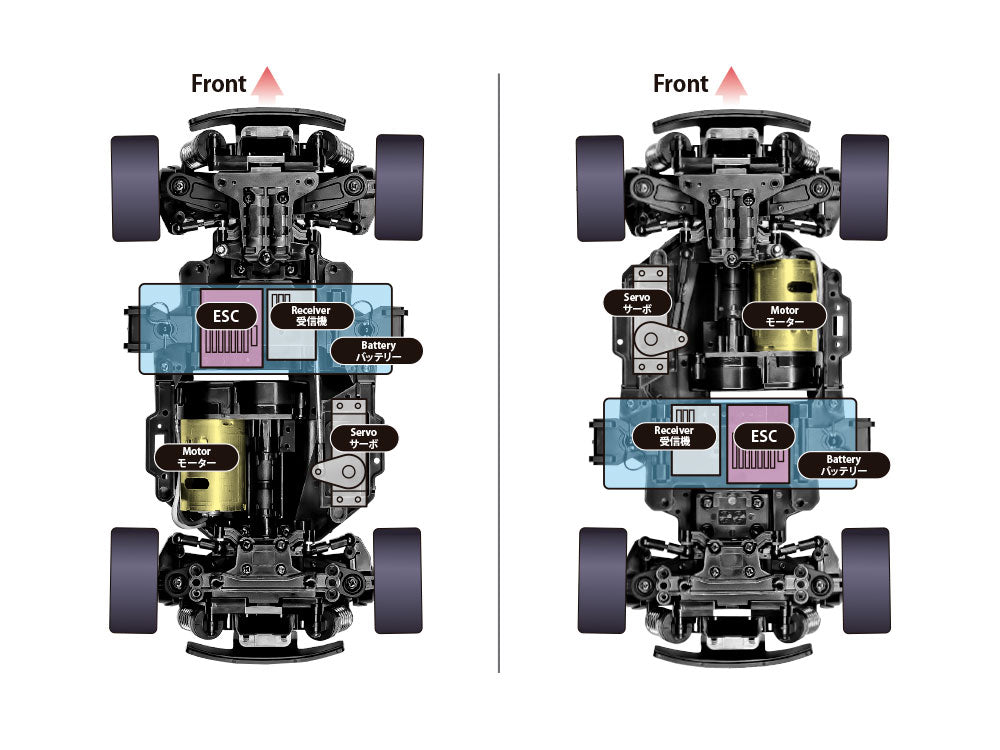

This versatile chassis can be assembled into three wheelbases and two drivetrain layouts.
