KIT FORM - NO ELECTRICS or Body)

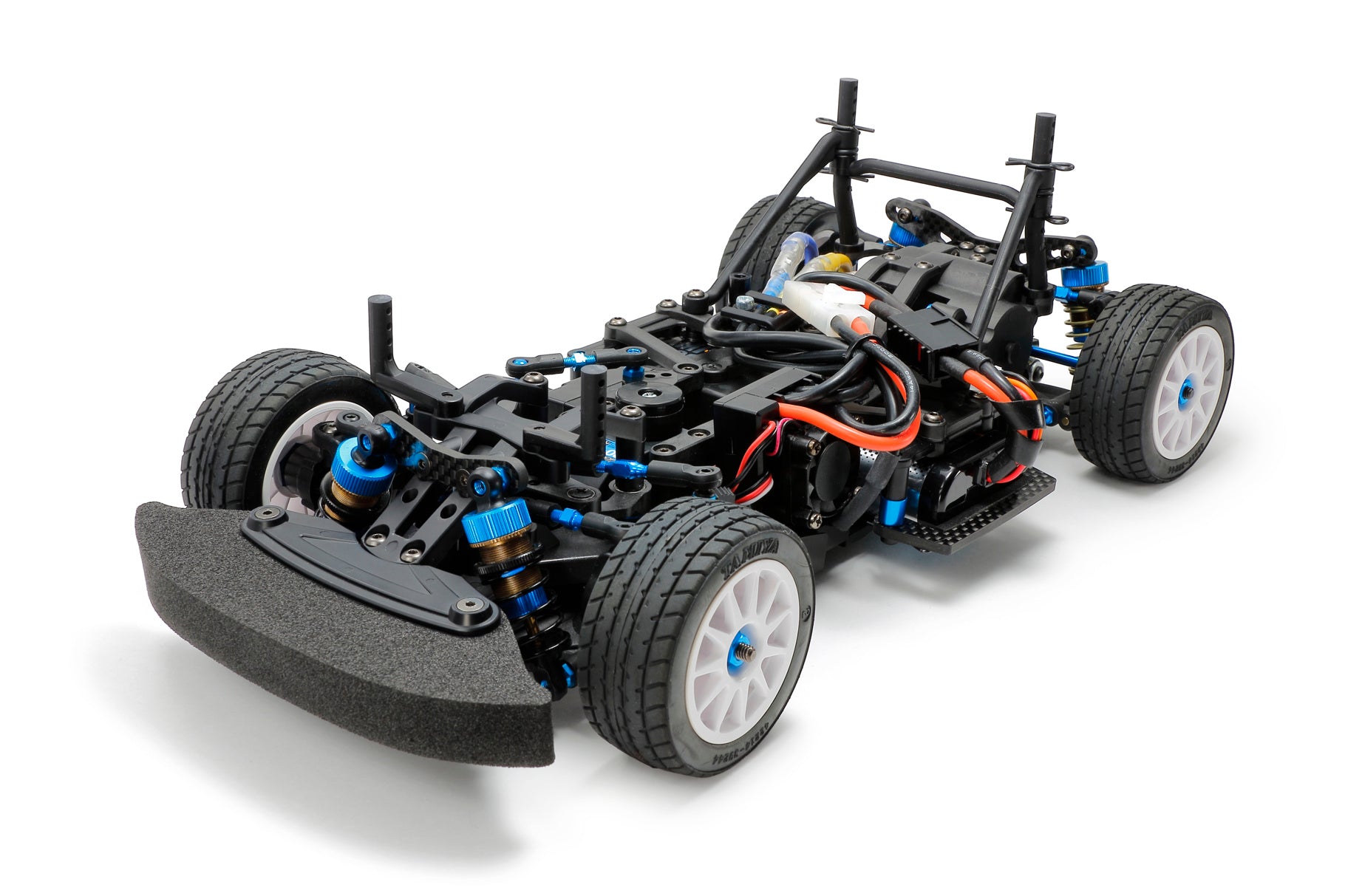

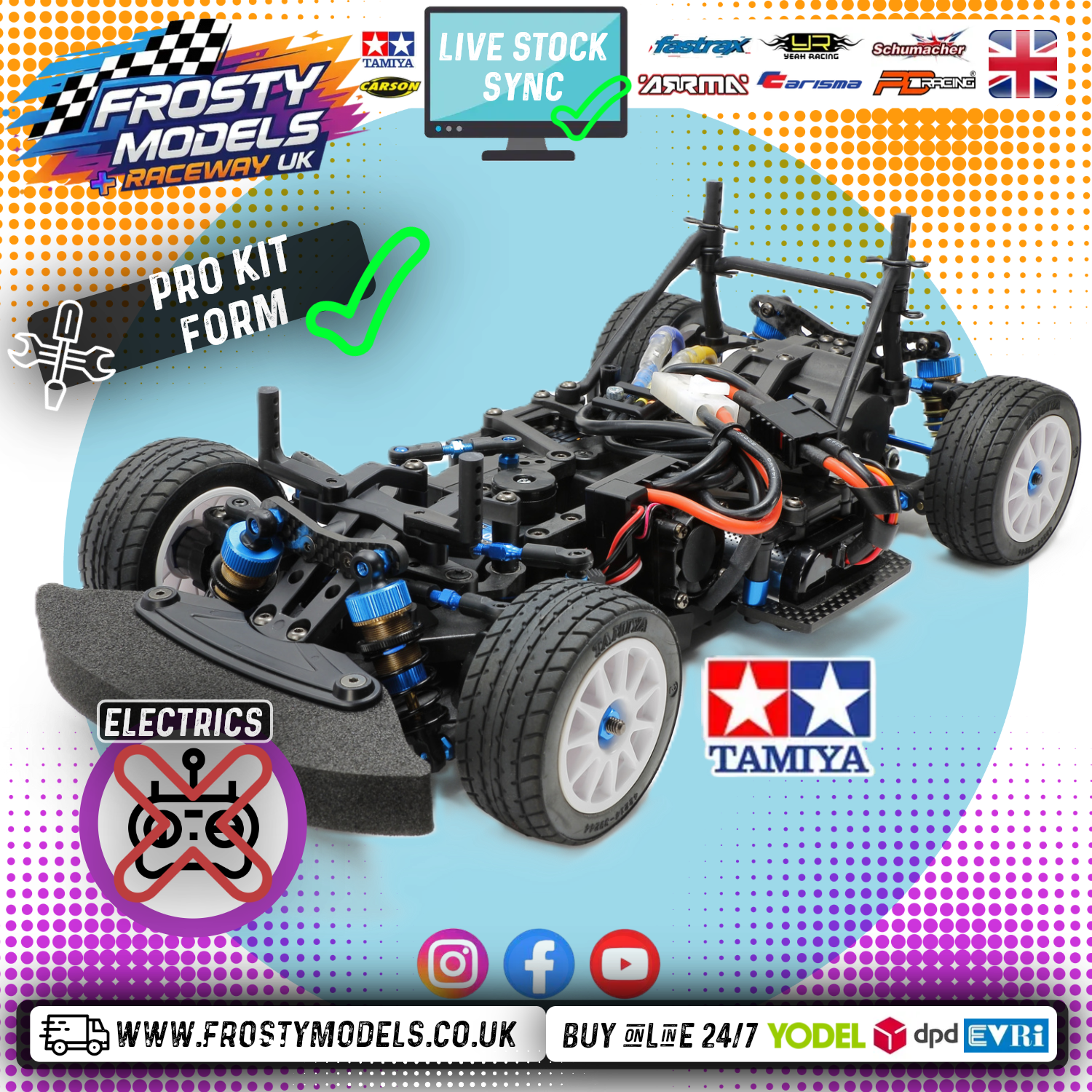

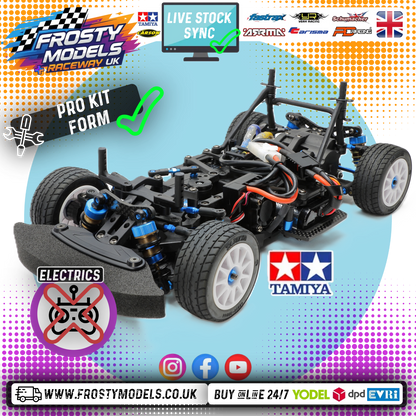

The M-08R adds a plethora of race-spec parts to the balanced, compact RWD M-08 Concept chassis: an example being the hopped-up drivetrain with a ball differential, universal shafts featuring low-friction cross joints and lightweight aluminium swing shafts, plus 5mm wheel hubs. Turnbuckle shaft suspension arm and steering setup components simplify fine-tuning of the M-08R, and titanium-coated shafts are a durable inclusion in the kit. Carbon fibre damper stays are paired with M-Chassis big bore aluminium dampers+ featuring dedicated blue anodized top and bottom caps for a touch of class, while a 20-gram ballast weight is included to get the chassis feeling just how you want it to.
Featured Drivetrain Components
- Full ball bearings
- Ball differential (52T)
- 33mm lightweight aluminium swing shafts
- Cross joint for LF assembly type universal shafts
- 06 module fluorine coated 20T pinion gear
- M-08 Concept aluminium shafts
- M-Chassis reinforced freewheel axles
- 5mm clamp-type wheel hubs
- Suspension
- Carbon fibre damper stays (front/rear)
- Reinforced D parts (suspension arms)
- Aluminium turnbuckle shafts
- Titanium coated suspension shafts
- 5x5mm, 5x11mm hard hex head ball connectors

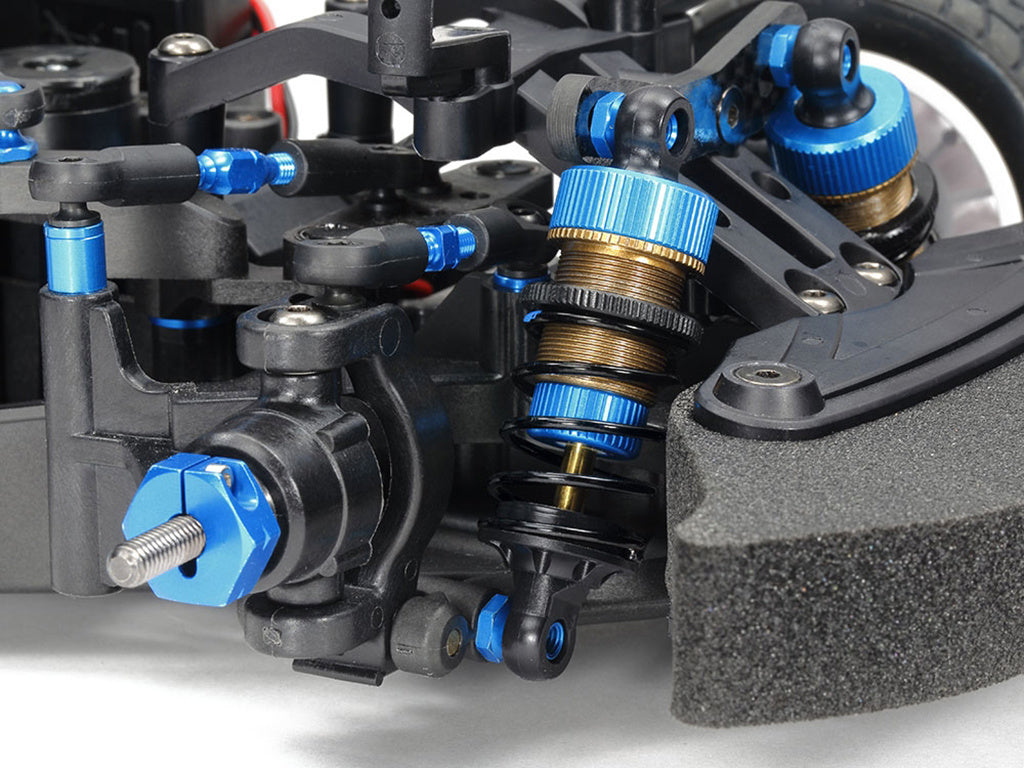

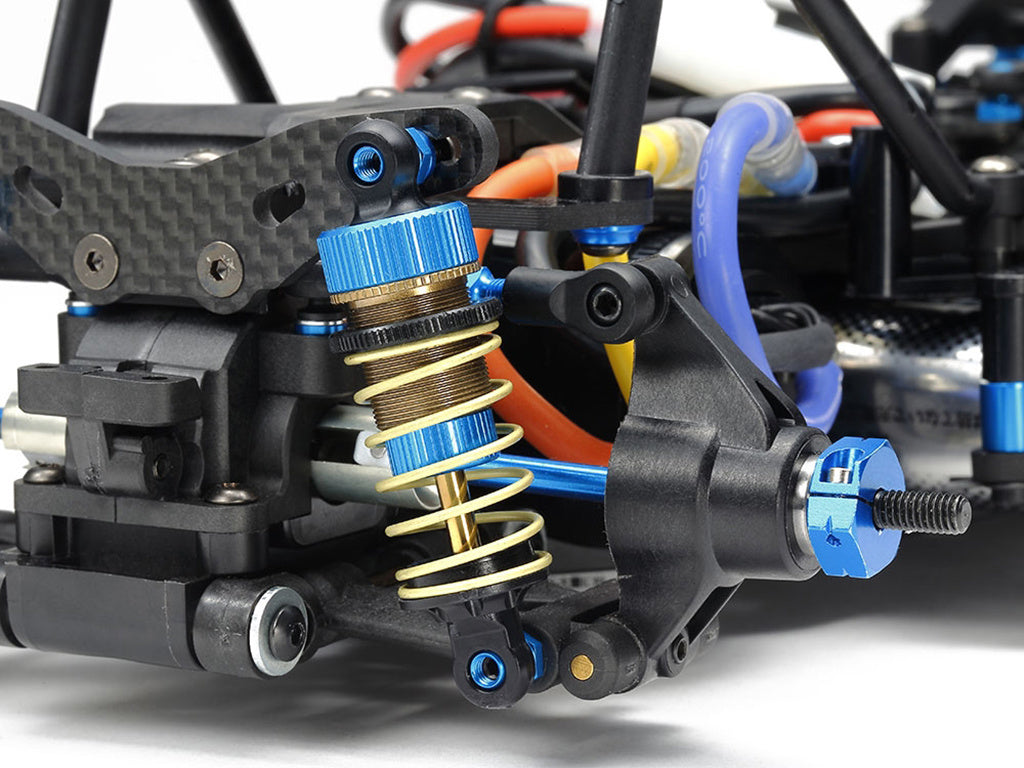

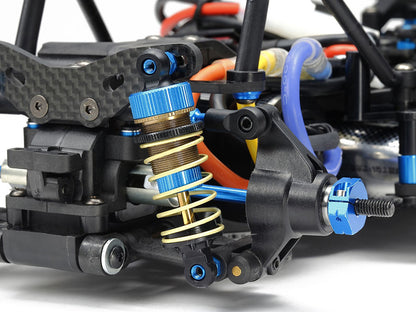

- M-Chassis big bore aluminium dampers+
- 3x 1.3mm-hole pistons
- 4mm aluminium serrated wheel nuts (blue)
- 5mm reinforced open face adjusters
Chassis

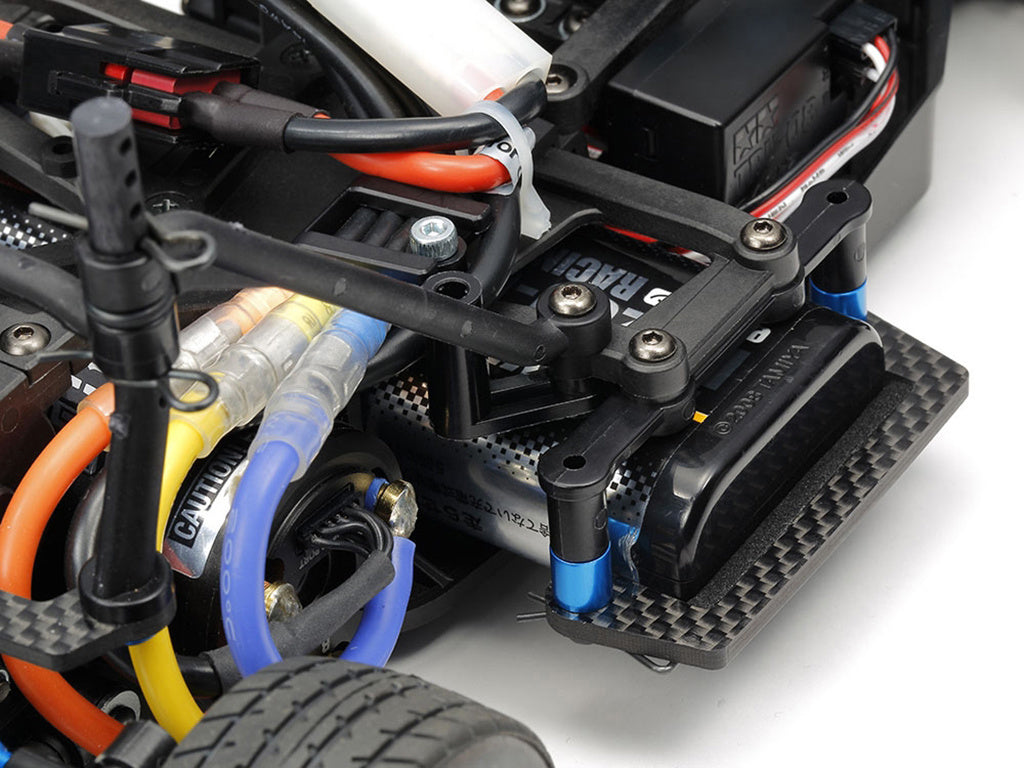

- Carbon fibre battery holder
- Carbon fibre body mount base

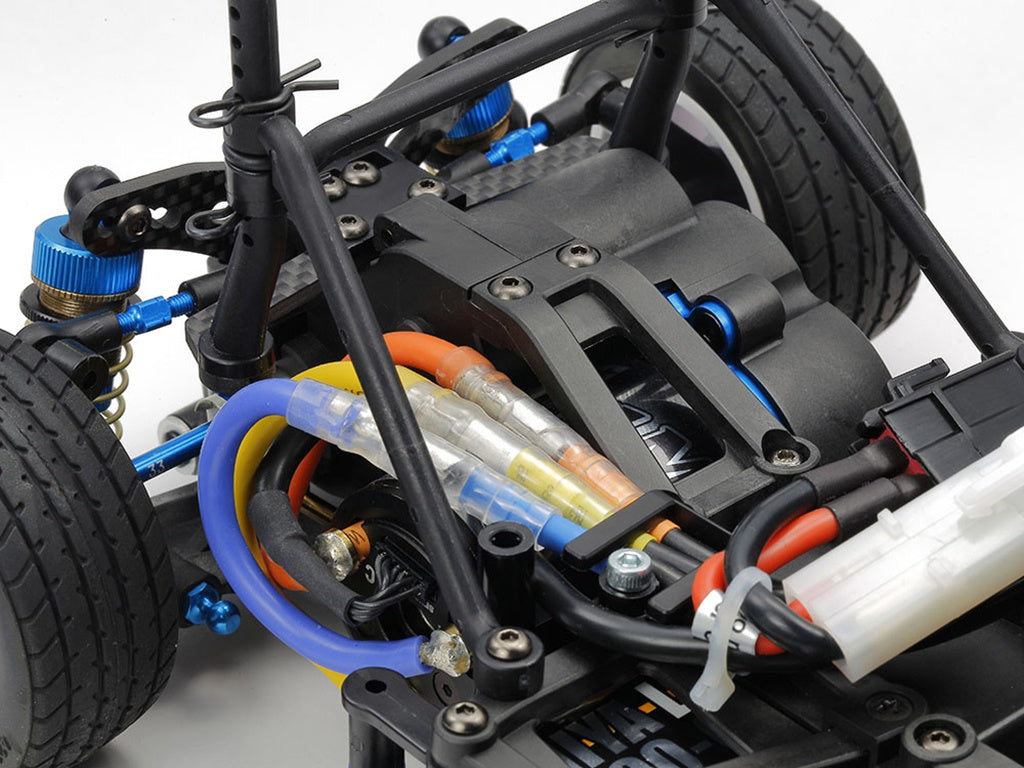

- Reinforced K parts (gearbox)
- Chassis balance weight (20g)
- Hi-torque servo saver
- Aluminium ball connectors (blue)
- Hex head screws
Specifications
- Scale is 1:10
- Length: 319mm (with 225mm wheelbase), width: 165mm
- Alterable wheelbase: 210mm, 225mm, 239mm
- Monocoque frame with separate front and rear sections
- Midship motor, rear-wheel drive
- Ball differential
- 3-piece steering tie-rod
- 4-wheel double wishbone suspension
- M-Chassis big bore aluminium dampers+
- Gear ratio = 5.776:1 (using kit 20T pinion); 8 ratios between 6.795:1 and 4.813:1 are possible with separately sold pinions)
- Electronic speed controller (ESC) is sold separately.
Separately Required Items
- Body
- Type 540 motor (brushless is recommended)
- Tyres
- 2-channel R/C system w/ESC
- R6/AA/UM3 batteries for transmitter
- Battery pack & charger
