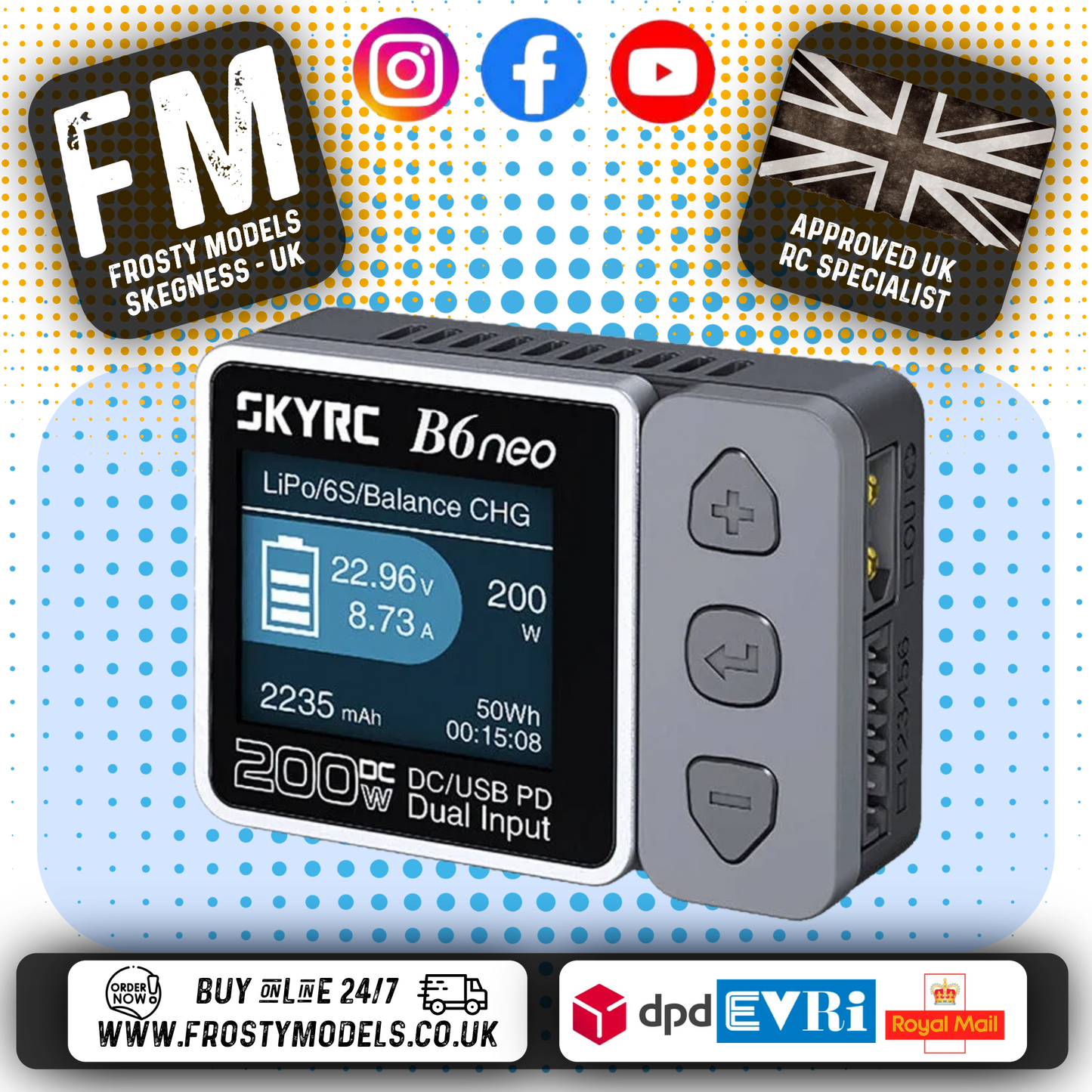

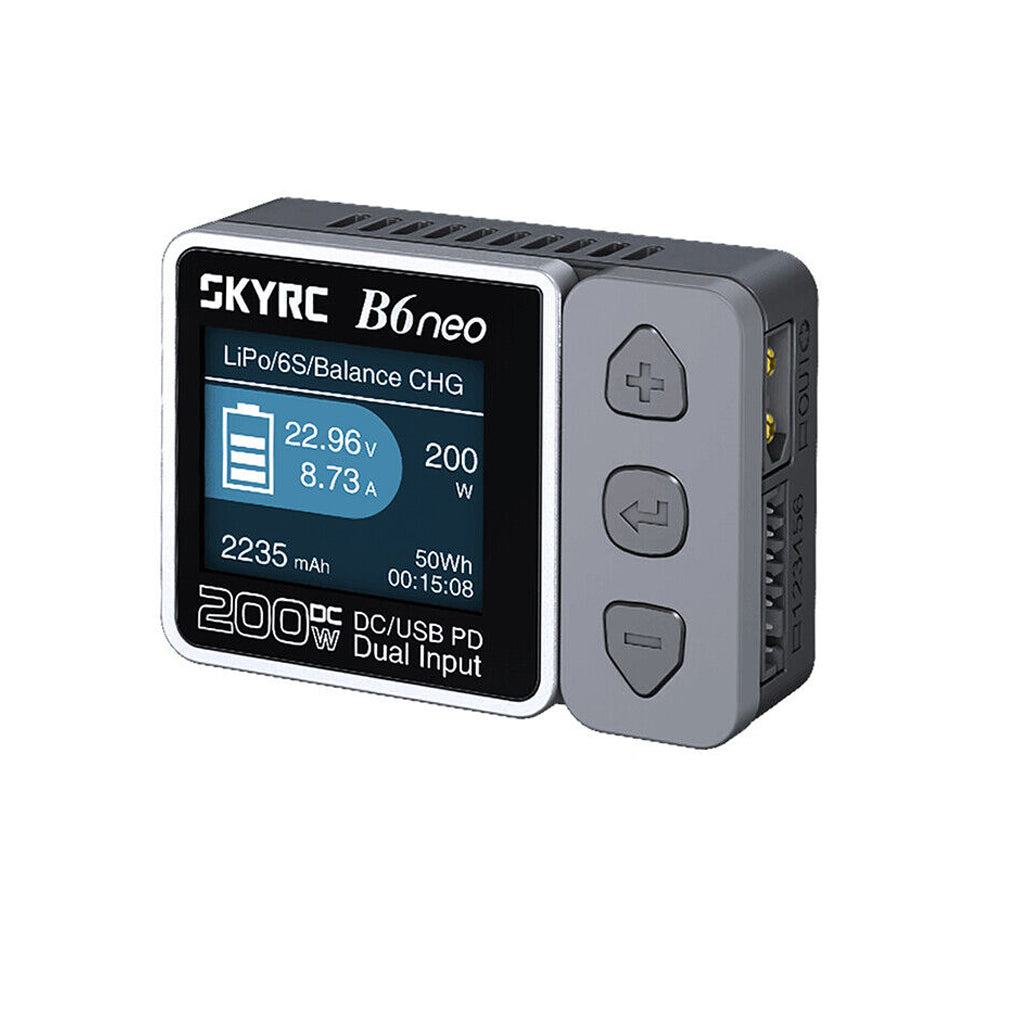

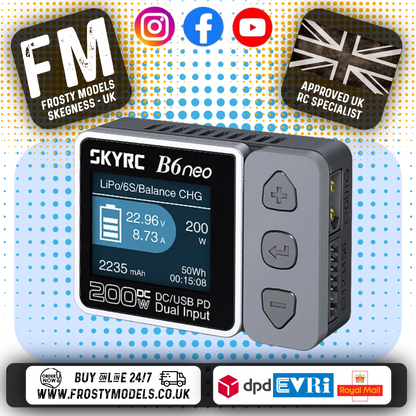

Introducing the SKY RC B6neo DC Charger.
No charge leads included - needs XT60 Type plugged leads
SK-100198-02 GRAY VERSION
From Bold to Beautiful, Perfect Blend of Fashion and Function.
Stunning In Every Way Charging Should Not be a Chore!
With the two-tone body design and playful color options, B6neo adds a touch of fun to your routine charging session.
Stand out in the racing field with a pop of color and impress other players with your unique personality.
Make your RC charging shine with SkyRC B6neo!
Features
- arm Cortex-M4 MCU
- DC/USB PD Dual Input
- Digital Power Supply
- 10A Charge Current
- Light & Compact
- Smart Fan Control
- Intuitive Interface
- Multi Languages
Be Legendary Innovation Evolved, Smaller than Credit Card.
SkyRC's legendary iMax B6 charger was an iconic charger back in 2006, and now we are proud to introduce the next-generation B6neo.
Almost 1/4 the size of its predecessor, smaller than credit card, B6neo still packs a powerful punch. Unlike the rugged aluminum case of the B6, the B6neo features stunning color schemes in sleek plastic cases.
When powered by DC, the B6neo can charge up to an impressive 200W, while it can handle up to 80W with USB PD input. This is a significant improvement over the B6, which can only charge up to 50W on DC and does not support PD input - a feature that has become the de-facto must-have in the household.
Once again, SkyRC has raised the bar for RC charging!
Tiny & Shiny with Amazing Power of 200W.
Don't let its small size deceive you - this charger packs a punch!
When powered by DC, the tiny and shiny powerhouse delivers a remarkable charging power of up to 200W with a maximum current of 10A. Even when connected to the trendy type-C PD power, it effortlessly fills up to 80W.
With its tiny footprint, the B6neo exceeds expectations in every way!
Experience the ultimate combination of power and portability with the B6neo.
What more could you ask for from such a compact powerhouse?
XT60 & Trendy PD input
SkyRC B6neo features an XT60 interface as its DC input and a de-facto trendy Type-C PD input interface, ensuring greater flexibility and convenience in charging your RC batteries.
Discharging Multiplied by Balance Port
The built-in balance port enables B6neo to discharge faster, allowing it to discharge at up to 24W when used in conjunction with the main port. In contrast, the discharge rate when using the main port alone is limited to just 10W.
Versatile 2-in-1: Check Batteries Easily
When the balance port is connected, B6neo is a versatile battery checker capable of measuring cell voltage and the balance state of LiPo, LiHV, LiFe, and LiIon battery. The overall voltage and individual cell's voltage will be displayed on the fly to help tell whether the battery is charged or discharged and whether it requires balancing.
It will work as a safeguard for batteries, as, for example, LiPo battery is renowned for their high energy density and lightweight properties. Proper care and monitoring are crucial to ensure their safety and longevity.
So. Pro. So is Digital Power
B6neo is not only professional in charging but also can act as a digital power supply.
After clicks on the menu, B6neo is ready for your application, offering an optimal voltage of 5-27V with 0.1V increment, adjustable 1-10A current.
Short circuit, Overload, and Reverse polarity protection are all included!
Rectifier circuit Efficiency Multiplied
The B6neo uses a proprietary rectifier circuit to efficiently convert DC into safe D/C power for battery charging. And its onboard MCU precisely controls the charging to minimize power loss to create an incredibly compact form factor.
Enhanced Protection Assured Safety
The SkyRC B6neo charger is built-in with several essential safety features ensuring optimal charging safety.
-Short-circuit Protection
-Over-temperature Protection
-Capacity Protection
-Time-out Protection
-Cut-off Protection
-Over-voltage Protection
-V0 Flame-retardant
Specifications
Size and Weight
Shell material: PC-ABS V0
Size: 70*50*32mm
Weight: 82g
Display
Display Type: TN
Size: 1.77 inch
Panel Active Area: 28.03*35.04mm
Resolution: 128xRGBx160 Pixel
Number of Colors: 262K
Power
DC Input Voltage: 10-28.0V
PD3.0/QC Input Voltage : 12v-20v
Charger power:
DC: 200W
PD: Max. 80W (20V, 5A)
Discharge power:
Max. 24W based on 6S(4.2V/S)
Battery
Battery Types/Cells:
LiPo/LiFe/LiIon/LiHV: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 3S/6S
Charge and Discharge
Charge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-10.0A
Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A
Balance current
LiPo/LiFe/LiIon/LiHV: Max. 500mA
Operation
LiPo/LiFe/LiIon/LiHV: Balance charging, Charging, Discharging, Storage
NiMH/NiCd: Charge, Discharge, Cycle charge-discharge, Cycle discharge-charge, Repeat charge
Pb: Normal, Standard charge, Low temperature charge, AGM charge/discharge.
