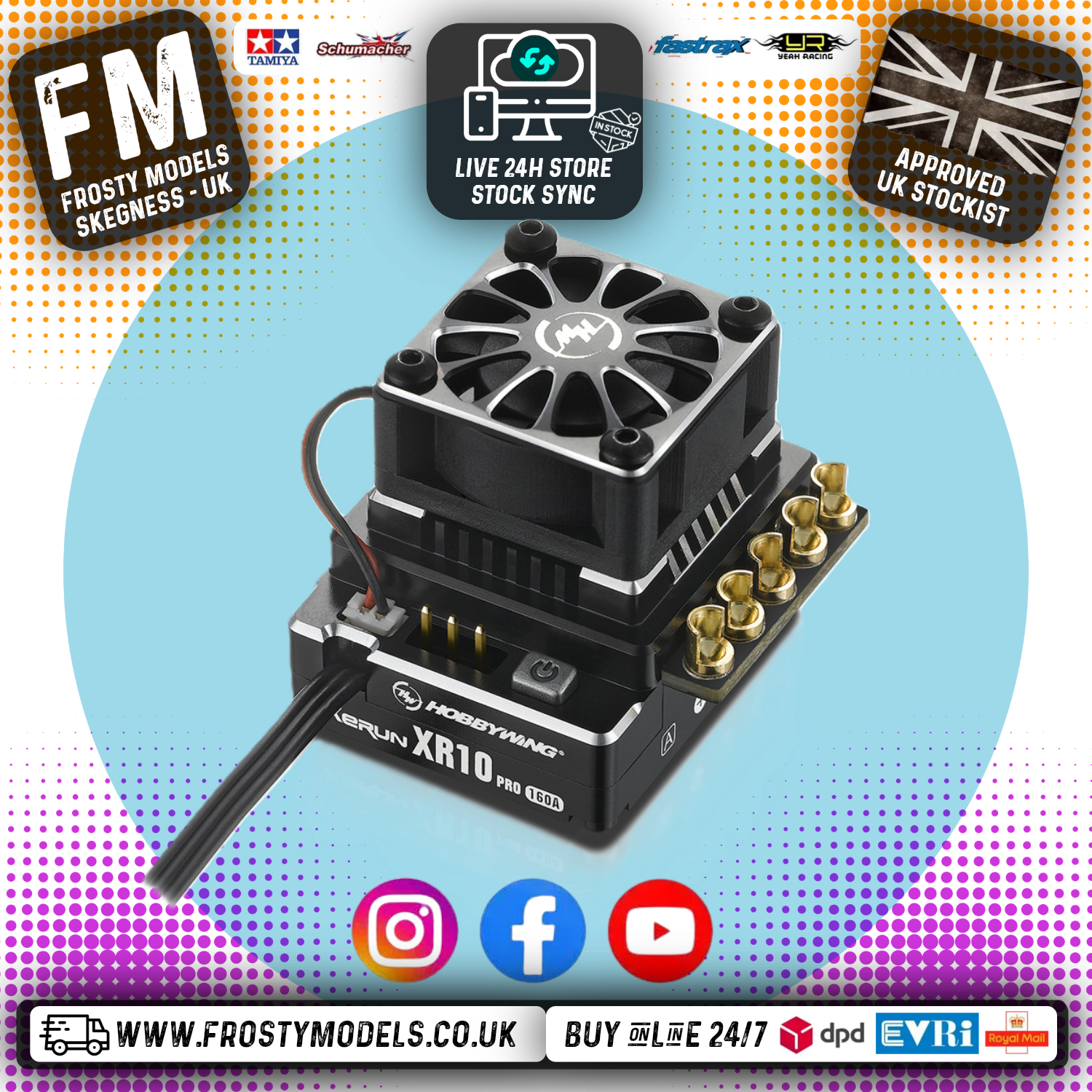

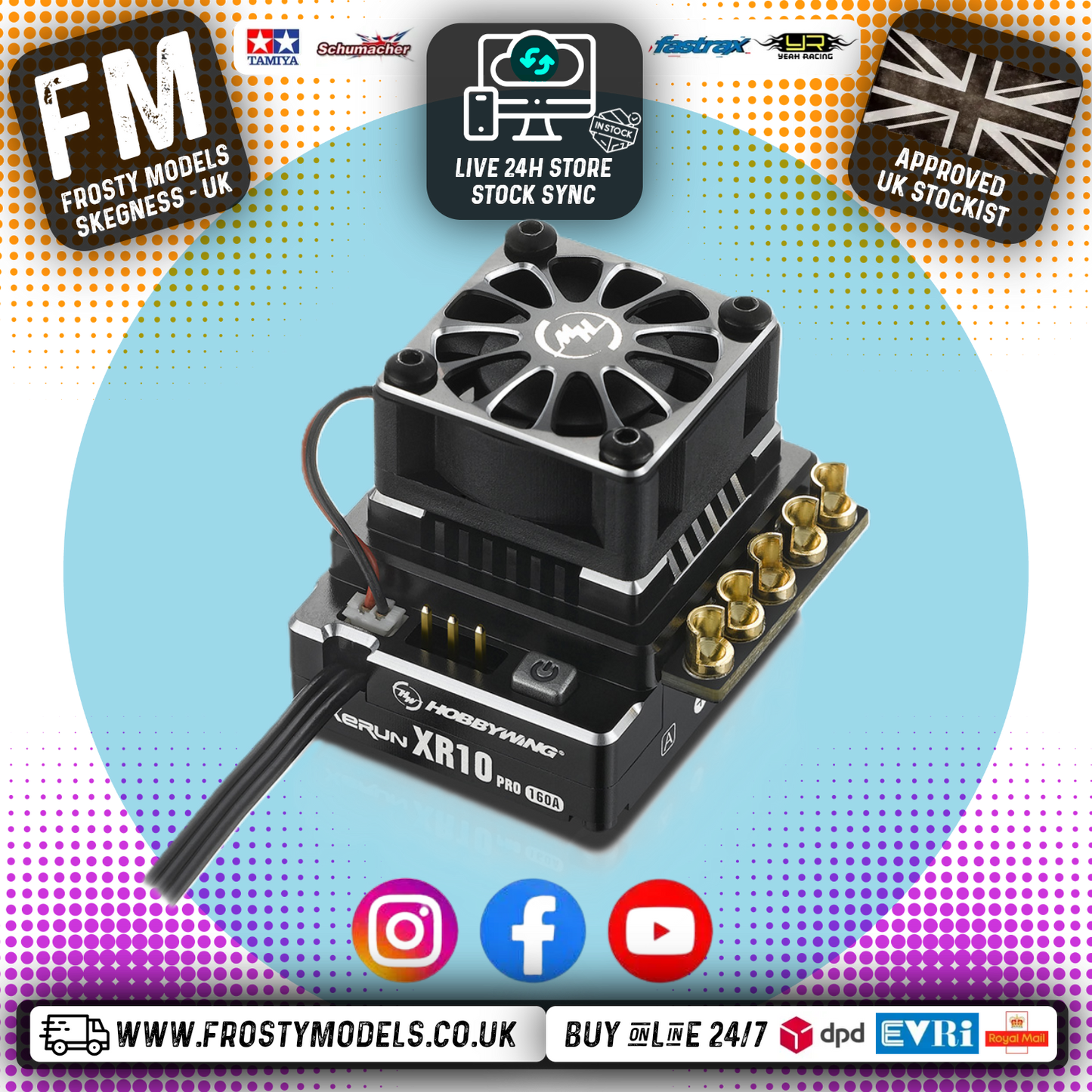

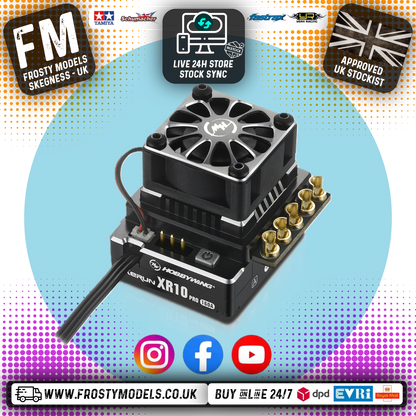

Hobbywing - XeRun XR10 Pro V4 - 160 Amp - Brushless ESC - HW30112600

Product Details

• High Power Output

  Continuous current of 160A and peak current of up to 1200A guarantees a stable and high power output during competitions.

  Special Design for Top Racing

  Reliable hardware combined with intelligent software (containing 10 common select-to-use profiles)
  creates an ideal power solution to 1/10th scale top touring car, Pan car and buggy racing.

  Programming / Upgrading / Data reading wirelessly

  With Hobbywing’s “WiFi Express” module and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.

  Adjustable Throttle & Brake PWM Frequencies

  Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate
  throttle and brake control for all classes of competitions (esp. the Stock class).

  Efficient Heat Dissipating System

  The aluminum casing and reticular heat sink combined with the HOBBYWING patented
  copper heat-conductive plates which are attached to the MOSFET board allows the internal
  heat to be quickly transferred to the heat sink for dissipation. With the high-performing detachable
  cooling fan, a highly reliable heat transfer system for maximum cooling is accomplished.

  High current/voltage BEC

  The built-in switch mode BEC with a maximum output of 8A and voltage adjustable
  between 6V and 7.4V allows the user to use various high voltage servos.

  Separate Programming/Fan Port

  The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LCD program box or WiFi module for ESC programming.

  Built-in Electronic Switch

  The internal electronic switch with a lifespan of over 50000 on/off cycles completely solves the problems like stuck reed, rusted contact points, and automatic shutdown conventional mechanical switches often have.

  Innovative data-logging Function

  This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in
  real time and allows the user to analyze the recorded data via a the LCD program box or WiFi module after each use.

  Specification


  Cont./Peak Current - 160A / 1200A

  BEC Voltage/Current - 6V/7.4V,4A

  BEC Voltage Regulation - Switch Mode

  Fan is Powered by - Powered by the BEC (prolongs the service life of the fan)

  Fan shroud - Yes

  Fan Speed - High

  Remote Off - Enabled/Disabled Switchable

  (Motor) Drive Mode - Full Sensored/ Sensored or Sensorless Hybrid

  COAST - Switchable

  PWM Drive Frequency - 0-20% Adjustable

  Brake Frequency - 1K/2K/4K/8K/12K/16K Adjustable

  Brake Mode - 0.5K/1K/2K/4K Adjustable

  Boost Timing Activation - Linear/Traditional/Hybrid Adjustable

  RPM/Auto Adjustable

  Input Wires - Black-13AWG-200mm*2

  Output Wires - Black-13AWG-200mm*3

  Input Connectors - No

  Output Connectors - No

  ESC Programing via

  SET Button on ESC - Not Supported

  LED Program Box - Not Supported

  LCD Program Box - Supported

  WiFi Module - Supported

  Programming Port - Separate

  Firmware Upgrade - Supported

  Size - 37.5X31.6X31.6mm

  Weight - 95g

  Motors - SL BL Motors / SD BL Motors

  Vehicles - 1/10th Touring Car/Buggy/Top Racing, 1/10th Drift Car/F1, 1/10th & 1/8th Crawler

  KV Rating/T/Count - 2S LiPo/6S NiMH: (Touring Car) T≥3.5T, (Buggy) T≥4.5T.

  3S LiPo/9S NiMH: (Touring Car) T≥6.5T, (Buggy) T≥8.5T.
